Page 1
Defender™ Series Base
Instruction Manual
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 2
Defender Series Base EN-1
INTRODUCTION
This manual covers installation, and maintenance instructions for the Ohaus Defender Series Base. Please read this manual
completely before installation and operation.
TM
SAFETY PRECAUTIONS
For safe and dependable operation of this product, please comply with the following precautions:
x Operate th
x Ensure that the load cell cable does not pose an obstruction or tripping hazard
x Do not operate the base in hazardous environments or unstable locations
x Do not drop loads on the base
x Do not lift the base by the top frame; always lift from the bottom frame when moving the base
x Service should only be performed by authorized personnel
e base only under ambient conditions specified in these instructions
INSTALLATION
Unpacking
Unpack and inspect the product to make sure that all components have been included. The package includes the following:
• Defender
n purchased as a complete Defender Series Scale, the package will also include:
Whe
TM
Series Base • Weighing Pan • Instruction Manual
• Indicator • Column Assembly (optional)
ASSEMBLY
Weighing Pan
Place the weighing pan securely over the rubber load pads on the top frame of the base.
Wiring Connections
DxxxHx, DxxxQx, and DxxxRx Bases
When connecting the DxxxHx, DxxxQx, or DxxxRx base to an Ohaus indicator equipped with the matching circular connector,
push the base connector onto the indicator connector and turn the locking ring clockwise to lock it in place.
When connecting the DxxxHx, DxxxQx, or DxxxRx base to an indicator that does not have the matching connector, install the
optional load cell cable adapter (P/N 80500736 sold separately) to the indicator using the wiring codes in Table 1. Then attach
the load cell cable to the cable adapter.
Note: As an alternate wiring method, cut off the connector, strip the wires and attach them to the indicator using the wiring codes
in Table 1.
DxxxWx Bases
Install the load cell cable to an indicator using the wiring codes in Table 1.
Note: When purchased as a Defender Series Scale, the DxxxWx base is already pre-wired to the indicator.
TABLE 1. LOAD CELL CONNECTION
FUNCTION WIRE
+ Excitation Green
- Excitation Black
+ Signal Red
- Signal White
+ Sense Blue
- Sense Brown
Shield Yellow
COLOR
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 3
EN-2 Defender Series Base
Selecting the Location
To ensure accuracy, proper performance and safety, locate and operate the base on a stable, level surface. Avoid locations with
rapid temperature changes or excessive dust, air currents, vibrations, electromagnetic fields or heat.
Level the base by adjusting the four leveling feet until the bubble in the level indicator is centered. A wrench may be needed to
loosen the locking nut above each leveling foot. When the base is level, retighten the locking nuts up against the base to lock
each foot into place.
Note: Ensure that the base is level each time its location is changed.
CORRECT INCORRECT
MAINTENANCE
Cleaning
The base components should be kept clean and free of excessive material build up.
x A damp cloth with water and a mild detergent may be used to wipe clean the external surfaces – do not use acids,
alkalis, strong solvents or abrasive materials.
To maintain surface integrity, do not allow food particles or liquids to remain on the surface of the painted or stainless steel base
frame.
x Remove the pan and use fresh water to clean the base frame surface of any food particles or liquids. Dry the base with
a clean cloth or allow to air dry before replacing the pan. Repeat daily for best care.
Troubleshooting
Aside from installing components and leveling adjustments, the Defender Series Base does not require any other adjustments as
shipped from the factory.
Operational difficulties that may be encountered can often be traced to simple causes such as:
x Loose or incorrect wiring connections
x Obstructions to the base frame
x Unstable environments
x Incorrect calibration or setup of the indicator
If the troubleshooting section does not resolve or describe your problem, contact your authorized Ohaus service agent. For
service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST.
An Ohaus product service specialist will be available to provide assistance. Outside the USA, please visit our web site,
www.ohaus.com to locate the Ohaus office nearest you.
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 4
Defender Series Base EN-3
TECHNICAL DATA
Technical Specifications
The technical data is valid under the following ambient conditions:
Ambient temperature: -10ºC to +40 ºC
Relative humidity: 10% to 90% relative humidity, non-condensing
Height above sea level: Up to 2,000m
Operability is assured at ambient temperature -10ºC to +40 ºC
Note: not all models may be available in your area. Check with your local Ohaus representative.
TABLE 2.1 SPECIFICATIONS
MODEL D15HR D30HR D60HR
Capacity 15 kg / 30 lb 30 kg / 60 lb 60 kg / 150 lb
Approved Resolution OIML: 3000e, NTEP: 3000d
Safe Overload Capacity 150% of capacity
Pan Dimensions 305 x 355 mm / 12 x 14 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 30 kg 50 kg 100 kg
Load Cell Cable 2 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 9 kg / 19.8 lb
Shipping Weight 10.9 kg / 24 lb
TABLE 2.2. SPECIFICATIONS
MODEL D60HL D100HL D150HX D300HX
Capacity 60 kg / 100 lb 100 kg / 250 lb 150 kg / 300 lb 300 kg / 600 lb
Approved Resolution OIML: 3000e,
NTEP: 3000d
Safe Overload Capacity 150% of capacity
Pan Dimensions 400 x 500 mm / 15.7 x 19.7 in 420 x 550 mm / 16.5 x 21.6 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 100 kg 150 kg 300 kg 500 kg
Load Cell Cable 2 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 19.1 kg / 42.1 lb 24.5 kg
Shipping Weight 22 kg / 48.5 lb 27.1 kg / 59.7 lb
OIML: 3000e,
NTEP: 2500d
OIML: 3000e,
NTEP: 3000d
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 5
EN-4 Defender Series Base
TABLE 2.3 SPECIFICATIONS
MODEL D10QR D15QR D25QR D30QR D50QL
Capacity 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb 50 kg / 100 lb
Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d
Safe Overload Capacity 150% of capacity
Pan Dimensions 305 x 305 mm /
12 x 12 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 30 kg 30 kg 50 kg 50 kg 100 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 12.2 kg / 26.9 lb 27.2 kg / 60 lb
Shipping Weight 14.2 kg / 31.3 lb 29 kg / 64 lb
457 x 457 mm /
18 x 18 in
TABLE 2.4 SPECIFICATIONS
MODEL D60QL D100QL D150QL D250QX D300QX
Capacity 60 kg / 150 lb 100 kg / 250 lb 150 kg / 300 lb 250 kg / 500 lb 300 kg / 600 lb
Approved Resolution OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 457 x 457 mm /
18 x 18 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 100 kg 150 kg 200 kg 500 kg 500 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 27.2 kg / 60 lb 35 kg / 77 lb
Shipping Weight 29 kg / 64 lb 41 kg / 90 lb
610 x 610 mm /
24 x 24 in
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 6
Defender Series Base EN-5
TABLE 2.5 SPECIFICATIONS
MODEL D10WR D15WR D25WR D30WR D50WL
Capacity 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb 50 kg / 100 lb
Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d
Safe Overload Capacity 150% of capacity
Pan Dimensions 305 x 305 mm /
12 x 12 in
Base Construction Stainless Steel platform with stainless steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 30 kg 30 kg 50 kg 50 kg 100 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, stainless steel, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 12.2 kg / 26.9 lb 27.2 kg / 60 lb
Shipping Weight 14.2 kg / 31.3 lb 29 kg / 64 lb
457 x 457 mm /
18 x 18 in
TABLE 2.6 SPECIFICATIONS
MODEL D60WL D100WL D150WL D250WX D300WX
Capacity 60 kg / 150 lb 100 kg / 250 lb 150 kg / 300 lb 250 kg / 500 lb 300 kg / 600 lb
Approved Resolution OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 457 x 457 mm /
18 x 18 in
Base Construction Stainless Steel platform with stainless steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 100 kg 200 kg 200 kg 500 kg 500 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, stainless steel, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP67
Net Weight 27.2 kg / 60 lb 35 kg / 77 lb
Shipping Weight 29 kg / 64 lb 41 kg / 90 lb
610 x 610 mm /
24 x 24 in
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 7
EN-6 Defender Series Base
TABLE 2.7 SPECIFICATIONS
MODEL D5RS D6RS D10RS D15RS D25RR D30RR
Capacity 5 kg / 10 lb 6 kg / 15 lb 10 kg / 25 lb 15 kg / 30 lb 25 kg / 50 lb 30 kg / 60 lb
Approved Resolution NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e NTEP: 5000d OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 240 x 300 mm /
9.4 x 11.8 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 11 kg 22 kg 50 kg
Load Cell Cable 1 m L x 6-wire 2 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP65
Net Weight 5.9 kg / 13 lb 9.9 kg / 22 lb
Shipping Weight 8.1 kg / 18 lb 12 kg / 26.5 lb
300 x 400 mm /
11.8 x 15.7 in
TABLE 2.8 SPECIFICATIONS
MODEL D50RR D50RL D50RX D60RR D60RL D60RX
Capacity 50 kg / 100 lb 50 kg / 100 lb 50 kg / 100 lb 60 kg / 150 lb 60 kg / 150 lb 60 kg / 150 lb
Approved Resolution NTEP: 5000d NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 300 x 400 mm
11.8 x 15.7 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std.
deviation)
Linearity ±1d
Load Cell Capacity 100 kg
Load Cell Cable 2 m L x 6-wire 2.5 m L x 6-wire 2 m L x 6-wire 2.5 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP65
Net Weight 9.9 kg / 22 lb 19.4kg / 43lb 22.3 kg / 49 lb 9.9 kg / 22 lb 19.4 kg / 43 lb 22.3 kg / 49 lb
Shipping Weight 12 kg / 26.5 lb 22.3kg / 49lb 27.8 kg / 61 lb 12 kg / 26.5 lb 22.3 kg / 49 lb 27.8 kg / 61 lb
400 x 500 mm
15.7 x 19.7 in
500 x 650 mm
19.7 x 25.6 in
300 x 400 mm
11.8 x 15.7 in
1d
400 x 500 mm
15.7 x 19.7 in
500 x 650 mm
19.7 x 25.6 in
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 8
Defender Series Base EN-7
TABLE 2.9 SPECIFICATIONS
MODEL D100RL D100RX D100RV D150RL D150RX
Capacity 100 kg / 250 lb 100 kg / 250 lb 100 kg / 250 lb 150 kg / 300 lb 150 kg / 300 lb
Approved Resolution NTEP: 5000d NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 400 x 500 mm
15.7 x 19.7 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 250 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP65
Net Weight 19.4 kg / 43 lb 22.3 kg / 49 lb 36.8 kg / 81 lb 19.4 kg / 43 lb 22.3 kg / 49 lb
Shipping Weight 22.3 kg / 49 lb 27.8 kg / 61 lb 63.2 kg / 139 lb 22.3 kg / 49 lb 27.8 kg / 61 lb
500 x 650 mm
19.7 x 25.6 in
600 x 800 mm
23.6 x 31.5 in
400 x 500 mm
15.7 x 19.7 in
500 x 650 mm
19.7 x 25.6 in
TABLE 2.10 SPECIFICATIONS
MODEL D150RV D250RX D250RV D300RX D300RV
Capacity 150 kg / 300 lb 250 kg / 500 lb 250 kg / 500 lb 300 kg / 600 lb 300 kg / 600 lb
Approved Resolution OIML: 3000e NTEP: 5000d NTEP: 5000d OIML: 3000e OIML: 3000e
Safe Overload Capacity 150% of capacity
Pan Dimensions 600 x 800 mm
23.6 x 31.5 in
Base Construction Stainless Steel platform with painted steel frame and rubber leveling feet
Repeatability (std. deviation) 1d
Linearity ±1d
Load Cell Capacity 250 kg 500 kg
Load Cell Cable 2.5 m L x 6-wire
Load Cell Type 350 Ohm, aluminum, single point
Load Cell Excitation 5-15V DC/AC
Load Cell Rated Output 2mV/V
Load Cell Protection IP65
Net Weight 36.8 kg / 81 lb 22.3 kg / 49 lb 36.8 kg / 81 lb 22.3 kg / 49 lb 36.8 kg / 81 lb
Shipping Weight 63.2 kg / 139 lb 27.8 kg / 61 lb 63.2 kg / 139 lb 27.8 kg / 61 lb 63.2 kg / 139 lb
500 x 650 mm
19.7 x 25.6 in
600 x 800 mm
23.6 x 31.5 in
500 x 650 mm
19.7 x 25.6 in
600 x 800 mm
23.6 x 31.5 in
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 9
EN-8 Defender Series Base
Drawings

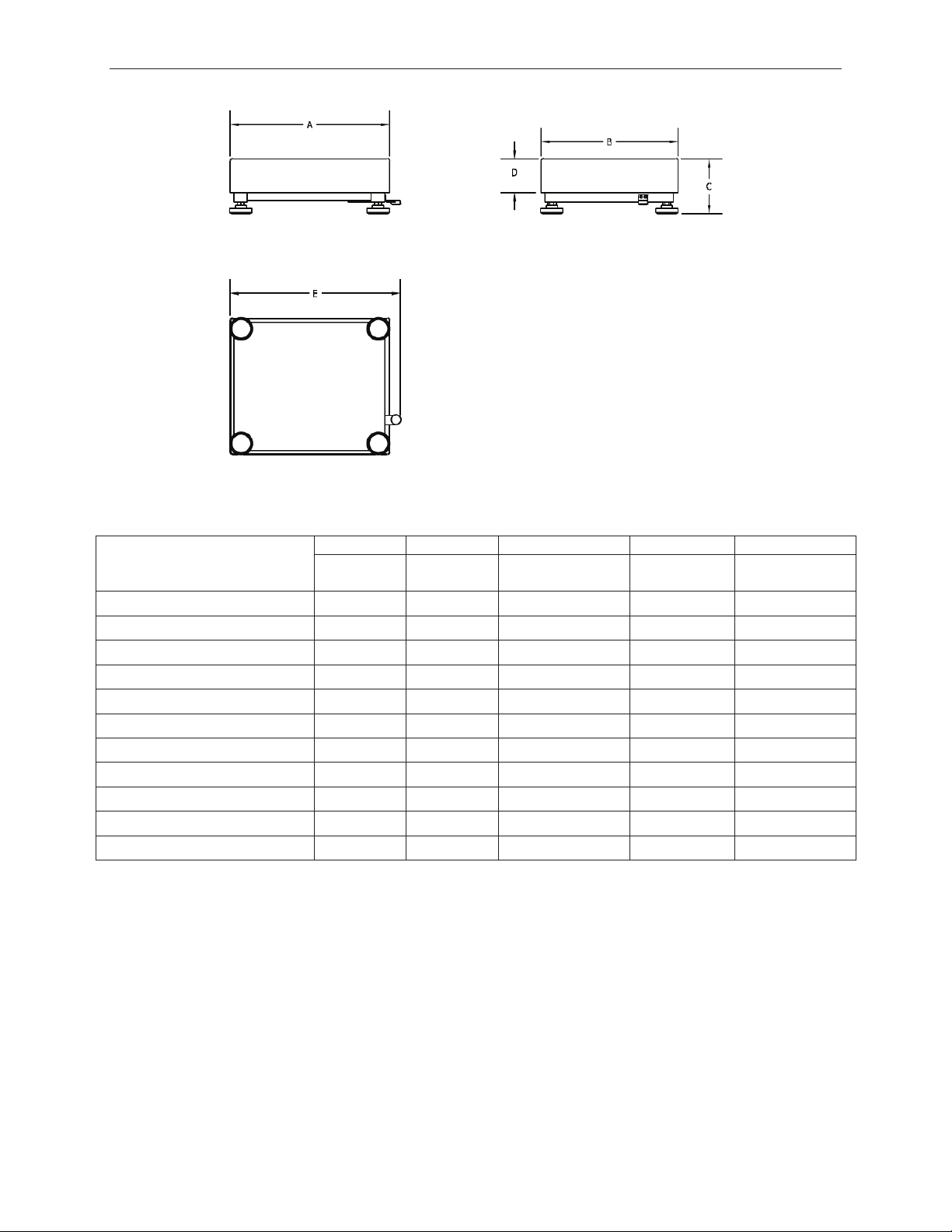

Figure 1. Defender Base Dimension Drawing.
TABLE 3. DIMENSIONS
A B C D E
Base
DxxxHR 355 mm 305 mm 95 mm 50 mm 385 mm
DxxxHL 500 mm 400 mm 105 mm 60 mm 530 mm
DxxxHX 550 mm 420 mm 125 mm 70 mm 580 mm
DxxQR, DxxxWR 305 mm 305 mm 95 mm 52 mm 335 mm
DxxxQL, DxxxWL 457 mm 457 mm 115 mm 70 mm 487 mm
DxxxQX, DxxxWX 610 mm 610 mm 137 mm 90 mm 640 mm
DxxxRS 300 mm 240 mm 80 mm 44 mm 330 mm
DxxxRR 400 mm 300 mm 86 mm 50 mm 430 mm
DxxRL 500 mm 400 mm 86 mm 48 mm 530 mm
DxxxRX 650 mm 500 mm 110 mm 73 mm 695 mm
DxxxRV 800 mm 600 mm 120 mm 83 mm 840 mm
*For leveling purposes, the feet may be extended up to an additional 15 mm.
Pan Depth Pan Width
Height of Pan to
Surface of Table*
Height of Pan
Depth Including
Level Indicator
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 10
Defender Series Base EN-9
Compliance
This product conforms to the EMC directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.
The complete declaration of Conformity is available online at www.ohaus.com.
Disposal
In conformance with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE)
this device may not be disposed of in domestic waste. This also applies to countries outside the EU, per their
specific requirements.
Please dispose of this product in accordance with local regulations at the collecting point specified for electrical
and electronic equipment.
If you have any questions, please contact the responsible authority or the distributor from which you purchased
this device.
Should this device be passed on to other parties (for private or professional use), the content of this regulation
must also be related.
For disposal instructions in Europe, refer to www.ohaus.com, choose your country then search for WEEE.
Thank you for your contribution to environmental protection.
ISO 9001 Registration
In 1994, Ohaus Corporation, USA, was awar
(BVQI), confirming that the Ohaus quality management system is compliant with the ISO 9001 standard’s requirements.
On May 21, 2009, Ohaus Corporation, USA, was re-registered to the ISO 9001:2008 standard.
ded a certificate of registration to ISO 9001 by Bureau Veritus Quality International
Accessories
TABLE 4. ACCESSORIES
Description Part Number
Base Mount Kit, painted steel 80500722
Column Kit, 35 cm painted steel 80500723
Column Kit, 68 cm painted steel 80500724
Column Kit, 35 cm stainless steel 80500725
Column Kit, 68 cm stainless steel 80500726
Load Cell Cable Adapter Kit 80500736
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Page 11
EN-10 Defender Series Base
LIMITED WARRANTY
Ohaus product
warranty period. During the warranty period Ohaus will repair, or, at its option, replace any component(s) that proves to be
defective at no charge, provided that the product is returned, freight prepaid, to Ohaus. This warranty does not apply if the
product has been damaged by accident or misuse, exposed to radioactive or corrosive materials, has foreign material
penetrating to the inside of the product, or as a result of service or modification by other than Ohaus. In lieu of a properly returned
warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. No other express or
implied warranty is given by Ohaus Corporation. Ohaus Corporation shall not be liable for any consequential damages.
As warranty legislation differs from state to state and country to country, please contact Ohaus or your local Ohaus dealer for
further details.
s are warranted against defects in materials and workmanship from the date of delivery through the duration of the
Find Quality Products Online at: [email protected]
www.GlobalTestSupply.com
Loading...
