Ohaus CQ100L33-2EO, CQ25R33-2EO, CQ50L33-2EO, CQ250XL33-2EO, CQ10R33-2EO Data Sheet

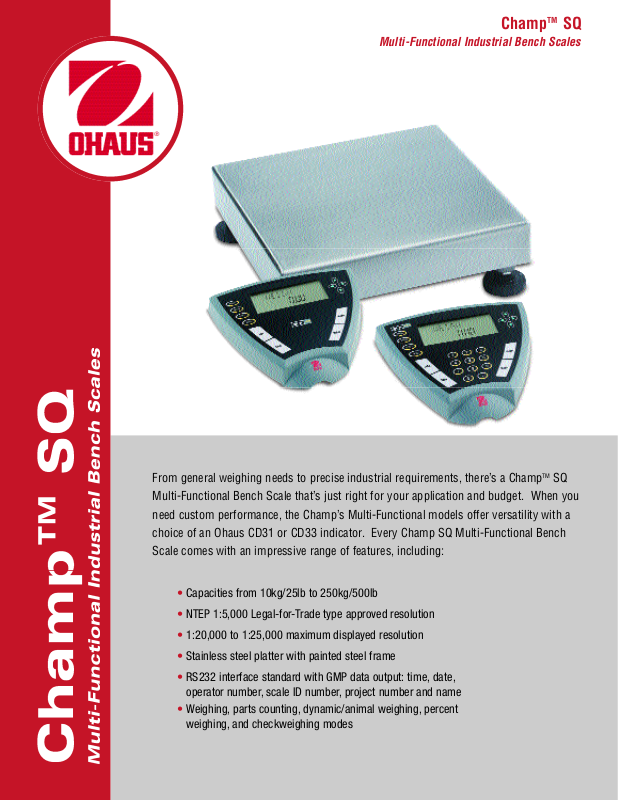

ChampTMSQ
Multi-Functional Industrial Bench Scales
From general weighing needs to precise industrial requirements, there’s a ChampTMSQ
Multi-Functional Bench Scale that’s just right for your application and budget. When you
need custom performance, the Champ’s Multi-Functional models offer versatility with a
choice of an Ohaus CD31 or CD33 indicator. Every Champ SQ Multi-Functional Bench
Scale comes with an impressive range of features, including:
• Capacities from 10kg/25lb to 250kg/500lb
• NTEP 1:5,000 Legal-for-Trade type approved resolution
• 1:20,000 to 1:25,000 maximum displayed resolution
• Stainless steel platter with painted steel frame
• RS232 interface standard with GMP data output: time, date,
operator number, scale ID number, project number and name
• Weighing, parts counting, dynamic/animal weighing, percent
weighing, and checkweighing modes
T M
C h a m p
Standard Models
Capacity
x
Readability
Maximum displayed re s o l u t i o n 1:20,000 1:25,000 1:25,000 1:20,000 1:25,000
NTEP* resolution 1:5,000 1:5,000 1:5,000 1:5,000 1:5,000
Platform size (w x d x h) (in) 12 x 12 x 4 12 x 12 x 4 18 x 18 x 4.1 18 x 18 x 4.1 24 x 24 x 6.4
Weight (scale unit) 20 lb 20 lb 51 lb 51 lb 76 lb
Item number with CD31 C Q 1 0 R 3 1 C Q 2 5 R 3 1 C Q 5 0 L 3 1 C Q 1 0 0 L 3 1 CQ250XL31
Item number with CD33 CQ 1 0 R 3 3 C Q 2 5 R 3 3 C Q 5 0 L 3 3 C Q 1 0 0 L 3 3 C Q 2 5 0 X L 3 3
General Specifications
Indicator model CD31 or CD33
Weighing units lb, kg, g, custom unit
Weighing modes Weighing, parts counting, dynamic/animal weighing,
Stabilization time 1 – 4 seconds depending upon filter selection
Over range capacity Maximum capacity + 9d
A u t o - z e r o tracking O f f, 0.5, 1 or 3 divisions
Z e r oing range 2%, 18% or 100% of capacity
Span calibration 10% to 100%
Repeatability per NTEP 5000d
Display 1-inch / 25.4mm digit height, 2-line LCD, weigh and prompt message
Keyboard (with CD31) 8 function, 4 cursor membrane keys
Power AC adapter (standard)
Base construction Stainless steel platform / Painted steel frame
Safe overload capacity 150% of rated load
Operating temperature 14° F to 104° F / -10° C to 40° C
Champ SQ Multi-Functional Bench Scale models meet the r equirements of approval agencies: UL, FCC, CSA, CE.
*NTEP Legal for Trade type approval: Certificate of Conformance no. 01-049
Measurement Canada Notice of Approval no. AM5339 (CD31/33 indicators) / pending for base, as of 8/30/01
Standard Features
Stainless steel platform with painted steel frame construction, RS232 bi-directional interface,
GMP data output: time/date/operator number/scale ID number/project number/name, easy to read
2-line LCD display, Gross/Net/Tare function, auto-off timer, low battery warning, adjustable averaging
and stability levels, retain zero data, auto-zero tracking, leveling feet and leveling bubble.
Optional Accessories
RS232 interface cables, adjustable tower mount, scale mount bracket, wall mount bracket,
42 column impact printer.
Industry Leading Quality and Support
All Ohaus Champ Bench Scales are manufactured under an ISO 9001:2000 Registered Quality Management
System. Our rugged construction and stringent quality control have been hallmarks of all Ohaus
p ro d u c t s for nearly a century.
Default 25 x 0.001 lb 50 x 0.002 lb 100 x 0.005 lb 250 x 0.01 lb 500 x 0.02 lb
10 x 0.0005 kg 25 x 0.001 kg 50 x 0.002 kg 100 x 0.005 kg 250 x 0.01 kg
NTEP* 25 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb 250 x 0.05 lb 500 x 0.10 lb
10 x 0.002 kg 25 x 0.005 kg 50 x 0.01 kg 100 x 0.02 kg 250 x 0.05 kg
(cm) 30 x 30 x 10 30 x 30 x 10 45 x 45 x 10.4 45 x 45 x 10.4 60 x 60 x 16
(with CD33) 8 function, 4 cursor, 11 numeric membrane keys
S Q
p e r cent weighing and checkweighing
Multi-Functional Bench Scales
Ohaus Corporation
* 19A Chapin Road
P.O. Box 2033
Pine Brook, NJ 07058 USA
Tel: 800.672.7722
973.377.9000
Fax: 973.593.0359
www.ohaus.com
With offices throughout Europe,
Asia, and Latin America
* ISO 9001: 2000
Registered Quality Management System
