Compact Series
Instruction Manual
Page 2
EN-1Compact Series Scales
1. INTRODUCTION
This manual contains installation and operation instructions for the Compact Series
Scales. Please read the manual completely before using the scale.
1.1 Safety Precautions
Please follow these safety precautions:
• Verify that the AC Adapter input voltage matches the local AC power supply.
• Use the scale only in dry locations.
• For best results, use the scale in the specified optimum operating
temperature.
• Do not operate the scale in hostile or unstable environments.
• Use your scale with care, gently loading items to be weighed onto the center
of the pan. Avoiding rough treatme
1.2. General Product Features
• Power Up test: When the scale is turned on, all display segments will be
displayed for a few seconds, indicating that the unit is self adjusting to zero.
Once the “0” is displayed, the scale is ready for use.
• Stable Reading indication: A star indicator will appear in the lower left
corner of the display when a stable reading has been reached.
• Overload: If the applied load exceeds the capacity of the scale, an “E” will
appear on the display and the load should be removed immediately. The
scale will return to normal operation.
• Tare Function: Values can progressively be added to a sample. By pressing
the On/Off Zero button, the scale display returns to zero. After adding
additional mass, press On/Off Zero to zero the scale again. Additional mass
may be added up to the capacity of the scale.
• Negative Value: When a load is removed from the scale, any zeroed value
will be displayed as a negative number. To return to normal operation, the
zeroed value can be cancelled by pressing On/Off Zero button.
• Low Battery Indication: The display will show “Lo” when the batteries are
weak and need to be replaced.
nt will aid in the life of your scale.
Page 3
EN-2 Compact Series Scales
• Auto Shut-Off: To extend battery life, the scale will automatically turn off after
approximately (4) minutes if no active weighing is occurring. This feature is
active with battery operation only.
2. INSTALLATION
2.1 Power
Power the scale using the AC power adapter (not included with CSxxxE) or 3 AA
batteries.
Battery Installation
Remove the battery cover on the bottom of t
batteries into the compartment as indicated.
Do not use excessive force or press on the weighing pan.
Re insert the battery cover.
AC Power Connection
Connect the AC adapter (not i
scale.
Plug the AC adapter into a properly grounde
ncluded with CSxxxE) to the receptacle at the rear of the

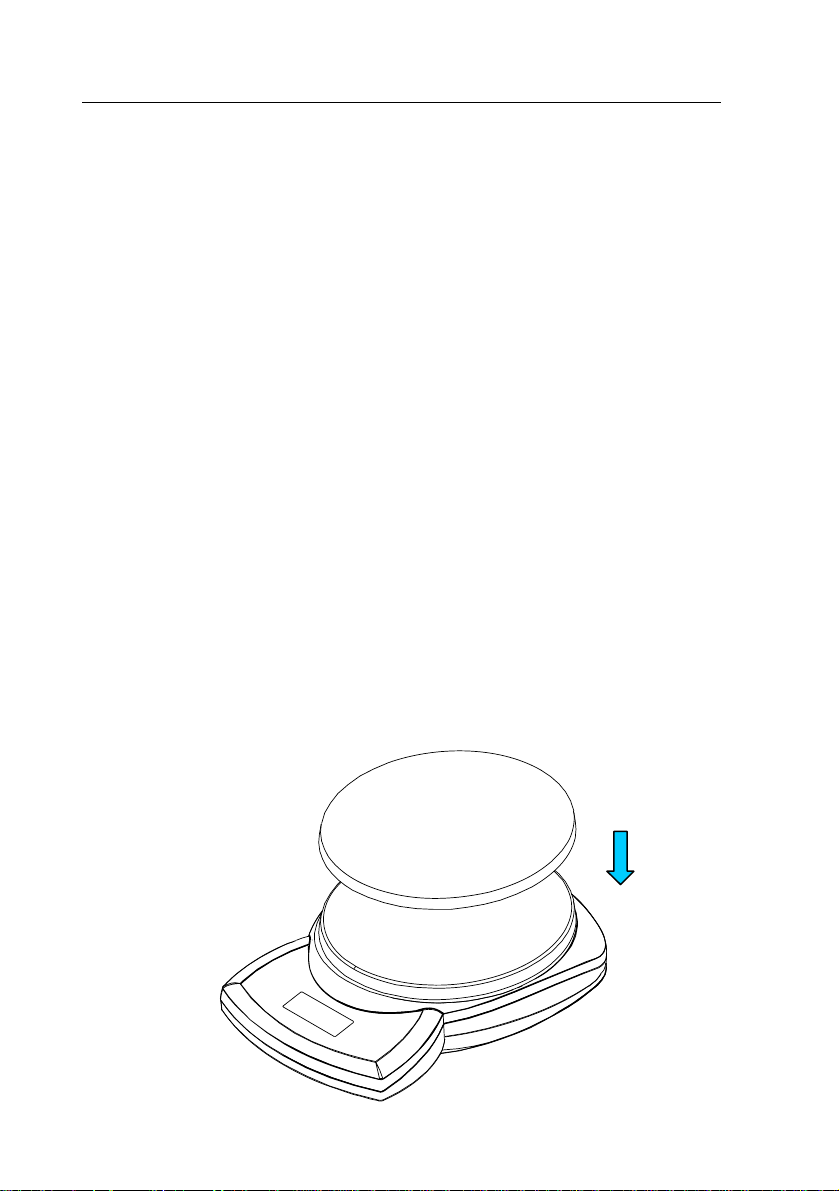

2.2 Stainless Steel pan (provided with some models)
Place the stainless steel pan (if provided) onto the weighing platform before turning
the scale on. The scale can be operated without the pan, if desired.
he scale and place the 3 “AA” size
d electrical outlet.
Page 4
EN-3Compact Series Scales
3. OPERATION
3.1 Two Button Keypad
• On/Off Zero: Pressing this button turns on the scale. This same button
operates the zero feature when the scale is on. Press and hold this button for
three seconds to turn the scale off.
• Unit Cal: Press this button briefly to change the weighing unit. Press and
hold this button to begin the calibration process.

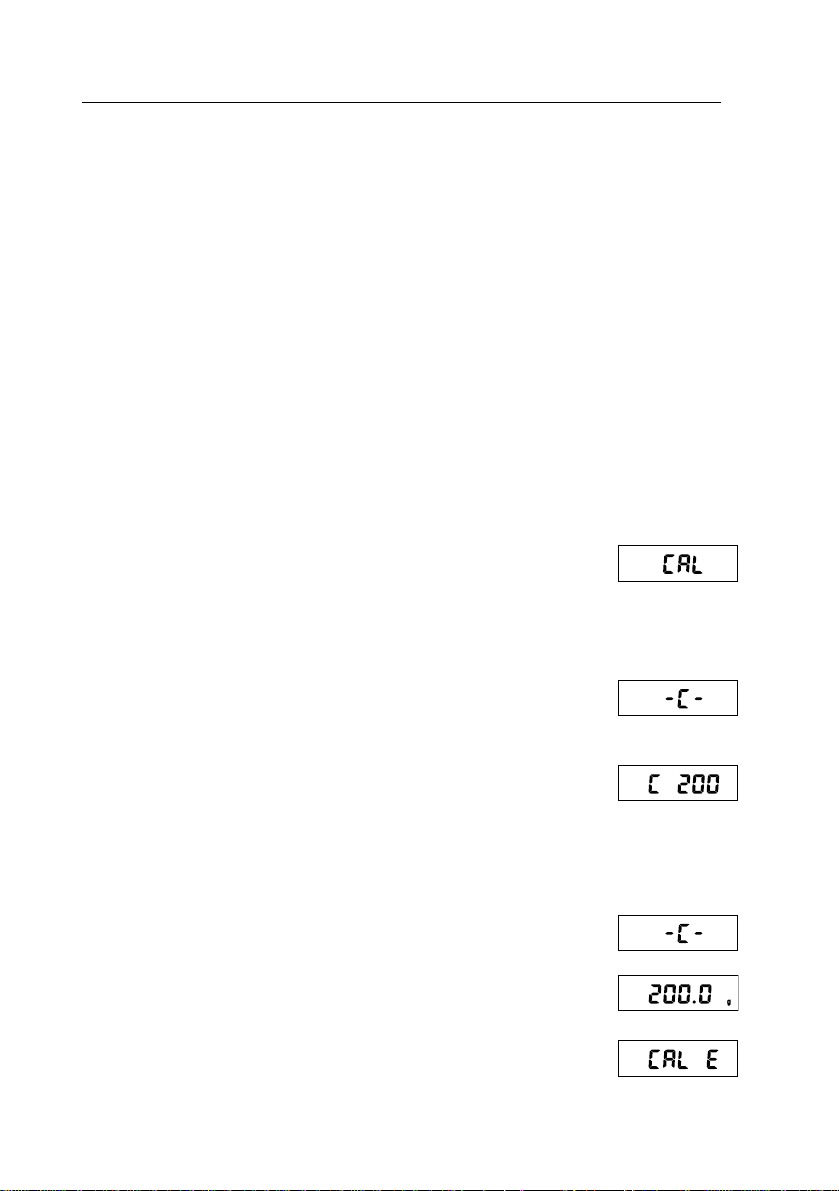

3.2 Calibration
For best results calibrate the scale at regular intervals. This is especially important if
the scale is in use for prolonged periods.
Calibration weights are not provided with the scale
• Press and hold the Unit Cal button to start the
ation process. The display will show CAL.
calibr
• The calibration process can be aborted by t
scale off.
• Press the On
display shows –C– while the scale stores the zero
load signal.
• The display will show C xxx where xxx is the
calibr
• Place the appropriate calibration weight on the
orm.
platf
• Press the On
• The display shows –C– while the scale stores the
calibr
• After calibration, the display retu
weighing mode.
The message CAL E will appear if the calibration steps are not
ed or the wrong weight was used.
follow
/Off Zero button to capture 0. The
ation weight in grams.
/Off Zero button.
ation point signal.
rns to the normal
urning the
Page 5
EN-4 Compact Series Scales
4. ACCESSORIES
AC Power adapter: Ohaus Part No.
Universal Adapter 46001724
Universal Plugs kit (4) 46001780
Calibration Masses:
200g (for 200,300 models) 51025-25
1000g (for 2000 model) 51025-16
2000g (for 2500, 5000 models) 51025-26
1050 ml Bowl 80850075
Stainless steel pan 80850076
Carrying Case 80010624
5. SERVICE INFORMATION
For service assistance or technical support in the United States call toll-free 1-800526-0659 between 8.00 AM and 5:00 PM EST. An Ohaus product service specialist
will be available to provide assistance. Outside the USA, please visit our web site,
www.ohaus.com to locate the Ohaus Office nearest you.
6. TECHNICAL DATA
6.1 Specifications
TABLE 6-1. SPECIFICATIONS.
Model 200 300 2000 2500 5000
Capacity (g) 200 300 2000 2500 5000
Readability (g) 0.1 0.1 1 1 1
Repeatability (g) 0.1 0.1 1 1 1
Linearity (g) (+/-) 0.1 0.1 1 1 1
Weighing Units CS
JR
JRxxxT
Tare Range To capacity by subtraction
Stabilization Time
Power Requirements
Calibration Digital with external weight
Optimum Operating Temperature 64° to 77°F / 18° to 25°C
Typical Battery Life 300 hours
Overall Size (mm/in) 205 x 140 x 40 / 8.00 x 5.50 x 1.58
Pan Size (mm / in) 145 x 133 / 5.75 x 5.25
Net Weight (kg / lb) 0.4 / 0.9
Shipping Weight (kg / lb) 1.0 / 2.0
AC Adapter (not included with CSxxxE) or 3-AA (LR6) alkaline
grams, ounces, pound:ounces, Newtons
grams, pound:ounces, troy ounc
grams, Hong Kong tael, Singapore tael, Taiwan tael
≤ 3 sec
b
atteries
es, pennyweights
onds
Page 6
EN-5Compact Series Scales
6.2 Compliance
Compliance to the following standards is indicated by the corresponding mark on the
.
product
Mark Standard
This product conforms to the EMC directive 2
Low Voltage Directive 2006/95/EC. The complete declaration of
Conformity is available from Ohaus Corporation.
AS/NZS4251.1, AS/NZS4252.1
Disposal
In conformance with the European Directive 2002/96 EC on Waste
FCC Note
This equipment has been tested and found to
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient
ical and Electronic Equipment (WEEE) this device may not be
Electr
disposed of in domestic waste. This also applies to countries outside the
EU, per their specific requirements.
Please dispose of this product in accordance with local regulations at
the collecti
If you have any questions, please contact the responsible authority or
the distr
Should this device be passed on to other parties (for private or
professi
Thank you for your contribution to envir
For disposal instructions in Europe, refer to www.ohaus.com/weee.
or relocate the receiving antenna.
ng point specified for electrical and electronic equipment.
ibutor from which you purchased this device.
onal use), the content of this regulation must also be related.
onmental protection.
comply with the limits for a Class B
004/108/EC and the
Page 7
EN-6 Compact Series Scales
• Increase the separation betwe
• Connect the equipment i
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Indu
stry Canada Note
This Class B digital apparatus complies with Canadian ICES-003.
ISO 9001 Registration
In 1994, Ohaus Corporation,
9001 by Bureau Veritus Quality International (BVQI), confirming that the Ohaus
quality management system is compliant with the ISO 9001 standard’s
requirements. On May 15, 2003, Ohaus Corporation, USA, was re-registered to the
ISO 9001:2000 standard.
Ohaus products are warranted against defects in materials and workmanship from
ate of deli
the d
period Ohaus will repair, or, at its option, replace any component(s) that proves to
be defective at no charge, provided that the product is returned, freight prepaid, to
Ohaus. This warranty does not apply if the product has been damaged by accident
or misuse, exposed to radioactive or corrosive materials, has foreign material
penetrating to the inside of the product, or as a result of service or modification by
other than Ohaus. In lieu of a properly returned warranty registration card, the
warranty period shall begin on the date of shipment to the authorized dealer. No
other express or implied warranty is given by Ohaus Corporation. Ohaus Corporation
shall not be liable for any consequential damages.
As warranty legislation differs from state to state and country to country, please
contact Oh
very through the duration of the warranty period. During the warranty
aus or your local Ohaus dealer for further details.
en the equipment and receiver.
nto an outlet on a circuit different from that to which the
USA, was awar
LIMITED WARRANTY
a certificate of registration to ISO
ded
