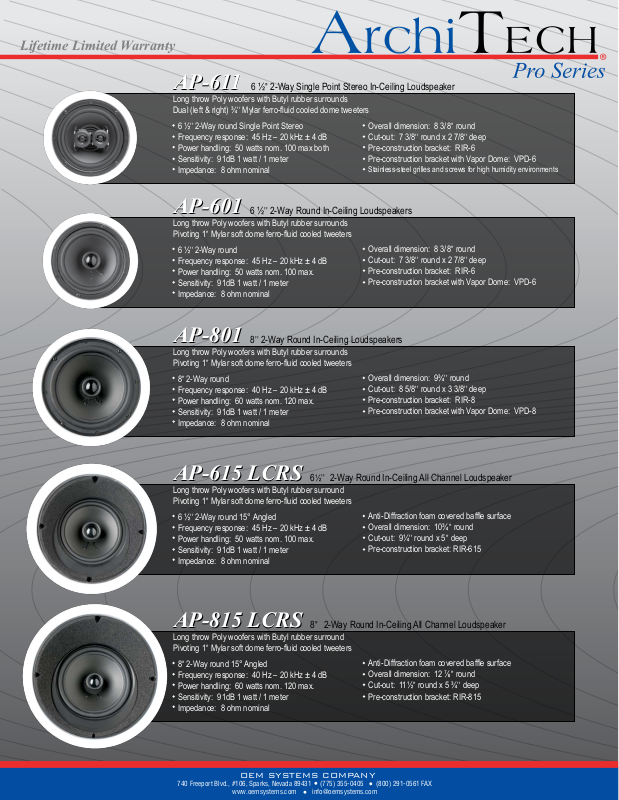

OEM Systems 030 User Manual

Lifetime Limited Warranty

AP-611

AP-611

Long throw Poly woofers with Butyl rubber surrounds
Dual (left & right) ¾'' Mylar ferro-uid cooled dome tweeters

6 ½'' 2-Way round Single Point Stereo
Frequency response: 45 Hz – 20 kHz ± 4 dB
Power handling: 50 watts nom. 100 max both
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

AP-601

AP-601

Long throw Poly woofers with Butyl rubber surrounds
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters

6 ½'' 2-Way round
Frequency response: 45 Hz – 20 kHz ± 4 dB
Power handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

AP-801

AP-801

Long throw Poly woofers with Butyl rubber surrounds
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters

8'' 2-Way round
Frequency response: 40 Hz – 20 kHz ± 4 dB
Power handling: 60 watts nom. 120 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

6 ½'' 2-Way Single Point Stereo In-Ceiling Loudspeaker

6 ½'' 2-Way Round In-Ceiling Loudspeakers

8'' 2-Way Round In-Ceiling Loudspeakers

Overall dimension: 8 3/8'' round
Cut-out: 7 3/8'' round x 2 7/8'' deep
Pre-construction bracket: RIR-6
Pre-construction bracket with Vapor Dome: VPD-6

Stainless-steel grilles and screws for high humidity environments

Overall dimension: 8 3/8'' round
Cut-out: 7 3/8'' round x 2 7/8'' deep
Pre-construction bracket: RIR-6
Pre-construction bracket with Vapor Dome: VPD-6

Overall dimension: 9¾'' round
Cut-out: 8 5/8'' round x 3 3/8'' deep
Pre-construction bracket: RIR-8
Pre-construction bracket with Vapor Dome: VPD-8

AP-615 LCRS

AP-615 LCRS

Long throw Poly woofers with Butyl rubber surround
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters

6 ½'' 2-Way round 15° Angled
Frequency response: 45 Hz – 20 kHz ± 4 dB
Power handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

AP-815 LCRS

AP-815 LCRS

Long throw Poly woofers with Butyl rubber surround
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters

8'' 2-Way round 15° Angled
Frequency response: 40 Hz – 20 kHz ± 4 dB
Power handling: 60 watts nom. 120 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

6½'' 2-Way Round In-Ceiling All Channel Loudspeaker

8'' 2-Way Round In-Ceiling All Channel Loudspeaker

Anti-Diffraction foam covered bafe surface
Overall dimension: 10¾'' round
Cut-out: 9¼'' round x 5'' deep
Pre-construction bracket: RIR-615

Anti-Diffraction foam covered bafe surface
Overall dimension: 12 ⅞'' round

Cut-out: 11½'' round x 5 ¾'' deep
Pre-construction bracket: RIR-815

740 Freeport Blvd., #106, Sparks, Nevada 89431 [phone] [phone] FAX

OEM SYSTEMS COMPANY

www.oemsystems.com [e-mail]

Lifetime Limited Warranty

AP-602

AP-602

Long throw Poly woofers with Butyl rubber surrounds
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters
Mounting provision for IR device

6½'' 2-Way Rectangular
Frequency response: 45 Hz – 20 kHz ± 4 dB
Power handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

AP-802

AP-802

Long throw Poly woofers with Butyl rubber surrounds
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters
Mounting provision for IR device

8'' 2-Way Rectangular
Frequency response: 40 Hz – 20 kHz ± 4 dB
Power handling: 60 watts nom. 120 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

6½'' 2-Way Rectangular In-Wall Loudspeakers

8'' 2-Way Rectangular In-Wall Loudspeakers

Overall dimension: 9 1/16''W x 12¾''H
Cut-out: 8''W x 11¾''H x 3 ¼'' deep
Pre-construction bracket: RIB-62

Overall dimension: 10½''W x 14½''H
Cut-out: 9''W x 13''H x 3¼'' deep
Pre-construction bracket: RIB-82
Pre-construction bracket with Vapor Dome: VPD-82

AP-525 LCRS

AP-525 LCRS

Long throw Poly woofers with Butyl rubber surround
Pivoting 1'' Mylar soft dome ferro-uid cooled tweeters
Mounting provision for IR device

Dual 5¼'' 2-Way Rectangular MTM
Frequency response: 45 Hz – 20 kHz ± 4 dB
Power handling: 50 watts nom. 100 max.
Sensitivity: 91dB 1 watt / 1 meter
Impedance: 8 ohm nominal

740 Freeport Blvd., #106, Sparks, Nevada 89431 [phone] [phone] FAX

OEM SYSTEMS COMPANY

www.oemsystems.com [e-mail]

Dual 5¼'' 2-Way All Channel In-Wall Loudspeaker

Overall dimension: 9''W x 15¾''H
Cut-out: 7⅞'' x 14 7/16'' x 3½'' deep
Pre-construction bracket: RIB-LCR
Orient vertically or horizontally

CEDIA
