KEVLAR
KEVLAR
SERIES
SERIES
Mission Impossible
Kevlar is an amazing fibrous material developed by
two DuPont research scientists in 1965. The
technology developed by Stephanie Kwolek and
Herbert Blades proved to be stronger, more durable
and lighter than any other material available. Kevlar
is 5 times stronger than steel of the same weight.
These unique properties lend Kevlar to a wide
variety of applications. As you may know, one of
first and most well known applications is for bulletresistant vests used by law enforcement as well as
the military because of the superior bullet stopping
power it provides without adding weight and
restricting movement.
Products made with DuPont's Kevlar–from
loudspeaker cones and protective apparel to
automotive parts and ropes used on the Mars
Pathfinder–do more, go farther, last longer, and do
the impossible.
Page 2
OEM SYSTEMS COMPANY products are
recommended by professional audio/video
system designers throughout North America.
All of the products in this brochure are
manufactured in our ISO 9002 Registered
Company Factory.
OEM stands for Original Equipment
Manufacturing, which is the foundation of our
business. It is the area we started in 17 years ago
in Huntington Beach, California. The people of
OEM have long histories in designing and
manufacturing loudspeaker products for leading
brand name corporations. Our innovative ideas,
commitment to customer satisfaction, and a lot
of hard work have allowed us to grow into the
company you see today. Now operating out of
Sparks, Nevada, we are proud of our products
and ideals and are continuing to grow as a
trusted and respected business.
Great designs and great materials are the two
ingredients that go into great loudspeakers. Like
so many other things, it is just that simple. Wellknown brand name loudspeakers have one
additional ingredient: advertising. OEM does
not advertise. We pass this tremendous savings
on to our customers and let the products speak
for themselves.
Our speakers use a mix of classic, time-proven
and new, cutting-edge technology & materials.
Well-engineered crossover networks with
premium quality components, together with
attractive frame/baffle assemblies and solid
mounting systems, yield loudspeaker
performance-value ratios that are second to
none.
We back our products with a Lifetime Limited
Warranty and pride ourselves on always
delivering 100% customer satisfaction. Thank
you for taking the time to consider our products.
We know you will be pleased with their quality
and value.
SE-694 KE
5 ¼" long throw black Kevlar woofer with
butyl surround and Phase Plug pole piece
1" pivoting textile soft dome tweeter
12 dB/octave crossover
Poly-switch overdrive protection
91 dB sensitivity
Frequency Response: 50 Hz - 20,000Hz
Power Handling: 40 watts nom. 80 watts max.
8 Ohms
Cut-out dimensions: 5 9/16" W x 8 1/4" H x 2 3/8" D
Overall dimensions: 6 5/8" W x 9 1/4" H
SE-790 KE
6 ½" long throw black Kevlar woofer with
butyl surround and Phase Plug pole piece
1" pivoting textile soft dome tweeter
12 dB/octave crossover
Poly-switch overdrive protection
IR knock-out
91 dB sensitivity
Frequency Response: 45 Hz - 20,000 Hz
Power Handling: 50 watts nom. 100 watts max.
8 Ohms
Cut-out dimensions: 7 3/8" W x 10 7/8" H x 3 1/8" D
Overall dimensions: 8 5/8" W x 12 1/8" H
SE-892 KE
8" long throw black Kevlar woofer with
butyl surround and Phase Plug pole piece
1" pivoting textile soft dome tweeter
12 dB/octave crossover
Poly-switch overdrive protection
IR knock-out
91 dB sensitivity
Frequency Response: 35 Hz - 20,000 Hz
Power Handling: 60 watts nom. 120 watts max.
8 Ohms
Cut-out dimensions: 9" W x 13" H x 3 1/4" D
Overall dimensions: 10 1/2" W x 14 1/2" H
SE-893 KE
8" long throw black Kevlar woofer with
butyl surround and Phase Plug pole piece
1" pivoting textile soft dome tweeter
1 1/2" textile soft dome midrange
12 dB/octave crossover
Poly-switch overdrive protection
IR knock-out
SE-LCR KE
Dual 5 1/4" long throw black Kevlar
woofers with butyl surround and
Phase Plug pole pieces
magnetically shielded
*Horizontal mounting requires minimum 13 15/16" between studs
91 dB sensitivity
Frequency Response: 35 Hz - 20,000 Hz
Power Handling: 60 watts nom. 120 watts max.
8 Ohms
Cut-out dimensions: 9" W x 13" H x 3 1/4" D
Overall dimensions: 10 1/2" W x 14 1/2" H
5.1, 6.1 & 7.1 Home Theater Systems
suitable for left center right applications
may be oriented vertically or horizontally
1" pivoting textile soft dome tweeter
12 dB/octave crossover
Poly-switch overdrive protection
IR knock-out
91 dB sensitivity
Frequency Response: 45 Hz - 20,000 Hz
Power Handling: 50 watts nom. 100 watts max.
8 Ohms
*Sheetrock cut-out: 7 7/8" x 14 7/16" x 3 1/2" D
Overall dimensions: 9" x 15 3/4"
SC-520 KE
5 ¼" black Kevlar woofer with butyl surround
¾" pivoting textile soft dome tweeter
91 dB sensitivity
12 dB/octave crossover
Frequency Response: 50 Hz - 20,000Hz
Power Handling: 30 watts nom. 60 watts max.
8 Ohms
Cut-out dimensions: 6 1/2" round 2 3/8" deep
Overall dimensions: 7 1/2" round
SC-620 KE
6 ½" black Kevlar woofer with butyl surround
¾" pivoting textile soft dome tweeter
91 dB sensitivity
12 dB/octave crossover
Frequency Response: 45 Hz - 20,000 Hz
Power Handling: 40 watts nom. 80 watts max.
8 Ohms
Cut-out dimensions: 7 3/8" round 2 7/8" deep
Overall dimensions: 8 3/8" round
SC-820 KE
8" black Kevlar woofer with butyl surround
1" pivoting textile soft dome tweeter
91 dB sensitivity
12 dB/octave crossover
Frequency Response: 35 Hz - 20,000 Hz
Power Handling: 50 watts nom. 100 watts max.
8 Ohms
Cut-out dimensions: 8 5/8" round 3 3/8" deep
Overall dimensions: 9 3/4" round
SC-622 K Dual Voice Coil Single Point Stereo
6" black Kevlar woofer with butyl surround
Dual (L+R) ¾" dome tweeters
91 dB sensitivity
Frequency Response: 45 Hz - 20,000 Hz
Power Handling: 40 watts nom. 80 watts max.
8 Ohms
Cut-out dimensions: 7 3/8" round 2 7/8" deep
Overall dimensions: 8 3/8" round
SC-822 K Dual Voice Coil Single Point Stereo
8" black Kevlar woofer with butyl surround
Dual (L+R) ¾" dome tweeters
91 dB sensitivity
Frequency Response: 35 Hz - 20,000 Hz
Power Handling: 50 watts nom. 100 watts max.
8 Ohms
Cut-out dimensions: 8 5/8" round 3 1/2" deep
Overall dimensions: 9 3/4" round
Page 3

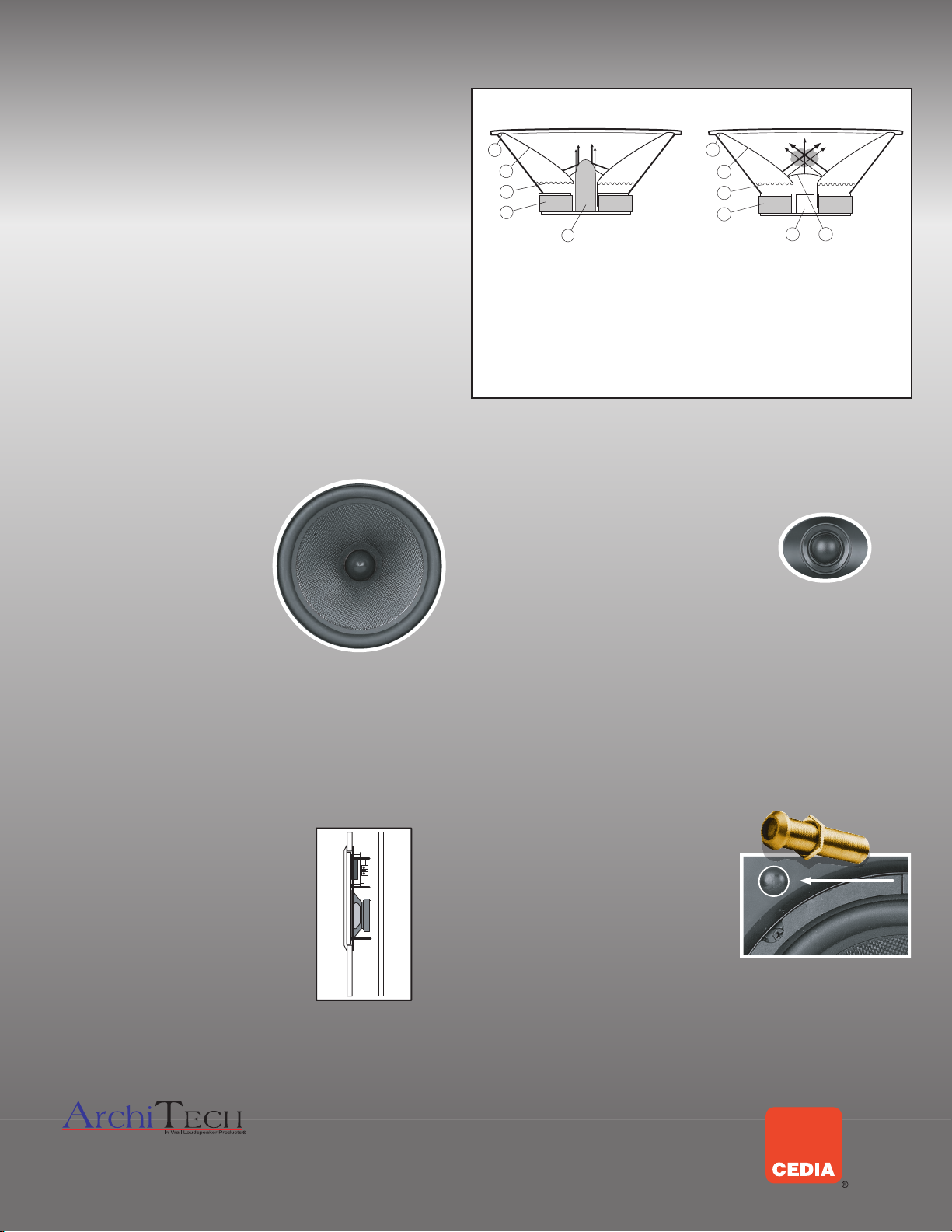

Phase Plug Technology
In any conventional speaker, the highest frequencies of audio
emanate from the area around the center of the cone and the lower
with Phase Plug without Phase Plug
frequencies are produced by the area of the cone that is farther
from the center. In fact, the distance from the center at which a
sound wave will come off of a speaker cone is directly related to its
frequency. This helps explain why larger cone speakers are usually
capable of producing more bass.
Due to the shape of the conventional speaker cone, the higher
frequency sound waves tend to collide at a focal point. This causes
phase distortion and a loss in efficiency. As a result, accuracy and
transparency suffer. This also has detrimental effects on the realism
of the artificial sound environments created by today's high fidelity
digital audio and surround sound systems.
The phase plug pole piece extension improves driver performance
and clarity by deflecting delicate mid range audio out to the
listening environment thereby minimizing distortion producing
E
D
C
B
A
A - Phase plug pole piece extension
B - Magnet
C - Spider (centers the cone vertically and horizontally)
D - Speaker cone
E - Surround
F - Conventional pole piece
G - Conventional dust cover
E
D
C
B
G
F
collisions.
Black Kevlar Woofers Pivoting Textile Soft Dome Tweeters
The strength of Kevlar helps the
cone retain its shape at very high
energy levels and its low mass
assures quick, accurate response.
The cone's woven surface delivers
smooth, uncolored mids. The kapton
voice coil former and butyl rubber
surround mean these woofers are designed
for years of consistent, reliable audio enjoyment.
In our experience with various tweeter
diaphragm materials, we have determined
that the textile soft dome most
consistently delivers natural, uncolored high
frequency audio. Ferro Fluid lubricates and cools the voice coil
enabling high power handling. The pivoting feature allows the
high frequency audio to be directed toward the main listening
area. High frequency audio radiates from any speaker like the
beam of a flashlight. This makes it necessary to aim the tweeter at
the listening position to experience the full efficiency and detail
that the speaker system is capable of delivering. These features
work together to produce a seamless, transparent sound stage.
Clamp-Ring Mounting
Our rectangular in-wall models utilize a
clamp-ring mounting system which
maximizes clamping surface. By
distributing the clamping force over a
larger surface area, the pressure on your
sheet rock is reduced while the overall
mounting strength is increased. The
mounting ring comes pre-assembled to
the speaker frame dramatically reducing
installation time.
IR Receiver Knockouts
The 6 ½" and 8" rectangular in-wall
speakers feature a mounting
provision for a remote control
signal receiver behind the speaker
grille. This allows discrete
integration with an infrared
receiver/repeater system. These
systems work with your standard IR
remote controls to allow command of your entire system from
any equipped room in your house.
OEM Systems Company, Inc.
740 Freeport Blvd., #106 Sparks, NV 89431-6168
775 355-0405 775 355-0646 Fax
www.oemsystems.com [email protected]
