Ocean Optics IDRaman User Manual

Protective Eye Wear Should Be Worn

WARNING

IDRaman mini

Handheld Raman System

Installation and Operation Manual

Document Number 000-40000-010-02-201311

Offices:

Ocean Optics, Inc.

830 Douglas Ave., Dunedin, FL, USA 34698

Phone [phone]

Fax [phone]

8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST

000-00000-000-02-A

E-mail: [e-mail] (General sales inquiries)

[e-mail] (Questions about orders)
[e-mail] (Technical support)

When Usin g This Instrume nt - Intense
Radiation Present

See Important Safety N otices inside.

Additional
Offices:

Ocean Optics Asia

666 Gubei Road, Kirin Tower, Suite 601B, Changning District,
Shanghai, PRC. 200336

Phone [phone]

Fax [phone]
E-Mail [e-mail]

Ocean Optics EMEA

Sales and Support Center
Geograaf 24, 6921 EW DUIVEN, The Netherlands

Phone [phone]

Fax [phone]
E-Mail [e-mail]

Regional Headquarters
Maybachstrasse 11
73760 Ostfildern

Phone [phone]
Fax [phone]
E-Mail [e-mail]

Copyright © 2013 Ocean Optics, Inc.

All rights reserved. No part of this publication may be reproduced, s t ored i n a retri e val system, or transmitted, by any means, electronic,
mechanical, photocopying, recording, or otherwise, without written permission from Ocean Opt ics, Inc.
This manual is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or
otherwise circulated with out the pr ior consent of Ocean Optics, Inc. in an y form of bin di ng or cover other than that in which it is published.

Trademarks

Microsoft, Windows, Wind ow s 95, Windows 98, Windows Me, Windows NT, Windows 2000, Wind ow s X P an d Excel are either registered
trademarks or trademarks of Microsoft Corporation.

Limit of Liability

Every effort h as been made to make this manual as complete and as ac cu rate as possible, but no warranty or fitness is imp lied. The information
provided is on an “ as is” basis. Ocean Optics, Inc. sha ll have neither liab i lity nor responsibility to any person or e ntit y w ith r esp ec t t o an y loss or
damages arising from the inform a t i on contained in this manual.

Important Safety Notices

The laser de scribed here is safe to oper ate, provided the user pays attention to all safet y warnings:

1. Post warnings in the area of the laser beam to alert those present.

2. Keep all unauthorized personnel ou t of the area where the laser is operated .

3. Whenever the laser is running and the beam is not in use, it is good operating practice to

mechanically block the path.

4. Never look directly into the laser source or scattering laser light from any reflectiv e surface.

Never sight down the beam into the source.

5. Maintain experimental setup at low heights to prevent inadvertent beam-eye contact.

6. As a precaution against accidental exposures to the output beam or its reflection, operators should

wear laser saf et y glas s es att en ua ted to th e wa vel en g th b ein g gen er at ed .

For additional information :
Laser Institut e of Ame ri ca

13501 Ingenuity Drive, Suite 128
Orlando, FL 32826

Toll Free: 1-800-345-2737
Tel: [phone]
Fax: [phone]

000-40000-010-02-201311 A

Important Safety Notices

Laser Safety

WARNING

This device is intended for use by trained personnel only. Use of controls or
adjustments, or performance of procedures other than those described in this
manual may result in hazardous laser radiation exposure.

This is a class IIIB laser device and up to 100 mW of 785nm (NIR) laser light may be emitted during data
acquisition. Only personnel trained in laser safety protocols should be allowed to use this instrument.

The aperture w arning label indicat e s whe r e las e r radi at ion m a y be emit ted fr o m the instru ment when
using the point-and-shoot attachmen t. The laser safety goggles provided in the unit accessory kit must be
worn when using the point-and-shoot attachment.

Internal main tenance or repair mus t be p erf or med at th e fa ctory or by authorized per s onn e l onl y.

B 000-40000-010-02-201311

Locations of the Warning Labels

Remote Interlock

The IDRaman mini has remote interlock capability via the ID pin in the Micro U SB port. Contact Ocean
Optics for more information on the remote interlock connector.

Nominal Optical Hazard Distance Calculations

The IDRaman mini is a Class IIIB laser d evice, containing a 785nm, 100mW rated laser di ode. These
Class IIIB devices are hazardous when intra-beam ocular (eye) exposure occurs, i.e., when one
intentionally or unintentionally looks directly into the beam from within the Nominal Optical Hazard
Distance (NOHD). Never look directly in to any laser b eam. The inform ation and calculations below
contain details of th e intr a-beam NOHD calcul at ion f or the ID R a man min i (78 5) i n accord an ce w ith th e
recognized inte rn ati on al st an dard , IEC -60825-1, Safety of Laser Products, 2nd ed., 2007.

Assumptions

Safety interlock(s) failed or bypassed; Raster (motor) stalled or stopped; Laser on continuously at
maximum possible component power of 140mW, CW.

General Equation

C 000-40000-010-02-201311

Important Safety Notices

Condition 1

Sample door open; Safety interlock defeated or failed; No auxiliary lenses present:
N.O.H.D. = 10.3 cm (4.06 in.)

Condition 2

Point and Shoot attachment installed:
N.O.H.D. = 11.5 cm (4.53 in.)

D 000-40000-010-02-201311

Table of Contents

About This Manual .............................................................................................................iii

Document Purpose and Intended Audience .............................................................................. iii

Document Summary .................................................................................................................. iii

Product-Related Documentation ............................................................................................... iii

Upgrades ............................................................................................................................iii

Warranty .............................................................................................................................iv

Chapter 1: Introduction ....................................................................... 1

Overview .............................................................................................................................1

Features .............................................................................................................................1

Models ................................................................................................................................2

About Raster Orbital Scanning (ROS) ...............................................................................3

Chapter 2: Set-up a nd Operati on ........................................................ 5

Overview .............................................................................................................................5

Point and Shoot Adapter ....................................................................................................5

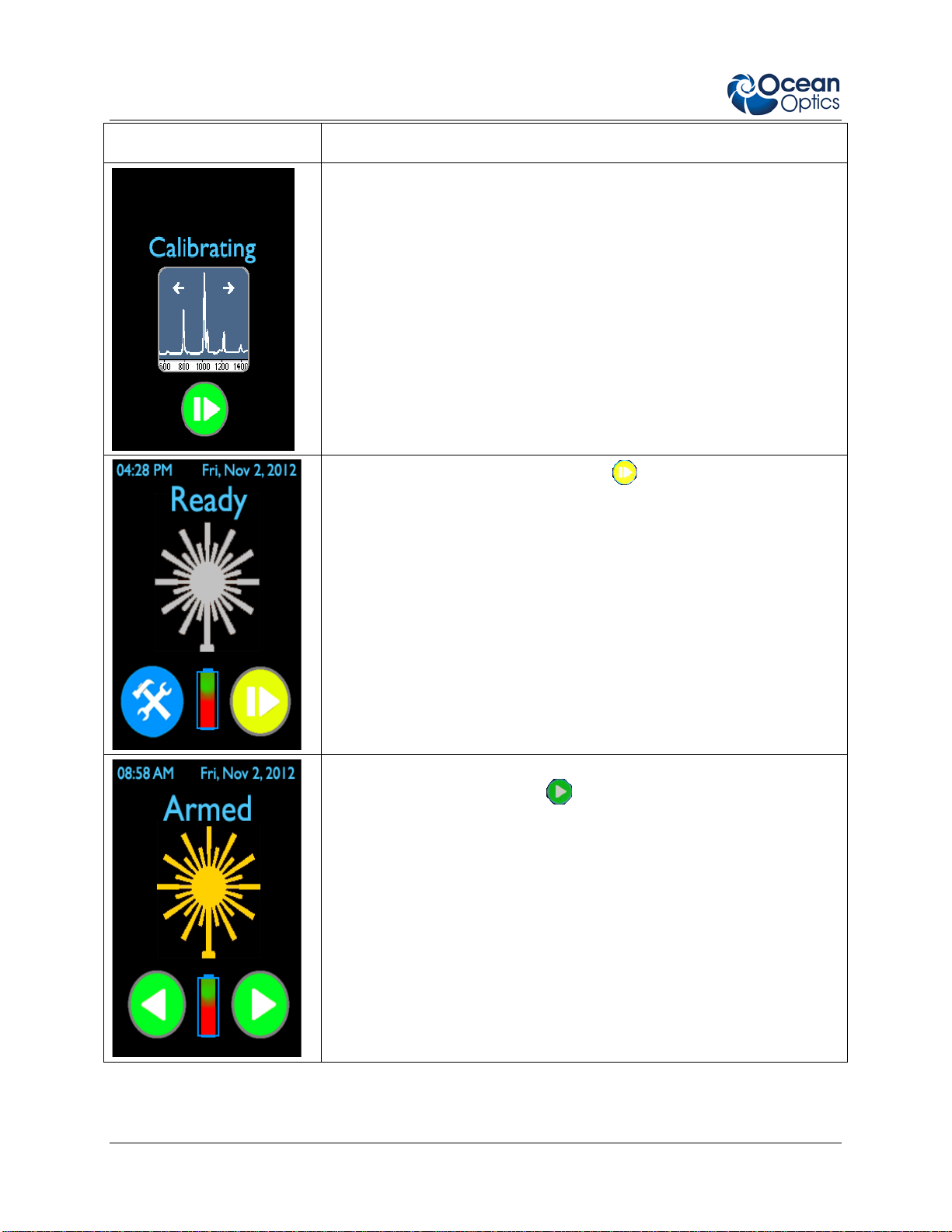

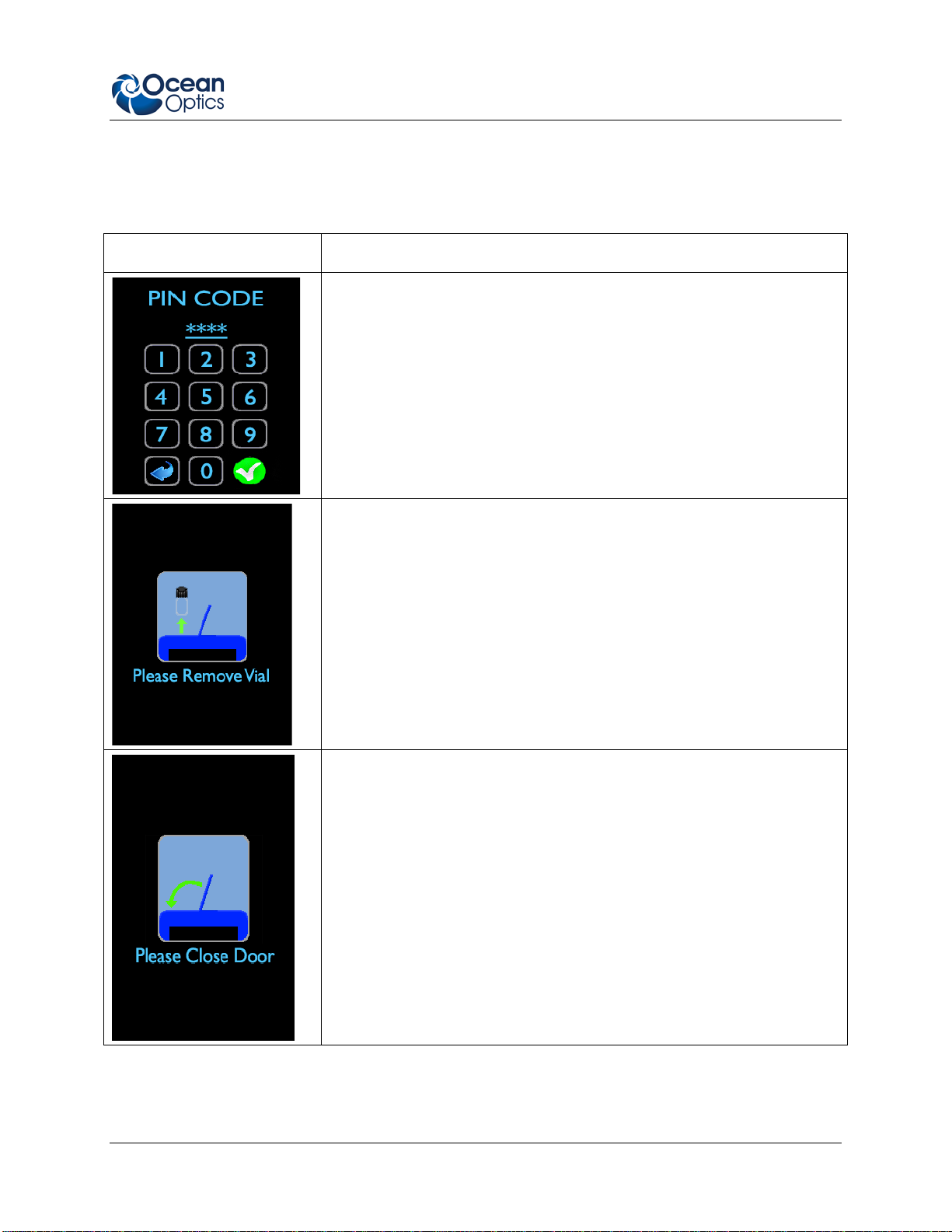

Controls and Indicators ......................................................................................................7

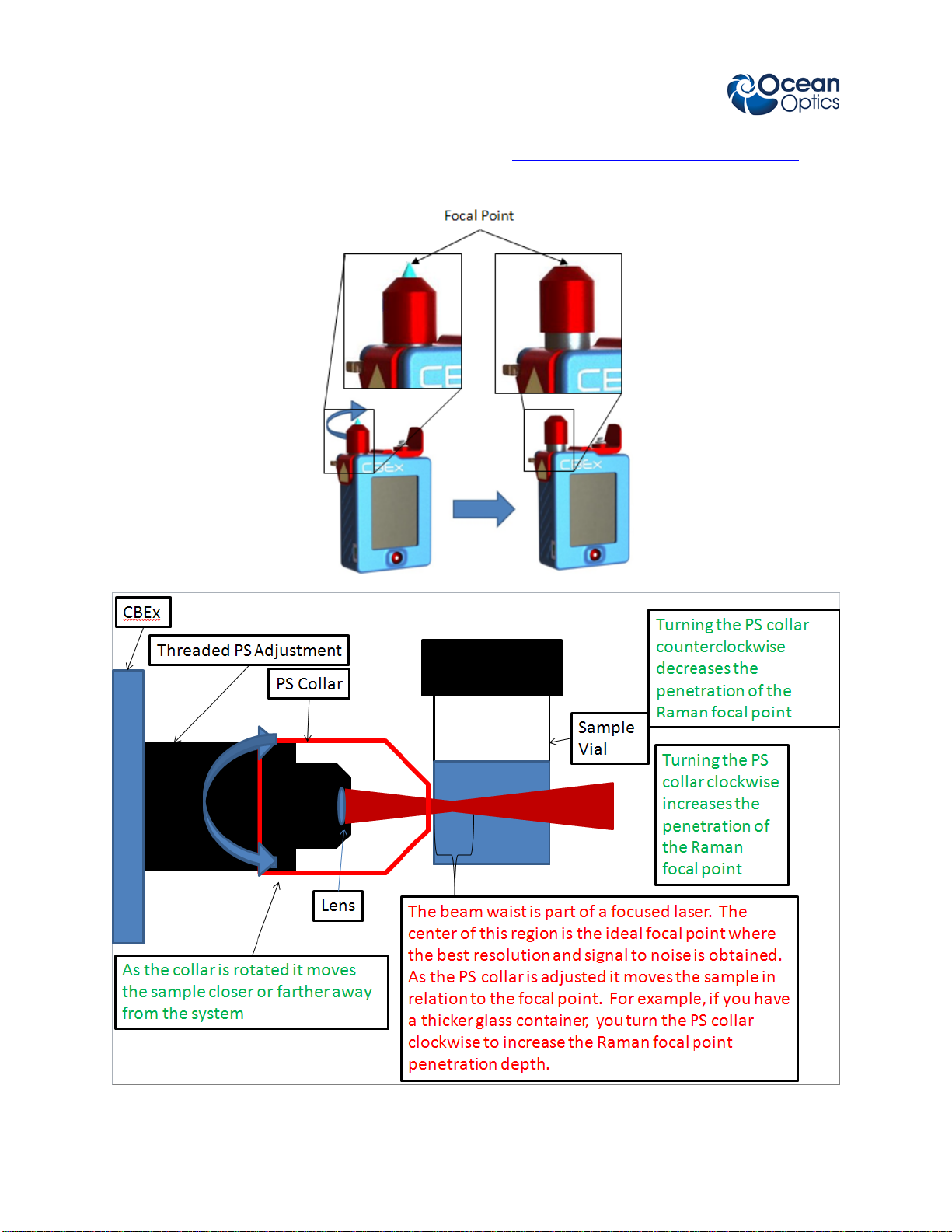

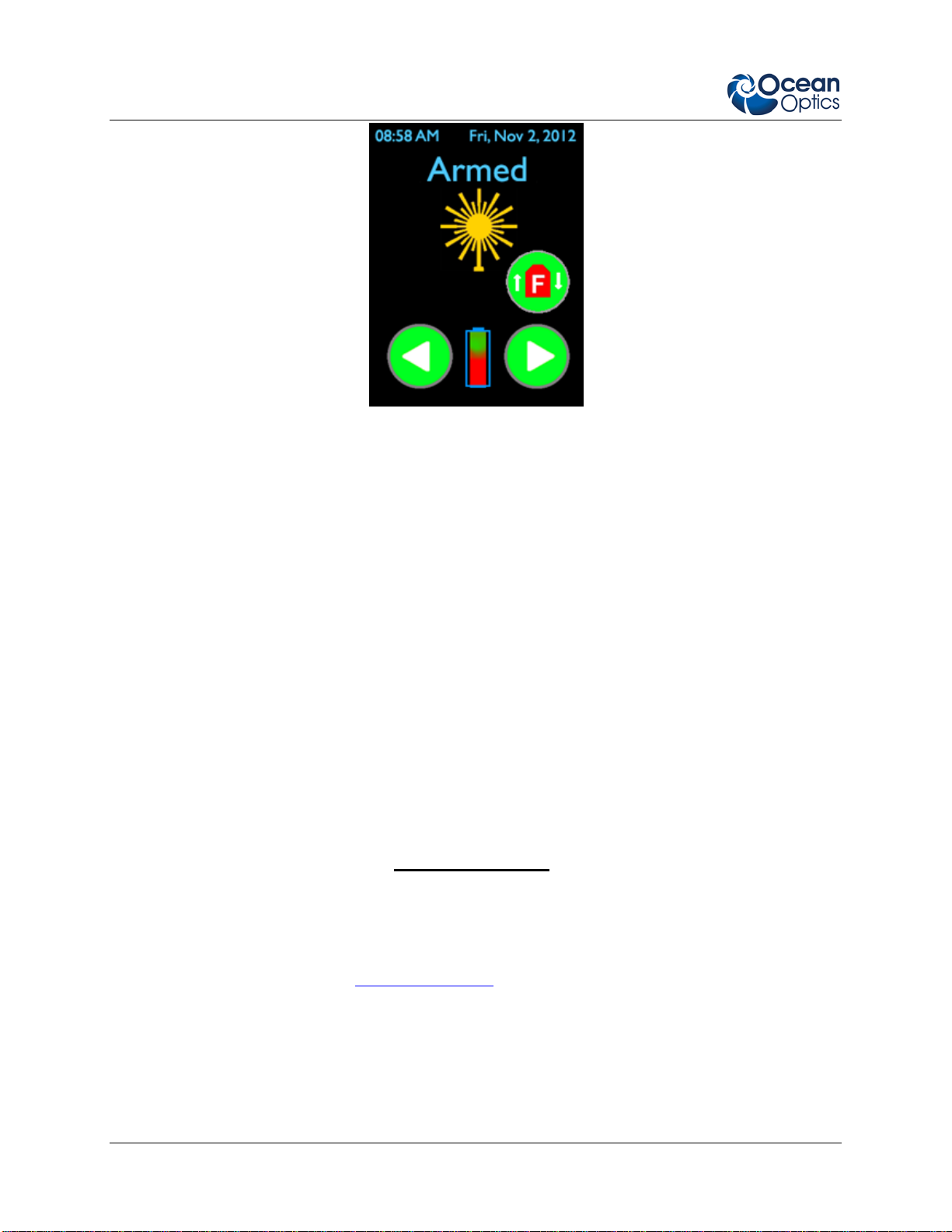

Focusing Using the PS Adapter and the F Button .............................................................10

IDRaman Software Set-up .................................................................................................12

IDRaman Software Start-up ...............................................................................................13

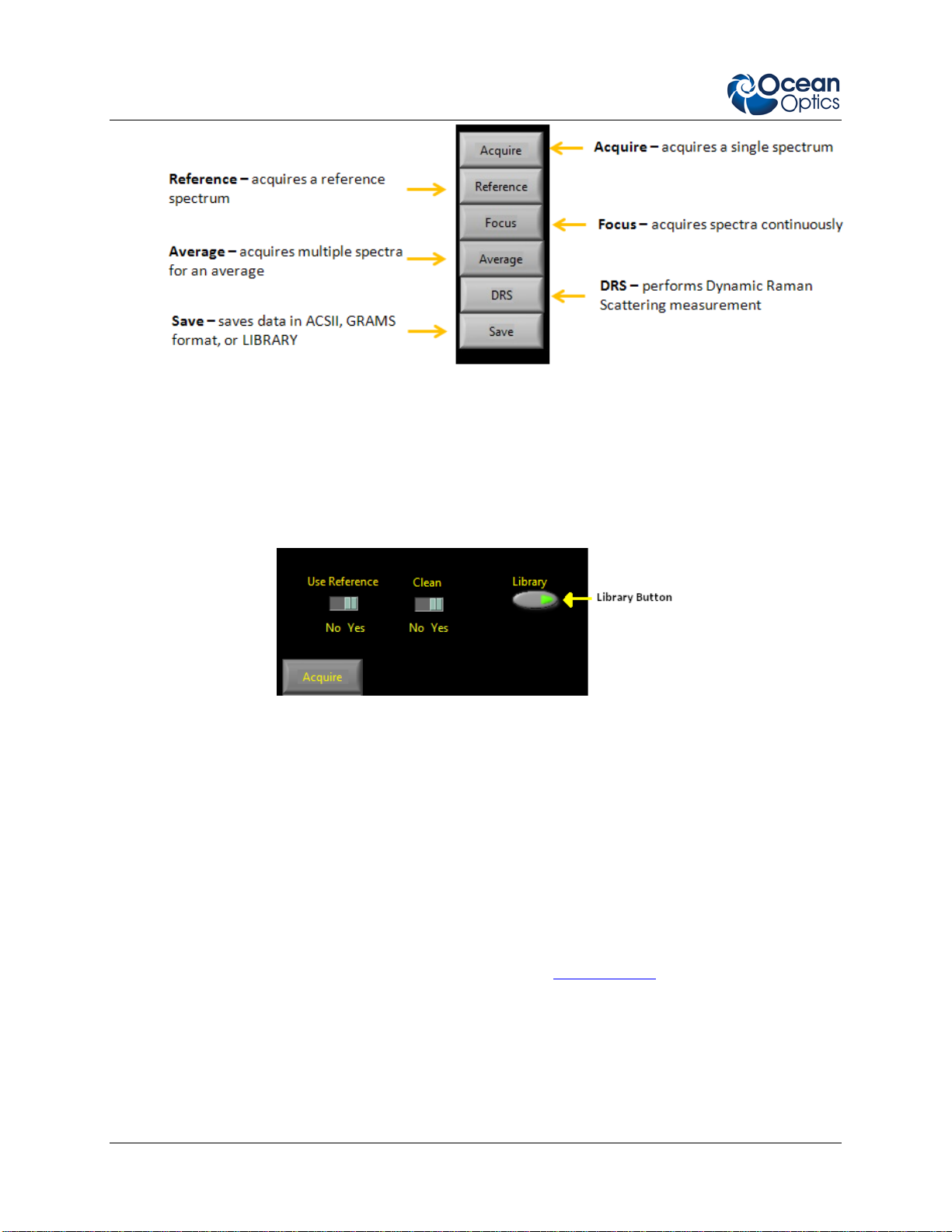

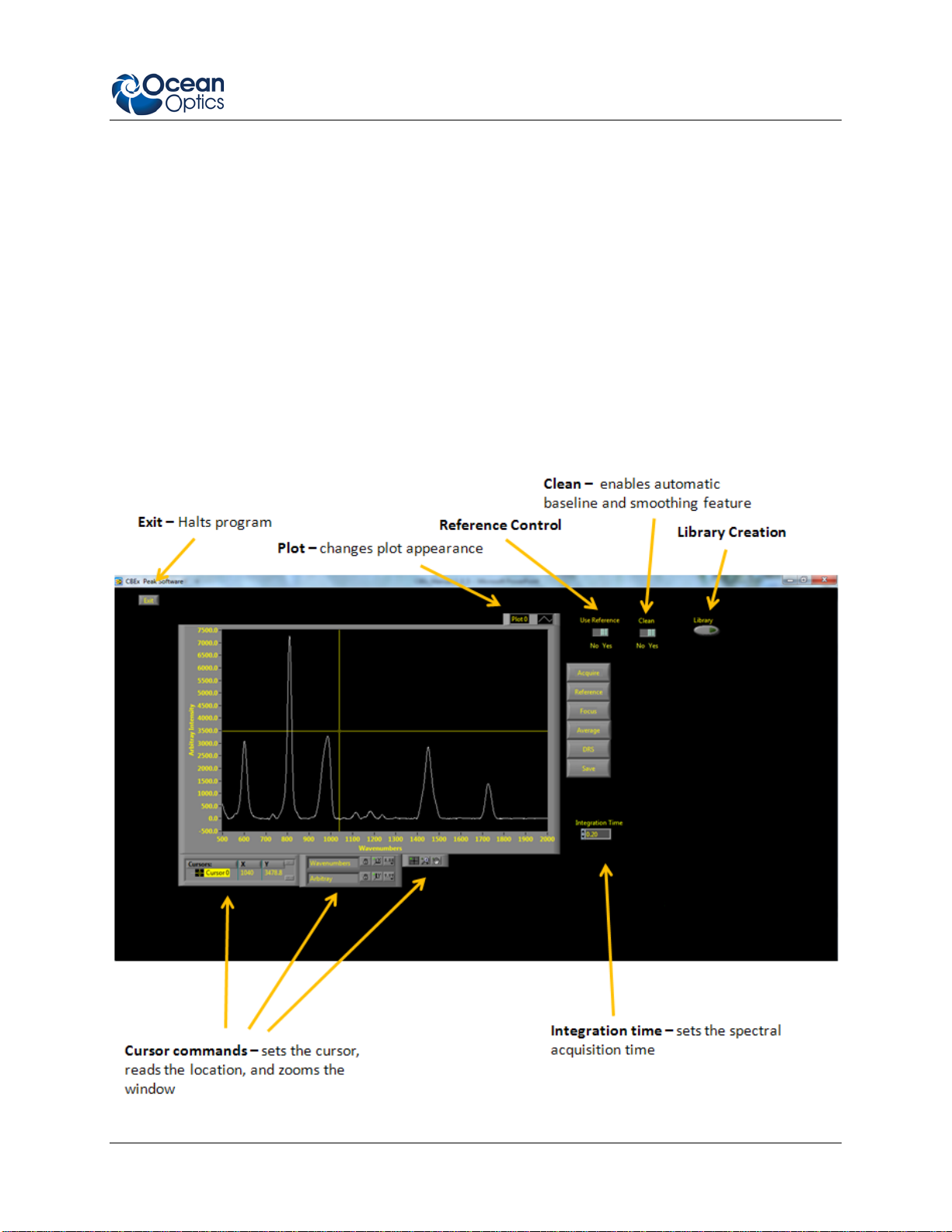

IDRaman Acquisition Software ..........................................................................................13

Creating Library Files ................................................................................................................ 14

Saving a Library Spectrum ........................................................................................................ 14

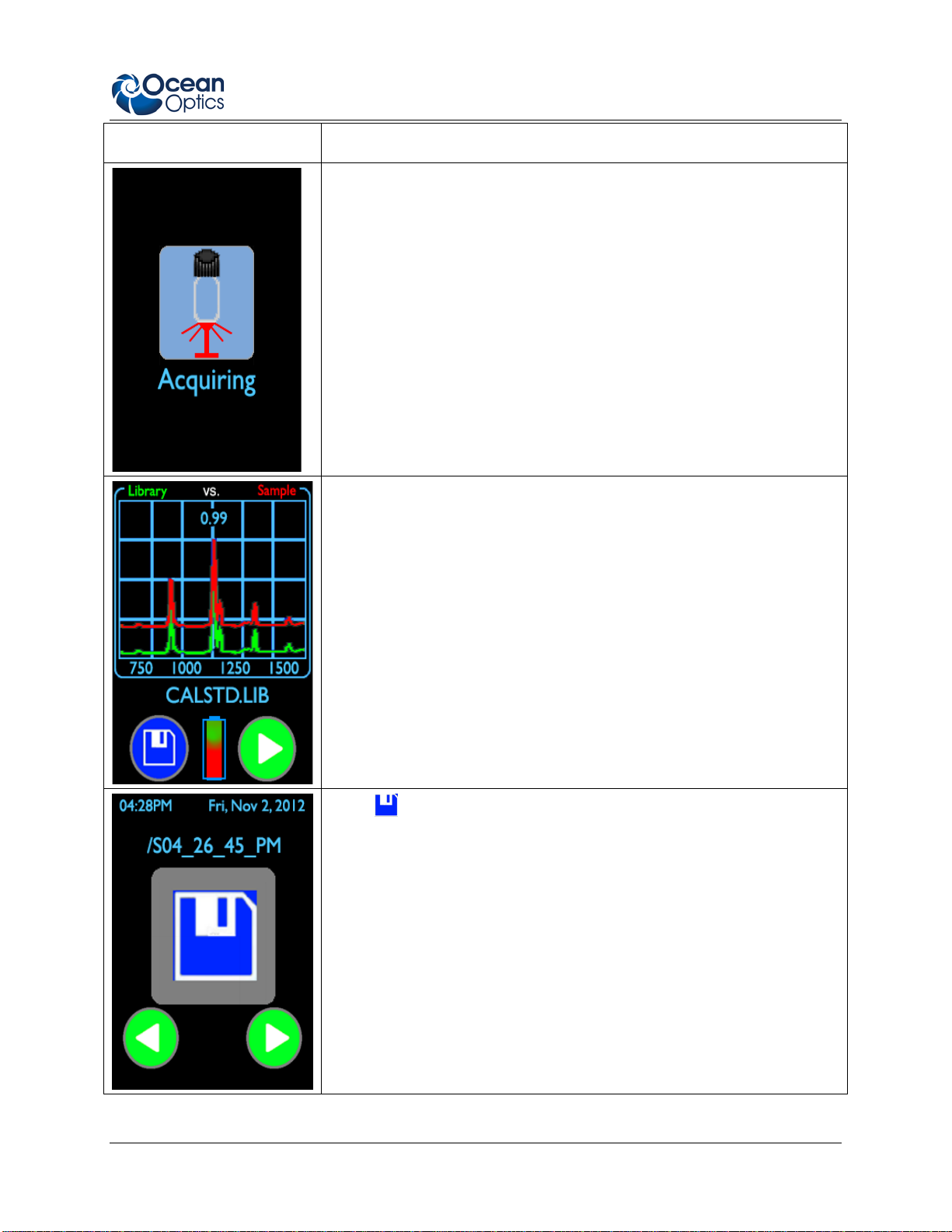

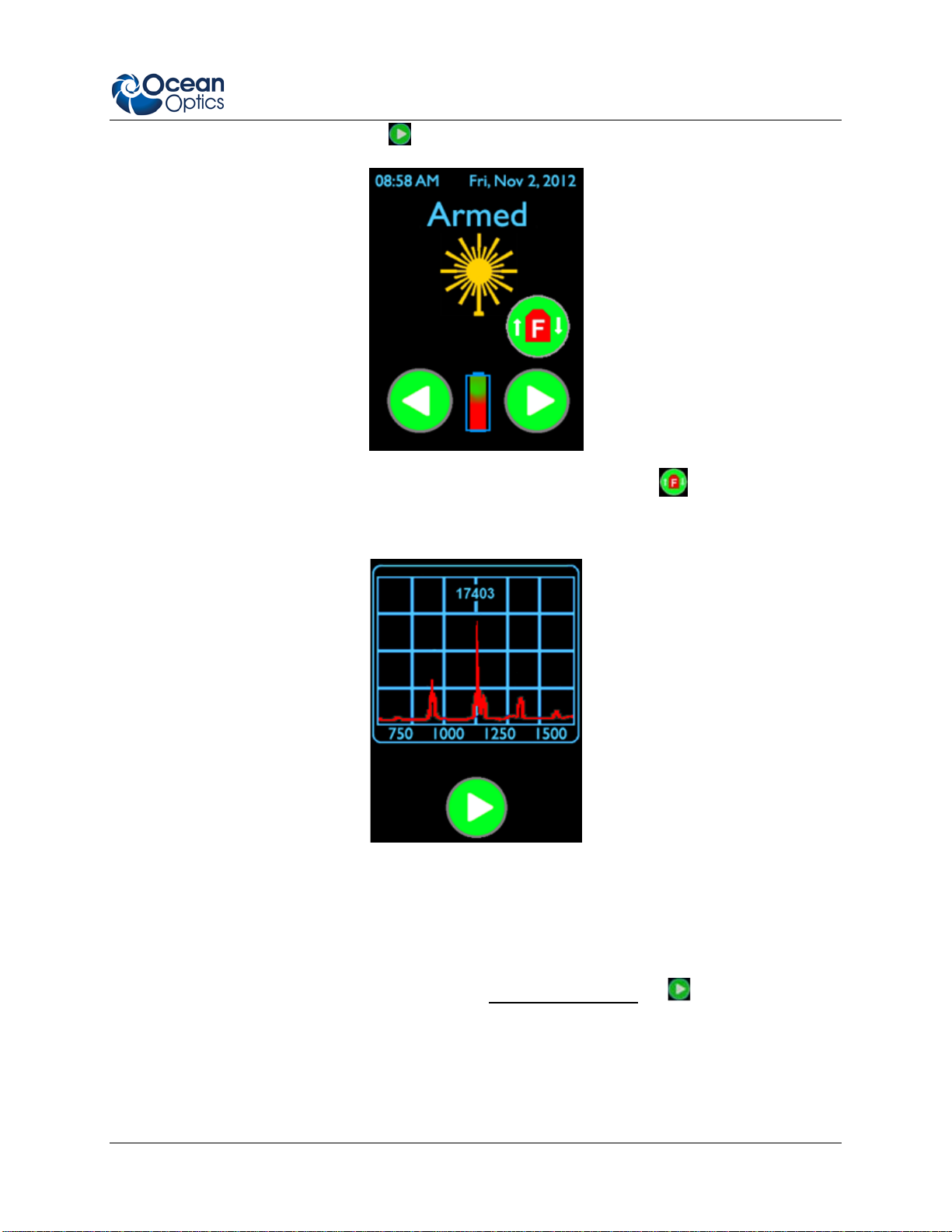

Acquiring a Reference and Spectrum ....................................................................................... 15

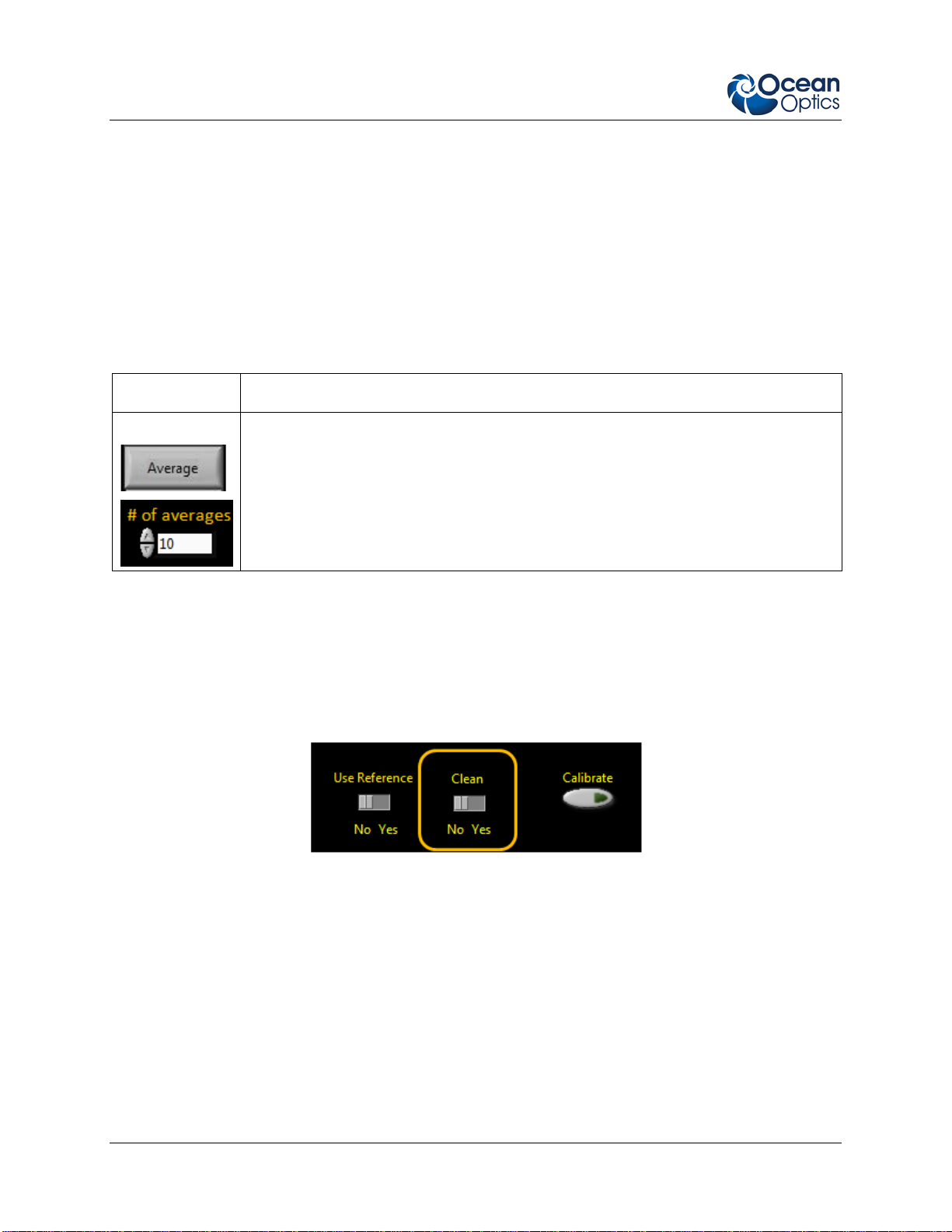

Acquiring an Average ................................................................................................................ 16

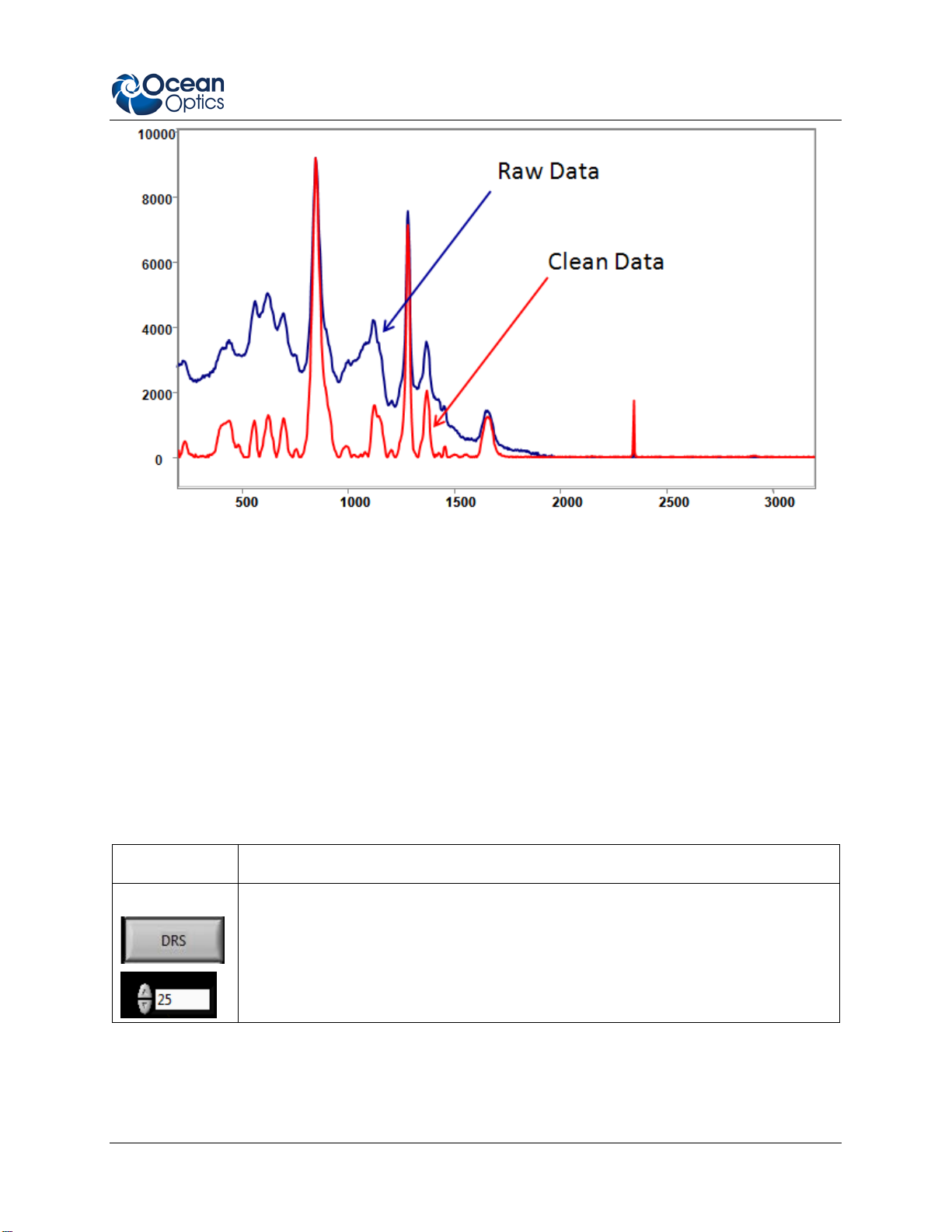

Peak CleanTM ............................................................................................................................. 16

Dynamic Raman Scattering (DRS) ............................................................................................ 17

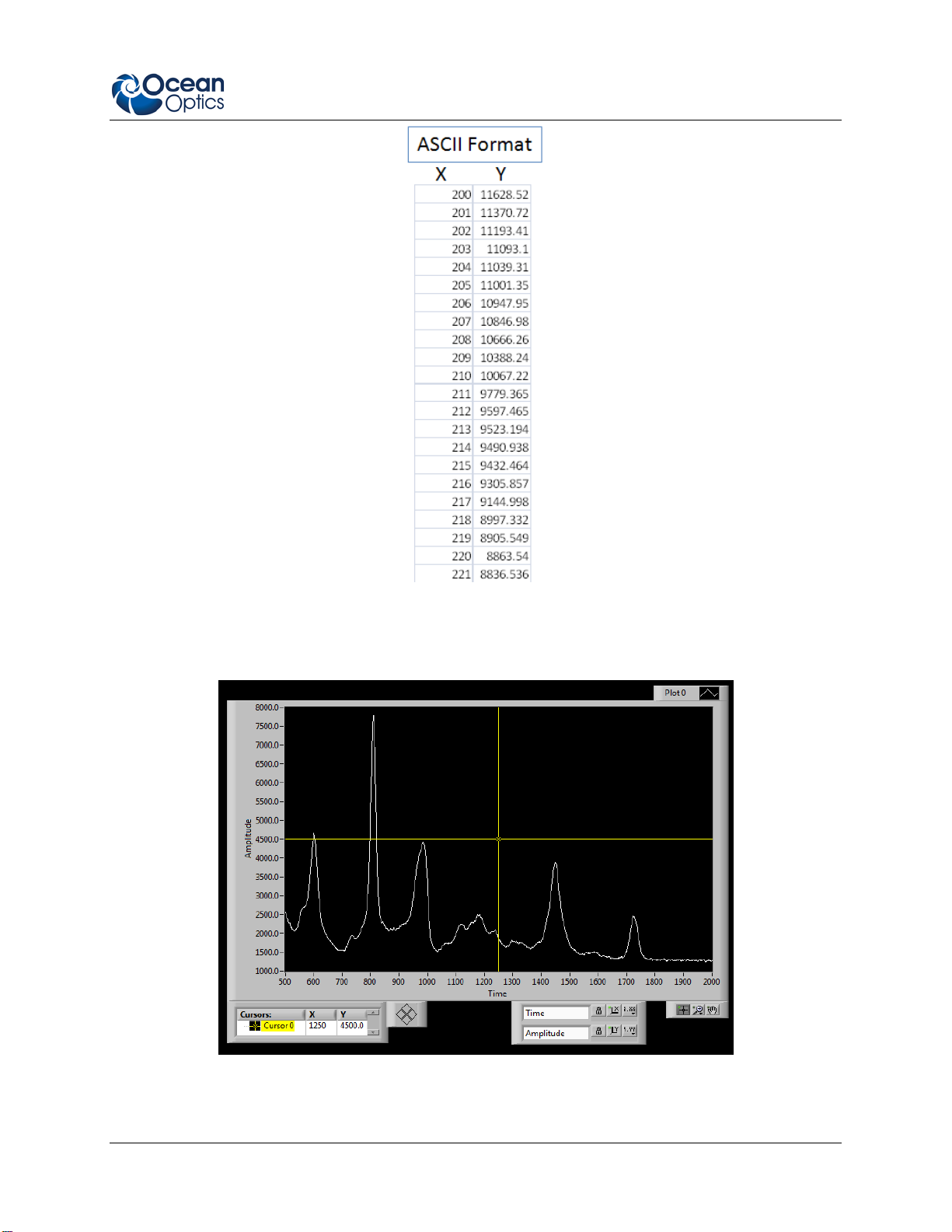

Saving Spectra .......................................................................................................................... 18

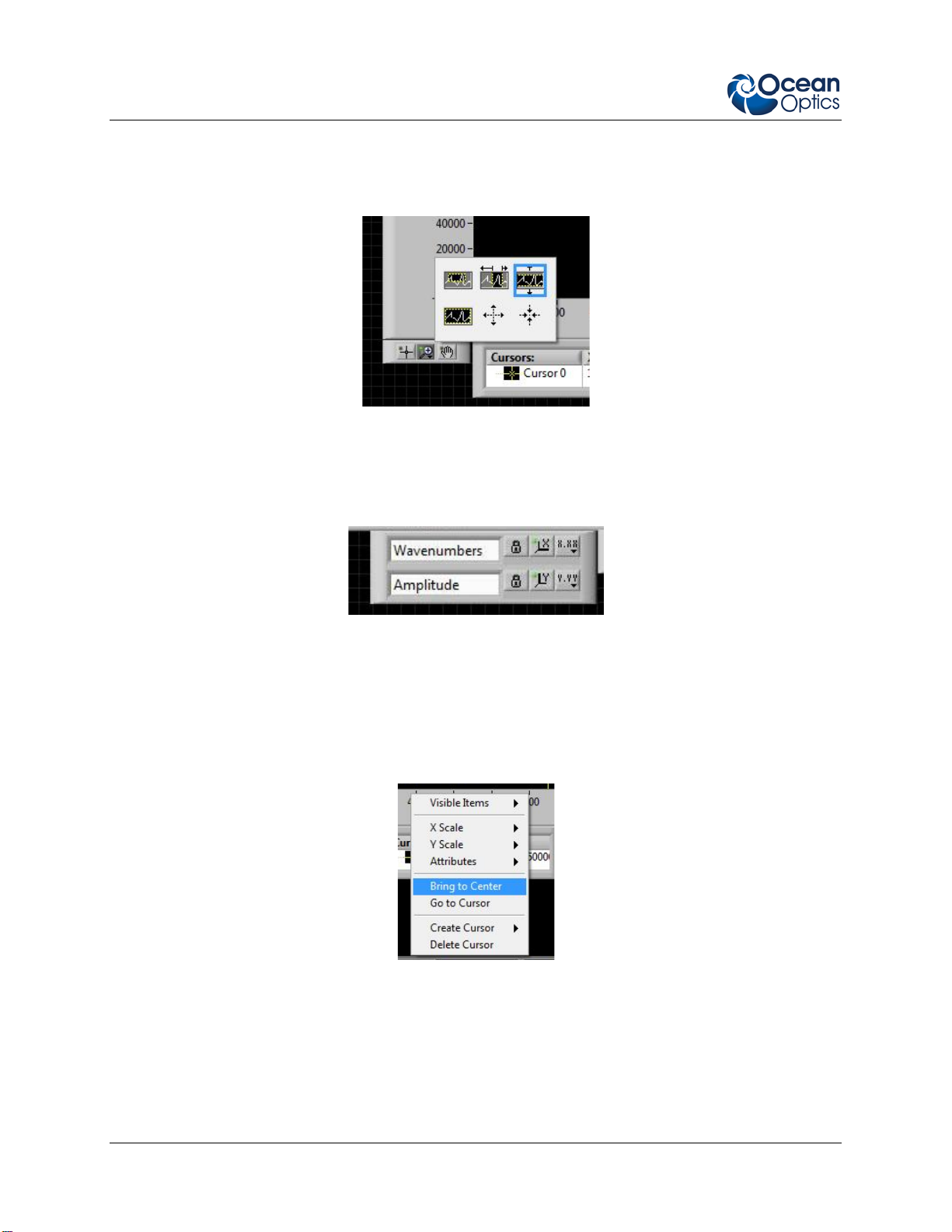

Display Features ................................................................................................................19

Graph Palette ............................................................................................................................ 20

Scale Palette ............................................................................................................................. 20

Cursor List ................................................................................................................................. 20

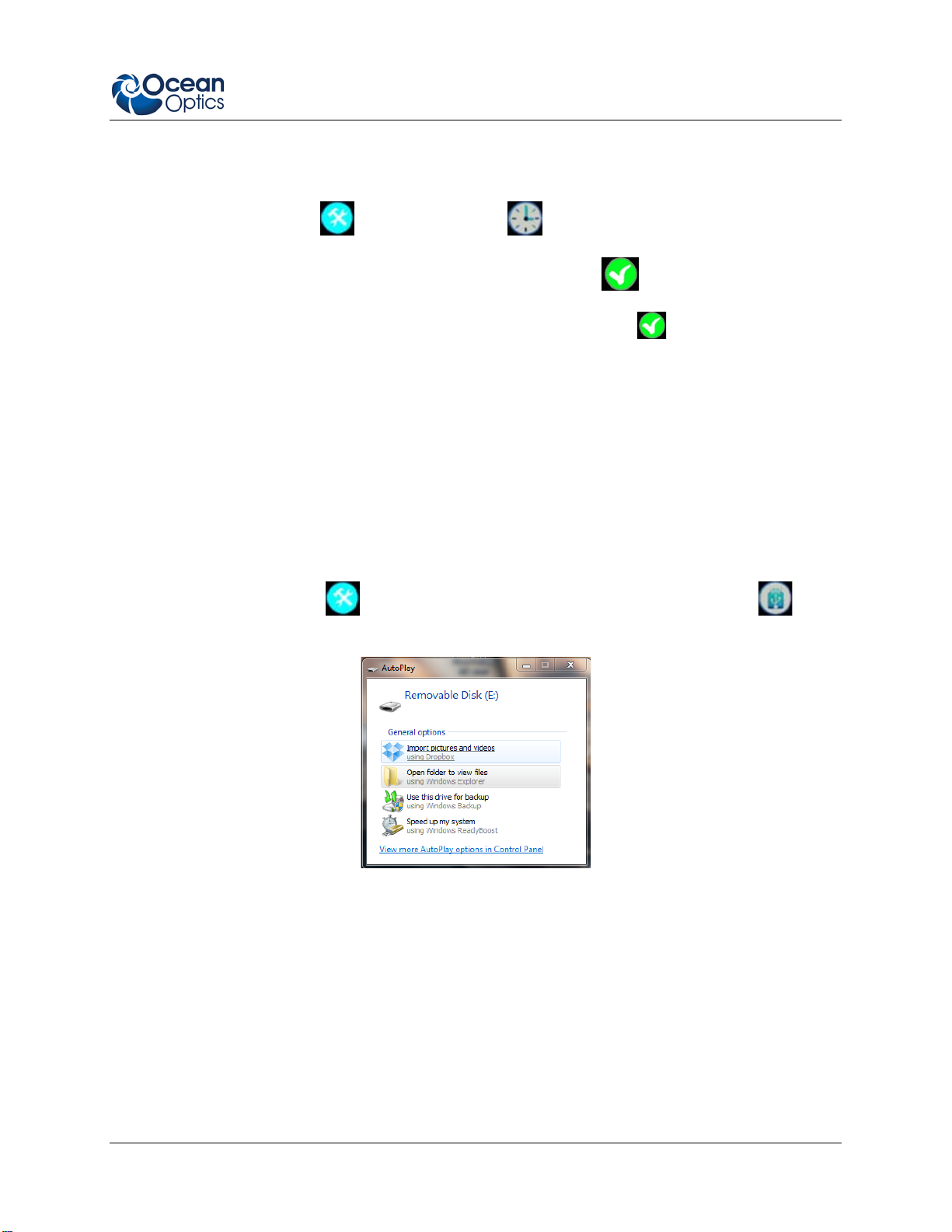

Resetting the Time and Date .............................................................................................20

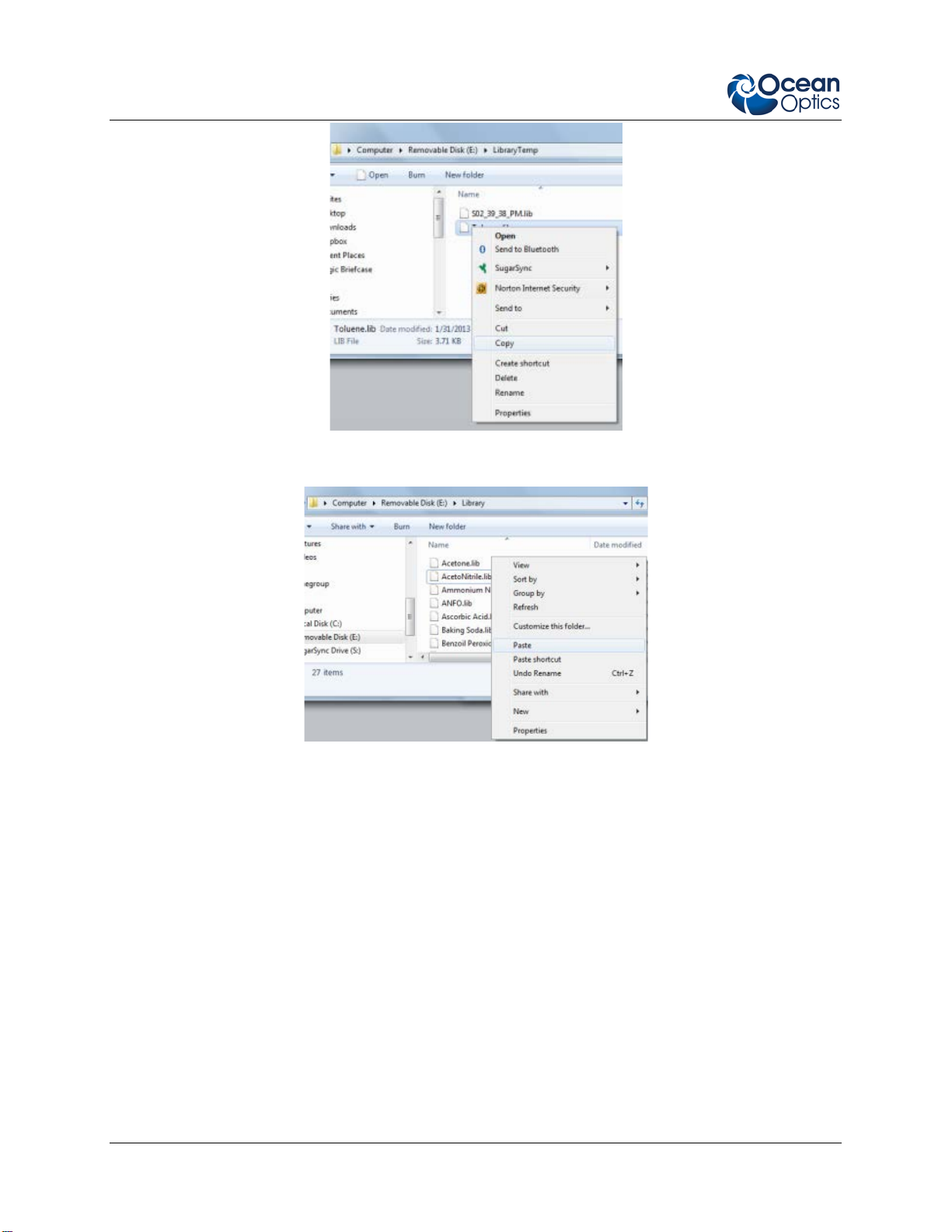

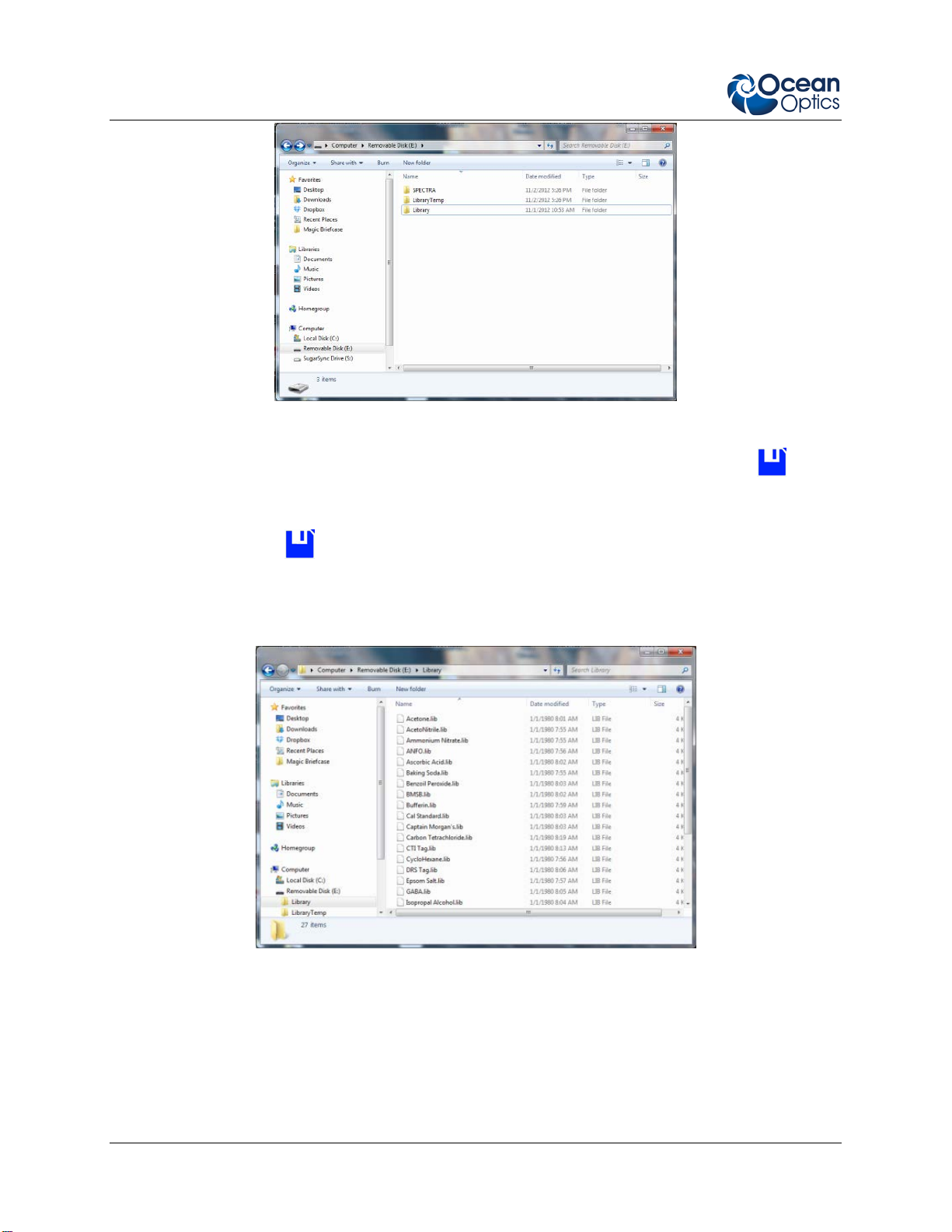

Using the USB Connection for IDRaman mini Library Building ........................................21

000-40000-010-02-201311 i

Table of Contents

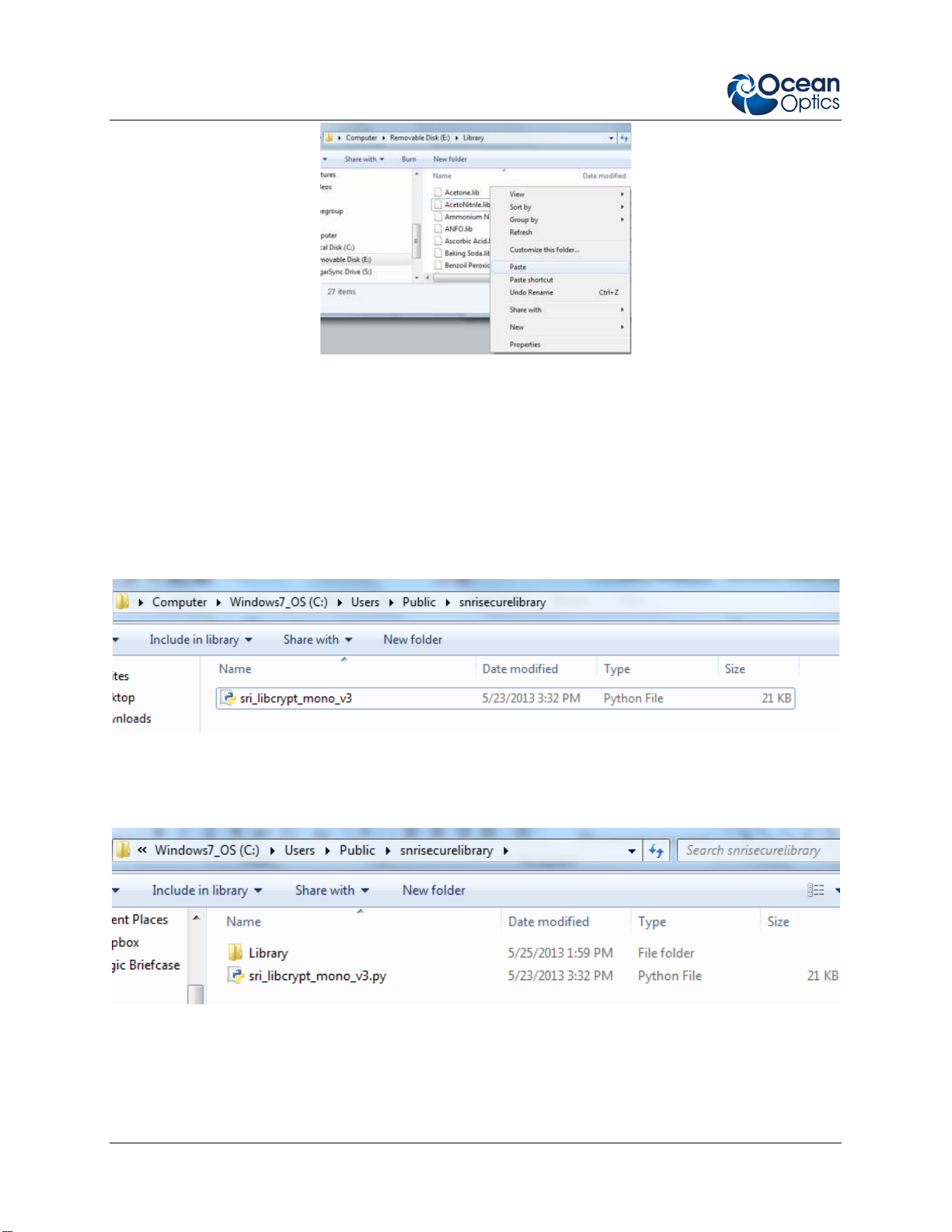

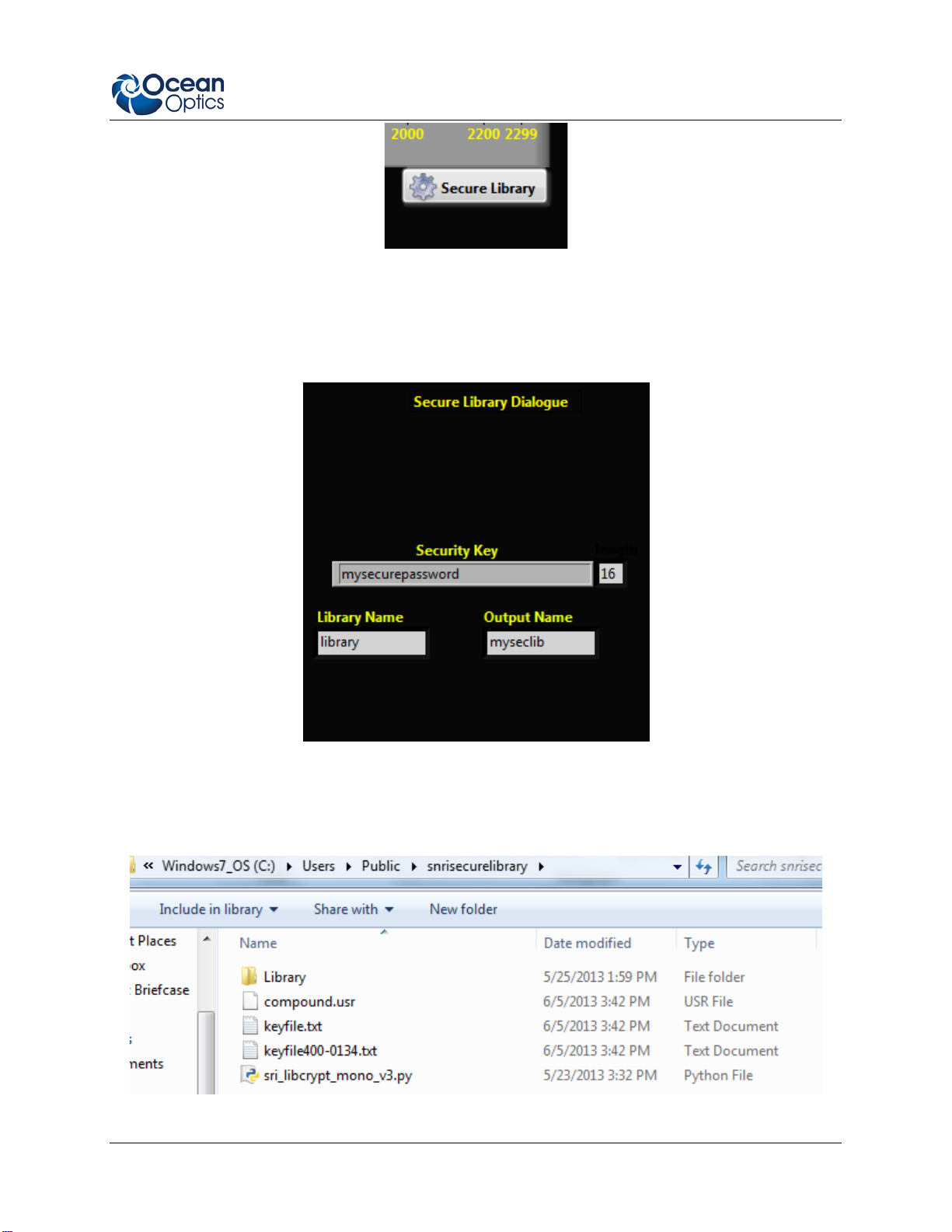

Building a Secure Library ...................................................................................................24

Appendix A: Tera Term Software ....................................................... 27

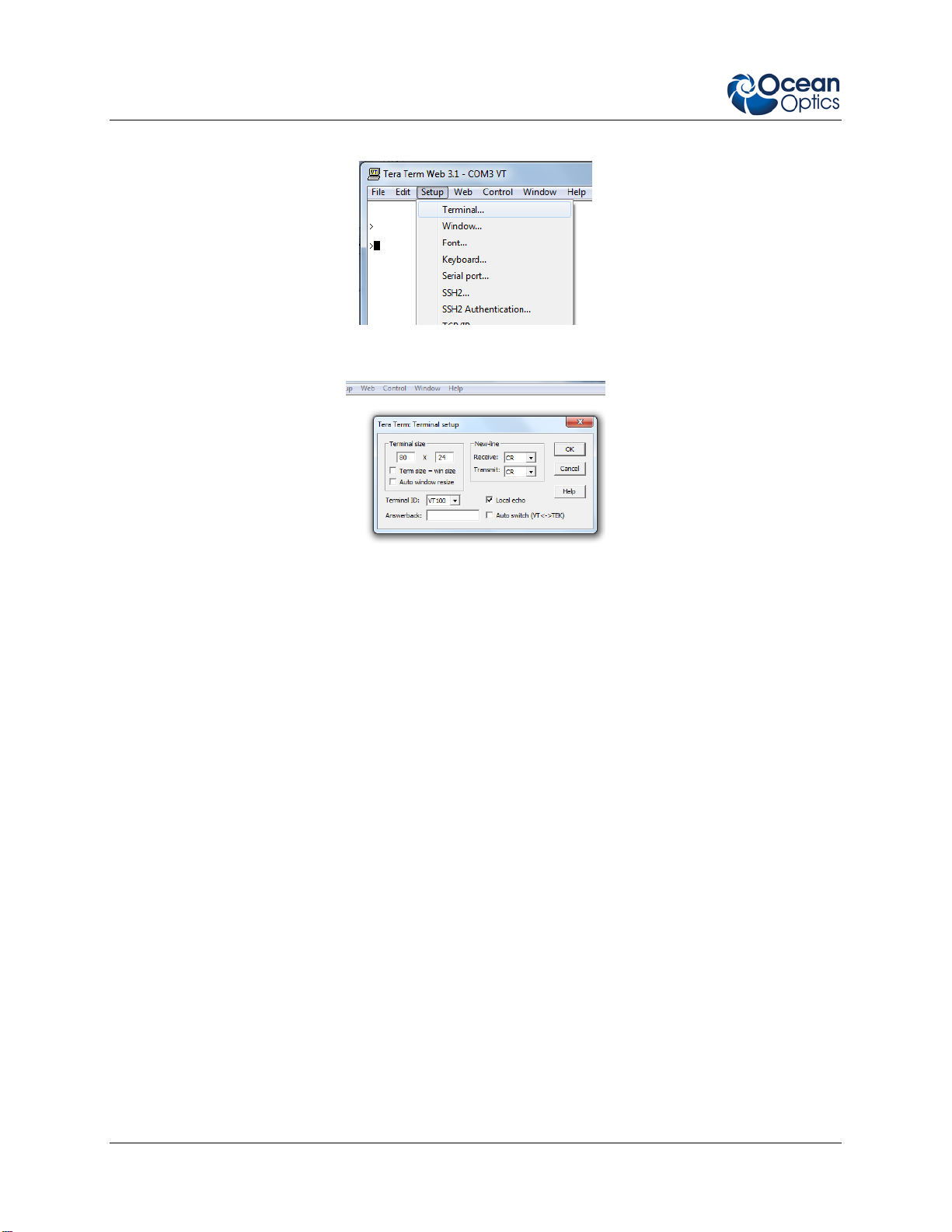

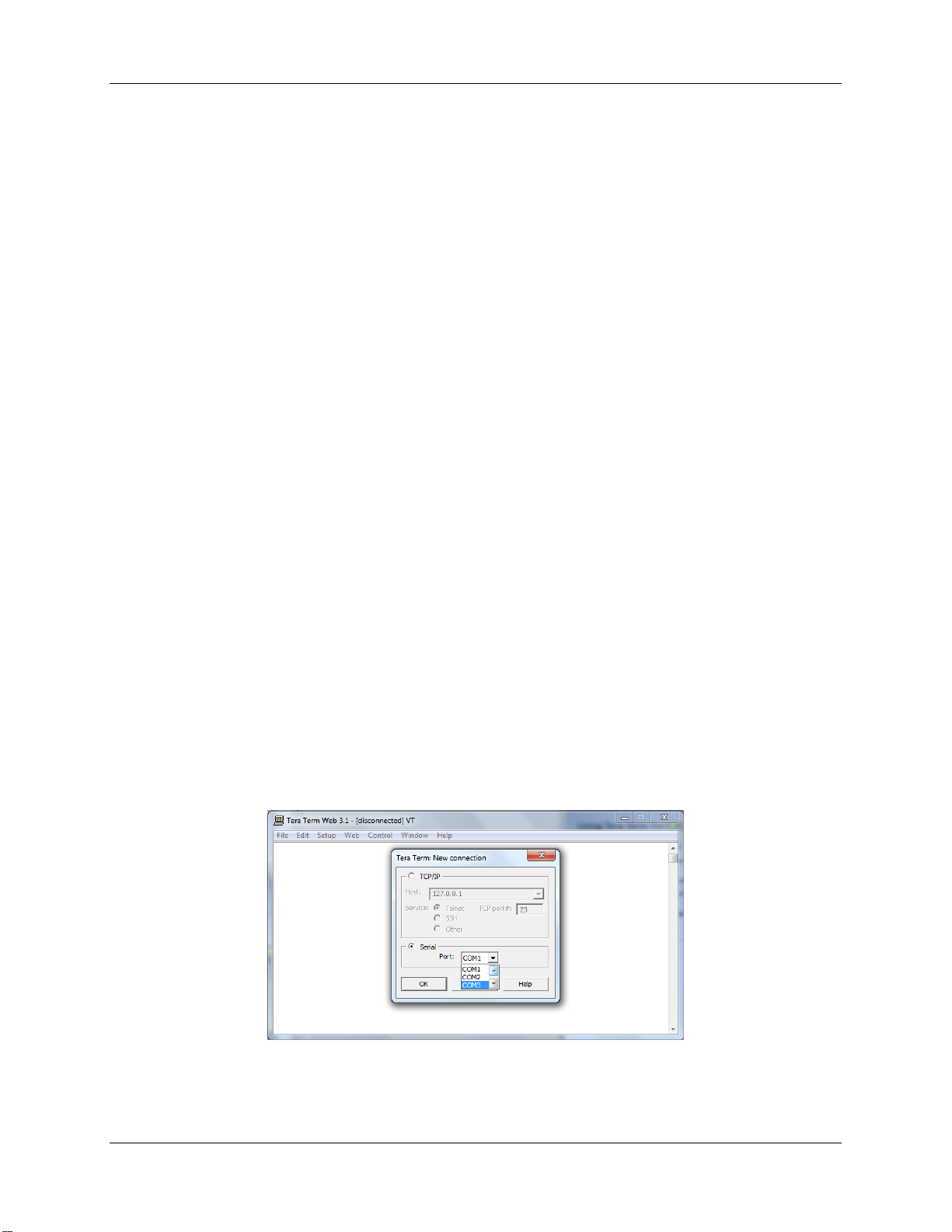

Installing Tera Term Software ............................................................................................27

Changing Pin Codes ..........................................................................................................28

Appendix B: Specifications ................................................................. 29

Index ...................................................................................................... 31

ii 000-40000-010-02-201311

About This Manual

Document Purpose and Intended Audience

This document provides you with information to get your laser set up and operating.

Document Summary

Chapter Description

Chapter 1: Introduction

Chapter 2: Set-up and Operation

Appendix A: Tera Term Software

Appendix B: Specifications

Contains a list of product features and the model
types available, and offers an explanation of ROS.

Provides instructions for setting up and operating the
IDRaman mini.

Describes how to install Tera Term and how to
change the PIN.

Provides a list of product specifications.

Product-Related Documentation

You can access documentation for Ocean Optics products b y visiting our website at

http://www.oceanoptics.com. Select Technical → Operating Instructions, then choose the appropriate

document from the avail able drop-down lists. Or, use the Search by Model Number field at the bottom
of the web page.

You can also access operating instructions for Ocean Optics products on the Software and Technical
Resources CD included with the system.

Engineering-level docu mentation is located on ou r website at Technical → Engineering Docs.

Upgrades

Occasionally, you may find that you n eed Ocean Optics to make a change or an u pgrade to your system.
To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise
Authorization (RMA) number. Pleas e con tac t O cean Op tics f or spe ci fic in st ru cti ons wh en returning a
product.

000-40000-010-02-201311 iii

About This Manual

Warranty

Our 3-Year Warranty covers Ocean Optics miniature fiber optic spectrometers, light sources and
sampling acc es so ri es – regardless of the application – from manufacturing defects. It also c overs fibers
and probes for a full 12 months: http://www.oceanoptics.com/warranty.asp

This comprehensive warranty ensures you of the highest level of craftsmanship and reliability for years to
come. No other manufacturer offers such a solid guarantee of quality and reliability.

The Ocean Optics 3-Year W arr an ty applies to Ocean O pti cs eq uipment (exclud ing OEM con fi gu rat ion s)
purchased on or after July 1, 2010. The warranty covers parts and labor needed to repair manufacturing
defects tha t occur during the warranty period. We also will cover the costs of shipping warranty-related
repairs from our customers to Ocean Optics and from us to our customers.

iv 000-40000-010-02-201311

Chapter 1

Introduction

Overview

The IDRaman mini is the smallest, most powerful handheld Raman instrument available today. Designed
to make rapid and accurate measurements that iden t ify, authenticate and verify samples, the IDRam an
mini is ideal for:

• Authentication analysis

• Counterfeit detection

• Rapid material id ent if ica ti on

• Verification of incoming materials

• Harsh and demanding environments

• In-line o r at-line testin g

From rugged field measurements of chemical and explosive agents to quality assurance and quality
control in the laborato ry, the IDRa man mini is a truly compact choice for fast and accurate measurements.

IDRaman uses an intern al cal ib r at ion r ou tin e to en su re th e mo st a ccu ra te Ra m an s h ift d ata is acq u i red .
Measuring most samples in less than 9 seconds, the IDRaman provides visual confirmation of results and
displays both the sample and library spectrum with a confidence factor. Y ou can stor e a libra r y of
thousands of compounds in the IDRaman. Using a proprietary flu orescence rejection algorithm, the
IDRaman mini minimizes both false positive and false negative results. With IDRaman’s Raster Orbital
Scanning technology, the limitation of weak signals from unknown and non-uniform samples is
overcome.

Features

• Long battery life - >11 hours from 2 Lithium AA batteries

• Light weigh t – 330 grams (11 oz.)

• Compact size - 9.1 x 7.1 x 3.8 cm (3.6 x 2.80 x 1.5 in)

• Great flexibility – measures both liquids (vials) and solid samples (with accessor y kit)

• Rugged design – made from solid aluminum

000-40000-010-02-201311 1

1: Introduction

• High visibility display – 7.1 cm (2.8”) resistive touch display

• Easy to use – intuiti ve user interfa ce via touch screen

• High speed acquisition – visual confirmation in <9.0 seconds

• Self-calibration – includes onboard software driven calibration

• Raster Orbital Scanning (R OS) function -- allows detection of inhomogeneous samples without

sample degradation

• Library recognition - use of proprietary data analysis algorithm for high accuracy identification

without low false positi ves and false negatives

Models

The IDRaman mini (IDR-MIN I) is a va il abl e as a st an d al one p roduct or packaged with a help fu l ac ces s or y
pack (IDR -MINI-KIT). The accessory pack can also be purchased separately (IDR-MINI-ACCY).

• IDR-MINI – Consists of the handheld

Raman spectrometer, a 785 nm excitation
source and a micro USB cable for
computer connection. A basic component
library is provided , as we ll as s oft ware for
you to build your own library. This version
provides for vial sampling only and
contains a box of 144 2 mL vials.

• IDR-MINI-ACCY – The accessory pack is

comprised of a point-and-shoot solid
sampling attachment, pl us laser safety
glasses and a handy storage case.

• IDR-MINI-KIT – For your convenience,

the IDR-MINI and the IDR -MINI-ACCY
are availab le as a combined item for a
complete solution to your measurement
needs.

2 000-40000-010-02-201311

1: Introduction

About Raster Orbital Scanning (ROS)

The Ocean Optics IDRaman mini uses ROS to rapidly scan a tightly focused beam in an orbital pattern,
allowing lower average power to produce high-integrity data from a larger area of the sample without
sample ignition or dam age.

A tightly focused beam may result in no is y sign al s
or missing the Ra man acti v e tar g et co mpl e te l y,
leading to false negative readings from unidentified
samples.

Increasin g the spot size of the laser dilutes the
valuable inf or mat ion ab ou t th e mat eri al, le ading to
inconclusive matches or false identification of
samples.

ROS increas es the ef fe c ti ve size o f a tight ly
focused beam. In f o rm at ion is ob t ain ed with
complete integrity while sampling the large area
needed for complex mixtures or irregularly shaped
samples, lead in g to c onfident identification.

000-40000-010-02-201311 3

1: Introduction

4 000-40000-010-02-201311

Chapter 2

Set-up and Operation

Overview

This section provides instructions for setting up and operating the IDRaman mini. Read all instructions
and warnings carefully before attempting to install and operate your device.

IDR-MINI

Point and Shoot Adapter

The Point and Shoot (PS) adapter (available in the IDR-MINI-ACCY accessory kit) is designed to be
used with many differen t samp le s. Th es e in clu de m at er ia ls on su rf a ces an d materials in vials or bottles.
With a simple twist of the PS collar it adjusts the position of the sample in relation to th e Raman focal
point to obtain the best signal to noise.

• When rotated counterclockwise (viewed from the sample end) it adjusts the sample position

further away from the final lens of the PS adapter.

• When rotated clockwise it adjusts the samp le position closer to the final lens of the PS.

000-40000-010-02-201311 5

2: Set-up and Operation

When the PS collar is placed against the sample the focal point of the system is adjusted to accommodate
a containe r or surface o f t he sample using these steps. See

Focusing Using the PS Adapter and the F

Button for more information on focusing using the PS adapter.

6 000-40000-010-02-201311

2: Set-up and Operation

Controls and Indicators

The IDRaman mini features a user-friendly touch screen display for taking and viewing measurements.
The screen indicators and controls are described below.

Screen Description

The initial power-up screen. Enter your 4-digit pin (the default is 1234).

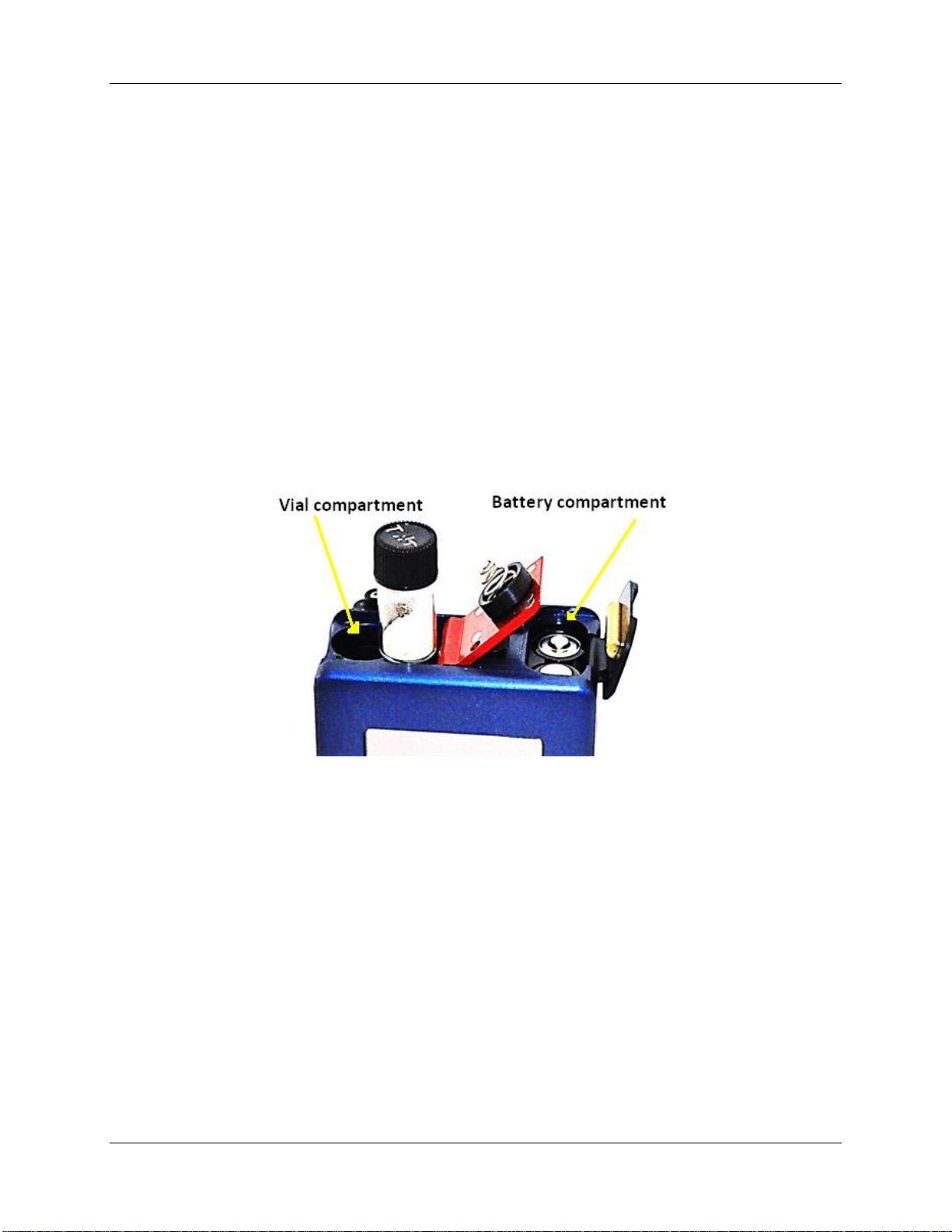

The system has been activated. A vial has been left in the compartment.

The system has been activated. The cover has been left open.

000-40000-010-02-201311 7

2: Set-up and Operation

Screen Description

The system has been activated. The door is closed and there is no vial in
the sample compartment. The system performs an auto-calibration.

The system is ready for a sample. Press to begin acquisition.

The system is ready to fire. This is a safety feature when the point-and­shoot laser attachment is used

.

8 000-40000-010-02-201311

2: Set-up and Operation

Screen Description

The system is acquiring data. Observe caution as the laser radiation will
exit the point-and-shoot laser attachment.

This match screen displays the Pearson correlation, stored spectrum
library (green) and the sample spectrum (red).

When

is pressed, this screen appears with the time and date, as well

as the name for the saved file.

000-40000-010-02-201311 9

2: Set-up and Operation

Screen Description

Ready screen. Press the Tools button (
(see below).

Tools menu consists of the following functions:

-- Activates the USB connection mode. In this mode, the library can

be updated through the USB connection.

-- Allows you to set the time.

) to access the Tools menu

-- Allows you do a manual calibration by clearing the sample vial
area and pressing this tool button. This tool will turn green if the
calibration passes and red if it fails.

-- Activates Dynamic Raman Scattering (DRS). The DRS is active if

this tool is green and inactive if this tool is red.

-- Allows you to view a list of library entries.

-- Advances to the Ready screen (see above).

Focusing Using the PS Adapter and the F Button

Adjusting the PS collar to the correct pos ition in the autonomous mode is easy with the “Focus” or “F ”
function.

Procedure

►

1. Place a samp le in a conta iner represen tative of th e container you will use in your analysis.

10 000-40000-010-02-201311

2: Set-up and Operation

2. Arm the system by pressing the button in the home screen. The Armed screen appears.

3. Place the samp le container against the tip of the PS collar an d press the

(F) button. The
system will take an initial scan and automatically find the highest peak in the spectrum and report
the intensi ty on the screen.

4. The system w ill then continually take a spectrum at a set integration and report the peak intensity

on the screen. As you adj ust the PS collar by twisting it clockwise or counterclockwise, it will
move the sample closer or farther aw ay, respectively, from the final lens of the PS attachment and
report the peak intensi ty. Adjust the PS collar until you observe the maximum peak intensity
number on the screen.

5. When you are satisfied with the peak intensity PRESS AND HOLD the button until the

system returns to the Arm ed screen. You are now ready to use your PS attachment with the
container or surface used to perform the Focus adjustment.

000-40000-010-02-201311 11

2: Set-up and Operation

IDRaman Software Set-up

► Procedure

1. Turn on the computer.

2. Copy the device initialization file, IDRamanMini.inf, from the IDRaman Driv er fold er on the

USB memory stick to C:\Windows\inf.

3. Turn on the IDRaman mini instrument (using pushbutton on the front of the unit) and then plug

the instrument into the com puter using the micr o USB cab le su pp li ed . It will automatica ll y load
device dri vers.

4. Copy the IDRaman Inst al l er fold er fr o m the US B me m or y stick to the computer.

5. Double click on Setup.exe in the Volume folder.

6. Follow on -screen instructions to complete installation of the IDRaman Software.

7. Upon completion of ins tall at ion, restart the com puter.

8. Click the IDRaman Software in the Startup Menu. Wait until the s ystem’s red button disappears.

You are ready to tak e spe ct ra.

9. Install Tera Term open source softw are from the USB memory stick for later use during lib ra ry

building. See Appendix A: Tera Term Software

.

12 000-40000-010-02-201311

2: Set-up and Operation

IDRaman Software Start-up

Once your IDRaman Software has been installed, click Start on your computer screen and select All
Programs | IDRaman | ID Raman shortcut each time you want to use it.

IDRaman Acquisiti on Softw ar e

IDRaman Software is a versatile data acquisition package with built-in baseline and smoothing features
for the most difficult samples. This section describes how to use al l of the featu res available and how they
can be used to acquire the optimal spectru m f or you r ap plic a tion .

The software provides data storage in the universal ASCII format for spread sh ee ts or other third-party
analysis and display. Also provided is the popular .spc fo rmat used with Thermo Scientific’s GRAMS
spectroscopy software.Software Overview

000-40000-010-02-201311 13

2: Set-up and Operation

Creating Library Files

The IDRaman mini stores library files on an internal flash drive in a compact format. You can create
your own libraries using this sof tware.

The Library button enables the library collection routine. In this format the system collects the sample
spectrum exa ct l y as it woul d in the aut on om ou s c ol lect ion mode.

►

Procedure

1. Press the Library toggle button. It will turn green indicating that it is ready to create a l ibrary

spectrum.

2. Press the Acquire button. The system will collect th e library spec trum.

3. Press the Library toggle button again to exit Library mode.

Saving a Library Spectrum

To save the library spectrum use the SAVE feature described in Saving Spectra. Save the file s in the .lib
Lib file format. After you save your library spec tra you can transfer them to the IDRaman mini.

► Procedure

1. To initiate the trans f er, exit the IDRaman Software (completely close the pr ogram).

14 000-40000-010-02-201311

2: Set-up and Operation

2. Convert the IDRaman mini to a Mass Storage Device (MSD) by clicking on USB connection

button in the Tools menu on the IDRaman mini.

--OR-­Open TeraTerm and type reset msd. This converts the IDRaman mini to a Mass Storage Device

(MSD).

3. See Using the USB Connection for IDRaman mini Library Building

for directions to copy library

files to the ID Raman mini.

4. Disconnect the system from USB drive and reconnect. The system will now use the library files
that you created .

Note

If you do not disconnect and reconnect, the system will continue to act as an MSD and it
will not use your library to match.

If you intend to encrypt you r files, you will need to use the Secure Lib rary function when you are ready to
place them on the IDRa man mini. See Building a Secure Library

.

Acquiring a Reference and Spectrum

Spectra can be acquired several different ways depending on your application or on the sample’s
composition.

Button Function

Acquire

Reference

000-40000-010-02-201311 15

Acquires a spectrum for the integration time. The laser turns on for a period of time
determined by the integration time. Some delays exist to allow for the laser
stabilization; however, the exposure time is precisely set by the integration time
selected.

Acquires a dark reference for the set integration time. Normally the shutter closes
during this period and the reference spectrum is subtracted from the acquisition.
This removes any environmental background and it eliminates any fixed pattern
noise due to the CCD detector.

The slide switch at the top: Use Reference determines if a reference is used. Use

Reference (Yes) causes the reference to be subtracted; this is the default. Select
Use Reference (No) if you do not want the reference subtracted.

NOTE: It is essential to have the reference acquired for the same integration time as

the acquisition. If there is a mismatch, a new reference will be automatically
acquired at the new acquisition time.

2: Set-up and Operation

Acquiring an Average

Averaging is used when your sample has a high background. Often samples will produce some or even
large amount s of flu or e sc en ce. The qualit y of a spect ru m is d ete r min ed by the si gn al -to-noise. The noise
is determined by “shot noise” which is equal to the square root of signal. This means that samples with
large backgrounds will inherently have poor signal-to-noise ratios. Increasing the integration time will
improve the signal-to-noise ratio, but with high background samples this may be impossible due to the
detector’s li mi ted d yna mi c range.

Averaging allows one to take multiple short acquisitions and average them to improve signal to noise.
Until the detector becomes dark noise lim ited the signal to noise ratio will improve by the square root of
the number of averages.

Button Function

Average

Peak Clean

Peak Clean is a beta correction algo r ithm to produce spectra that are baselined corr ected with powerful
de-trending algorithms. This method is not appropriate for every sample, but when spectral backgrounds
are a probl em it can provide backgrou nd free spectra. Peak Clean can be par ticularly useful for library
matching.

Acquires multiple spectra which will be averaged. When the average button is
selected the # of averages control box appears. Select the number of averages and
begin the averages by depressing the average button again.

NOTE: Average will acquire a full set of averaged references before it begins

acquiring spectra.

TM

16 000-40000-010-02-201311

2: Set-up and Operation

Wavenumbers

Dynamic Raman Scattering (DRS)

DRS is a spectroscopic technique developed to enhance spectra produced by free floating particles in
solution. The feature is available both on the system’s firmware and in IDRaman Software.

DRS measures the extra noi se created when particles move in and out of the laser beam used to create the
spectrum. This technique was developed by Scott and Carron
material surrounding the moving particles and the container material.

The principle of DRS is that the solvent matrix surrounding small free floating particles is constant and
the container material is also constant. However, the spectrum produced by a low concentration of
particles will exhibit large fluctuations due to their movement in and out of the laser beam.

Button Function

DRS

When this button is pressed the software pops up a control for the number of spectra
to acquire. When the DRS button is released the IDRaman mini acquires and
displays the number of spectra chosen. DRS will produce optimal results with short
integration times and statistically most significant with a relatively large number of
acquisitions.

When the acquisitions are completed the DRS spectrum will be displayed.

1

to remove the interfering background from

000-40000-010-02-201311 17

2: Set-up and Operation

Saving Spectra

You can choose to sa v e spe ct ra in one of th ree f or ma ts :

• GRAMS.spc – The .spc format used with Thermo Scientific GRAMS software.

• ASCII.prn – This format sav es your sp e ctr a in a column of wavenu mb er s and a column of

intensities. See the figure below of an example ASCII format.

• Lib File.lib – This is a compressed for mat of lib ra ry files. Choosin g thi s opt ion st o re s your
spectra in a forma t th at can b e added t o the IDRaman mini libr a r y. In the aut on o mou s m ode th e
IDRaman mini au t om at ica ll y pe rf or ms a cl ean ; it is re c om men d ed tha t you st o re clean sp ect r a
when creating library files.

►

Procedure

If you choose to sav e you r spe ct rum in the .spc format,

1. Select GRAM S.spc in the dialog widow and press the Save button a second time. A comment line
will appear.

2. Add comments then press Enter. A file dialog will open to save your spectrum in the .spc for mat
used with Thermo Scientific GRAMS. This format saves your integration time and number of
averages.

Button Function

Save

Press this button and then choose the file format to save spectra.

18 000-40000-010-02-201311

2: Set-up and Operation

Display Features

000-40000-010-02-201311 19

2: Set-up and Operation

Graph Palette

The Graph Palette brings up a menu to expand spectral regions.

Scale Palette

The scale palette is used to lock or unlock the autoscale features.

Cursor List

Right click on the cross-hai rs in the Curso r Palette to bring up the Cursor List. This allows you to bring
the cursor to the cen t er of t he display, add or delete cursors, and set cursor attributes. The cursor position
can be read from the Cursor Palette.

Resetting the Time and Date

Any time the batteries are removed for more than 30 minutes the time and date stamp will reset to 1970.

20 000-40000-010-02-201311

2: Set-up and Operation

► Procedure

To reset the time and date stamp,

1. From the Tools menu

2. Set the Day, Month, and Year, and then select the Check Mark

3. Set the Seconds, Minutes and the Hours then sel ect the Check Mark

, select the Time Tool .

.

.

Using the USB Connection for IDRaman mini Library Building

► Procedure

1. Connect the IDRaman mini to the computer using the supplied micro USB cable and turn it on.

2. Go to the Tools men u
computer will recognize the IDRaman mini as a USB storage device .

on the IDRaman mini and select the USB Connect Tool . The

3. Select Open folder to view files. The Folders on the ID Ra man mini will appear in a window.

000-40000-010-02-201311 21

2: Set-up and Operation

There are thr ee folders on the IDRaman mini device:

• Spectra – Contains time and date stamped files saved using the Save functi on

on the

IDRaman mini i n an ASCII format which can be opened by any spreadsheet software.

• LibraryTemp – Contains the same time and date stamped files saved using the Save

function

on the IDRa man mini but in the .lib format. These files can be renamed

and transf erred into the library fold er.

• Library – Contains the Library (.lib) files that are used in the library search. The name of

these files w il l be disp l a yed on the IDR a man mi ni sc re en wh en th er e is a mat ch .

4. If you created libr a r y files u sin g the IDRaman Software you can copy and paste those files into
the Library folder to add more compounds to the library.

5. If you saved a spectrum of a compound using the Save function on the IDRaman mini, follow
these procedures to add the file to th e lib ra r y. A saved sp e ctr u m of toluene is used for an
example.

22 000-40000-010-02-201311

2: Set-up and Operation

a. Open the LibraryTemp fo ld er an d find th e fil e.

b. Rename the file.

c. Copy the file.

d. Paste the file into the Lib r a r y folder.

000-40000-010-02-201311 23

2: Set-up and Operation

Building a Secure Library

► Procedure

1. The first tim e you build a lib rary your folder, c:\users\public\snrisecurelibrary\ should contain
the file sri_libcrypt_mono_v3.

2. Load your librar y folder o f spe ct ra acq ui red with the IDRaman Software as .lib files into the
snrisecurelibrary folder. Your folder should now appear as follows:

3. Run the IDRaman Software and select the Secure Library button. This will invoke the Secure
Library dialog.

24 000-40000-010-02-201311

2: Set-up and Operation

4. After you have entered your library folder name and an allowed output file name, the dialog will
ask for your security key. T his is the 32 characters that will go into the keyfile.txt. A counter is
provided to the right of the Secure Libr ar y dia log. Wh en you ha ve en ter ed your 32-bit security
key, the routine will au to m at ica lly create your encr ypted lib ra r y.

5. Once you have successfully created your encrypted library (compound.usr), it will appear in the
snrisecurelibrary folder. It can now be transferred t o the IDRaman m ini using the USB drive tool.
It should go in the Library\ folder.

000-40000-010-02-201311 25

2: Set-up and Operation

a. Paste the file into the Lib r ar y fold er.

26 000-40000-010-02-201311

Appendix A

Tera Term Software

Tera Term is third-party software provided with your IDRaman mini on a USB drive.

Installing Tera Term Software

► Procedure

1. Find the Tera Term folder on the USB drive provided and copy it to your computer.

2. Double-click the installation file in the Tera Term f older.

3. Once the software is inst alled:
a. Turn on the IDRaman mini
b. Connect it t o the USB port on the computer using the supplied cable.

4. Start the Tera Term software.

5. Select Serial.

6. Select port that you are using to connect to the IDR a man min i.

7. Click OK.

000-40000-010-02-201311 27

A: Tera Term Software

8. Select the Setup tab.

9. Select the Terminal option.

10. Sele ct the Local E cho box and click OK. You can now see what you are typing.

Changing Pin Codes

► Procedure

To reset the PIN using T era Term,

1. Type ID Pins et nnnn

Where: nnnn is any 4 -digit number you choose

2. Select Enter.

28 000-40000-010-02-201311

Appendix B

Specifications

Specifications Criteria

Raman Spectrum Range 400 to 2300 cm-1
Spectral Resolution 12 to 14 cm-1 (FWHM) across range
Laser (excitation wavelength) 785nm±0.5 nm, 2 cm-1 line width, stability <0.1 cm-1
Laser Output Power 100 mW, 70 mW at the sample to reduce risk of ignition of

explosives
Collection Optics NA = 0.50, 8mm working distance; 0.2 to 2.5 mm spot size
Signal to Noise Ratio (SNR) SNR = 1000; 70 mW toluene 0.1 second integration
Exposure Automatic modes (10 ms minimum)
Battery 2 AA batteries (6 hours w/Alkaline, 11 hours w/Lithium)
External Power Supply Not applicable, replaceable batteries used, USB power

available
Weight 11.75 oz. (0.33kg)
Dimensions 3.6 x 2.80 x 1.5 in. (9.1 x 7.1 x 3.8 cm)
Operating Temperature -20°C to +40°C (continuous)
Display QVGA high visibility, glove compatible, color touch screen
Enclosure Rating IP-40
Security Log-in PIN Code, 4 digit
Measurement Accessories Vial holder, Point and Shoo t
Compliance CE certification (IEC 60825-1, EN 61326-1)
Collection Techniques Raster Orbital Scanning (ROS™) to reduce explosive ignition

risks and narcotic sample damage. Dynamic Raman

Scattering (DRS

detection.
Safety Class 1 laser safety with vials

™

) technology for low level Raman code

000-40000-010-02-201311 29

B: Specifications

30 000-40000-010-02-201311

Index

A

acquiring

average, 16
reference, 15
spectrum, 1 5

average

acquiring, 16

B

building a secure librar y, 2 4

C

controls, 7
cursor list, 20

D

date

resetting, 20
display features, 19
document

audience, iii

purpose, iii

summary, ii i
Dynamic Raman Scattering (DRS), 17

F

F button, 10
features, 1
focusing

Point and Shoot Adapter, 10

G

graph palette, 20

I

IDRaman s oftware, 13

overview, 13
set-up, 12

start-up, 13
indicators, 7
introduction, 1

L

library, 14

building, 21

building a secure, 24

M

models, 2

O

overview, 1

P

Peak Clean, 16
PIN

changing, 28
Point and Shoot Adapter, 5, 10

focusing, 1 0
product-related documentation, iii
PS Adapter, 5, 10

R

Raster Orbital Scanning (R OS), 3
reference

acquiring, 15
resetting

time, 20
restting

date, 20

000-40000-010-02-201311 31

B: Specifications

S

saving

spectra, 18
scale palette, 20
set-up

IDRaman s oftware, 12
specifications, 29
spectrum

acquiring, 15

saving, 18

T

Tera Term software

changing PIN, 28

creating library files, 14

installing, 27

saving a library spectrum, 14
time

resetting, 20

U

upgrades, iii
USB, 21

W

warranty, iv

32 000-40000-010-02-201311
