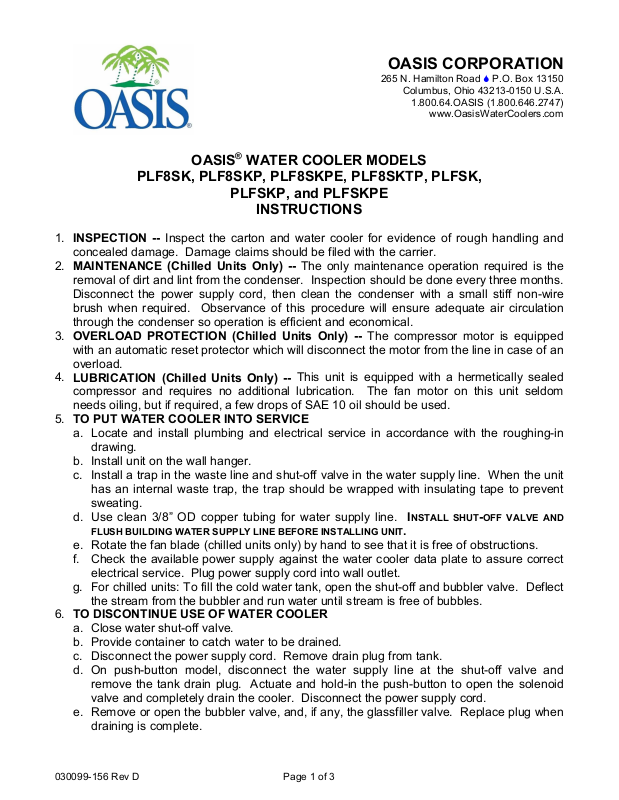

Oasis PLF8SK Installation Manual

OASIS CORPORATION

265 N. Hamilton Road 6 P.O. Box 13150

Columbus, Ohio 43213-0150 U.S.A.

1.800.64.OASIS (1.800.646.2747)
www.OasisWaterCoolers.com

OASIS® WATER COOLER MODELS

PLF8SK, PLF8SKP, PLF8SKPE, PLF8SKTP, PLFSK,

PLFSKP, and PLFSKPE

INSTRUCTIONS

1.

INSPECTION --

Inspect the carton and water cooler for evidence of rough handling and

concealed damage. Damage claims should be filed with the carrier.

2.

MAINTENANCE (Chilled Units Only) --

The only maintenance operation required is the
removal of dirt and lint from the condenser. Inspection should be done every three months.
Disconnect the power supply cord, then clean the condenser with a small stiff non-wire
brush when required. Observance of this procedure will ensure adequate air circulation
through the condenser so operation is efficient and economical.

3.

OVERLOAD PROTECTION (Chilled Units Only) --

The compressor motor is equipped
with an automatic reset protector which will disconnect the motor from the line in case of an
overload.

4.

LUBRICATION (Chilled Units Only) --

This unit is equipped with a hermetically sealed
compressor and requires no additional lubrication. The fan motor on this unit seldom
needs oiling, but if required, a few drops of SAE 10 oil should be used.

5.

TO PUT WATER COOLER INTO SERVICE

a. Locate and install plumbing and electrical service in accordance with the roughing-in

drawing.
b. Install unit on the wall hanger.
c. Install a trap in the waste line and shut-off valve in the water supply line. When the unit

has an internal waste trap, the trap should be wrapped with insulating tape to prevent

sweating.
d. Use clean 3/8” OD copper tubing for water supply line.

FLUSH BUILDING WATER SUPPLY LINE BEFORE INSTALLING UNIT

NSTALL SHUT-OFF VALVE AND

I

.

e. Rotate the fan blade (chilled units only) by hand to see that it is free of obstructions.
f. Check the available power supply against the water cooler data plate to assure correct

electrical service. Plug power supply cord into wall outlet.
g. For chilled units: To fill the cold water tank, open the shut-off and bubbler valve. Deflect

the stream from the bubbler and run water until stream is free of bubbles.

6.

TO DISCONTINUE USE OF WATER COOLER

a. Close water shut-off valve.
b. Provide container to catch water to be drained.
c. Disconnect the power supply cord. Remove drain plug from tank.
d. On push-button model, disconnect the water supply line at the shut-off valve and

remove the tank drain plug. Actuate and hold-in the push-button to open the solenoid

valve and completely drain the cooler. Disconnect the power supply cord.
e. Remove or open the bubbler valve, and, if any, the glassfiller valve. Replace plug when

draining is complete.

030099-156 Rev D Page 1 of 3

LWAYS DRAIN ALL WATER WHEN FREEZING TEMPERATURES ARE ANTICIPATED AND BEFORE

f.

A

SHIPPING THE WATER COOLER

.

WARNING

The warranty and the Underwriters’ Laboratory Listing for this machine are automatically
voided if this machine is altered, modified or combined with any other machine or device.
Alteration or modification of this machine may cause serious flooding and/or hazardous
electrical shock or fire.

XCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER WARRANTY, GUARANTEE OR

E

AGREEMENT EXPRESSED
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

OASIS® is a registered trademark of OASIS Corporation
“Three Palms Design” is a registered trademark of OASIS Corporation

©

Copyright 2000 OASIS Corporation

IMPLIED, OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OR

,

.

030099-156 Rev D Page 2 of 3
