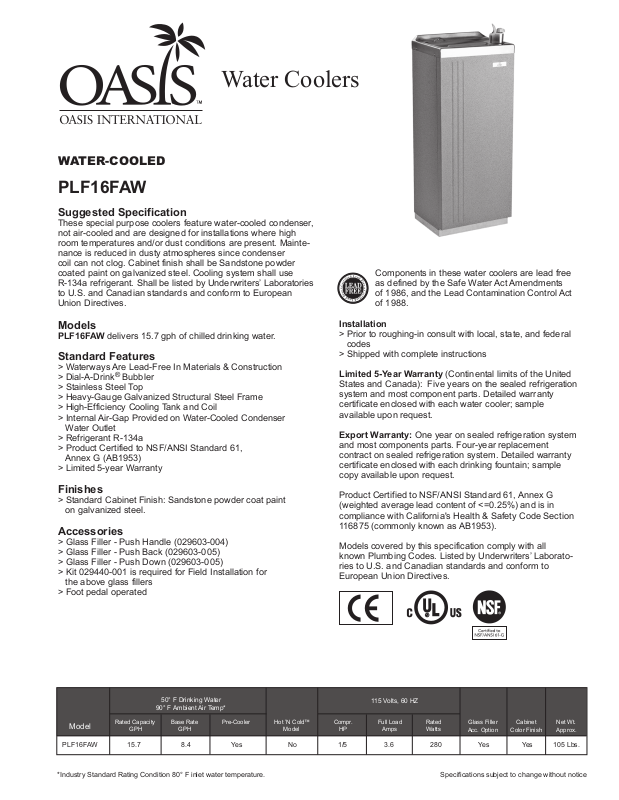

Oasis PLF16FAW User Manual

Water Coolers

WATER-COOLED

PLF16FAW

Suggested Specification

These special purpose coolers feature water-cooled condenser,
not air-cooled and are designed for installations where high
room temperatures and/or dust conditions are present. Mainte­nance is reduced in dusty atmospheres since condenser
coil can not clog. Cabinet finish shall be Sandstone powder
coated paint on galvanized steel. Cooling system shall use
R-134a refrigerant. Shall be listed by Underwriters’ Laboratories
to U.S. and Canadian standards and conform to European
Union Directives.

Components in these water coolers are lead free
as defined by the Safe Water Act Amendments
of 1986, and the Lead Contamination Control Act
of 1988.

Models

PLF16FAW delivers 15.7 gph of chilled drinking water.

Standard Features

> Waterways Are Lead-Free In Materials & Construction
> Dial-A-Drink
> Stainless Steel Top
> Heavy-Gauge Galvanized Structural Steel Frame
> High-Efficiency Cooling Tank and Coil
> Internal Air-Gap Provided on Water-Cooled Condenser
Water Outlet
> Refrigerant R-134a
> Product Certified to NSF/ANSI Standard 61,
Annex G (AB1953)
> Limited 5-year Warranty

®

Bubbler

Finishes

> Standard Cabinet Finish: Sandstone powder coat paint
on galvanized steel.

Accessories

> Glass Filler - Push Handle (029603-004)
> Glass Filler - Push Back (029603-005)
> Glass Filler - Push Down (029603-005)
> Kit 029440-001 is required for Field Installation for
the above glass fillers
> Foot pedal operated

Installation

> Prior to roughing-in consult with local, state, and federal
codes
> Shipped with complete instructions

Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most component parts. Detailed warranty
certificate enclosed with each water cooler; sample
available upon request.

Export Warranty: One year on sealed refrigeration system
and most components parts. Four-year replacement
contract on sealed refrigeration system. Detailed warranty
certificate enclosed with each drinking fountain; sample
copy available upon request.

Product Certified to NSF/ANSI Standard 61, Annex G
(weighted average lead content of <=0.25%) and is in
compliance with California's Health & Safety Code Section
116875 (commonly known as AB1953).

Models covered by this specification comply with all
known Plumbing Codes. Listed by Underwriters’ Laborato­ries to U.S. and Canadian standards and conform to
European Union Directives.

50° F Drinking Water

90° F Ambient Air Temp*

Model

PLF16FAW 15.7 8.4 Yes No 1/5 3.6 280 Yes Yes 105 Lbs.

*Industry Standard Rating Condition 80° F inlet water temperature.

Rated Capacity

GPH

Base Rate

GPH

Pre-Cooler Hot ’N Cold™

Model

Compr.

HP

115 Volts, 60 HZ

Full Load

Amps

Rated
Watts

**Specifications subject to change without notice

Glass Filler
Acc. Option

Cabinet

Color Finish

Net Wt.
Approx.

Form 4053 | Rev. 06/09

Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235

For Customer Service and Technical Helpline assistance call: 800.950.3226

OASIS

™

WATER-COOLED CONDENSER WATER COOLER MODEL PLF16FAW

www.oasiscoolers.com

OASIS is a trademark of Oasis International

2009 Oasis International
