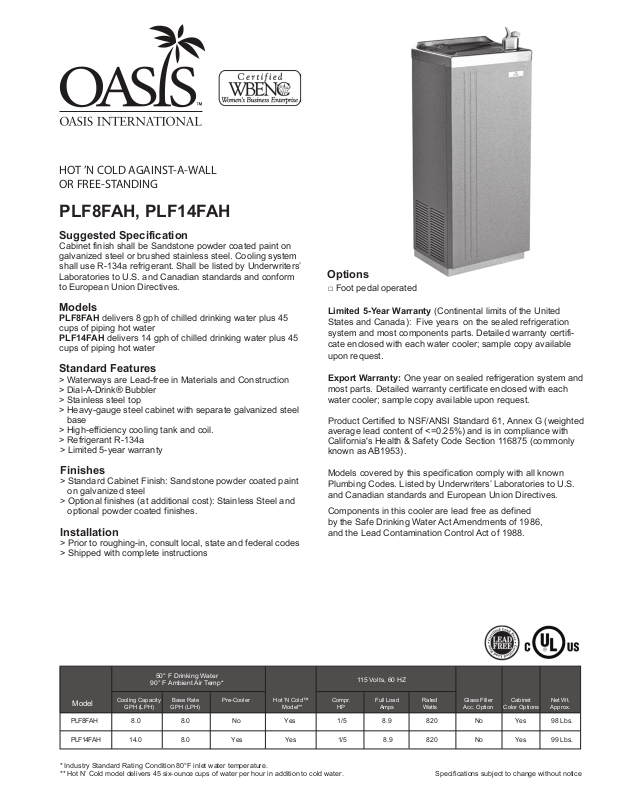

Oasis PLF14FAH User Manual
HOT ’N COLD AGAINST-A-WALL
OR FREE-STANDING
PLF8FAH, PLF14FAH
Suggested Specification
Cabinet finish shall be Sandstone powder coated paint on
galvanized steel or brushed stainless steel. Cooling system
shall use R-134a refrigerant. Shall be listed by Underwriters’
Laboratories to U.S. and Canadian standards and conform
to European Union Directives.
Options
□ Foot pedal operated
Models
PLF8FAH delivers 8 gph of chilled drinking water plus 45
cups of piping hot water
PLF14FAH delivers 14 gph of chilled drinking water plus 45
cups of piping hot water
Standard Features
> Waterways are Lead-free in Materials and Construction
> Dial-A-Drink® Bubbler
> Stainless steel top
> Heavy-gauge steel cabinet with separate galvanized steel
base
> High-efficiency cooling tank and coil.
> Refrigerant R-134a
> Limited 5-year warranty
Finishes
> Standard Cabinet Finish: Sandstone powder coated paint
on galvanized steel
> Optional finishes (at additional cost): Stainless Steel and
optional powder coated finishes.
Installation
> Prior to roughing-in, consult local, state and federal codes
> Shipped with complete instructions
Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most components parts. Detailed warranty certificate enclosed with each water cooler; sample copy available
upon request.
Export Warranty: One year on sealed refrigeration system and
most parts. Detailed warranty certificate enclosed with each
water cooler; sample copy available upon request.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted
average lead content of <=0.25%) and is in compliance with
California's Health & Safety Code Section 116875 (commonly
known as AB1953).
Models covered by this specification comply with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to U.S.
and Canadian standards and European Union Directives.
Components in this cooler are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.
50° F Drinking Water
90° F Ambient Air Temp*
Model
* Industry Standard Rating Condition 80°F inlet water temperature.
** Hot N’ Cold model delivers 45 six-ounce cups of water per hour in addition to cold water.
Cooling Capacity
GPH (LPH)
Base Rate
GPH (LPH)
8.0
Pre-Cooler Hot ’N Cold™
Model**
Compr.
115 Volts, 60 HZ
HP
Full Load
Amps
9.85/1seY0.8PLF8FAH
9.85/1seY0.41PLF14FAH No Yes8.0 028seY
Rated
Watts
Glass Filler
Acc. Option
028oN
Specifications subject to change without notice
No Yes 98 Lbs.
Cabinet
Color Options
Net Wt.
Approx.
99 Lbs.
Form 3954 | Rev. 06/09
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
OASIS
™
HOT ’N COLD AGAINST-A-WALL OR FREE-STANDING WATER COOLER MODELS PLF8AH, PLF14FAH
www.oasiscoolers.com
OASIS is a trademark of Oasis International
2009 Oasis International
