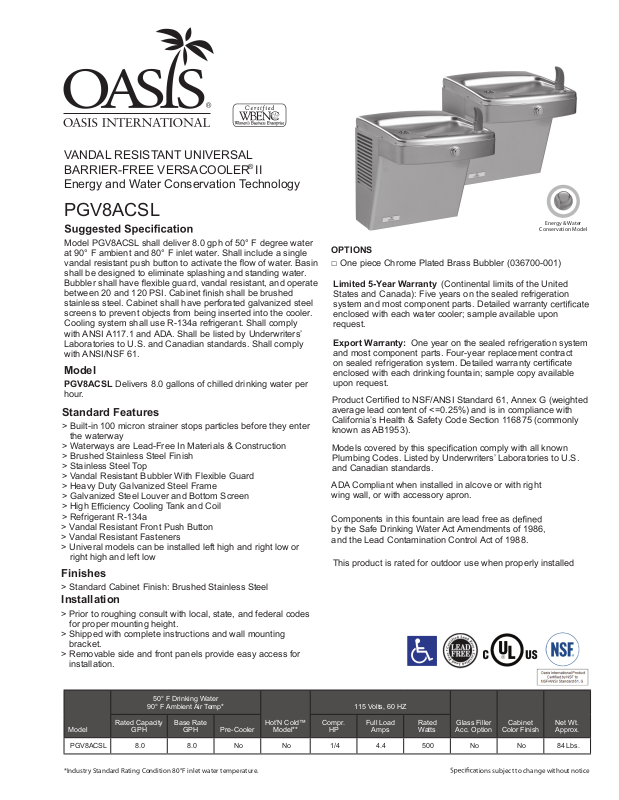

Oasis PGV8ACSL User Manual

VANDAL RESISTANT UNIVERSAL

BARRIER-FREE VERSACOOLER

Energy and Water Conservation Technology

PGV8ACSL

Model PGV8ACSL shall deliver 8.0 gph of 50° F degree water at 90° F ambient and 80° F inlet water. Shall include a single vandal resistant push button to activate the shall be designed to eliminate splashing and standing water. Bubbler shall have guard, vandal resistant, and operate between 20 and 120 PSI. Cabinet

shall be brushed stainless steel. Cabinet shall have perforated galvanized steel screens to prevent objects from being inserted into the cooler. Cooling system shall use R-134a refrigerant. Shall comply with ANSI A117.1 and ADA. Shall be listed by Underwriters’ Laboratories to U.S. and Canadian standards. Shall comply with ANSI/NSF 61.

Model

PGV8ACSL Delivers 8.0 gallons of chilled drinking water per

hour.

Standard Features

> Built-in 100 micron strainer stops particles before they enter

the waterway > Waterways are Lead-Free In Materials & Construction > Brushed Stainless Steel Finish > Stainless Steel Top > Vandal Resistant Bubbler With Flexible Guard > Heavy Duty Galvanized Steel Frame > Galvanized Steel Louver and Bottom Screen > High

Cooling Tank and Coil > Refrigerant R-134a > Vandal Resistant Front Push Button > Vandal Resistant Fasteners > Univeral models can be installed left high and right low or right high and left low

Finishes

> Standard Cabinet Finish: Brushed Stainless Steel

Installation

> Prior to roughing consult with local, state, and federal codes

for proper mounting height.

> Shipped with complete instructions and wall mounting

bracket.

> Removable side and front panels provide easy access for

installation.

of water. Basin

Energy & Water

Conservation Model

OPTIONS

□ One piece Chrome Plated Brass Bubbler (036700-001)

Limited 5-Year Warranty (Continental limits of the United States and Canada): Five years on the sealed refrigeration system and most component parts. Detailed warranty enclosed with each water cooler; sample available upon request.

Export Warranty: One year on the sealed refrigeration system and most component parts. Four-year replacement contract on sealed refrigeration system. Detailed warranty enclosed with each drinking fountain; sample copy available upon request.

Product

to NSF/ANSI Standard 61, Annex G (weighted average lead content of <=0.25%) and is in compliance with California’s Health & Safety Code Section 116875 (commonly known as AB1953).

Models covered by this

comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards.

ADA Compliant when installed in alcove or with right wing wall, or with accessory apron.

Components in this fountain are lead free as by the Safe Drinking Water Act Amendments of 1986, and the Lead Contamination Control Act of 1988.

This product is rated for outdoor use when properly installed

50° F Drinking Water

90° F Ambient Air Temp*

Model

PGV8ACSL 8.0 8.0 No No 1/4 4.4 500 No No 84 Lbs.

*Industry Standard Rating Condition 80° F inlet water temperature. tions subject to change without notice

Rated Capacity

GPH

Base Rate

GPH Pre-Cooler

Hot’N Cold™

Model**

Compr.

115 Volts, 60 HZ

Full Load

Amps

Rated Watts

Glass Filler Acc. Option

Cabinet

Color Finish

Net Wt. Approx.

OASIS® BARRIER-FREE SPLIT-LEVEL Versacooler® II MODELS

P8ACSL, P8ACSLEE, PF8ACSLEE, PF8ACSL, PV8ACSL, PVF8ACSL, PGV8ACSL

SUNROC MODELS ADA8ACB, ADA8ACBHF, ADAF8ACB, ADAF8ACBHF

Form 3976 | Rev. 06/11

Oasis International • 222 East Campus View Blvd • Columbus, OH 43235 For Customer Service and Technical Helpline assistance call: 800.950.3226

www.oasiscoolers.com

OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International

A WBENC - Women’s Business Enterprise
