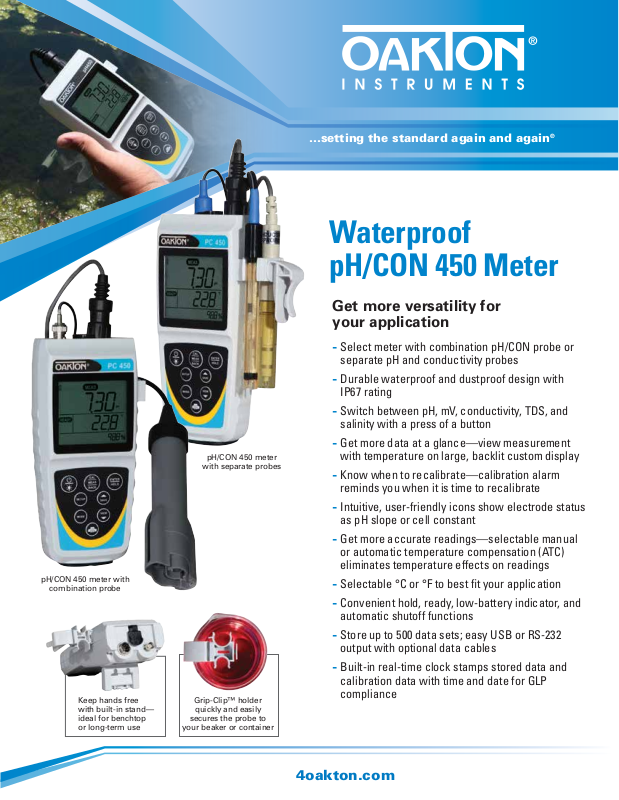

Oakton PC 450 Data Sheet
pH/CON 450 meter with separate probes
Keep hands free |
|
Grip-Clip™ holder |
with built-in stand— |
|
quickly and easily |
ideal for benchtop |
|
secures the probe to |
or long-term use |
|
your beaker or container |
|
|
|
...setting the standard again and again®
Waterproof
pH/CON 450 Meter
Get more versatility for your application
-Select meter with combination pH/CON probe or separate pH and conductivity probes
-Durable waterproof and dustproof design with IP67 rating
-Switch between pH, mV, conductivity, TDS, and salinity with a press of a button
-Get more data at a glance—view measurement with temperature on large, backlit custom display
-Know when to recalibrate—calibration alarm reminds you when it is time to recalibrate
-Intuitive, user-friendly icons show electrode status as pH slope or cell constant
-Get more accurate readings—selectable manual or automatic temperature compensation (ATC) eliminates temperature effects on readings
-Selectable °C or °F to best fit your application
-Convenient hold, ready, low-battery indicator, and automatic shutoff functions
-Store up to 500 data sets; easy USB or RS-232 output with optional data cables
-Built-in real-time clock stamps stored data and calibration data with time and date for GLP compliance
4oakton.com
Key pH features:
-Six-point calibration—choose USA, NIST, DIN, or custom buffer sets
-Auto buffer calibration which automatically identifies the correct pH buffer for rapid calibration
-mV offset for calibration to ORP standards, zeroing mV value, and pH diagnostics
-Compatible with pH and ISE electrodes having a BNC connector
Key conductivity features:
-Auto-range conductivity from 0 to 199.9 mS in five ranges with up to five calibration points
-Selectable cell constant of 0.1, 1.0, or 10 from two-cell probe
-Selectable temperature coefficient; adjustable from 0 to 10% per °C for accurate compensation of almost any solution
-Conductivity-to-TDS factor is adjustable from 0.4 to 1.0
What's included:
Meter with combination probe includes: pH/CON probe 35630-51 and batteries.
Meter with separate probes includes: pH probe 35641-51, conductivity cell 35808-50, Grip-Clip holder, and batteries Kits add: calibration solutions and hard carrying case.
|
|
|
|
|
|
|
|
67 |
3 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
Description |
|
pH/CON 450 meter |
pH/CON 450 meter |
|
pH/CON 450 meter kit |
pH/CON 450 meter kit |
|
||
|
with combination probe |
with separate probes |
|
with combination probe |
with separate probes |
|
|||
|
|
|
|
||||||
Catalog number |
WD-35630-10 |
WD-35630-12 |
|
WD-35630-80 |
|
WD-35630-90 |
|
||
Precalibrated catalog number |
WD-35630-11 |
WD-35630-13 |
|
WD-35630-81 |
|
WD-35630-91 |
|
||
|
pH |
|
–2.00 to 16.00 pH |
|
|
||||
|
mV |
|
|
±2000 mV |
|
|
|||
Range |
Conductivity |
|
|
0 to 200 mS |
|
|
|||
TDS |
|
|
0 to 200 ppt |
|
|
||||
|
|
|
|
|
|||||
|
Salinity |
|
|
0 to 50 ppt |
|
|
|||
|
Temperature |
|
–17.0 to 230.0°F (–10.0 to 110.0°C) |
|
|
||||
|
pH |
|
|
0.01 pH |
|
|
|||
|
mV |
|
0.1 mV ±999.9 mV; 1 mV beyond |
|
|
||||
Resolution |
Conductivity |
|
|
0.01 µS to 0.1 mS |
|
|
|||
TDS |
|
0.01 ppm to 0.1 ppt |
|
|
|||||
|
|
|
|
||||||
|
Salinity |
|
|
0.01 |
|
|
|
|
|
|
Temperature |
|
|
0.1°C/°F |
|
|
|||
|
pH |
|
|
±0.01 pH |
|
|
|||
|
mV |
|
±0.2 mV ±2 LSD or ±0.5% of reading; whichever is greater |
|
|
||||
Accuracy |
Conductivity |
|
±0.5% full-scale (monovalent); ±1% full-scale (divalent) |
|
|
||||
TDS |
|
|
±1% full-scale |
|
|
||||
|
|
|
|
|
|||||
|
Salinity |
|
|
±1% full-scale |
|
|
|||
|
Temperature |
|
|
±0.5°C; ±0.9°F |
|
|
|||
|
pH |
|
Up to six points: USA, NIST, DIN, or custom |
|
|
||||
|
mV |
|
|
±200 mV |
|
|
|||
Calibration |
Conductivity |
|
Auto/manual; one point per range |
|
|
||||
TDS |
|
Auto/manual; one point per range |
|
|
|||||
|
|
|
|
||||||
|
Salinity |
|
Auto/manual; one point per range |
|
|
||||
|
Temperature |
|
|
± 5.0° offset |
|
|
|||
Temperature |
compensation |
|
Automatic or manual from –10 to 110°C |
|
|
||||
Output |
|
|
|
USB or RS-232 |
|
|
|||
Data logging |
|
|
Stores up to 500 data sets |
|
|
||||
Power |
|
|
Two AA batteries (included), 500 hours (without backlight); AC adapter (optional) |
|
|
||||
Accessories
WD-35641-51 Replacement pH electrode.
Double-junction; epoxy body; BNC connector
WD-35618-05 ATC probe. Use with any standard pH electrode for temperature compensation
WD-35630-51 Replacement combination pH/CON/ATC probe WD-35608-55 Conductivity cell, K = 0.1
WD-35608-50 Replacement conductivity cell, K = 1.0
WD-35608-51 Conductivity cell, K = 10
WD-35614-50 Replacement Grip-Clip holder WD-35630-53 Data cable for USB connectivity
WD-35420-01 Data cable for RS-232 connectivity
WD-35420-72 Optional power adapter, 110/220 VAC WD-09376-01 Replacement batteries, AA. Pack of 4
