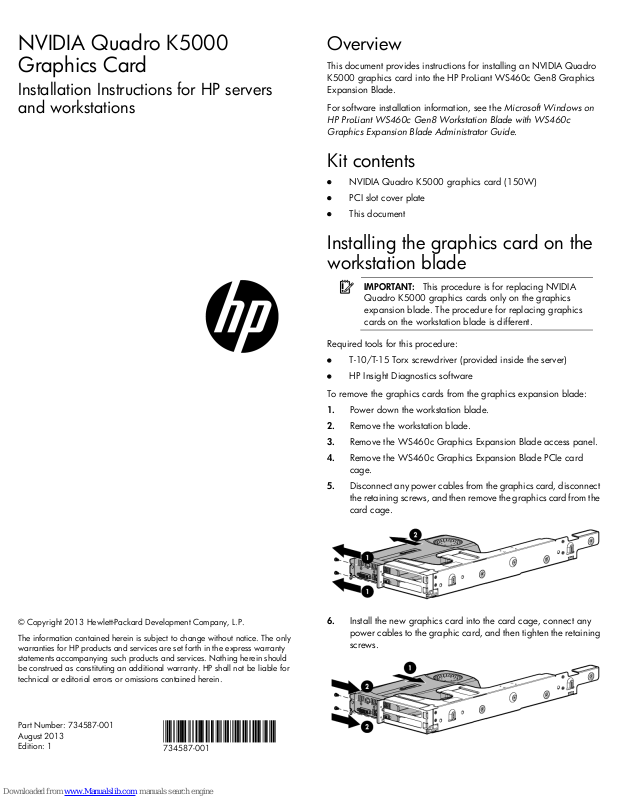

NVIDIA Quadro K5000 Graphics Card
Installation Instructions for HP servers and workstations
This document provides instructions for installing an NVIDIA Quadro K5000 graphics card into the HP ProLiant WS460c Gen8 Graphics Expansion Blade.
For software installation information, see the Microsoft Windows on
HP ProLiant WS460c Gen8 Workstation Blade with WS460c Graphics Expansion Blade Administrator Guide.
Kit contents
NVIDIA Quadro K5000 graphics card (150W)
PCI slot cover plate
This document
Installing the graphics card on the workstation blade
IMPORTANT: This procedure is for replacing NVIDIA Quadro K5000 graphics cards only on the graphics expansion blade. The procedure for replacing graphics cards on the workstation blade is different.
Required tools for this procedure:
T-10/T-15 Torx screwdriver (provided inside the server)
HP Insight Diagnostics software
To remove the graphics cards from the graphics expansion blade:
1. Power down the workstation blade.
2. Remove the workstation blade.
3. Remove the WS460c Graphics Expansion Blade access panel.
4. Remove the WS460c Graphics Expansion Blade PCIe card
cage.
5. Disconnect any power cables from the graphics card, disconnect the retaining screws, and then remove the graphics card from the card cage.
6. Install the new graphics card into the card cage, connect any power cables to the graphic card, and then tighten the retaining screws.
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should
be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Part Number: 734587-001 August 2013 Edition: 1
*734587-001*
734587-001
7. Connect the WS460c Graphics Expansion Blade PCIe card cage.
8. Install the WS460c Graphics Expansion Blade access panel.
9. Install the workstation blade into the enclosure.
10. Power up the workstation blade.
11. Download and install the latest drivers from the HP or NVIDIA
website.
For software installation information, see the Microsoft Windows on
HP ProLiant WS460c Gen8 Workstation Blade with WS460c Graphics Expansion Blade Administrator Guide.
The installation is complete.
