Nuuo NE-2020-US-6T User Manual

The Intelligent Surveillance Solution
NVRmini 2
User Manual
Ver. 1.6.0.120920.00
Table of Contents
1. Installation ................................................................... 8
1.1 Installation Process ..................................................... 8
1.2 LED Status Definitions ............................................... 16
2. Settings ..................................................................... 17
2.1 Camera Setup ........................................................... 17
2.1.1 Add Cameras by Camera Search ........................ 17
2.1.2 Add Cameras Manually ..................................... 19
2.1.3 Modify Camera Information .............................. 20
2.1.4 Modify Camera Parameters ............................... 20
2.1.5 Set up Lens Settings ........................................ 21
2.1.6 Set up 2nd Stream .......................................... 22
2.1.7 View Camera Status ........................................ 23
2.2 Recording & Event Setup ............................................ 24
2.2.1 Recording Mode Setup ..................................... 24

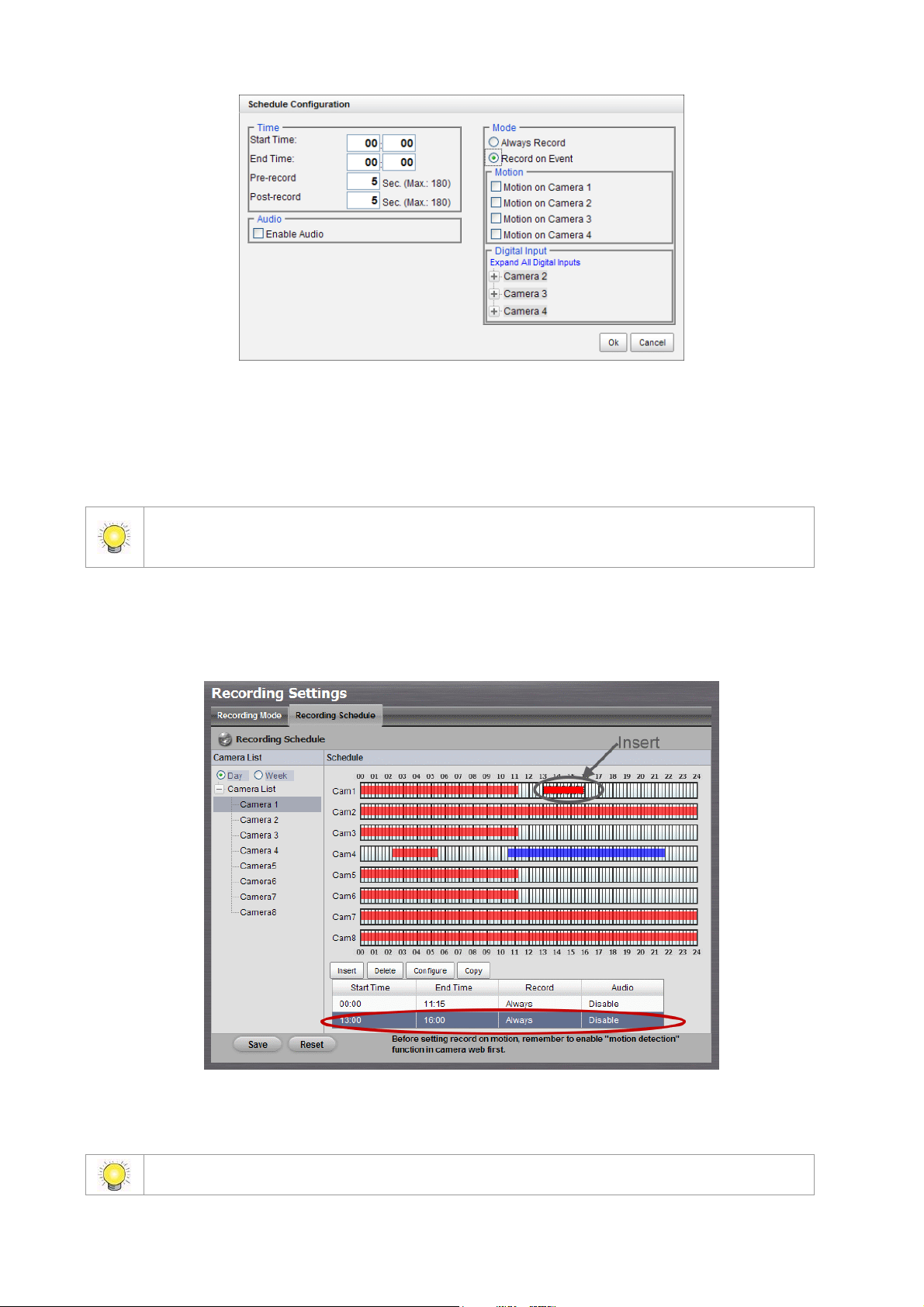

2.2.2 Recording Schedule / Event Setup ..................... 25
2.2.3 Camera Events and Responding Actions Setup .... 29
2.2.4 I/O Box Input and Responding Action Setup........ 31

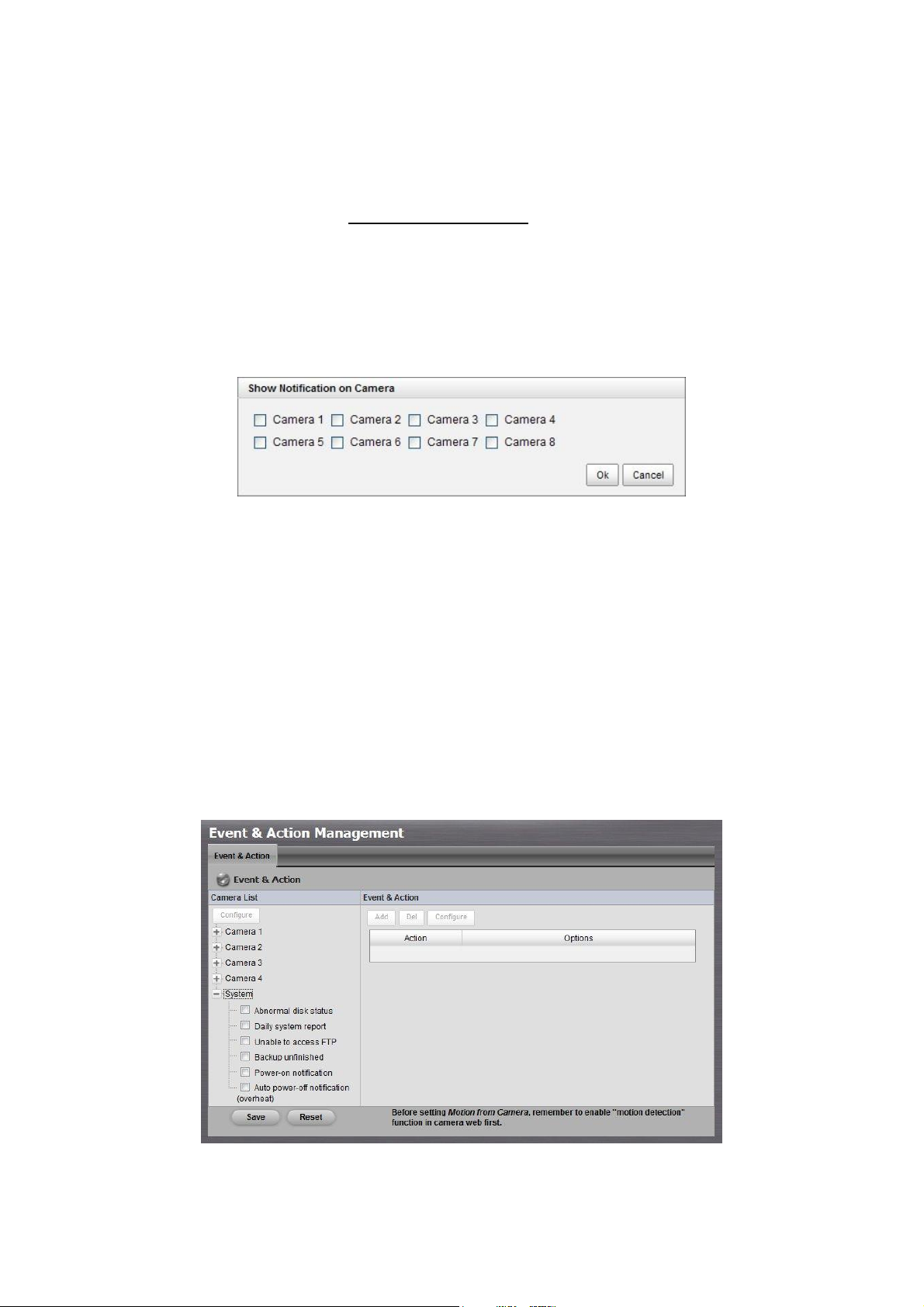

2.2.5 System Events and Responding Actions Setup ..... 32
2.2.6 Push Notification ............................................. 33
2.2.7 SMTP Server Setup .......................................... 36

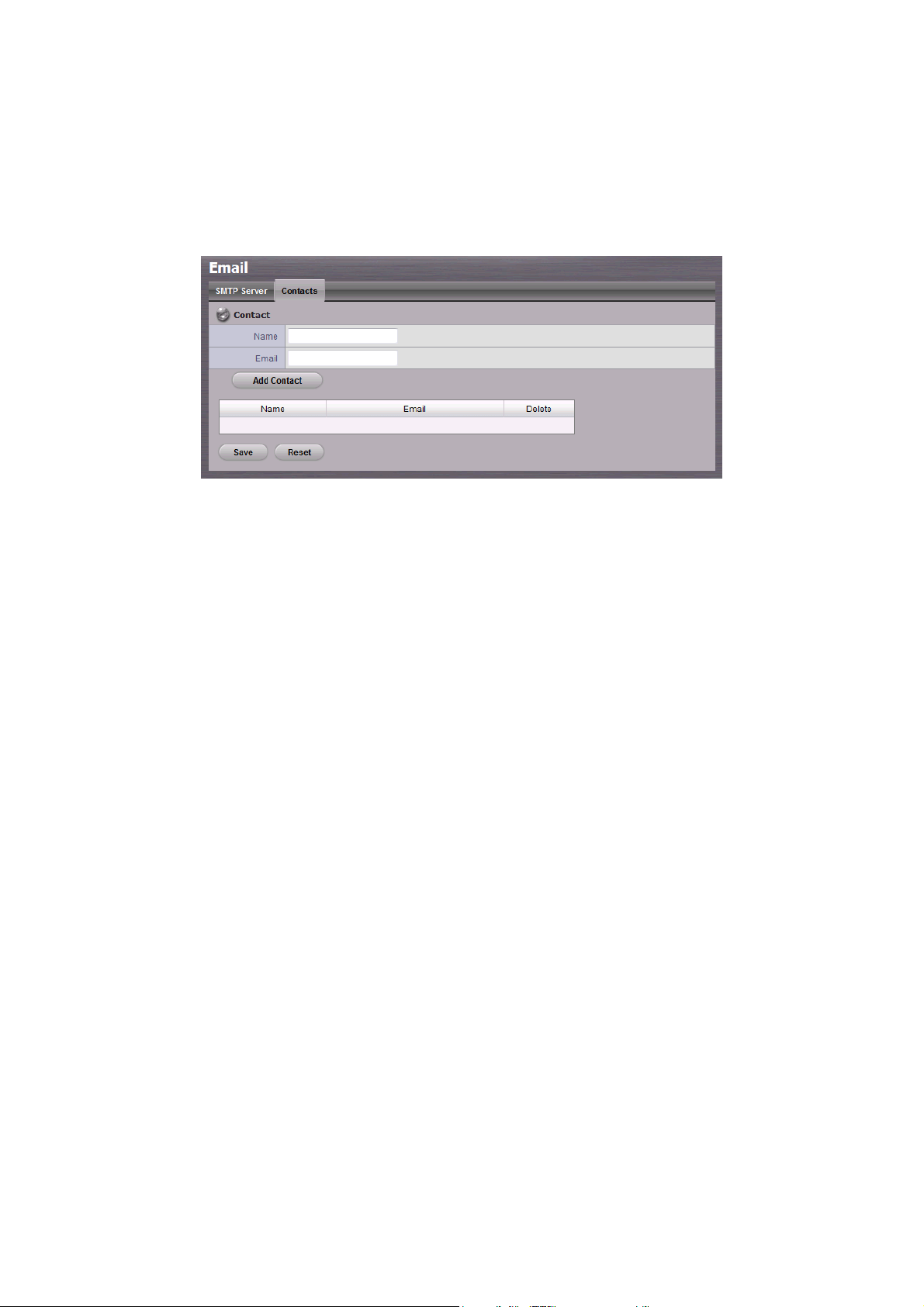

2.2.8 Add Event Contacts ......................................... 37
2.3 RAID & File Settings .................................................. 37
2.3.1 Create a RAID Volume ..................................... 37

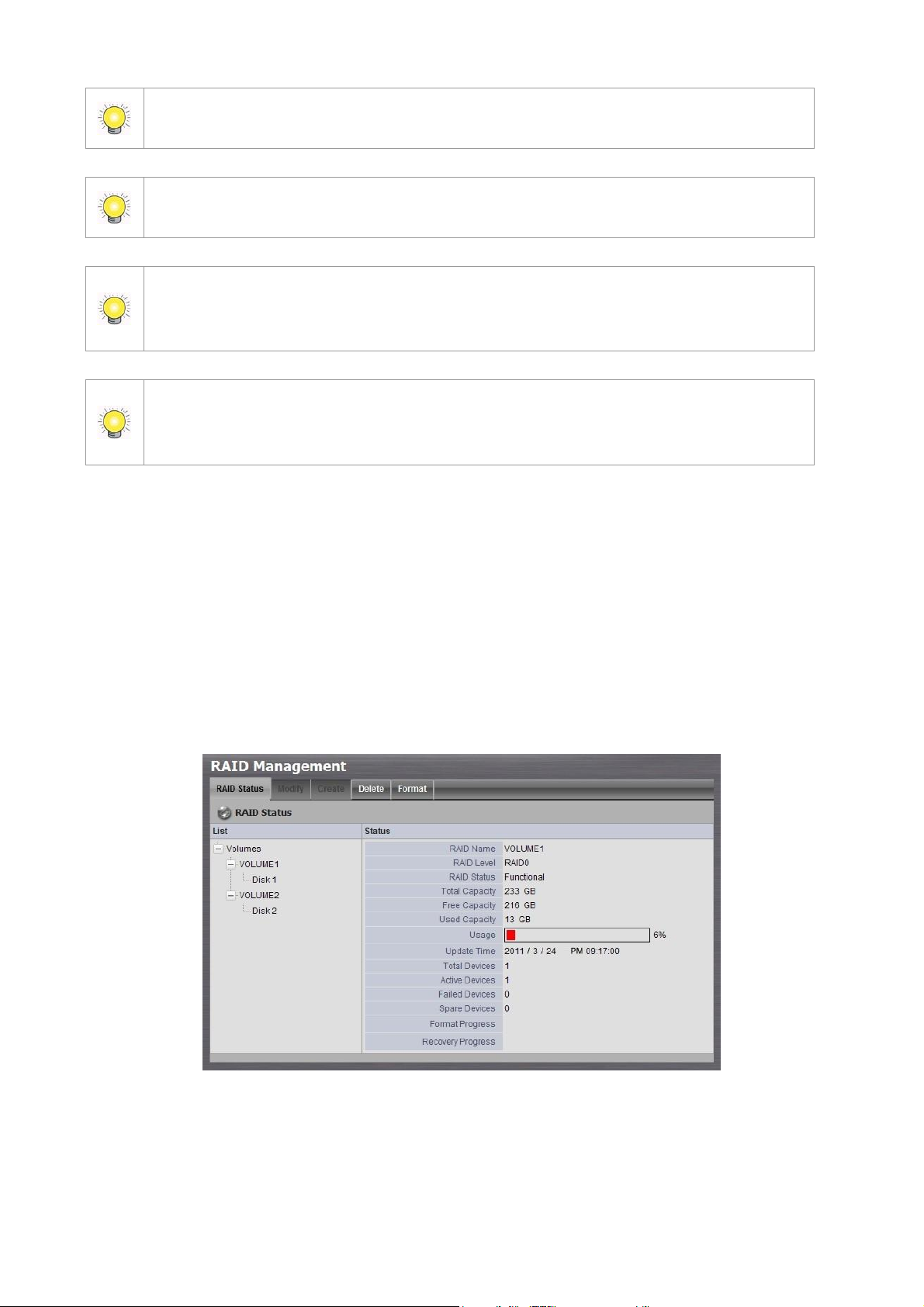

2.3.2 View RAID Volume Status ................................. 39
2.3.3 View Disk Drive Information ............................. 40
2.3.4 Modify RAID Volume ........................................ 40
2.3.5 Delete a RAID Volume ...................................... 43

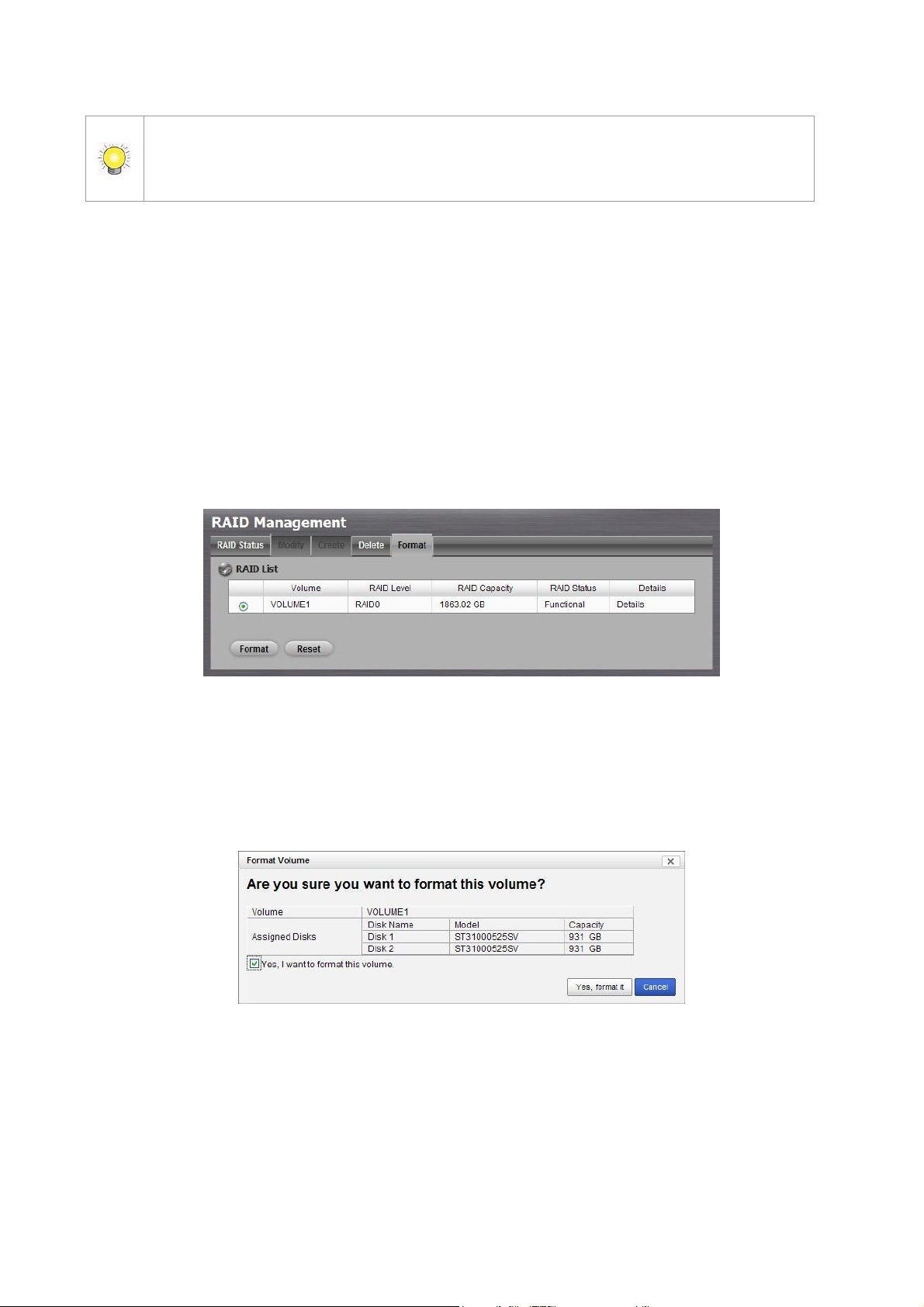

2.3.6 Format ........................................................... 44

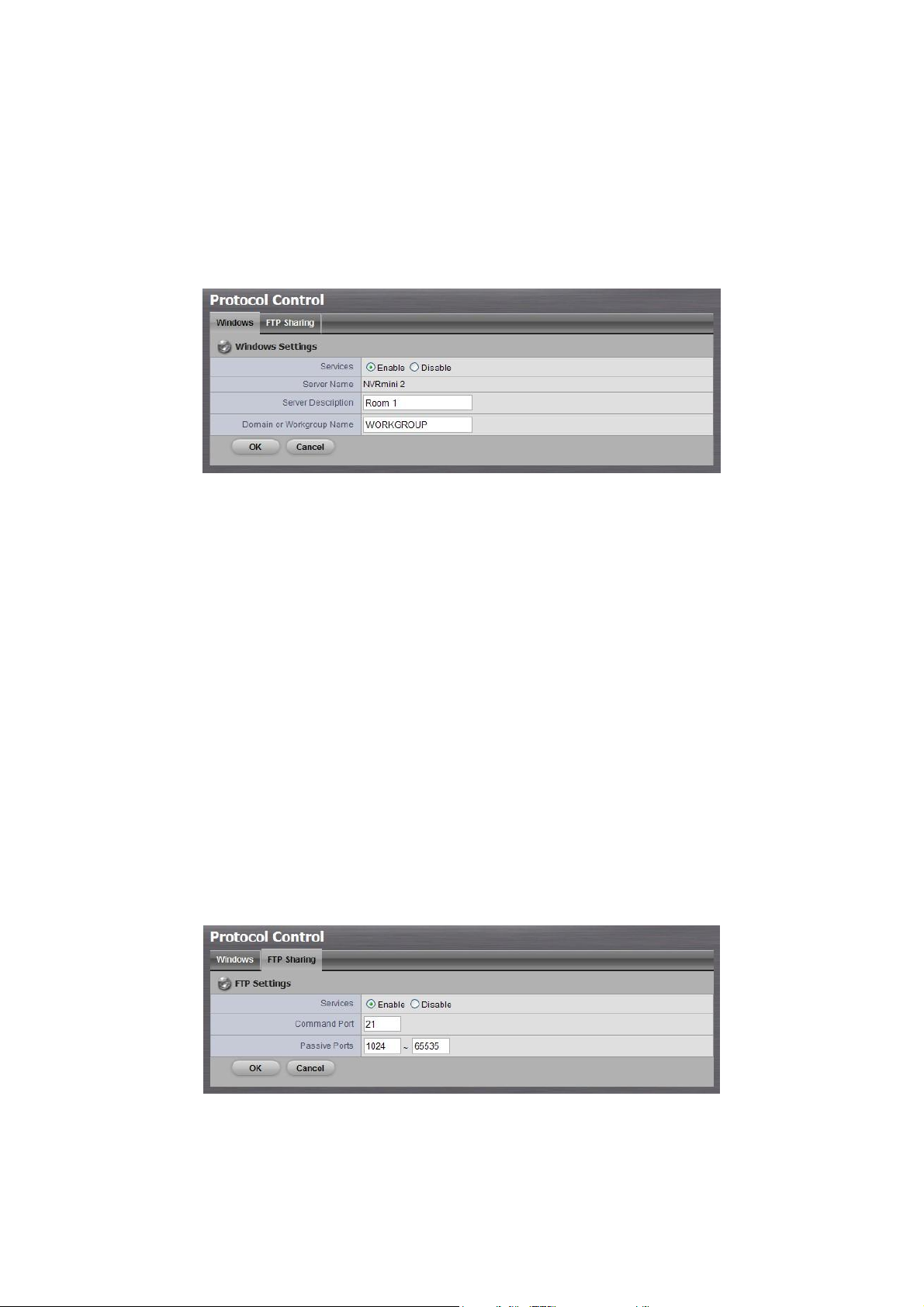

2.3.7 Modify the “My Network Places” Protocol Settings 44
2.3.8 Modify the FTP Protocol Settings ........................ 45
2.4 Auto Backup ............................................................. 46

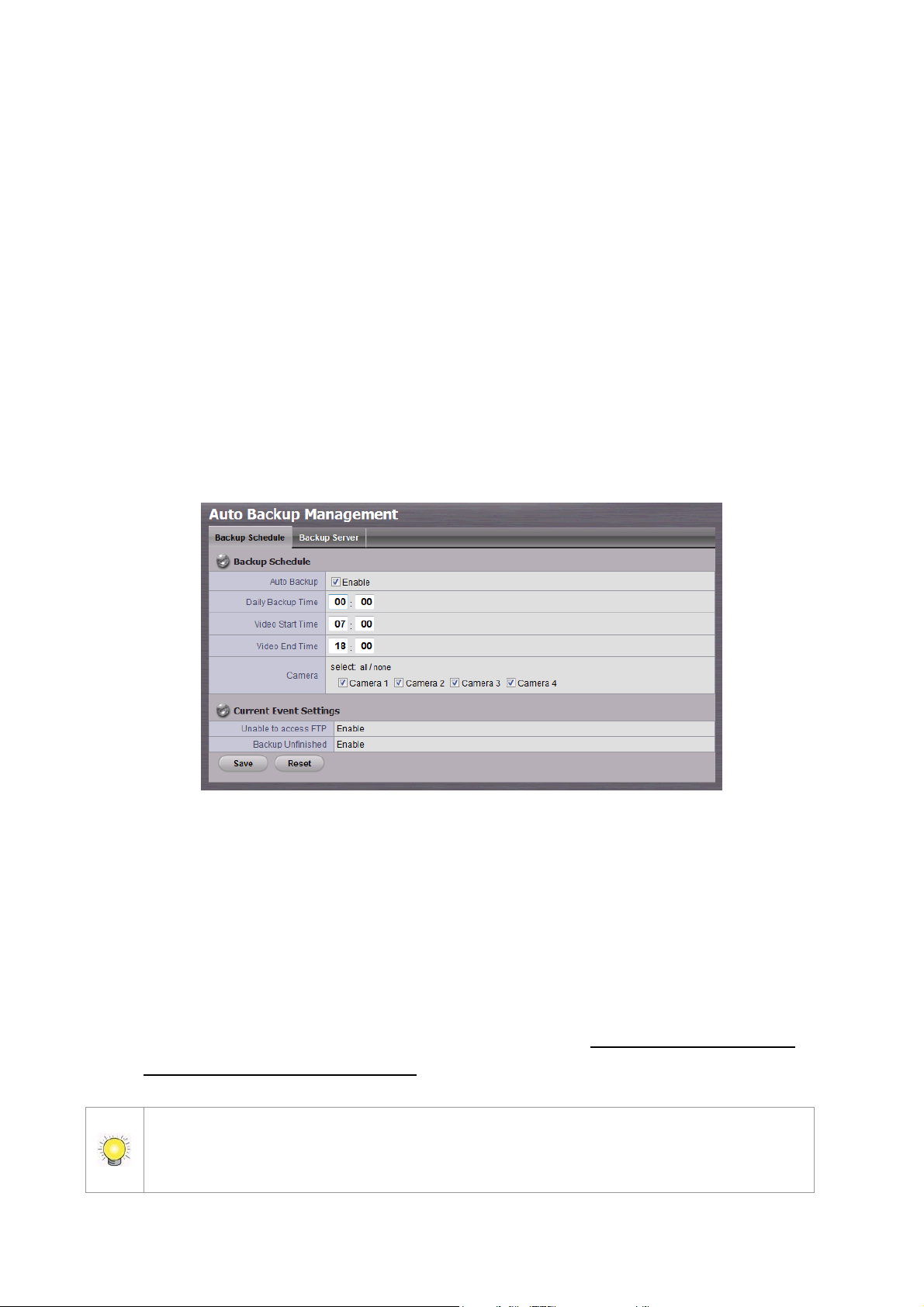

2.4.1 Set up Backup Schedule ................................... 46
2.4.2 Set up Backup Server ...................................... 47
2.5 Network Setup .......................................................... 48
2.5.1 View Network Status ........................................ 48
2.5.2 Network Settings ............................................. 48
2.5.3 Auto Port-Forwarding ....................................... 50
2.5.4 Network Service Setup ..................................... 51
2.5.5 CMS Service Setup .......................................... 53
2.6 Management ............................................................. 53
2.6.1 View the List of Users ...................................... 53
2.6.2 Create New Users ............................................ 54
2.6.3 Modify User Information ................................... 55
2.6.4 Change a User’s Password ................................ 55
2.6.5 Delete Users ................................................... 56
2.6.6 Online License Activation .................................. 56

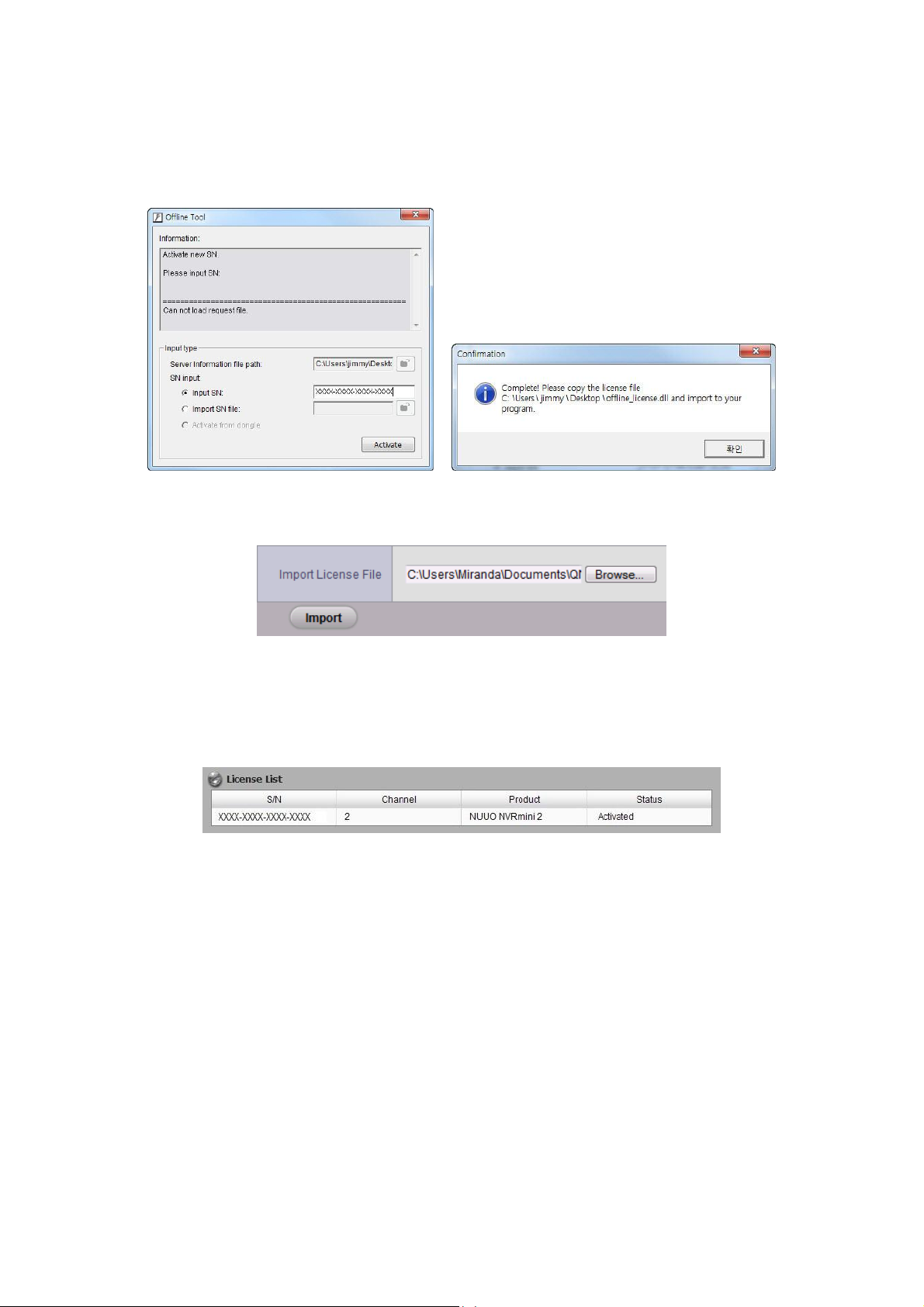

2.6.7 Offline License Activation .................................. 57
2.6.8 View the Event Log .......................................... 59
2.6.9 Save Unit Configuration .................................... 60
2.6.10 Load Unit Configuration / Default Settings ....... 61
2.7 System .................................................................... 62
2.7.1 View System Information ................................. 62
2.7.2 Smart Fan Control ........................................... 63

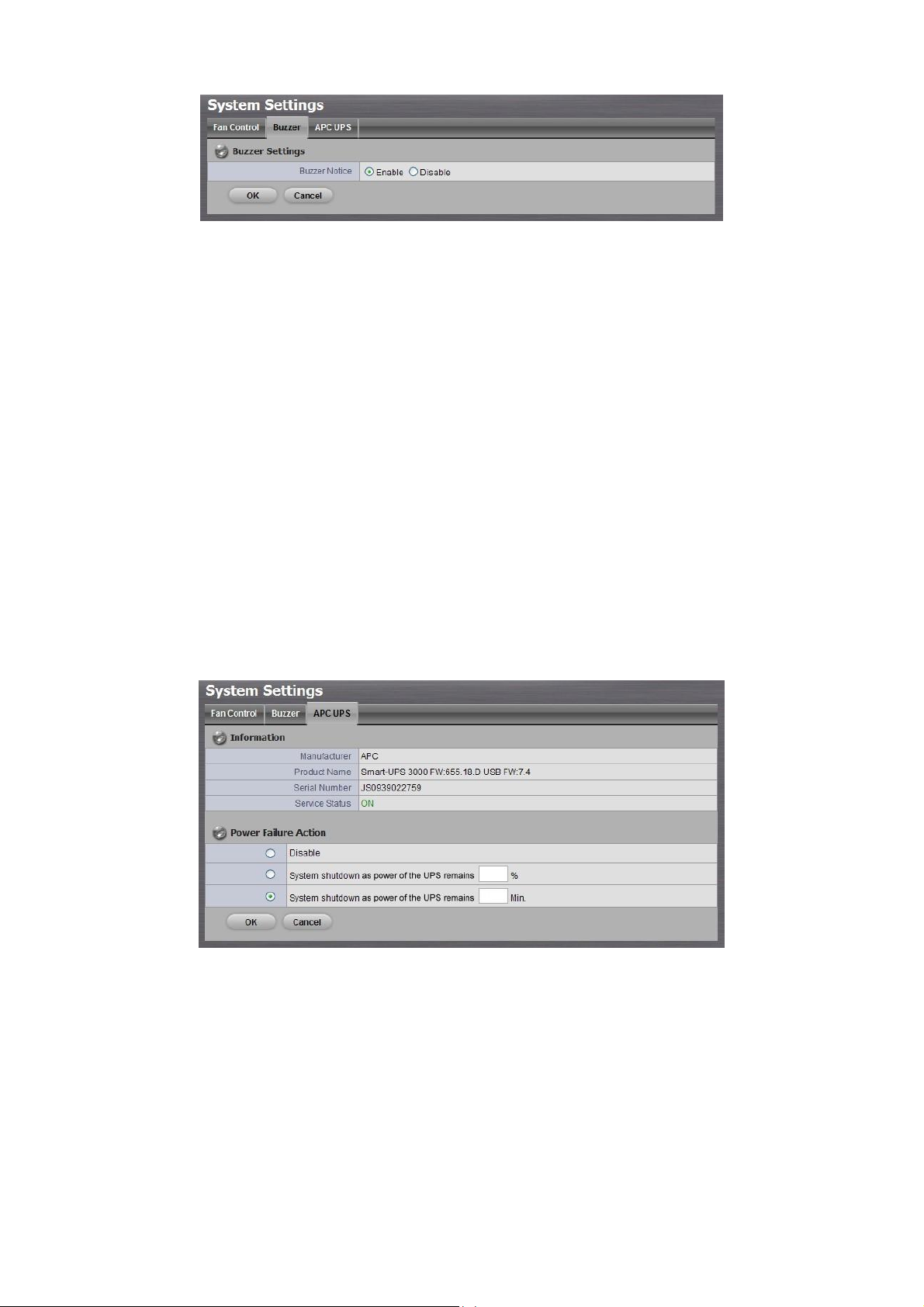

2.7.3 Buzzer Configuration ........................................ 63
2.7.4 UPS Setup ...................................................... 64
2.7.5 Upgrade the System ........................................ 65
2.7.6 Upgrade Notification ........................................ 65
2.7.7 System Date and Time Setup ............................ 66

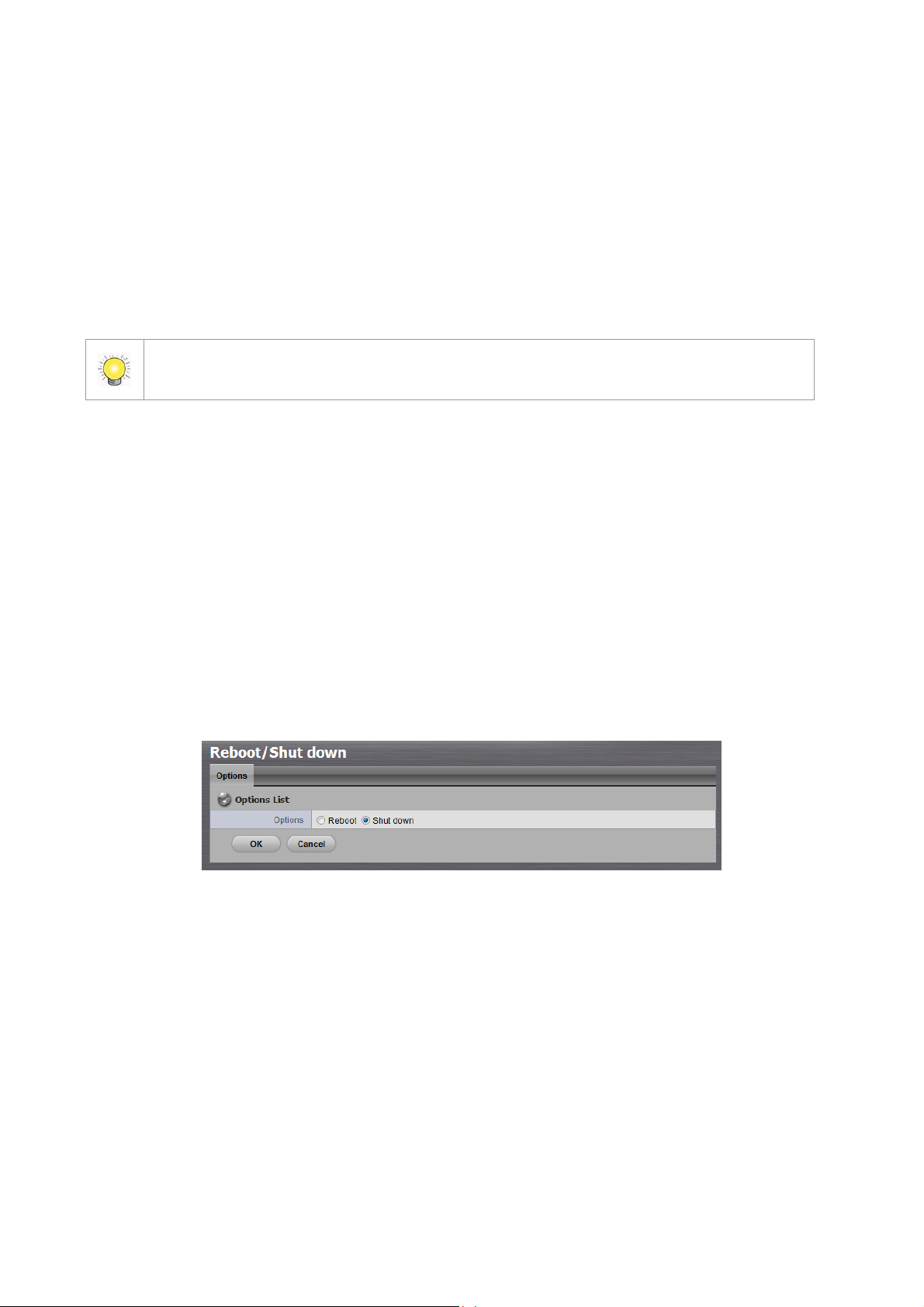

2.7.8 Restart the Unit ............................................... 67
2.7.9 Shut down the Unit .......................................... 68
3. POS ........................................................................... 70
3.1 Introduction ............................................................. 70
3.1.1 System Introduction ........................................ 70
3.1.2 Hardware Installation – SCB-C31A ..................... 71
3.1.3 Software Installation – SCB-C31A ...................... 72
3.1.4 Connection via TCP Client ................................. 73
3.2 Software Setup ......................................................... 74
3.2.1 Activate POS License ........................................ 74

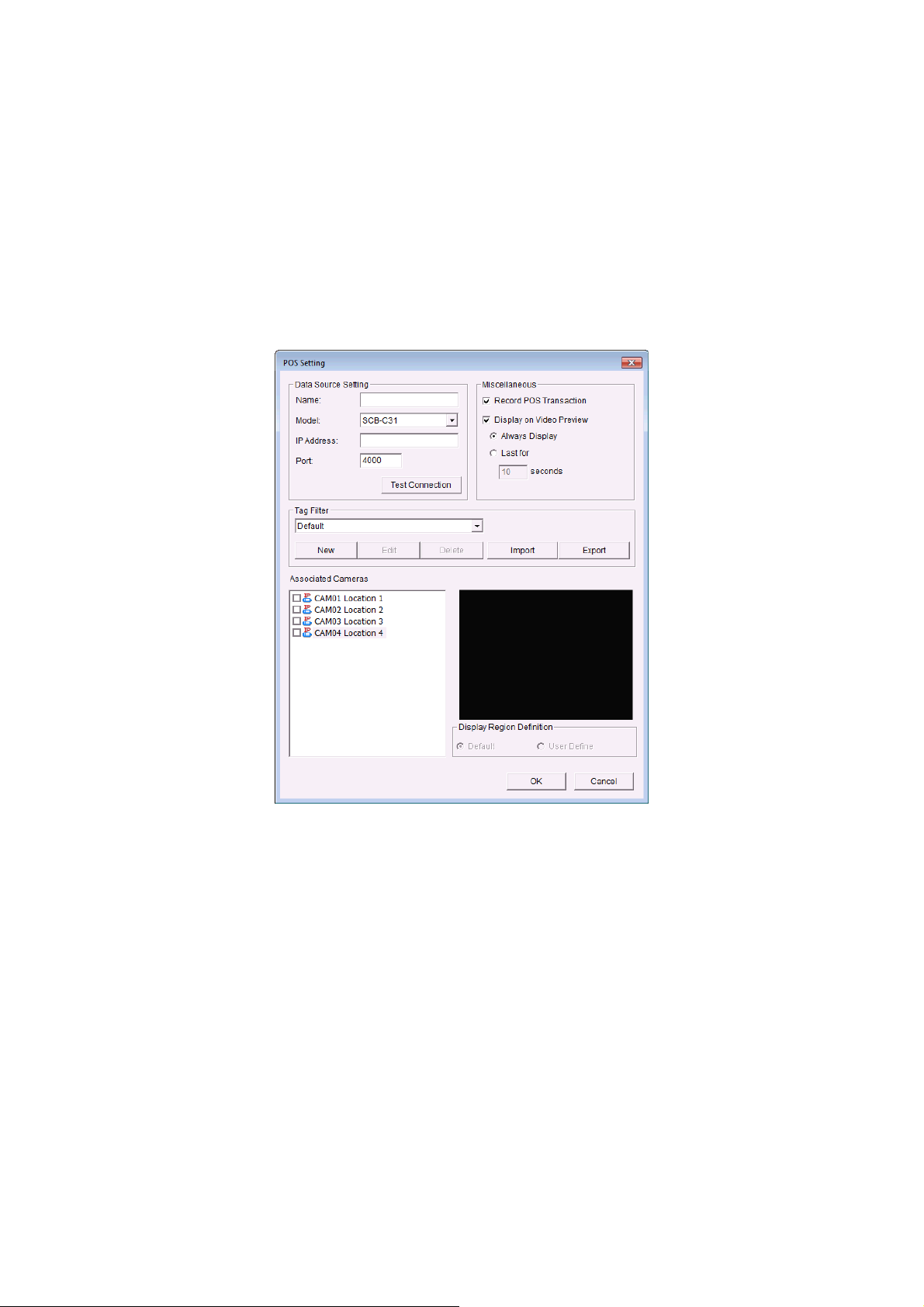

3.2.2 NVR POS Setting ............................................. 74
3.2.3 Insert POS Setting ........................................... 75
3.2.4 Delete POS Device ........................................... 77
3.2.5 Configure POS Setting ...................................... 77
3.3 Tag Filter .................................................................. 77

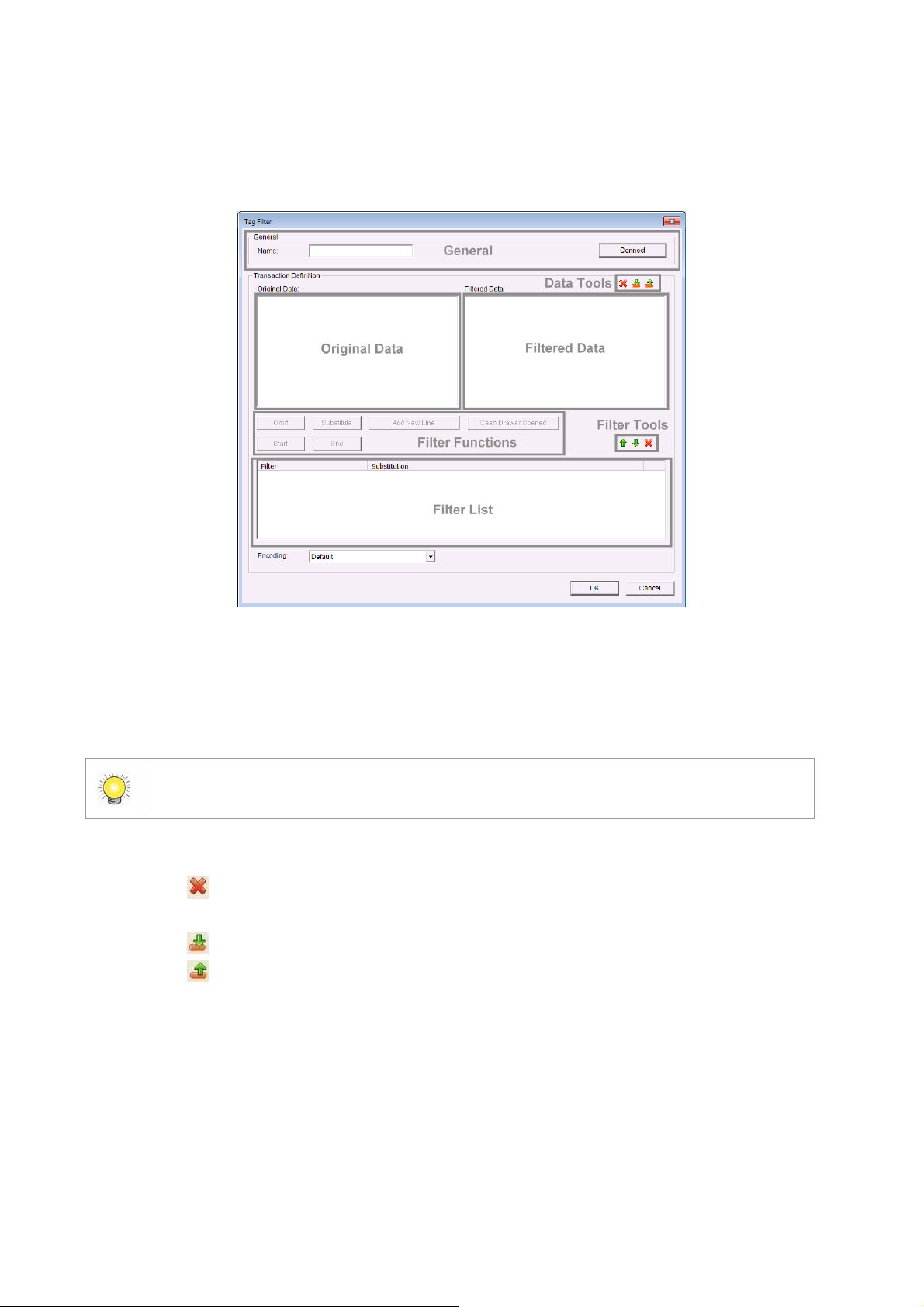

3.3.1 Add New Tag Filter ........................................... 77
3.3.2 Edit Tag Filter .................................................. 80
3.3.3 Delete Tag Filter .............................................. 80
3.3.4 Import/Export Tag Filter ................................... 81

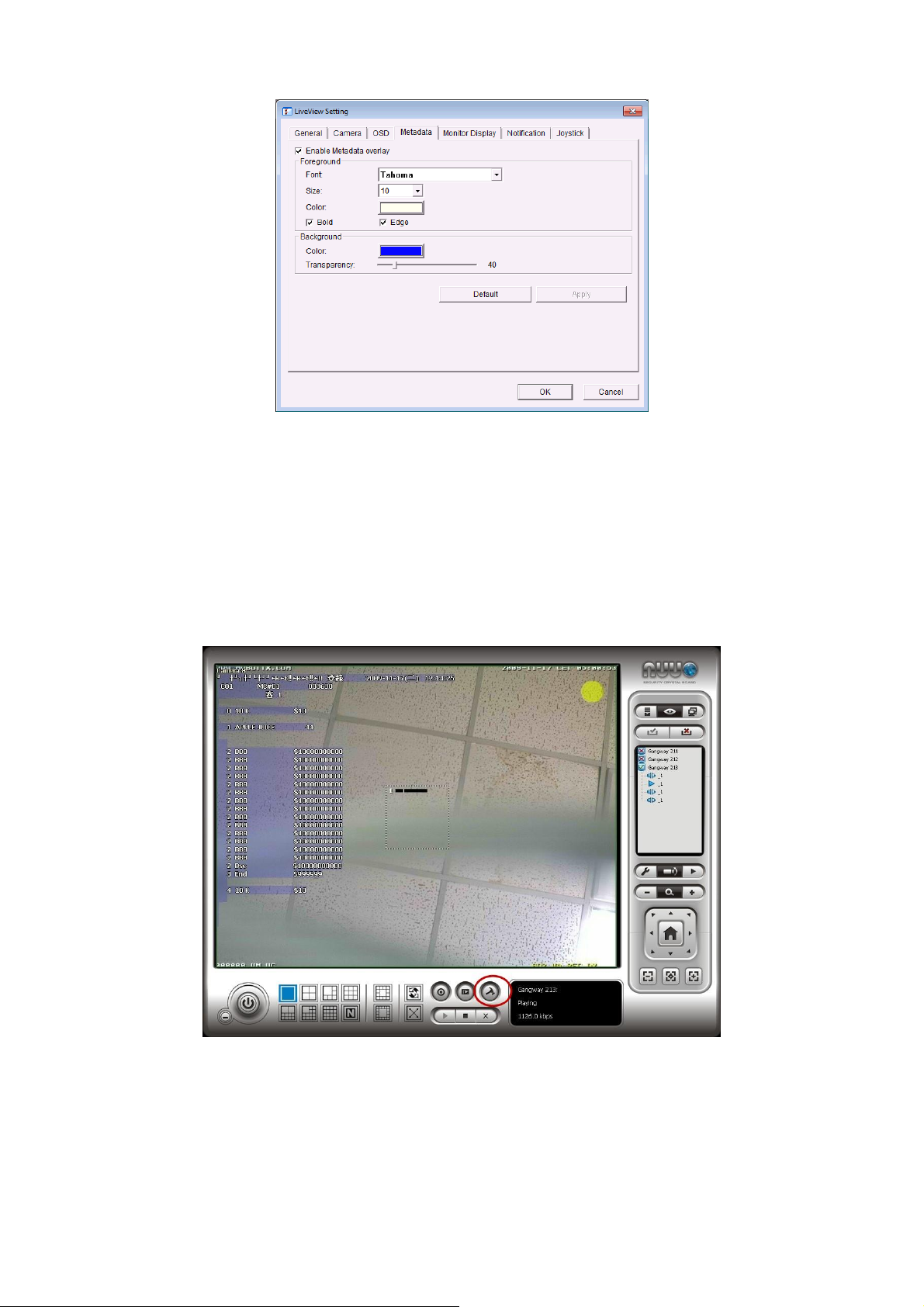

3.4 POS Display Font ....................................................... 81
3.4.1 Live View ........................................................ 81
3.4.2 Remote Live Viewer ......................................... 82
3.4.3 Playback ......................................................... 83
3.4.4 Playback System ............................................. 84
3.5 POS Transaction Data Search ...................................... 85
3.5.1 Search POS Transaction Data through Playback ... 85
3.5.2 Search POS Transaction Data through Playback System 86
3.6 Playback Video with POS Data .................................... 86
3.6.1 Select Period by POS Search ............................. 87
3.6.2 Select Period by Data & Time through Playback ... 87
3.6.3 Select Period by Data & Time through Playback System 87
3.7 Backup Video with POS Data ....................................... 88
3.7.1 Backup through Internet Explorer ...................... 88
3.7.2 Backup through Playback System ...................... 89
3.7.3 Backup through Backup System ........................ 89
4. I/O ............................................................................ 90
4.1 Introduction ............................................................. 90
4.1.1 System Introduction ........................................ 90

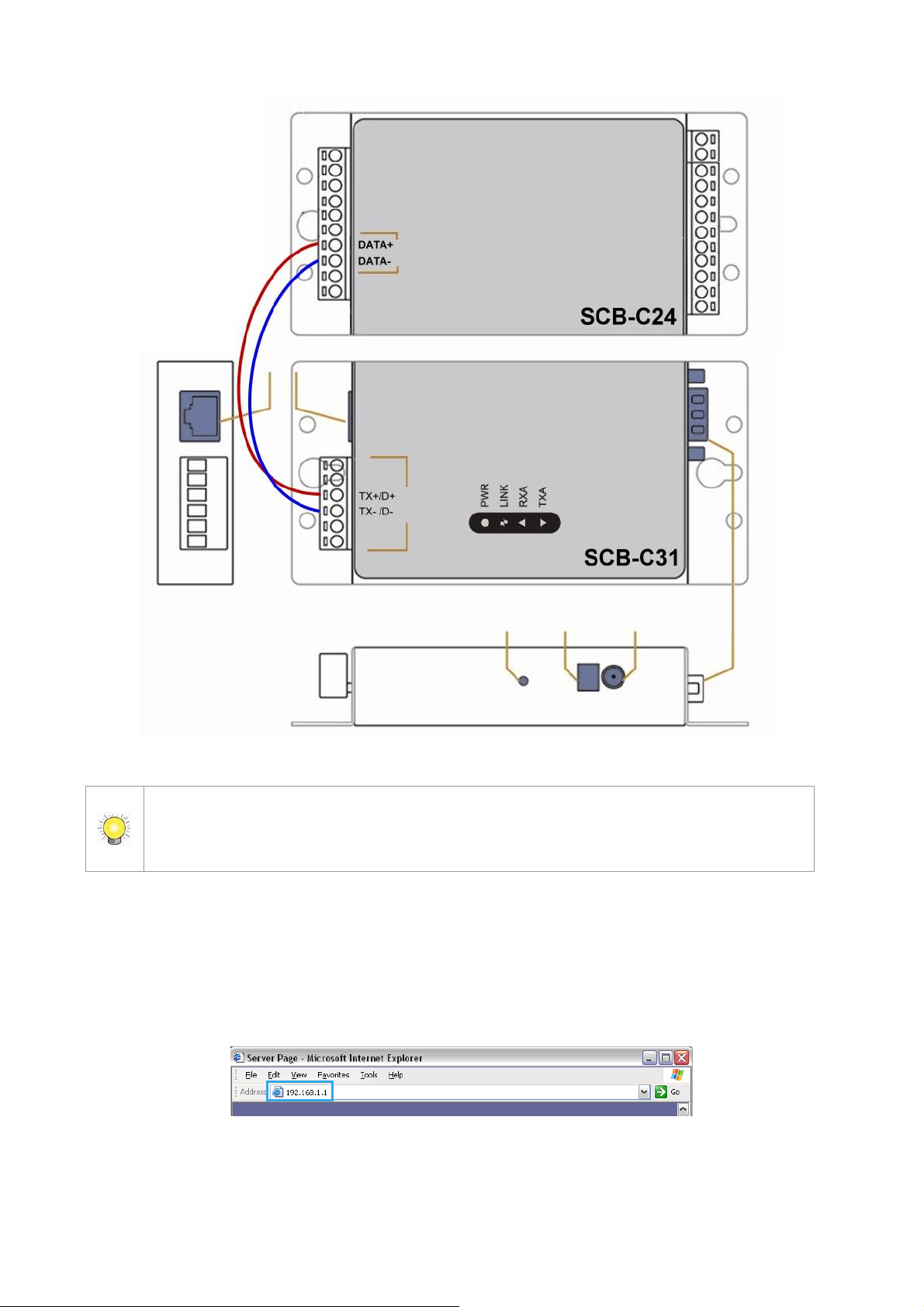

4.1.2 HW Installation ............................................... 90
4.1.3 Software Installation – SCB-C31 ........................ 91
4.1.4 Software Installation – SCB-C24/26/28 .............. 92
4.2 Software Setup ......................................................... 94
4.2.1 Add I/O Box .................................................... 94
4.2.2 Modify I/O Box Information .............................. 95
4.2.3 I/O Pin Setting ................................................ 95
4.3 Relative Configuration and Application ......................... 96
4.3.1 Record on Input Trigger .................................... 96
4.3.2 Input and Responding Actions ........................... 96

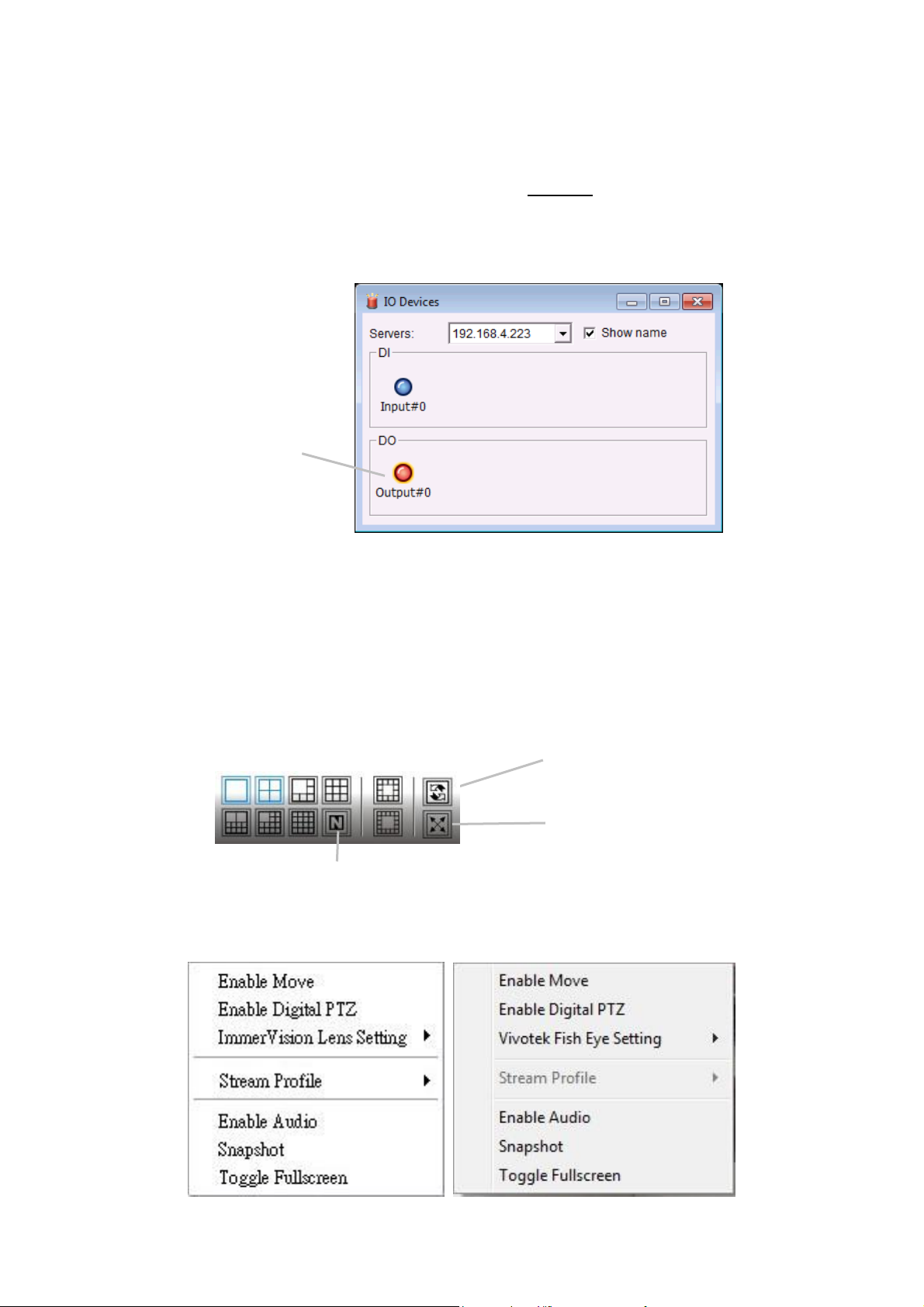

4.3.3 I/O Control Panel in Live View ........................... 96
5. Live view .................................................................... 97
5.1 Internet Explorer ....................................................... 97
5.1.1 Live View Control Panel .................................... 97
5.1.2 Live View Setting ........................................... 100
5.1.3 General Setting ............................................. 100
5.1.4 Stream Profile Setting .................................... 101
5.1.5 OSD (On-screen display) Setting ..................... 102
5.1.6 Monitor Display Setting .................................. 102
5.1.7 Notification ................................................... 103
5.1.8 Set up Joystick Control ................................... 104
5.2 Remote Live Viewer Application ................................. 106
5.2.1 Remote Live Viewer Application Control Panel ... 106
5.2.2 Unit Connection Setting .................................. 109
5.2.3 General Setting ............................................. 110
5.2.4 Camera Group Setting.................................... 111
5.2.5 Delete/ Rename Camera Groups ...................... 112
5.2.6 Stream Profile Setting .................................... 112
5.2.7 OSD (On-screen display) Setting ..................... 113
5.2.8 Monitor Display Setting .................................. 113
5.2.9 Notification ................................................... 114
5.2.10 Set up Joystick Control ............................... 115
5.2.11 Set up Remote Live Viewer .......................... 116
6. E-Map ...................................................................... 117
6.1 Internet Explorer ..................................................... 117
6.1.1 E-Map Control Panel ...................................... 117
6.1.2 Add Map ....................................................... 118
6.1.3 Edit Map ....................................................... 119
6.1.4 Delete Map ................................................... 119
6.1.5 Add/Rotate Device Indicator ........................... 119
6.1.6 Delete Device Indicator .................................. 119
6.1.7 Layout Adjustment ........................................ 120
6.1.8 Relative Configuration and Application .............. 120
6.2 Remote Live Viewer Application ................................. 121
6.2.1 E-Map Control Panel ...................................... 121
7. Playback .................................................................. 122
7.1 Internet Explorer ..................................................... 122
7.1.1 Playback Control Panel ................................... 122
7.1.2 Search the Recorded Video ............................. 124
7.1.3 Play the Recorded Video ................................. 126
7.1.4 Intelligent Search .......................................... 126
7.1.5 Recorded Video Enhancement ......................... 127
7.1.6 Save a Video ................................................. 128
7.1.7 Save an Image .............................................. 129
7.1.8 Print an Image .............................................. 130
7.1.9 Backup the Recorded Video ............................ 131
7.2 Remote Playback System Application ......................... 133
7.2.1 Playback System Application Control Panel ....... 133
7.2.2 Set up Unit Connections ................................. 133
7.2.3 Search the Recorded Video ............................. 134
7.2.4 Play the Recorded Video ................................. 135
7.2.5 Intelligent Search .......................................... 135
7.2.6 Recorded Video Enhancement ......................... 136
7.2.7 Save a Video ................................................. 137
7.2.8 Save an Image .............................................. 138
7.2.9 Print an Image .............................................. 138
7.2.10 Backup the Recorded Video ......................... 139
8. Backup and Delete Records ........................................ 140
8.1 The Backup System Application ................................. 140
8.2 Backup the Recorded Video through Windows Explorer 142
8.3 Backup the Recorded Video through FTP .................... 143
8.4 Playback the Backup Records .................................... 143
8.4.1 With Playback Application ............................... 143
8.4.2 Without Playback Application .......................... 143
8.5 Delete the Recorded Video ....................................... 143
8.5.1 With Backup Application ................................. 143
8.5.2 Without Backup Application ............................ 146
9. Verification Tool......................................................... 147
9.1 Execute Verification Tool ........................................... 147
9.2 Verify Image / Video ................................................ 148
10. External Storage ....................................................... 149
10.1 Create a Volume on DAS ....................................... 149
10.2 Create an External Storage ................................... 149
11. Log out .................................................................... 151
12. Remote PC System Requirements ................................ 152
13. Troubleshooting ........................................................ 153
13.1 Replace a Failed Disk Drive .................................... 153
13.2 Respond to a Critical RAID Volume ......................... 153
13.3 Respond to a File System Error RAID Volume .......... 153
13.4 Restore the Default Administrator’s Password .......... 153
13.5 Restore All Default Configuration ............................ 154
13.6 Install ActiveX ..................................................... 154
13.7 Cannot Log in to the Unit with Internet Explorer ...... 155
Appendix – RAID System ....................................................... 156
Introduction to RAID ....................................................... 156
RAID 0 – Stripe .............................................................. 156
RAID 1 – Mirror .............................................................. 157
RAID 5 – Block Striping with Distributed Parity ................... 158
RAID 10 – Mirror / Stripe ................................................. 158
Choosing a RAID Level .................................................... 159
Appendix – Camera Integration .............................................. 161
Camera Support List ....................................................... 161
GNU General Public License
This product includes copyrighted third-party software licensed under the terms of the GNU
General Public License. Please see the GNU General Public License (GPL) for the exact terms and
conditions of this license at www.gnu.org. The GPL source code incorporated into the product is
available for free download at our web site http://www.nuuo.com/.
Subject to GPL, you may re-use, re-distribute and modify the GPL source code.
Note that with respect solely to the GPL Software, no warranty is provided. We do not offer direct
support for the distribution.
The electronic components within the unit can be damaged by Electrostatic Discharge
(ESD). Please take precautions at all times when handling the unit or its
sub-assemblies.
To configure the unit, you must install the software onto a desktop/ laptop running
Windows XP-SP3 32bit, Windows 7 32/64bit.
LED
Power Status
System Status
USB Status
DISK 1 Status
DISK 2 Status
Ethernet Activity
Lock
HDD Tray Cooling Fan
Reset
USB Connection
RJ45 Network
Connection
Power Connection
1. Installation
1.1 Installation Process
Step 1: Unpack the Unit
This package contains the following items:
The unit Quick Start Guide Screws for disk drives Key Power cord Warranty card 19V DC power transformer CD with Install Wizard, Backup, Live View, Playback, Verification
Tool and Offline Tool application, user manual, and quick start guide
2 bay unit front/rear view
4 bay unit front/rear view
If there are multiple networks at your facility, note the network to which you connect
the unit. You will need this information during the setup process. Please also enable
the DHCP function within the network, as the unit will retrieve an IP address through
DHCP by default.
LED
System Status ; eSATA Status
Ethernet 1 & 2 Activity
DISK 1 & 2 Status
DISK 3 & 4 Status
Power Status
Lock
HDD Tray
Cooling Fan
Power Connection
Reset
eSATA Conn.
1& 2
USB Conn.
RJ45 Network
Conn. 1 & 2
Step 2: Install Hard Drives
Refer to compatibility list and install HDDs. For optimal performance consideration, install disks with the same model and storage capacity. The available RAID level depends on the amount of disks installed.
1. Open the lid on the front of the unit enclosure.
2. Pull a HDD tray from the enclosure. See the front view figure.
3. Carefully lock the disks into the HDD tray with screws. 4 screws for each
disk. Put the HDD tray back once you finished.
Step 3: Connect to the Network
1. Attach one end of the network cable to the RJ45 network connection. See
the rear view figure.
2. Attach the other end of the network cable to your Ethernet hub or switch.
Step 4: Connect the Power
1. Attach the power cord from the power source to the power adapter.
10
2. Connect the power adapter to the back of the unit enclosure. See the rear
view figure.
3. On the front of the unit, press the power button. See the front view figure.
It takes about a minute for the unit to fully power up. Once it is powered up:
The System Status LED turns blue. See the front view figure. The buzzer beeps one time.
Step 5: Install the Software
1. Insert the CD into your CDROM.
2. Double-click Setup.exe to begin installation.
3. Follow the instruction of Setup.exe, and click the Finish button to close
the installer.
Step 6: Set up the Unit
The software Installation Wizard performs the setup procedures on the unit. After the procedure, you can begin using it.
1. Go to Start > NUUO NVRmini 2 > NUUO Install Wizard.
2. This program will show the default language setting and initiation mode.
3. Choose your preferred language and initiation mode, and then click the
button.
Express Mode: you don’t need to set up the network settings, Date/Time
11
and RAID level.
Add license function is supported in v1.0.0.20 and later version.
The default Administrator password is “admin”.
Advanced Mode: configure all settings manually: network, license,
camera, Date/Time, upgrade notification, and RAID level
4. The Installation Wizard program starts searching for all the units on the
internet currently. Choose one of them, and then click the button.
5. Type in the password, and then click the OK button.
6. Name this server and select the network type, and then click the
button.
12
Obtain network settings automatically from external DHCP server:
apply all settings which are automatically generated by the DHCP server, such as IP, subnet mask, gateway, and DNS.
Configure network settings manually: configure the preferred settings
one by one.
7. Activate camera license to have more channel capacity, and click the
button.
8. Add cameras for this server. There are two ways of adding cameras,
13
selecting the searched cameras and manually configuring the cameras.
Click the button after completing camera list.
14
9. Set up the time zone, date, and time, and adjust daylight saving changes if
needed. Once daylight saving function is enabled, the time change will activate automatically every year based on the recurrence you set. Click
the button.
10. Check Enable Upgrade Notification box if you want to receive
notification when there is a newer FW version. Click the button.
15
For 2 bay unit, only RAID 0 and 1 are available.
11. Follow the following instruction and select the RAID type you want to
create. Click the button.
12. Review your settings. If the settings are correct, click the Finish button to
exit the settings procedure and activate the system.
16
Once the “FINISH” button is clicked, the unit will start working. In order to ensure the
stability of the unit, never pull any disks out when the system is running.
Function
LED Status
Power Status
Power-on: blue Power-off: dark
System Status
Healthy: blue Reset admin password: blue with blinking Unhealthy or abnormal temperature status: orange Reset to default setting: orange with blinking Off: dark
HDD Status
Healthy: blue Failed: orange No disk: dark Rebuilding: orange with blinking
eSATA Status
Healthy: blue No disk: dark
Ethernet Status
Linking: blue Accessing: blue with blinking No linking: dark
1.2 LED Status Definitions
17
2. Settings
After setting up the unit, log in to the system by entering its IP address in the browser (Internet Explorer 8 and later). When connecting, choose your language, enter the username and password, and then begin using this system.
There are five main functions of this unit: settings, live view, playback, help, and logout. They will be shown on the top of the page. Current firmware version and free storage capacity are shown above the function list.
2.1 Camera Setup
2.1.1 Add Cameras by Camera Search
The function enables user to automatically search and add cameras in the same network. There are two search mechanisms, one is UPnP, another is camera search tool. Before searching UPnP cameras, make sure that the cameras possess UPnP function. Refer to camera support list.
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera/ Camera Settings.
3. Click the Camera Search tab.
18
4. Click the Search button.
To have better compatibility between camera and system, please make sure the
privilege of camera credential is admin-level.
5. The system will list all the currently available cameras. The inserted
cameras are shown in blue. Click the icon to add a camera into your camera list.
6. After clicking the icon, the camera setting page will pop up. Click the
item to which you want to add a camera.
7. Insert the camera name, username, and password.
8. Click the Add button to add it.
19
9. After clicking the Add button, the updated camera list will be displayed in
the Camera Setting tab.
2.1.2 Add Cameras Manually
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Settings.
3. Click the Camera Settings tab, and the camera list will be displayed on
the bottom of the page.
4. Click on the camera list for the channel you want to add and enter the
camera’s information.
Camera name: The name of the camera. Address: The IP address. Port: The transmission port. Administrator Name: Login username. Password: Login password. Video Channel: Select the number of analog cameras supported by one
video server or select the number of IP cameras possessing multiple
20
lens/channels.
To have better compatibility between camera and system, please make sure the
privilege of camera credential is admin-level.
Protocol: Data transmission protocol. Vendor: Camera vendor name. Model: Camera model name.
5. Click the Save button.
Save: Save the information of this camera. Reset: Return to the latest saved settings of the selected camera. Clear: Set all the settings to default value. Auto Detection: After inserting IP address, port, username, and
password, click this button to automatically detect other camera information, including Channel, Protocol, Vendor, and Model.
2.1.3 Modify Camera Information
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Settings.
3. Click the Camera Settings tab.
4. Click the camera which you want to modify.
5. Modify the information of this camera.
6. Click the Save button.
7. Use the same method to replace a camera if needed.
2.1.4 Modify Camera Parameters
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Parameters.
3. Click the Camera Parameter tab.
4. Click the camera which you want to modify on the camera list.
5. Modify the information of this camera.
6. Click the Save button.
21
Camera Name: The name of the camera. Video Format: Choose the type of format which this camera supports. Frame rate: Select the frame rate of the camera. Resolution: Select the resolution of the camera. Quality: Select the image quality of the camera. Audio: Check the Enable Audio option to view and enable audio
recording.
2.1.5 Set up Lens Settings
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Parameters.
3. Click the Lens Settings tab.
4. Click the camera which you want to modify in the camera list.
5. Modify the information of this camera.
6. Click the Save button.
Camera Name: The name of the camera. Lens Type: There are two types of lens currently, ImmerVision and
22
Vivotek (FE8171V). You are not allowed to select type so far, type
If users enable the lens while lens is not installed correctly or not even installed, a
warning message will pop up as a notification if users are trying to operate lens on
liveview page.
depends on camera model.
Lens: Enable or disable lens function. Camera Position: Select the position of the camera.
2.1.6 Set up 2nd Stream
Stream profile is designed for mobile client and lower fps live stream display. Without stream profile integration, users cannot watch live video on mobile client nor select lower fps stream on live view. Further, for performance consideration, we fix the resolution and frame rate for each brand/series. Refer to camera support list.
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Parameters.
3. Click the 2nd Stream Settings tab.
Stream Profile: The default status is Disable. If you want mobile client
user to access to this camera, you can select Enable, and click Save button in the middle of the page.
Low Profile: The stream profile, under 300kbps, is designed for mobile
client single-view.
Minimum Profile: The stream profile, under 100 kbps, is designed for
mobile client multi-view.
23
Status
Icon
Connection Status
Connected
Connection Status
Disconnected
Connection Status
Connecting
Connection Button
Connected: Normal
Connected: Over
Connection Button
Disconnected: Normal
Disconnected: Over
Status
Icon
Recording Status
No Recording
2.1.7 View Camera Status
1. Open Internet Explorer and log in to the unit.
2. Click IP Camera / Camera Status.
Connection Status: The status of the connection. Click the Connect or
Disconnect button to change the connection status.
Rec. Status: The set recording schedule of this camera in this time.
24
Recording Status
Always Recording –
Recording
Recording Status Always Recording – Stopped
Recording Status
Schedule Recording –
Recording
Recording Status
Schedule Recording –
Stopped
If your total bit rate becomes red, it means that the loading of the system is too
heavy.
Frame Rate: The frame rate of this camera. Bit Rate: The transmission bit rate of this camera. Estimated Remaining Recording Time: Estimated remaining
recording time is dividing the current free capacity by dynamic total bit rate.
2.2 Recording & Event Setup
2.2.1 Recording Mode Setup
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Recording settings.
3. Click the Recording Mode tab.
4. If selecting Always Record, the chosen cameras will begin to record
immediately.
No Recording: Turn off the recording. Record by Schedule: Recording by schedule.
25
Always Record: Permanently turn on the chosen cameras.
The privilege of automatically recycle is higher than keep video if you select both.
Automatic Recycle: Check the Enable option to recycle disk space
automatically when the disk space is full.
Keep Video: Set a period during which the recorded video clips will be
kept intact. (max: 365)
2.2.2 Recording Schedule / Event Setup
Instead of Always Record, you can begin the recording by setting the Recording Schedule.
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Recording Settings.
3. Click the Recording Schedule tab.
4. Check the Day or Week mode.
Day: Schedule the recording to turn the recorder on and off at the same
time every day according to your setting.
Week: Schedule the recording for each day of the week differently.
5. Click the schedule of the camera which needs to be modified.
6. Click the column at the bottom of the page.
26
Insert: Insert new schedules. Delete: Delete the selected schedule. Configure: Modify the schedule and recording mode settings. Copy: Copy current Day Schedule to other channel(s); copy current
Week Schedule to other day(s) of a week or to other channel(s).
7. The default setting of the camera’s recording schedule is from 00:00 to
24:00. If you want to modify the time slot, click the Configure button to modify the default settings first.
8. Choose the recording mode.
27
When setting the event Motion, please first ensure that the motion detection function
of the camera has been enabled.
When changing the motion detection settings of a camera, make sure to disconnect
Always Record: Always record. Record on Event: Record when events triggered. The event can be
triggered by Motion or Digital input.
9. If you want to add another new schedule, click the Insert button to add a
new one.
10. Click the Save button.
28
your unit and that camera first. Once you have finished, re-connecting them will
update the settings in your unit.
When setting an event, Motion or Digital input can be triggered from other cameras.
This means that if the system detects motion or digital input from other cameras or I/O
Box, the camera will begin recording.
There is another way to set the schedule. If you want to change the recording time
length, drag the end of the time bar from 24:00 back to the length you wish, and then
drag the beginning of the time bar to the point at which you would like it to commence
recording. (You may also click the Insert button to add new schedules.)
29
When setting the event Motion from Camera, make sure to set up the camera’s
motion detection function first. Besides, event log will be recorded only if event is
selected on this page.
2.2.3 Camera Events and Responding Actions Setup
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Event & Action Management.
3. Choose the camera, and then select one of the events. The event list
depends on camera its own ability.
Connect lost: When a connection between the camera and this unit is
lost, the system will trigger an action.
Motion from Camera: When video motion is detected, the camera
triggers an action.
Input: Any external input can trigger an action.
4. Click the Configure button to enable the event and select the active
period.
30
Always Active: The selected event is always active. Active only in the following period: The selected event is only active
in the designated time, which able to cover two days e.g. from 18:00 to 09:00.
I/O Type: Check one of the options of I/O type. N/O means normal open,
while N/C means normal close.
5. Click the Add button to set up the responding actions of this event.
Output: When an event occurs, the system will send an output signal to
other connected devices.
Email: When an event occurs, the system will send Email notifications.
Make sure to add an Email address first.
CMS: When an event occurs, the system will send out a signal to CMS.
CMS will highlight this event.
Push Notification: When an event occurs, the system will send instant
message to the registered mobile clients as a notification. Mobile users can check the recording videos on mobile client to watch what just
31
happened. Refer to Push Notification.
After selecting camera events, the event information will display on the screen when
it’s triggered.
E-map popup: When an event occurs, the system will pop up E-map
with an event indicator to show users the location of the scene clearly.
6. Click the action, and then click the Configure button to modify the details
of that action if necessary.
7. Click the Save button.
2.2.4 I/O Box Input and Responding Action Setup
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Event & Action Management.
3. Click the Event & Action tab.
4. Select an input of I/O Box from list.
5. Click the Add button to set up the responding actions of this event.
6. Click the action, and then click the Configure button to modify the details
of that action if necessary.
Output: When an event occurs, the system will send an output signal to
other connected devices.
Email: When an event occurs, the system will send Email notifications.
Make sure to add an Email address first.
CMS: When an event occurs, the system will send out a signal to CMS.
32
CMS will highlight this event.
Push Notification: When an event occurs, the system will send instant
message to the registered mobile clients as a notification. Mobile users can check the recording videos on mobile client to watch what just happened. Refer to Push Notification.
E-map popup: When an event occurs, the system will pop up E-map
with an event indicator to show users the location of the scene clearly.
Show on Camera: When an input is triggered, the system will show an
alert message on selected camera(s) of screen.
7. Click the Save button.
2.2.5 System Events and Responding Actions Setup
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Event & Action Management.
3. Click the Event & Action tab.
4. Click System to unfold the list of system events, and then select one of the
five events.
Abnormal disk status: When there is no enough disk space for
33
recording or when disk is abnormal for accessing, the system will trigger
Email and Push Notification is the only two actions to the event Daily system report,
Unable to access FTP, Backup unfinished, Power-on notification and Auto

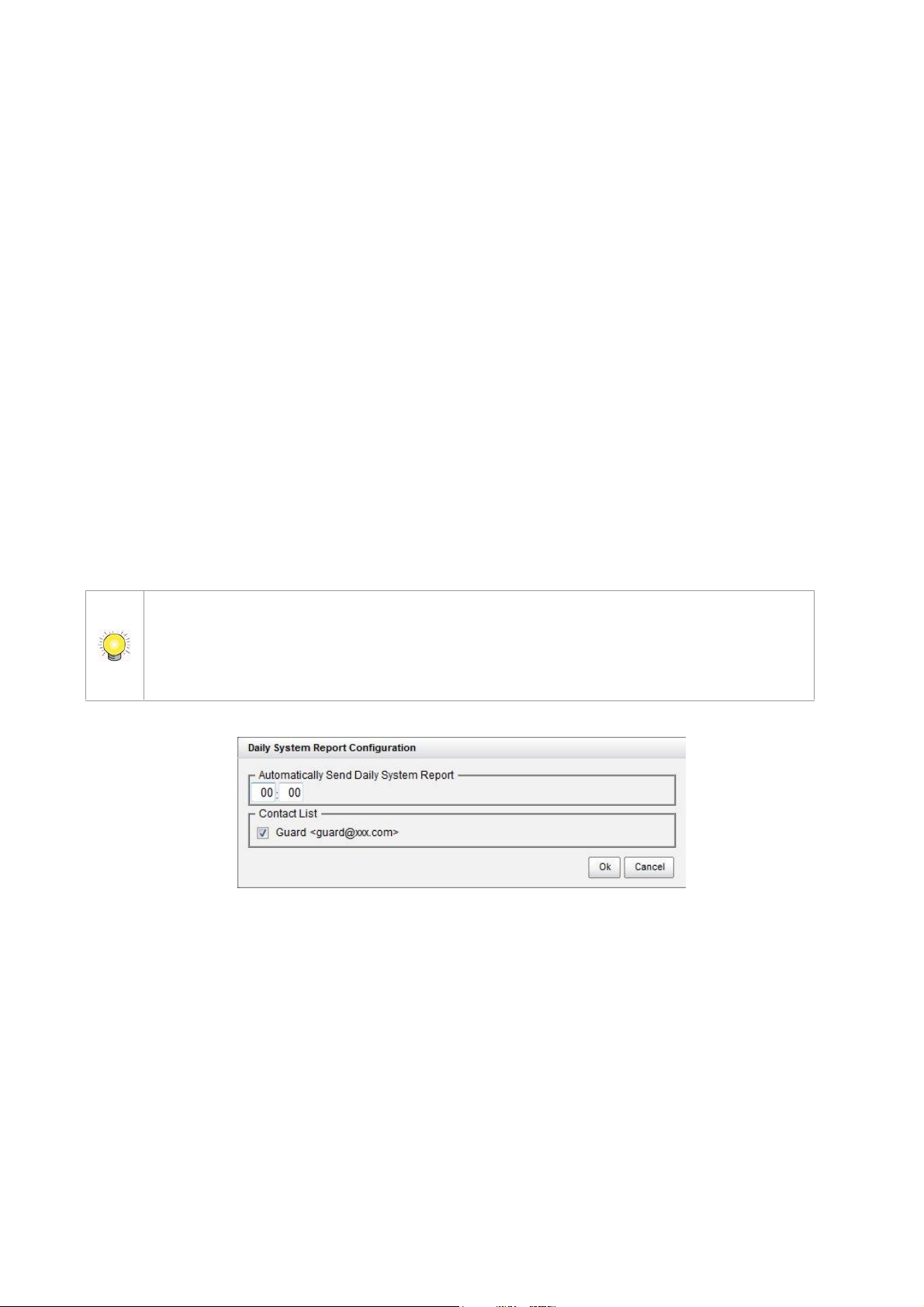

power-off notification (overheat). In addition to select a contact, remember to
insert the time of sending daily system report.
an action.
Daily system report: Enable users to know the system information,
HDD usage, and Disk status everyday through Email without accessing to the unit to check.
Unable to access FTP: The action will be triggered when the connection
between the unit and FTP server is lost.
Backup unfinished: If there is any file which the system didn’t
complete the backup process, the file(s) name will be listed and send out through Email after finishing the last file of this backup schedule.
Power-on notification: Record the time as power was turning on. Auto power-off notification: If overheat was happened, users will be
notified that power is auto off via Email.
5. Click the Add button to set up the responding actions of this event. Follow
the steps in the previous section.
6. Click the Save button.
2.2.6 Push Notification
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Event & Action Management.
3. Click the Event & Action tab.

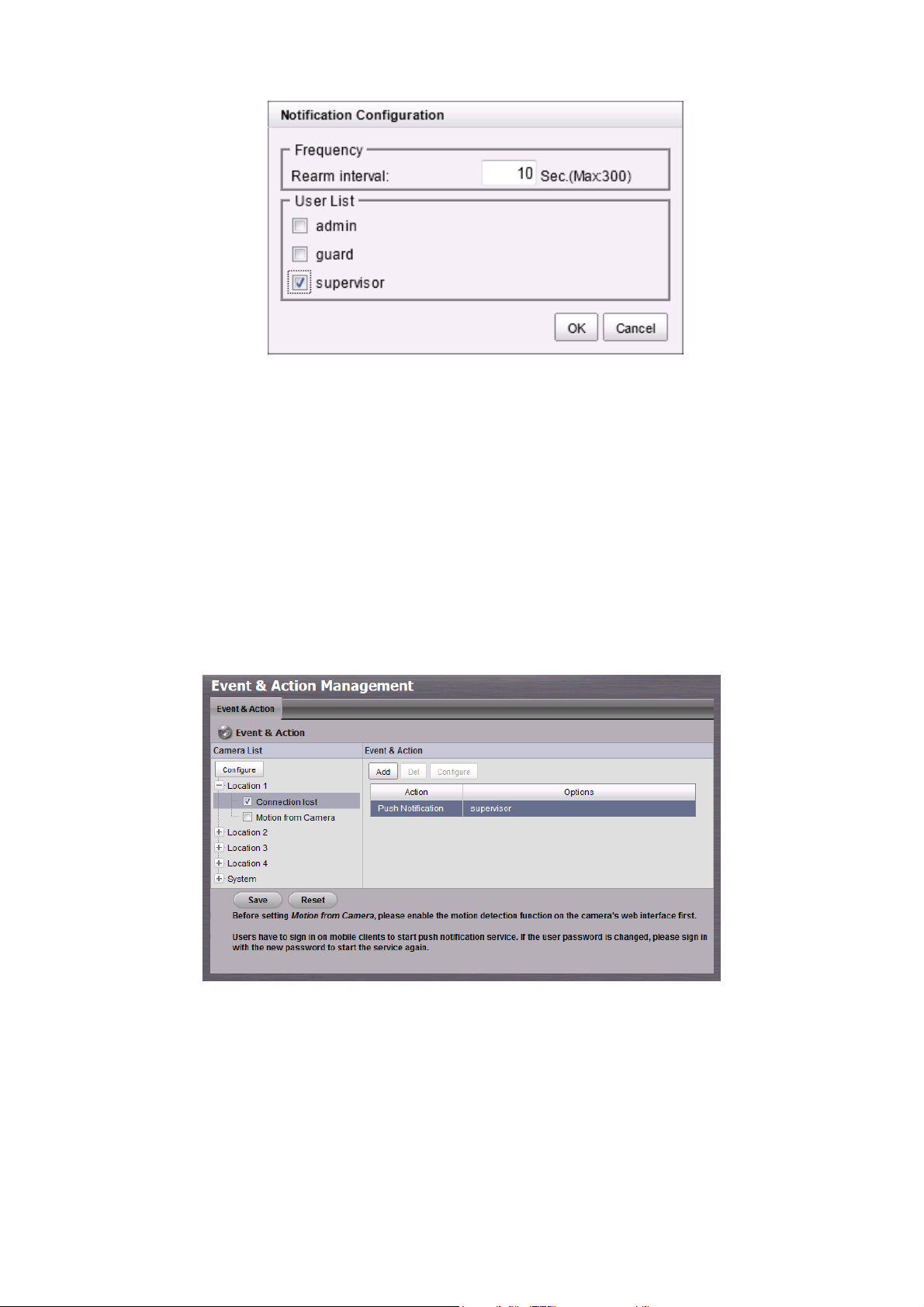

4. Add Push Notification as a responding action for an event. Configure the
rearm interval and assign user(s).
34
Frequency – Rearm interval: The minimum interval of notifications as
the event occurs. (default: 10, max: 300) For example, you set up push notification as the responding action for motion detection. When motion detected, it may trigger several alarms. In this case, you may not want to receive several push notifications frequently, then you can define the suitable rearm interval.
User List: All user accounts in this unit.
5. Click the Save button.
6. Sign in the unit on NUUO mobile client with the user account assigned with
push notification service.
35
If the user password is changed, please sign in with the new password to start the service again.
If users don’t want to receive notifications anymore, users can turn off this feature on
NUUO mobile client. There is one possibility of de-registering failed, that is, users have
ever logged in to mobile client by typing both LAN IP and WAN IP of the NVR, but only
do de-registering on one side.
If users don’t want to send notifications to certain user account, users can de-select
the user account in Event & Action Management page.
7. When event occurs, the user will get the push notification instantly. The
user can click the “View” icon to watch the recording videos.
36
User account won’t be exported as saving configuration, which implies the user list of
push notification won’t be saved as well.
2.2.7 SMTP Server Setup
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Email.
3. Click the SMTP Server tab.
Server Address: SMTP (Simple Mail Transport Protocol) server IP
address.
Port: SMTP port. Sender: Sender information. Subject: The subject of the mail. Body: Email content. SMTP Authentication: Before sending out an Email, enter the
username and password for SMTP authentication.
Username Password
4. Click the Send Test Mail button and the system will send a test mail to the
sender. Check it after testing.
5. Click the Save button.
37
2.2.8 Add Event Contacts
1. Open Internet Explorer and log in to the unit.
2. Click Recording & Event / Email.
3. Click the Contacts tab.
Add Contact: Add this new contact into the contact list. Reset: Return to the latest saved settings of the contact list. Save: Save this time modification of the contact list.
4. Insert the name of a new contact.
5. Insert the Email address of this new contact.
6. Click the Add Contactor button.
7. Click the Save button to save this modification of the contact list.
2.3 RAID & File Settings
2.3.1 Create a RAID Volume
In this system, the term RAID volume refers to one or more disk drives working together as a RAID logical drive. You must create a RAID volume before starting to record.
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the Create tab.
38
4. Choose the RAID level you prefer for your disk array.
5. Check boxes of disks and click the >> button to assign disk drives for this
volume.
6. Click the Create button.
7. A confirmation dialog pops up. Check the Yes, I want to create volume
with those disk(s) box, and click the Yes, create it button.
8. Creating RAID volume takes a while, depending on the size of disks and the
RAID level you choose. You can start recording during RAID creation.
39
The RAID Volume will be functional on another unit if all disks of this volume are
moved to the unit.
After setting RAID level, you are not allowed to change neither the RAID level nor the
number of disks containing in this volume.
To reduce the possibility of having problems to access public folder via My Network
Places, before creating new disk volume or modifying volume, please delete the invalid
volume if any.
If you choose Express Mode when using the Installation Wizard, the disk(s) will be
set to RAID 1 (2 bay) or RAID 5 (4 bay) automatically unless the number of disks is not
enough for this RAID level.
2.3.2 View RAID Volume Status
RAID status refers to the disk drives on your unit and how they are arranged into a RAID volume.
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the RAID Status tab to view the status of your RAID Volume.
RAID Name: Name of your RAID, automatically assigned when it was
created.
RAID Level: RAID 0, 1, 5, or 10, specified when it was created. RAID Status: Functional is normal. Critical means there are some
40
problems on RAID volume, but the recording status is normal. Offline
This function is not applied to RAID 0, since there is no data protection mechanism by
means that no volume is found, so recording is stopped and you cannot access your data either. File system error means that RAID volume is existed but unmounted, so recording is stopped and you cannot access your data either.
Capacity: Total, free, used data capacity of the RAID volume. Update Time: The time of volume created/updated. Devices: Total number of disks and the number of active, failed, spare
disks.
Format Progress: The status of RAID format Recovery Progress: The status of RAID recovery
2.3.3 View Disk Drive Information
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the RAID Status tab.
4. Click on a disk directly to view the information.
2.3.4 Modify RAID Volume
This function is designed for replacing a broken hard drive with a new one, instead of modifying RAID level.
In the condition of critical RAID status, its a warning to show that one of disks of this RAID volume may be damaged. Even though it’s no impact on the recording function, youd better to replace a new disk to make sure the volume with data protection mechanism.
41
its nature.
In case of any unexpected damage, we recommend users to unplug running HDD by
this method, which can be viewed as security hard drive remove.
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the Modify tab.
4. Click on the volume you want to modify. The information of this volume will
be displayed under the Modify Volume section.
42
5. After removing the damaged disk. Add a free disk to replace the damaged,
and click the Modify button.
6. A confirmation dialog pops up. Check the Yes, I want to modify this
volume box, and click the Yes, modify it button.
7. Modifying RAID volume takes a while, depending on the size of disks you
choose. Recording wont be stopped during the modification, and the data of this RAID volume is fully accessible.
43
2.3.5 Delete a RAID Volume
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the Delete tab.
4. Click the option button beside the RAID Volume you want to delete.
5. Click the Delete button.
6. A confirmation dialog pops up. Check the Yes, I want to delete this
volume box, and click the Yes, delete it button.
7. System will restart automatically after RAID volume is deleted
44
When you delete a RAID Volume, all the folders in the RAID volume and all the data
saved in the folders will be deleted. Backup any important data before deleting a RAID
Volume.
2.3.6 Format
Neither pressing reset button nor loading default setting, the data of RAID volume wont be deleted, which implies that format is the only way to clean the RAID information from disks.
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / RAID Management.
3. Click the Format tab.
4. Click the option button beside the RAID Volume you want to format.
5. Click the Format button.
6. A confirmation dialog pops up. Check the Yes, I want to format this
volume box, and click the Yes, format it button.
7. System will restart automatically after volume format is complete.
2.3.7 Modify the “My Network Places” Protocol Settings
There are another two ways to access the recorded data in the unit: through Workgroup or through FTP.
45
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Protocol Control.
3. Click the Windows tab.
4. Check and enter the unit’s information.
5. Click the OK button.
Services: Enable to let users access this unit through Windows Explorer. Server Name: The name of this unit, which is set in the Setup tab of the
Network Setup function.
Server Description: The name which will be displayed in Windows
Explorer.
Domain or Workgroup Name: The name of this unit’s workgroup.
2.3.8 Modify the FTP Protocol Settings
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Protocol Control.
3. Click the FTP Sharing tab.
4. Check and enter the settings of this unit.
5. Click the OK button.
Services: Whether users can access this unit through FTP or not. Command Port: The port for commands between a server and a client. Passive Ports: The data transmission port of passive mode.
46
The system backups recorded video files one by one. If the connection between the
unit and FTP server is normal, but some problems of FTP causes the system unable to
write files on FTP, the system would try each file three times before starting to backup
2.4 Auto Backup
This feature enables you to automatically backup the recorded video of the previous date to FTP site. There are two steps to enable the function, one is
Set up Backup Schedule, another is Set up Backup Server.
2.4.1 Set up Backup Schedule
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Auto Backup Management.
3. Click the Backup Schedule tab.
4. Set up backup schedule, select the backup channels, and check the Enable
option to enable Auto Backup.
Auto Backup: Check the Enable option to enable this function. Daily Backup Time: The daily scheduled time to start backup process. Video Start Time: The start time of recorded video of the previous date. Video End Time: The end time of recorded video of the previous date. Camera: Select the channel(s) to backup.
5. Current Event Settings shows the condition of the events of auto
backup – enable or disable. Follow the steps of System Events and Responding Actions Setup to configure the event & action.
47
the next file. If the connection is lost, the system would wait for the connection, so no
file would be skipped.
2.4.2 Set up Backup Server
1. Open Internet Explorer and log in to the unit.
2. Click RAID & File System / Auto Backup Management.
3. Click the Backup Server tab.
4. Set up the FTP server and create a folder for backup files. The folder format
is “FolderName”, “FolderName/SubFolderName”, and so on.
For example: AutoBackup/NVR
5. After setting up all the information, click the Test FTP button and the
system will create a folder to FTP. Check it after testing. In this case, the route of the tested file will be: ftp://nuuo.dnsalias.com/AutoBackup/NVR/NVRmini2_ComputerNa me
6. Click the Save button.
48
Make sure the FTP account with privileges of administrator who is able to upload,
rewrite, delete files, and create new folder. Besides, make sure the FTP server has
enough space for auto backup.
To avoid the failure of auto backup, please check the normality of FTP server regularly
(e.g., enough space for video, system conditions.)
2.5 Network Setup
2.5.1 View Network Status
1. Open Internet Explorer and log in to the unit.
2. Click Network Setup / Network Setup.
3. Click the Information tab to view the unit’s network information.
2.5.2 Network Settings
1. Open Internet Explorer and log in to the unit.
2. Click Network Setup / Network Setup.
3. Click the Setup tab to set up the network settings of your unit.
49
Because of the internal data modifications required, it takes a few seconds to change
the name of your unit. Log in again after configuration activated.
There are two Giga LANs in 4bay unit. We recommend using them under the scenario
of two subnets, one is for cameras/devices, and the other is for remote access. If you
deploy two LANs on the same subnet, its likely to make parts of camera disconnected
as either one of LAN is disconnected.
Server Name: Name your unit.
Internet Protocol: Choose to obtain an IP address from external DHCP
server automatically, or configure the IP address manually.
IP Address: IP address of this unit. Subnet Mask: Subnet mask address. Default Gateway IP Address: Gateway IP address. Primary DNS: Primary DNS (Domain Name System) address. Secondary DNS: Secondary DNS address.
4. Click the DDNS Setup tab to enable Dynamic Domain Name Server
function, allowing you to connect unit with dynamic IP address.
50
2.5.3 Auto Port-Forwarding
This function is designed for saving time in port configuration on router if users want to access the unit (in LAN) from WAN. Once enabling UPnP Service on router, users can do port-forwarding for setting page (default: 80), liveview (default: 5150), playback (default: 5160), and CMS (default: 5170) automatically.
1. Open Internet Explorer and log in to the unit.
2. Click Network Setup / Network Setup.
3. Click the UPnP Port Forwarding tab.
4. Click the Search button, and the searched routers will be listed.
5. Select the searched router, and all UPnP ports configured on this router will
show under the UPnP Port Forwarding List.
51
For security reason, the privilege of UPnP port-forwarding is LOWER than
port-forwarding configured on router. Therefore, if the ports have been used on
router, we are unable to know before finding out access failure.
UPnP port-forwarding is for temporarily use only. Most of UPnP router will clean up all
UPnP ports after router reboots. Furthermore, for some routers, if the port you want
to add has already been used for other devices in the same way (UPnP port
forwarding), this “enable” action will cover over the settings.
6. After selecting one of searched routers, click the icon to set up
port-forwarding to this router automatically. You will find ports of setting, liveview, playback and CMS are listed.
2.5.4 Network Service Setup
1. Open Internet Explorer and log in to the unit.
52
2. Click Network Setup / Network Service.
3. Click the Web Service tab
4. Set up a port for this unit and click the Save button.
5. Click the Live View & Playback Service tab.
Live Streaming Server
Port: Live streaming transmission port. Maximum Connections: Maximum connections from remote access.
(Max: 64)
Playback Server
Port: Playback transmission port. Maximum Users: The number of users who can access playback
functions at the same time. (Max: 8)
Log Access: Check to record playback access information on NVR Log
page, including access time, playback video channels, and time frame.
Allowed/ Blocked List
53
Allowed List: Only IP addresses from the allowed list are allowed to log
When setting Maximum Connections in Live Streaming Server settings, 1 connection
means that one user connects to one camera. If the maximum connections value is
set to 16, and each user connects to 4 cameras, the allowed connections per user will
become 4, rather than 16.
in.
Blocked List: IP addresses from the blocked list will be unable to log
in.
2.5.5 CMS Service Setup
1. Open Internet Explorer and log in to the unit.
2. Click Network Setup / Network Service.
3. Click the CMS Service tab.
CMS Server: Check the Enable option to enable CMS service. Port: the port number through which the CMS connects to this unit. Maximum Connections: The maximum number of allowed CMS
connections.
2.6 Management
2.6.1 View the List of Users
1. Open Internet Explorer and login the unit.
2. Click Management/ User Management.
3. Click the Create New Users tab.
4. The list will be displayed on the bottom of the page.
54
The Administrator will be the only user who can use all of the functions. There is a
default administrator account in the system, and you cannot create neither another
“Administrator” account, nor another username named admin.
2.6.2 Create New Users
1. Open Internet Explorer and login the unit.
2. Click Management/ User Management.
3. Click the Create New Users tab.
4. Insert the username of this new user.
5. Insert the password of this new user.
6. Choose the group of this user.
Power user: Power user can do all the settings except the Network
Settings, RAID Settings, and Management function.
User: User just can change his/her password and do the live view and
playback functions.
Guest user: User can do live view and playback function only.
7. Select the live view cameras which this user can access.
8. Select the playback channels which this user can access.
9. Check whether this user can backup or delete recorded data.
10. Click the Create New User button to finish it.
55
2.6.3 Modify User Information
1. Open Internet Explorer and log in to the unit.
2. Click Management / User Management.
3. Click the Modify Users tab.
4. Click one of the users in the User List on the bottom of this page.
5. Change the group of this user.
6. Select the live view cameras which this user can access.
7. Select the playback channels which this user can access.
8. Check whether this user can backup or delete recorded data.
9. Click the Modify User button to finish it.
2.6.4 Change a User’s Password
1. Open Internet Explorer and log in to the unit.
2. Click Management / User Management.
3. Click the Change Password tab.
56
4. Choose the user.
5. Enter a new password.
6. Enter this new password again.
7. Click the OK button.
2.6.5 Delete Users
Except for the administrator, you can delete any users with the following steps.
1. Open Internet Explorer and log in to the unit.
2. Click Management / User Management.
3. Click the Modify Users tab.
4. Click the Delete icon of the user you want to delete.
5. In the confirmation box, click the OK button.
2.6.6 Online License Activation
There are two types of license currently, camera license for 2/8ch-device and POS license for all series. With the camera license upgrade, the 2ch-device will possess up to 4ch capacity, while 8ch-device will possess up to 16ch capacity. With the POS license upgrade, users can use POS function.
There are two ways to activate license, online and offline.
1. Open Internet Explorer and log in to the unit.
2. Click Management / License Management.
57
3. Select Online as the Activation Type, input serial number, and click the
Activate button.
4. The license will be updated in License List if activated successfully. System
will reboot automatically.
2.6.7 Offline License Activation
If the device is set up in Intranet (Local LAN) without Internet connection, there is another way to activate license.
1. Open Internet Explorer and log in to the unit.
2. Click Management / License Management.
58
3. Click the Export button under the section of Offline Activation to export
the information of this unit.
4. Download dialog pops up. Save the request file and take it to other PC
which is connected to the Internet. Furthermore, the PC should be installed OffLineTool.exe which can be found from NVRmini 2 toolkit.
5. Execute the OffLineTool.exe in that PC with Internet connection, and select
the request file offline.req.
59
6. Input the serial number, click the Activate button, and save the .dll file
offline_license.dll.
7. Import the license file to the unit.
8. The license will be updated in License List if activated successfully. System
will reboot automatically.
2.6.8 View the Event Log
1. Open Internet Explorer and log in to the unit.
2. Click Management / Log System to find the event list of your unit.
60
The NVR Event Log will be recorded only if event is selected on Event & Action
Management page. As for user access information, please go to Network Service
to check Log Access box to enable this function.
There are four kinds of event which will be listed on this page.
Hardware Log: The log information of the operations to your unit, such
as reboot or shut down.
NVR Log: The log information of the NVR system, such as system,
recording, user access information, POS and auto backup.
NVR Event Log: The log information of the “Event & Action
Management”, such as motion detection or camera connection lost.
Backup and Export Log: The log information of the track of video data
exported and backup.
2.6.9 Save Unit Configuration
Save configuration can let you save the settings of this unit. These settings can be applied to other units, which will let you set other units more easily.
1. Open Internet Explorer and log in to the unit.
2. Click Management / Save / Load Configuration.
3. Click the Save Configuration tab.
61
User account won’t be exported as saving configuration, which implies the user list of
push notification won’t be saved as well.
4. Check the box of E-Map Settings or POS Settings if you want to keep the
configuration.
5. Click the OK button.
6. The configuration file will be generated into the chosen folder.
2.6.10 Load Unit Configuration / Default Settings
Load configuration can let you apply another unit’s settings to the current unit; Load Default Settings will revert all of the unit’s settings back to the default factory settings.
1. Click Management / Save / Load Configuration.
2. Click the Load Configuration tab.
3. Follow the direction to Load Default Settings or Load Configuration.
For the former, uncheck the box of Network Settings to keep the IP
62
address; for the latter, check the box of E-Map Settings or POS Settings
If there is POS database existed in the unit, loading configuration with different POS
application config is likely to make the original POS data unsearchable.
If the saved configuration is without E-map or POS settings, selecting loading
configuration with E-map/POS settings will lead you get the default. The original E-
map/POS settings (if any) are covered and untraceable.
User account and privilege will be kept even if loading default settings, while
camera settings, recording schedule, event & action settings, Email setting and server
settings won’t be. RAID information will always be kept whether loading default
settings or loading configuration.
User account won’t be exported as saving configuration, which implies the user list of
push notification won’t be saved as well.
if you want to restore the configuration.
4. Click the Load button.
5. A confirmation dialog pops up. Click the OK button to begin to load the
settings into your unit.
2.7 System
2.7.1 View System Information
1. Open Internet Explorer and log in to the unit.
2. Click System / System Information.
The system information includes the following items.
63
Operating System: Embedded Linux NVR Version: NVR system version Device Pack Version: Camera package version CPU: CPU model number CPU Loading: The approx. CPU loading of this unit MAC Address: MAC address of this unit CPU Temperature System Fan Speed Locate: Click to trigger the buzzer to let you know where the unit is
2.7.2 Smart Fan Control
1. Open Internet Explorer and log in to the unit.
2. Click System / System Settings.
3. Click the Fan Control tab.
4. Check the Enable or Disable option.
5. Click the OK button.
2.7.3 Buzzer Configuration
There is a buzzer in the unit. When the unit finishes booting or when a problem is detected, this buzzer will sound. This buzzer is enabled by default. You can disable/enable this buzzer with the following steps. (We recommend that this buzzer should be enabled.)
1. Open Internet Explorer and log in to the unit.
2. Click System / Settings.
3. Click the Buzzer tab.
64
4. Check the Enable or Disable option.
5. Click the OK button.
2.7.4 UPS Setup
This feature enables you to tell your unit how long to run on APC Uninterruptable Power Supply (UPS) battery power and when to shut down, after power failure.
1. Attach the APC UPS to one of the unit’s USB ports.
2. Open Internet Explorer and log in to the unit.
3. Click System / Settings.
4. Click the APU UPS tab.
5. Check one of the options:
Disable: Run until the UPS battery is depleted System shutdown as power of the UPS remains __ %: Run until the
UPS battery remains this percentage.
System shutdown as power of the UPS remains __ min.: Run until
the UPS battery remains the certain period of time.
6. Fill in the specific value if you choose the last two options.
7. Click the OK button.
65
2.7.5 Upgrade the System
1. Open Internet Explorer and log in to the unit.
2. Click System / Upgrade.
3. Click the Firmware Upgrade tab.
4. Browse the FW for upgrading and click the OK button.
5. A confirmation dialog pops up. Click the OK button to start upgrade
process.
6. After upgrade, the system will restart. You need to re-access the unit again
after this.
2.7.6 Upgrade Notification
Enable this function to allow us to notify you automatically when there are firmware updates (Recommended). This will help keep your system up to date. The updater will also collect info from your system that will be used for future system improvements.
1. Open Internet Explorer and log in to the unit.
2. Click System / Upgrade.
3. Click the Upgrade Notification tab.
66
4. Check the option if you agree to be bound by the agreement.
5. Click the OK button.
2.7.7 System Date and Time Setup
1. Open Internet Explorer and log in to the unit.
2. Click System / Date/Time.
67
Clicking the Update Now button will save the settings automatically before restarting
system.
3. Choose the time zone.
4. Configure the year, month, day and time manually, or enable NTP server to
synchronize time automatically. When NTP server enabled, the date/time settings will be grayed out.
5. Check the Adjust clock for daylight saving changes option and select
the time change of daylight saving time in your location. Choose the start time and end time of recurrence.
6. Click the OK button to restart system to activate the changes.
2.7.8 Restart the Unit
1. Open Internet Explorer and log in to the unit.
2. Click System / Reboot/Shut down.
68
During system restart, none of your files will be accessible from your
desktops/laptops.
3. Check the Reboot option.
4. Click the OK button.
5. A confirmation dialog pops up. Click the OK button to reboot the unit.
The restart procedure runs automatically. When the unit is fully online:
The System Status LED turns blue. The buzzer beeps one time (if the buzzer is enabled).
2.7.9 Shut down the Unit
The only time you need to shut down the unit is to replace the disk drive cooling fan or the power supply. During and after the shutdown, none of your files will be accessible from your desktops/laptops. There are two ways to shut down the unit.
Shut down by Software
1. Open Internet Explorer and log in to the unit.
2. Click System / Reboot / Shut down.
3. Check the Shut down option.
4. Click the OK button.
5. A confirmation dialog pops up. Click the OK button to shut down the unit.
Direct Shut down
1. Open the lid of the unit.
2. Press and hold the power button for 2 seconds and release your hands
when the buzzer is beeping once.
3. System will begin the shut down process, which takes about 30 seconds to
few minutes depends on number of recording channels and other factors.
69
If the system is crashed and stocked, you can press the power button and hold it for
10 seconds to force to cut off the power directly. We dont recommend to do it if the
system work properly.
70
Terms
Definition
POS Original Data
Original data from POS. Usually with a lot of symbols and no line feed.
POS Transaction
Filtered result by user-defined tag-filter.
NUUO POS Box
SCB-C31A
Input
RS232
Output
Ethernet
DC In
DC +10V to +15V
Power consumption
500 mA
Operating Temperature
-20 to 65
3. POS
3.1 Introduction
3.1.1 System Introduction
NUUO POS, a Point of Sales Systems based on NUUO NVR/DVR/NVDR/NVRmini/NVRmini 2, provides financial transaction’s surveillance solution in one central system. The architecture is as below; POS transaction data flows to NVRmini/NVRmini 2 by Ethernet. Each Cash Register with an external receipt printer is connected by DB9 cable. The transaction information delivered in R232 format can be converted to Ethernet through SCB-C31A POS data capture converter.
Definition of Terms
Product Specification
71
Operating Humidity
0-90 % Non-Condensing
Baud Rate
110 bps to 230.4 kbps
Data Bits
5, 6, 7 or 8
Stop Bits
1, 1.5 or 2
Parity
None, Even, Odd, Mark, Space
Flow Control
None, RTX/CTS, XON/XOFF, DTR/DSR
There are two kinds of serial cable: Straight pass-through and Null-Modem. The
connection between SCB-C31 POS Data capture box and Y-cable must be null modem
(in package).
SCB-C31A
Cash register
Printer
Null Modem
Y-cable
Ethernet
Provided by printer
F
F
M M
F
3.1.2 Hardware Installation – SCB-C31A
To connect Cash Register, Printer, and SCB-C31A POS data capture converter together, please follow below steps:
Step 1: Please refer the user manual to setup Cash Register and printer. Step 2: Using a “Y-shape” DB-9 cable, one DB-9 female connect to POS
system and one DB-9 male connect to the receipt printer Y-shape (provided by Printer vendor).
Step 3: Using another DB-9 female connect to SCB-C31A POS Data Capture
R232/Ethernet converter with Null modem.
Step 4: Check the system switch of the SCB-C31A is switched to OFF-OFF
position. Step 5: Connect SCB-C31A with power source. Step 6: Connect SCB-C31A with internet port by RJ45 LAN cable.
72
Each time you switch the page of the web, please click Save at first. If you leave this
page without saving, all changes will be ignored.
The LED Indicators:
LINK LED: Ethernet cable connection and data active.
RUN LED: System is ready (Blinking).
Serial 1: Transiting/Receiving Indicator.
3.1.3 Software Installation – SCB-C31A
Step 1: Use IE-browser to setup SCB-C31A, the default IP address is
192.168.1.1
Step 2: Setup IP address and password in Server page, and click the Save
button.
73
Step 3: Setup Password if needed. Password is only using to activate a
Please write down the Serial number and MAC address, these two parameters are
necessary when user forget your password.
Every time you change the configuration of SCB-C31, please check above setting,
especially maximum connection and Remote IP address to avoid connection fail.
security feature on the serial server. Once a password is entered it will
be required to access the menu and make change of configuration
when access.
Step 4: Setup according to your POS or Cash Register. Usually all devices are
default setting, you can reserve your time to pass this step.
Step 5: Please restart/reset the box after changing configurations to active
setup.
To reset the unit manually apply power, insert a small plastic tool, and
press lightly depressing reset located between the switch. Hold for 3
seconds and release. The Link and Run light will go out and turn back
on. The SCB-C31A will revert to the last setting.
3.1.4 Connection via TCP Client
If the cash register possess network, please install system according to following diagram and purchase a POS license to activate this function.
74
NVRmini 2
3.2 Software Setup
3.2.1 Activate POS License
If you are not the SCB-C31 user, you need to activate POS license before starting the following settings, please refer to License Activation for details.
3.2.2 NVR POS Setting
1. Open Internet Explorer and log in to the unit.
2. Click POS & I/O / POS Settings.
3. Click the Settings tab to set POS application.
75
Data Source: List of all the data sources.
Insert: Click to insert POS and do the POS settings. See Insert
POS Setting for details.
Delete: Click to remove the selected POS from the list. See Delete
POS Device for details.
Configure: Click to configure the selected POS and modify the POS
settings. See Configure POS Setting for details.
POS info: The setting information of the selected POS on this window.
Name: Name of the POS data source. IP: IP of the POS data source. Serial Box: The serial box data source used. Tag Filter: Tag type to filter the data from POS. See Tag Filter for
details.
Associated Cameras: List of all the associated cameras of the selected
POS.
4. Click the OK button to finalize the modification.
3.2.3 Insert POS Setting
1. Click Insert button to open the POS Setting window.
2. Set up basic data source, including Name, Model, IP address, and Port.
There are three types of models.
76
SCB-C31: The device possesses one POS license, and should be
equipped with the cash register not working as TCP server.
SCB-C31A: The difference from SCB-C31 is not possessing one POS
license, so user should activate POS license.
TCP Client: Cash register possesses with network, so no need to have
SCB-C31A as a converter. POS license is needed.
3. After setting, click Test Connection to test POS device connection.
4. Set up Miscellaneous options, including Record POS Transaction and
Display on Video Preview.
Record POS Transaction: Select this checkbox to record POS
transaction data. Users are allowed to search the POS data.
Display on Video Preview: Select this checkbox to display POS
transaction overlay on associated camera live video. Two types of transaction data display time:
Name: Name of the POS data source. Always: Keep transaction data on video until receiving next
transaction date.
Last for ___ seconds: Each transaction data only lasts on video for
___ seconds after receiving the last data of transaction.
77
5. Select Tag Filter. See Tag Filter for details.
6. Select the camera of Associated Cameras to display POS transaction
data overlay on live video.
7. Set up display area for each camera video in Display Region Definition.
Default: The default display area is in the upper left corner of video
image.
User Define: Enable User Define, and define display area by dragging
rectangle
8. Click the OK button to save.
3.2.4 Delete POS Device
1. Choose POS device.
2. Click Delete button to remove this POS device from the system.
3.2.5 Configure POS Setting
1. Choose POS device.
2. Click Configure button to open the POS Setting window.
3. Refer to Insert POS Setting to modify configuration.
3.3 Tag Filter
The original transaction data from POS system is hard to read. Users can define filters to make the POS strings meaningful. The system also provides a simple default tag filter to filter out same common EPSON commands, users can base on this default tag filter to edit their customized filters.
3.3.1 Add New Tag Filter
1. Click Insert button or choose a device and click Configure button
to open the POS Setting window.
2. Click New to open tag filter window.
General: Name of Tag Filter and Connect button. Original Data: Original transaction data from POS device. Filtered Data: Filtered data after definition. Filter Functions: Tool used for defining filter type. Filter List: List of all filters. Data Tools: Clear/import/export buttons to clear/import/export the
78
original and filtered data.
If you don’t want the data keep importing when editing filter, click Disconnect button
to stop connecting.
Filter Tools: Upper/down buttons to arrange the priority of each filter;
remove button to remove the filter from list.
3. Enter name of this tag filter.
4. Click Connect button to capture POS transaction data from POS device.
The original transaction data will be shown on the left window.
5. Data Tools
Clear: Remove data from Original Data window and Filtered Data
window.
Import: Reload exported binary data.  Export: Capture and export original binary data.
6. Start to edit tag filters. Click and drag to select text from Original Data
window, and then use the below six buttons to define filters. The filtered transaction data will be shown on the right window.
79
Omit: Neglect the selected text which is meaningless or not important. The
text will disappear on the right window.
Substitute: Use another word(s) to replace the selected text. The system
will pop up a substitution panel for replacing word(s) users want. The replaced text will be shown on the right window.
Add New Line: Define the selected text as the symbol for changing to new
line. The result will be shown on the right window.
Start: Define the selected text as the symbol for transaction beginning. The
filtered data will be separated line as below.
Cash Register Opened: Define the selected text as the symbol for opening
cash register. The filtered data will be shown the <Cash Drawer Open> mark as below.
80
End: Define the selected text as the symbol for transaction ending. The
filtered data will be separated line as below.
7. Filter Tools
Up: Move a tag filter up; the upper filter will be operated earlier. Down: Move a tag filter down; the lower filter will be operated later. Delete: Remove a filter from this tag filter list.
8. Click the OK button to save.
3.3.2 Edit Tag Filter
1. Select Tag Filter name from drop-down menu.
2. Click Edit button.
3. Configure the Tag Filter window.
4. Click the OK button to save.
3.3.3 Delete Tag Filter
1. Select Tag Filter name from drop-down menu.
81
2. Click Delete button to delete it.
3.3.4 Import/Export Tag Filter
1. Click Import/Export button and select Import/Export URL.
2. Click Open/Save to Import/Export Tag Filter.
3. After importing tag filters, users can simply select tag filter from
drop-down menu without editing new tag filter.
3.4 POS Display Font
The system allows users to set up the fonts of POS transaction data on live view video and playback video.
3.4.1 Live View
1. Open Internet Explorer and log in to the unit.
2. Click the Live View.
3. Click the General Setting button to open Live View Setting window.
4. Select the font, font size, font color and background for the POS transaction
data overlaid the video.
82
5. Click the OK button to save.
3.4.2 Remote Live Viewer
1. Startup > NUUO NVRmini 2 > Remote Live Viewer
2. Click the General Setting button to open Live View Setting window.
3. Select the font, font size, font color and background for the POS transaction
data overlaid the video.
83
4. Click the OK button to save.
3.4.3 Playback
1. Open Internet Explorer and log in to the unit.
2. Click the Playback button.
3. Click the Setting button to open Setting window.
4. Select the font, font size, font color and background for the POS transaction
data overlaid the video. Also, select the type of transaction data display time.
84
3.4.4 Playback System
1. Startup > NUUO NVRmini 2 > Playback System
2. Click the Setting button to open Setting window.
3. Select the font, font size, font color and background for the POS transaction
data overlaid the video. Also, select the type of transaction data display time.
85
3.5 POS Transaction Data Search
POS Search tool is used to search key word of all transaction data.
3.5.1 Search POS Transaction Data through Playback
1. Open Internet Explorer and log in to the unit.
2. Click the Playback button.
3. Click the Open Record button to open Data Time Search Dialog
window.
86
4. Click the POS Search button to open POS Search Dialog window.
5. Select a POS device(s) from the POS list.
6. Set up Start Time and End Time in Data Time Period section.
7. Enter the keyword you want to search.
8. Click the Search button, the results will be shown in Transaction table.
9. Select an item from Transaction table, the transaction detail will be shown
in the table of lower right corner, and the recorded video of associated camera will be shown in the upper right corner.
10. Select the checkbox of Search within result, and enter a keyword, you
can search the data within the results.
3.5.2 Search POS Transaction Data through Playback System
1. Startup > NUUO NVRmini 2 > Playback System.
2. Click the Open Record button to open Data Time Search Dialog
window.
3. Click the Remote Server Site icon on the top of the window to select
the server users want to access.
4. Follow the step 4 through 10 of Search POS Transaction Data by
Playback to search the data.
3.6 Playback Video with POS Data
Enable POS overlay in Setting window to view recorded video with POS transaction data (Refer to POS Display Font). If the option is enabled, the system will auto display transaction data when playing recorded video. There are two modes to select video period.
87
3.6.1 Select Period by POS Search
1. Refer to POS Transaction Data Search.
2. Select the transaction data from the result list, and click OK.
3. The period you select from POS search results will be selected
automatically.
4. Click OK to playback videos.
3.6.2 Select Period by Data & Time through Playback
1. Open Internet Explorer and log in to the unit.
2. Click the Playback button.
3. Click the Open Record button to open Data Time Search Dialog
window.
4. Highlight the video clip you want to review by left-clicking and dragging the
time period. You may also utilize the Start Time and End Time in Date Time Period section after choosing cameras.
5. Click OK to playback videos.
3.6.3 Select Period by Data & Time through Playback System
1. Startup > NUUO NVRmini 2 > Playback System.
2. Click the Open Record button to open Data Time Search Dialog
88
window.
3. Click the Remote Server Site icon on the top of the window to select
the server users want to access.
4. Highlight the video clip you want to review by left-clicking and dragging the
time period. You may also utilize the Start Time and End Time in Date Time Period section after choosing cameras.
5. Click OK to playback videos.
3.7 Backup Video with POS Data
There are three ways to backup video with POS transaction data.
3.7.1 Backup through Internet Explorer
1. Open Internet Explorer and log in to the unit.
2. Click the Open Record button to select data.
3. Click the Backup button.
4. Check the Backup POS Transaction option.
5. Set the Start Time and End Time you want to backup.
89
6. Select the cameras you want to backup.
7. Select the directory you want to save the backup data.
8. Click the Backup button.
9. The system will then begin backup process automatically.
3.7.2 Backup through Playback System
1. Startup > NUUO NVRmini 2 > Playback System.
2. Click the Open Record button to select data.
3. Click the Backup button.
4. Check the Backup POS Transaction option.
5. Set the Start Time and End Time you want to backup.
6. Select the cameras you want to backup.
7. Select the directory you want to save the backup data.
8. Click the Backup button.
3.7.3 Backup through Backup System
Please refer to step 1 to 14 of the content of Backup and Delete Records, and check the Backup POS Transaction option.
90
4. I/O
4.1 Introduction
4.1.1 System Introduction
NUUO provides remote I/O solution for NVRmini/NVRmini 2 by connecting SCB-C31 with NUUO I/O Box SCB-C24/26/28. Refer to the below architecture, I/O device is connected directly with I/O Box, and input/output signal delivered in RS485 format are converted to Ethernet through SCB-C31. NVRmini/NVRmini 2 can use the signals to do more sophisticated setup, such as starting recording when input triggered, triggering output as an event happened, and much more.
4.1.2 HW Installation
SCB-C24/26/28 must work with SCB-C31 (Ethernet-RS485 converter). Further, the C31 Box cannot be used for POS and converter at the same time, and one C31 Box can be paired with one NVR unit only. Please follow the steps below to configure the devices.
Step 1: Check the system switch of SCB-C31 is switched to OFF-OFF position. Step 2: Connect SCB-C31 with power source. Step 3: Connect SCB-C31 with internet by RJ45 LAN cable. Step 4: Connect I/O Box with power source. Step 5: Connect SCB-C31 and I/O Box with cable, positive connection (TX+/D+ and DATA+) and negative connection (TX-/D- and DATA-). Take SCB-C31 with I/O Box SCB-C24 for example as below.
91
Multiple I/O Boxes can be connected to a single SCB-C31. However, series
connection of I/O boxes is forbidden. Furthermore, the default ID for each I/O
Box is the same. Please follow the direction to setup I/O Box one by one.
RJ-45
RS485
RS485
Reset
Switch
Power
4.1.3 Software Installation – SCB-C31
Step 1: Open Internet Explorer to setup SCB-C31. The default IP address is
192.168.1.1.
Step 2: Setup IP address and port.
1. Static IP Address
92
2. Server Listening Port: The default port is 4000, which is not the port
Due to the stability of data transmission, one SCB-C31 can be paired with one NVR
unit only.
for setting page, but for signal transmission.
Step 3: Click the Apply button to activate configuration.
4.1.4 Software Installation – SCB-C24/26/28
The default ID of I/O Box is identical. To avoid the conflict between Boxes, please connect only one Box with SCB-C31 and execute the setup application to change the ID from the default value (1).
1. Execute IOConfig.exe, type in the IP address and port of SCB-C31, and
click the Scan button.
93
IOConfig.exe starts scanning the ID from 0 to 255, and it may take around a minute
to finish scan.
2. When the I/O Box is discovered, click on the item and change the ID from
the New Address field. Click the Update device button to activate the settings.
3. Scan again to make sure the configuration is validated. In this case, we
changed the ID to 10, so we can modify the number of “Starting address” to 10 to save the searching time.
94
4. Refer to the HW Installation section to connect other I/O Box and repeat
the steps 1 through 3 above to configure more I/O Boxes.
4.2 Software Setup
4.2.1 Add I/O Box
1. Open Internet Explorer and log in to the unit.
2. Click POS & I/O / I/O Settings / I/O Box Settings.
3. Enter the information of I/O box.
Device No: The unique ID system distributes in sequence automatically. Device Name: The name of the I/O box. Device Type: The types of I/O box, including SCB-C24, SCB-C26, and
SCB-C28.
IP Address: The IP Address of SCB-C31.
95
Port: The transmission port of SCB-C31. ID: The ID of the I/O box.
4. Click the Create button, and the information will be updated in I/O Box
List.
5. Repeat steps 3 and 4 to add more I/O boxes in the list.
6. Click the Save button to activate the settings. Meanwhile, system will
distribute an unique ID to each device.
4.2.2 Modify I/O Box Information
1. Open Internet Explorer and log in to the unit.
2. Click POS & I/O / I/O Settings / I/O Box Settings.
3. Click the I/O box which you want to modify from the list.
4. Modify the information of this I/O box, and click the Modify button.
5. Click the Save button to activate the settings.
4.2.3 I/O Pin Setting
1. Open Internet Explorer and log in to the unit.
2. Click POS & I/O / I/O Settings / I/O Pin Settings.
3. All input and output pins are shown in this page, including the ones from
cameras and I/O boxes. Check the box to enable a pin (defaulted), and type a name in the field for each I/O pin.
96
4. For output pin, you can configure its duration time to control how long
If the box of I/O pin is unchecked, this pin won’t be shown on relative application
pages. In other words, you cannot do any setting/operation with this pin. See details
in next section.
output acts after it’s triggered. The duration range is 3 sec~60 sec. N/A
stands for unlimited.
5. Click the Save button.
4.3 Relative Configuration and Application
4.3.1 Record on Input Trigger
Refer to Recording Schedule / Event Setup.
4.3.2 Input and Responding Actions
Refer to I/O Box Input and Responding Action Setup.
4.3.3 I/O Control Panel in Live View
Refer to Live View Control Panel.
97
Log In/ Log Out (Live view service)
Camera List
Set Preset Point / Go to Preset Point
Zoom out / Zoom in
PTZ Camera Control
Focus Far / Auto Focus / Focus Near
Information
Display Window
Play / Stop / Drop
Start Menu
Playback
Live View Setting
5. Live view
There are two ways to execute the live view function: with Internet Explorer or with the Remote Live Viewer application.
5.1 Internet Explorer
5.1.1 Live View Control Panel
PTZ Camera Control: You may control the camera view by using the
PTZ camera control panel to adjust the camera’s view. This is only
available with cameras that support the PTZ function.
Set Preset Point / Go to Preset Point: Adjust the camera view and
click the button to set up this view as preset point. Repeat the process to add more preset points. Click the button to see the preset view.
Zoom: Click the + or – button to zoom in or zoom out the view. Play / Stop / Drop: Select a camera / video and click this button to
play/stop/disconnect a particular channel.
Information Display Window: Display video information including
98
server name, video current status, and bit rate for a selected channel.
Click to turn on/off the “Output” pins
Auto Scan
Full Screen
Layout: NxN
Start Menu > E-Map: Upload map and drag camera or I/O on it to track
device location and alarm status with instant response when an event occurred. See details in the chapter of E-Map.
Start Menu > I/O Control Panel: Utilize I/O device function remotely.
User can remotely adjust the Output Pins by turning it on or off.
Playback: View playback video remotely. Auto Scan: Activate auto scan to rotate the channels on the display
screen. For instance, you may select to show only 4-split screen on the liveview, while connecting 16 channels to the system. With auto scan function, you are able to see all 16 channels by turns.
Layout: Click to change the multiple-split layout.
You can right click on the camera screen to enable the following function.
99
Enable Move: Adjust the current view of camera which supports PT
function by dragging the button on the display screen.
Enable Digital PTZ: Click the + or – button to zoom in or zoom out the
view. The lower right square flashing on the video grid indicates the correspondent view of the camera.
ImmerVision Lens Setting: Select the mode of lens, original, PTZ
mode, Quad mode and Perimeter mode.
Vivotek Fish Eye Setting: Select the mode of lens, Original, Rectilinear
mode, Full-view panorama mode, Dual-view panorama mode. Type of modes depends on lens location.
Stream Profile: Select the stream profiles, original, low, minimum. Enable Audio: Enable audio on active channel(s). Snapshot: Select the snapshot function to capture a specific video
image immediately.
Toggle Fullscreen: Select it to view cameras with full screen. Press
“Esc” or right click un-select full screen to go back to the original view.
Also, right click on camera list to duplicate and connect/disconnect designate cameras, and do other functions.
Duplicate Camera: Select the duplicate camera function to create
multiple views. The duplicated camera will be shown with green indicator as the right picture. Combine this function with digital PTZ, users are allowed to enlarge different spots and view them in different channels without failing to record the whole view.
Connect / Disconnect: Click to connect or disconnect the designate
camera.
Login / Logout Server: Click to login or logout. Connect All / Disconnect All: Click to connect or disconnect all
cameras.
Loading...
