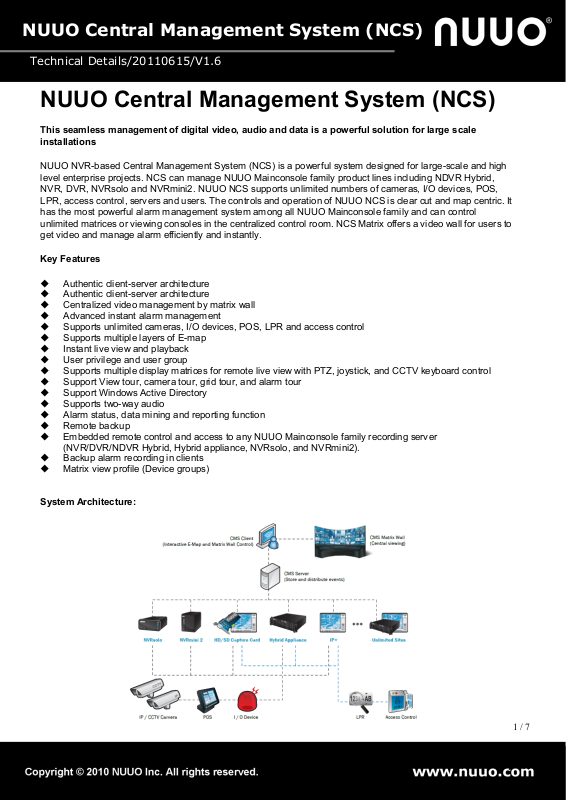

NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
1 / 7
NUUO Central Management System (NCS)
This seamless management of digital video, audio and data is a powerful solution for large scale
installations
NUUO NVR-based Central Management System (NCS) is a powerful system designed for large-scale and high
level enterprise projects. NCS can manage NUUO Mainconsole family product lines including NDVR Hybrid,
NVR, DVR, NVRsolo and NVRmini2. NUUO NCS supports unlimited numbers of cameras, I/O devices, POS,
LPR, access control, servers and users. The controls and operation of NUUO NCS is clear cut and map centric. It
has the most powerful alarm management system among all NUUO Mainconsole family and can control
unlimited matrices or viewing consoles in the centralized control room. NCS Matrix offers a video wall for users to
get video and manage alarm efficiently and instantly.
Key Features
Authentic client-server architecture
Authentic client-server architecture
Centralized video management by matrix wall
Advanced instant alarm management
Supports unlimited cameras, I/O devices, POS, LPR and access control
Supports multiple layers of E-map
Instant live view and playback
User privilege and user group
Supports multiple display matrices for remote live view with PTZ, joystick, and CCTV keyboard control
Support View tour, camera tour, grid tour, and alarm tour
Support Windows Active Directory
Supports two-way audio
Alarm status, data mining and reporting function
Remote backup
Embedded remote control and access to any NUUO Mainconsole family recording server
(NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo, and NVRmini2).
Backup alarm recording in clients
Matrix view profile (Device groups)
System Architecture:
2
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
2 / 7
Component
Description
Overview
Access and control unlimited cameras, I/O devices, POS, LPR and access control
from any NUUO Mainconsole family recording server (NVR/DVR/NDVR Hybrid,
Hybrid appliance, NVRsolo, and NVRmini2). Stable architecture protects alarm data
Client –Server
Architecture
Unlimited clients and multi-monitor support. Clients are supported with popup live
window and instant playback, remote playback, embedded remote playback
application and smart search in playback for special events.
E-Map
Tree structured map layout supporting unlimited map layers. Supports intuitive GUI
indicators of cameras, I/O devices, POS, LPR, access control and server locations.
Alarm management
Real-time alarm management supporting up to 45 alarm types, 6 video analytic
events, alarm statuses, priorities and independent alarm coverage, data mining tools
and much more.
Central Management &
Remote Desktop
Assign different levels of privileges to manage access on servers, cameras, alarms,
logs and much more according to each user account and user group. A Built-in
“remote desktop configure” can remotely configure any NUUO NVR/DVR/NDVR.
Display Matrix Video Wall
Unlimited video matrices supporting up to 64 channels of video display per monitor.
System Overview
Technical Details
NCS Alarm Server:
Ultimate recording servers: Centralized management station supports unlimited number of NUUO Mainconsole
family recording server (NVR/DVR/NDVR Hybrid, Hybrid appliance, NVRsolo, and NVRmini2).
Client/Server architecture: NCS client features popup live window and instant playback, remote playback,
embedded remote playback application and smart search in playback for special events.
SQL database: Uses SQL Server 2005 Express to store all alarm logs.
Instant alarm notification: Real-time alarm management supporting up to 45 alarm types, 6 video analytic
events, alarm priorities and independent alarm coverage, data mining tool and much more.
User management: Assign different levels of privilege to access server, camera, I/O device, POS, alarm, log and
much more to each user account and user group.
Windows® Active Directory: Synchronized with Windows® Active Directory server to manage user privilege
and control of camera action.
3rd Party Integration: Support 3rd party software, including license plate recognition, access control and so on,
through Mainconsole. Users can manage metadata by recording real time information in databases which can
describe alarms that link to video and audio. The system provides smart search tool to retrieve information and
recorded video.
Smart time zones: Central Server is designed to manage servers across different time zones. It features
Coordinated Universal Time (CUT) and can translate local time at the recording server site into the time zone of
the central management station.
License Management: To register and validate your licenses, the system offers easy-to-use online activation via
the Internet.
NCS Client
Operator Mode:
3
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
3 / 7
Multi-Monitor scenarios:
Monitor 1– E-Map/Navigation panel
Monitor 2 – Alarm panel, event list, remote playback
Monitor 3-N – Live video display matrix
Map centric intuitive operation: All NCS functions are accessible directly from the E-map.
Keyboard and joystick support: Control device function and operate view by Keyboard and Joystick via NCS
Client
Automatic restart and login: NCS Alarm Server/Client/Matrix can restart and login automatically when
abnormally shut down.
Automatic reconnection: SQL Server, NCS Server / Client / Matrix will restore connection when disconnected.
Automatic device synchronization: Automatically synchronize for all of the IP cameras, I/O device, POS, LPR
and access control systems in the servers.
System log: The log viewer tool enables users to search and export a list of system events.
Two-way audio: listen and record audio from camera’s microphone.
E-Map:
Hierarchical map tree: Tree structured map layout supporting unlimited map layers.
Custom Map Indicators: Recording servers, cameras, I/O devices, POS, LPR and access control systems each
have unique indicators. Operator can place them anywhere on the E-map or import self-designed indicator icons.
Instant Alarm Notification: Real-time alarm management supporting up to 45 alarm types, 6 video analytic
events, alarm priorities and independent alarm coverage, data mining tools and much more.
Intuitive Map Operations: All NCS functions are accessible directly from the E-map. The security operator can
open live video windows, instant playback windows, do remote backup, query alarms, trigger digital output
devices, check system status, search for other system transaction data and more.
User-friendly E-Map tool: Users can edit maps and servers easily, as well as make use of the navigation tool to
zoom in and out of the map view, drag and drop the cameras and much more.
Multiple image formats: Import any image in BMP, GIF, JPEG, PNG, or TIFF formats.
Alarm Management:
4
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
4 / 7
Powerful Alarm Management: Real-time alarm management supporting up to 45 alarm types, 6 video analytic
events, alarm priorities and independent alarm coverage, data mining tools, alarm notes and much more.
Alarm Priority: Assign alarm priorities (critical, high, normal, low) to each alarm to increase the efficiency in
response and data mining.
Alarm Coverage: Operators can configure each alarm to be active at specific times or time intervals.
Alarm Management Guide: Attach an alarm management guide to each of the alarms so the operator knows
how to respond to different alarms.
Alarm Notifications: The NCS client can play sounds, popup live video windows, activate alarm matrices, send
email alarms and SMS messages at the moment of an event trigger.
Print Alarm: Clients can print out a detailed alarm report with snapshots, alarm guides and a timestamp included.
Powerful data mining: Users can quickly search alarm history by alarm name, operator name, alarm status,
alarm priority, time interval, source device, alarm type and keyword search of alarm note.
Export Alarm list: Users can export alarm history to Excel tables
Alarm Backup: Alarm info can be scheduled for automatic or manual backup.
Recording on client: Alarm related video can be automatically recorded on client storage for later reference.
NCS Video Matrix Wall:
Live Matrix: NCS Matrix stream and display live video from any NUUO recording server
(NVR/DVR/Hybrid/NVRmini) as commanded by NCS client.
Multi-channel live view: Each matrix computer can display up to 64 channels of live video per monitor and
supports multiple monitor display.
Display layout: Supports 9 display layouts for standard screens (1/4/9/12+1/16/25/36/49/64) and 5 for 16:9 or
16:10 wide screens (1+3/2+4/1+8/12/48)
Video tour: Automatically display views, cameras and alarm videos at a specified interval.
PTZ Control: Full functional PTZ control panel on the NCS client can be used to pan, tile and zoom the cameras
displaying on NCS matrix with user privilege hierarchy.
Alarm Matrix: Matrix can popup alarmed cameras instantly upon an unusual event on any matrix monitor
specified.
Matrix View Groups: Each user/user group can be assigned to a different matrix view groups with specific
camera viewing privilege.
Transcoding: Live display at different frame rate and resolution
ImmerVision Lens support: Four unique viewing modes of ImmerVision lens supported under Matrix. (Lens
not included)
Extension:
Remote Desktop
Build-in Remote Desktop: Embedded remote desktop tool that can be used to configure any NUUO recording
server (NVR/DVR/Hybrid) directly from the central management station.
5
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
5 / 7
Function
Description
Key features
Client Server Architecture
One CMS server could be connected by several CMS clients
Supported Devices
Support all NUUO based site, as well as all I/O devices, POS, LPR
and access control systems and IP camera brands supported by Main
Console v3.5.0 and NAS NVRmini v2.6
Unlimited Server Solution
Unlimited access of cameras and DVR/NVR/NVRmini sites
Multiple Matrix System
Unlimited matrix consoles connectable through network
Live Viewing
Up to 64 concurrent camera viewing for each matrix console
Full Alarm Management
Acknowledge or manage alarm log in the most efficient way.
Triple Monitor Scenario
Default Monitor #1
Navigation Panel / Map Section
Default Monitor #2
Live Matrix System
Default Monitor #3
Alarm List / Message List / Remote Playback
CMS Server
Alarm Database
SQL Server 2005 Express as database to store all alarms
Central Server
Store the site map data by hierarchical structures
Directly connect to surveillance server to get alarm notifications
Provide TCP service for CMS client access through network
Registers different time zones into UTC format
Supported Notification
Send E-mail / SMS message
E-Map
Map Tree Hierarchy
Unlimited level of display site map
Maps Formats
Supported image format: BMP, GIF, JPEG, PNG, and TIFF
Define Surveillance
Servers
New / Edit / Delete / Disable and Enable
Define Cameras
New / Edit / Delete / Disable and Enable
Navigation Tools
Use to use zoom in, zoom out and drag operation
Indicators on Maps
Indicators for maps, servers, cameras, I/O devices , POS, LPR and
access control systems
Indicator icons support image format with alpha channel (TIFF)
Display camera coverage
Easy to find device on Map and Matrix View
Remote Playback System
Multi-channel Remote Playback: Remote playback of 16 channels recording from any one of the NUUO
servers (NVR, DVR, NDVR and NVRmini).
Layout: Playback in full screen, single channel, 4, 9 and 16 channel simultaneously.
Export video: Take a snapshot of the recording in JPEG format or export a section of the video in “AVI” and
“ASF” format with digital watermark.
Smart Search: Search for 5 different special events (general motion, missing object, foreign object, camera
occlusion and signal lost) in recorded files with date, time and log file.
Note:
*Users should access to NUUO MainConsole to get recorded video if camera sequence of MainConsole is
changed. NCS Client can’t get recorded video from MainConsole directly if camera sequence is changed.
*Users should synchronize or reload configuration of recording servers (MainConsole or NAS NVRmini) after
configuration of recording server is changed.
6
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
6 / 7
Function
Description
Instant Status Notification
shows corresponding icon nearby device icons to automatically notify
users of the events
Intuitive Operation on
Maps
Open Last Alarm
Open Live Video Window
Open Instant Playback Window
Backup Recorded Video
View Server Status Report
Search , POS, LPR and access control systems transaction data
Live Popup Window
Live popup window to use audio/talk functions and show live video
with PTZ control panel
Set stream profile to change video quality
Snapshot and transaction overlay
Playback Popup Window
Remote playback popup window to replay recorded video and audio
Export to AVI/ASF file and snapshot with digital watermark
Alarm Management
Supported Alarm Type
Video Signal Abnormal
Digital Input Trigger (Normal / Emergency)
3rd Party Transaction Alarm Trigger
Network Abnormal
DVR / NVR Abnormal
Motion / Missing / Foreign / Focus / Blocked
Low Disk Space
CPU temperature High / Fan Speed Low
Action when Alarm
Instant notifications on map and event list
Go to specific map layer
Play sounds
Automatically show live video on popup window
Automatically show live video on live matrix system
Send SMS
Send Email
Alarm Viewing
Filter tools to survey existing alarm history
Alarm Detail Popup
Show / Print a specific alarm with image preview
Advanced Alarm Search
Access required alarm logs in the most efficient way
Matrix System
Live Viewing
Up to 64 concurrent camera viewing
Grid Type
Standard: 1, 4, 9, 12+1, 16, 25, 36, 49, 64
Wide Screen: 1+3, 2+4, 3+8, 12, 48
Video Tour
Flexible auto scan mechanism and full screen viewing
View tour
Camera tour
Grid tour
Alarm tour in simple and salvo mode
Automatically Popup
Show the live video associated with alarms
PTZ Panel
Floating PTZ panel to manipulate cameras on the matrix system
Keyboard and Joystick
Support
Control PTZ camera by Keyboard and Joystick via NCS Client
Remote Playback System
Remote Playback
Up to 16 concurrent camera viewing
Grid Type
1, 4, 9, 16
Export Function
Save as image and video, as well as printing
7
NUUO Central Management System (NCS)
Technical Details/20110615/V1.6
7 / 7
Function
Description
Smart Search
Fast search based on the specific event
Include General motion, Missing object, Foreign object, Lose focus
and Camera occlusion
Miscellaneous
UserGroup Authority
Alarm Management
View Alarm Image
View Live Video
View Recorded Video
PTZ Control with User Privilege Hierarchy
Control Digital Output
Remote Desktop
View and Search , POS, LPR and Access Control Systems
Transaction
Audio / Talk
Access Devices
User Authority
User/Password
Phone Number
Email / Phone number
UserGroup
Coverage
Matrix View Groups
Built-in Remote Desktop
CMS is capable of controlling NUUO servers through the remote
desktop protocol.
Supporting NVR/DVR Device
NVR
SW v3.5.0
SCB-IP+ series
DVR
SW v3.5.0
SCB-G3-1000 series, SCB-G3-3000 series, SCB-6000 series, SCB-7000
series, SCB-7100 series
NVR-mini
FW v2.6.3
NV-2020, NV-2040, NV-4080S, NV-4160S
NVR-mini2
FW v1.0
NE-2020, NE-2040
NVRsolo
FW v1.0
NS-1040
NVR Supporting Cameras
IP Camera
Brand(s)
Supported
ACTi
Arecont
ARM
Atlantis
Axis
Basler
Bosch
Brickcom
Camtron
Cisco
CNB
CryptoTelecom
Dallmeier
DiGiMERGE
D-Link
DYNACOLOR
Eneo
ETROVISION
EverFocus
Eyeview
Fine
HIKVision
Hitron
Honeywell
iCANTEK
IQinVision
JVC
LevelOne
LILIN
Linksys
LOREX
Lumenera
MOBOTIX
Moxa
NetworkCamera
Onvif
Panasonic
Pelco
Pixord
Planet
SAE
Samsung
Santec
Sanyo
Seorim
Sony
StarDot
Toshiba
Truen
Videosec
Format
H.264, MPEG4, MJPEG, MxPEG
Supported Languages
Chinese
(Simplified)
Chinese
(Traditional)
Danish
English
Farsi
Finnish
French
Hebrew
Hungarian
Italian
Japanese
Korean
Portuguese
(Brazil)
Portuguese
(Portugal)
Russian
Serbian
Spanish
Thai
Loading...
