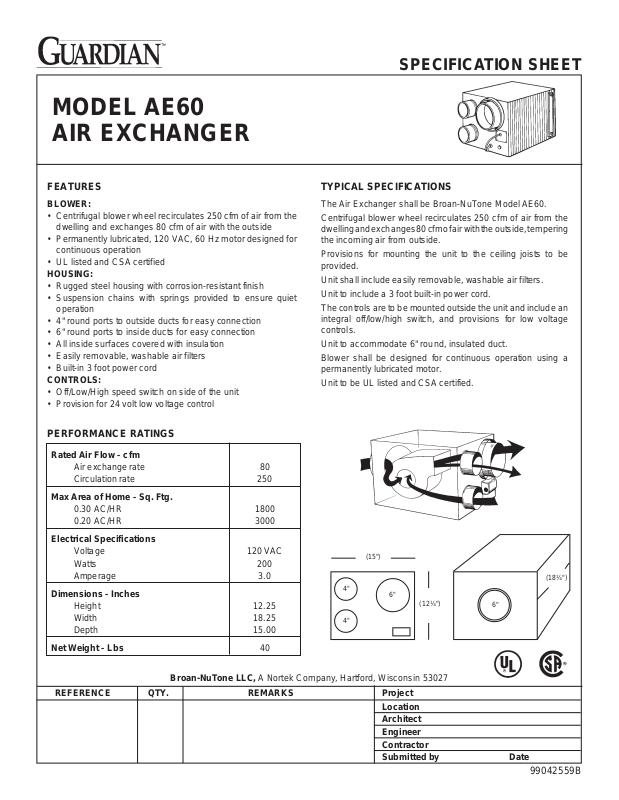

NuTone Guardian AE60 Specification Sheet
MODEL AE60
AIR EXCHANGER
SPECIFICATION SHEET
FEATURES
BLOWER:
• Centrifugal blower wheel recirculates 250 cfm of air from the
dwelling and exchanges 80 cfm of air with the outside
• Permanently lubricated, 120 VAC, 60 Hz motor designed for
continuous operation
• UL listed and CSA certified
HOUSING:
• Rugged steel housing with corrosion-resistant finish
• Suspension chains with springs provided to ensure quiet
operation
• 4" round ports to outside ducts for easy connection
• 6" round ports to inside ducts for easy connection
• All inside surfaces covered with insulation
• Easily removable, washable air filters
• Built-in 3 foot power cord
CONTROLS:
• Off/Low/High speed switch on side of the unit
• Provision for 24 volt low voltage control
PERFORMANCE RATINGS
Rated Air Flow – cfm
Air exchange rate 80
Circulation rate 250
TYPICAL SPECIFICATIONS
The Air Exchanger shall be Broan-NuTone Model AE60.
Centrifugal blower wheel recirculates 250 cfm of air from the
dwelling and exchanges 80 cfm of air with the outside, tempering
the incoming air from outside.
Provisions for mounting the unit to the ceiling joists to be
provided.
Unit shall include easily removable, washable air filters.
Unit to include a 3 foot built-in power cord.
The controls are to be mounted outside the unit and include an
integral off/low/high switch, and provisions for low voltage
controls.
Unit to accommodate 6" round, insulated duct.
Blower shall be designed for continuous operation using a
permanently lubricated motor.
Unit to be UL listed and CSA certified.
Max Area of Home – Sq. Ftg.
0.30 AC/HR 1800
0.20 AC/HR 3000
Electrical Specifications
Voltage 120 VAC
Watts 200
Amperage 3.0
Dimensions – Inches
Height 12.25
Width 18.25
Depth 15.00
Net Weight – Lbs 40
Broan-NuTone LLC, A Nortek Company, Hartford, Wisconsin 53027
REFERENCE QTY. REMARKS Project
(15")
4"
4"
6"
Location
Architect
Engineer
Contractor
Submitted by Date
(12¼")
(18¼")
6"
99042559B
