July 2008

Unparalleled

cleaning power.

Unimaginable

quiet performance.

Table of Contents

4-7 Power Units

8-9 Automatic Dustpans

10-11 Power Brushes

For deep cleaning in homes with carpeting

12-14 Tool Sets

Quality attachments packaged for traditional cleaning

15 Tool Kits

Select the tools to enhance your cleaning power

Choose from six models – bagged or bagless cyclonic

as the primary ﬂoor covering

16-17 Accessories

Additional accessories to complement the deluxe

and standard tool sets

18-21 Hoses

A wide selection, including crushproof hoses

22-25 Inlets

NuTone inlets bring “intelligence” to central cleaning

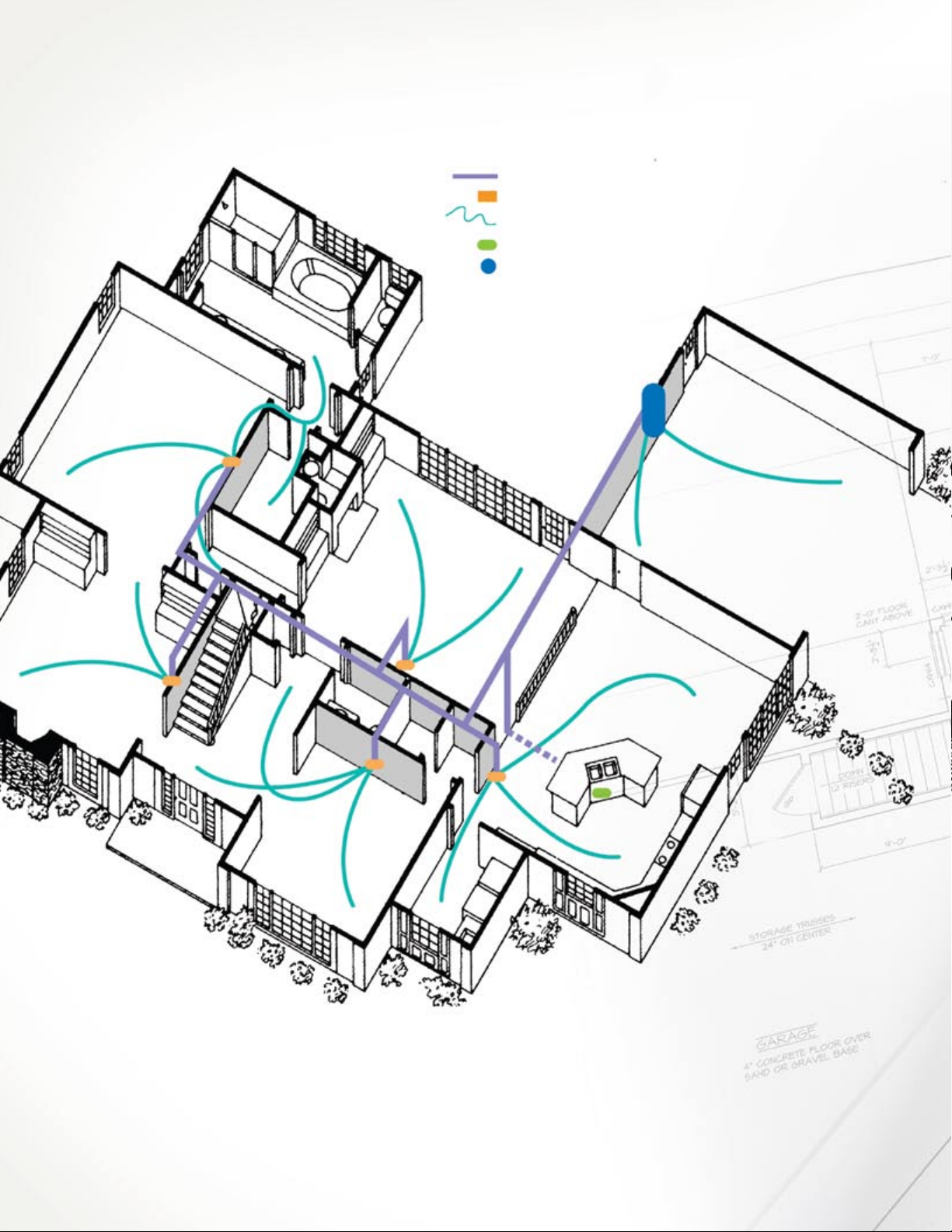

26-29 System Planning

30-31 Fittings

Does your loud vacuum cleaner cause stress for you and your

family? Do you feel you must sacriﬁce cleaning power for a quiet

vacuum cleaner?

Not any longer!

NuTone’s

Central Vacuum System is the quietest and most powerful

cleaning system that does more than clean ﬂoors. It enhances your

home’s environment by improving indoor air quality and reducing

noise while providing exceptionally clean carpets and other surfaces.

Now cleaning can be accomplished while the baby is sleeping or the

family is enjoying their favorite television show.

NuTone’s Central Vacuum System is a quick,

effective and quiet way to remove dust and

allergens from your home with minimal effort.

More Cleaning Power

Up to ﬁve times more powerful than upright

and canister systems, NuTone central vacuum

systems pull more dirt and dust out of the

house and exhausts it outside of your home.

Better Dust Filtration

Dirt and dust are captured inside the Power

Unit – away from living areas. With HEPA

ﬁltration, anti-stick technology and Microban

antimicrobial coatings, dust and bacteria are trapped in the bag.

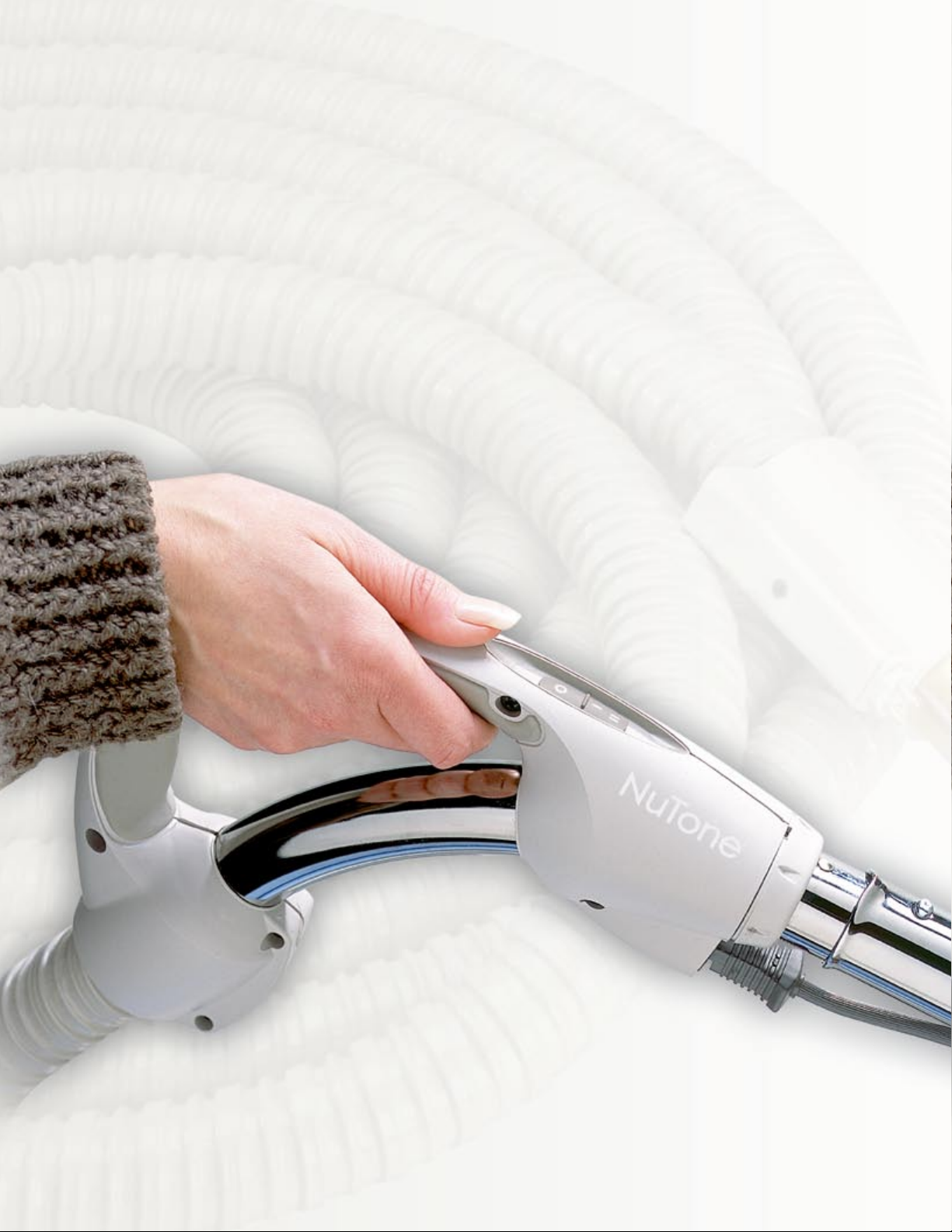

Built-in Convenience

The lightweight hose is all you have to carry upstairs or from room

to room. No heavy canister or upright vacuum to lug around. And, the

handy VacPan

makes small clean ups in the kitchen a breeze.

Quiet Performance

The internal sound suppression system reduces noise disturbance. In

addition, with the power unit mounted in the basement, garage or

utility area, the noise is away from your living area.

Good Investment

Increase the resale value of your home without investing much more

than the cost of a portable vacuum.

Redeﬁning the

Central Vac System

Snap, drop, discard.

On bagless cyclonic models, remove the debris canister in just a few seconds. Undo the two snap closures and whisk it away. Filter cleaning and replacement is a breeze.

Convenient…

NuTone’s Central Vac Power Units feature a new sleek design allowing it to mount closely

against the wall so you can make the most of your space. The revolutionary internal sound

suppression system provides a much quieter performance. And, for added convenience,

we’ve included a status light on the hose handle and power unit which indicates when the

VX™ unit’s bag or canister is full and needs emptying.

Powerful…

Our new motor designs have up to 5 times more cleaning power than conventional

vacuums. Select the model that best ﬁts your home size – with our single unit VX1000

providing enough power to clean a home up to 12,000 square feet. And with better

ﬁltration, you won’t just be spreading the dust around. Microscopic dust particles are

exhausted to the exterior of your home, unlike conventional vacuums.

Warranty…

NuTone offers one of the best in the industry. The VX475 models have a 2-year warranty,

VX550 models a 4-year warranty and the VX1000 models come with a full 8-year

warranty on the Power Unit.

Finally, don’t discard your old attachments. Your current accessories can be used with our

new VX Power Units. Or, keep it as a spare kit close at hand in your workshop, hobby room

or garage when you require those quick clean ups!

Accurate bag-full or tank-full lights.

Progressive status indicator lights tell you in a glance when to change the bag or empty the debris basin. Bagged models feature a true “bag-full” light and shut down automatically to avoid rupturing the bag.

Clean quietly.

Noise is suppressed better than ever before. Our revolutionary new internal sound suppression system deadens sound. No external mufﬂer is required! What’s more, our new quick-mount installation brackets minimize vibration.

Convenient installation.

Left- or right-hand intake ports simplify new or retroﬁt installations. The slim proﬁle lets the tank ﬁt in tight corners.

VX1000, 550 and 475 Vacuum Systems

VX1000

Bagged Version Shown (Cyclonic Version Available)

– 8-year warranty – 7 gallon debris pail – Bag-full indicator light – Two powerful 240 volt motors

Green Label Approved

NuTone Units and Power Nozzles are Green Label approved by the Carpet and Rug Institute for superior soil removal, ﬁ ltration, efﬁ ciency and carpet wear.

Central Vacuum Power

VX550C

Cyclonic Version Shown (Bagged Version Available)

– 4-year warranty – 7 gallon debris pail – Bag-full indicator light

VX475

Bagged Version Shown (Cyclonic Version Available)

– 2-year warranty – 4 gallon debris pail

NuTone® Power Units… Quality from Top to Bottom

Easy-to-clean cyclonic ﬁ lter an occasional tap on top of ﬁ lter (easily accessible through door panel) returns it to new status

State-of-the-art control board

gives timed ﬁ ll indicators for cyclonic units (VX550C, VX1000C)

Motor bafﬂ e greatly reduces cooling fan noise, while optimizing cooling air ﬂ ow

Easy access door for ﬁ lter cleaning Pail with easy on/off

Air ﬁ ltration with HEPA and anti-stick technology (VX550C, VX1000C)

Built in sound suppression

greatly reduces motor noise

Left and right intake

for ﬂ exible installation

Oval Shape for space

saving mounting

snap release

Integrated site glass in

debris pail to check ﬁ ll level

Simpliﬁ ed bag removal and ﬁ lter changing.

Just open the front-facing door panel and withdraw the full bag. Our easy-to-use bag change mechanism closes the opening immediately upon removal, so what goes in, stays in. Filters for bagless cyclonic models remove the same way. Tap the clean side of the ﬁ lter and dirt stuck to it will fall into the debris pail – not onto the ﬂ oor.

ﬁ ltration. Anti-stick technology.

HEPA

Our high performance bags and ﬁ lters feature HEPA® rated media and anti-stick technology. Dust and bacteria are trapped better than ever before.

Automatic Dustpans

A “must” for the kitchen, pantry, laundry room, bathroom – anywhere

you have a hard surface. NuTone Automatic Dustpans allow you to

easily dispose of crumbs, glass fragments, pet hair – all the hard to

pick up debris. Just sweep it into the inlet and activate the vacuum

feature with light toe pressure.

CI365 VacPan™

Enjoy the convenience of this automatic Inlet installed in a cabinet toekick or baseboard. Simply sweep the dirt to the VacPan™ and activate the vacuum system with ﬂ ip of the toeswitch. It offers the ultimate convenience to sweep dirt away instantly. The perfect idea for any room with hard surface ﬂ oors like kitchens, baths, laundry rooms and mud rooms.

• Rough-in dimensions: 6" w x 4" d x 1" h, not including tubing

• Available in three colors:

CI365W – White CI365V – Ivory CI365B – Black

CI366 Trim Plates

This Quick Trim ﬁ nish plate is designed for front-entry access.

Can be shortened to 3-1/2" or 3" on site. (For use with CI365

VacPan™ only)

• Overall size: 10-9/16" w x 4" h

• Available in colors to match VacPan™:

CI366W – White CI366V – Ivory CI366B – Black

• Use CF382XS Extra Short Ell or CF382S Short Ell when

installing where height is limited

CI367 VacuSweep

The short proﬁ le design of VacuSweep® allows it to be installed

in tight kick space areas or within a 2" x 4" stud wall. Wiring is

connected in mere seconds to spring loaded wire connectors.

• Available in four colors:

CI367AL – Almond CI367IV – Ivory CI367B – Black CI367W – White

Use the CI368 Trim Plate to ﬁ nish off the front entry.

• Available in colors to match VacuSweep®:

CI368AL – Almond CI368IV – Ivory CI368B – Black CI368W – White

Treat your carpet to longer life

with a wide selection of

The NuTone Electric Power Brushes save time and energy, while

prolonging the life of your carpet. Deep cleaning has never been easier

when you select from models which offer electronic sensors that let you

know when the dirt is gone from your cleaning path. And, with easy-to-

use touch-of-the-toe levers, you won’t break your back bending to switch

carpet heights and removing wands.

The turbine brushes use the airﬂow of the Central Vacuum System to

remove dirt without the need for an electrical plug. They offer the perfect

cleaning solution for light trafﬁc areas like the dining room where you

want routine touch ups.

In addition, NuTone offers a wide selection of cleaning accessories to

enhance the versatility of your Central Vacuum System. From electric

power nozzles for deep cleaning to standard tool sets with attachments

for those hard to reach areas, we make all of your cleaning chores easier.

deep cleaning brushes.

Put all of the NuTone power to work for you and get unparalleled

cleaning performance.

Electric Power Brushes

CT600

The CT600 and CT650 feature “Easy-Release” wands. With a touch-of-the-toe lever you can switch from the ﬂ oor to above-the-ﬂ oor cleaning.

CT650 – Deluxe Dirt-Sensing Power Brush

Never guess again if your carpets are clean. With the built-in dirt sensor, the CT650 lets you know when your work is

done. Features:

• Agitator has two rows of tufted nylon brushes,

conﬁ gured in a chevron pattern for optimal cleaning

• Dual edge cleaning with protective bumper

• Overload reset button

• UL approved

• Green label approved

CT600 – Deluxe Electric Power Brush

This rugged 14" power brush provides greater cleaning coverage without any extra work. Features:

• Agitator with two rows of tufted nylon brushes and a

replaceable beater bar

• Dual brushed edge-cleaning with protective bumper

• Overload reset button

• UL approved

• Green label approved

CT350B – Turbine Brush

Turbine Brushes

Lightweight yet powerful, NuTone’s to 74% lighter than other ﬂ oor turbines and removes up to 38% more embedded soil than other turbine brushes. This design features a suction shoe that allows 45 degree pivot

while in use and a full 360 degree swivel neck. Features:

• Cog belt drive agitator brush

• Chevron pattern, nylon tufted agitator bristles

• Vacuum release valve opens and closes

• Rubber wheels

CT330B – Turbine Brush

This hand-held turbine brush is the perfect tool

CT350B

for stairs or for tight places like car interiors. Its comfortable size is easy to handle. Features a durable ABS housing.

Brush Selection Chart

Model No. Description Color Wands

CT650

CT600

CT350B

CT330B

All Power Brushes are UL Listed and are designed for use with NuTone hoses, models CH515, CH615, CH620.

Deluxe Dirt-Sensing Power Brush Black (2) Easy Release Chrome-Steel 4-position 14" Ye s Cogged Dual

Deluxe Electric Power Brush Soft Grey (2) Easy Release Chrome-Steel 4-position 14" Yes Cogged Dual

Turbine Brush Black No No 11" No Cogged Dual

Turbine Brush Black No No 6-3/8" No Cogged Dual

Height

Adjustment Width Headlamp Belt Style

CT350B turbine is up

Edge-

Cleaning

Electric Tool Sets

VXCK355* or CK355 (shown above) Deluxe Electric Kits

All the attachments you need to keep your living space dust free. With selections for carpeting, hard ﬂ oors, draperies and furniture, these deluxe kits feature the convenience of maximum power without the need for an electrical plug. Works with electriﬁ ed inlets CI358, CI390 and CI395. (See page 23). Specify NuTone VXCK355 with status indicating hose to be used only with NuTone VX550 and VX1000 series Power Units, or Standard Kit CK355 to be used with NuTone

CV series Power Units. The kit includes:

CK230 Deluxe Tool Set plus

• Electri ed direct connect crushproof hose: VXCH615* or CH615

• CT600 power nozzle

• CA130 hose sock

• CT120 cord management wand

VXCK350* or CK350 (shown above) Deluxe Electric Kits

Features all the time-saving attachments of the CK355 without the need for electriﬁ ed inlets. With a six foot electric cord, it easily plugs into an outlet for maximum power. Specify NuTone VXCK350 with status indicating hose to be used only with NuTone VX550 and VX1000 series Power Units, or Standard Kit CK350 to be used with

NuTone CV series Power Units. The kit includes:

CK230 Deluxe Tool Set plus

• Electri ed crushproof hose: VXCH515* or CH515

• CT600 power nozzle

• CA130 hose sock

• CT120 cord management wand

VXCK250* or CK250 (shown above) Air Turbine Kits

These kits offer cleaning power with non-motorized accessories. All these attachments work with the central vacuum’s airﬂ ow. Specify NuTone VXCK250 with status indicating hose to be used only with NuTone VX550 and VX1000 series Power Units, or Standard Kit CK250 to

be used with NuTone CV series Power Units. The kit includes:

CK120 Standard Tool Set plus

• Crushproof hose: VXCH235* or CH235

• CT350B turbine brush

• CA130 hose sock

VXCK150* or CK150 (shown above) Standard Tool Kit

The CK150 is ideal for homes with all hard surface ﬂ oors. It also makes a perfect second set or starter kit. Specify NuTone VXCK150 with status indicating hose to be used only with NuTone VX550 and VX1000 series Power Units, or Standard Kit CK150 to be used with

NuTone CV series Power Units. The kit includes:

CK120 Standard Tool Set plus

• CH235 low-voltage crushproof hose

• CA130 hose sock

*For use with VX1000 or VX550 series Power Units only.

Tool Sets

NuTone tool sets provide the convenience of quality attachments packaged to meet your traditional cleaning needs.

CK110 Basic Tool Set

Features all the most-often-used cleaning tools. The combo ﬂ oor tool moves from ﬂ oor to carpet with single pedal operation.

Swivel neck allows a full range of motion. The 10-5/8" wide

nozzle has two lint strips for greater cleaning.

• Dusting brush features tough natural bristles

• Upholstery tool

• Crevice tool

• Clip-on Tool Caddy keeps tools within reach

CK120 Standard Tool Set

Meets your daily cleaning needs with convenience. Featuring the CT140G ﬂ oor tool which offers dual wheels for even air ﬂ ow, single pedal mechanism which adjusts to go from ﬂ oor to carpet and baseplate with two lint strips for quick pick-up.

The 10-5/8" wide nozzle and dual action swivel neck offer easy

maneuverability. Comes in soft gray.

• Two CT132G chrome-steel wands lock securely with

button-lock ﬁ t

• CT102G dusting brush and CT106G upholstery tools

feature natural bristles

• CT111G crevice tool

• CA101G Snap-on Tool Caddy for  ngertip convenience

• Cloth storage bag

CK230 Deluxe Tool Set

Quality accessories with prepackaged convenience. The CT150B lets you move easily from ﬂ oor to carpeting without the need to adjust. Wheel design maintains even airﬂ ow, a soft bristle brush

and lint strip that allows better pick-up of lint. The 11" wide

nozzle features a full-width air channel and the double swivel neck provides better maneuverability. Comes in a sleek, black ﬁ nish.

• CK135 ratcheting chrome steel wand extends from 22" to 39"

• 10" notched crevice tool provides continuous airﬂ ow

• Convertible upholstery tool and dusting brush features natural

bristle brush

• Snap-on Tool Caddy for  ngertip convenience

• Cloth storage bag

Expand on the deluxe or standard tool sets with a NuTone Tool Kit which packages all the accessories necessary to comprise

the complete cleaning package.

CK145 Ultra Deluxe Garage & Car Care Kit

Includes three versatile attachments that are perfect for those tough to get at areas. It’s perfect as a starter set for the shop or

garage or as a second set to help around the house. It includes:

• 50 ft. extra long bright orange crush-proof hose

• Round dusting brush with tough extra long bristles

• Upholstery tool

• Slide on upholstery brush with tough nylon bristles

• “Gulper” extra wide crevice tool

• Curved wand with cuff and full swivel

• Two 18" molded

straight wands

• 14" extra wide ﬂ oor

tool with long lasting natural bristles

• Hose hanger

• See-thru mesh

caddy bag for easy tool storage and retrieval

CK140 Deluxe Garage & Car Care Kit

This kit was designed for all those challenging demands found in the garage, utility areas and car. The unique bright orange hose helps reduce the chance of accidents. All tools are non-corrosive, molded in black and are designed to deliver optimal cleaning

performance. The kit includes:

• 30 ft. bright orange crush-proof hose

• Round dusting brush with tough extra long nylon bristles

• Upholstery tool

• Slide on upholstery brush with tough bristles

• “Gulper” extra wide crevice tool

• Hose hanger

• See-thru mesh caddy

bag for easy tool storage and retrieval

Accessories

CA101G – Tool Caddy

This tool caddy snaps onto NuTone wands. Keep three tools at your ﬁ ngertips while you’re cleaning. Soft gray.

CT102G – Dusting Brush

Soft natural bristles provide gentle cleaning for delicate surfaces. Fits

onto all NuTone wands. Soft gray.

CT106G – Upholstery Tool

Provides deep cleaning, with or without the slide on natural bristle brush. Fits onto all NuTone wands. Soft gray.

CT109B – Pet Brush

Nylon brush provides gentle grooming. Removable bristles make for easy cleaning. Fits onto all NuTone wands. Black.

CT111G – Crevice Tool

Gives you added reach to clean hardto-reach areas. Clipped end provides continuous air ﬂ ow. Fits onto all NuTone wands. Soft gray.

CT120

Chrome plated wand features a convenient cord management clip.

CT120: Use with CH515 or CH615 hose.

CT130

Handy cord management clip attached to wand keeps electric cord out of your way.

CT130: Use with CH520 or CH620 hose.

CT132

Chrome Button Lock Wands. Set of two chrome plated steel wands feature secure button-lock ﬁ t.

CK135

Ratcheting Wand. One-piece ratcheting

wand extends from 22" to 39" at

one-inch intervals. Positive ratchet mechanism locks into place. Durable chrome plated steel with button locks.

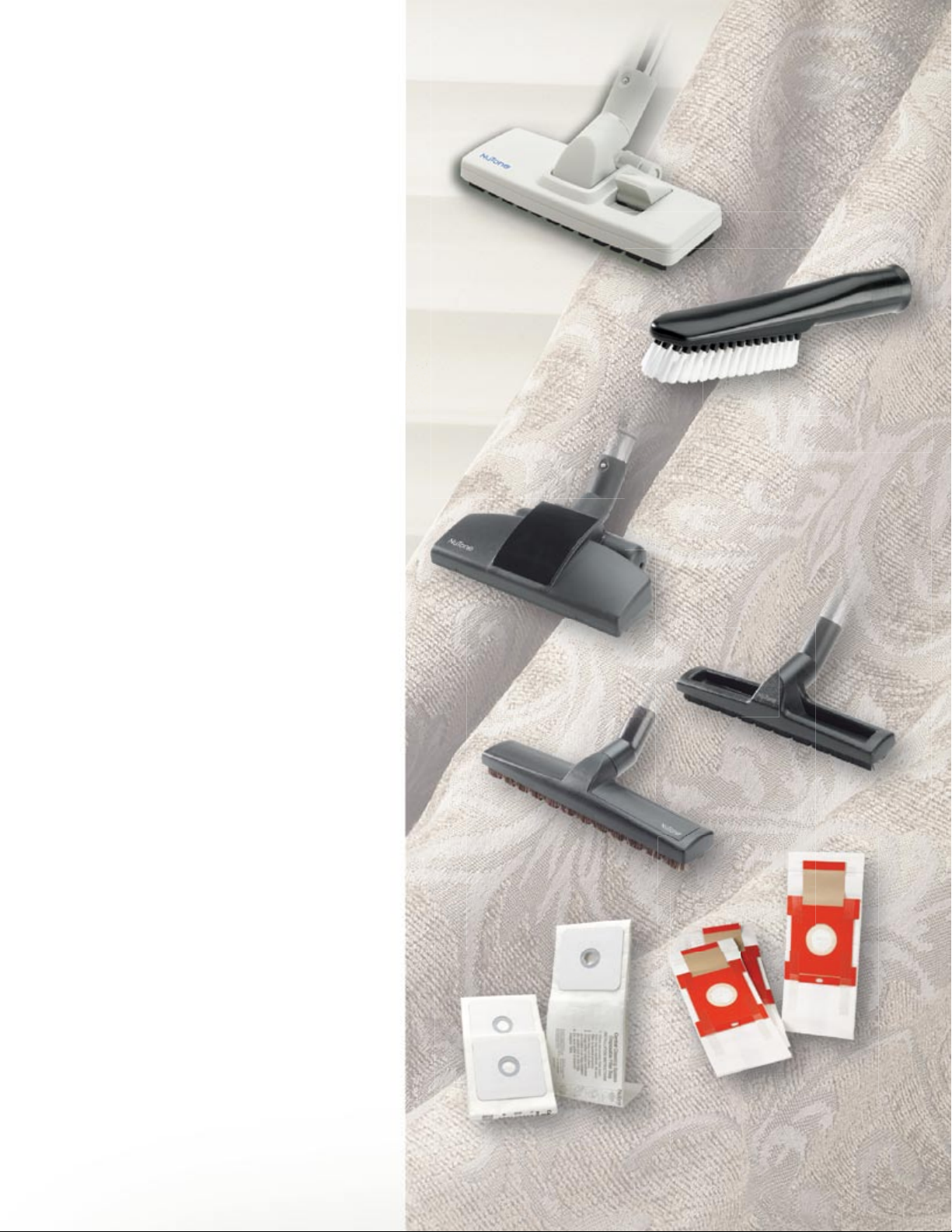

CT140G – Standard Floor/Rug Tool

Pedal quickly adjusts as you move from hard surfaces to carpets. Features dual rear wheels.

Wide 10-5/8" of edge to edge cleaning. Soft gray.

CT143B – Universal Dusting Brush

Elongated universal dusting brush will change the way you dust. Features gentle, soft nylon bristles. Black.

CT150B – Deluxe Floor/Rug Tool

Moves from hard surface to carpet without adjustment. Front and rear wheels maintain air

ﬂ ow. Offers extra wide 11" of edge to

edge cleaning. Black.

CT140G

CT156B – Hard Surface Floor Tool

This 11-3/4" wide brush is ideal for hard ﬂ ooring

surfaces. Two rows of natural bristles pick up dust. Dual rubber wheels provide balance and even air ﬂ ow. Swivel neck makes it easy to reach all surface areas.

CT157B – Extra Wide Hard Surface Floor Tool

This 14" wide brush cleans hard ﬂ ooring surfaces.

Two rows of natural bristles pick up dust. Dual rubber wheels provide balance and even air ﬂ ow. Swivel neck makes it easy to reach all surface areas.

391/CF3918 & VX3916/VX3918

Two-ply electrostatically charged ﬁ lter media captures particles down to .10 micron at 85% efﬁ ciency. Set of three bags. Suggested replacement about twice a year.

Available in two sizes:

Model 391: Six gallon bag – for use with

CV350, CV352, CV353, CV450, CV653 and CV750

Model CF3918: Eight gallon bag – for CV850,

suitable for CV450 and CV750

CT143B

CT150B

CT156B

CT157B

Two-ply electrostatically charged media captures particles down to .10 microns at 85% efﬁ ciency.

Model VX3916: Six gallon bag – for VX475

HEPA® ﬁ lter media offers the ultimate in ﬁ ltration efﬁ ciency and superior air ﬂ ow with minimum clogging.

Model VX3918: Eight gallon bag – for VX550

and VX1000

VX3918

391

Powered to reach

everywhere you need to clean.

NuTone Current-Carrying hoses bring the power to wherever your vacuum

reaches. We offer a wide selection of lightweight, ﬂexible hoses including direct-

connect options for use with electriﬁed inlets. Current-Carrying hoses allow you

to operate an electric power brush without using an additional cord set.

And, the comfortable handle design and ﬁngertip controls on the handle grip

add comfort and convenience to your cleaning. The large hose diameter provides

better dirt removal. All NuTone hoses come with a convenient storage hanger.

Current-Carrying Hoses

Standard

CH620

This deluxe Direct-Connect hose plugs directly into high and

low-voltage current. Ergonomic handle provides the ultimate in comfort and control. Features easy to adjust vacuum air release, 3-position on-off switch and vinyl over wire, reinforced with polyester cord for durability. Available in warm gray.

• Recommended for use with NuTone CI358, CI390 and

CI395 series electriﬁ ed inlets

• Use with NuTone CT600 or CT650 Power Brushes

• UL approved

CH520

This deluxe Current-Carrying hose includes a 6 ft. line cord. Features ergonomic handle for the ultimate in control and comfort and ﬁ ngertip control of entire system – vacuum and optional power brush. Easy to adjust vacuum air release, 3-position on-off switch and vinyl over wire, reinforced with polyester cord for durability. Available in warm gray.

• For use with NuTone CT600 or CT650 Power Brushes

• Includes patent pending Universal hose end which  ts all

NuTone and most other standard inlets

• UL approved

Lightweight, Crushproof

VXCH615* or CH615

These lightweight, Current-Carrying Direct-Connect hoses spring back to retain original shape. Features a 3-position on-off switch. VX™ hose includes a status indicator light on handle. Available in frost white.

• Recommended for use with NuTone CI358, CI390 and

CI395 series electriﬁ ed inlets

• For use with NuTone CT600 or CT650 Power Brushes

• UL approved

VXCH515* or CH515

These lightweight, Current-Carrying corded hoses spring back to retain original shape. Features a 3-position on-off switch and 6 ft. line cord. VX™ hose includes a status indicator light on handle. Available in frost white.

• For use with NuTone CT600 or CT650 Power Brushes

• Includes patent pending Universal hose end which  ts all

NuTone and most other standard inlets

• UL approved

*For use with VX1000 or VX550 series Power Units only.

Low Voltage Hoses

372 Standard Hose

372

A beige standard hose with vinyl reinforced construction. Rotary control on handle regulates vacuum.

VXCH235* or CH235

This light gray, crushproof hose springs back to retain original shape. Includes on-off switch. Includes patent pending Universal hose end which ﬁ ts all NuTone and most other standard inlets. VX™ hose includes a status indicator light on handle.

CH230

A warm gray standard hose features on-off switch and vinyl reinforced construction. Rotary control regulates vacuum. For longer reach, select the CH230L for 42 ft. length. Includes patent pending Universal hose end which ﬁ ts all NuTone and most other standard inlets.

VXCH235 Crushproof Hose

Utility Hoses

CH310 Standard Hose

Hose Selection Chart

Model No. Description Hose Length Inside Diameter Vacuum Switch Switch Color

372

CH115

CH230

CH230L

CH235

CH310

CH515

CH520

CH615

CH620

VXCH235

VXCH515

VXCH615

*For use with VX1000 and VX550 series Power Units.

Low Voltage Hose 32' 1-1/4" No No Beige

Utility Hose 30' 1-1/4" No No Beige

Low Voltage Hose 30' 1-3/8" No Ye s Warm Gray

Low Voltage Hose 42' 1-3/8" No Ye s Warm Gray

Crushproof Low Voltage Hose 30' 1-3/8" No Ye s Light Gray

Current-Carrying Hose 30' 1-1/4" No No Warm Gray

Current-Carrying Crushproof Hose 30' 1-1/4" Ye s Yes Frost White

Deluxe Current-Carrying Hose 30' 1-3/8" Ye s Yes Warm Gray

Direct-Connect Crushproof Hose 30' 1-1/4" Ye s Yes Frost White

Deluxe Direct-Connect Hose 30' 1-3/8" Ye s Yes Warm Gray

Crushproof Low Voltage Hose 30' 1-3/8" No Ye s Light Gray

Current-Carrying Crushproof Hose w/Status Indicator Light 30' 1-1/4" Yes Ye s Frost White

Direct-Connect Crushproof Hose w/Status Indicator Light 30' 1-1/4" Ye s Yes Frost White

CH310

A warm gray, UL listed standard hose featuring vinyl reinforced construction. Rotary control regulates vacuum. Comes with 6 ft. line cord.

CH115

This beige crushproof hose springs back to retain original shape.

Hose Accessories

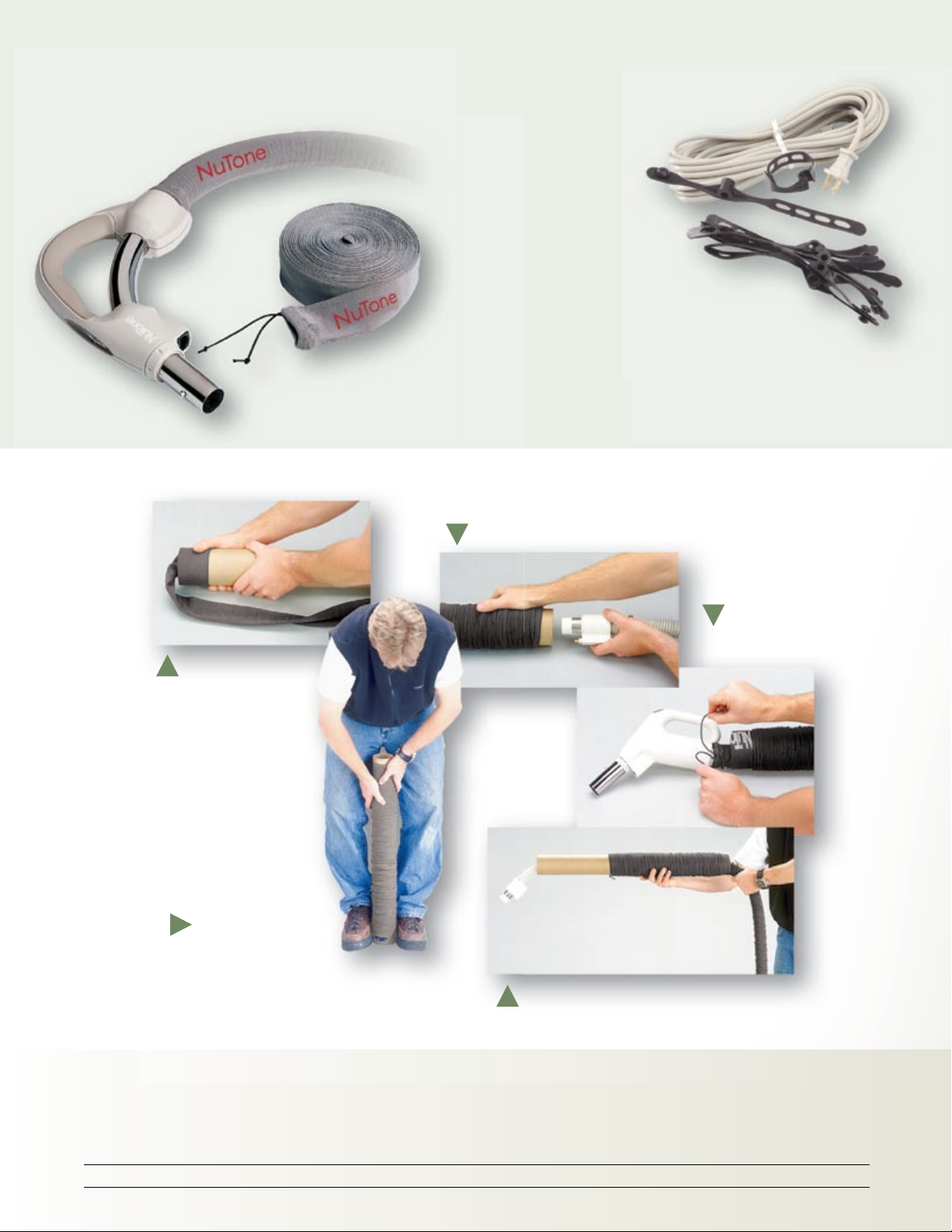

599CS

This polarized 35-ft extension cord connects the electric power brush to the outlet when not using the Current-Carrying hose. Includes strapping to attach extension cord along length of hose.

CA130

A hose sock can help prevent scratching corners of walls and marking furniture as you move from room to room while vacuuming.

Fit sock over tube end

Slide entire sock onto tube

Feed nozzle end through tube

Slide sock off tube onto hose; tie at handle

Slide sock off of tube to cover remainder of the hose

Hose Accessories

Model No. Description Hose Length Inside Diameter Color

CA130

599CS

Hose Sock 30' – 32' 1" & 1-3/8" dia. Hoses Gray

Polarized Extension Cord 35' Beige

Plug into Power

and Convenience with

NuTone Inlets.

Turn to the source for power and intelligence. NuTone’s line of central cleaning inlets include

built-in low-voltage terminals where direct-connect hoses plug right into the inlet – alleviating the

need for a power cord. The electriﬁ ed inlets make it a simple one-step operation to plug in a current-

carrying hose. The system turns on automatically when an unswitched hose is inserted or is ready for

immediate activation with a switched hose.

NuTone’s status indicator hoses and inlets allow for the bag-full or pail-full technology from your

power unit for even more convenience. When the light on the power unit changes, indicating that it is

time to change the bag or empty the pail, the light on the hose and inlet also changes color. And no

additional wiring is needed.

NuTone inlets are the source of ease and convenience when working with a central vacuum system.

Electriﬁ ed Direct Connect Inlets

CI390V

Electriﬁ ed Inlets make it a simple one-step operation to plug in a Current-Carrying hose – no 120V extension cord to carry around. Compatible with NuTone CH615 and CH620 hoses.

CI390 Standard and CI395 Status Indicating

The ElectraValve® Electriﬁ ed Inlet operates on standard house wiring. It eliminates the need for the extension of electrical cords from the inlet to an electrical outlet. The molded power receptacle clips to a mounting plate and the housing wire is run to the nearest outlet box.

• UL listed Assembly

• Standard:

CI390W – White CI390V – Ivory

• Status Indicating:

CI395W – White CI395V – Ivory

CI395RK Rough-In Kit

The Electriﬁ ed Inlet Rough-In Kit includes everything you need to install the CI390 and CI395 inlets. Includes mounting plate, snapin power receptacle, 6' of 12-gauge cable assembly, plaster guard, CF382S elbow and mounting screws for plaster guard.

CI358W

HOW TO CHOOSE:

CI390 CI395 CI358 CI370 CI335 360 330 CI398

CH620

*CH520

CH615 or VXCH615

Current Carrying

*CH515 or *VXCH515

372

Hose Type

* Includes 6 ft. line cord

• Full Function x Limited Function (powered only/no switch)

CH235 or VXCH235

Low Voltage

Utility

CH230

*CH310

CH115

• • •

Limited Function (suction only/non-powered)

CI358 Supervalves

The Supervalve Electriﬁ ed Inlet operates on standard house wiring. Includes wall valve, rough-in plate with junction box and strain relief.

• UL listed assembly

CI358W – White CI358IV – Ivory

Inlet Type

• • • • •

° ° ° ° °

x x x x x

° ° ° ° °

Status Indicating Inlets

NuTone’s Indicating Inlets bring Central Vacuum System “intelligence”

right to where you need it most – at the inlet! A green LED light tells you

that your system is powered and ready for use when you insert the hose.

Recommended for use with NuTone VX™ Series Power Units.

CI370 Series

The LED indicator light on the inlet lets you know when the system is powered. It also reminds you when it’s time to change the bag in the power unit. No extra wiring is required. (Shown at left.)

• Installs with CF361 or CF361F mounting bracket or 395,

396-1 or 396-3 rough-in kits

• Size: 3-3/4" w x 3" h x 5/8" d

CI370AL – Almond CI370BG – Beige CI370IV – Leviton® Ivory CI370W – White

The light changes to amber (VX inlets, red) when it is time to replace the dirt receptacle bag in the Power Unit.

CI335 Series

This attractive vertical design offers a low proﬁ le to blend seamlessly into your décor. LED indicator light lets you know when the system is powered and when it’s time to change the bag in the power unit. No extra wiring required. (Shown at left.)

• Size: 3-1/2" w x 5-3/16" h x 1/2" d

CI335IV – Ivory CI335W – White

• Installs with a CF329 mounting plate or CI3301RK or

CI3303RK rough-in kits

326N Existing Home Inlet Kit

The Existing Home Inlet Kit assists with installing a central vacuum system after the home construction is complete. Ideal for tight areas where it is difﬁ cult to connect straight tubing to wall inlets.

• Includes 330NIV inlet and 8" length of Superﬂ ex tubing

• CF329 Mounting Plate, inlet frame and tubing guard also included

Standard Inlets

White

360 Series

Automatic on/off inlets can be installed in walls or ﬂ oors. The variety of colors allows you to blend the outlets to any décor.

• Size: 3-3/4" w x 3" h x 5/8" d

• Installs with CF361 or CF361F

mounting bracket or 395, 396-1 or 396-3 rough-in kits

360AL – Almond 360BG – Beige 360W – White 360D – Brown 360IV – Ivory

Almond

Beige

Ivory

Brown

Ivory

White

Black

330 Series

Automatic on/off inlets have styrene snap-back protective cover.

• Size: 3" w x 5-3/16" h x 1/2" d

• Install with a CF329 mounting plate or CI3301RK

or CI3303RK rough-in kits

330NIV – Ivory 330W – White 330B – Black

Antique Brass

398 Series

Metal inlets coordinate with any décor.

CI398AB – Antique Brass CI398C – Chrome CI398B – Brass

• Install with a CF329 mounting plate or

CI3301RK or CI3303RK rough-in kits

Rough-In and Pre-Installation Packages

395

396-3

396-1

CI3303RK Rough-in kit for 3-inlet installation for use with 330 and CI335 series inlets (See page 31 for details.)

CI3301RK Rough-in kit for 1-inlet installation for use with 330 and CI335 series inlets (See page 31 for details.)

Inlet rough-in kit for use with 360 and CI370 series inlets: Includes (1) mounting bracket, (1) 90˚ ﬂ ange Ell, (1) blank cover plate, a 24" pc 2" OD.

PVC tubing and (1) 42" pc 18/2 wire taped to PVC tubing.

Rough-in kit for 3-inlet installation for use with 360 and CI370 series inlets: Includes (3) mounting brackets, (3) 90˚ ﬂ ange Ells, (1) 90˚ street Ell, (1) 45˚ street Ell, (1) 100' 18/2 UL wire, (6) nail Plates, (1) solvent cement, (6) 90˚ sweep Ells, (2) tees, (3) 45˚ Ells and (6) stop couplings.

Rough-in kit to expand 396-3 by 1 additional inlet for use with 360 and CI370 series inlets: Includes (1) mounting bracket, (1) 90˚ ﬂ ange Ell, (1) 90˚ street Ell, (1) 45˚ street Ell, (2) nail plates, (2) 90˚ sweep Ells, (1) 45˚ Ell, (1) 45˚ wye and (2) stop couplings.

Chrome

Brass

System Planning – New or Existing Construction

Installation

Each NuTone Central Cleaning System comes packed with

a Planning & Installing Guide. Whatever your home layout –

multi-level, two-story or ranch – we have a system to meet

your needs. As few as three or four inlets can take care of an

average size home. Once you’ve determined the right system

for you, a typical system can be installed in a day or less.

Just choose whether you want to do-it-yourself or hire a

professional installer.

For New Construction

Installation is simple! Plan the location of the power unit

and inlets with your building or contractor. Tubing, inlets and

electrical hook-up can be made before drywall, plaster or

ﬁnished ﬂooring is in place. You can even “pre-tube” your home,

then select and install the power unit later!

For Existing Construction

Just determine the number and location of inlets and cutting

through drywall can be kept to a minimum. Tubing can be run

through cold air returns, closets and stairwells.

NOTE: NuTone Central Cleaning Systems are not designed

for wet pick-up.

How to Choose

Power unit and semi-rigid tubing

Convenient automatic inlets

Long, ﬂexible hose lets you clean two or three rooms from one inlet

Automatic dustpan

Power unit

In other ﬂoor plans, the power unit may be located in the basement, laundry or utility room.

Average size 3 or 4-bedroom homes may be adequately serviced with 3 or 4 inlets plus the power unit. Utility inlets can also be used on patio or porch.

Let us help you with the basics.

What is your home size? Include all areas and ﬂoors to be serviced by your central

vacuum system.

Home Size ___________________________ sq. ft.

Based on your home size, choose your power unit from the three different Power

Unit series indicated on page 30 selection chart.

Power Unit _______________________________

Determine the number of wall inlets you will need. As a quick reference for

estimating, we recommend using the relationship of 600 sq. ft. for each inlet.

Based on the home square footage used above, divide that value by 600.

Always round up for estimating purposes. For example, using a 2,800 sq. ft. home:

Home Size of 2800 ÷ 600 = 4.6, round up to 5 inlets.

Your Home Size ____________ ÷ 600 = _________ , round up to _________Inlets

Type of Wall Inlet Selected __________________

Choice considerations:

Based on your interior décor, select the color and style wall inlet most suited for your

needs as shown on pages 22-25.

If you selected a VX550 or VX1000 Series Power unit, we recommend you include

VX™ Series Inlets in your system.

If you selected a VX™ Series Tool Kit or hose we recommend you select your wall

inlet from the choice of inlets shown on page 23.

We strongly recommend including at least one VacPan™ or VacuSweep

in kitchens, pantries, laundry rooms or other locations, which have hard surface

ﬂooring. See page 9 to select the right VacPan™ for you.

VacPan™ or VacuSweep

For determining the amount of tubing and ttings needed:

Typical installations require about 16 ft. of tubing for each Wall Inlet and VacPan™

used. To estimate the amount of tubing required, multiply the # of Inlets

and VacPans™ _____________ X 16 = ___________ ft.

Based on the number of Wall Inlets in your system, select the series kit needed for

your style Wall Inlet as shown on pages 22-25. ____________________________

_____________________ Qty ____________________

for use

Congratulations... You have quickly and easily selected

all the basics for your Central Vacuum System!

VX475, VX550 AND VX1000 POWER UNITS SELECTION CHART

2-Year Warranty 4-Year Warranty 8-Year Warranty

VX475 VX475C VX550 VX550C VX1000 VX1000C

Motor Performance Power (Air Watts) 475 475 550 550 1040 1040

Current Rating (Amps) 15 15 15 15 15 15

Voltage 120 120 120

Recommended Circuit (Amps) 20 20 20 20 20 20

Bag required for debris recovery • • •

Cyclonic bagless debris recovery • • •

On/Off Indicator • • • • • •

Easy access door for convenient & cleaner dirt removal • • • • • •

Easy access door for maintenance of cyclonic ﬁ lter • • •

Easy-to-use bag change mechanism allows for simple & fast bag changing • • •

Easy-to-use bag change mechanism closes bag reducing loose dust & dirt • •

Filter Bag Capacity (Gallons) 6 8 8

“Bag Full” indicator with progressive ﬁ ll indication • •

Debris Pail Capacity (Gallons) 4 7 7

“Pail Full” indicator with progressive ﬁ ll indication • •

HEPA

media with anti-stick and Microban® antimicrobial protection bag technology • • • •

Unique oval shape for efﬁ cient cyclonic ﬁ ltration • • •

Built-in sound suppression system • • • • • •

For homes up to:

4,000 square feet • •

8,000 square feet • •

12,000 square feet • •

Dimensions: 475 Model 36 x 16.5 x 11.5, 550 and 1000 Models 39 x 17.5 x 11.5

120

240 240

Tubings

Tubing Guide

Number of Inlets

PVC Tubing Required

3808

NuTone’s semi-rigid white PVC tubing has exceptional tensile strength. Lightweight and easy to handle, it can be cut with an ordinary saw. Its self-extinguishing properties will not support combustion making it extremely safe for your home’s walls. Installs vertically or horizontally and is not affected by weather – won’t rust or deteriorate.

• Conforms to all UL requirements

• Manufactured in conformity with ASTMF2158

• 2" OD x 8'; eight pieces – 64 feet

3 4 5 6 7

48' 64' 80' 100' 120'

Fittings, tubing and installation kits to meet every installation need – all from one source... NuTone.

Bulk packs available! Please check NuTone price sheet or packaging information.

Fittings

INSTALLATION COMPONENTS

CI319 Face Plate Extension –

for thick walls

CF328 Plaster Guard – for use

with 329 Mounting Plate Existing Home Inlet Kit

CF361 Mounting Bracket with

plaster guard

CF363 90˚ Flanged Ell –

special for 3" walls

CF366 Straight Flange

CF369 45˚ Street Ell

376UL 100' Wire 18/2 376500UL 500' Wire 18/2

379 Solvent Cement

CI324 2" Hose Clamp

CF329 Inlet Mounting Plate

CF361F Mounting Bracket with

ﬂ anged spigot to assemble to any 382 series elbow

CF364 Flanged Tee

CF367 Flexible Tubing – 2" ID. x 36"

vinyl over steel wire, interwoven with nylon cord, can be cut to any length

CF375 Utility Inlet – mounts on any

ﬂ anged ﬁ tting; provides low-voltage contacts. Mounting box included.

CF377 90˚ Sweep Ell-long

CF380 Pipe Support with wire clip

326N Existing Home Inlet Kit

CI330 Exhaust Vent

CF362 90˚ Flanged Ell – standard

CF365 Double-Flanged Tee

CF368 90˚ Street Ell

376 100' Wire 18/2

376500 500' Wire 18/2

378 Nail Plate

CF382 90˚ Sweep Ell

CF382S 90˚ Sweep Ell for

use with Model 329 only for narrow walls

CF384 3-Way Ell

CF387 45˚ Wye

392 Optional Mufﬂ er –

reduces noise of currently installed power units

397 Wall Inlet Frame

CF382XS Short 90˚ Ell for installing

VacPan™ where height is limited

CF385 45˚ Ell

CF388 Stop Coupling

393 Metal Wall Cap – terminates

exhaust discharge tube to outside

CI398 Blank Cover Plate w/screws

CI398IV (Ivory), CI398WH (White)

CF383 90˚ Tee

CF386 30˚ Ell

CF389 End Cap

394 Blank Cover Plate – white;

used in place of wall inlet in speculative rough-in installations

399 Extension Sleeve for ﬂ oor

or thick wall installations

METAL COMPONENTS – Zinc-coated/plated carbon steel for use in ﬁ re-walls to comply with ﬁ re codes.

300MTL Metal Tubing –

2" OD x 8', can be cut to size

301MTL 90˚ Ell – Metal

302MTL Slip Coupling

CI3303RK Rough In – for 3-inlet installation includes: CI3301RK Rough In – for 1-inlet installation includes:

3 – Mounting Brackets 3 – Plaster Guards 6 – Screws for

Plaster Guard

3 – 90˚ Elbows

1 – 90˚ Street Ell 1 – 45˚ Street Ell 6 – Nail Guards 6 – 90˚ Sweep Ells 2 – 45˚ Ells

3 – 90˚ Tee Wyes 6 – Stop Couplings 1 – Solvent Cement 1 – 1001 18/2

UL Wire

NuTone® PVC ﬁ ttings are manufactured in accordance with ASTMF2158.

1 – Mounting Bracket 1 – Plaster Guard 2 – Screws for

Plaster Guard

1 – 90˚ Elbow 1 – 90˚ Street Ell 1 – 45˚ Street Ell 2 – Nail Guards

2 – 90˚ Sweep Ells 1 – 45˚ Ell 1 – 90˚ Tee Wye 2 – Stop Couplings

326715 15248

NuTone… life. style. home.

Speakers Ventilation Fans Chimes Heaters Fresh Air Systems

Trash Compactors Ceiling Fans Medicine Cabinets

Decorative BacksplashesIntercoms Ironing CentersRange Hoods

NuTone® is America’s leading brand of residential built-in convenience products including door chimes, central vacuum systems,

intercom systems, home theater speakers, medicine cabinets, ironing centers and ventilation fans.

Broan

is America’s leading brand of residential ventilation products including range hoods, ventilation fans, heater/fan/light combination units, Indoor Air Quality (IAQ) Fresh Air Systems, built-in heaters, whole-house fans, attic ventilators, paddle fans and trash compactors.

Broan and NuTone are proud to be ENERGY STAR

partners.

Broan-NuTone LLC, 926 W. State Street, Hartford, WI 53027 • 888-336-3948

www.NuTone.com

In Canada call 877-896-1119

NuTone CT350B, CH515, VX1000, CH615, VX550 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
