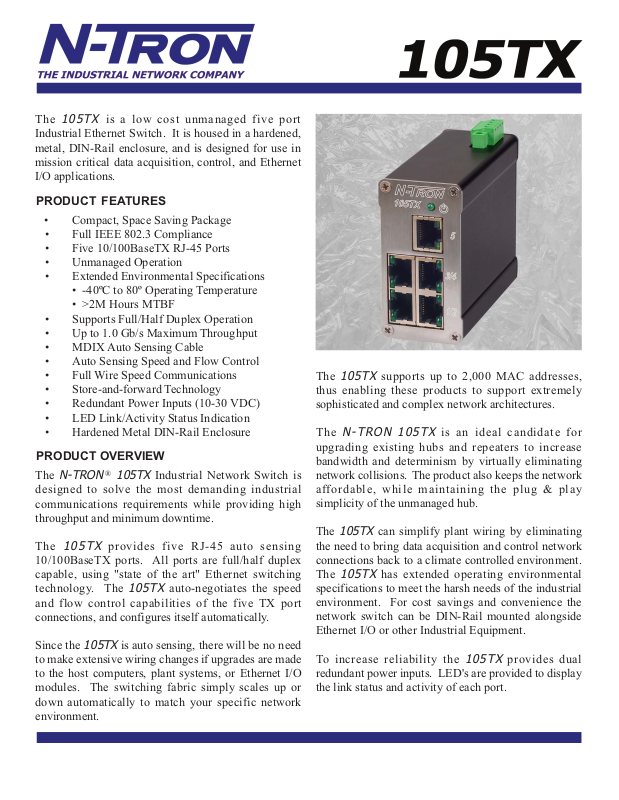

N-TRON 105TX User Manual

The

105TX

is a low cost unmanaged five port
Industrial Ethernet Switch. It is housed in a hardened,
metal, DIN-Rail enclosure, and is designed for use in
mission critical data acquisition, control, and Ethernet
I/O applications.

PRODUCT FEATURES

• Compact, Space Saving Package

• Full IEEE 802.3 Compliance

• Five 10/100BaseTX RJ-45 Ports

• Unmanaged Operation

• Extended Environmental Specifications

• -40ºC to 80º Operating Temperature

• >2M Hours MTBF

• Supports Full/Half Duplex Operation

• Up to 1.0 Gb/s Maximum Throughput

• MDIX Auto Sensing Cable

• Auto Sensing Speed and Flow Control

• Full Wire Speed Communications

• Store-and-forward Technology

• Redundant Power Inputs (10-30 VDC)

• LED Link/Activity Status Indication

• Hardened Metal DIN-Rail Enclosure

PRODUCT OVERVIEW

The

N-TRON

®

105TX

Industrial Network Switch is
designed to solve the most demanding industrial
communications requirements while providing high
throughput and minimum downtime.

The

105TX

provides five RJ-45 auto sensing
10/100BaseTX ports. All ports are full/half duplex
capable, using "state of the art" Ethernet switching
technology. The

105TX

auto-negotiates the speed
and flow control capabilities of the five TX port
connections, and configures itself automatically.

Since the

105TX

is auto sensing, there will be no need
to make extensive wiring changes if upgrades are made
to the host computers, plant systems, or Ethernet I/O
modules. The switching fabric simply scales up or
down automatically to match your specific network
environment.

The

105TX

supports up to 2,000 MAC addresses,
thus enabling these products to support extremely
sophisticated and complex network architectures.

The

N-TRON 105TX

is an ideal candidate for
upgrading existing hubs and repeaters to increase
bandwidth and determinism by virtually eliminating
network collisions. The product also keeps the network
affordable, while maintaining the plug & play
simplicity of the unmanaged hub.

The

105TX

can simplify plant wiring by eliminating
the need to bring data acquisition and control network
connections back to a climate controlled environment.
The

105TX

has extended operating environmental
specifications to meet the harsh needs of the industrial
environment. For cost savings and convenience the
network switch can be DIN-Rail mounted alongside
Ethernet I/O or other Industrial Equipment.

To increase reliability the

105TX

provides dual
redundant power inputs. LED's are provided to display
the link status and activity of each port.

BENEFITS SPECIFICATIONS

Industrial Network Switch

• Compact Size / Smaller Footprint

• Extended Environmental Specifications

• Hardened Metal DIN-Rail Enclosure

• High Performance

• High MTBF >2M Hours

• ESD Protection Diodes on RJ-45 Ports

• Surge Protection Diodes on Power Inputs

Ease of Use

• Plug & Play Operation

• Auto Sensing 10/100BaseTX

• Auto Sensing Full/Half Duplex

• MDIX Auto Cable Sensing

• Unmanaged Operation

Increased Performance

• Full Wire Speed Capable

• Full Duplex Capable

• Eliminates Network Collisions

• Increases Network Determinism

Physical

Height: 2.88" (7.31cm)
Width: 1.50" (3.81 cm)
Depth: 3.55" (9.02 cm)
Including DIN-Rail Mount: 4.22" (10.72 cm)
Weight: 0.54 lbs. (0.25 kg)
DIN-Rail: 35mm

Electrical

Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V

Environmental

Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%

(Non Condensing)

Operating Altitude: 0 to 10,000 ft.

Reliablity

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Contact Information

N-TRON Corp.
820 S. University Blvd.,
Suite 4E
Mobile, AL 36609 USA
TEL: [phone]

FAX: [phone]
Website: www.n-tron.com

Email: [e-mail]

N-TRON Europe GmbH
Alte Steinhauserstr 19
6330 Cham / ZG
Switzerland
TEL: [phone]

FAX: [phone]

Connectors

10/100BaseTX: Five (5) RJ-45 TX

Copper Port

Recommended Wiring Clearance

Front: 2" (5.08 cm)
Top: 1" (2.54 cm)

Regulatory Approvals

FCC Title 47 Part 15 Class A,
CE: EN61000-6-2,4, EN55011, EN61000-4-2,3,4,5,6

Ordering Information

UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000
This apparatus is suitable for use in

105TX Five 10/100BaseTX Ports

Class I, Div 2, Groups A,B,C,D,T4A
Designed to comply with:

NTPS-24-1.3 DIN-Rail Power Supply

24V@1.3 Amp

IEEE 1613 for Electric Utility Substations,
ABS Standards for Shipboard Applications,
and NEMA TS1/TS2 for Traffic Control Equipment

REV 070808
