DS90CR283/DS90CR284
28-Bit Channel Link-66 MHz
General Description
The DS90CR283 transmitter converts 28 bits of CMOS/TTL
data intofour LVDS (Low Voltage Differential Signaling) data
streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle
of the transmit clock 28 bits of input data are sampled and
transmitted. The DS90CR284 receiver converts the LVDS
data streams back into 28 bits of CMOS/TTL data. At a transmit clock frequency of 66 MHz, 28 bits of TTL data are transmitted at a rate of 462 Mbps per LVDS data channel. Using
a 66 MHz clock, the data throughput is 1.848 Gbit/s
(231 Mbytes/s).
The multiplexing of the data lines provides a substantial
cable reduction. Long distance parallel single-ended buses
typically require a ground wire per active signal (and have
very limited noise rejection capability). Thus, for a 28-bit wide
data bus and one clock, up to 58 conductors are required.
With the Channel Link chipset as few as 11 conductors (4
data pairs, 1 clock pair and a minimum of one ground) are
needed. This provides a 80%reduction in required cable
width, which provides a system cost savings, reduces connector physical size and cost, and reduces shielding requirements due to the cables’ smaller form factor.
The 28 CMOS/TTL inputs can support a variety of signal
combinations. For example, 7 4-bit nibbles or 3 9-bit (byte +
parity) and 1 control.
Features
n 66 MHz clock support
n Up to 231 Mbytes/s bandwidth
n Low power CMOS design (
<
610 mW)
n Power Down mode (
<
0.5 mW total)
n Up to 1.848 Gbit/s data throughput
n Narrow bus reduces cable size and cost
n 290 mV swing LVDS devices for low EMI
n PLL requires no external components
n Low profile 56-lead TSSOP package
n Rising edge data strobe
n Compatible with TIA/EIA-644 LVDS Standard
Block Diagrams
TRI-STATE®is a registered trademark of National Semiconductor Corporation.
DS90CR283
DS012889-27
Order Number DS90CR283MTD
See NS Package Number MTD56
DS90CR284
DS012889-1
Order Number DS90CR284MTD
See NS Package Number MTD56
July 1997
DS90CR283/DS90CR284 28-Bit Channel Link-66 MHz
© 1998 National Semiconductor Corporation DS012889 www.national.com
Pin Diagrams
Typical Application
DS90CR283
DS012889-21
DS90CR284
DS012889-22
DS012889-23
www.national.com 2
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
) −0.3V to +6V
CMOS/TTL Input Voltage −0.3V to (V
CC
+ 0.3V)
CMOS/TTL Ouput Voltage −0.3V to (V
CC
+ 0.3V)
LVDS Receiver Input Voltage −0.3V to (V
CC
+ 0.3V)
LVDS Driver Output Voltage −0.3V to (V
CC
+ 0.3V)
LVDS Output Short Circuit
Duration Continuous
Junction Temperature +150˚C
Storage Temperature Range −65˚C to +150˚C
Lead Temperature
(Soldering, 4 sec.) +260˚C
Maximum Package Power Dissipation
@
+25˚C
MTD56(TSSOP) Package:
DS90CR283 1.63W
DS90CR284 1.61W
Package Derating:
DS90CR283 12.5 mW/˚C above +25˚C
DS90CR284 12.4 mW/˚C above +25˚C
This device does not meet 2000V ESD rating (Note 4)
Recommended Operating
Conditions
Min Nom Max Units
Supply Voltage (V
CC
) 4.75 5.0 5.25 V
Operating Free Air
Temperature (T
A
) −10 +25 +70 ˚C
Receiver Input Range 0 2.4 V
Supply Noise Voltage
(V
CC
) 100 mV
P-P
Electrical Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units
CMOS/TTL DC SPECIFICATIONS
V
IH
High Level Input Voltage 2.0 V
CC
V
V
IL
Low Level Input Voltage GND 0.8 V
V
OH
High Level Output Voltage I
OH
=
−0.4 mA 3.8 4.9 V
V
OL
Low Level Output Voltage I
OL
=
2 mA 0.1 0.3 V
V
CL
Input Clamp Voltage I
CL
=
−18 mA −0.79 −1.5 V
I
IN
Input Current V
IN
=
V
CC
, GND, 2.5V or 0.4V
±
5.1
±
10 µA
I
OS
Output Short Circuit Current V
OUT
=
0V −120 mA
LVDS DRIVER DC SPEClFlCATIONS
V
OD
Differential Output Voltage R
L
=
100Ω 250 290 450 mV
∆V
OD
Change in VODbetween 35 mV
Complementary Output States
V
OS
Offset Voltage 1.1 1.25 1.375 V
∆V
OS
Change in Magnitude of V
OS
between Complementary Output
States
35 mV
I
OS
Output Short Circuit Current V
OUT
=
OV, R
L
=
100Ω −2.9 −5 mA
I
OZ
Output TRI-STATE®Current Power Down=0V, V
OUT
=
0V or V
CC
±
1
±
10 µA
LVDS RECEIVER DC SPECIFlCATIONS
V
TH
Differential Input High Threshold V
CM
=
+1.2V +100 mV
V
TL
Differential Input Low Threshold −100 mV
I
IN
Input Current V
IN
=
+2.4V, V
CC
=
5.0V
±
10 µA
V
IN
=
0V, V
CC
=
5.0V
±
10 µA
TRANSMITTER SUPPLY CURRENT
I
CCTW
Transmitter Supply Current, R
L
=
100Ω,C
L
=
5 pF, f=32.5 MHz 49 63 mA
Worst Case Worst Case Pattern f=37.5 MHz 51 64 mA
(
Figures 1, 2
)f
=
66 MHz 70 84 mA
I
CCTZ
Transmitter Supply Current, Power Down=Low
Power Down Driver Outputs in TRI-STATE
under Power Down Mode 1 25 µA
www.national.com3
Electrical Characteristics (Continued)
Over recommended operating supply and temperature ranges unless otherwise specified
Symbol Parameter Conditions Min Typ Max Units
RECEIVER SUPPLY CURRENT
I
CCRW
Receiver Supply Current,
Worst Case
C
L
=
8 pF, f=32.5 MHz 64 77 mA
Worst Case Pattern f=37.5 MHz 70 85 mA
(
Figures 1, 3
)f
=
66 MHz 110 140 mA
I
CCRZ
Receiver Supply Current, Power Down=Low
Power Down Receiver Outputs in Previous State
during Power Down Mode 1 10 µA
Note 1: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the device
should be operated at these limits. The tables of “Electrical Characteristics” specify conditions for device operation.
Note 2: Typical values are given for V
CC
=
5.0V and T
A
=
+25˚C.
Note 3: Current into device pins is defined as positive. Current out of device pins is defined as negative. Voltages are referenced to ground unless otherwise specified (except V
OD
and ∆VOD).
Note 4: ESD Rating: HBM (1.5 kΩ, 100 pF)
PLL V
CC
≥ 1000V
All other pins ≥ 2000V
EIAJ (0Ω, 200 pF) ≥ 150V
Note 5: V
OS
previously referred as VCM.
Transmitter Switching Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified
Symbol Parameter Min Typ Max Units
LLHT LVDS Low-to-High Transition Time (
Figure 2
) 0.75 1.5 ns
LHLT LVDS High-to-Low Transition Time (
Figure 2
) 0.75 1.5 ns
TCIT TxCLK IN Transition Time (
Figure 4
)8ns
TCCS TxOUT Channel-to-Channel Skew (Note 6) (
Figure 5
) 350 ps
TPPos0 Transmitter Output Pulse Position for Bit 0 f=66 MHz
−0.30 0 0.30
ns
(
Figure 16
)
TPPos1 Transmitter Output Pulse Position for Bit 1 1.70 (1/7)T
clk
2.50 ns
TPPos2 Transmitter Output Pulse Position for Bit 2 3.60 (2/7)T
clk
4.50 ns
TPPos3 Transmitter Output Pulse Position for Bit 3 5.90 (3/7)T
clk
6.75 ns
TPPos4 Transmitter Output Pulse Position for Bit 4 8.30 (4/7)T
clk
9.00 ns
TPPos5 Transmitter Output Pulse Position for Bit 5 10.40 (5/7)T
clk
11.10 ns
TPPos6 Transmitter Output Pulse Position for Bit 6 12.70 (6/7)T
clk
13.40
TCIP TxCLK IN Period (
Figure 6
) 15 T 50 ns
TCIH TxCLK IN High Time (
Figure 6
) 0.35T 0.5T 0.65T ns
TCIL TxCLK IN Low Time (
Figure 6
) 0.35T 0.5T 0.65T ns
TSTC TxIN Setup to TxCLK IN (
Figure 6
) 5 3.5 ns
THTC TxIN Hold to TxCLK IN (
Figure 6
) 2.5 1.5 ns
TCCD TxCLK IN to TxCLK OUT Delay
@
25˚C, 3.5 8.5 ns
V
CC
=
5.0V (
Figure 8
)
TPLLS Transmitter Phase Lock Loop Set (
Figure 10
)10ms
TPDD Transmitter Power Down Delay (
Figure 14
) 100 ns
Note 6: This limit based on bench characterization.
www.national.com 4
Receiver Switching Characteristics
Over recommended operating supply and temperature ranges unless otherwise specified
Symbol Parameter Min Typ Max Units
CLHT CMOS/TTL Low-to-High Transition Time (
Figure 3
) 2.5 4.0 ns
CHLT CMOS/TTL High-to-Low Transition Time (
Figure 3
) 2.0 4.0 ns
RSKM RxIN Skew Margin (Note 7), f=40 MHz 700 ps
V
CC
=
5V, T
A
=
25˚C (
Figure 17
)f
=
66 MHz 600 ps
RCOP RxCLK OUT Period (
Figure 7
) 15 T 50 ns
RCOH RxCLK OUT High Time (
Figure 7
)f
=
40 MHz 6 ns
f=66 MHz 4.3 5 ns
RCOL RxCLK OUT Low Time (
Figure 7
)f
=
40 MHz 10.5 ns
f=66 MHz 7.0 9 ns
RSRC RxOUT Setup to RxCLK OUT (
Figure 7
)f
=
40 MHz 4.5 ns
f=66 MHz 2.5 4.2 ns
RHRC RxOUT Hold to RxCLK OUT (
Figure 7
)f
=
40 MHz 6.5 ns
f=66 MHz 4 5.2 ns
RCCD RxCLK IN to RxCLK OUT Delay
@
25˚C, 6.4 10.7 ns
V
CC
=
5.0V (
Figure 9
)
RPLLS Receiver Phase Lock Loop Set (
Figure 11
)10ms
RPDD Receiver Power Down Delay (
Figure 11
)1µs
Note 7: Receiver Skew Margin is defined as the valid data sampling region at the receiver inputs. This margin takes into account transmitter output skew (TCCS)
and the setup and hold time (internal data sampling window), allowing for LVDS cable skew dependent on type/length and source clock (TxCLK IN) jitter.
RSKM ≥ cable skew (type, length) + source clock jitter (cycle to cycle)
AC Timing Diagrams
DS012889-2
FIGURE 1. “WORST CASE” Test Pattern
DS012889-3
DS012889-4
FIGURE 2. DS90CR283 (Transmitter) LVDS Output Load and Transition Timing
DS012889-5
DS012889-6
FIGURE 3. DS90CR284 (Receiver) CMOS/TTL Output Load and Transition Timing
www.national.com5
AC Timing Diagrams (Continued)
DS012889-7
FIGURE 4. DS90CR283 (Transmitter) Input Clock Transition Time
DS012889-8
Note 8: Measurements at V
diff
=
0V
Note 9: TCCS measured between earliest and latest initial LVDS edges.
Note 10: TxCLK OUT Differential Low→High Edge
FIGURE 5. DS90CR283 (Transmitter) Channel-to-Channel Skew
DS012889-9
FIGURE 6. DS90CR283 (Transmitter) Setup/Hold and High/Low Times
DS012889-10
FIGURE 7. DS90CR284 (Receiver) Setup/Hold and High/Low Times
www.national.com 6
AC Timing Diagrams (Continued)
DS012889-11
FIGURE 8. DS90CR283 (Transmitter) Clock In to Clock Out Delay
DS012889-12
FIGURE 9. DS90CR284 (Receiver) Clock In to Clock Out Delay
DS012889-13
FIGURE 10. DS90CR283 (Transmitter) Phase Lock Loop Set Time
DS012889-14
FIGURE 11. DS90CR284 (Receiver) Phase Lock Loop Set Time
www.national.com7
AC Timing Diagrams (Continued)
DS012889-15
FIGURE 12. Seven Bits of LVDS in One Clock Cycle
DS012889-16
FIGURE 13. 28 Parallel TTL Data Inputs Mapped to LVDS Outputs (DS90CR283)
DS012889-17
FIGURE 14. Transmitter Powerdown Delay
DS012889-18
FIGURE 15. Receiver Powerdown Delay
www.national.com 8
AC Timing Diagrams (Continued)

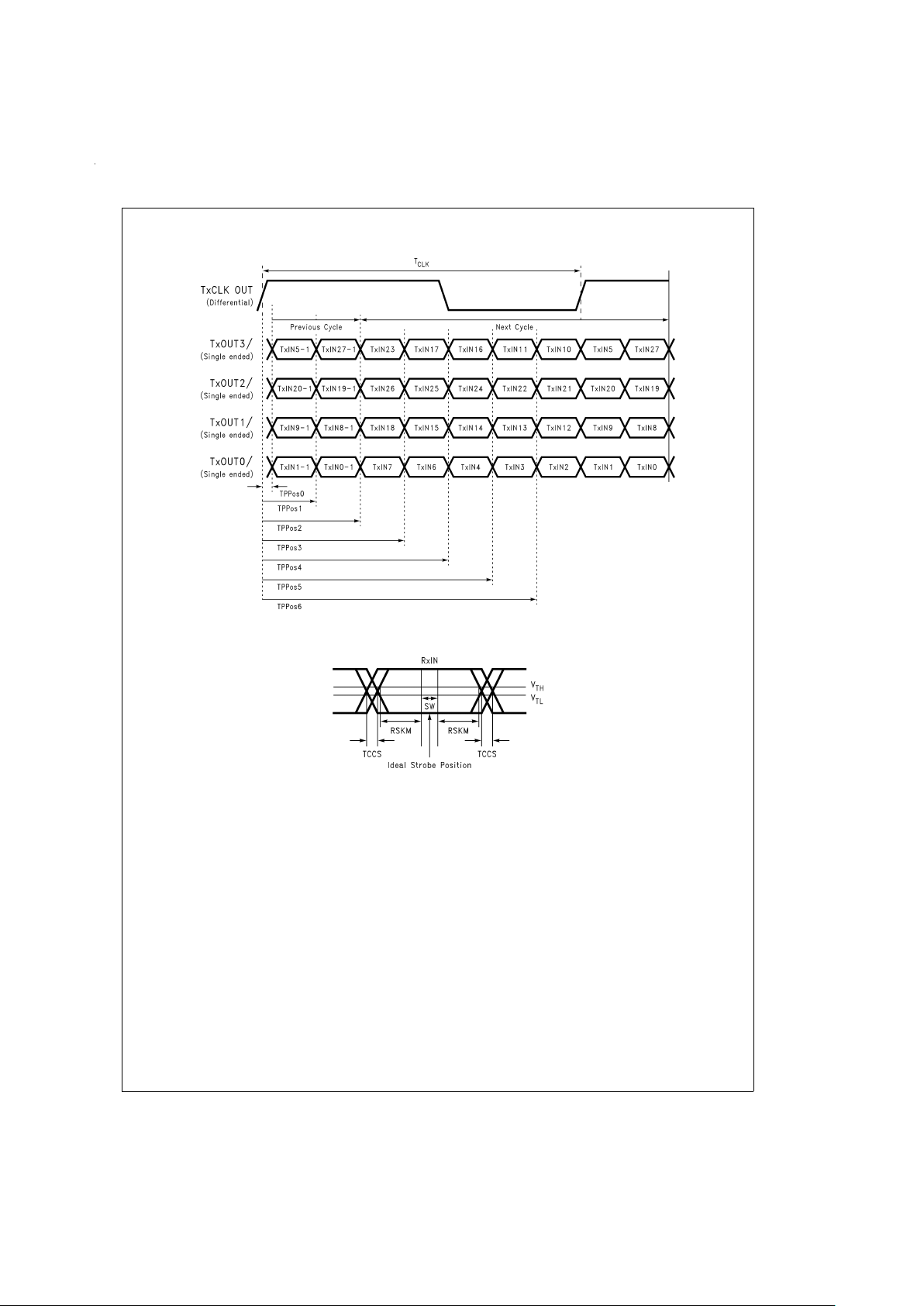

DS012889-19
FIGURE 16. Transmitter LVDS Output Pulse Position Measurement
DS012889-20
SW—Setup and Hold Time (Internal data sampling window)
TCCS—Transmitter Output Skew
RSKM ≥ Cable Skew (type, length) + Source Clock Jitter (cycle to cycle)
Cable Skew — typically 10 ps–40 ps per foot.
FIGURE 17. Receiver LVDS Input Skew Margin
www.national.com9
DS90CR283 Pin Description—Channel Link Transmitter
Pin Name I/O No. Description
TxIN I 28 TTL Level inputs
TxOUT+ O 4 Positive LVDS differential data output
TxOUT− O 4 Negative LVDS differential data output
TxCLK IN I 1 TTL level clock input. The rising edge acts as data strobe
TxCLK OUT+ O 1 Positive LVDS differential clock output
TxCLK OUT− O 1 Negative LVDS differential clock output
PWR DOWN
I 1 TTL level input. Assertion (low input) TRI-STATES the outputs, ensuring low current at power
down
V
CC
I 4 Power supply pins for TTL inputs
GND I 5 Ground pins for TTL inputs
PLL V
CC
I 1 Power supply pin for PLL
PLL GND I 2 Ground pins for PLL
LVDS V
CC
I 1 Power supply pin for LVDS outputs
LVDS GND I 3 Ground pins for LVDS outputs
DS90CR284 Pin Description—Channel Link Receiver
Pin Name I/O No. Description
RxIN+ I 4 Positive LVDS differential data inputs
RxIN− I 4 Negative LVDS differential data inputs
RxOUT O 28 TTL level outputs
RxCLK IN+ I 1 Positive LVDS differential clock input
RxCLK IN− I 1 Negative LVDS differential clock input
RxCLK OUT O 1 TTL level clock output. The rising edge acts as data strobe
PWR DOWN
I 1 TTL level input. Assertion (low input) maintains the receiver outputs in the previous state
V
CC
I 4 Power supply pins for TTL outputs
GND I 5 Ground pins for TTL outputs
PLL V
CC
I 1 Power supply for PLL
PLL GND I 2 Ground pin for PLL
LVDS V
CC
I 1 Power supply pin for LVDS inputs
LVDS GND I 3 Ground pins for LVDS inputs
Applications Information
The Channel Link devices are intended to be used in a wide
variety of data transmission applications. Depending upon
the application the interconnecting media may vary. For example, for lower data rate (clock rate) and shorter cable
lengths (
<
2m), the media electrical performance is less critical. For higher speed/long distance applications the media’s
performance becomes more critical. Certain cable constructions provide tighter skew (matched electrical length between the conductors and pairs). Twin-coax for example, has
been demonstrated at distances as great as 5 meters and
with the maximum data transfer of 1.848 Gbit/s. Additional
applications information can be found in the following National Interface Application Notes:
AN
=
####
Topic
AN-1041 Introduction to Channel Link
AN-1035 PCB Design Guidelines for LVDS and
Link Devices
AN-806 Transmission Line Theory
AN
=
####
Topic
AN-905 Transmission Line Calculations and
Differential Impedance
AN-916 Cable Information
CABLES: A cable interface between the transmitter and receiver needs to support the differential LVDS pairs. The
21-bit CHANNEL LINK chipset (DS90CR213/214) requires
four pairs of signal wires and the 28-bit CHANNEL LINK
chipset (DS90CR283/284) requires five pairs of signal wires.
The ideal cable/connector interface would have a constant
100Ω differential impedance throughout the path. It is also
recommended that cable skew remain below 350 ps (
@
66
MHz clock rate) to maintain a sufficient data sampling window at the receiver.
In addition to the four or five cable pairs that carry data and
clock, it is recommended to provide at least one additional
conductor (or pair) which connects ground between the
transmitter and receiver. This low impedance ground provides a common mode return path for the two devices. Some
of the more commonly used cable types for point-to-point ap-
www.national.com 10
Applications Information (Continued)
plications include flat ribbon, flex, twisted pair and
Twin-Coax.Allareavailablein a variety of configurations and
options. Flat ribbon cable, flex and twisted pair generally perform well in short point-to-point applications while Twin-Coax
is good for short and long applications. When using ribbon
cable, it is recommended to place a ground line between
each differential pair to act as a barrier to noise coupling between adjacent pairs. For Twin-Coax cable applications, it is
recommended to utilize a shield on each cable pair. All extended point-to-point applications should also employ an
overall shield surrounding all cable pairs regardless of the
cable type. This overall shield results in improved transmission parameters such as faster attainable speeds, longer
distances between transmitter and receiver and reduced
problems associated with EMS or EMI.
The high-speed transport of LVDS signals has been demonstrated on several types of cables with excellent results.
However, the best overall performance has been seen when
using Twin-Coax cable. Twin-Coax has very low cable skew
and EMI due to its construction and double shielding. All of
the design considerations discussed here and listed in the
supplemental application notes provide the subsystem communications designer with many useful guidelines. It is recommended that the designer assess the tradeoffs of each
application thoroughly to arrive at a reliable and economical
cable solution.
BOARD LAYOUT: To obtain the maximum benefit from the
noise and EMI reductions of LVDS, attention should be paid
to the layout of differential lines. Lines of a differential pair
should always be adjacent to eliminate noise interference
from other signals and take full advantage of the noise canceling of the differential signals. The board designer should
also try to maintain equal length on signal traces for a given
differential pair. As with any high speed design, the impedance discontinuities should be limited (reduce the numbers
of vias and no 90 degree angles on traces). Any discontinuities which do occur on one signal line should be mirrored in
the other line of the differential pair. Care should be taken to
ensure that the differential trace impedance match the differential impedance of the selected physical media (this impedance should also match the value of the termination resistor
that is connected across the differential pair at the receiver’s
input). Finally, the location of the CHANNEL LINK TxOUT/
RxIN pins should be as close as possible to the board edge
so as to eliminate excessive pcb runs. All of these considerations will limit reflections and crosstalk which adversely effect high frequency performance and EMI.
UNUSED INPUTS: All unused inputs at the TxIN inputs of
the transmitter must be tied to ground. All unused outputs at
the RxOUT outputs of the receiver must then be left floating.
TERMINATION: Use of current mode drivers requires a terminating resistor across the receiver inputs. The CHANNEL
LINK chipset will normally require a single 100Ω resistor between the true and complement lines on each differential
pair of the receiver input. The actual value of the termination
resistor should be selected to match the differential mode
characteristic impedance (90Ω to 120Ω typical) of the cable.
Figure 18
shows an example. No additional pull-up or
pull-down resistors are necessary as with some other differential technologies such as PECL. Surface mount resistors
are recommended to avoid the additional inductance that accompanies leaded resistors. These resistors should be
placed as close as possible to the receiver input pins to reduce stubs and effectively terminate the differential lines.
DECOUPLING CAPACITORS: Bypassing capacitors are
needed to reduce the impact of switching noise which could
limit performance. For a conservative approach three
parallel-connected decoupling capacitors (Multi-Layered Ceramic type in surface mount form factor) between each V
CC
and the ground plane(s) are recommended. The three capacitor values are 0.1 µF,0.01µF and 0.001 µF.An example
is shown in
Figure 19
. The designer should employ wide
traces for power and ground and ensure each capacitor has
its own via to the ground plane. If board space is limiting the
number of bypass capacitors, the PLL V
CC
should receive
the most filtering/bypassing. Next would be the LVDS V
CC
pins and finally the logic VCCpins.
DS012889-24
FIGURE 18. LVDS Serialized Link Termination
www.national.com11
Applications Information (Continued)
CLOCK JITTER: The CHANNEL LINK devices employ a
PLLto generate and recover the clock transmitted across the
LVDS interface. The width of each bit in the serialized LVDS
data stream is one-seventh the clock period. For example, a
66 MHz clock has a period of 15 ns which results in a data bit
width of 2.16 ns. Differential skew (∆t within one differential
pair), interconnect skew (∆t of one differential pair to another) and clock jitter will all reduce the available window for
sampling the LVDS serial data streams. Care must be taken
to ensure that the clock input to the transmitter be a clean
low noise signal. Individual bypassing of each V
CC
to ground
will minimize the noise passed on to the PLL, thus creating a
low jitter LVDS clock. These measures provide more margin
for channel-to-channel skew and interconnect skew as a part
of the overall jitter/skew budget.
COMMON MODE vs. DIFFERENTIAL MODE NOISE MARGIN: The typical signal swing for LVDS is 300 mV centered
at +1.2V. The CHANNEL LINK receiver supports a 100 mV
threshold therefore providing approximately 200 mV of differential noise margin. Common mode protection is of more importance to the system’s operation due to the differential
data transmission. LVDS supports an input voltage range of
Ground to +2.4V.This allows for a
±
1.0V shifting of the center point due to ground potential differences and common
mode noise.
POWER SEQUENCING AND POWERDOWN MODE: Outputs of the CHANNEL LINK transmitter remain in TRI-STATE
until the power supply reaches 3V. Clock and data outputs
will begin to toggle 10 ms after V
CC
has reached 4.5V and
the Powerdown pin is above 2V.Eitherdevicemaybe placed
into a powerdown mode at any time by asserting the Powerdown pin (active low). Total power dissipation for each device will decrease to 5 µW (typical).
The CHANNEL LINK chipset is designed to protect itself
from accidental loss of power to either the transmitter or receiver. If power to the transmit board is lost, the receiver
clocks (input and output) stop. The data outputs (RxOUT) retain the states they were in when the clocks stopped. When
the receiver board loses power, the receiver inputs are
shorted to V
CC
through an internal diode. Current is limited
(5 mA per input) by the fixed current mode drivers, thus
avoiding the potential for latchup when powering the device.
DS012889-25
FIGURE 19. CHANNEL LINK Decoupling Configuration
DS012889-26
FIGURE 20. Single-Ended and Differential Waveforms
www.national.com 12
13
Physical Dimensions inches (millimeters) unless otherwise noted
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: support@nsc.com
www.national.com
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: europe.support@nsc.com
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: sea.support@nsc.com
National Semiconductor
Japan Ltd.
Tel: 81-3-5620-6175
Fax: 81-3-5620-6179
56-Lead Molded Thin Shrink Small Outline Package, JEDEC
Order Number DS90CR283MTD or DS90CR284MTD
NS Package Number MTD56
DS90CR283/DS90CR284 28-Bit Channel Link-66 MHz
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
