NSC DS16F95W-MLS, DS16F95W-MCP, DS16F95MDS, DS16F95MDA, DS16F95J Datasheet

DS16F95, DS36F95
EIA-485/EIA-422A Differential Bus Transceiver

General Description

The DS16F95/DS36F95 Differential Bus Transceiver is a
monolithic integrated circuit designed for bidirectional data
communication on balanced multipoint bus transmission
lines. The transceiver meets both EIA-485 and EIA-422A
standards.

The DS16F95/DS36F95 offers improved performance due to
the use of L-FAST bipolar technology. The L-FAST technol­ogy allows forhigher speeds and lower currents by minimiz­ing gate delay times. Thus, the DS16F95andDS36F95 con­sume less power, and feature an extended temperature
range as well as improved specifications.

The DS16F95/DS36F95 combines a TRI-STATE

®

differen­tial line driver and a differential input line receiver, both of
which operate from a single 5.0V power supply. The driver
and receiver have an active Enable that can be externally
connected to function as a direction control. The driver differ­ential outputs and the receiver differential inputs are inter­nally connected to form differential input/output (I/O) bus
ports that are designed to offer minimum loading to the bus
whenever the driver is disabled or when V

CC

= 0V. These
ports feature wide positive andnegative common mode volt­age ranges, making the device suitable for multipoint appli­cations in noisy environments.

The driver is designed to accommodate loads of up to 60 mA
of sink or source current and features positive and negative
current limiting in addition to thermalshutdown for protection
from line fault conditions.

The DS16F95/DS36F95 can be used in transmission line
applications employing the DS96F172 and the DS96F174
quad differential line drivers and the DS96F173 and
DS96F175 quad differential line receivers.

Features

n Meets EIA-485 and EIA-422A
n Meets SCSI-1 (5 MHZ) specifications
n Designed for multipoint transmission
n Wide positive and negative input/output bus voltage

ranges

n Thermal shutdown protection
n Driver positive and negative current-limiting
n High impedance receiver input
n Receiver input hysteresis of 50 mV typical
n Operates from single 5.0V supply
n Reduced power consumption
n Pin compatible with DS3695 and SN75176A
n Military temperature range available
n Qualified for MIL-STD 883C
n Standard Military Drawings (SMD) available
n Available in DIP (J), SOIC (M), LCC (E), and Flatpak

(W) packages

Logic Diagram Function Tables

Driver

Driver Input Enable Outputs

DI DE A B

HHHL
LHLH
XLZZ

Receiver

Differential Inputs Enable Output

A–B RE

RO

V

ID

≥ 0.2V L H

V

ID

≤ −0.2V L L

XHZ

H = High Level
L = Low Level
X = Immaterial
Z = High Impedance (Off)

TRI-STATE®is a registered trademark ofNational Semiconductor Corporation.

DS009629-20

June 1998

DS16F95, DS36F95 EIA-485/EIA-422A Differential Bus Transceiver

© 1998 National Semiconductor Corporation DS009629 www.national.com

COMMERCIAL
Absolute Maximum Ratings

(Note 2)

Specifications for the 883 version of this product are
listed separately on the following pages.

Storage Temperature Range −65˚C to +175˚C
Lead Temperature

(Soldering, 60 sec.) 300˚C

Maximum Package Power Dissipation (Note 1) at 25˚C

’J’ Package 1300 mW

’M’ Package 735 mW
Supply Voltage 7.0V
Input Voltage (Bus Terminal) +15V/−10V
Enable Input Voltage 5.5V

Recommended Operating
Conditions

Min Typ Max Units

Supply Voltage (V

CC

)
DS36F95 4.75 5.0 5.25 V
DS16F95 4.50 5.0 5.50 V

Voltage at Any Bus Terminal

(Separately or Common Mode)
(V

I

or VCM) −7.0 +12 V

Differential Input

±

12 V

Voltage (V

ID

)

Output Current HIGH (I

OH

)
Driver −60 mA
Receiver −400 µA

Output Current LOW (I

OL

)
Driver 60 mA
Receiver 16 mA

Operating Temperature (T

A

)
DS36F95 0 +25 +70 ˚C
DS16F95 −55 +25 +125 ˚C

Note 1: Derate ’J’ package 8.7 mW/˚C above 25˚C.
Derate ’M’ package 5.88 mW/˚C above 25˚C.

Driver Electrical Characteristics (Notes 3, 4)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

V

IH

Input Voltage HIGH 2.0 V

V

IL

Input Voltage LOW 0.8 V

V

OH

Output Voltage HIGH IOH= −55 mA 0˚C to +70˚C 3.0 V

V

OL

Output Voltage LOW IOL= 55 mA 0˚C to +70˚C 2.0 V

V

IC

Input Clamp Voltage II= −18 mA −1.3 V

|V

OD1

| Differential Output Voltage IO= 0 mA 6.0 V

|V

OD2

| Differential Output Voltage RL= 100Ω,

Figure 1

2.0 2.25 V

R

L

=54Ω,

Figure 1

1.5 2.0

∆|V

OD

| Change in Magnitude of RL=54Ωor 100Ω, −40˚C to +125˚C

±

0.2 V

Differential Output Voltage

Figure 1

−55˚C to +125˚C

±

0.4

(Note 5)

V

OC

Common Mode Output
Voltage (Note 6)

3.0 V

∆|V

OC

| Change in Magnitude of

Common Mode Output
Voltage (Note 5)

±

0.2 V

I

O

Output Current (Note 9) Output Disabled VO= +12V 1.0 mA
(Includes Receiver I

I

)V

O

= −7.0V −0.8

I

IH

Input Current HIGH VI= 2.4V 20 µA

I

IL

Input Current LOW VI= 0.4V −50 µA

I

OS

Short Circuit Output Current
(Note 10)

VO= −7.0V −250

V

O

= 0V −150 mA

V

O=VCC

150

V

O

= +12V 250

www.national.com 2

Driver Electrical Characteristics (Notes 3, 4) (Continued)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

I

CC

Supply Current No Load, DE = 2V, RE = 0.8V 28

mA

(Total Package) All Inputs Open Outputs Enabled

I

CCX

DE = 0.8V, RE = 2V
Outputs Disabled

25

COMMERCIAL

Driver Switching Characteristics

VCC= 5.0V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

DD

Differential Output Delay Time RL=60Ω,

Figure 3

8.0 15 20 ns

t

TD

Differential Output Transition Time 8.0 15 22 ns

t

PLH

Propagation Delay Time, RL=27Ω,

Figure 4

6.0 12 16 ns

Low-to-High Level Output

t

PHL

Propagation Delay Time, 6.0 12 16 ns
High-to-Low Level Output

t

ZH

Output Enable Time to High Level RL= 110Ω,

Figure 5

25 32 ns

t

ZL

Output Enable Time to Low Level RL= 110Ω,

Figure 6

25 32 ns

t

HZ

Output Disable Time from High Level RL= 110Ω,

Figure 5

20 25 ns

t

LZ

Output Disable Time from Low Level RL= 110Ω,

Figure 6

20 25 ns

t

LZL

Output Disable Time from Low Level Load per

Figure 5

300 ns

with Load Resistor to GND Timing per

Figure 6

t

SKEW

Skew (Pulse Width Distortion) RL=60Ω,

Figure 3

1.0 4.0 ns

Receiver Electrical Characteristics

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

V

TH

Differential Input High VO= 2.7V, IO= −0.4 mA 0.2 V
Threshold Voltage

V

TL

Differential Input Low VO= 0.5V, IO= 8.0 mA −0.2 V
Threshold Voltage (Note 7)

V

T+−VT−

Hysteresis (Note 8) VCM=0V 35 50 mV

V

IH

Enable Input Voltage HIGH 2.0 V

V

IL

Enable Input Voltage LOW 0.8 V

V

IC

Enable Input Clamp Voltage II= −18 mA −1.3 V

V

OH

Output Voltage HIGH VID= 200 mV, 0˚C to +70˚C 2.8 V

I

OH

= −400 µA,

Figure 2

−55˚C to +125˚C 2.5

V

OL

Output Voltage LOW VID= −200 mV, IOL= 8.0 mA 0.45 V

Figure 2

IOL= 16 mA 0.50

I

OZ

High Impedance State Output VO= 0.4V to 2.4V

±

20 µA

I

I

Line Input Current (Note 9) Other Input = 0V VI= +12V 1.0 mA

V

I

= −7.0V 0.8

I

IH

Enable Input Current HIGH VIH= 2.7V 20 µA

I

IL

Enable Input Current LOW VIL= 0.4V −50 µA

R

I

Input Resistance 14 18 22 kΩ

I

OS

Short Circuit Output Current (Note 9) −15 −85 mA

www.national.com3

Receiver Electrical Characteristics (Continued)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

I

CC

Supply Current No Load, DE = 2V, RE = 0.8V 28

mA

(Total Package) All Inputs Open Outputs Enabled

I

CCX

DE = 0.8V, RE = 2V
Outputs Disabled

25

COMMERCIAL

Receiver Switching Characteristics

VCC= 5.0V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

PLH

Propagation Delay Time, VID= 0V to +3.0V 14 19 24 ns
Low-to-High Level Output C

L

=15pF,

Figure 7

t

PHL

Propagation Delay Time, 14 19 24 ns
High-to-Low Level Output

t

ZH

Output Enable Time to High Level CL=15pF,

Figure 8

10 16 ns

t

ZL

Output Enable Time to Low Level 12 18 ns

t

HZ

Output Disable Time from High Level CL= 5.0 pF,

Figure 8

12 20 ns

t

LZ

Output Disable Time from Low Level 12 18 ns

|t

PLH−tPHL

| Pulse Width Distortion (SKEW)

Figure 7

1.0 4.0 ns

Note 2: “Absolute Maximum Ratings” are those values beyond which the safety of thedevice cannot be guaranteed. They are not meant to imply thatthe devices
should be operated at these limits. The tables of “Electrical Characteristics” provide conditions for actual device operation.

Note 3: Unless otherwise specified min/max limits apply across the −55˚C to +125˚C temperature range for the DS16F95 and across the 0˚C to +70˚C range for the
DS36F95. All typicals are given for V

CC

= 5V and TA= 25˚C.

Note 4: All currents into the device pins are positive; all currents out of the device pins are negative. All voltages are referenced to ground unless otherwise specified.
Note 5: ∆|V

OD

| and ∆|VOC| are the changes in magnitude of VODand VOC, respectively, that occur when the input is changed from a high level to a low level.

Note 6: In TIA/EIA-422A and TIA/EIA-485 Standards, V

OC

, which is the average of the two output voltages with respect to ground, is called output offset voltage,

V

OS

.

Note 7: The algebraic convention, where the less positive (morenegative) limit is designated minimum, is used in this data sheet for common mode input voltage
and threshold voltage levels only.

Note 8: Hysteresis is the difference between the positive-going input threshold voltage, V

T

+, and the negative-going input threshold voltage, VT−.

Note 9: Refer to TIA/EIA-485 Standard for exact conditions.
Note 10: Only one output at a time should be shorted.

Order Number:

DS16F95J, NS Package Number J08A
DS36F95J, NS Package Number J08A
DS36F95M, NS Package Number M08A

www.national.com 4

MIL-STD 883C
Absolute Maximum Ratings

(Note 2)

For complete Military Product Specifications, refer to
the appropriate SMD or MDS.

Storage Temperature Range −65˚C to +175˚C
Lead Temperature

(Soldering, 60 sec.) 300˚C

Maximum Power Dissipation (Note 11) at 25˚C

Ceramic ’E’ Package 1800 mW
Ceramic ’J’ Package 1300 mW

Ceramic ’W’ Package TBD
Supply Voltage 7.0V
Input Voltage (Bus Terminal) +15V/−10V
Enable Input Voltage 5.5V

Recommended Operating
Conditions

Min Max Units

Supply Voltage (V

CC

)

DS16F95 4.50 5.50 V

Voltage at Any Bus Terminal

(Separately or Common Mode)
(V

I

or VCM) −7.0 +12 V

Differential Input

±

12 V

Voltage (V

ID

)

Output Current HIGH (I

OH

)
Driver −60 mA
Receiver −400 µA

Output Current LOW (I

OL

)
Driver 60 mA
Receiver 16 mA

Operating Temperature (T

A

)

DS16F95 −55 +125 ˚C

Note 11: Above T

A

=

25˚C, derate E package, J package 8.7 mW/˚C, W

package 125 mW/˚C.

Driver Electrical Characteristics (Notes 3, 4)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Max Units

V

IH

Input Voltage HIGH VCC= 5.5V 2.0 V

V

IL

Input Voltage LOW VCC= 5.5V 0.8 V

V

OH

Output Voltage HIGH IOH= −20 mA, VCC= 4.5V 3.0 V

V

OL

Output Voltage LOW IOL= +20 mA, VCC= 4.5V 2.0 V

V

IC

Input Clamp Voltage II= −18 mA −1.3 V

|V

OD1

| Differential Output Voltage IO= 0 mA, VIN= 0.8V or 2V, VCC= 5.5V 6.0 V

|V

OD2

| Differential Output Voltage RL= 100Ω,VCC= 4.5V,

Figure 1

2.0 V

R

L

=54Ω,VCC= 4.5V,

Figure 1

1.5

∆|V

OD

| Change in Magnitude of RL=54Ωor 100Ω,

Figure 1

,VCC= 4.5V

±

0.2 V
Differential Output Voltage
(Note 5)

V

OD3

Differential Output Voltage VCM= −7V to +12V 1.0 V

V

OC

Common Mode Output RL=54Ωor 100Ω 3.0 V
Voltage (Note 6)

∆|V

OC

| Change in Magnitude of VCC= 4.5V, RL=54Ωor 100Ω

Common Mode Output

±

0.2 V
Voltage (Note 5)

I

O

Output Current (Note 9) Output Disabled VO= +12V 1.0 mA
(Includes Receiver I

I

)V

CC

= 0V or 5.5V VO= −7.0V −0.8

I

IH

Input Current HIGH VI= 2.4V 20 µA

I

IL

Input Current LOW VI= 0.4V −50 µA

I

OS

Short Circuit Output VO= −7.0V, VIN= 0V or 3V −250
Current (Note 10) V

O

= 0V, VIN= 0V or 3V −150 mA

V

O=VCC,VIN

=0Vor3V 150

V

O

= +12V, VIN=0Vor3V 250

I

CC

Supply Current No Load, DE = 2V, RE = 0.8V, Inputs Open 28 mA

I

CCX

(Total Package) No Load, DE = 0.8V, RE = 2V, Inputs Open 25

www.national.com5

MIL-STD 883C
Driver Switching Characteristics

VCC= 5.0V

Symbol Parameter Conditions Min Typ T

A

= 25˚C TA= 125˚C TA= −55˚C Units

Max Max Max

t

DD

Differential Output Delay Time RL=60Ω,

Figure 3

8.0 15 25 30 30 ns

t

TD

Differential Output Transition
Time

8.0 15 25 30 30 ns

t

PLH

Propagation Delay Time, RL=27Ω,

Figure 4

6.0 12 18 25 25 ns

Low-to-High Level Output

t

PHL

Propagation Delay Time, 6.0 12 18 25 25 ns
High-to-Low Level Output

t

ZH

Output Enable Time to High
Level

RL= 110Ω,

Figure 5

25 35 45 45 ns

t

ZL

Output Enable Time to Low
Level

RL= 110Ω,

Figure 6

25 40 50 50 ns

t

HZ

Output Disable Time from High
Level

RL= 110Ω,

Figure 5

20 30 40 40 ns

t

LZ

Output Disable Time from Low
Level

RL= 110Ω,

Figure 6

20 30 40 40 ns

t

LZL

Output Disable Time from Low Load per

Figure 5

300 ns

Level with Load Resistor to GND Timing per

Figure 6

t

SKEW

Skew (Pulse Width Distortion) RL=60Ω,

Figure 3

1.0 6 12 12 ns

Receiver Electrical Characteristics

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Max Units

V

TH

Differential Input High VO= 2.5V, IO= −0.4 mA, VCM= −7V, 0V, +12V 0.2 V
Threshold Voltage V

CC

= 4.5V, 5.5V

V

TL

Differential Input Low VO= 0.5V, IO= 8.0 mA, VCM= −7V, 0V, +12V, −0.2 V
Threshold Voltage (Note 7) V

CC

= 4.5V, 5.5V

V

T+−VT−

Hysteresis (Note 8) VCM= 0V, VCC= 4.5V, 5.5V 35 mV

V

IH

Enable Input Voltage HIGH 2.0 V

V

IL

Enable Input Voltage LOW 0.8 V

V

IC

Enable Input Clamp Voltage II= −18 mA, VCC= 5.5V −1.3 V

V

OH

Output Voltage HIGH VID= 200 mV, −55˚C to +125˚C

I

OH

= −400 µA, 2.5 V

Figure 2

,VCC= 4.5V

V

OL

Output Voltage LOW VID= −200 mV, IOL= 8.0 mA 0.45 V

Figure 2

,VCC= 4.5V IOL= 16 mA 0.50

I

OZ

High Impedance State Output VO= 0.4V, 2.4V

±

20 µA

I

I

Line Input Current (Note 9) Other Input = 0V VI= +12V 1.0

V

CC

= 5.5V or VI= −7.0V −0.8 mA

V

CC

=0V

I

IH

Enable Input Current HIGH VIH= 2.7V 20 µA

I

IL

Enable Input Current LOW VIL= 0.4V −50 µA

R

I

Input Resistance 10 kΩ

I

OS

Short Circuit Output Current VIN= 1V, V

OUT

= 0.0V (Note 10) −15 −85 mA

I

CC

Supply Current (Total Package) No Load, DE = 2V, RE = 0.8V, Inputs Open 28 mA

I

CCX

No Load, DE = 0.8V, RE = 2.0V, Inputs Open 25

www.national.com 6

MIL-STD 883C

Receiver Switching Characteristics

VCC= 5.0V

Symbol Parameter Conditions Min Typ

T

A

=

25˚C

TA=

125˚C

TA=

−55˚C

Units

Max Max Max

t

PLH

Propagation Delay Time, VID= 0V to +3.0V

10 19 27 38 38 ns

Low-to-High Level Output C

L

=15pF,

Figure 7

t

PHL

Propagation Delay Time,

10 19 27 38 38 ns

High-to-Low Level Output

t

ZH

Output Enable Time to High Level CL=15pF,

Figure 8

10 20 30 30 ns

t

ZL

Output Enable Time to Low Level 12 20 30 30 ns

t

HZ

Output Disable Time from High
Level

CL= 5.0 pF,

Figure 8

12 20 30 30 ns

C

L

= 20.0 pF,

Figure 8

12 30 40 40 ns

(Note 16)

t

LZ

Output Disable Time from Low
Level

CIL=50pF,

Figure 8

12 20 30 30 ns

|t

PLH−tPHL

| Pulse Width Distortion (SKEW)

Figure 7

1.0 8 16 16 ns

Ordering Number:

DS16F95J/883, NS Package Number J08A
DS16F95E/883, NS Package Number E20A
DS16F95W/883, NS Package Number W10A

SMD Number:

DS16F95J/883↔5962-8961501PA
DS16F95W-SMD

↔

5962-8961501HA

DS16F95E/883

↔

5962-89615012A

Parameter Measurement Information

DS009629-2

FIGURE 1. Driver VODand VOC(Note 15)

DS009629-3

FIGURE 2. Receiver VOHand V

OL

DS009629-4

DS009629-5

t

SKEW

=|t

PLHD–tPHLD

|

FIGURE 3. Driver Differential Output Delay and Transition Times (Notes 12, 14)

www.national.com7

Parameter Measurement Information (Continued)

DS009629-6

DS009629-7

FIGURE 4. Driver Propagation Times (Notes 12, 13)

DS009629-8

DS009629-9

FIGURE 5. Driver Enable and Disable Times (tZH,tHZ) (Notes 12, 13, 14)

DS009629-10

DS009629-11

FIGURE 6. Driver Enable and Disable Times (tZL,tLZ,t

LZL

) (Notes 12, 13, 14)

DS009629-12

DS009629-13

FIGURE 7. Receiver Propagation Delay Times (Notes 12, 13)

www.national.com 8

Parameter Measurement Information (Continued)

Note 12: The input pulse is supplied by a generator having the following characteristics: PRR = 1.0 MHz, 50%duty cycle, tr≤ 6.0 ns, tf≤ 6.0 ns, ZO=50Ω.
Note 13: C

L

includes probe and stray capacitance.

Note 14: DS16F95/DS36F95 Driver enable is Active-High.
Note 15: All diodes are 1N916 or equivalent.
Note 16: Testing at 20 pF assures conformance to 5 pF specification.

Typical Application

DS009629-14

DS009629-15

DS009629-16

DS009629-17

DS009629-18

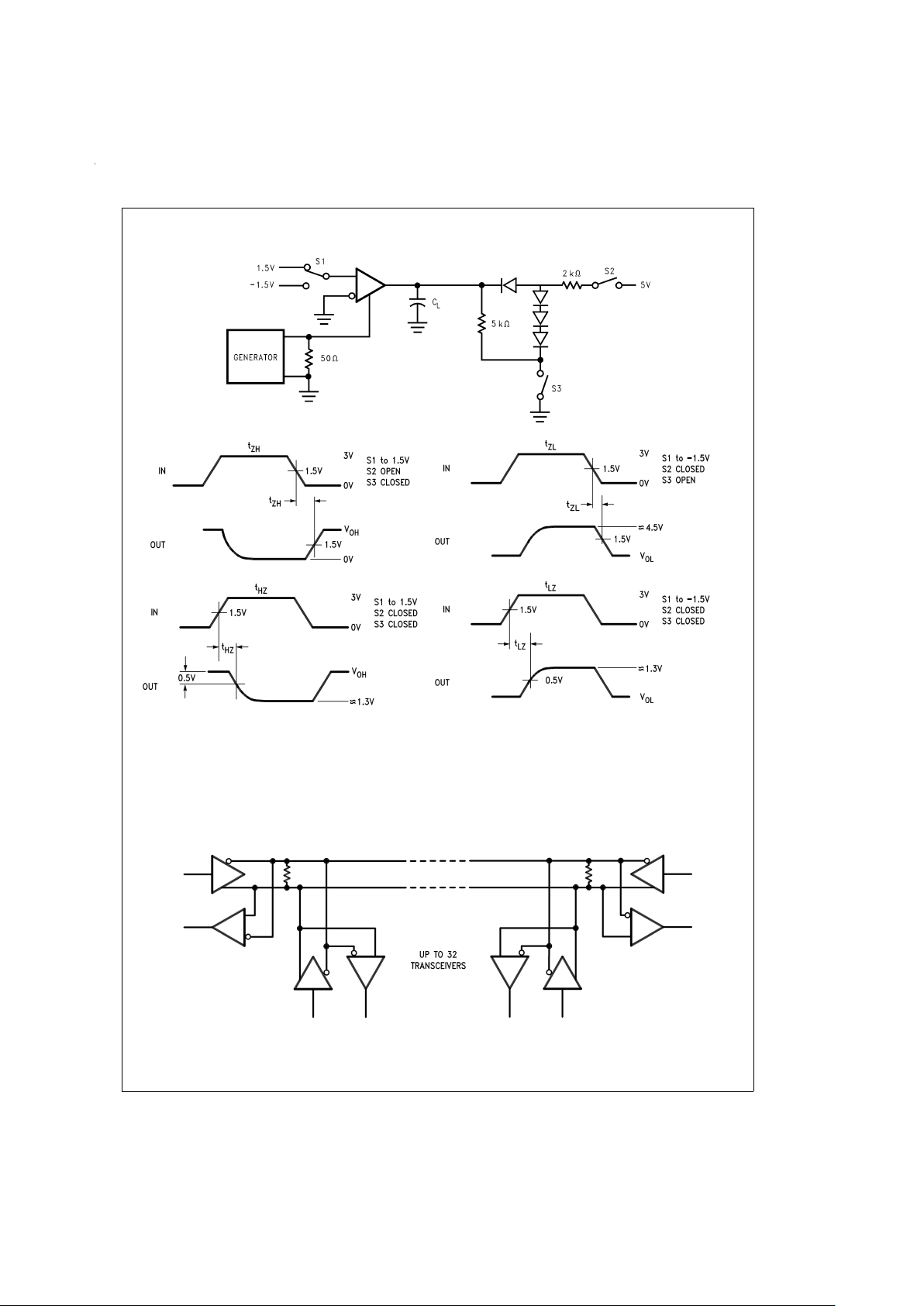

FIGURE 8. Receiver Enable and Disable Times (Notes 12, 13, 15)

DS009629-19

The line should be terminated at both ends in its characteristic impedance, typically 120Ω.
Stub lengths off the main line should be kept as short as possible.

www.national.com9

Connection Diagrams

8-Lead Dual-In-Line Package or Small Outline Molded

Package

DS009629-1

Order Number DS16F95, DS16F95J/883, DS36F95J,

DS36F95M

See NS Package Number J08A, or M08A

20-Lead Ceramic Leadless Chip Carrier

DS009629-21

Order Number DS16F95E/883

See NS Package Number E20A

10-Lead Ceramic Flatpak

DS009629-22

Order Number DS16F95W/883

See NS Package Number W10A

www.national.com 10

11

Physical Dimensions inches (millimeters) unless otherwise noted

20-Lead Ceramic Leadless Chip Carrier (E)

Order Number DS16F95E/883

NS Package Number E20A

www.national.com 12

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

8 Narrow Lead Ceramic Dual-In-Line Package (J)

Order Number DS16F95J, DS16F95J/883 or DS36F95J

NS Package Number J08A

8-Lead (0.150" Wide) Molded Small Outline Package, JEDEC

Order Number DS36F95M

NS Package Number M08A

www.national.com13

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DE­VICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMI­CONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or sys­tems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life,and whose fail­ure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in asignificant injury
to the user.

2. A critical component in any component of a life support
device or system whose failure to perform can be rea­sonably expected to causethe failure ofthe lifesupport
device or system, or to affect itssafety or effectiveness.

National Semiconductor
Corporation

Americas
Tel: [phone]
Fax: [phone]
Email: [e-mail]

www.national.com

National Semiconductor
Europe

Fax: [phone]

Email: [e-mail]
Deutsch Tel: [phone]
English Tel: [phone]
Français Tel: [phone]
Italiano Tel: [phone]

National Semiconductor
Asia Pacific Customer
Response Group

Tel: [phone]
Fax: [phone]
Email: [e-mail]

National Semiconductor
Japan Ltd.

Tel: [phone]
Fax: [phone]

10-Lead Ceramic Flatpak (W)

Order Number DS16F95W/883

NS Package Number W10A

DS16F95, DS36F95 EIA-485/EIA-422A Differential Bus Transceiver

National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
