Nortec NHDI, SETC, NHSC User Manual
TM
RETROFIT
INSTRUCTIONS FOR
GSTC / SETC / NHTC /
NHDI / NHSC
Inst allation Manual
Manual No. H-504
2008-02-15
PROPRIETARY NOTICE
This document and the information disclosed herein are proprietary data of WALTER MEIER LTD.
Neither this document nor the information contained herein shall be reproduced used, or disclosed to
others without the written authorization of WALTER MEIER LTD., except to the extent required for
installation or maintenance of recipient’s equipment. All re ferences to the NORTEC name should be
taken as referring to WALTER MEIER LT D.
LIABILITY NOTICE
NORTEC does not accept any liability for installations of humidity equipment installed by unqualified
personnel or the use of parts/components/equipment that are not authorized or approved by
NORTEC.
COPYRIGHT NOTICE
Copyright 2008, WALTER MEIER LTD. All rights reserved.
RECORD OF REVISIONS
For each revision, put the revised pages in your manual and disca rd the superseded pages. W rite the
revision number and revision date, date put in manual, and the incorporator’s initials in the applicable
columns on the Record of Revisions.
Revision
Number
Revision
Date
Date Put
In Manual By
Revision
Number
Revision
Date
Date Put
In Manual By
Page ii
2008-02-15
TABLE OF CONTENTS
Subject Page
10-00 LINKS 2 - FIELD INSTALLATION OF A SE-50
1. FIELD INSTALLATION OF A SE-50 SERIES HUMIDIFIER WITH A LINKS 2 REMOTE PACKAGE . . . . . . .2
A. INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B. CONFIGURING THE HUMIDIFIERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
10-10 LINKS 2 - FIELD CONVERSION OF A GSTC/SETC
1. FIELD INSTALLATION OF A GSTC/SETC SERIES HUMIDIFIER WITH A LINKS 2 REMOTE PACKAGE. .2
A. WIRING THE NORTEC LINKS 2 MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B. MOUNTING THE LINKS 2 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
C. CONFIGURING THE HUMIDIFIERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
10-20 LINKS 2 - FIELD CONVERSION OF A NHTC
1. FIELD INSTALLATION OF A NHTC SERIES HUMIDIFIER WITH A LINKS 2 REMOTE PACKAGE . . . . . . .2
A. MOUNT THE LINKS 2 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B. CONFIGURING THE HUMIDIFIERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
10-30 LINKS 2 - FIELD CONVERSION OF A NHDI/SC
1. FIELD INSTALLATION OF A NHDI/SC SERIES HUMIDIFIER WITH A LINKS 2 REMOTE PACKAGE. . . . . 2
A. MOUNT THE LINKS 2 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
B. WIRING THE NORTEC LINKS 2 MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
WARRANTY
LIST OF FIGURES
Figure Page
10-10 LINKS 2 - FIELD CONVERSION OF A GSTC/SETC
Figure 1. Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

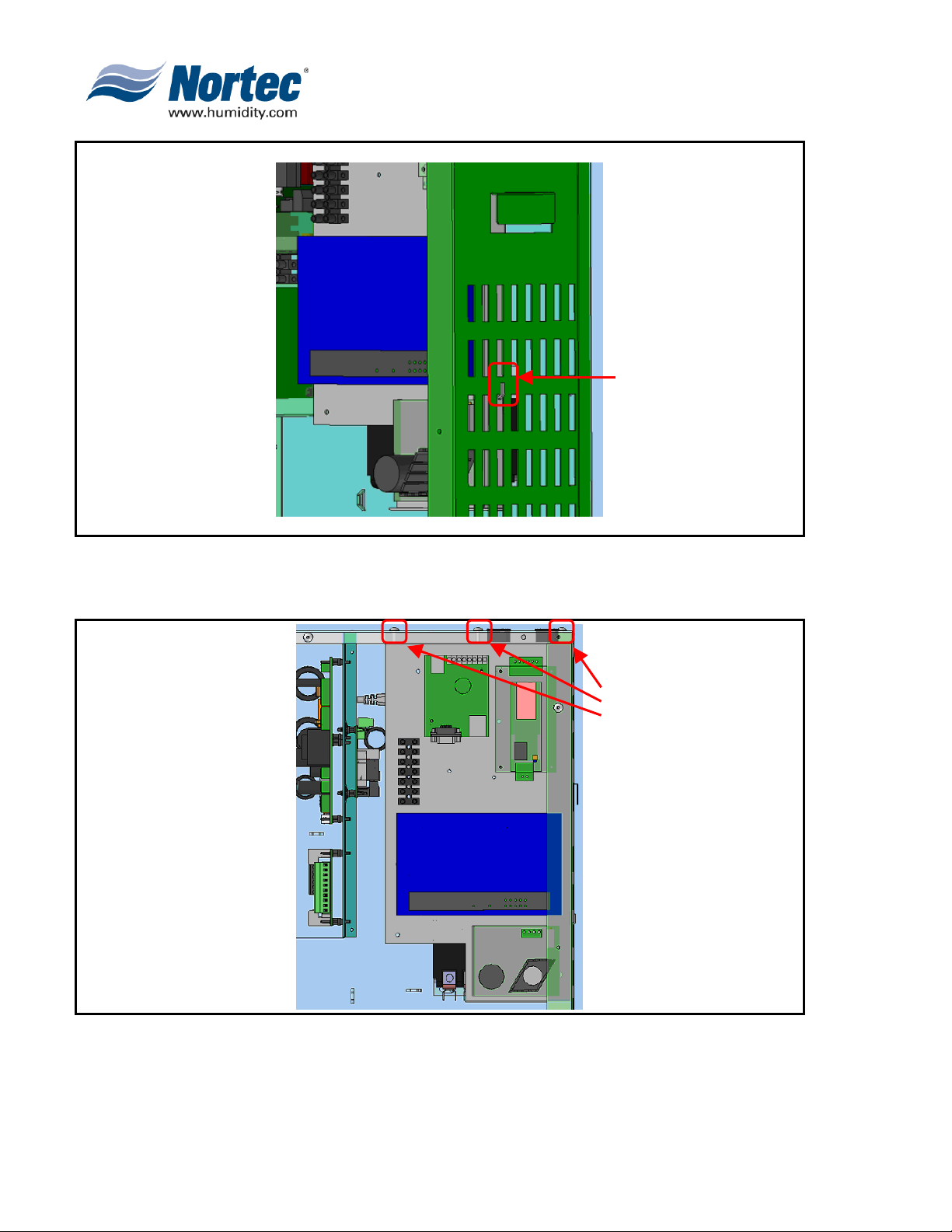

Figure 2. LINKs2 Bracket Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
10-20 LINKS 2 - FIELD CONVERSION OF A NHTC
Figure 1. Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Figure 2. Hook Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Figure 3. Assembly Mounting Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
10-30 LINKS 2 - FIELD CONVERSION OF A NHDI/SC
Figure 1. Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Figure 2. LINKS 2 Bracket Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Figure 3. NHDI LINKS 2 Slave Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2008-02-15
10-00
LINKS 2 -
FIELD INSTALLATION
OF A SE-50
10-00
Page 1
2008-02-02
(1) FIELD INSTALLATION OF A SE-50 SERIES NORTEC LINKS 2 REMOTE
PACKAGE
A. STEP 1 - INSTALLATION
(1) Mount the LINKS 2 remote package in a convenient location. Note that the remote
package does not need to be mounted in close proximity to the humidifier.
(2) Connect power to the 24VAC and GND terminals of the LINKS 2 terminal strip. This
may be done in two ways:
(a) A 120VAC to 24VAC plug-in transformer with screw terminals on the secondary
side has been supplied with this kit. Wire the transformer to the 24VAC and
GND terminals on the LINKS 2 terminal strip.
(b) Connect power from the humidifier terminal strip (see wiring diagram for
details).
NOTE on 2(b)
Power to LINKS 2 module will be lost when the humidifier is switched off.
(3) Connect the slave humidifiers (if applicable) to the Nortec Links Module. A twisted
pair cable should be used so that the Net + terminal on the Links module should
connect to the first pin (bottom-most pin) of the TB3 connector. The Net – terminal on
the module should be connected to the second pin of the TB3 connector. Refer to
the unit’s wiring diagram for more information.
A. STEP 2 – CONFIGURING THE HUMIDIFIERS
NOTE
If the LINKS 2 remote package was shipped with the humidifiers, this step will have
already been performed by the factory.
(1) Since Nortec LINKS 2 can connect to a maximum of 8 units, it will be necessary to
set the unit address for each humidifier. The lead unit can be determined by the
presence of the LINKS 2 module. The slave humidifiers can be given a unit address
according to the number the unit will have on the networked chain.
(2) To set the network address access the User Parameter level in the humidifier
software menu. Scroll down to Modbus Settings and press enter.
(3) In order to change the current modbus address, press the up and down arrows on
the keypad at the same time. When prompted, enter the code 0335.
(4) Once the password is set select the modbus address heading and press enter. Use
the up and down arrows to change the address setting.
(5) Determine the desired humidifier ordering on the network. To change the network
instance follow step 3 and enter the parameter value of 2 for unit 2, 3 for unit 3 and
soon.
10-00
Page 2
2008-02-02
10-10
LINKS 2 -
FIELD CONVERSION OF
A GSTC/SETC
10-10
Page 1
2008-02-15
