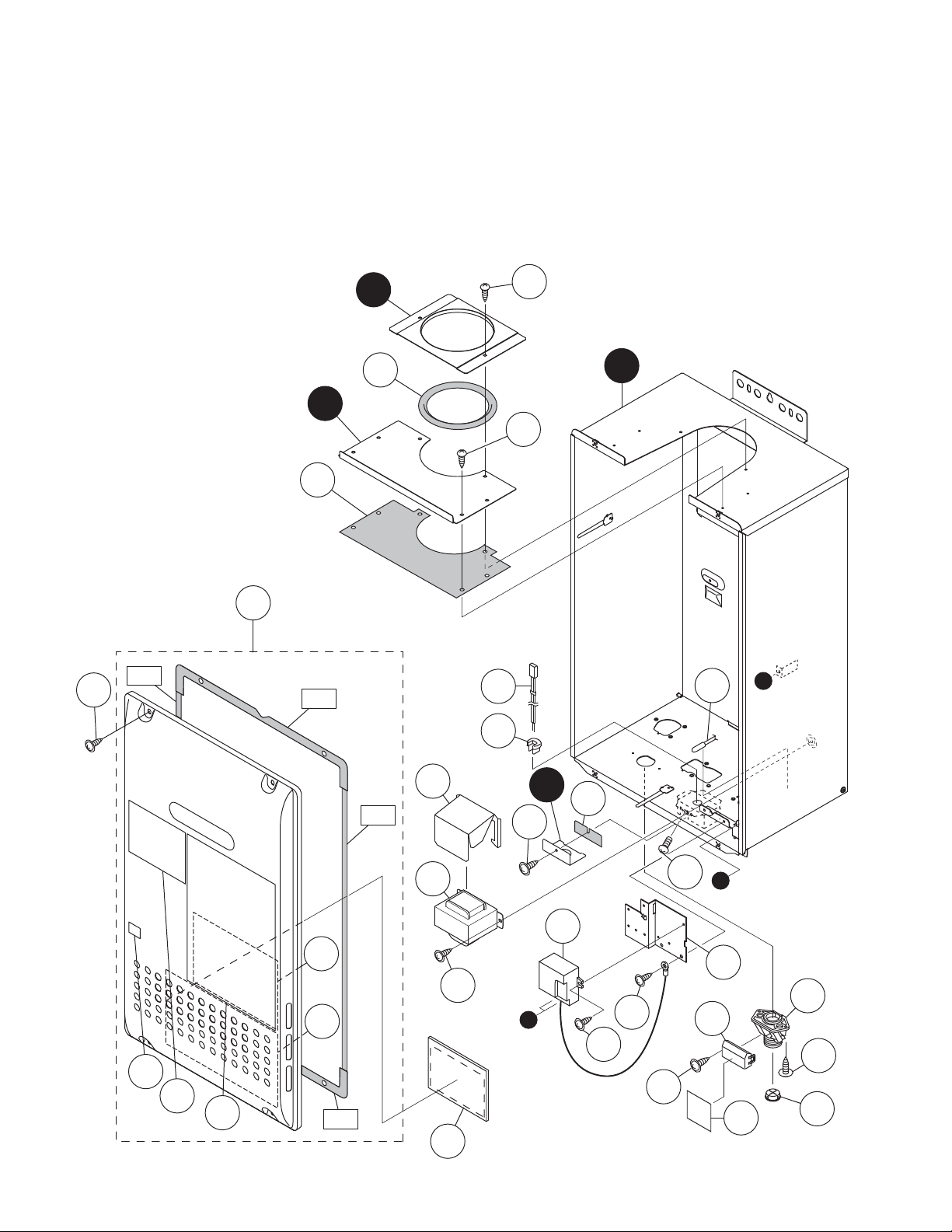

External outfitting NR98-SV
054
015
001
007
019
016
005
017
041
028
060
060
040
025
C
031
026
012
013
011
016
015
003
010
057
027
054
D
029
009
018
059
057
052
064
004
014
E
008
154
048
002
External outfitting NR98-OD,NC199-OD
001
040
054
015
031
026
012
016
013
011
016
015
003
010
027
057
041
028
054
D
029
009
018
059
057
052
064
014
025
004
048
C
E
008
154
002

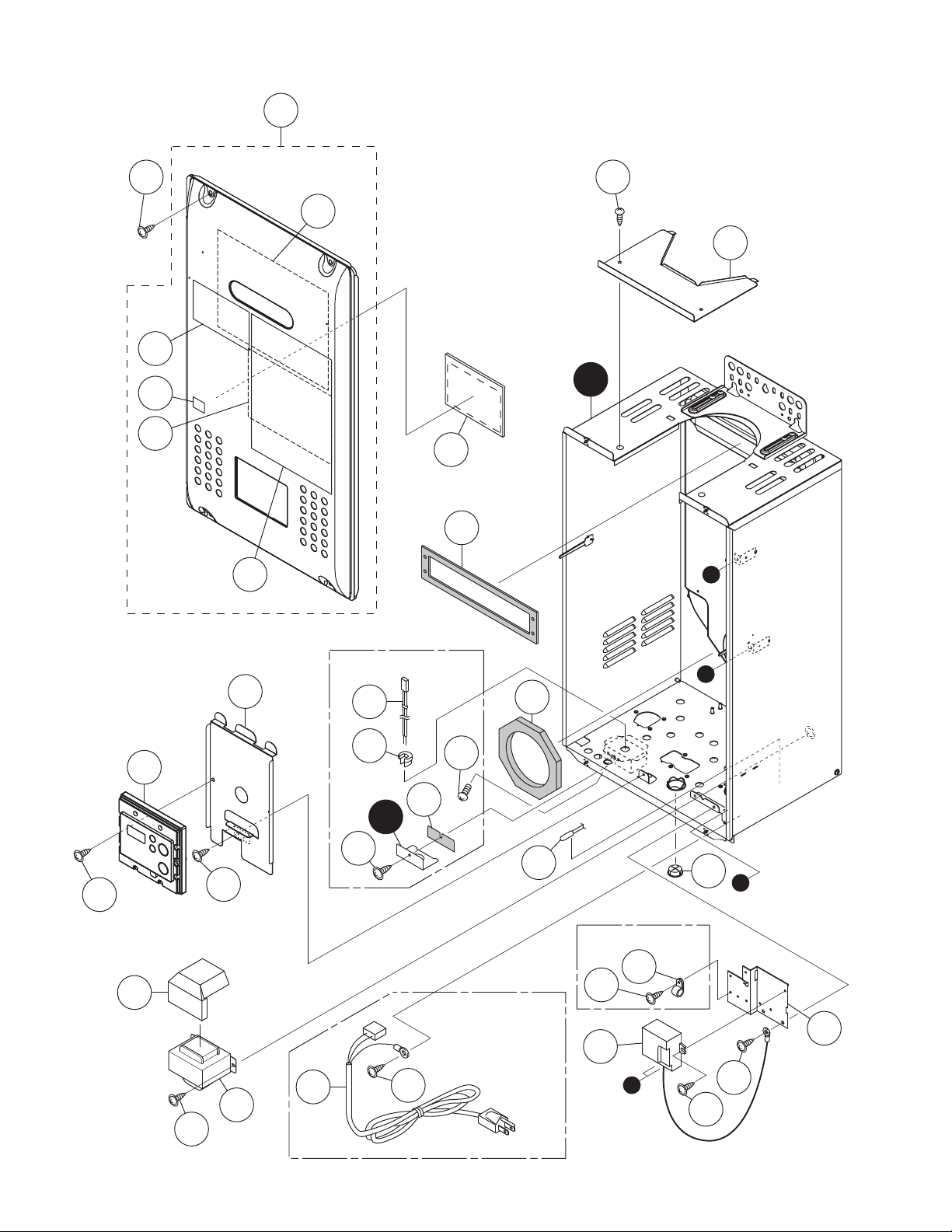

External outfitting NR98-DVC(-CA),NC199-DVC(-CA)
001
054
026
031
013
012
063
011
007
040
027
042
A
065
045
003
057
057
010
044
For NC199-DVC(-CA)
041
028
029
054
049
057
064
018
For NR98-DVC(-CA)
043
025
C
002
For NR98-DVC(-CA)
030
057
009
D
059
E
004
057
External outfitting
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
001 NR98-OD Front set-AS SKF7362 1<NR98-OD>
NR98-SV Front set-AS SKF7363 1<NR98-SV>
NR98-DVC Front set-AS SKF7364 1<NR98-DVC(-CA)>
NC199-OD Front set-AS SKF7365 1<NC199-OD>
NC199-DVC Front set-AS SKF7366 1<NC199-DVC(-CA)>
002 Grommet CXP CXPA026 1
003 Transformer cover DJP DJPA054
Transformer cover ELV ELVA055 1<NR98-DVC(-CA)>
004 Mounting plate for terminal block DZT DZTA006 1
005 Case top cover 2 EDL EDLA005 1<NR98-SV>
007 Case top cover ELV ELVA006 1<NR98-SV>
Case top cover FFA ELV ELVA099 1<NR98-DVC(-CA)>
Case top cover FFA SG# ERV ERVA099 1<NC199-DVC(-CA)>
008 External connection terminal block set DNS DNSA026
009 Lightning protection ELV ELVJ101 1
010 Transformer EDN EDNJ006 1
011 Connection diagram label ERU ERUK001 1
012 Caution label ENG ELV ELVK003 1
013 Caution label FRE ELV ELVK006 1
014 External connection terminal block cover DNS DNSA025
015 Front packing L AAP AAPL017
016 Front packing 1 EAA EAAL002
017 Exhaust cylinder packing EDL EDLL002 1<NR98-SV>
018 Junction box cover packing ENW ENWL005
019 Case top packing ELV ELVL004 1<NR98-SV>
025 Air thermistor BWC BWCH003 1
026 Rating plate 2 OD (W) ELV ELVK009
Rating plate 2 H ELV ELVK004 1<NR98-SV>
Rating plate 2 DV (FF) ELV ELVK010 1<NR98-DVC(-CA)>
027 Parts list sheet set ERU ERUK062 1
028 Cord bushing SR-5P-4 SAE6198
029 Junction box cover (SUS ENJ ENJA015 1
030 Nylon clamp HP-4N (NK-4N) 7287909 1<NR98-DVC(-CA)>
031 Energy star mark label ENJ ENJK071 1
040 Case SET OD ELV-A ELVA322 1<NR98-OD>
Case SET ELV-A ELVA321 1<NR98-SV>
Case SET FFA ERU ERUA001 1<NR98-DVC(-CA)>
Case SET W SG# ELV-A ELVA324 1<NC199-OD>
Case SET FFA SG# ELV-A ELVA325 1<NC199-DVC(-CA) >
041 Conduit 92-120V ENJ ENJJ020
042 Duct packing ELV ELVL014 1<NR98-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
2<NR98-OD ,NR98-SV>
2<NC199-OD>
2<NR98-OD ,NR98-SV>
2<NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
External outfitting
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
043 Fan Suction packing ELV ELVL013 1<NR98-DVC(-CA)>
1<NC199-DVC(-CA)>
044 Mounting plate for remote controller ELV ELVA100 1<NR98-DVC(-CA)>
1<NC199-DVC(-CA)>
045 RC-7649M Body USA Unit QME QMEJ008 1<NR98-DVC>
1<NC199-DVC>
RC-7650M Body ENG Unit QXU QXUJ005 1<NR98-DVC-CA>
1<NC199-DVC-CA>
048 Remote controller connecting caution label ENJ ENJK002
049 Power cord ERU ERUJ001 1<NR98-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
052 Cross recessed round-head collar P-tapping screw 4X12
054 Cross recessed truss type3 EVERTIGHT tapping screw with PW 4X12
056 Cross recessed bind machine screw M3.5X6
057 Cross recessed round-head collar N-tapping screw 4X8
058 Cross recessed round-head collar N-tapping screw 4X10
059 Cross recessed round-head collar N-tapping screw 4X12
060 Cross & straight recessed truss type3 S TIGHT tapping screw 4X10 <NR98-SV>
063 Cross recessed truss N-tapping screw with PW 4X12 <NR98-DVC(-CA)>
064 Cross recessed truss machine screw M4X8
065 Cross recessed round-head collar type3 EVERTIGHT tapping screw 4X20 <NR98-DVC(-CA)>
<NR98-OD ,NR98-SV>
<NC199-OD>
<NC199-DVC(-CA)>
<NC199-DVC(-CA)>

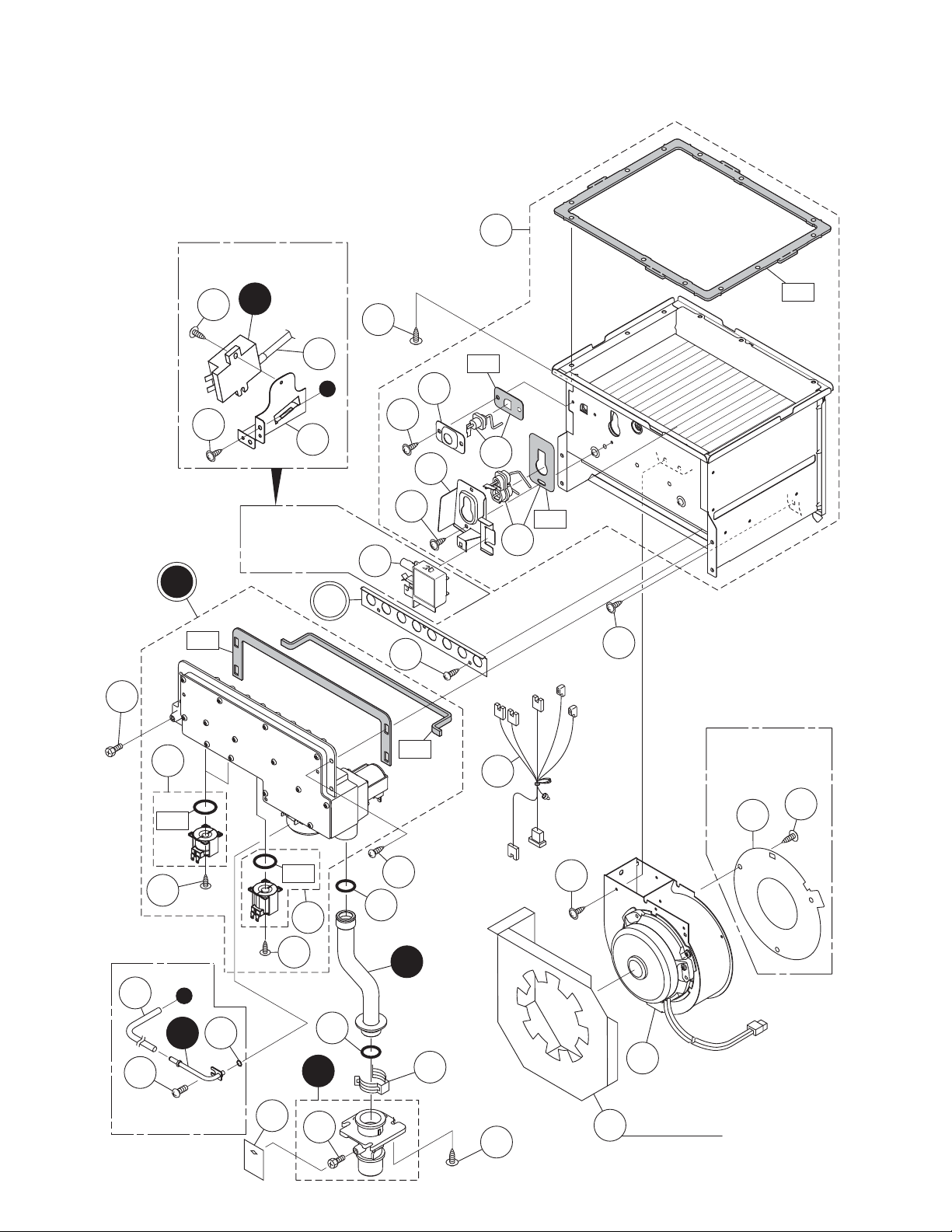

Combustion unit and gas route
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
100
For NR98-DVC(-CA),
NC199-DVC(-CA)
126
059
058
112
152
132
140
133
057
113
128
A
127
For NR98-OD,
NR98-SV,
NC199-OD
110
126
057
057
155
114
103
105
104
102
145
101
106
057
For NR98-OD,
NR98-SV,
NC199-OD
107
057
151
150
156
For NR98-DVC(-CA),
NC199-DVC(-CA)
B
149 134
144
133
151
139
141
152
146
146
153
108
147
154
057
111
For NR98-OD,
148
NC199-OD
Combustion unit and gas route
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
100 Combustion tube set ELV SET-V SKC7447 1
101 Ignition plug ELV & packing EHK SETV SKC7448 1
102 Flame rod ELV & packing DJP SETV SKC7449 1
103 Sensor fixing plate DJP DJPC012 1
104 Sensor packing DJP DJPL004 1
105 Mounting plate for Plug H EGL EGLC035 1
106 Plug packing H EHK EHKL002 1
107 Bell-mouth
108 Manifold pipe ELV ELVE007
Manifold pipe FFA ELV ELVE009 1<NR98-DVC(-CA)>
110 Main damper 11-13 ELV ELVC051
Main damper 11 ELV ELVC054 1<NR98-SV LP>
Main damper 13 ELV ELVC052 1<NR98-SV NG>
Main damper 9-13H ELV ELVC057
111 Fan motor 100 EJA (ENG) SET-AS SKC7470
111 Fan motor 110 ELV SET-AS SKE7391 1<NR98-DVC(-CA)>
112 Suction air joint packing ELV ELVL001 1
113 Manifold seal packing top ELV ELVL003 1
114 Manifold seal packing bottom ELV ELVL007 1
126 Igniter GP EMU EMUJ004
Igniter AGV AGVJ007 1<NR98-DVC(-CA)>
127 Mounting plate for igniter DTJ DTJA015 1<NR98-DVC(-CA)>
128 High-voltage cord 470 SAC1229 1<NR98-DVC(-CA)>
132 Gas mech. manifold 20ELV-A SET-AS SKF7367 1<NR98-OD LP>
Gas mech. manifold 29ELV-A SET-AS SKF7368 1<NR98-OD NG>
Gas mech. manifold 21ELV-A SET-AS SKF7369
Gas mech. manifold 33ELV-A SET-AS SKF7370
133 O-ring JASO 2030 type 1 SAA6044 3
134 O-ring P4 2100908 1<NR98-DVC(-CA)>
139 Solenoid S16 CRU SET-V SBB7213 1
140 Solenoid S09L EBT SET-V SBP7501 2
141 Gas fitting 20A SET ELV ELVE021 1
144 Gas fitting label ELV ELVK005 1
145 Gas mech. harness ELV ELVJ018 1
146 O-ring P18 2110903 2
147 Quick fastener 16B 6340407 1
48 CRU CRUC046
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA) >
1<NR98-OD ,NC199-OD>
1<NR98-DVC(-CA) LP>
1<NC199-DVC(-CA) LP>
1<NR98-DVC(-CA) NG>
1<NC199-DVC(-CA) NG>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA) >
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NR98-SV LP>
1<NC199-OD LP>
1<NR98-SV NG>
1<NC199-OD NG>
1<NR98-DVC(-CA) LP>
1<NC199-DVC(-CA) LP>
1<NR98-DVC(-CA) NG>
1<NC199-DVC(-CA) NG>
1<NC199-DVC(-CA)>
Combustion unit and gas route
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
148 Fan case waterproof cover ELV ELVA060
149 Feed back pipe S EHK EHKA046 1<NR98-DVC(-CA)>
150 Silicone tube ID3.5XT1 ELV ELVL018 1<NR98-DVC(-CA)>
151 Cross recessed round-head SPAK machine screw with guide M4X12
152 Cross recessed hexagon head machine screw M4X8
153 Cross recessed round-head type3 EVERTIGHT tapping screw 5X16
154 Cross recessed round-head collar type3 EVERTIGHT tupping screw 4X12
155 Cross recessed round-head N-tapping screw 4X8
156 Cross recessed round-head P TIGHT screw 4X6 <NR98-DVC(-CA)>
1<NR98-OD ,NC199-OD>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
<NC199-DVC(-CA)>
ERUK063
Hot-water feed route NR98-OD,NR98-SV,NC199-OD
415
437
For NR98-OD,
402
NC199-OD
412
435
429
432
445
418
417
438
057
419
442
418
For NR98-OD,
NC199-OD
400
432
424
451
443
440
405
438
432
401
422
411
440
417
406
407
440
438
439
408
434
432
155
410
433
421
450
450
420
057
400
For NR98-SV
419
418
432
413
452
404
435
441
416
154
(Thermal fuse rounding procedure)
(
FRONT
)
Begin winding up
(
RIGHT SIDE
FASTENER
432
)
HEAT EXCHANGER
432
435
426
414
453
427
425
428
423
401
404
(
LEFT SIDE
FASTENER
154
)
445
452
(
)
BACK
400439
THERMAL FUSE
FASTENER
438
Hot-water feed route NR98-DVC(-CA),NC199-DVC(-CA)
For NG
409
464
461
462
057
438
059
401
432
438
433
434
445
437
446
B
418
057
415
444
442
400
465
466
440
406
438
429
443
442
412
432
435
419
435
432
413
404
452
(Thermal fuse rounding procedure)
432
417
154
418
441
435
417
424
451
416
408
155
411
422
435
432
439
405
432
407
452
453
421
450
450
420
414
427
426
404
432
425
410
419
418
435
428
423
154
(
)
FRONT
Begin winding up
(
RIGHT SIDE
FASTENER
)
HEAT EXCHANGER
(
)
BACK
400439
THERMAL FUSE
FASTENER
401
438
(
LEFT SIDE
FASTENER
)
445
Hot-water feed route
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
400 Heat exchanger & Exhaust box OD ELV SETAS SKC7450
Heat exchanger & Exhaust box ELV SET-AS SKC7452 1<NR98-SV>
Heat exchanger & Exhaust box FFA1ELVSETAS SBK7193 1<NR98-DVC(-CA)>
401 Thermal fuse ELV SET-V SKC7453 1
402 Front top packing Q CZR CZRL001
404 Freeze preventive heater 3 BGD BGDH002 2
405 Bypass pipe ELV ELVD001
Bypass pipe FFA ELV ELVD053 1<NR98-DVC(-CA)>
406 Water inlet pipe ELV ELVD010
Water inlet pipe FFA ELV ELVD051 1<NR98-DVC(-CA)>
407 Freeze preventive heater EBT ELV SETV SKC7454 1
408 Remaining flame safety device 94 ELV ELVH002 1
409 Exhaust ring FFA ELV ELVF085
410 Water flow sensor set 3 DUV DUVD019 1
411 Water flow servo set 1 DZT DZTD010 1
412 Water flow servo set 2 DZT DZTD011 1
413 Hot-water outlet fitting 20A EHU EHUD004 1
414 Water inlet fitting 20ASET EJM EJMD002 1
415 Hot-water thermistor-300 BWC BWCD096 1
416 Drain cock CRU CRUD003 1
417 Waterproof cover CZL CZLD041 2
418 Chlorinated water-resistant O-ring P4 1323709 3
419 Thermistor holding plate ALS ALSD088 2
420 Water outlet magnetic sensor BWC BWCD090 1
421 Water inlet thermistor-300 BWC BWCD097 1
422 Servo motor cable conduit (86) DZT DZTJ009 1
423 Hot-water resistant O-ring P9 SAD6635 1
424 Heat exchanger thermistor-300 BWC BWCD098 1
425 O-ring 16DF BRQ BRQL008 1
426 Water filter cover DTJ DTJD006 1
427 Water filter (SUS) EGB EGBD032 1
428 QMF safety valve A(S) SAA2811 1
429 Conduit 86 DZT DZTJ008 1
432 Chlorinated water-resistant O-ring P16 3223302 7
433 Chlorinated water-resistant O-ring P12.5 3359808 1
434 Quick fastener 12.7 6340202 1
435 Quick fastener 16A 6340300
Quick fastener 16A 6340300 5<NR98-DVC(-CA) ,>
437 Sensor fastener CRU CRUD055 1
438 Thermal fuse fastener EGL EGLH002 4
439 Heater fastener ELV ELVH018 1
440 Quick fastener 16-25 SAD6593
Quick fastener 16-25 SAD6593 1<NR98-DVC(-CA)>
441 Hot-water resistant O-ring P3 SAD6633 1
1<NR98-OD ,NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NC199-DVC(-CA)>
1<NR98-DVC(-CA) NG>
1<NC199-DVC(-CA) NG>
3<NR98-OD ,NR98-SV>
3<NC199-OD>
5<NC199-DVC(-CA)>
3<NR98-OD ,NR98-SV>
3<NC199-OD>
1<NC199-DVC(-CA)>
Hot-water feed route
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
442 Freeze preventive heater 2 BGD BGDH005
Freeze preventive heater 2 BGD BGDH005 2<NR98-DVC(-CA)>
443 Heater fastener 22.2 ELV ELVL011 1
444 Heater fastener LL CPL CPLL002 1<NR98-DVC(-CA)>
445 Thermal fuse fastener 16 CMN CMNH003 1
446 Feed back pipe S EHK EHKA046 1<NR98-DVC(-CA)>
450 Cross recessed round-head P TIGHT screw 4X10
451 Cross recessed round-head P TIGHT screw 4X10
452 Cross & straight recessed round-head collar type3 S TIGHT tapping screw 4X8
453 Cross recessed round-head machine screw M4X8
461 Intake/Exhaust pipe D FFA ELV ELVF090 1<NR98-DVC(-CA)>
462 Drain pipe cover D FFA ELV ELVF097 1<NR98-DVC(-CA)>
464 Pipe seal D FFA ELV ELVF096 1<NR98-DVC(-CA)>
465 O-ring (
466 Intake pipe packing ELV ELVL019 1<NR98-DVC(-CA)>
80)D FFA ELV ELVF098 1<NR98-DVC(-CA)>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
2<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
1<NC199-DVC(-CA)>
Electronic control unit
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
For NR98-OD,NR98-SV
703
702
C
700
059
For NC199-ODFor NR98-DVC(-CA)
701
For NC199-DVC(-CA)
701
057
057
E
E
056
057
E
701
D
D
D
056
701
057
E
D
056
056
Electronic control unit
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
700 Relay case ELW-C SET-AS SHB7152 1
701 Harness H ELV ELVJ002
Harness FFA ELV ELVJ053 1<NR98-DVC(-CA)>
Harness W (System controller compliant) ERV ERVJ001 1<NC199-OD>
Harness FFA (System controller compliant) ERV ERVJ011 1<NC199-DVC(-CA)>
702 Relay case cover DEK DEKA014 1
703 Relay case waterproof cover ELV ELVA059 1
1<NR98-OD ,NR98-SV>

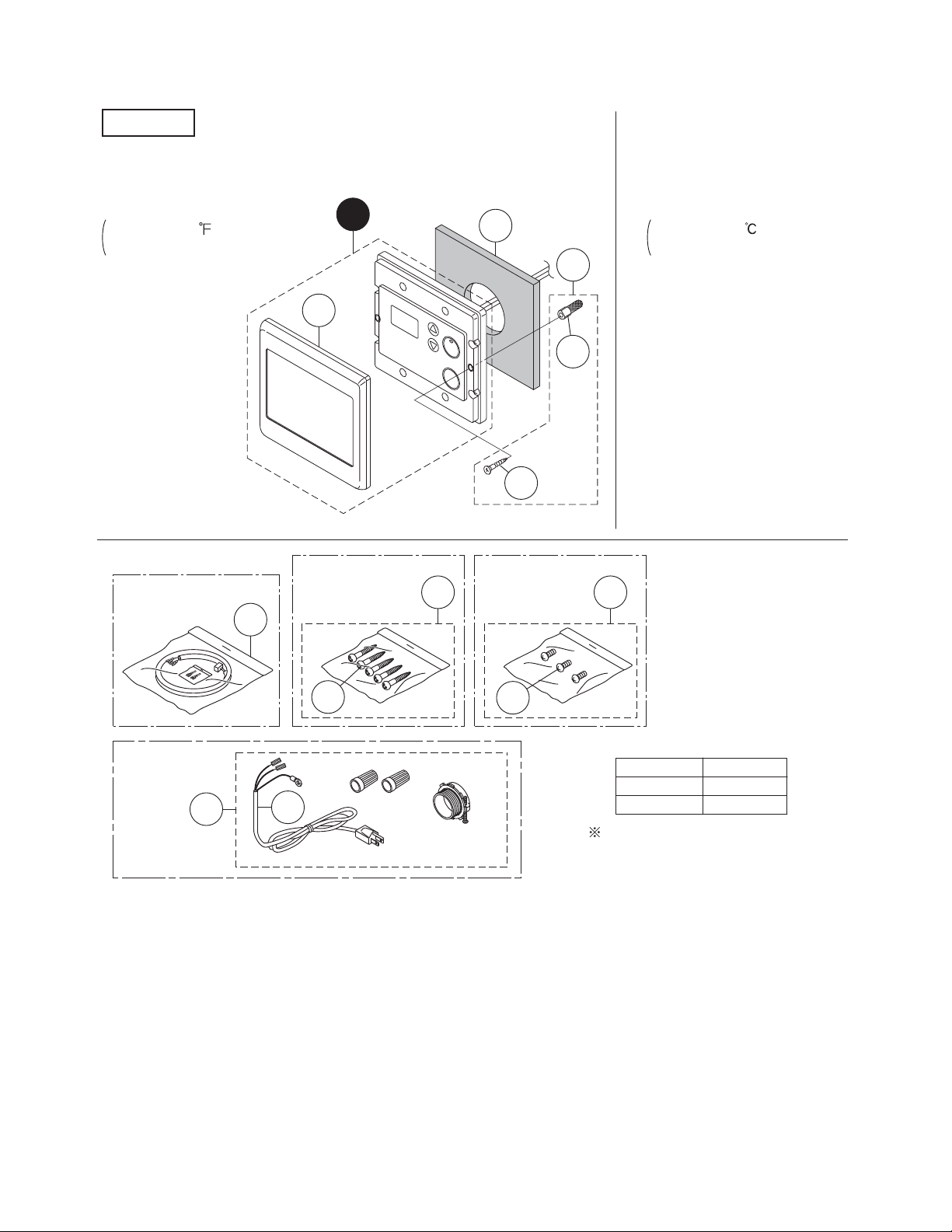

Remote controller and Attached set
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Optional
Remote controller
For NR98-OD,NR98-SV,NC199-OD For NR98-OD,NR98-SV,NC199-OD
RC-7649M-USA
Temperature: Expression
Water Volume: Gallon Expression
750
752
760
RC-7650M-ENG (For Canada)
Temperature: Expression
Water Volume: Liter Expression
Attached set
For NR98-OD,NR98-SV,
NC199-OD
For NR98-SV
806
801
751
For NR98-SV,
NR98-DVC(-CA),
NC199-DVC(-CA)
803
807
802
x2
761
For NR98-OD,
NC199-OD
805
x2
762
804
<Special part>
Special part
Owner’s guide
Installation manual
To request a French version of
the Owner's guide or Installation
manual, contact Noritz America.
Special part no.
888
889
Remote controller and Attached set
NR98-OD,NR98-SV,NR98-DVC(-CA),NC199-OD,NC199-DVC(-CA)
Part Nos. Part Names Order Nos. Q'ty/unit
750 RC-7649M Body USA QME QMEJ007
RC-7650M Body ENG QXU QXUJ003 1<NR98-OD canada>
751 M Dressed frame body QME QMEA003
752 Wall packing QHU QHUA115
760 Shower remote controller screw set SAD6448
761 Cross recessed round wood screw 4.1X25
762 Oar plug 6X25
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-SV canada>
1<NC199-OD canada>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
<NR98-OD ,NR98-SV>
<NC199-OD>
<NR98-OD ,NR98-SV>
<NC199-OD>
800 N-0751M packing set-V SKC7455
N-0751M-DVC packing set-V SKE7371 1<NR98-DVC(-CA)>
NC199-OD packing set-V SKF7371 1<NC199-OD>
NC199-DVC packing set-V SKF7372 1<NC199-DVC(-CA)>
Gas type label LP for packaging ESC ESCK008 1<LP>
801 Remote controller cord S SET EAU EAUM001
802 Screw SET(W) SAB2753 1<NR98-SV>
803 Cross recessed round-head type 1 tapping screw 5X35 <NR98-SV>
804 PS3 Screw SET SAB2286
805 Cross recessed round-head machine screw M5X12
806 Power supply cord US SET ESC ESCM001 1<NR98-SV>
807 Power cord ESC ESCJ001 1<NR98-SV>
888 Owner's guide GQ2851WX US SBA8346
Owner's guide GQ2851WX-FFA US SBA8349 1<NR98-DVC>
Owner's guide SETGQ2851WX-FFA CA SBA8351 1<NR98-DVC-CA>
Owner's guide GQ2851WZ US SBA8357 1<NC199-OD>
Owner's guide GQ2851WZ-FFA US SBA8359 1<NC199-DVC>
Owner's guide SETGQ2851WZ-FFA CA SBA8361 1<NC199-DVC-CA>
889 Installation manual GQ2851WX US SBA8348 1<NR98-OD>
Installation manual GQ2851WX-H US SBA8347 1<NR98-SV>
Installation manual GQ2851WX-FFA US SBA8350 1<NR98-DVC>
Installation manual GQ2851WX-FFA CA E SBA8355 1<NR98-DVC-CA>
Installation manual GQ2851WX-FFA CA F SBA8356
Installation manual GQ2851WZ US SBA8358 1<NC199-OD>
Installation manual GQ2851WZ-FFA US SBA8360 1<NC199-DVC>
Installation manual GQ2851WZ-FFA CA E SBA8365 1<NC199-DVC-CA>
Installation manual GQ2851WZ-FFA CA F SBA8366
1<NR98-OD ,NR98-SV>
1<NR98-OD ,NR98-SV>
1<NC199-OD>
1<NR98-DVC(-CA)>
1<NC199-DVC(-CA)>
<NR98-DVC(-CA)>
<NC199-DVC(-CA)>
1<NR98-OD ,NC199-OD>
<NR98-OD ,NC199-OD>
1<NR98-OD ,NR98-SV>
1<NR98-DVC-CA canada>
1<NC199-DVC-CA canada>
Loading...
