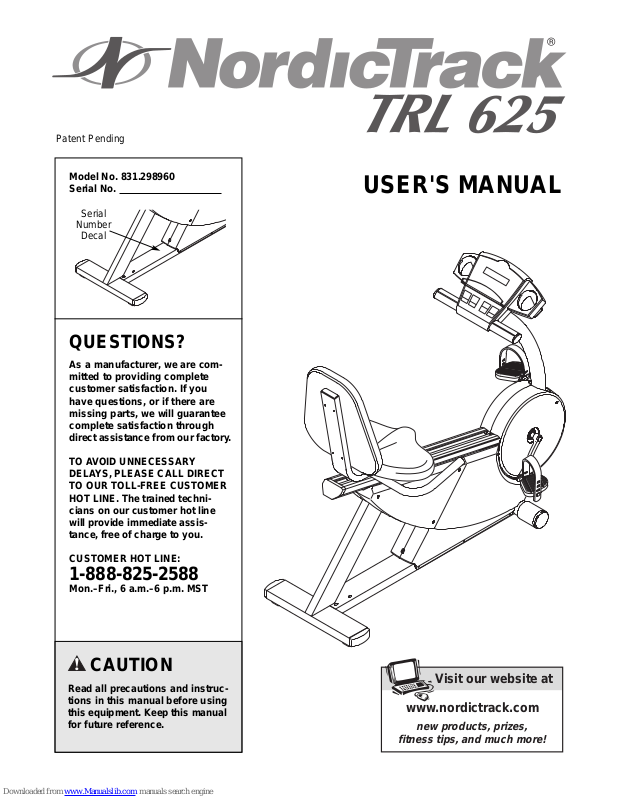

Page 1
USER'S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. 831.298960
Serial No.
Patent Pending
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Page 2
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE RECUMBENT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

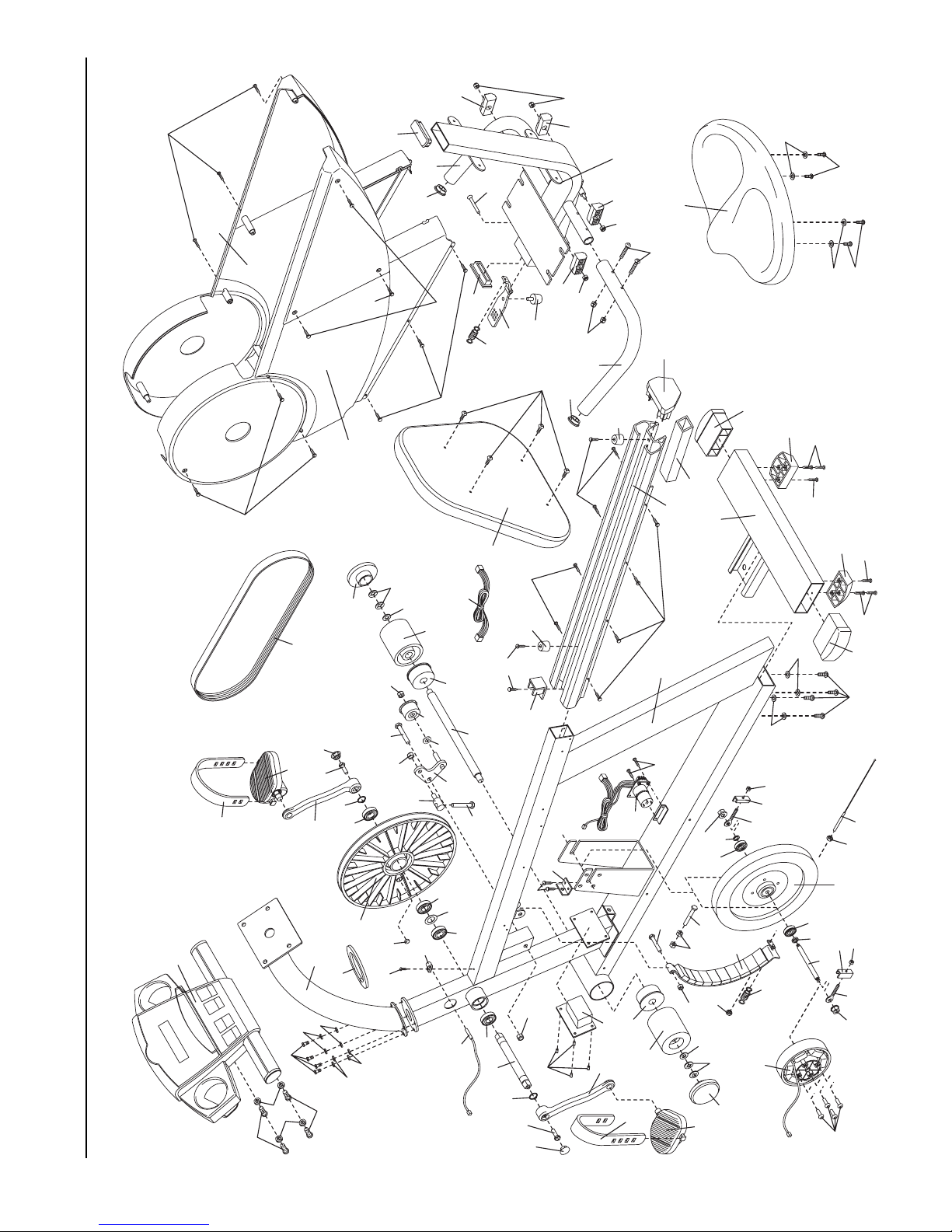

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
Page 3
3
1. Read all instructions in this manual before
using the recumbent cycle.
2. It is the responsibility of the owner to
ensure that all users of the recumbent
cycle are adequately informed of all precautions. Use the recumbent cycle only as
described in this manual.
3. Use the recumbent cycle indoors on a level
surface. Keep the recumbent cycle away
from moisture and dust. Place a mat under
the recumbent cycle to protect the floor or
carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the recumbent cycle at all times.
6. The recumbent cycle should not be used
by persons weighing more than 250
pounds.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the recumbent cycle.
Always wear athletic shoes when using the
recumbent cycle.
8. Always keep your back straight when using
the recumbent cycle. Do not arch your
back.
9. If you feel pain or dizziness while exercising, stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The recumbent cycle is intended for inhome use only. Do not use the recumbent
cycle in a commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the recumbent cycle.
Page 4
4
Congratulations for selecting the new NordicTrack
®
TRL625 recumbent cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fitness, building endurance, and toning the entire body.
The NordicTrack®TRL625 offers an impressive array
of features designed to let you enjoy this healthful
exercise in the comfort and privacy of your home.
For your benefit, read this manual carefully before
you use the NordicTrack®TRL625. If you have addi-
tional questions, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, mention
the product model number and serial number when
calling. The model number is 831.298960. The serial
number can be found on a decal attached to the
recumbent cycle (see the front cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upright
Water Bottle
Holder (Bottle
not included)
FRONT
BACK
Seat
Backrest
Seat Tab
Pedal Strap
Wheel
Pedal
Console
Book Holder
Seat Handle
RIGHT SIDE
BEFORE YOU BEGIN
Page 5
5
ASSEMBLY
Assembly requires two persons. Place all parts of the recumbent cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench .
Use the drawings below to identify the small parts used in assembly. The number in parenthesis below each
drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the
quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a part is
not in the parts bag, check to see if it has been pre-assembled.
8
88
87
87
1. Attach the Stabilizer (8) to the Frame (1) with four
M10 x 25mm Screws (88) and four M10 Split
Washers (87).
1
1
M6 Nylon
Locknut (71)–4
M8 Flat Washer
(89)–4
Console
Screw (63)–4
M6 Split
Washer (57)–4
M4 x 16mm
Screw (64)–1
Washer (67)–4
M10 x 25mm
Screw (88)–4
M6 Flat
M6 x 12.7mm
Button Screw (62)–4
Console
Washer (93)–4
Button Screw (68)–8
M10 Split
Washer (87)–4
M6 x 16mm
M6 x 35mm
Screw (70)–4
Page 6
6

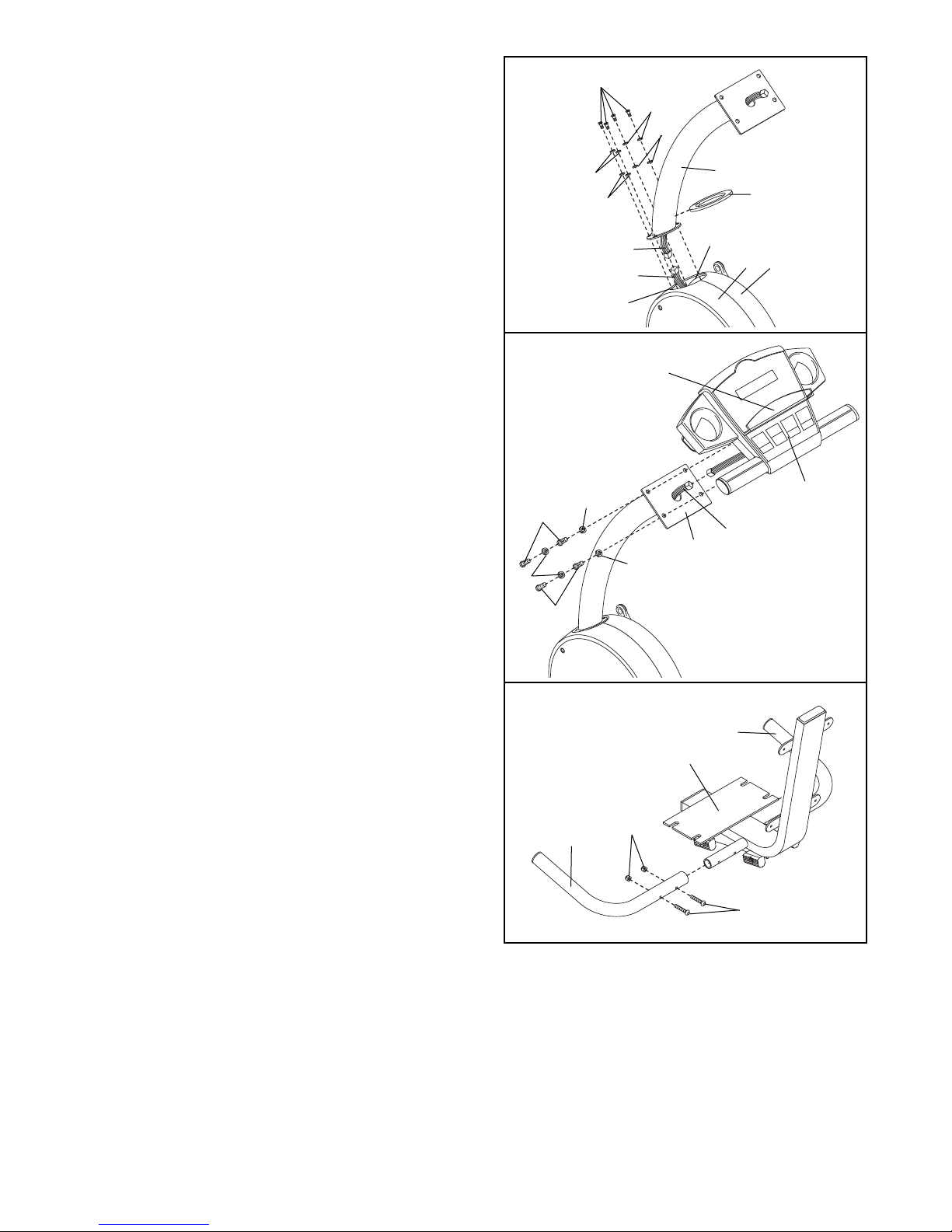

2. Connect the Extension Wire (66) to the Wire
Harness (22). Attach the Upright (2) to the Frame (1)
with four M6 x 12.7mm Button Screws (62), four M6
Split Washers (57), and four M6 Flat Washers (67).
Slide the Collar (91) onto the Upright (2). Align the
slit in the Collar with the seam between the Side
Shields (4, 5). Snap the Collar into the Side Shields.
3. Connect the Extension Wire (66) to the console wire.
Attach the Console (3) to the Upright (2) with four
Console Washers (93) and four Console Screws
(63). Snap the bookrack onto the Console as shown.
2
22
1
4
5
3
66
3
Console
Wire
Bookrack
63
93
93
93
63
2
57
67
2
91
Seam
62
57
66
67
4. Attach the Left and Right Handlebars (11, 12) to the
Seat Carriage (6) with four M6 x 35mm Screws (70)
and four M6 Nylon Locknuts (71).
4
6
12
71
11
70
Page 7
7

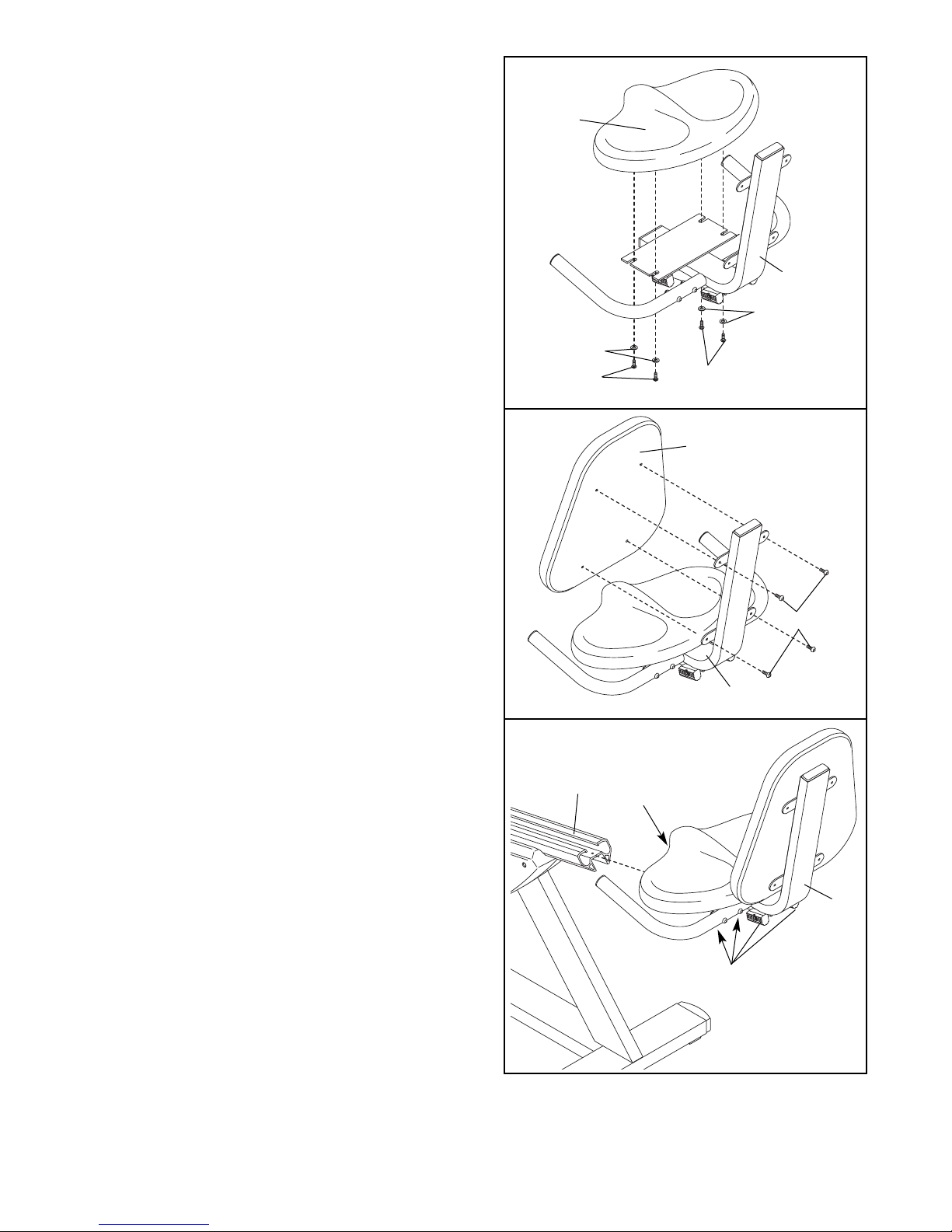

6. Attach the Seat Back (9) to the Seat Carriage (6)
with four M6 x 16mm Button Screws (68).
68
9
6
6
5. Attach the Seat (10) to the Seat Carriage (6) with
four M6 x 16mm Button Screws (68) and four M8
Flat Washers (89).
6
10
68
89
89
68
5
7. Hold the Seat Carriage (6) and lift the Seat
Adjustment Tab (79). Slide the Seat Runners (72)
into the Seat Frame (7).
72
79
6
7
7
Page 8
8

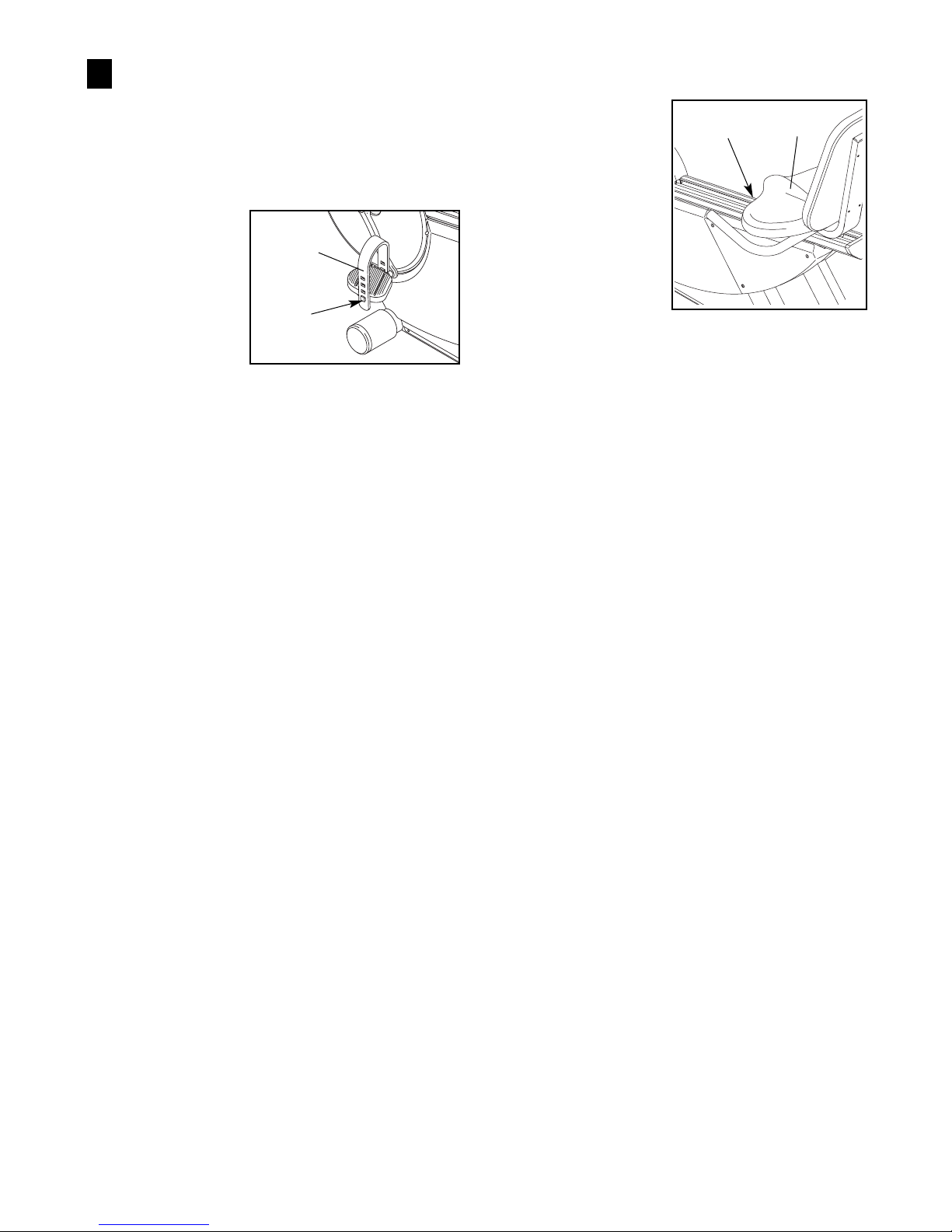

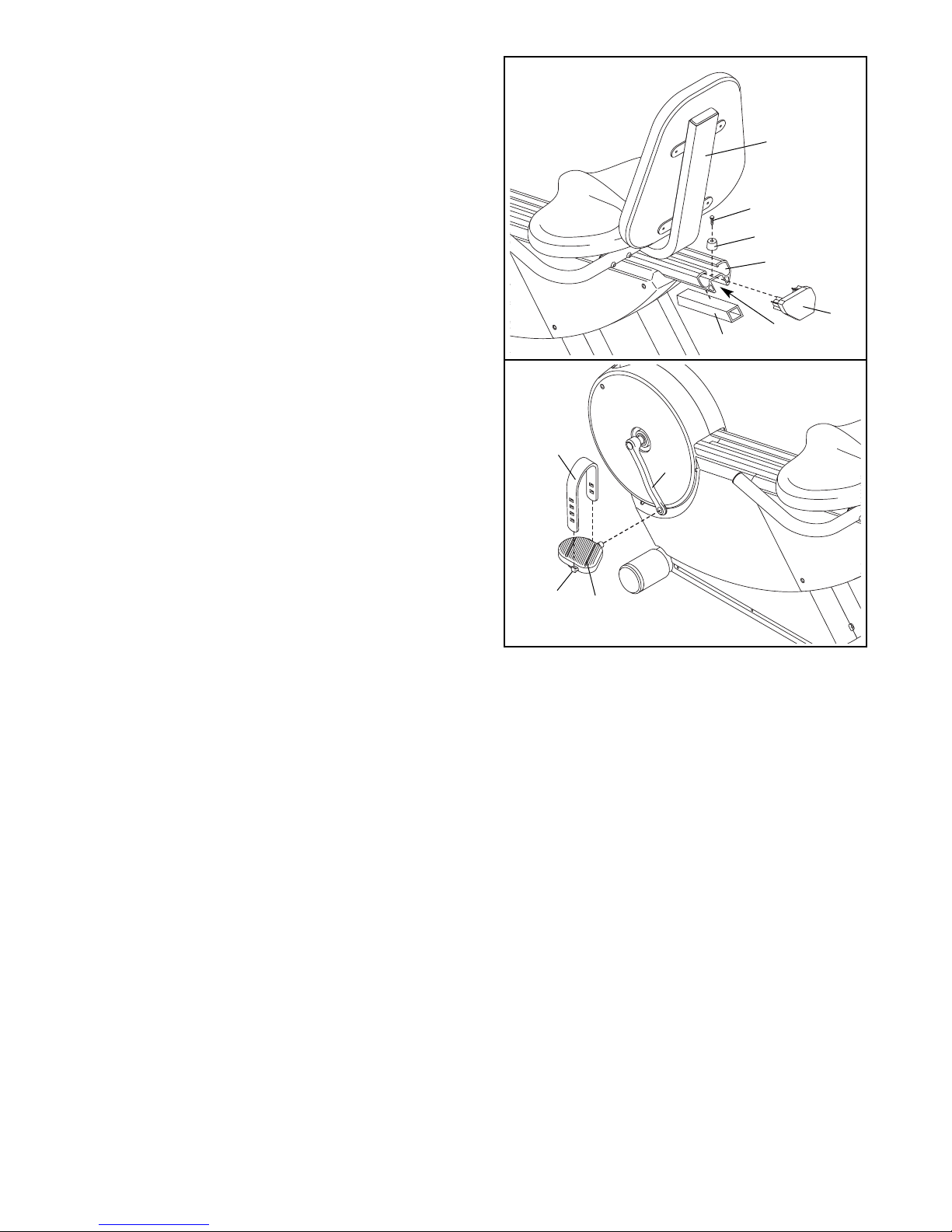

9. Identify the Left Pedal (69) (there is an “L” on the
Left Pedal for identification). Using an adjustable
wrench, firmly tighten the Left Pedal
counterclock-
wise
into the Left Crank Arm (51). Tighten the Right
Pedal (not shown)
clockwise
into the Right Crank
Arm (not shown). Tighten both Pedals as firmly
as possible. Important: After using the recumbent cycle for one week, retighten the Pedals.
For best performance, the P ed als must be kept
properly tightened.
Adjust the Left Pedal Strap (21) to the desired position, and press the end of the Strap onto the tab on
the Left Pedal (69). Adjust the Right Pedal Strap
(not shown) in the same way.
21
69
Tab
51
9
10. Make sure that all parts are tightened before you use the recumbent cycle. Place a mat beneath the
recumbent cycle to protect the floor.
8. Position the Seat Carriage (6) as shown. Insert the
Seat Frame Cover (84) into the slot in the Seat
Frame (7). The beveled end of the Seat Frame
Cover should be flush with the end of the Seat
Frame. Attach a Seat Stop (77) and the Seat Frame
Cover to the Seat Frame with an M4 x 16mm Screw
(64).
Push the Seat Frame Cap (13) into the end of the
Seat Frame (7).
77
64
13
7
84
Slot
6
8
Page 9
9
HOW TO OPERATE THE RECUMBENT CYCLE

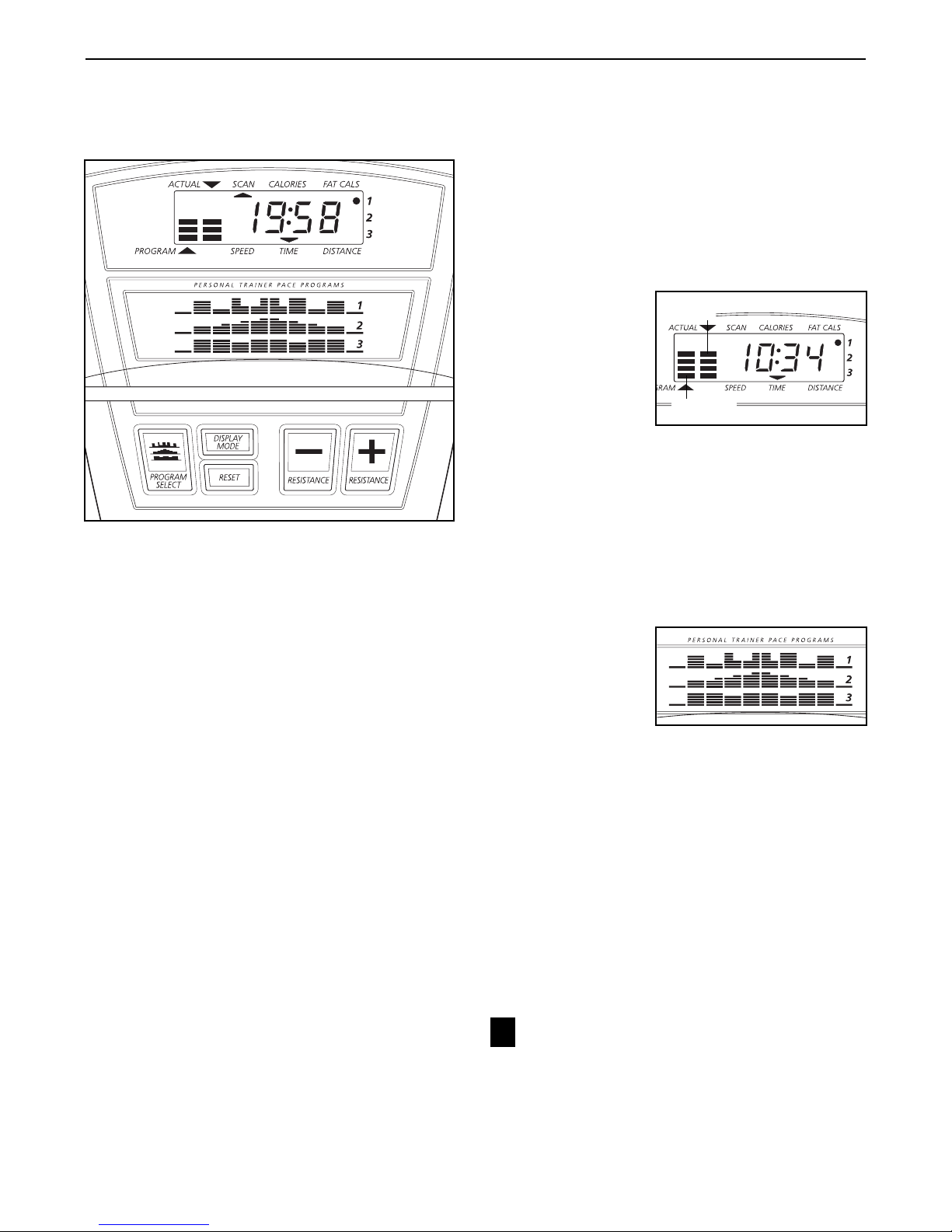

FEATURES OF THE CONSOLE
The easy-to-use console offers a manual mode and
three personal trainer programs that pace your exercise for effective workouts. You can choose a staminabuilding interval program, an aerobic program, or a
special fat-burning program. To adjust the intensity of
your exercise, you can change the pedal resistance at
any time with a touch of a button. As you exercise,
you can watch your progress on the console display.
The display features six different modes:
Speed—When an arrow appears above the word
SPEED, the console will display your pedaling speed.
Time—When an arrow appears above the word TIME,
the console will display the elapsed time. Note: When
a pace program is selected, the console will display
the
time remaining
in the program.
Distance—When an arrow appears above the word
DISTANCE, the console will display the distance you
have pedaled.
Fat Calories—When an arrow appears below the
words FAT CALS, the console will display the approximate number of
fat calories
you have burned (see
BURNING FAT on page 13).
Calories—When an arrow appears below the word
CALORIES, the console will display the approximate
number of calories you have burned.
Scan—When an arrow appears below the word
SCAN, the console will display all of the information
above in a repeating cycle.
Pulse—When you use the pulse sensor, the console
will display your heart rate. (See step 6 on page 10.)
HOW THE PACE PROGRAMS OPERATE
When you use a
pace program, two
columns of bars will
appear in the display. The left column represents a
target pace and the
right column shows
your actual pedaling pace. The target pace will change periodically during the program; as the target pace changes, simply
adjust your pedaling pace to keep both columns at the
same height. Important: The target pace is a
goal
pace. Your actual pace may be slower than the target pace, especially during the first few months of
your exercise program. Be sure to exercise at a
pace that is comfortable for you.
The three graphs
on the console
show how the
target pace will
change during the
programs. For
example, during the
aerobic program (program 2), the graph shows that the
target pace will gradually increase during the first half
of the program, and then gradually decrease during
the last half. Each program will last for twenty minutes.
STEP-BY-STEP CONSOLE OPERATION
The innovative recumbent cycle requires no
batteries or external power source. Instead, power
is supplied by a generator as you pedal. Note: To
operate the resistance buttons, you must pedal at a
pace of about 30 revolutions per minute (rpm) or
faster.
Begin pedaling
To activate the console, simply begin pedaling.
After a few seconds, the entire display will
appear for two seconds; the console will then be
ready for use.
1
Target
Actual
Page 10
10

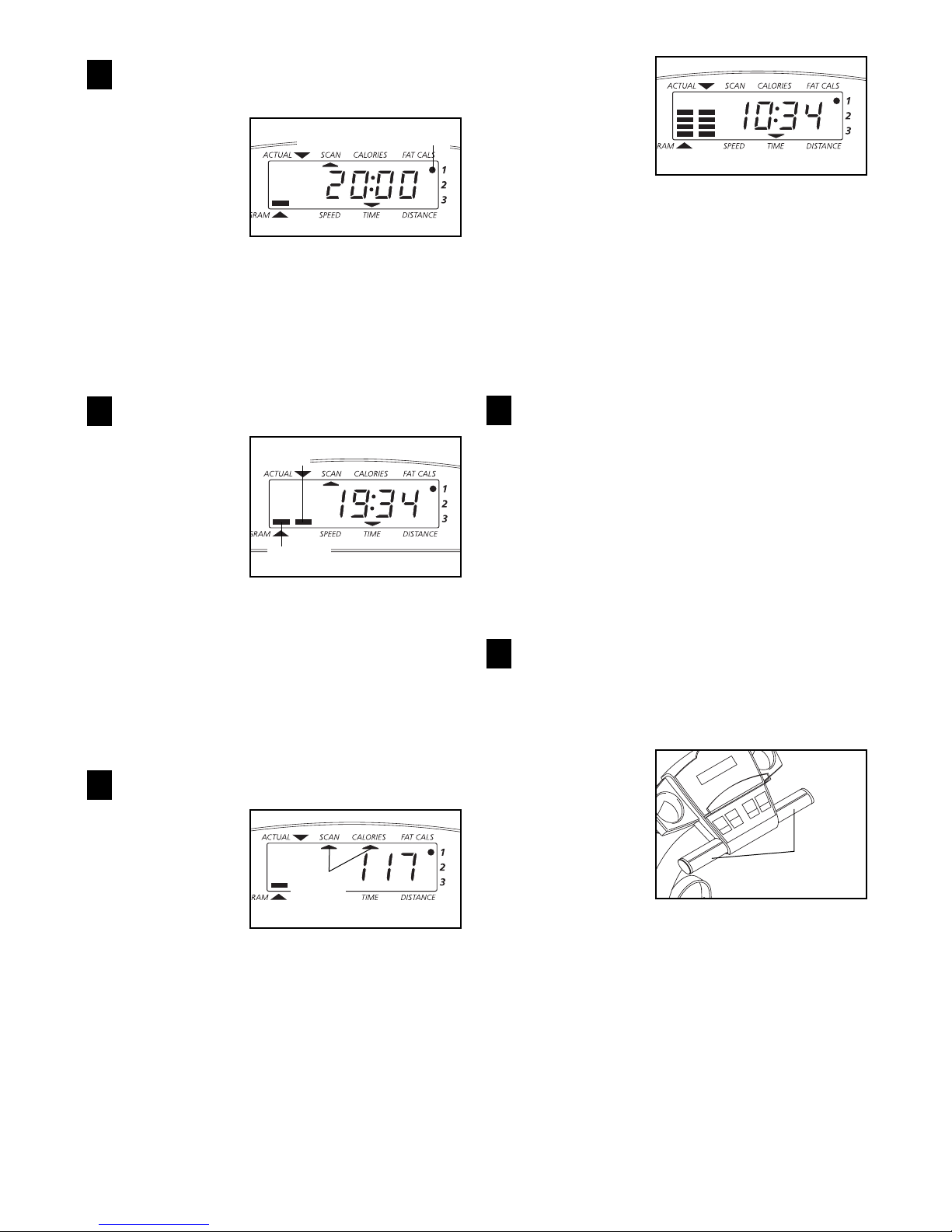

Select one of the three pace programs or the
manual mode
To select one
of the pace
programs,
repeatedly
press the
Program
Select button.
The program
indicator will show which program you have
selected. To select the manual mode, press the
Program Select button until the program indicator
disappears. The programs will be selected in the
following order: program 1 (interval), program 2
(aerobic), program 3 (fat burn), manual mode.
Begin your workout
If you selected the manual mode, go
to step 4. If
you selected
one of the
pace programs, two
columns of
bars will appear in the display. The left column
will show one bar, indicating a relatively slow
pace. The right column will show your actual pedaling pace. Adjust your pedaling pace until only
one bar appears in the right column. Each time
the target pace changes during the program,
adjust your pedaling pace to keep both columns
at the same height.
Follow your progress with the console display
The scan
mode—
Repeatedly
press the
Display Mode
button until an
arrow appears
under the
word SCAN. When the scan mode is selected, the
console will display your pedaling speed, the
elapsed time, the distance you have pedaled, and
the numbers of fat calories and calories you have
burned. Asecond arrow will show which mode is
currently displayed. Each mode will be displayed
for five seconds.
The speed,
time, distance, fat
calorie,
or calorie
mode—
Repeatedly
press the
Display Mode button until an arrow appears
below or above the name of the desired mode.
Make sure that there is not an arrow under the
word SCAN.
The pulse mode—To use the pulse mode, see
step 6.
To reset the display, press the reset button.
Change the pedal resistance as desired
To change the pedal resistance, press the resistance + and – buttons. Important: You must
pedal at a pace of about 30 rpm or faster for
the resistance buttons to operate. If the pedal
resistance does not change when a resistance
button is pressed, the resistance may have
reached the maximum or minimum setting.
Note: When you finish exercising, the pedal resistance will remain at the same setting until the
next workout.
Measure your heart rate if desired
Important: If there are thin sheets of plastic on
the metal contacts on the pulse sensor, remove
the plastic before using the pulse sensor.
To use the
pulse sensor,
place your
hands on the
metal contacts.
Your palms
must be resting on the front
contacts and
your fingers
must be touching the rear contacts. Avoid moving
your hands. After a moment, a heart-shaped indicator in the display will begin to flash and your
heart rate will be shown. For the most accurate
reading, continue to hold the contacts for about
15 seconds.
Make sure that your hands are positioned as
described, and that you are not moving your
hands excessively or squeezing the metal contacts too tightly.
6
5
4
3
2
Mode
Arrows
Metal
Contacts
Program Indicator
Target
Actual
Page 11
11
Turn off the console
To turn off the console, simply stop pedaling.
If the pedals are not moved, the console will turn
off automatically after one to two minutes.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
straps off the tabs
on the pedals.
Move the straps to
the desired position and press the
straps back onto
the tabs.
HOW TO ADJUST THE POSITION OF THE SEAT
For effective exercise,
the seat should be in
the proper position. As
you pedal, there
should be a slight
bend in your knees
when the pedals are
the farthest away. To
adjust the seat, first lift
the seat tab in front of
the seat. Next, slide
the seat to the desired
position and release
the seat tab. Important: After you adjust the position
of the seat, make sure that your knees will not hit
the console when you pedal.
7
Seat
Seat Tab
Strap
Tab
Page 12
12
Inspect and tighten all parts of the recumbent cycle
regularly. To clean the recumbent cycle, use a soft,
damp cloth. To prevent damage to the console, keep
liquids away from the console and keep the console out of direct sunlight.
PULSE SENSOR TROUBLE-SHOOTING
• Avoid moving your hands while using the pulse sen-
sor. Excessive movement may interfere with heart
rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
MAINTENANCE AND TROUBLE-SHOOTING
Page 13
13
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition and
adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

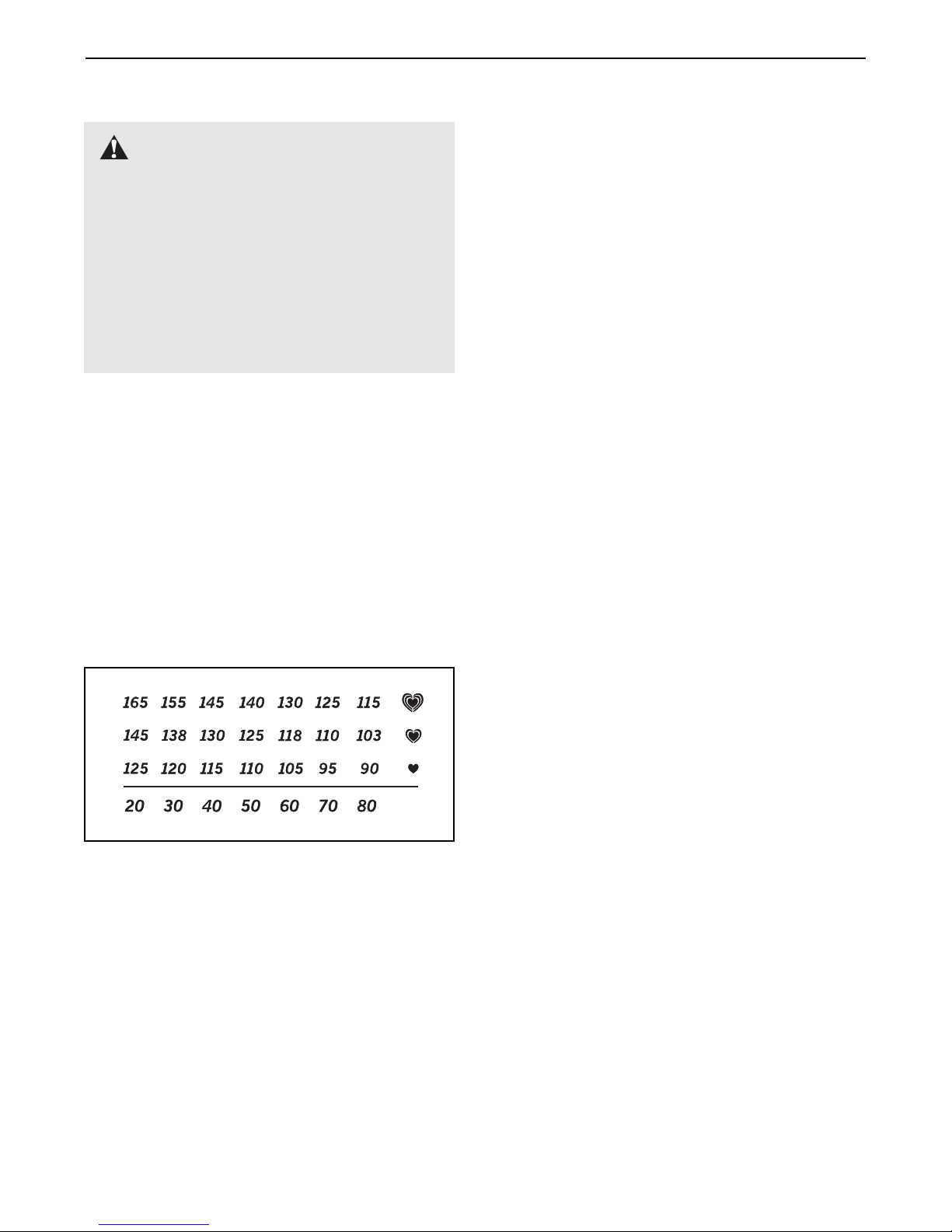

heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age; the three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning; the middle number is the recommended
heart rate for maximum fat burning; and the highest
number is the heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for energy. Only after the first few minutes of exercise does
your body begin to use stored
fat
calories for energy. If
your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number or the middle number in your training zone as you
exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the intensity of your exercise until your heart
rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired.
The key to success is make exercise a regular and
enjoyable part of your everyday life.
WARNING:
Before beginning
this or any exercise program, consult your
physician. This is especially important for
individuals over the age of 35orindividuals
withpre-existing healthproblems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
EXERCISE GUIDELINES
Page 14
14
1 1 Frame
2 1 Upright
3 1 Console
4 1 Left Side Shield
5 1 Right Side Shield
6 1 Seat Carriage
7 1 Seat Frame
8 1 Rear Stabilizer
9 1 Seat Back
10 1 Seat
11 1 Left Handlebar
12 1 Right Handlebar
13 1 Seat Frame Cap
14 2 Foot
15 2 Stabilizer Endcap
16 6 M4 x 16mm Flat Screw
17 1 Flywheel
18 1 “C” Magnet
19 1 Right Pedal
20 1 Right Pedal Strap
21 1 Left Pedal Strap
22 1 Motor/Wire Harness
23 1 Resistance Cable
24 1 M8 Nylon Locknut
25 1 Resistance Spring
26 1 Generator Assembly
27 2 Flywheel Bearing
28 1 Flywheel Axle
29 2 Eye Bolt
30 2 Tension Bracket
31 2 Flange Nut
32 1 M6 x 38mm Bolt
33 6 M6 Nut
34 3 M10 Locknut
35 2 Flywheel Spacer
36 1 M8 x 41mm Bolt
37 2 Wheel Bushing
38 2 Wheel
39 3 Wheel Washer
40 4 Push Nut
41 2 Wheel Cover
42 1 Wheel Axle
43 1 M10 x 45mm Bolt
44 1 Idler Bracket
45 1 M8 x 70mm Bolt
46 1 M4 x 16mm Round Screw
47 1 Adjustment Bracket
48 1 Idler Wheel
49 1 Pulley
50 1 Right Crank Arm
51 1 Left Crank Arm
52 1 Crank
53 2 Crank Cap
54 2 M8 x 20mm Flange Screw
55 2 Snap Ring
56 3 Crank Bearing
57 4 M6 Split Washer
58 1 Clutch Bearing
59 1 Magnet
60 1 Reed Switch Clamp
61 1 Reed Switch
62 4 M6 x 12.7 mm Button Screw
63 4 Console Screw
64 22 M4 x 16mm Screw
65 1 M10 Flat Washer
66 1 Extension Wire
67 4 M6 Flat Washer
68 8 M6 x 16mm Button Screw
69 1 Left Pedal
70 4 M6 x 35mm Screw
71 8 M6 Nylon Locknut
72 4 Seat Runner
73 1 Stop Bracket
74 2 Endcap
75 2 Handlebar Endcap
76 8 M4 x 25mm Screw
77 2 Seat Stop
78 1 Seat Spring
79 1 Seat Adjustment T ab
80 4 Offset Pin
81 1 Control Board
82 1 M6 x 35mm Screw
83 1 Seat Frame Shield
84 1 Seat Frame Cover
85 1 Brake Pad
86 4 Generator Bolt
87 4 M10 Split Washer
88 4 M10 x 25mm Screw
89 4 M8 Flat Washer
90 1 Belt
91 1 Collar
92 1 Pulley Washer
93 4 Console Washer
# 1 User’s Manual
# 1 Allen Wrench
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering
replacement parts.
EXPLODED DRAWING—Model No. 831.298960 R0901A
Key No. Qty. Description Key No. Qty. Description Key No. Qty. Description
Page 15
15
72
EXPLODED DRAWING—Model No. 831.298960 R0901A
71
76
85
68
72
75
64
72
71
71
11
6
72
77
71
70
13
7
10
84
8
74
12
82
75
5
46
4
76
76
64
74
9
78
79
15
89
14
16
16
89
68
14
68
16
56
52
64
55
64
54
77
83
64
34
53
80
73
51
81
37
22
21
38
1
64
36
64
24
31
33
69
32
33
39
27
35
40
41
18
29
26
87
30
25
33
87
27
35
28
30
86
16
15
88
23
33
17
33
29
31
40
41
90
53
19
54
55
20
3
57
62
93
63
50
2
67
56
49
91
57
63
39
34
43
34
59
64
67
47
60
38
48
65
58
66
37
42
44
45
92
56
61
Page 16
Part No. 176454 R0901A Printed in China © 2001 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
• The MODEL NUMBER of the product (831.298960)
• The NAME of the product (NordicTrack®TRL625 recumbent cycle)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) from page 14 of this manual.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used
for commercial or rental purposes, or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
