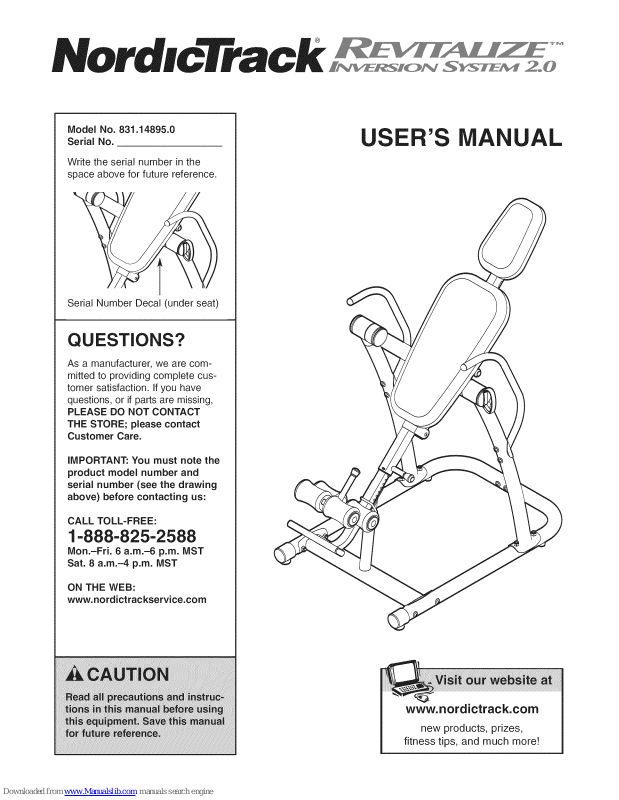

NordicTrack Revitalize 831.14895.0 User Manual

Model No. 831.14895.0 Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
SE
A UAL
\
L
iMPORTANT: You must note the product mode[ number and
serial number (see the drawing above) before contacting us:
CALL TOLL=FREE:
1-888-825-2588
Mon.-Fri. 6 a.m.-6 p.m. MST Sat. 8 a.m.-4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
<
"4
www.nordictrack.com
new products, prizes,
fitness tips, and much more[
TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
PART IDENTIFICATION CHART .............................................................. 5
ASSEMBLY .............................................................................. 6
ADJUSTMENT ........................................................................... 13
ROTATING ON THE INVERSION TABLE ...................................................... 15
DEVELOPING A PROGRAM ................................................................ 16
PART LIST .............................................................................. 18
EXPLODED DRAWING .................................................................... 19
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
WARNING DECAL PLACEMENT
The decals shown here have been applied in the locations shown. If a
decal is missing or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the
decal in the location shown. Note: The decals may not be shown at
actual size,
, Misuse of this [ I_]
machine may
result in serious injury.
Read user's manual
prior to use and follow all warnings and
instructions.
Do not allow children on or around machine.
Keep body, clothing, and hair free and clear
of all moving parts.
= Replace label if
damaged, illegible, or removed.
NordicTrack is a registered trademark of ICON IP, Inc.
2
iMPORTANT PRECAUTIONS
Toreducetheriskofseriousinjury,reada.importantprecautionsand
instructions in this manual and all warnings on the inversion table before using the inversion table. ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of the inversion table.
.
Before beginning any exercise program, con- 12.
suit your physician. This is especially impor-
tant for persons over the age of 35 or per- 13. sons with pre-existing health problems.
.
Use the inversion table only as described in
this manual.
.
it is the responsibility of the owner to ensure
that all users of the inversion table are ade- quately informed of all precautions.
.
The inversion table is intended for home use only. Do not use the inversion table in any
commercial, rental, or institutional setting.
Keep hands and feet away from moving parts.
Always make sure that the lock frame is secured snugly against your ankles and that
the long adjustment knob is fully tightened
before you use the inversion table.
14.
Perform all activities on the inversion table in a slow, controlled manner. Aggressive exer-
cise can cause the inversion table to tip over.
15.
Always exercise with a partner. Your partner should be ready to return the backrest to the
upright position if you cannot complete the rotation.
.
Keep the inversion table indoors, away from moisture and dust. Do not put the inversion
table in a garage or covered patio, or near water.
.
Use the inversion table only on a level sur-
face. Cover the floor beneath the inversion table to protect the floor.
.
Make sure that all parts are properly tight- ened each time the inversion table is used.
Replace any worn parts immediately.
.
Keep children under age 12 and pets away
from the inversion table at all times.
.
The inversion table is designed to support a
maximum user weight of 300 Ibs. (136 kg). Do not use weights with the inversion table.
10.
Always wear athletic shoes with laces to help secure your feet in the inversion table, and for foot protection while exercising.
11.
The inversion table should be used only by
persons 6 ft. 6 in. (198 cm) tall or less.
16.
if you feel pain or dizziness while exercising, stop immediately and begin cooling down.
17.
Following is a list of factors and conditions
that may make inverting inadvisable (this list
is not exhaustive; it is intended only for refer- ence), if one or more factors or conditions apply to you, consult your physician before using the inversion table.
- Pregnancy
Hiatai hernia or ventra! hernia
=Glaucoma, retinal detachment, or conjunc-
tivitis
High blood pressure, hypertension, or
recent stroke or transient ischemic attack
Heart or circulatory disorders for which you
are being treated
Middle ear infection =Extreme obesity
=Spinal injury, cerebral sclerosis, or acutely
swollen joints
Bone weakness (osteoporosis), recent unhealed fractures, medullary pins, or surgi-
cally implanted orthopedic supports
The use of anticoagulants, including high
doses of aspirin
BEFORE YOU BEGIN
Thank you for selecting the NordicTrack _REVITALIZE TM INVERSION SYSTEM 2.0 inversion table. The inver-
sion table will increase your intervertebral dimension, decrease pressure on intervertebral discs, stretch and relax your muscles, and temporarily relieve back pain
associated with the listed conditions.
For your benefit, read this manual carefully before using the inversion table. If you have questions after
ASSEMBLED DIMENSIONS: Height: 5 ft. 2 in. (157 cm)
Width: 3 ft. (91 cm) Depth: 6 ft. 6 in. (168 cm)
Handle
Right Frame
reading this manual, please see the front cover of this manual. To help us assist you, note the product model
number and serial number before contacting us. The model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Headrest
Backrest
Short Adjustment Knob
Short Adjustment Knob
Long Adjustment Knob
Lock Frame
Foot Frame
Index Handle
Left Frame
4
PART iDENTiFiCATiON CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST near the end of this manual. Note: Some small parts may have been preassembled, if a part is not in the hardware kit, check to see if it has been preassembled.
M6 x 37ram Bolt (33)
M6 Washer (62)
MIO Curved Washer (50)
M10 Large Washer (64)
M6 Nut (43)
M10x 16mm
Button Screw (54)
M4 x 15mm
Screw (58)
M8 x 16mm
Button Bolt (61)
M6 x 18mm
Button Screw (55)
M4 x 20mm
Screw (59)
c_
M4 x 30mm
Screw (63)
M10 x 40mm Button Bolt (69)
M10 x 53mm Button Bolt (49)
M6 x 55mm Button Screw (56)
M10 x 80mm Button Bolt (52)
M10 x 85mm Button Bolt (51)
M8 Locknut (57)
M10 Locknut (65)
M10 x 95mm Button Bolt (53)
5
ASSEMBLY
Make Assembly Easier
This manual is designed to ensure that the
inversion table can be assembled successfully
by almost anyone. However, the inversion table
has many parts, and the assembly process will
take time. Most people find that if they set aside
plenty of time, assembly goes smoothly.
o For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
As you assemble the inversion table, make sure that all parts are oriented as shown in the draw- ings.
Tighten all parts as you assemble them, unless instructed to do otherwise.
Before beginning assembly, carefully read the
following information and instructions:
- Assembly requires two persons. Because of its weight and size, the inversion
table should be assembled in the location where it will be used. Make sure that there is enough
clearance to walk around the inversion table as you assemble it.
, Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
.
Before beginning assembly, make sure that you understand the information in the box above. For help identifying
small parts, see page 5.
Press a 63mm Round Cap (40) onto the Left Base (1). Next, tighten a Leveling Foot (41)
into the Left Base.
The included grease and the following tools (not included) may be required for assembly:
Two adjustable wrenches One rubber mallet
One standard screwdriver
One Phillips screwdriver __
Assembly may be more convenient if you have a socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
2
J
Attach a Foot (42) to the Left Base (1) with an M4 x 20mm Screw (59).
Repeat this step for the Right Base (2).
42
40.. d_. 59
J41
6
