IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the inversion table.
1. Read all instructions in this manual before
using the inversion table. Use the inversion
table only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the inversion table are adequately informed of all precautions.
3. The inversion table is intended for home use
only. Do not use the inversion table in any
commercial, rental, or institutional setting.
4. Keep the inversion table indoors, away from
moisture and dust. Do not put the inversion
table in a garage or covered patio, or near
water.
5. Use the inversion table only on a level surface. Cover the floor beneath the inversion
table to protect the floor.
6. Make sure that all parts are properly tightened each time the inversion table is used.
Replace any worn parts immediately.
7. Keep children under 12 and pets away from
the inversion table at all times.
8. The inversion table is designed to support a
maximum user weight of 300 lbs. (136 kg).
Do not use weights with the inversion table.
Always wear athletic shoes with laces to help
9.
secure your feet in the inversion table, and
for foot protection while exercising.
10. The inversion table should be used only by
persons 6 ft. 6 in. (198 cm) tall or less.
11. Keep hands and feet away from moving
parts.
Always make sure that the ankle lock is
12.
secured snugly against your ankles and that
the short knob is fully tightened before you
use the inversion table.
13. Perform all activities on the inversion table in
a slow, controlled manner. Aggressive exercise can cause the inversion table to tip over.
14. Always exercise with a partner.
should be ready to return the backrest to the
upright position if you cannot complete the
rotation.
15. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
16. Following is a list of factors and conditions
that may make inverting inadvisable (this list
is not exhaustive; it is intended only for reference). If one or more factors or conditions
apply to you, consult your physician before
using the inversion table.
• Pregnancy
• Hiatal hernia or ventral hernia
• Glaucoma, retinal detachment, or conjunctivitis
• High blood pressure, hypertension, or
recent stroke or transient ischemic attack
• Heart or circulatory disorders for which
you are being treated
• Middle ear infection and extreme obesity
• Spinal injury, cerebral sclerosis, or acutely
swollen joints
Bone weakness (osteoporosis), recent
•
unhealed fractures, medullary pins, or surgically implanted orthopedic supports
The use of anticoagulants, including high
•
doses of aspirin
17. The decal shown on page 4 has been placed
on the inversion table. If the decal is missing
or illegible, call the toll-free telephone num
ber on the front cover of this manual and
order a free replacement decal. Apply the
decal in the location shown.
Your partner
-
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
hank you for selecting the NordicTrack
T
INVERSION SYSTEM inversion table. The inversion
table will increase your intervertebral dimension,
decrease pressure on intervertebral discs, stretch and
relax your muscles, and temporarily relieve back pain
associated with the listed conditions.
For your benefit, read this manual carefully before
using the inversion table. If you have questions after
ASSEMBLED DIMENSIONS:
Height: 62 in. (157 cm)
Width: 36 in. (91 cm)
Depth: 66 in. (168 cm)
Handle
Right Frame
®
EVITALIZE™
R
eading this manual, please see the front cover of this
r
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number is 831.14595.0. The serial number can
be found on a decal attached to the inversion table (see
the front cover of this manual).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Headrest
Backrest
Long Adjustment Knob
Short Adjustment Knob
Lock Handle
Ankle Brace
Foot Plate
Index Handle
Left Frame
4
M10 Nylon
Locknut (65)
M8 Nylon
Locknut (72)
M6 Washer (62)
M4 x 15mm
Screw (58)
M10 x 85mm Button Bolt (51)
M10 x 95mm Button Bolt (73)
M6 x 18mm
Button Screw (55)
M6 x 55mm Button Screw (56)
M
M4 x 25mm
Screw (60)
M4 x 30mm
Screw (63)
M4 x 20mm
Screw (71)
M10 Curved Washer (79)
M10 Washer (68)
M10 x 35mm
Button Bolt (53)
M10 x 16mm
Button Screw (54)
M10 x 75mm Button Bolt (57)
M10 x 80mm Button Bolt (52)
M10 x 53mm Button Bolt (78)
M8 x 16mm
Button Bolt (61)
M5 x 25mm
Screw (59)
M10 Large Washer (64)
PART IDENTIFICATION CHART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST on page 18. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been preassembled.
5
ASSEMBLY
Make Assembly Easier
ighten all parts as you assemble them, unless
• T
instructed to do otherwise.
This manual is designed to ensure that the
inversion table can be assembled successfully
by almost anyone. However, the inversion table
has many parts, and the assembly process will
take time. Most people find that if they set aside
plenty of time, assembly goes smoothly.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Because of its weight and size, the inversion
table should be assembled in the location where
it will be used. Make sure that there is enough
clearance to walk around the inversion table as
you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• As you assemble the inversion table, make sure
that all parts are oriented as shown in the
drawings.
• For help identifying small parts, use the
IDENTIFICATION CHART on page 5.
In addition to the included hex key
and grease packets, the following tools (not
included) may be required for assembly:
• two adjustable wrenches
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
PART
1.
Before beginning assembly, make sure
that you understand the information in
the box above. For help identifying
small parts, see page 5.
Attach a Foot (42) to the Left Base (1) with an
M4 x 20mm Screw (71). Next, tighten a
Leveling Foot (41) into the Left Base.
Press a 63mm Round Cap (40) onto the Left
Base (1).
Repeat this step for the Right Base (2).
1
2
1
42
71
40
41
6
2. Attach the Left Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
10 Curved Washers (79), and two M10
M
Nylon Locknuts (65).
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (71).
2
2
42
71
52
79
9
7
5
6
1
3. Attach the Support Leg (13) to the Center
Base (3) with three M10 x 35mm Button Bolts
(53) and three M10 Nylon Locknuts (65).
Attach the Base Plate (14) to the Center Base
(3) with four M5 x 25mm Screws (59).
3
14
13
53
3
59
65
53
59
Attach the Support Bracket (15) to the Support
4.
Leg (13) with two M4 x 15mm Screws (58).
4
15
58
58
13
7
5. Attach the Center Base (3) to the Left and
Right Bases (1, 2) with four M10 x 80mm
utton Bolts (52), four M10 Curved Washers
B
(79), and four M10 Nylon Locknuts (65).
See the inset drawing. Identify the Center
6.
Frame (7).
Apply some of the included grease to both
sides of the Left Large Spacer (31).
Attach the Left Large Spacer (31) and the Left
Frame (4) to the Center Frame (7) with an
M10 Nylon Locknut (65), an M10 Large
Washer (64), and a 29mm Spacer (48). Then,
press an 89mm Cap (32) into the Center
Frame.
5
6
79
5
70
2
79
2
1
52
79
52
79
3
65
32
5
65
64
48
7
Grease
31
4
Repeat this step with the Right Large
Spacer (70) and the Right Frame (5).
7. Attach the Left and Right Frames (4, 5) to the
Left and Right Bases (1, 2) with four M10 x
85mm Button Bolts (51) and four M10 Nylon
Locknuts (65).
7
7
5
65
65
51
2
65
4
65
1
51
8
8. Attach the Top Cover (23) and the Bottom
Cover (24) to the Center Frame (7) with two
4 x 15mm Screws (58) and an M4 x 30mm
M
Screw (63).
Attach the Center Frame Extension (6) to the
Center Frame (7) with two M10 x 53mm
Button Bolts (78) and two M10 Nylon Locknuts
(65).
8
78
23
8
5
7
24
63
58

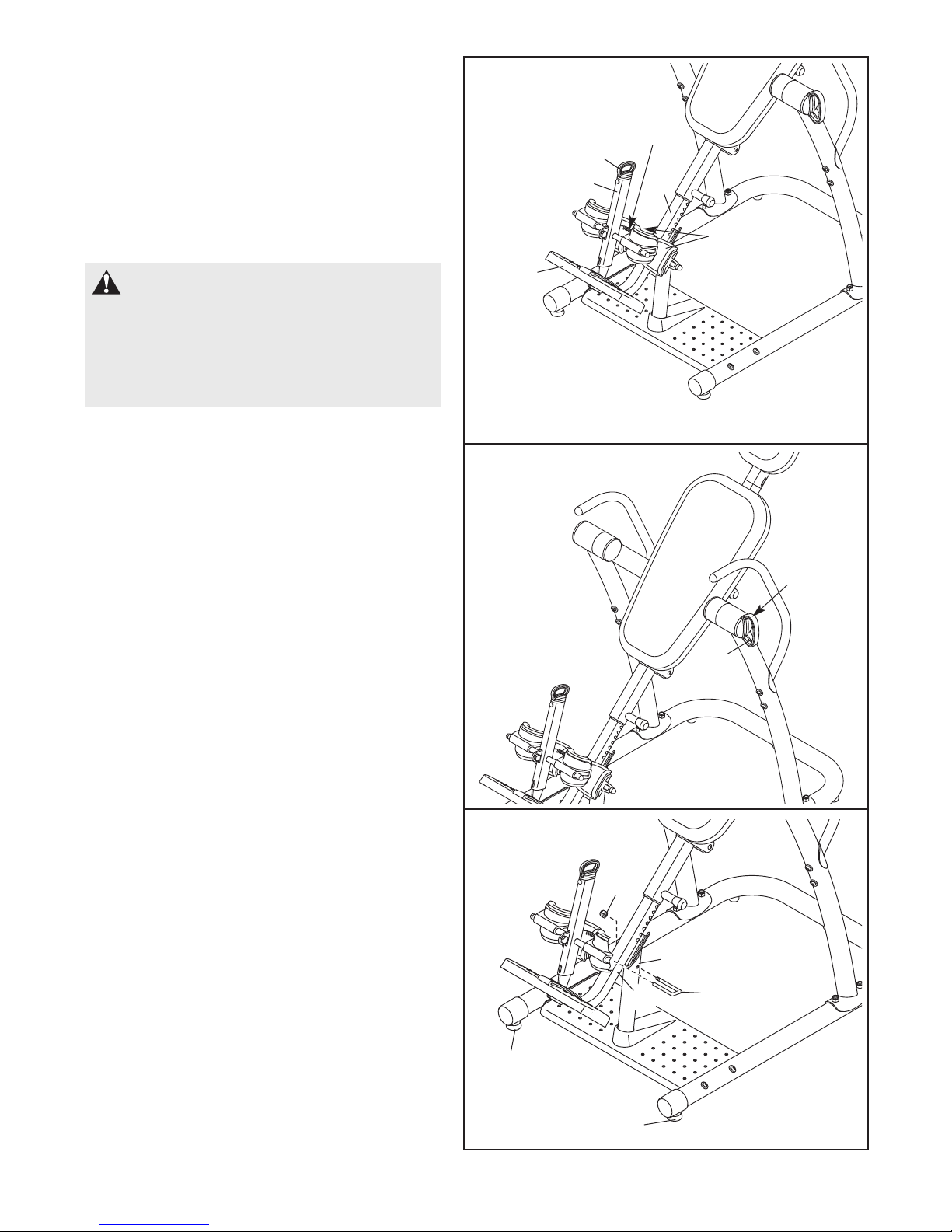

9. Orient the Headrest Frame (9) and the
Backrest Frame (8) as shown. Attach the
Headrest Frame to the Backrest Frame with
two M10 x 16mm Button Screws (54).
6
65
9
9
54
54
8
10. Apply a small amount of grease to an M10 x
95mm Button Bolt (73).
Pull the Long Adjustment Knob (43) out as far
as it will go. Insert the bracket on the Backrest
Frame (8) into the Top Cover (23). Next, attach
the Backrest Frame to the Center Frame
Extension (6) with the M10 x 95mm Button
Bolt (73) and an M10 Nylon Locknut (65).
Then, engage the Long
one of the holes in the bracket.
See the inset drawing. Attach an M8 x 16mm
Button Bolt (61) and an M8 Nylon Locknut (72)
to the hole in the end of the bracket on the
Backrest Frame (8).
Adjustment Knob into
10
9
65
8
Grease
Bracket
6
73
23
43
72
8
61
11. See the left inset drawing. Identify the Top
Tube (16), the Bottom Tube (17), and the
nkle Brace Tube (18); the Tubes have differ-
A
ent lengths and holes in different positions.
Orient the Top Tube (16) and the Bottom
Tube (17) so that the largest holes are on top
(see the right inset drawing), and insert
them into the indicated holes in the Leg
Frame (10). Attach each Tube with an M4 x
15mm Screw (58).
Orient the Ankle Brace Tube (18) as shown,
and insert it into the Leg Frame (10). Attach
the Ankle Brace Tube with two M4 x 15mm
Screws (58).
Make sure that the M4 x 15mm Screws
(58) are tightened into the holes in the bottoms of the Tubes (16, 17, 18).
12. Set the Foot Plate (19) on the Top Tube (16)
and the Bottom Tube (17). Finger tighten
four M4 x 25mm Screws (60) through the
Tubes into the Foot Plate. Do not tighten the
Screws yet.
11
12
Largest holes
ust be on top
m
18
Holes
58
58
16
17
18
Holes
17
19
6
1
16
17
10
58
13. Slide the Lock Frame (11) onto the notched
bracket on the Leg Frame (10), and insert the
lower end of the Lock Frame into the slot in
the Foot Plate (19). Attach the Lock Frame
with an M10 x 75mm Button Bolt (57), two
M10 Washers (68), two 16mm Spacers (46),
and an M10 Nylon Locknut (65) as shown.
Make sure that the Button Bolt is inserted
through the hole in the lower end of the
Lock Frame.
ighten the four M4 x 25mm
See step
Screws (60).
Pull the Lock Handle (33) upward and pivot
the Lock Frame (11) over the indicated notch
in the bracket on the Leg Frame (10).
Release the Lock Handle and engage the
Lock Frame into the notch.
See the inset drawing. Attach an M8 x
16mm Button Bolt (61) and an M8 Nylon
Locknut (72) to the hole in the end of the
bracket on the Leg Frame (10).
12. T
13
61
57
60
19
16
68
17
Slot
46
60
33
1
1
10
Notch
46
68
65
72
10
10
14. Identify the two Rear Ankle Braces (80), which
have holes in the indicated locations.
Slide a Rear Ankle Brace (80) onto the Ankle
race Tube (18). Attach the Rear Ankle Brace
B
with two M4 x 15mm Screws (58). Make sure
that the Screws are tightened into the indicated holes in the Ankle Brace Tube. Next,
press a 19mm Round Cap (45) into the Ankle
Brace Tube, and attach the Round Cap with
an M4 x 15mm Screw (58).
Attach the other Rear Ankle Brace (80) to
the Ankle Brace Tube (18) in the same way.
14
58
45
80
Holes
58
18
80
Holes
15. Slide a Front Ankle Brace (22) onto the round
tube on the Lock Frame (11). Next, press a
19mm Round Cap (45) into the round tube,
and attach the Round Cap with an M4 x 15mm
Screw (58).
Attach the other Front Ankle Brace (22) in
the same way.
16. Pull the Short Adjustment Knob (74) out as far
as it will go, and insert the end of the Leg
Frame (10) a few inches into the Backrest
Frame (8).
See the inset drawing. Press the round tab
on the Leg Frame Bushing (38), and press the
Leg Frame Bushing upward into the Backrest
Frame (8). Make sure that the round tab is
in the indicated hole in the Backrest Frame.
Then, slide the Leg Frame (10) farther into the
Backrest Frame (8), and engage the Short
Adjustment Knob (74) into one of the holes in
the Leg Frame.
15
16
10
45
58
38
Ta b
22
11
22
8
Hole
8
10
74
Holes
11
17. Attach the Headrest (20) to the Headrest
Frame (9) with two M6 x 18mm Button Screws
55), an M6 x 55mm Button Screw (56), and
(
three M6 Washers (62).
Attach the Backrest (21) to the Backrest
Frame (8) in the same way.
17
20
9
62
6
5
55
18. Attach a Handle (12) to the Left Frame (4) with
two M10 x 80mm Button Bolts (52), two M10
Curved Washers (79), and two M10 Nylon
Locknuts (65).
Attach the other Handle (12) in the same
way.
Make sure that all parts are properly tightened before you use the inversion table.
18
21
8
12
62
12
65
65
WARNING:
HOW TO LOCK THE INVERSION TABLE
FOR STORE DISPLAY OR TO PREVENT
UNSUPERVISED USE
When the inversion table is displayed in a
store, or when it is not in use, it should be
locked to prevent unsupervised use. First,
insert the threaded end of the Lock Pin (50)
into the Support Leg (13), and position the
other end of the Lock Pin on top of the Leg
Frame (10). Then, tighten an M10 Nylon
Locknut (65) onto the Lock Pin.
65
10
4
79
52
13
50
12
ADJUSTMENT
This section explains how to adjust the inversion table. See DEVELOPING A PROGRAM on page 16 for important information about how to get the most benefit from the inversion table.
Make sure that all parts are properly tightened each time you use the inversion table. Replace any worn parts
immediately. The inversion table can be cleaned with a damp cloth and a mild, non-abrasive detergent.
solvents to clean the inversion table.
SELECTING THE BACKREST FRAME POSITION
Do not use
See the inset drawing. The bracket on the Backrest
Frame (8) has four adjustment holes. The correct hole
to use will depend on your body weight and the
desired level of responsiveness. See the chart to
determine which hole to use. For example, if you
weigh between 200 and 250 pounds and you are a
beginning user, the chart recommends that you use
hole A.
To adjust the Backrest Frame (8), first pull the Long
Adjustment Knob (43) out as far as it will go. Move the
Backrest Frame and engage the Long Adjustment
Knob into the desired hole in the bracket on the
Backrest Frame.
Try the inversion table with the Backrest Frame (8)
adjusted to each position to determine which one is
best for you.
8
Note: 1 lb. = 2.2 kg
Hole A
Hole B
Hole C
Hole D
8
43
ADJUSTING THE LEG FRAME
The length of the Leg Frame (10) can be adjusted to
correspond to your height. Pull the Short Adjustment
Knob (74) out as far as it will go. Slide the Leg Frame
into or out of the Backrest Frame (8) so that the first
or second measurement greater than your height is
covered by the Backrest Frame. Then, engage the
Adjustment Knob into adjustment holes in the
Short
Leg Frame and the Backrest Frame.
Use the inversion table with the Leg Frame (10)
adjusted to a few dif
length is best for you.
ferent lengths to determine which
WARNING: The inversion table is
designed to be used by persons 6 ft. 6 in. (198
cm) tall or less.
Height
Measurements
8
10
74
Adjustment
Hole
13
USING THE ANKLE LOCK
o secure your ankles in the inversion table, pull
T
the Lock Handle (33) out as far as it will go, and
ove the Lock Frame (11) away from the Leg
m
Frame (10). Stand on the Foot Plate (19), with the
backs of your legs against the Rear Ankle Braces
(80). Then, push the Lock Frame against your
ankles and engage the Lock Handle into a notch in
the Leg Frame.
otches
N
33
1
1
10
80
WARNING: Always make sure
that the Lock Frame (11) is secured snugly
against your ankles before using the inversion table. Always wear athletic shoes with
laces to help secure your feet in the inversion
table.
SETTING THE INVERSION ANGLE
The inversion table can be set to rotate between
15° and 90°, in 15° increments. To set the inversion angle, pull the Index Handle (25) out as far as
it will go, and turn the Index Handle until the arrow
on top of the Index Handle points to the desired
degree setting. Then, release the Index Handle;
make sure that the Index Handle is fully
engaged.
19
Arrow
25
LEVELING THE INVERSION TABLE
If the inversion table rocks slightly on your floor,
turn one or both of the Leveling Feet (41) until the
inversion table is level.
LOCKING THE INVERSION T
To lock the inversion table when you are not using
it, insert the threaded end of the Lock Pin (50) into
the Support Leg (13), and position the other end of
the Lock Pin on top of the Leg Frame (10).
tighten an M10 Nylon Locknut (65) onto the Lock
Pin.
ABLE
Then,
14
41
65
41
10
13
50
ROTATING ON THE INVERSION TABLE
This section explains how to rotate back on the inversion table, and then return to the starting position. Before
using the inversion table, see the ADJUSTMENT section starting on page 13 to correctly set up the
inversion table.
table.
It may be helpful to have a second person ready to assist you as you learn to use the inversion
ROTATING BACK ON THE INVERSION TABLE
To rotate back on the inversion table, slowly lift your
arms over your head until you reach the desired position. The speed at which you lift your arms will determine how quickly the inversion table will rotate. Rest
your arms in a comfortable position that does not
cause the inversion table to rotate. Note: The inversion
table will rotate only to the degree setting set by the
index handle.
ROTATING UP ON THE INVERSION TABLE
To return to the starting position, move your hands
toward your waist until you rotate to a horizontal position. Rest in a horizontal position for 30 to 60 seconds
before rotating to the starting position. This will allow
your body to readjust. Return to the starting position
slowly. Dizziness after using the inversion table is an
indication that you have returned to the starting position
too quickly.
To rotate up from the fully inverted position, pull yourself up using the handles.
Do not sit up to return to the starting position.
15
DEVELOPING A PROGRAM
This section contains information and suggestions about using the inversion table. Make sure that all parts are
properly tightened each time you use the inversion table. Replace any worn parts immediately. See the ADJUST-
MENT section starting on page 13 to identify parts referred to in this section.
BENEFITING FROM USING THE INVERSION TABLE
If you feel nauseated while using the inversion table,
return to the starting position. Note that it may take a
few weeks of use for your inner ear to become accustom to being inverted.
Do not use the inversion table right after you have
eaten.
Moving while using the inversion table may make it a
more comfortable experience, and may help joints and
muscles stretch and relax. Always move in a slow, controlled manner.
The greater the angle at which the inversion table is
used, the shorter the time that you should rotate back
before rotating up. Increase the amount of inverted time
and the angle of use gradually.
Always pay attention to how your body feels as you use
the inversion table. Increase the level of intensity only
as it is comfortable for you. When you feel like you have
had enough, return to the starting position.
BEGINNER PROGRAM
The following are suggestions for persons who are just
starting to use the inversion table.
INTERMEDIATE PROGRAM
The following are suggestions for persons who have
become comfortable using the inversion table as
described under the BEGINNER PROGRAM.
Increase the angle to which the inversion table can
rotate, as it is comfortable. Adjust the index handle to
allow the inversion table to rotate to up to 60°, a few
degrees at a time.
Start to do gentle stretching while using the inversion
table.
Gradually increase the amount of time that you use
the inversion table to ten minutes or more, two or
three times a day. Routines can be varied from rotating back for one or two minutes and then up for 30
seconds, to rotating back and up for equal amounts of
time.
FULL INVERSION PROGRAM
The following are suggestions for persons who have
become comfortable using the inversion table as
described under the INTERMEDIATE PROGRAM and
desire to rotate to greater angles. Note that all the
benefits of inversion can be gained by rotating to 60°.
Do not attempt to do sit-ups.
Set the index handle to allow the backrest frame to
rotate to 15° or less for the first one or two weeks. This
will allow your body time to adjust to the change in
gravitational pull.
Use the inversion table for one or two minutes at a
time, two or three times a day.
Stay inverted only for as long as it is comfortable. This
may be only a few seconds at first.
Increase the angle to which the inversion table can
rotate, as it is comfortable. Adjust the index handle to
allow the inversion table to rotate until it comes in contact with the center frame.
Adjust the backrest frame so that the long adjustment
knob is in the top hole (see SELECTING THE BACKREST FRAME POSITION on page 13). If you weigh
220 lbs. (100 kg) or more, adjust the long adjustment
knob to the center hole in the backrest frame. Rotate
back and up as described on page 15.
16
NOTES
17
PART LIST—Model No. 831.14595.0 R0107A
Key No. Qty. Description Key No. Qty. Description
1 1 Left Base
2 1 Right Base
3 1 Center Base
4 1 Left Frame
5 1 Right Frame
6 1 Center Frame Extension
7 1 Center Frame
8 1 Backrest Frame
9 1 Headrest Frame
10 1 Leg Frame
11 1 Lock Frame
12 2 Handle
13 1 Support Leg
14 1 Base Plate
15 1 Support Bracket
16 1 Top Tube
17 1 Bottom Tube
18 1 Ankle Brace Tube
19 1 Foot Plate
20 1 Headrest
21 1 Backrest
22 2 Front Ankle Brace
23 1 Top Cover
24 1 Bottom Cover
25 1 Index Handle
26 1 Index Ring
27 1 Cup Washer
28 1 Small Spring
29 1 Cup Bushing
30 1 Index Cup
31 1 Left Large Spacer
32 3 89mm Cap
33 1 Lock Handle
34 1 Stop Cap
35 1 Lock Rod
36
37 1 Lock Wedge
38 1 Leg Frame Bushing
39 2 42mm x 70mm Cap
40 2 63mm Round Cap
41 2
42
1 Lock Spring
Leveling Foot
3
Foot
43 1 Long Adjustment Knob
44 2 32mm Round Cap
45 4 19mm Round Cap
46 2 16mm Spacer
47 2 Pivot Bushing
48 2 29mm Spacer
49 1 Bumper
50 1 Lock Pin
51 4 M10 x 85mm Button Bolt
52 10 M10 x 80mm Button Bolt
53 3 M10 x 35mm Button Bolt
54 2 M10 x 16mm Button Screw
55 4 M6 x 18mm Button Screw
56 2 M6 x 55mm Button Screw
57 1 M10 x 75mm Button Bolt
58 20 M4 x 15mm Screw
59 4 M5 x 25mm Screw
60 4 M4 x 25mm Screw
61 2 M8 x 16mm Button Bolt
62 7 M6 Washer
63 1 M4 x 30mm Screw
64 2 M10 Large Washer
65 24 M10 Nylon Locknut
66 1 M6 x 15mm Screw
67 1 M10 Nut
68 2 M10 Washer
69 1 30mm x 60mm Cap
70 1 Right Large Spacer
71 3 M4 x 20mm Screw
72 2 M8 Nylon Locknut
73 1 M10 x 95mm Button Bolt
74 1 Short Adjustment Knob
75 1 M6 x 60mm Button Bolt
76 2 M5 x 15mm Screw
77 1 M6 Nut
78
79 12 M10 Curved Washer
80 2 Rear Ankle Brace
# - User’s Manual
# - Hex Key
#
2 M10 x 53mm Button Bolt
-
Grease Packet
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
18
EXPLODED DRAWING—Model No. 831.14595.0 R0107A
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
80
80
22
22
23
24
25
26
27
28
29
30
31
32
32
70
32
33
34
35
36
37
69
39
38
40
40
41
41
42
42
42
74
43
44
44
46
45
45
45
45
47
48
48
47
39
49
50
65
65
52
52
52
52
52
52
65
73
55
56
55
56
54
57
58
58
58
58
75
58
71
78
71
71
59
59
60
61
58
79
79
79
79
79
79
79
62
62
65
65
51
65
65
65
65
65
65
72
65
65
65
65
53
54
58
58
58
61
72
67
58
58
68
68
51
65
65
65
76
76
66
64
64
77
58
5
8
63
58
62
62
62
58
58
5
8
19
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the MODEL NUMBER of the product (831.14595.0)
• the NAME of the product (NordicTrack REVITALIZE INVERSION SYSTEM inversion table)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on
pages 18 and 19)
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack REVITALIZE INVERSION SYSTEM inversion table (“Product”) is warranted to be
free of all defects in material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”) warrants the product for 90 days after the date of purchase.
Labor is covered for 90 days.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our
option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper
assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and
maintain as set out in your User’s Manual (“Manual”).
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name
and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return
Authorization Number (RA
ton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the
exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness
for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how
long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No.) from our Customer Service Department; securely pack your Product (save the original shipping car-
No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and
you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 244719 R0107A Printed in China © 2007 ICON IP, Inc.
Loading...
