www.nordictrack.com
Model No. NTL11209.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
OW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
H
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

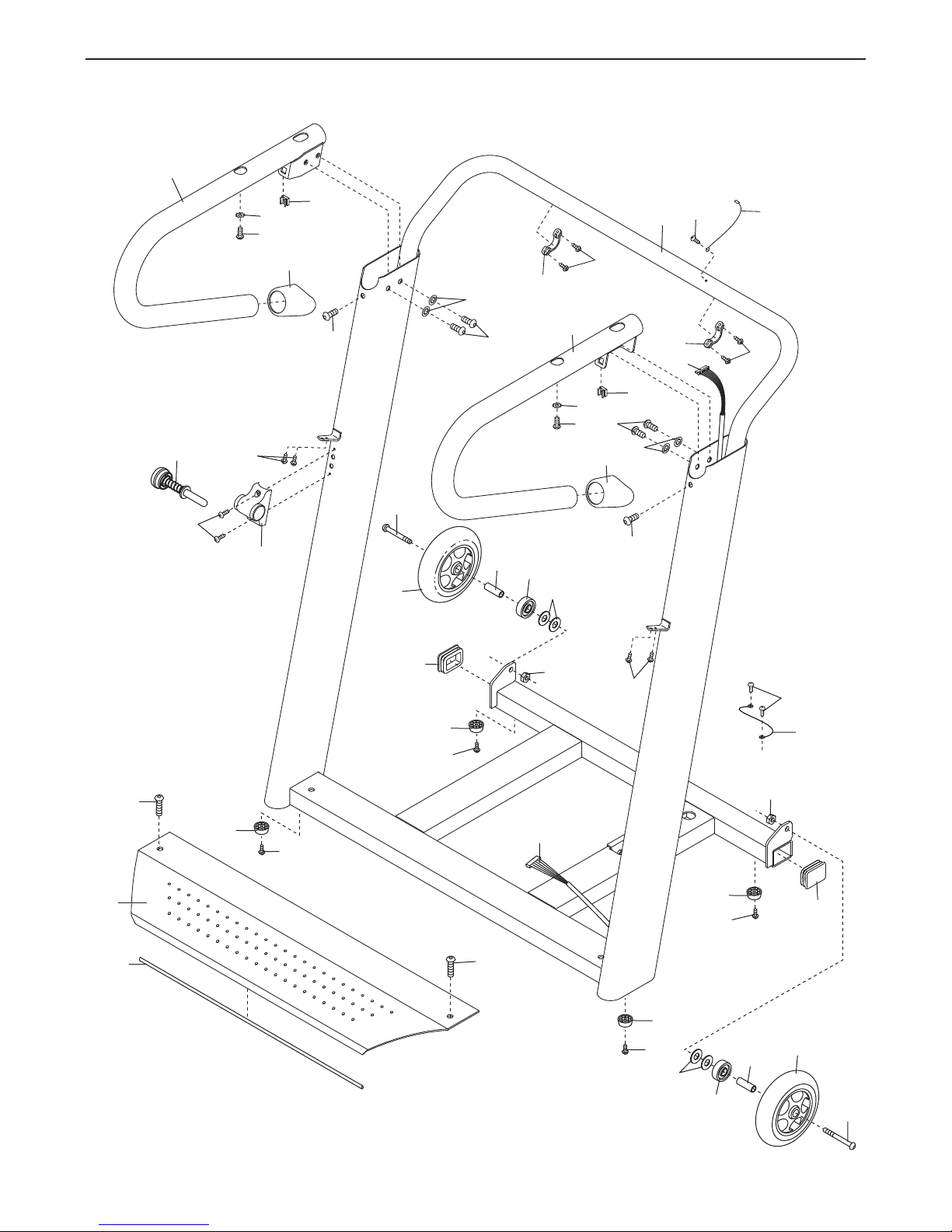

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual
size.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 350 lbs. (159 kg) or less.
o reduce the risk of serious injury, read all important precautions and in-
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 11. To purchase a surge suppressor, see
your local NordicTrack dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 21 if the treadmill is not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 13).
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11. When connecting the power cord (see page 11),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as exercise aids in determining heart rate
trends in general.
3
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug the
ower cord, and press the power switch into
p
the off position when the treadmill is not in
use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.) You
must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
25. Never insert or drop any object into any
opening on the treadmill.
DANGER: Always unplug the power
26.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures de-
cribed in this manual. Never remove the
s
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
treadmill securely in the storage position.
24. Inspect and properly tighten all parts of the
treadmill regularly.
SAVE THESE INSTRUCTIONS
27. The treadmill is intended for in-home use
only. Do not use the treadmill in any commercial, rental, or institutional setting.
28. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
REFLEX 4500 PRO treadmill. The REFLEX 4500 PRO
treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
Latch Knob
®
ing this manual, please see the front cover of this manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please look at the drawing
below and familiarize yourself with the labeled parts.
Console
Pulse Sensor
Key/Clip
Fan
Walking Belt
Foot Pad
Idler Roller
Adjustment Bolts
Power Switch
Power Cord
5
ASSEMBLY
#8 x 1" Tek Screw
(1)–4
5/16" Star
Washer (4)–4
#8 x 3/4"
Screw (12)–8
1/4" Star
Washer (116)–2
#8 x 1"
Screw (115)–4
#10 x 1/2"
Screw (117)–4
#10 x 3/4"
Screw (118)–2
5/16" x 3/4"
Bolt (2)–6
1/4" x 1/2"
Bolt (28)–2
3/8" x 1 3/4" Bolt (3)–2
Thin Base Foot
(100)–4
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
ant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
c
Assembly requires the included hex key and your own Phillips screwdriver and wire
cutters .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
6
1. With the help of a second person, tip the
Uprights (43) down as shown.
ttach the four Thin Base Feet (100) to the bot-
A
tom of the Uprights (43) with four #8 x 1" Tek
crews (1) in the locations shown.
S
Raise the Uprights (43).
1
1
100
100
1
1
100
43
1
100
2. Identify the Left Handrail (101), which is marked
with a “Left” sticker. Cut the tie from the Left
Handrail. If necessary, press the 5/16" Cage Nut
(99) back into place.
Slide a Handrail Cover (103) onto the lower end
of the Left Handrail (101) as shown. Set the Left
Handrail on the left Upright (43) and slide the
lower end of the Left Handrail onto the bracket
on the left Upright.
Start three 5/16" x 3/4" Bolts (2) with two 5/16"
Star Washers (4) into the left Upright (43) and
the Left Handrail (101). Then, start two #10 x
1/2" Screws (117). Firmly tighten the three
Bolts and the two Screws.
Slide the Handrail Cover (103) down against the
left Upright (43).
2
101
99
Tie
2
4
2
43
103
Bracket
117
7
3. Cut the tie from the Right Handrail (102). If nec-
essary, press the 5/16" Cage Nut (99) back into
place.
Cut the tie holding the Upright Wire (93). Route
he Upright Wire through the Right Handrail
t
(102) as shown.
Slide a Handrail Cover (103) onto the lower end
of the Right Handrail (102) as shown. Set the
Right Handrail on the right Upright (43) and slide
the lower end of the Right Handrail onto the
bracket on the right Upright. Make sure not to
pinch the Upright Wire (93).
Start three 5/16" x 3/4" Bolts (2) with two 5/16"
Star Washers (4) into the right Upright (43) and
the Right Handrail (102). Then, start two #10 x
1/2" Screws (117). Firmly tighten the three
Bolts and the two Screws.
Slide the Handrail Cover (103) down against the
right Upright (43).
3
3
9
Tie
02
1
99
2
4
103
2
43
Bracket
117
4. Set the console assembly face down on a soft
surface to avoid scratching the console assembly. Attach the Left Accessory Tray (110) and
the Right Accessory Tray (111) to the console
assembly with eight #8 x 3/4" Screws (12).
4
12
111
12
12
110
12
Console
Assembly
8
5. With the help of a second person, hold the con-
sole assembly near the Uprights (43). Connect
the Console Ground Wire (55) to the Ground
Wire (105).
Connect the Upright Wire (93) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
lace. If they do not, turn one connector and try
p
again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Insert the wires into the Right
Handrail (102) and right Upright (43).
5
Console
Assembly
Console
93
Wire
5
5
105
6. Set the console assembly on the Left and Right
Handrails (101, 102) and the Uprights (43). Be
careful not to pinch any wires.
Start two 1/4" x 1/2" Bolts (28) with two 1/4" Star
Washers (116) into the Handrails (101, 102) and
the console assembly. Do not fully tighten the
Bolts yet.
Attach the two Console Clamps (104) to the
console assembly with four #8 x 1" Screws
(115). Start all four Screws, and then tighten
each of them. Be careful not to overtighten
the Screws.
Tighten the two 1/4" x 1/2" Bolts (28).
43
Console
Wire
102
93
6
Console
Assembly
43
104
104
115
101
115
116
28
116
28
102
9
7. Attach the Latch Housing (89) to the left Upright
(43) with two #10 x 3/4" Screws (118). Make
sure that the large hole in the Latch Housing
is on the side shown. Do not overtighten the
crews.
S
Locate the Latch Assembly (88). Remove the
knob from the pin. Make sure that the collar and
he spring are on the pin. Then, insert the pin
t
into the Latch Housing (89), and tighten the
knob back onto the pin.
7
9
88
118
Knob
8
Large
Hole
43
Spring
Collar
Pin
8. Place the treadmill in the storage position (see
HOW TO FOLD THE TREADMILL on page 20).
Position the Base Plate (97) on the treadmill as
8
3
shown. Attach the Base Plate to the Uprights
(43) with two 3/8" x 1 3/4" Bolts (3). Note: It may
helpful if a second person tips the treadmill
slightly as you tighten the Bolts.
Lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 20).
97
43
9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place; the hex key is used to adjust the walking belt (see pages 22 and 23). To protect the floor
or carpet from damage, place a mat under the treadmill.
10
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
hat is properly installed and grounded in accor-
t
dance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Surge Suppressor
11

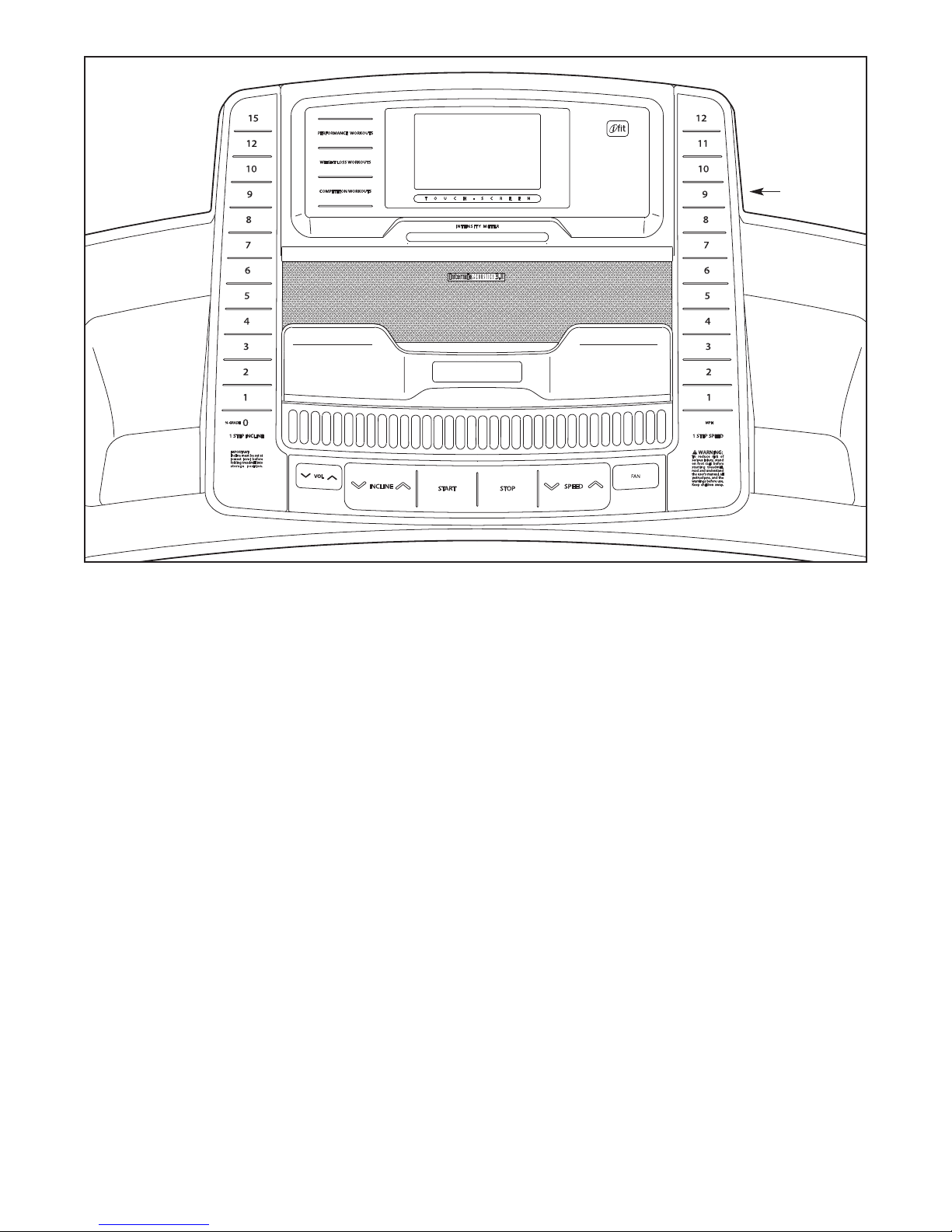

CONSOLE
DIAGRAM
udio
A
Jack
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When you use the manual mode,
you can change the speed and incline with the touch of
a button. As you exercise, the console will display continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
In addition, the console features twenty-six preset
workouts—twenty performance workouts and six
weight loss workouts. Each preset workout automatically controls the speed and incline of the treadmill as
it guides you through an effective exercise session.
You can even compete against other runners using a
competition workout.
The console also features an iFit Live mode that enables the treadmill to communicate with your wireless
network through an optional iFit Live module. With the
iFit Live mode, you can download personalized workouts, create your own workouts, track your workout results, and access many other features. To purchase
an iFit Live module at any time, go to www.iFit.com
or call the telephone number on the front cover of
this manual.
You can even listen to your favorite workout music or
audio books with the consoleʼs stereo sound system.
To turn on the power, see page 13. To use the manual mode, see page 13. To use a preset workout,
see page 15. To use a competition workout, see
page 17. To use the iFit Live mode, see page 19. To
use the information mode, see page 19. To use the
stereo sound system, see page 19.
IMPORTANT: If there is a sheet of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time the treadmill is used, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 23).
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE
on page 19. For simplicity, all instructions in this
manual refer to miles.
12

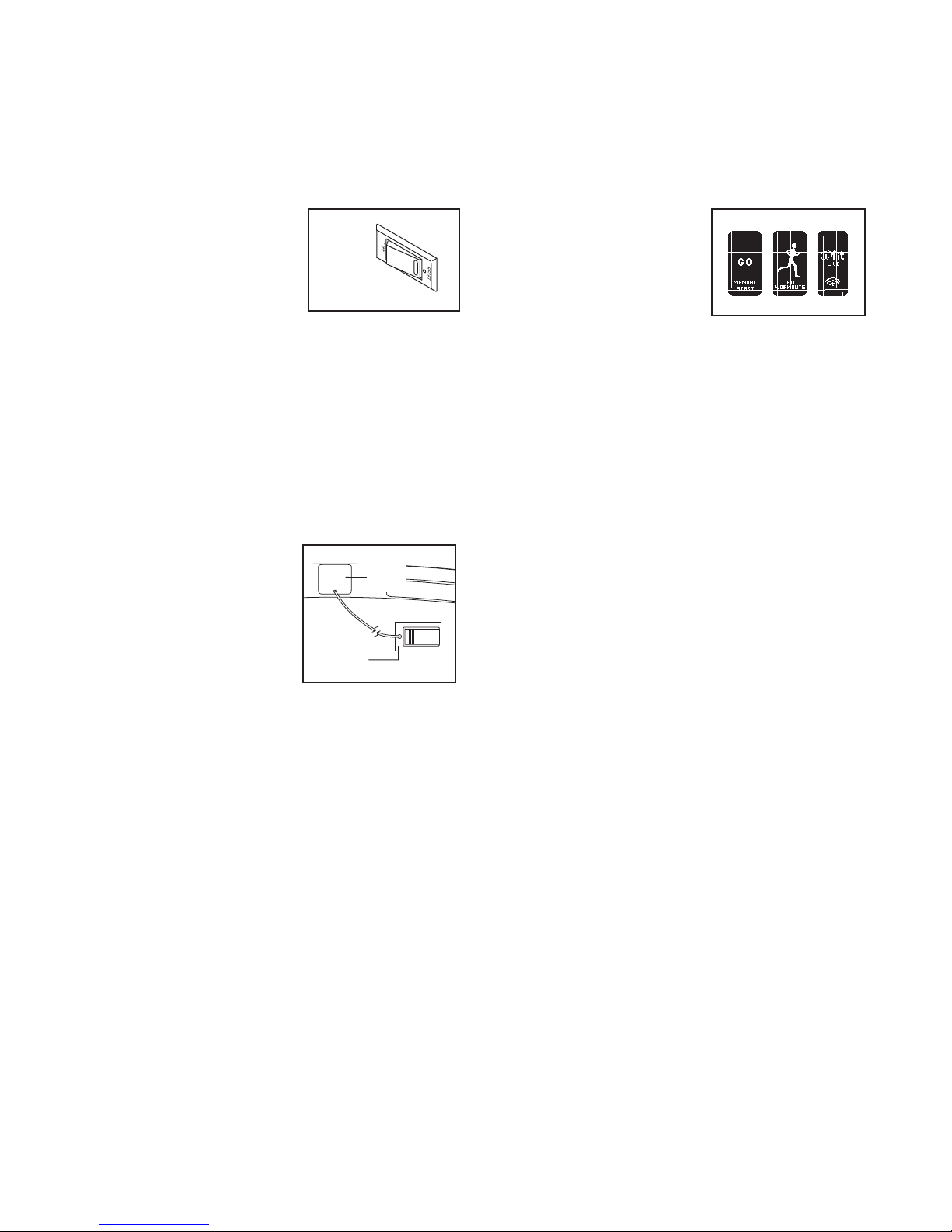

HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 11). Next, locate the
power switch on the treadmill base near the power
cord. Make sure that the
Reset
switch is in the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
19 to turn off the demo mode.
Next, stand on the foot
pads of the treadmill.
Locate the clip attached to
Key
the key, and slide the clip
securely onto the waistband of your clothes. Then,
insert the key into the con-
Clip
sole. After a moment, the
displays will light. IMPOR-
TANT: In an emergency, the key can be pulled from
the console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward; if the key is not pulled from the console,
adjust the position of the clip.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the main menu.
Each time the key is inserted, the main menu
will appear. Note: If you
have selected a workout
or the iFit Live mode,
press the Menu button
on the screen to return
to the main menu.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the numbered 1
Step Speed buttons. You can also press the Go
button on the screen.
If you press the Start button, the Speed increase
button, or the Go button, the walking belt will begin
to move at 1 mph. As you exercise, change the
speed of the walking belt as desired by pressing
the Speed increase and decrease buttons. Each
time you press one of the buttons, the speed setting will change by 0.1 mph; if you hold down the
button, the speed setting will change in increments
of 0.5 mph.
If you press one of the numbered 1 Step Speed
buttons, the walking belt will gradually change
speed until it reaches the selected speed setting.
To select a speed setting that includes a decimal—
such as 3.5 mph—press two numbered buttons in
succession. For example, to select a speed setting
of 3.5 mph, press the 3 button and then immediately press the 5 button.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered 1
Step Speed buttons.
13
4. Change the incline of the treadmill as desired.
6. Measure your heart rate if desired.
To change the incline of the treadmill, press the
ncline increase or decrease button or one of the 1
I
Step Incline buttons numbered 0 to 15. Each time
ou press one of the buttons, the incline will gradu-
y
ally change until it reaches the selected incline setting.
5. Select a display mode and monitor your
progress with the display.
The console offers several display modes. The display mode that you select will determine which
workout information is shown. To select the desired display mode, repeatedly press the Display
button on the screen.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time.
• The distance that you have walked or run.
• The approximate number of calories you have
burned.
• Your pace, in minutes per mile or minutes per
kilometer.
• The speed of the walking belt.
• The incline level of the treadmill.
• Your heart rate (see step 6 on this page). Your
heart rate will be displayed only when you use
the handgrip pulse sensor.
As you exercise, the intensity meter will indicate the
approximate intensity level of your exercise.
Before using
he handgrip
t
pulse sensor,
emove the
r
sheets of plastic from the
metal contacts.
Contacts
In addition,
make sure that
your hands are
clean.
To measure your heart rate, stand on the foot
pads and hold the contacts—avoid moving
your hands. When your pulse is detected, your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts for about 15 seconds.
7. Turn on the fan if desired.
The fan features high and low speed settings.
Press the Fan button repeatedly to select a fan
speed or to turn off the fan. Note: If the fan is on
when the walking belt is stopped, the fan will turn
off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot pads, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting when you fold the treadmill to the storage
position, or you may damage the treadmill.
Next, remove the key from the console and put it in
a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
14
HOW TO USE A PRESET WORKOUT
3. Start the workout.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select a preset workout.
If you have selected the manual mode, a workout,
or the iFit Live mode, press the Menu button on the
screen to return to the main menu.
To select a preset
workout, press the iFit
Workouts button on the
screen. Then press the
Performance button or
the Weight Loss button
on the screen. You can
also press the Performance Workouts button or the
Weight Loss Workouts button on the console.
To use a performance workout, press the Time
button or the Distance button on the screen. To
use a weight loss workout, press the Calorie button or the Basic button.
If a Next button appears on the screen, press the
button to view more workouts. Press the button for
the desired workout. When you select a workout,
the display will show the name, the duration, the
maximum speed setting, the maximum incline setting, and a profile of the speed settings of the workout. Note: When a distance workout is selected,
the duration of the workout will not appear in the
display.
Press the Start button or the Select button to start
he workout. A moment after you press the button,
t
the treadmill will automatically adjust to the first
peed and incline settings of the workout. Hold the
s
handrails and begin walking.
Each preset workout is divided into segments. One
speed setting and one incline setting are programmed for each segment. Note: The same
speed and/or incline setting may be programmed
for consecutive segments.
During the workout, the profile will
show your
progress. Press
the Display button
repeatedly to view
the profile. The
flashing segment
of the profile represents the current segment of the
workout. The height of the flashing segment indicates the speed setting for the current segment.
At the end of each segment, a series of tones will
sound. If a new speed and/or incline setting is programmed for the next segment, the new speed
and/or incline setting will flash in the display for a
few seconds and the treadmill will automatically adjust to the new speed and incline settings.
If you select a performance workout, you can
change the intensity of your workout. Press the
Select button. Then, press the increase or decrease
button on the screen to change the intensity.
15
The workout will continue in this way until the last
segment of the profile flashes and the last segment ends. The walking belt will then slow to a
top. Some workouts will be followed by a cool-
s
down period.
Note: The calorie goal for each weight loss
workout is an estimate of the number of calories that you will burn during the workout. The
actual number of calories that you burn will depend on your weight. In addition, if you manually change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
4. Select a display mode and monitor your
progress with the display.
ee step 5 on page 14.
S
f you select a time workout, the display will show a
I
stopwatch representing the time remaining in the
workout. If you select a distance workout, the display will show a track representing 1/4 mile (400
meters). If you select a calorie workout, the display
will show a flame representing 25 calories.
5. Measure your heart rate if desired.
See step 6 on page 14.
6. Turn on the fan if desired.
See step 7 on page 14.
7. When you are finished exercising, remove the
key from the console.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings
for the next segment.
See step 8 on page 14.
16
HOW TO USE A COMPETITION WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select a competition workout.
If you have selected the manual mode, a workout,
or the iFit Live mode, press the Menu button to return to the main menu.
To select a competition
workout, press the iFit
Workouts button on the
screen. Then press the
Competition button on
the screen. You can
also press the
Competition Workouts button on the console.
To personalize race settings, press the Settings
button. Select a maximum incline by pressing the
increase and decrease buttons. Press the
Continue button. Then, select the speed at which
you will start walking in the race by pressing the increase and decrease buttons. Press the Continue
button.
You can race against one opponent or against a
group of four opponents.
If you choose to compete against one opponent,
press the Head to Head button. Select an opponent
by pressing the Next and Back buttons. For each
the opponent, the screen will display the oppo-
nentʼs level of endurance, average speed, maximum speed, and level of spirit. Each opponent may
appear more than once in different levels, or tiers,
of difficulty. The least challenging opponent is in
tier one and the most challenging opponent is in
tier three. Press the Select button.
If you choose to compete against a group, press
the Race Against a Pack button. Select a level of
difficulty for the race by pressing the increase and
decrease buttons. Level one is the easiest level
and level twelve is the hardest. Press the Continue
utton.
b
hen, select the distance of the race. You can view
T
more distances by pressing the Next button on the
screen.
3. Start the workout.
After you select a distance, READY, SET, GO will
appear on the screen and then the race will begin.
Hold the handrails and begin walking.
Adjust the speed and incline of the treadmill as desired. Your opponents will adjust their speed and
tactics based on the course and the situation.
The workout will continue until you complete the
race.
4. Select a display mode and monitor your
progress with the display.
The console offers several display options. The display option you select will determine which workout
information is shown. Press the Display button repeatedly to select the desired display option.
As you walk or run on the treadmill, the screen can
show the following workout information:
• An animation of a runner labeled “U,” which rep-
resents you. As you increase or decrease the
speed of the walking belt, the runner will speed
up or slow down.
• Animations of the other runners.
• A map of the course you are running. The map
will appear on the left side of the screen. The
runners will be represented by squares on the
map.
17
• The number of seconds that you are ahead of the
other runners or behind the lead runner. The seconds will appear below the map of the course. If
ou are behind the other runners, a negative
y
number of seconds will appear.
• Your rank in the race. You rank will appear inside
the map of the course.
• The incline level of the treadmill.
• The speed of the walking belt.
• The distance that you have walked or run.
• The bank, or amount, of energy your opponents
have left. As the amount of energy in a bank decreases, the speed of that opponent will de-
rease.
c
The racing tactics your opponents are using. Your
•
opponents will use different tactics in different situations. Consult a reputable source to learn more
about racing tactics.
• A status bar showing the distance you have travelled in the race and the distance you still have to
travel. The status bar will appear at the bottom of
the screen.
• The approximate number of calories you have
burned.
• The elapsed time.
• Your heart rate. Note: Your heart rate can be displayed only while you use the handgrip pulse sensor (see step 6 on page 14).
• A profile of the incline settings of the race. The
profile will appear in the lower part of the screen.
• The rate at which your opponents recover their
energy (rec).
• Your average speed.
• The average speed of the other runners.
5. Measure your heart rate if desired.
See step 6 on page 14.
6. Turn on the fan if desired.
See step 7 on page 14.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 14.
18
HOW TO USE THE IFIT LIVE MODE
The optional iFit Live module allows your treadmill to
ommunicate with your wireless network and unlocks
c
exciting new features. For example, you can download
ersonalized workouts, create your own workouts,
p
track your workout results, and access many other features. To purchase an iFit Live module at any time,
go to www.iFit.com or call the telephone number
on the front cover of this manual. You must have an
iFit Live module to use the iFit Live mode.
To use the iFit Live mode, press the iFit Live button on
the screen. For more information on the iFit Live mode,
go to www.iFit.com. Note: To use an iFit Live module,
you must have access to a computer with an internet
connection and a USB port. You must also have your
own wireless network including an 802.11b router with
SSID broadcast enabled (hidden networks are not supported). You will also need an iFit.com membership.
The display will also show the selected unit of measurement. To change the unit of measurement, press
the Speed increase button. To view distance and
peed in miles, select ENGLISH. To view distance and
s
speed in kilometers, select METRIC.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, press the
power switch into the reset position, and insert the key
into the console. However, when you remove the key,
the displays will remain lit, although the buttons will not
function. If the demo mode is turned on, the word “ON”
will appear in the display while the information mode is
selected. To turn on or turn off the demo mode, press
the Speed decrease button.
The display will also show the contrast level of the display. Press the Incline increase and decrease buttons
to adjust the contrast.
THE INFORMATION MODE
The console features an information mode that keeps
track of the total distance that the walking belt has
moved and the total number of hours that the treadmill
has been used. The information mode also allows you
to select miles or kilometers to measure distance and
speed, and to turn on and turn off the display demo
mode. You can also adjust the contrast level of the display.
To select the information mode, hold down the Stop
button, insert the key into the console, and then release the Stop button. When the information mode is
selected, the following information will appear in the
display:
The display will show the
total number of miles that
the walking belt has
moved and the total number of hours that the treadmill has been used.
To exit the information mode, remove the key from the
console.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the console. Locate the audio wire and plug it into the audio
jack on the side of the console. Then, plug the other
end into a jack on your MP3 player, CD player, or
other personal audio player. Make sure that the
audio wire is fully plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Then, adjust the
volume on your personal audio player or press the Vol
increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
19
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
o the lowest position before you fold the treadmill.
t
Then, remove the key and unplug the power cord.
AUTION: You must be able to safely lift 45 lbs. (20
C
kg) to raise, lower, or move the treadmill.
1. Hold the walking platform firmly in the location
shown by the arrow below. CAUTION: Bend your
legs and keep your back straight. Raise the
walking platform about halfway to the vertical position.
1
Walking
Platform
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
eft. CAUTION: Make sure that the plate is resting
l
against the pin. Moving the treadmill may require
wo people.
t
1. Hold the uprights and place one foot against a
wheel.
1
Uprights
Wheel
2. Hold the treadmill firmly with your right hand. Pull
the latch knob to the left and hold it. Raise the
walking platform until the plate passes the pin on
the latch knob. Then, slowly release the latch knob;
make sure that the plate is resting against the
pin.
2
Latch
Knob
Plate
Pin
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull the uprights back until the treadmill rolls freely
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the walking platform, and do not move the treadmill
over an uneven surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
with your right hand. Pull the latch knob to the left
and hold it. Next, lower the walking platform until it
is past the latch pin. Then, release the latch knob.
2. See drawing 1 at the left. Hold the walking platform firmly with both hands, and lower it to the floor.
CAUTION: Do not drop the walking platform.
Bend your legs and keep your back straight.
20
TROUBLESHOOTING
ost treadmill problems can be solved by following the steps below. Find the symptom that applies, and
M
follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the power switch located on the treadmill base
near the power cord. If the switch protrudes as shown,
the switch has tripped. To reset the switch, wait for five
minutes and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes
and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 19 to turn off the demo mode.
c
Tripped
Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord. Next, remove the #8 x 3/4" Hood Screws
(6) from the Motor Hood (73) and pivot the Motor
Hood off.
21
a
6
73
6

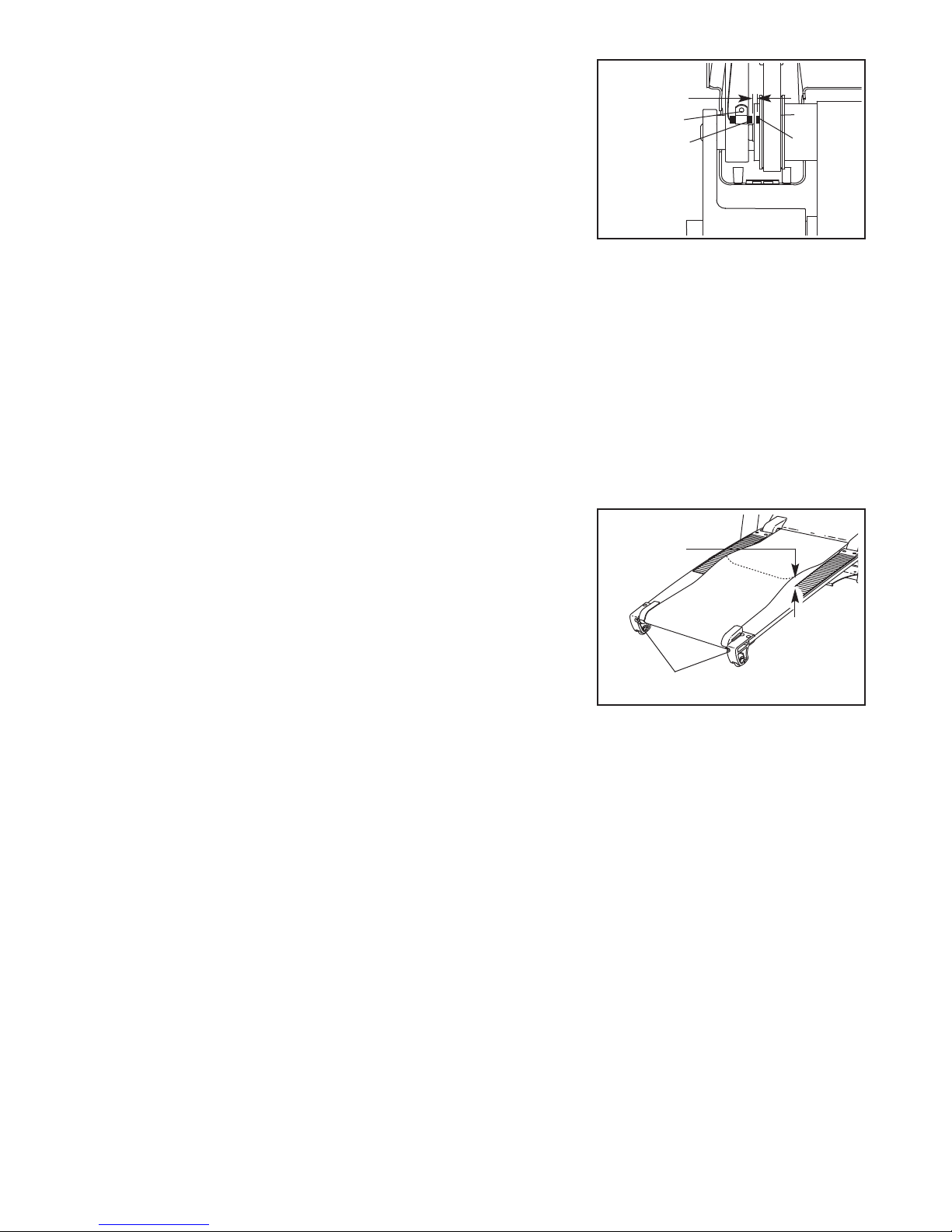

Locate the Reed Switch (71) and the Magnet (50) on
the left side of the Pulley (53). Turn the Pulley until the
Top
iew
V
1/8 in.
9
71
53
50
Magnet is aligned with the Reed Switch. Make sure
hat the gap between the Magnet and the Reed
t
Switch is about 1/8 in. (3 mm). If necessary, loosen
he #8 x 3/4" Washer Head Tek Screw (9), move the
t
Reed Switch slightly, and then retighten the Screw.
Reattach the Motor Hood (not shown) and run the
treadmill for a few minutes to check for a correct speed
reading.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Stop button and then
press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the
incline does not calibrate, press the Stop button, and then press the Incline increase or decrease
button again. When the incline is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
b
3–4 in.
POWER CORD. Using the hex key, turn both idler
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Idler Roller Bolts
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
22
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
NPLUG THE POWER CORD. If the walking belt
U
a
has shifted to the left, use the hex key to turn the left
dler roller bolt clockwise 1/2 of a turn; if the walking
i
belt has shifted to the right, turn the left idler roller
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the
b
hex key, turn both idler roller bolts clockwise, 1/4 of a
turn. When the walking belt is correctly tightened, you
should be able to lift each edge of the walking belt 3 to
4 in. (8 to 10 cm) off the walking platform. Be careful to
keep the walking belt centered. Plug in the power cord,
insert the key, and carefully walk on the treadmill for a
few minutes. Repeat until the walking belt is properly
tightened.
PROBLEM: The console display has lines running through it
SOLUTION: a. If lines appear in the console display, see THE INFORMATION MODE on page 19 and adjust the
contrast level of the display.
23
EXERCISE GUIDELINES
WARNING: Before beginning any
xercise program, consult your physician.
e
This is especially important for persons over
age 35 or persons with pre-existing health
problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
24
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
25
PART LIST—Model No. NTL11209.1 R0111A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
14#8 x 1" Tek Screw
265/16" x 3/4" Bolt
323/8" x 1 3/4" Bolt
445/16" Star Washer
56#8 x 1/2" Screw
62#8 x 3/4" Hood Screw
785/16" x 2" Bolt
82Idler Roller Bolt
9 11 #8 x 3/4" Washer Head Tek Screw
10 1 1/4" x 2" Bolt
11 13 #8 x 1/2" Electronics Screw
12 41 #8 x 3/4" Screw
13 1 Audio Wire
14 1 3/8" x 3 1/2" Bolt
15 1 3/8" x 2" Hex Bolt
16 1 3/8" x 1 1/4" Bolt
17 1 3/8" x 1 1/2" Bolt
18 4 #8 x 3/4" Bracket Screw
19 2 Motor Bolt
20 2 3/8" x 3 1/4" Bolt
21 2 3/8" x 2 1/2" Bolt
22 2 3/8" x 2 3/8" Bolt
23 2 3/8" Flat Washer
24 8 5/16" Flat Washer
25 2 1/2" Pivot Washer
26 2 1/4" Roller Star Washer
27 2 1/2" Thrust Washer
28 2 1/4" x 1/2" Bolt
29 1 Idler Arm Pulley
30 2 Spring Washer
31 1 Belly Pan Support Bracket
32 9 3/8" Nut
33 8 5/16" Nut
34 2 Hood Clip
35 2 1/2" Plastic Washer
36 1 Ider Arm Washer
37 4 Front Wheel Spacer
38 3 Hood Mount
39 2 Side Hood Mount
40 2 Idler Roller Spring
41 1 Idler Arm Spring
42 1 Hex Key
43 1 Upright
44 1 Pulse Crossbar
45 2 Pulse Bar Ground Wire
46 1 #8 Star Washer
47 1 Front Left Cap
48 2 Belt Guide
49 1 Latch Plate
50 1 Magnet
51 1 Left Foot Pad
52 1 Drive Roller Ground Wire
53 1 Drive Roller/Pulley
54 1 Walking Belt
55 1 Console Ground Wire
56 1 Front Right Cap
57 2 Releasable Tie
58 1 Plastic Washer
59 8 Plastic Tie
60 9 Plastic Clamp
61 1 Right Foot Pad
62 1 Walking Platform
63 1 Idler Roller
64 2 Rear Wheel
65 1 Right Rear Foot
66 1 Right Idler Roller Guard
67 1 Left Idler Roller Guard
68 1 Left Rear Foot
69 1 Warning Decal
70 1 Idler Arm
71 1 Reed Switch
72 1 Reed Switch Clamp
73 1 Motor Hood
74 1 Controller
75 1 Electronics Plate
76 1 Incline Stop Bracket
77 1 Motor Belt
78 1 Drive Motor
79 1 Incline Motor
80 1 Belly Pan
81 1 Power Switch
82 1 Power Cord
83 1 Power Cord Grommet
84 1 Hole Plug
85 1 Belly Pan Grommet
86 1 Support Bracket
87 1 Lift Frame
88 1 Latch Assembly
89 1 Latch Housing
90 2 Wheel
91 2 Wheel Bushing
92 2 Wheel Spacer
93 1 Upright Wire
94 2 Base Cap
95 1 Base Ground Wire
96 0 Not Used
97 1 Base Plate
98 1 Base Plate Edging
99 2 5/16" Cage Nut
100 4 Thin Base Foot
26
Key No. Qty. Description Key No. Qty. Description
101 1 Left Handrail
102 1 Right Handrail
103 2 Handrail Cover
04 2 Console Clamp
1
105 1 Ground Wire
06 1 Key/Clip
1
107 8 Wire Clamp
108 1 Console
109 1 Console Base
111 1 Right Accessory Tray
112 1 Module Housing
113 1 Access Door
14 1 Pulse Bar
1
115 4 #8 x 1" Screw
16 2 1/4" Star Washer
1
117 4 #10 x 1/2" Screw
118 2 #10 x 3/4" Screw
*–User's Manual
110 1 Left Accessory Tray
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
11
52
22
48
48
56
49
5
51
54
61
62
7
7
24
27
42
69
63
21
65
64
66
7
8
57
59
31
18
50
53
60
12
32
40
30
67
64
68
7
21
32
33
8
26
40
30
24
24
24
26
33
33
33
47
60
9
18
EXPLODED DRAWING A—Model No. NTL11209.1 R0111A
28
76
79
14
32
19
32
15
16
17
29
32
23
32
41
87
36
71
72
9
38
39
9
9
9
39
10
32
35
35
27
22
11
11
11
75
74
73
34
6
83
81
80
6
12
86
12
84
12
11
46
85
5
11
12
12
25
25
34
78
77
82
70
23
58
EXPLODED DRAWING B—Model No. NTL11209.1 R0111A
29
3
97
98
1
90
32
20
37
92
91
1
32
1
43
88
1
11
95
94
94
3
100
100
90
20
37
92
91
93
93
117
118
89
103
2
1
01
102
2
2
4
2
4
99
99
115
104
104
115
11
105
28
28
103
116
116
117
100
100
EXPLODED DRAWING C—Model No. NTL11209.1 R0111A
30
106
113
44
12
1
07
12
45
12
110
12
12
111
12
109
108
12
12
12
112
114
12
12
12
12
12
12
45
11
11
13
5
55
12
12
EXPLODED DRAWING D—Model No. NTL11209.1 R0111A
31
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.nordictrackservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The walking platform, lift frame, and drive motor are warranted
for a lifetime. Parts are warranted for two (2) years and labor for one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 306387 R0111A Printed in USA © 2011 ICON IP, Inc.
Loading...
