WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
2
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the treadmill only as described in this
manual.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
11. When connecting the power cord (see page
14), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
12. If an extension cord is needed, use only a
3-conductor, 14-gauge (1 mm2) cord that is
no longer than 5 ft. (1.5 m).
13. Keep the power cord away from heated
surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
TROUBLESHOOTING on page 32 if the treadmill is not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 16).
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
8. The treadmill should be used only by persons weighing 400 lbs. (181 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
18. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
3
19. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 5 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
20. Do not attempt to move the treadmill until it
is properly assembled. (See ASSEMBLY on
page 7, and HOW TO FOLD AND MOVE THE
TREADMILL on page 31.) You must be able to
safely lift 45 lbs. (20 kg) to move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
25. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary
NORDICTRACK® PRO 3000 treadmill. The PRO 3000
treadmill offers an impressive selection of features
designed to make your workouts more enjoyable and
effective. And when you’re not exercising, the unique
treadmill can be folded up, requiring less than half the
oor space of other treadmills.
For your benet, read this manual carefully before
using the treadmill. If you have questions after
Length: 6 ft. 10 in. (208 cm)
Width: 3 ft. 1 in. (94 cm)
Weight: 248 lbs (113 kg)
Handrail
Upright
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Adjustable Console
Tray
Heart Rate Monitor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Platform Cushion
Ultrasonic Sensor
(see page 18)
5
PART IDENTIFICATION CHART
Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is pre-
attached. Extra parts may be included.
3/8" External Star
Washer (4)–4
5/16" x 3/4"
Screw (1)–8
5/16" Flat Washer
(6)–4
3/8" x 3 1/4" Screw (2)–4
3/8" Star
Washer (3)–4
3/8" x 2" Bolt (5)–1
3/8" Nut (8)–1
6
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials, except for the packing materials on the uprights. Do not dispose of the packing
materials until you nish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
an adjustable wrench
To avoid damaging parts, do not use power tools.
1
7
2. Make sure that the power cord is unplugged.
Also, make sure to assemble the treadmill in
the location where it will be used. If there is a
strap around the treadmill, remove it.
With the help of a second person, hold both
Uprights (96) securely and remove the packing
materials (A) at the same time.
Then, carefully raise the Uprights (96) to the
vertical position so that the base of the Uprights
rests flat on the floor. Be careful not to pinch
the power cord.
2
A
A
96
Base
3. Identify the left base leg assembly (B). Insert the
left base leg assembly into the left Upright (96).
Attach the left base leg assembly with two 5/16"
x 3/4" Screws (1). Firmly tighten the Screws.
Attach the right base leg assembly (not
shown) to the right Upright (96) in the same
way.
3
96
1
B
8
4. Identify the Left Upright Cover (100) and the
Right Upright Cover (98).
4
Slide the Left Upright Cover (100) onto the left
Upright (96). Press the Left Upright Cover onto
the lower part of the left Upright and the left base
leg assembly (B) until it snaps into place.
Press the Right Upright Cover (98) onto the
right Upright (96) in the same way.
5. Cut the tie securing the Upright Wire (92).
Identify the left handrail assembly (C). Hold the
left handrail assembly near the left Upright (96).
Insert the Upright Wire (92) through the opening
in the bottom of the left handrail assembly.
5
100
98
96
96
B
2
3
C
92
See the inset drawing. Press the left handrail
assembly (C) onto the left Upright (96). Be care-ful not to pinch the Upright Wire (92). Make
sure that the Upright Wire is resting in the slot at
the top of the left Upright.
Attach the left handrail assembly (C) to the left
Upright (96) with two 3/8" x 3 1/4" Screws (2)
and two 3/8" Star Washers (3).
Attach the right handrail assembly (D) in the
same way. Note: There is no wire on the right
side.
96
C
Slot
D
Slot
2
3
92
96
9
6. With the help of a second person, hold the console assembly (E) near the Uprights (96).
6
Connect the Upright Wire (92) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Then, connect the pulse wires (F). Make sure to
connect the pulse wires on the right side (not
shown) also.
92
96
E
F
Console
Wire
92
10
7. With the help of a second person, hold the
console assembly (E) near the left handrail
assembly (C). Position the wires (G) so that
they will not get pinched as you set the console
assembly on the left handrail assembly. Be care-
ful not to pinch any wires.
See the inset drawing. Make sure that the con-
sole assembly (E) is flush against the handrail
assemblies (C, D) in the locations shown by the
arrows.
Attach the console assembly (E) to the handrail
assemblies (C, D) with four 5/16" x 3/4" Screws
(1), four 5/16" Flat Washers (6), and four 3/8"
External Star Washers (4) as shown (only one
side is shown). Start all four Screws and then
tighten them.
7
E
G
C
4
6
1
8. Identify the Left and Right Trays (107, 109).
Press the Left and Right Trays (107, 109) into
the console assembly (E).
D
C
E
8
E
107
109
11
9. Raise the Frame (61) to the position shown.
Have a second person hold the Frame until
this step is completed.
Align the upper end of the Storage Latch (65)
with the holes in the bracket on the Frame (61).
Attach the Storage Latch with the 3/8" x
2" Bolt (5) and the 3/8" Nut (8). Firmly tighten
the 3/8" Nut.
Lower the Frame (61) as described on page 31.
9
61
8
10. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see page 33).
5
65
12
THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
a chest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sensor under the buckle
on the chest strap.
The tab should be
flush with the front of
the sensor.
The heart rate monitor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that
the logo is rightside-up. Then, attach the other end of the chest strap
to the sensor. Adjust the length of the chest strap, if
necessary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
Tabs
Chest
Strap
Sensor
Tab
Sensor
Buckle
• Do not expose the heart rate monitor to direct sunlight for extended periods of time; do not expose it to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate monitor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical conditions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
13
OPERATION AND ADJUSTMENT
FR/SP
UK
UK
AUS
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
DANGER:Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
Socket on Treadmill
Power Cord
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
UK
Outlet
Australia
Outlet
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. The console features revolutionary
iFit technology that enables the treadmill to communicate with your wireless network. With iFit technology,
you can download personalized workouts, create your
own workouts, track your workout results, and access
many other features. See www.iFit.com for complete
information.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session. In addition, you
can set a calorie, time, distance, or pace goal.
The console also offers user-defined workouts that
allow you to create your own workouts and store them
in memory for future use.
When you use the manual mode, you can change the
speed and incline of the treadmill with the touch of a
button.
As you exercise, the console will display instant exercise feedback. You can also measure your heart rate
using the handgrip heart rate monitor or the chest heart
rate monitor.
You can even browse the Internet or listen to your
favorite workout music or audio books with the console’s sound system while you exercise.
To turn on the power, see page 16. To learn how to
use the touch screen, see page 16. To set up the
console, see page 17.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see step 4 on page 26.
For simplicity, all instructions in this section refer to
kilometers.
15
HOW TO TURN ON THE POWER
HOW TO USE THE TOUCH SCREEN
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room temperature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 14). Next, locate the
power switch on the treadmill
frame near the power cord.
Make sure that the switch is
in the reset position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the demo mode is turned on,
the displays will show a preset presentation after
you plug in the power cord and press the power
switch into the reset position, before you insert the
key. To turn off the demo mode, see step 7 on
page 27.
Next, stand on the
foot rails of the
treadmill. Locate
the clip attached
to the key, and
slide the clip
securely onto the
waistband of your
clothes. Then,
insert the key into
the console. After several seconds, the displays will
light. IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Reset
Key
Clip
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets.
You can slide or flick your finger against the screen
to move certain images on the screen, such as
the displays in a workout (see step 5 on page 19).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other characters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital characters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
• Use these buttons on the console to navigate the
tablet. Press the back button to return to the previous screen. Press the home button to return to the
main menu. Press the settings button to view the
settings menu.
Back
Settings
Home
Note: It may take a minute for the console to be
ready for use.
16
HOW TO SET UP THE CONSOLE
5. Adjust the console angle.
Before using the treadmill for the first time, set up the
console.
1. Connect to your wireless network.
Note: In order to access the Internet, download iFit
workouts, and use other features of the console,
you must be connected to a wireless network. See
HOW TO USE THE WIRELESS NETWORK MODE
on page 29 to connect the console to your wireless
network.
2. Check for firmware updates.
First, see step 1 on page 26 and step 2 on page 28
and select the maintenance mode. Then, see step
3 on page 28 and check for firmware updates.
3. Calibrate the incline system.
See step 4 on page 28 and calibrate the incline
system of the treadmill.
4. Create an iFit account.
Touch the globe button near the lower-left corner of
the screen and touch the iFit button.
Note: For information about navigating in the
browser, see page 30. The browser will open to the
iFit.com home page. Touch the Register button in
the upper-right corner of the screen.
The browser will open to the iFit.com registration
page. Touch the Buy Now button to register for an
iFit account. If you have an activation code, select
the code activation option. Then, follow the prompts
on the screen to sign up for your iFit membership.
Press the con-
sole tilt buttons to
adjust the angle
of the console as
desired.
You can save up to four console tilt settings for
different users of the treadmill. To save the current
console tilt setting, first press the Memory button,
then immediately press one of the numbered User
buttons.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 18. To use an
onboard workout, see page 21. To use a set-a-goal
workout, see page 22. To create a user-defined
workout, see page 23. To use a user-defined workout, see page 23. To use an iFit workout, see page
25.
To use the equipment settings mode, see page 26.
To use the maintenance mode, see page 28. To use
the wireless network mode, see page 29. To use
the sound system, see page 30. To use the Internet
browser, see page 30.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use
the treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 33).
17

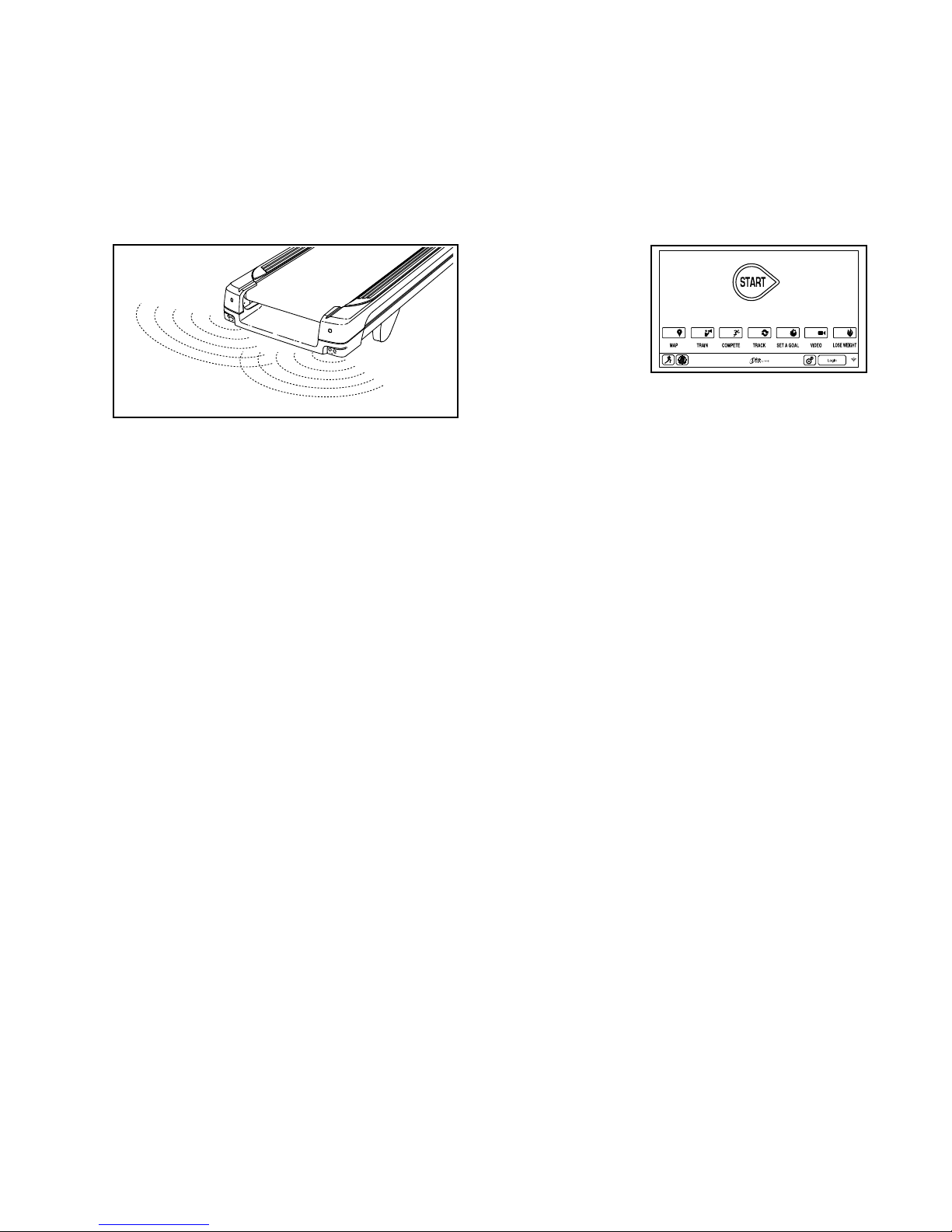

Note: The treadmill features an ultrasonic sensor
that can detect an object behind the treadmill (to
turn on or turn off the ultrasonic sensor, see steps
1 and 2 on page 26 and step 12 on page 27).
If the ultrasonic sensor detects an object, one
or more messages will appear on the screen to
alert you. If the object is in the zone closest to the
treadmill, the walking belt will stop automatically.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
16. Note: It may take a minute for the console to
be ready for use.
2. Select the main menu.
When you turn
on the power,
the main menu
will appear
after the
console boots
up. Touch the
home button in
the lower-left corner of the screen (not shown here)
to return to the main menu at any time.
3. Start the walking belt and adjust the speed.
Touch the Start button on the screen or press the
Start button on the console to start the walking belt.
The walking belt will begin to move at 2 Km/H.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed increase and
decrease buttons. Each time you press one of the
buttons, the speed setting will change by 0.1 Km/H;
if you hold down the button, the speed setting will
change in increments of 0.5 Km/H.
If you press one of the numbered Speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button.
18
4. Change the incline of the treadmill as desired.
• The number of vertical meters you have climbed
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the numbered Incline buttons. Each time you press
one of the buttons, the incline will gradually change
until it reaches the selected incline setting.
Note: The first time you adjust the incline, you must
first calibrate the incline system (see step 4 on
page 28).
5. Monitor your progress.
The console
offers several display
modes. The
display mode
that you select
will determine
which workout
information is shown. To select the desired display
mode, simply flick or slide the screen. You can also
view additional information by touching the red
boxes on the screen.
• The speed of the walking belt
• A track representing 400 m (1/4 mile)
• Your pace in minutes per mile
• Your current lap number
• Your heart rate (see step 6 on the next page)
To pause the workout, touch one of the menu
buttons on the screen or press the Stop button
on the console. To continue the workout, touch
the Resume button or press the Start button. To
end the workout session, touch the End Workout
button.
6. Measure your heart rate if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the console will not display your heart
rate accurately. For information about the chest
heart rate monitor, see page 13.
As you walk or run on the treadmill, the screen can
show the following workout information:
• The incline level of the treadmill
• The time elapsed
• The time left (Note: The manual mode does not
have a time left countdown.)
• The approximate number of calories you have
burned
• The approximate number of calories you are
burning per hour
• The distance that you have walked or run
Before using
the handgrip
heart rate monitor, remove the
sheets of plastic
from the metal
contacts. In addition, make sure
that your hands
are clean.
To measure your heart rate, stand on the foot
rails and hold the contacts with your palms for
approximately ten seconds; avoid moving your hands. When your pulse is detected, your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
Contacts
19
7. Turn on the fan if desired.
The fan features multiple speed settings and an
auto mode. When the auto mode is selected,
the speed of the fan will automatically increase
and decrease as the speed of the walking belt
increases and decreases.
Press the fan increase
button to increase the
fan speed. If you press
the fan increase button
once while the fan is on
its maximum speed setting, the auto fan mode
will be selected. Press the fan decrease button
repeatedly to decrease the fan speed or to turn off
the fan.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and touch the home
button or the back button on the screen or press
the Stop button on the console. A workout summary will appear on the screen. After you view
the workout summary, touch the Finish button to
return to the main menu. You may also be able to
either save or publish your results using one of the
options on the screen. Then, remove the key from
the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
20
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
the Finish button to return to the main menu. You
may also be able to either save or publish your
results using one of the options on the screen.
See HOW TO TURN ON THE POWER on page 16.
2. Select an onboard workout.
To select an onboard workout, press the Intensity
button, the Speed button, the Incline button, or the
Calorie button on the console. Note: You can also
touch the runner button on the screen to select the
Workouts menu.
Then, select the desired workout. The screen will
show the name, duration, and distance of the workout. The screen will also show the approximate
number of calories you will burn during the workout
and a profile of the incline settings of the workout.
3. Start the workout.
Touch the Start Workout button to start the work-
out. A moment after you touch the button, the
walking belt will begin to move. Hold the handrails
and begin walking.
Each workout is divided into several segments.
One speed setting and one incline setting are
programmed for each segment. Note: The same
speed setting and/or incline setting may be programmed for consecutive segments.
If the speed and/or incline settings are too high or
too low at any time during the workout, you can
override the settings by pressing the Speed or
Incline buttons. If you press a Speed button, you
can then manually control the speed (see step 3
on page 18). If you press an Incline button, you
can then manually control the incline (see step 4
on page 19). To return to the programmed speed
and/or incline settings of the workout, rst, view
the prole. Then, touch the Follow Workout button.
To pause the workout, touch either the back button
or the home button in the lower-left corner of the
screen, or press the Stop button on the console. To
continue the workout, touch the Resume button on
the screen or press the Start button on the console.
To end the workout, touch the End Workout button.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manually change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
4. Monitor your progress.
During the workout, the profile will show your prog-
ress. To view the profile, flick or slide the screen.
The vertical colored line will indicate the current
segment of the workout. The bottom profile represents the incline setting of the current segment.
The top profile represents the speed setting of the
current segment.
At the end of the first segment of the workout, the
treadmill will automatically adjust to the speed and/
or incline settings for the next segment.
The workout will continue in this way until the last
segment ends. The walking belt will then slow to
a stop and a workout summary will appear on the
screen. After you view the workout summary, touch
See step 5 on page 19. The screen can also show
a profile of the speed and incline settings of the
workout.
5. Measure your heart rate if desired.
See step 6 on page 20.
6. Turn on the fan if desired.
See step 7 on page 20.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
21
HOW TO USE A SET-A-GOAL WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select the main menu.
See step 2 on page 18.
3. Select a set-a-goal workout.
To select a set-a-goal workout, touch the Set A
Goal button on the screen or press the Set A Goal
button on the console.
To set a
calorie, time,
distance, or
pace goal,
touch the
Calories, Time,
Distance, or
Pace button.
Then, touch the increase and decrease buttons
on the screen to select a calorie, time, distance, or
pace goal and to select the speed and incline for
the workout. The screen will show the duration and
distance of the workout, and the approximate number of calories you will burn during the workout.
4. Start the workout.
Touch the Start button to start the workout. A
moment after you touch the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
The workout will function in the same way as the
manual mode (see pages 18 to 20).
The workout will continue until you reach the goal
that you set. The walking belt will then slow to a
stop, and a workout summary will appear on the
screen. After you view the workout summary, touch
the Finish button to return to the main menu. You
may also be able to either save or publish your
results using one of the options on the screen.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on various factors such as
your weight.
5. Monitor your progress.
See step 5 on page 19.
6. Measure your heart rate if desired.
See step 6 on page 20.
7. Turn on the fan if desired.
See step 7 on page 20.
8. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
22
HOW TO CREATE A USER-DEFINED WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a user-defined workout.
To select a user-defined workout, press the Custom
button on the console.
Select the desired workout from the user-defined
workouts menu. Then, touch the Record New
button.
press the Stop button to end your workout. The
workout you created will then be stored in memory.
A workout summary will appear on the screen. After
you view the workout summary, touch the Finish
button to return to the main menu. You may also
be able to either save or publish your results using
one of the options on the screen.
4. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
3. Start the workout.
Each workout is divided into segments. You can
program one speed level and one incline level for
each segment.
To program a speed level for the first segment, sim-
ply adjust the speed of the walking belt by pressing
the numbered Speed buttons.
To program an incline level for the first segment,
simply adjust the incline of the treadmill by pressing
the numbered Incline buttons.
At the end of the first segment, the workout will
store the current speed and incline levels in
memory.
Program a speed level and an incline level for the
second segment as described above.
Continue exercising for as long as desired. Then,
HOW TO USE A USER-DEFINED WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a user-defined workout.
To select a user-defined workout, press the Custom
button on the console.
Select the desired workout from the user-defined
workouts menu. Then, touch the Repeat button.
Note: To create a user-defined workout, touch the
Record New button. See HOW TO CREATE A
USER-DEFINED WORKOUT at the left.
The screen will show the name, duration, and
distance of the workout. The screen will also show
the approximate number of calories you will burn
during the workout.
23
3. Start the workout.
Touch the Start Workout button to start the workout.
Each workout is divided into segments. One speed
level and one incline level are programmed for
each segment. Note: The same speed level and/or
incline level may be programmed for consecutive
segments.
During the workout, the profiles will show your
progress. To view the profiles, flick or slide the
screen. The vertical colored line will indicate the
current segment of the workout. The lower profile
represents the incline level of the current segment.
The upper profile represents the speed level of the
current segment.
To pause the workout, touch either the back button
or the home button at the bottom of the screen. To
continue the workout, touch the Resume button. To
end the workout, touch the End Workout button.
The workout will continue in this way until the last
segment ends. A workout summary will appear on
the screen. After you view the workout summary,
touch the Finish button to return to the main menu.
You may also be able to either save or publish your
results using one of the options on the screen.
4. Change the workout if desired.
If desired, you can change the workout. See HOW
TO CREATE A USER-DEFINED WORKOUT on
page 23.
If the speed and/or incline settings are too high or
too low at any time during the workout, you can
override the settings by pressing the Speed or
Incline buttons. If you press a Speed button, you
can then manually control the speed (see step 3
on page 18). If you press an Incline button, you
can then manually control the incline (see step 4
on page 19). To return to the programmed speed
and/or incline settings of the workout, rst, view
the prole. Then, touch the Follow Workout button.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manually change the speed or incline of the treadmill
during the workout, the number of calories you
burn will be affected.
5. Monitor your progress.
See step 5 on page 19.
6. Measure your heart rate if desired.
See step 6 on page 20.
7. Turn on the fan if desired.
See step 7 on page 20.
8. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
24
HOW TO USE AN IFIT WORKOUT
Note: To use an iFit workout, you must have access
to a wireless network (see HOW TO USE THE
WIRELESS NETWORK MODE on page 29). An iFit
account is also required.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select the main menu.
Before some workouts will download, you must add
them to your schedule on iFit.com.
For more information about the iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the screen will
show the name, duration, and distance of the workout. The screen will also show the approximate
number of calories you will burn during the workout. If you select a competition workout, the display
will count down to the beginning of the race.
See step 2 on page 18.
3. Log in to your iFit account.
If you have not already done so, touch the Login
button to log in to your iFit account. The screen
will ask for your iFit.com username and password.
Enter them and touch the Login button. Touch the
Cancel button to exit the login screen.
4. Select an iFit workout.
To download
an iFit workout
in your schedule, touch the
Map, Train,
Video, or Lose
Weight button
to download
the next workout of that type in your schedule. Note: You may
be able to access demo workouts through these
options, even if you do not log in to an iFit account.
To compete in a race that you have previously
scheduled, touch the Compete button. To view your
Workout History, touch the Track button. To use a
set-a-goal workout, touch the Set A Goal button
(see page 22). Note: You can also press one of the
iFit buttons on the console.
To switch users within the account, touch the user
button near the lower right corner of the screen.
5. Start the workout.
See step 3 on page 21.
During some workouts, an audio coach may guide
you through your workout.
6. Monitor your progress.
See step 5 on page 19. The screen may also show
a map of the trail you are walking or running.
During a competition workout, the screen will show
the speeds of the iFit users and the distances they
have covered. The screen will also show the numbers of seconds that the other iFit users are ahead
of you or behind you.
7. Measure your heart rate if desired.
See step 6 on page 20.
8. Turn on the fan if desired.
See step 7 on page 20.
9. When you are finished exercising, remove the
key from the console.
See step 8 on page 20.
For more information about the iFit mode, go to
www.iFit.com.
25
HOW TO USE THE EQUIPMENT SETTINGS MODE
4. Select the unit of measurement.
1. Select the settings main menu.
Insert the key into the
console (see HOW
TO TURN ON THE
POWER on page 16).
Next, select the main
menu (see step 2 on
page 18). Then, touch
the gears button near the lower right corner of the
screen to select the settings main menu.
2. Select the equipment settings mode.
In the settings main menu, touch the Equipment
Settings button. Note: Slide or ick the screen to
scroll up or down through the options.
3. Select a language.
To select a language, touch the Language button
and select the desired language. Then, touch the
back button on the screen to return to the equipment settings mode. Note: This feature may not be
enabled.
Touch the US/Metric button to view the selected
unit of measurement. Change the unit of measurement, if desired. Then, touch the back button on
the screen.
5. Select a timezone.
Touch the Timezone button. Select your local time-
zone to have the console sync to your local time.
Then, touch the back button.
6. Select an update time.
To select a time for automatic console updates,
touch the Update Time button and select the
desired time. Then, touch the back button on the
screen.
IMPORTANT: You must still unplug the power
cord after using the treadmill. Set the update
time for a time when you normally use the
treadmill and will be available to unplug the
power cord after an update.
26
7. Turn on or turn off the display demo mode.
The console features a display demo mode,
designed to be used if the treadmill is displayed
in a store. While the demo mode is turned on, the
console will function normally when you plug in
the power cord, press the power switch into the
reset position, and insert the key into the console.
However, when you remove the key, the screen will
show a demo presentation.
Disable checkbox. CAUTION: Read the safety
warning on the screen before disabling the
key. To enable the key again, touch the Enable
checkbox.
11. Enable or disable a passcode.
The console features a child-safety passcode,
designed to prevent unauthorized users from using
the treadmill.
To turn on or turn off the display demo mode, rst
touch the Demo Mode button. Next, touch the On
checkbox or the Off checkbox. Then, touch the
back button on the screen.
8. Enable or disable the Internet browser.
To enable or disable the Internet browser, first
touch the Browser button. Next, touch the Enable
checkbox or the Disable checkbox. Then, touch the
back button on the screen.
9. Enable or disable street view.
During some workouts, the screen may show a
map. To enable or disable the street view feature of
the maps, first touch the Street View button. Next,
touch the Enable checkbox or the Disable checkbox. Then, touch the back button on the screen.
10. Enable or disable the key.
Note: This feature may not be enabled on your
treadmill.
Touch the Passcode button. To enable a pass-
code, touch the Enable checkbox. Then, enter a
4-digit passcode of your choice. Touch Save to use
this passcode. Touch Cancel to return to the equipment settings mode and not use a passcode. To
disable the passcode, touch the Disable checkbox.
Note: If a passcode is enabled, the console will
regularly ask for you to enter the passcode. The
console will remain locked until the correct passcode is entered. IMPORTANT: If you forget your
passcode, enter the following master passcode
to unlock the console: 1985.
12. Enable or disable the safety zone feature.
The treadmill features ultrasonic sensors that can
detect objects that may come too close to the back
of the treadmill, such as children or pets.
To enable or disable the safety zone sensor, first
touch the Safety Zone button. Next, touch the
Enable checkbox or the Disable checkbox. Then,
touch the back button on the screen.
You can disable the key so that the treadmill does
not require the use of the key, if desired. Touch the
Safety Key button. To disable the key, touch the
13. Exit the equipment settings mode.
To exit the equipment settings mode, touch the
back button on the screen.
27
HOW TO USE THE MAINTENANCE MODE
1. Select the settings main menu.
See step 1 on page 26.
2. Select the maintenance mode.
In the settings
main menu,
touch the
Maintenance
button to enter
the maintenance mode.
The maintenance mode main screen will show
information about the model and version of the
treadmill.
3. Update the console firmware.
Note: Occasionally, a firmware update may cause
your console to function slightly differently. These
updates are always designed to improve your exercise experience.
4. Calibrate the incline system of the treadmill.
Touch the Calibrate Incline button. Then, touch
the Begin button to calibrate the incline system.
The treadmill will automatically rise to the maximum incline level, lower to the minimum incline
level, and then return to the starting position. This
will calibrate the incline system. Press the Cancel
button to return to the maintenance mode. When
the incline system is calibrated, touch the Finish
button.
IMPORTANT: Keep pets, feet, and other objects
away from the treadmill while the incline system is calibrating. In an emergency, pull the key
from the console to stop the incline calibration.
For the best results, regularly check for firm-
ware updates.
Touch the Firmware Update button to check for
firmware updates using your wireless network. The
update will begin automatically.
To avoid damaging the treadmill, do not turn off
the power or remove the key while the firmware
is being updated.
The screen will show the progress of the update.
When the update is complete, the treadmill will turn
off and then turn back on. If it does not, press the
power switch into the off position. Wait for several
seconds, and then press the power switch into the
reset position. Note: It may take a few minutes for
the console to be ready for use.
5. View machine information.
Touch the Machine Info button to view information
about your treadmill. After you view the information,
touch the back button on the screen.
6. Find keycodes.
The Keycodes button is intended to be used by
service technicians to identify whether a certain
button is working correctly.
7. Exit the maintenance mode.
To exit the maintenance mode, touch the back but-
ton on the screen.
28
HOW TO USE THE WIRELESS NETWORK MODE
The console features a wireless network mode that
allows you to set up a wireless network connection.
1. Select the settings main menu.
See step 1 on page 26.
An information box will ask if you want to connect
to the wireless network. Touch the Connect button
to connect to the network or touch the Cancel button to return to the list of networks. If the network
has a password, touch the password entry box. A
keyboard will appear on the screen. To view the
password as you type it, touch the Show Password
checkbox.
2. Select the wireless network mode.
In the settings main menu, touch the Wireless
Network button to enter the wireless network mode.
3. Enable Wi-Fi.
Make sure that the Wi-Fi checkbox is marked with
a green checkmark. If it is not, touch the Wi-Fi
menu option once and wait for a few seconds. The
console will search for available wireless networks.
4. Set up and manage a wireless network
connection.
When Wi-Fi is enabled, the screen will show a list
of available networks. Note: It may take several
seconds for the list of wireless networks to appear.
Make sure that the checkbox on the Network
notication menu option is marked with a green
checkmark to have the console notify you when a
wireless network is within range and available.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported).
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password, you
will also need to know the password.
To use the keyboard, see HOW TO USE THE
TOUCH SCREEN on page 16.
When the console is connected to your wireless
network, the WiFi menu option at the top of the
screen will display the word CONNECTED. Then,
press the back button on the console to return to
the wireless network mode.
To disconnect from a wireless network, select the
wireless network and then touch the Forget button.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. Note: Passwords are case-sensitive.
Note: The iFit mode supports unsecured and
secured (WEP, WPA, and WPA2) encryption. A
broadband connection is recommended; performance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for
assistance.
5. Exit the wireless network mode.
To exit the wireless network mode, press the back
button on the console.
29
HOW TO USE THE SOUND SYSTEM
HOW TO USE THE INTERNET BROWSER
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button
on your personal audio
player. Adjust the volume
level using the volume
increase and decrease
buttons on the console or
the volume control on your
personal audio player.
If you are using a personal CD player and the CD
skips, set the CD player on the oor or another at
surface instead of on the console.
Note: To use the browser, you must have access to a
wireless network including an 802.11b/g/n router with
SSID broadcast enabled (hidden networks are not
supported).
To open the browser, touch the globe button near the
lower left corner of the screen. Then, select a website.
To return to the previous web page, press the back
button on the console or touch the Browser Back button on the screen. To exit the browser, press the home
button on the console or touch the Return button on
the screen.
To enter a different web address in the URL bar, first,
slide your finger down the screen to view the URL bar,
if necessary. Then, touch the URL bar, use the keyboard to enter the address, and touch the Go button.
To use the keyboard, see HOW TO USE THE TOUCH
SCREEN on page 16.
Note: While you are using the browser, the speed,
incline, fan, and volume buttons will still function, but
the workout buttons will not function.
Note: If you have questions after following these
instructions, go to support.iFit.com for assistance.
30
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
to zero before you fold the treadmill. Then, remove
the key and unplug the power cord. CAUTION: You
must be able to safely lift 45 lbs. (20 kg) to raise,
lower, or move the treadmill.
1. Hold the metal frame rmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
left. CAUTION: Make sure that the latch knob is
locked in the storage position. Moving the treadmill
may require two people.
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the oor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
Wheel
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the tread-
mill frame with your right hand. Then, pull the latch
knob to the left. IMPORTANT: Do not turn the latch knob. If necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
rmly with both hands, and lower it to the oor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
31
TROUBLESHOOTING
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a
properly earthed outlet (see page 15). If an extension cord is needed, use only a 3-conductor, 14gauge (1 mm2) cord that is no longer than
5 ft. (1.5 m).
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
c
Tripped
Reset
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above).
If the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console, and then
reinsert it.
d. If the treadmill still will not run, please see the front
cover of this manual.
SYMPTOM: The console screen remains lit when
you remove the key from the console
a. The console features a demo mode, designed to
be used if the treadmill is displayed in a store. If
the screen shows a demo presentation when you
remove the key, the demo mode is turned on. To
turn off the demo mode, hold down the Stop button
for a few seconds. If the screen is still lit, see step 7
on page 27 to turn off the demo mode.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Calibrate the incline system (see step 4 on
page 28).
32
SYMPTOM: The walking belt slows when walked
on
SYMPTOM: The walking belt is not centered
between the foot rails
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (1 mm2) cord that is no longer
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill per-
formance may decrease and the walking belt may
become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
b
2–3 in.
IMPORTANT: If the walking belt rubs against the
foot rails, the walking belt may become damaged.
a. First, remove the key and UNPLUG THE POWER
CORD. If the walking belt has shifted to the left,
use the hex key to turn the left idler roller screw
clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler roller screw
counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the
power cord, insert the key, and run the treadmill
for a few minutes. Repeat until the walking belt is
centered.
a
Foot Rails
Idler Roller Screws
c. Your treadmill features a walking belt coated with
high-performance lubricant. IMPORTANT: Never
apply silicone spray or other substances to
the walking belt or the walking platform unless
instructed to do so by an authorized service
representative. Such substances may deteriorate the walking belt and cause excessive wear.
If you suspect that the walking belt needs more
lubricant, see the front cover of this manual.
d. If the walking belt still slows when walked on, see
the front cover of this manual.
SYMPTOM: The walking belt slips when walked on
a. First, remove the key and UNPLUG THE POWER
CORD. Using the hex key, turn both idler roller
screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able
to lift each edge of the walking belt 2 to 3 in. (5 to
7 cm) off the walking platform. Be careful to keep
the walking belt centered. Then, plug in the power
cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
33
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
34
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat
on the floor. Bend your front leg, lean forward and move your hips
toward the wall. Hold for 15 counts, then relax. Repeat 3 times for
each leg. To cause further stretching of the achilles tendons, bend
your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
1
2
3
4
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
35
NOTES
36
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. NETL30713.0 R0713A
1 8 5/16" x 3/4" Screw
2 4 3/8" x 3 1/4" Screw
3 4 3/8" Star Washer
4 4 3/8" External Star Washer
5 2 3/8" x 2" Bolt
6 4 5/16" Flat Washer
7 1 Heart Rate Monitor
8 2 3/8" Nut
9 13 #8 x 3/4" Tek Screw
10 79 #8 x 3/4" Screw
11 2 1/4" x 2 1/2" Screw
12 2 3/8" x 1 3/4" Bolt
13 13 #8 x 1/2" Screw
14 12 #8 x 3/4" Pan Head Tek Screw
15 2 1/4" x 1 1/2" Bolt
16 1 Fan Base Back
17 2 #8 x 1 3/4" Screw
18 4 #8 Belt Guide Screw
19 1 3/8" x 1 1/2" Bolt
20 1 3/8" x 2" Bolt
21 1 Motor Isolator
22 2 5/16" Motor Screw
23 2 1/2" x 2 1/4" Bolt
24 2 3/8" x 1" Bolt
25 4 5/16" x 1 3/4" Bolt
26 1 1/4" x 1 3/4" Screw
27 4 #8 x 1" Screw
28 9 #8 x 5/8" Screw
29 12 #8 x 1/2" Pan Head Screw
30 10 #12 x 1" Screw
31 2 1/4" x 3/4" Bolt
32 2 Motor Bushing
33 4 #4 x 3/4" Screw
34 1 #8 Machine Bolt
35 1 1/4" Star Washer
36 4 5/16" Washer
37 2 1/2" Nut
38 6 3/8" Jam Nut
39 4 5/16" Nut
40 3 1/4" Nut
41 1 #8 Nut
42 3 Hood Clip
43 4 Rubber Grommet
44 4 #3 x 5/16" Screw
45 4 Isolator Cap
46 2 Isolator Spring
47 2 Isolator
48 1 Left Frame Cover
49 1 Left Foot Rail Cover
50 1 Left Foot Rail
51 1 Idler Roller
52 1 Warning Decal
53 1 Walking Platform
54 1 Walking Belt
55 2 Belt Guide
56 1 Reed Switch Clamp
57 1 Drive Roller/Pulley
58 1 Magnet
59 1 Reed Switch
60 4 Wire Tie
61 1 Frame
62 1 Right Frame Cover
63 1 Drive Motor
64 1 Motor Belt
65 1 Storage Latch
66 1 Right Rear Foot
67 1 Rear Sensor
68 1 Fan Cover
69 1 Key/Clip
70 1 Rear Cap
71 1 Left Rear Foot
72 1 Right Foot Rail
73 1 Right Foot Rail Cover
74 1 Motor Hood
75 1 Hood Accent
76 1 Incline Stop Bracket
77 1 Incline Motor
78 2 Incline Frame Washer
79 2 Incline Frame Insert
80 1 Incline Frame
81 1 Controller
82 1 Electronics Plate
83 10 Cable Tie
84 2 Hood Post
85 1 Power Switch
86 1 Power Cord
87 1 Grommet
88 1 Belly Pan
89 1 Left Handrail Cover
90 1 Left Handrail
91 1 Left Handrail Bottom
92 1 Upright Wire
93 1 Right Handrail Cover
94 1 Right Handrail
95 1 Right Handrail Bottom
96 1 Upright
97 2 Caution Decal
98 1 Right Upright Cover
99 1 Incline Motor Wire
100 1 Left Upright Cover
37
Key No. Qty. Description Key No. Qty. Description
101 6 Base Pad
102 1 Rear Sensor Wire
103 2 Base Leg
104 1 Left Wheel Housing
105 1 Right Wheel Housing
106 2 Wheel
107 1 Left Tray
108 1 Console Base
109 1 Right Tray
110 1 Console Adjust Motor
111 1 Console Adjust Motor Cover
112 1 Console Base Frame
113 2 Console Clamp
114 8 Console Bushing
Note: Specications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
115 2 Console Ground Wire
116 1 Console Base Back
117 1 Console
118 1 Console Frame
119 1 Access Door
120 1 Console Back
121 1 Fan
122 6 #8 Star Washer
123 1 Electronics Bracket
124 1 Filter
125 1 Grounding Bracket
126 1 Receptacle
* – User’s Manual
38
EXPLODED DRAWING A
Model No. NETL30713.0 R0713A
123
122
13
32
10
22
59
124
34
13
17
30
41
8
39
28
5
55
18
10
62
28
10
65
63
21
43
36
64
39
45
66
46
14
102
5
47
60
45
17
61
28
23
10
43
36
122
13
35
26
13
122
25
32
30
58
57
9
56
30
28
23
25
30
43
36
39
45
46
10
48
47
10
45
55
18
30
10
28
53
49
30
54
73
30
28
30
25
28
30
50
51
43
25
72
11
28
36
33
67
39
71
14
8
10
33
67
14
10
11
83
14
70
52
14
39
EXPLODED DRAWING B
Model No. NETL30713.0 R0713A
10
10
75
13
81
13
125
13
79
10
10
82
78
37
10
24
10
80
74
19
10
37
20
99
77
76
38
24
38
78
79
14
14
122
10
84
14
10
42
42
10
86
84
10
126
85
42
88
14
40
EXPLODED DRAWING C
89
4
2
3
90
91
10
6
1
92
Model No. NETL30713.0 R0713A
93
2
3
4
6
1
10
101
10
100
10
94
95
10
10
97
13
87
38
1
101
9
10
96
92
97
98
9
10
103
104
101
9
12
106
105
38
38
12
106
103
9
10
101
41
101
1
38
101
9
9
EXPLODED DRAWING D
107
Model No. NETL30713.0 R0713A
108
109
10
10
10
29
116
29
112
10
114
113
31
29
110
31
15
114
27
114
29
113
10
40
10
13
83
10
10
10
27
115
29
29
29
29
29
29
29
42
EXPLODED DRAWING E
Model No. NETL30713.0 R0713A
117
10
44
83
121
40
114
15
10
118
114
114
120
10
10
114
10
40
7
10
10
10
10
10
10
119
10
68
69
16
10
44
10
10
83
10
10
111
10
10
10
10
43
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
