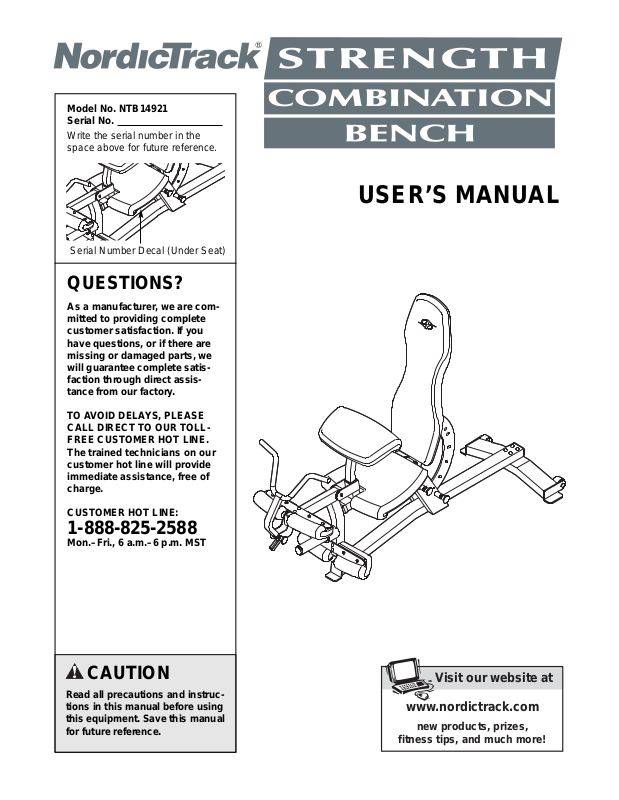

NordicTrack NTB14921 User Manual
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Model No. NTB14921
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

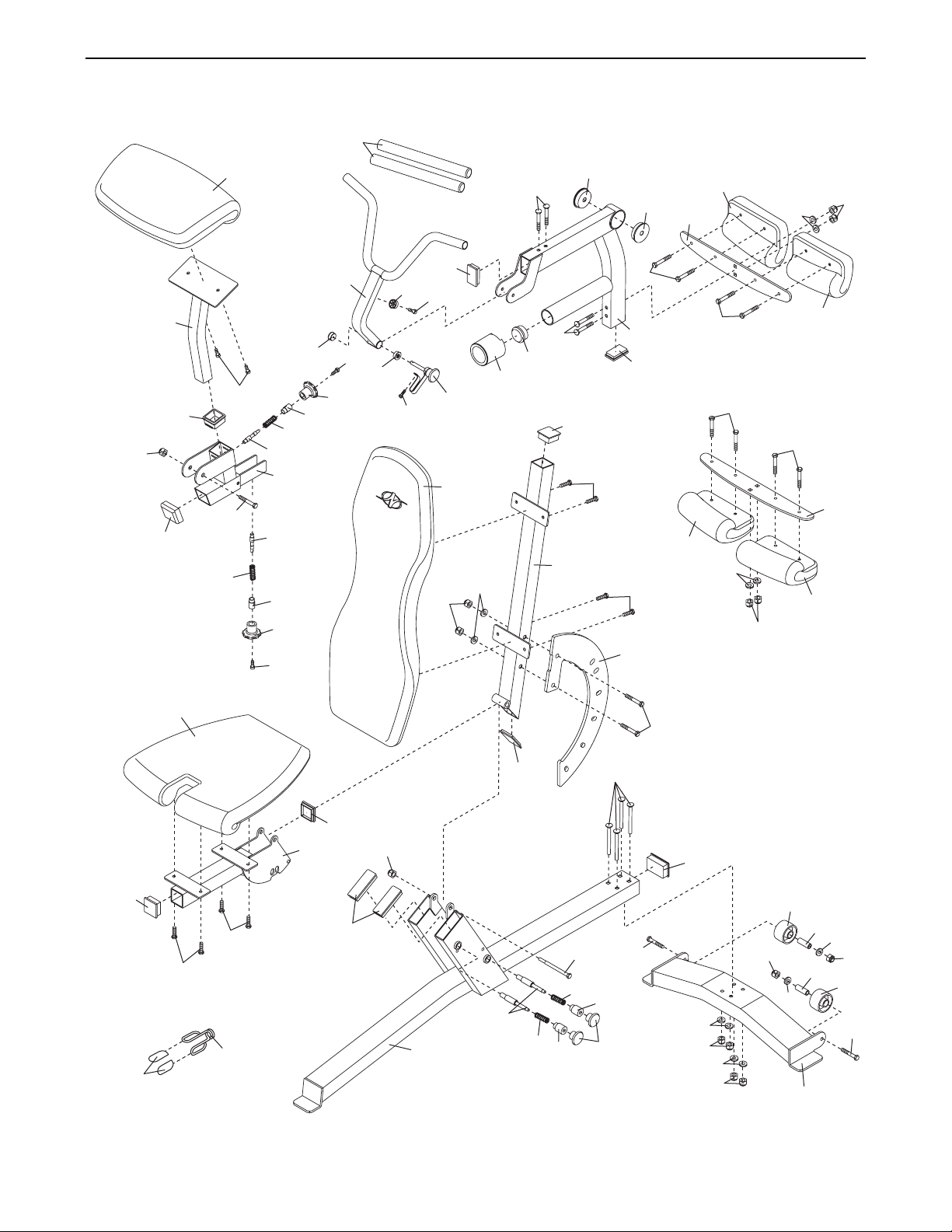

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
TABLE OF CONTENTS
The decals shown here have been
placed on the weight bench. If a decal
is missing or illegible, please call our
Customer Service Department toll-free
at 1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal.
Apply the decal in the location shown.
Keep hands and
fingers clear of
this area.
1. Read all instructions in this manual before
using the weight bench. Use the weight
bench only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight bench are adequately informed of all precautions.
3. The weight bench is intended for home use
only. Do not use the weight bench in any
commercial, rental, or institutional setting.
4. Use the weight bench only on a level surface.
Cover the floor beneath the weight bench to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight bench is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight bench at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. The weight bench is designed to support a
maximum user weight of 300 pounds, and a
maximum total weight of 610 pounds. Do not
use the weight bench with more than 310
pounds of weight. Do not place more than
150 pounds on the leg lever. Note: The
weight bench does not include weights.
10. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING:
Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
IMPORTANT PRECAUTIONS
3
4
Adjustment Knobs
Curl Pad
Curl Bar
Wheel
Leg Lever
Seat
Backrest
Adjustment Arm
BEFORE YOU BEGIN
Thank you for selecting the versatile NordicTrack
®
STRENGTH COMBINATION BENCH weight bench.

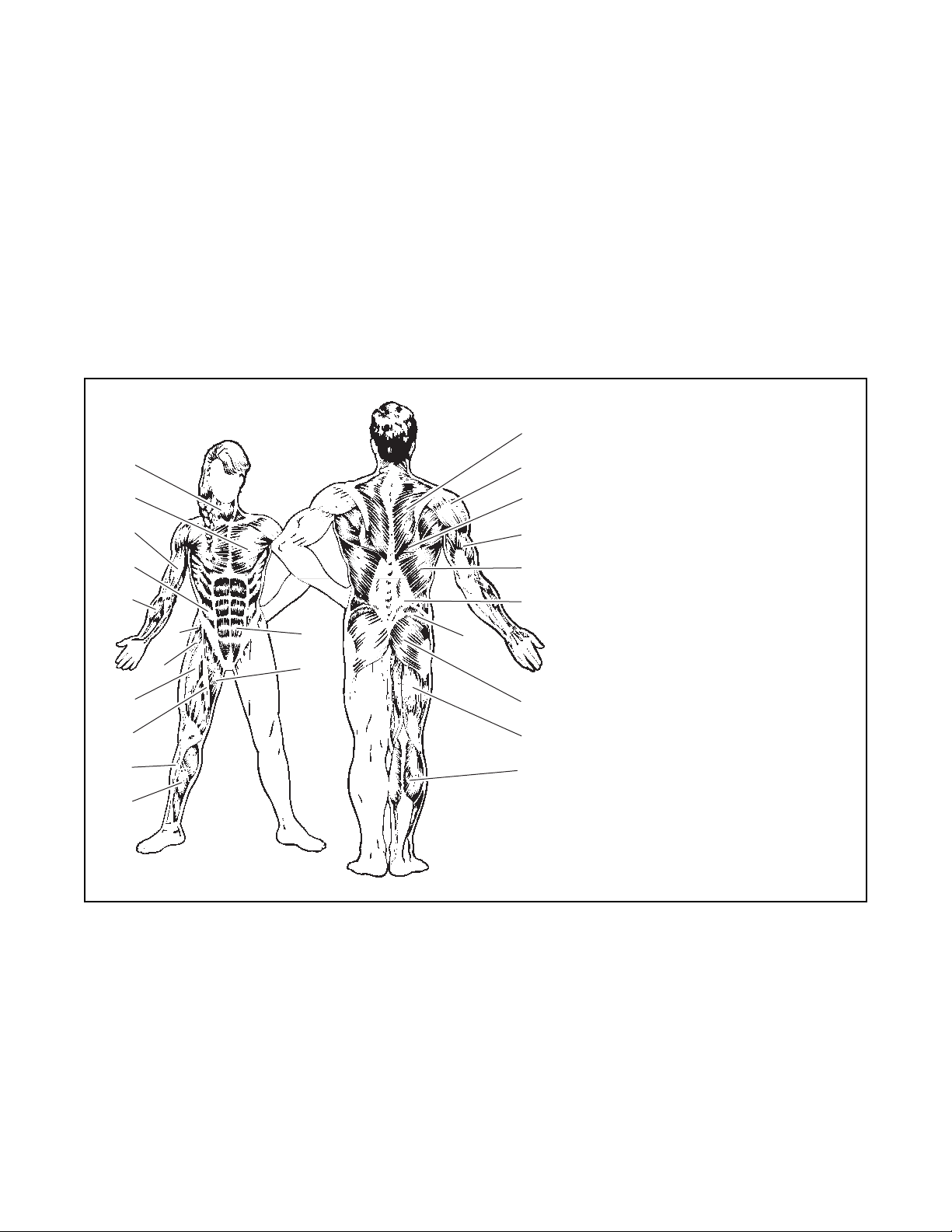

The weight bench offers a selection of weight stations
designed to develop every major muscle group of the
body. Whether your goal is to tone your body, build
dramatic muscle size and strength, or improve your
cardiovascular system, the weight bench will help you
to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-888-825-2588, Monday through Friday,
6 a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is NTB14921. The serial number can be found
on a decal attached to the weight bench (see the front
cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
5
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST on page 14 of this manual. Note: Some small parts may
have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M4 x 16mm Screw (41)
M10 Washer (33)
M10 Nylon Locknut (32)
M6 x 16mm Screw (38)
M12 Washer (40)
M5 x 11mm
Screw (51)
M10 x 63mm Button Head Bolt (37)
M12 x 77mm Button Head Bolt (36)
M10 x 80mm Carriage Bolt (39)
M12 x 87mm Button Head Bolt (34)
M12 Nylon Lockut (47)
M10 x 115mm Carriage Bolt (35)
