Model No. NTB49030
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
(Behind Backrest)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
USER’S MANUAL
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
OMER HOT LINE:
CUST
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this
manual for future reference.
Patent Pending
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPOR
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
TANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING DECAL PLACEMENT
The decal shown here has
been placed on the weight
rack. If the decal is missing or
illegible, please call our
Customer Service Department
toll-free at 1-888-825-2588,
Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time, to
order a free replacement
decal. Apply the decal in the
location shown.
NordicT
rack is a registered trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight rack.
1. Read all instructions in this manual before
using the weight rack. Use the weight rack
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight rack are adequately informed of all precautions.
3. The weight rack is intended for home use
only. Do not use the weight rack in any commercial, rental, or institutional setting.
4. Use the weight rack only on a level surface.
Cover the floor beneath the weight rack to
protect the floor.
5. Make sure all parts are properly tightened
each time the weight rack is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight rack at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. Always set both weight rests at the same
height.
10. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
11. The weight rack is designed to support a
maximum user weight of 300 pounds, and a
maximum total weight of 610 pounds. Do not
place more than 310 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight carriage. Note: The weight rack is designed to
be used with an Olympic barbell. The weight
rack does not include a barbell or weights.
12. Always place an equal amount of weight on
each side of the weight carriage or barbell.
13. Always secure the weights with the weight
clips when they are mounted on the weight
carriage.
Always exercise with a partner. Your partner
14.
should be ready to catch the barbell if you
cannot complete a repetition.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the NordicTrack®STRENGTH
PERFORMANCE SYSTEM weight rack. The weight
rack offers a selection of weight stations designed to
develop every major muscle group of the body.
Whether your goal is to tone your body
muscle size and strength, or improve your cardiovascular system, the weight rack will help you to achieve
the specific results you want.
For your benefit, read this manual carefully before
using the weight rack attachment. If you have addi-
High Cable
Butterfly Arm
, build dramatic
tional questions, please call our Customer Service
Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number is NTB49030. The serial
number can be found on a decal attached to the weight
rack (see the front cover of this manual).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED
DIMENSIONS:
Height: 85 in.
Width: 60 in.
Length: 68 in.
Weight Rest
Backrest
Right Side
Low Cable
Note: The terms “right side” and “left
side” are determined relative to a person
facing away from the weight rack; they
do not correspond to right and left on the
drawings in the manual.
Safety Spotter
Left Side
Weight Carriage
4
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight rack can be assembled successfully by anyone. However, it is important to realize that the versatile weight rack has many parts
and that the assembly process will take time.
Most people find that by setting aside plenty of
time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1.
Before beginning assembly, make sure you
understand the information in the box
above.
Insert two M10 x 118mm Carriage Bolts (72) up
through the Left Stabilizer (92), which has a warning decal in the indicated location. Note: It may
be helpful to place tape over the heads of the
Carriage Bolts to hold them in place.
Attach the Left Stabilizer (92) to the Base (1) with
two M10 x 70mm Button Bolts (77), two M10
ashers (65), and two M10 Nylon Locknuts (62).
W
Do not tighten the Locknuts yet.
Repeat this step with the Right Stabilizer (6).
1
6
1
77
65
Warning
Decal
92
65
72
62
5
2. Attach the Rear Upright (4) to the Base (1) with
two M10 x 178mm Button Bolts (78), four M10
ashers (65), and two M10 Nylon Locknuts (62).
W
Make sure the large slot in the Upright is on
the indicated side. Do not tighten the
Locknuts yet.
2
4
3. Attach the Center Upright (3) to the Base (1) with
two M10 x 178mm Button Bolts (78), four M10
Washers (65), and two M10 Nylon Locknuts (62).
Do not tighten the Locknuts yet.
Large
Slot
62
65
3
3
Small
Slot
1
65
78
65
62
65
1
78
6
4. Identify the Right and Left Uprights (5, 85) by the
location of the numbers and the high side of the
Upright.
Orient the Right Upright (5) as shown and attach
it to the Right Stabilizer (6) with the two M10 x
118mm Carriage Bolts (72) and two M10 Nylon
Locknuts (62).
Attach the Left Upright (85) to the Left
Stabilizer (not shown) in the same manner.
Do not tighten the Locknuts yet.
4
Numbers
High
Side
62
5
High
Side
85
Numbers
62
6
5. Slide two Weight Stops (36) onto the Weight
Carriage (12).
Slide the Carriage Stop (13) and the Weight
Carriage (12) onto the Rear Upright (4) as shown.
Pull the Pop Pin (61) out as far as it will go and
6.
slide the Safety Spotter (1
Upright (4). Engage the Pop Pin into an adjustment hole in the Upright.
1) onto the Rear
72
5
36
12
13
4
6
61
1
1
36
4
Adjustment
Hole
7
7. Attach the Center Top Frame (2) to the Rear
Upright (4) with two M10 x 178mm Button Bolts
(78), four M10 W
Locknuts (62).
ashers (65), and two M10 Nylon
Do not tighten the Locknuts yet.
7
62
65
2
Attach the Center Top Frame (2) to the Center
Upright (3) in the same manner.
8. Attach a Side Top Frame (7) to the Right Upright
(5) with two M10 x 120mm Button Bolts (71), two
M10 Washers (65), and two M10 Nylon Locknuts
Do not tighten the Locknuts yet.
(62).
Attach the Side Top Frame (7) to the Center Top
Frame (2) with two M10 x 70mm Button Bolts
(77), two M10 Washers (65), and two M10 Nylon
Locknuts (62). Do not tighten the Locknuts yet.
Attach the other Side Top Frame (not shown)
to the Left Upright (not shown) and the Center
Top Frame (2) in the same manner.
62
65
78
4
62
65
2
77
62
65
62
78
65
3
8
71
65
7
62
5
9. Orient the Chin-up Bar (10) as shown. Attach the
Chin-up Bar to a Side Top Frame (7) with two
M10 x 70mm Button Bolts (77), two M10 Washers
(65), and two M10 Nylon Locknuts (62). Do not
tighten the Locknuts yet.
Attach the Chin-up Bar (10) to the other Side
op Frame (7) in the same manner
T
Tighten the M10 Nylon Locknuts (62) used in
steps 1–9.
.
9
77
62
65
7
10
7
8
10. Grease an M10 x 112mm Bolt (76) and the Right
Butterfly Arm (8) in the indicated locations. Attach
Arm to the Center Upright (3) with the Bolt, an
the
M10 Nylon Locknut (62), and two Butterfly Bolt
Caps (52).
Butterfly Arm must be able to pivot easily.
Repeat this step with the Left Butterfly Arm
(9).
Do not overtighten the Locknut; the
10
Grease
8
62
52
76
3

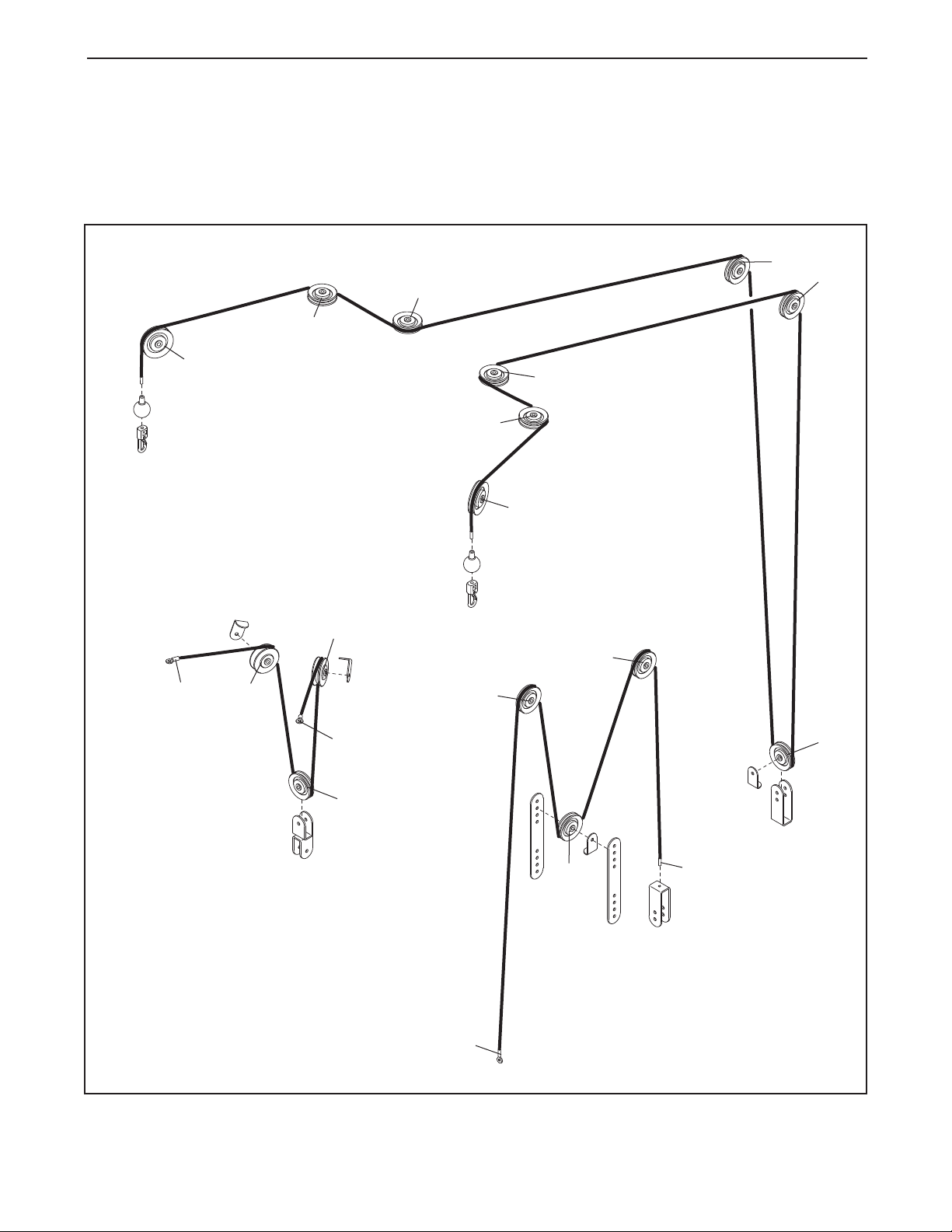

11. During steps 11–49, see the CABLE DIAGRAMS
on pages 21 and 22 of this manual to verify proper cable routing and for cable identification.
Locate the Carriage Cable (56). Insert an M8 x
19mm Shoulder Bolt (80) through the eyelet on
the Cable and the Weight Carriage (12). Tighten
an M8 Nylon Locknut (82) onto the Bolt.
12. Wrap the Carriage Cable (56) over a 3 1/2” Pulley
(45). Attach the Pulley to the Center Top Frame
(2) with an M10 x 192mm Button Bolt (64) and an
M10 Nylon Locknut (62).
11
12
Grease
52
56
9
45
80
56
12
2
82
Wrap the Carriage Cable (56) under a 3 1/2”
13.
Pulley (45).
Trap (47) at the second set of holes from the top
of the two Pulley Plates (20) with an M10 x 54mm
Button Bolt (73) and an M10 Nylon Locknut (62).
Make sure the Cable T
the Cable in the groove of the Pulley.
Attach the Pulley and a Short Cable
rap is oriented to hold
62
64
13
56
45
62
73
47
20
20
9
14. Wrap the Carriage Cable (56) over a 3 1/2” Pulley
(45). Attach the Pulley to the Center Top Frame
(2) with an M10 x 192mm Button Bolt (64) and an
M10 Nylon Locknut (62).
14
62
45
56
2
64
15. Attach the end of the Carriage Cable (56) to a
“U”-bracket (19) with an M6 Nylon Locknut (63).
Do not completely tighten the Locknut; it
should be tightened so that only two threads
of the Cable show past the Locknut, as shown
in the inset drawing.
16. Locate the Butterfly Cable (53). Attach the
Cable to the Left Butterfly Arm (9) with an M8 x
45mm Shoulder Bolt (81), an M8 Washer (94),
and an M8 Nylon Locknut (82).
17. Wrap the Butterfly Cable (53) over a “V”-pulley
(46). Attach the “V”-pulley and a Long Cable Trap
(88) to the Center Upright (3) with an M10 x
58mm Button Bolt (75). Make sure the Cable
rap is oriented to hold the Cable in the
T
groove of the Pulley.
15
16
17
94
56
63
19
19
81
53
9
82
3
88
56
63
Wrap the Butterfly Cable (53) under a 3 1/2”
18.
Pulley (45).
bracket (21) with an M10 x 48mm Button Bolt
(74) and an M10 Nylon Locknut (62).
Attach the Pulley to the Double “U”-
10
18
74
46
53
75
53
45
62
21
19. Wrap the Butterfly Cable (53) over a “V”-pulley
(46). Attach the “V”-pulley and a Long Cable Trap
(88) to the Center Upright (3) with an M10 x
58mm Button Bolt (75).
rap is oriented to hold the Cable in the
T
groove of the Pulley.
Make sure the Cable
19
75
53
88
3
46
20. Attach the Butterfly Cable (53) to the Right
Butterfly Arm (8) with an M8 x 45mm Shoulder
Bolt (81), an M8 Washer (94), and an M8 Nylon
Locknut (82).
21. Locate the Base Cable (57). Attach the eyelet of
the Cable to the Base (1) with an M10 x 192mm
Button Bolt (64) and an M10 Nylon Locknut (62).
22. Wrap the Base Cable (57) over a 3 1/2” Pulley
(45). Attach the Pulley to the Double “U”-bracket
(21) with an M10 x 48mm Button Bolt (74) and an
M10 Nylon Locknut (62).
20
21
22
62
81
94
8
57
62
1
53
82
64
21
74
Wrap the Base Cable (57) under a 3 1/2” Pulley
23.
Attach the Pulley to the Base (1) with an
(45).
M10 x 192mm Button Bolt (64) and an M10 Nylon
Locknut (62).
45
57
23
57
45
62
1
64
11

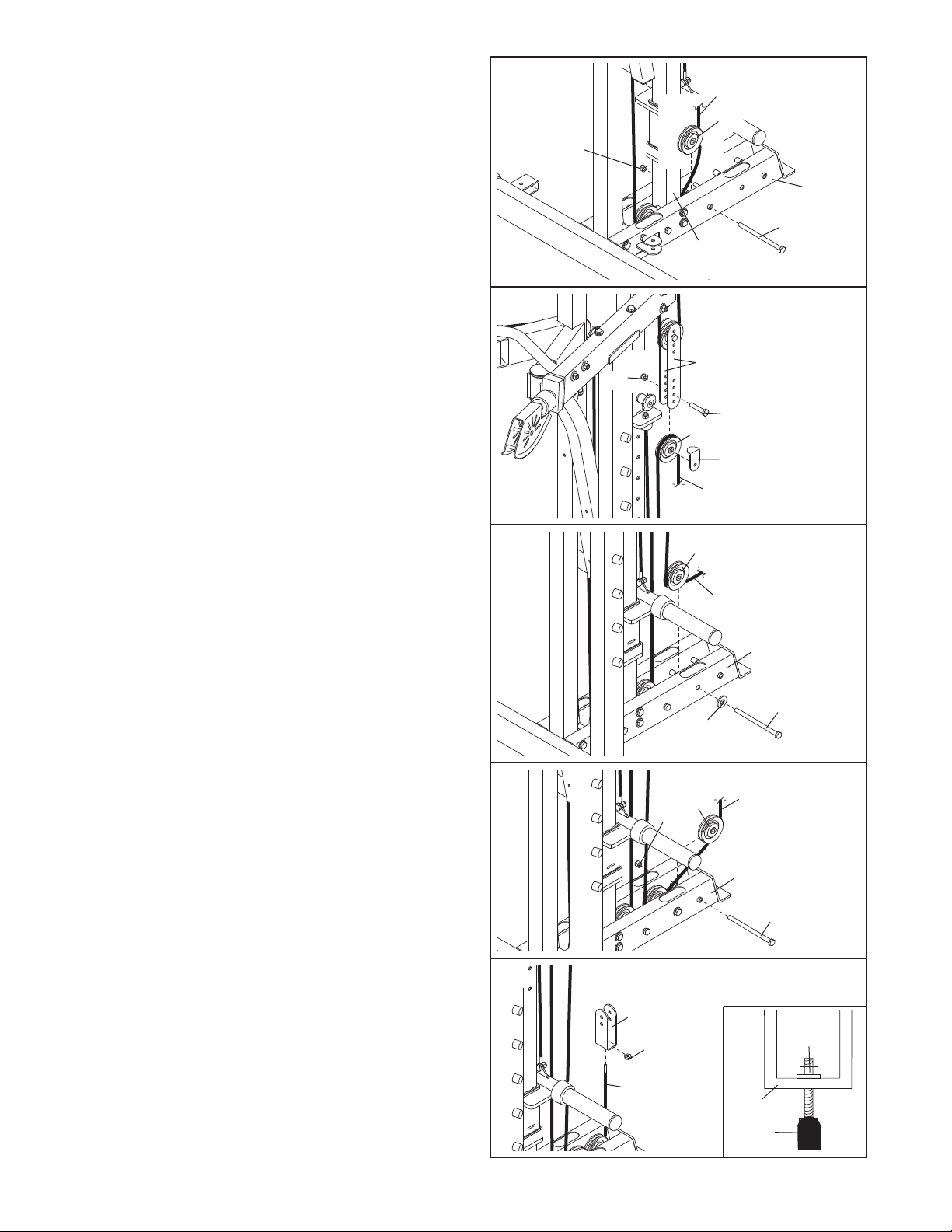

24. Route the Base Cable (57) under the Rear
Upright (4) and a 3 1/2” Pulley (45). Attach the
Pulley to the Base (1) with an M10 x 192mm
Button Bolt (64) and an M10 Nylon Locknut (62).
24
57
45
62
1
64
4
25. Wrap the Base Cable (57) over a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the second set of holes from the bottom of
the two Pulley Plates (20) with an M10 x 54mm
Button Bolt (73) and an M10 Nylon Locknut (62).
Make sure the Cable T
the Cable in the groove of the Pulley.
26. Wrap the Base Cable (57) under a 3 1/2” Pulley
(45). Attach the Pulley to the Base (1) with an
M10 x 178mm Button Bolt (78) and an M10
Washer (65). Note: A nylon locknut will be
attached to the Bolt in step 45.
rap is oriented to hold
25
26
20
62
73
45
47
57
45
57
1
78
65
27. Wrap the Base Cable (57) under a 3 1/2” Pulley
Attach the Pulley to the Base (1) with an
(45).
M10 x 192mm Button Bolt (64) and an M10 Nylon
Locknut (62).
28. Attach the end of the Base Cable (57) to a “U”bracket (19) with an M6 Nylon Locknut (63). Do
not completely tighten the Locknut; it should
be tightened so that only two threads of the
Cable show past the Locknut, as shown in the
inset drawing.
12
27
28
19
57
63
62
45
57
1
64
63
19
57
29. Route the Cable Tool (27) through the indicated
Side Top Frame (7). Make sure that the Cable
ool is routed around the bolts in the Top
T
Frame as indicated; if the High Cable (54) rubs
against a bolt, damage may occur
Locate the High Cable (54). Thread the end of
the Cable without the Clip (42) into the Cable Tool
(27). Make sure the Cable is inside of the indi-
cated rods on the Swivel Arm (14).
Pull the High Cable (54) through the Side Top
Frame (7) and remove it from the Cable Tool (27).
.
29
54
Cable Tool
Path
Rod
27
Rod
7
14
42
30. Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the High
Cable (54) rests in the groove of the Pulley.
31. Route the High Cable (54) around a 3 1/2” Pulley
(45) and through the bracket on the Center Top
Frame (2). Attach the Pulley inside the bracket
with an M10 x 48mm Button Bolt (74) and an M10
Nylon Locknut (62).
30
31
73
65
48
54
14
65
89
62
48
74
2
62
54
45
Route the High Cable (54) around a 3 1/2” Pulley
32.
(45) and through the indicated tube on the Center
Top Frame (2).
over the bolts as indicated.
Attach the 3 1/2” Pulley (45) to Center
(2) with an M10 x 48mm Button Bolt (74) and an
M10 Nylon Locknut (62).
Make sure the Cable is routed
T
op Frame
13
32
74
62
45
2
Cable
Path
54
33. Wrap the High Cable (54) over a 3 1/2” Pulley
(45). Attach the Pulley inside the Center Top
Frame (2) with an M10 x 65mm Button Bolt (86),
two M10 Washers (65), two 12mm Spacers (49),
and an M10 Nylon Locknut (62).
33
62
65
2
65
86
34. Wrap the High Cable (54) under a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the top hole in the indicated “U”-bracket
(19) with an M10 x 54mm Button Bolt (73) and an
M10 Nylon Locknut (62). Make sure the Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
35. Route the High Cable (54) up through the indicated tube on the Center Top Frame (2). Make sure
the Cable is routed over the bolts in the
Center Top Frame in the manner shown in
step 32.
Attach a 3 1/2” Pulley (45) inside the Center Top
Frame (2), under the High Cable (54), with an
M10 x 65mm Button Bolt (86), two M10 Washers
(65), two 12mm Spacers (49), and an M10 Nylon
Locknut (62).
groove of the Pulley
Make sure the Cable rests in the
.
34
35
54
86
47
62
49
65
49
45
49
54
54
45
73
19
65
62
2
45
49

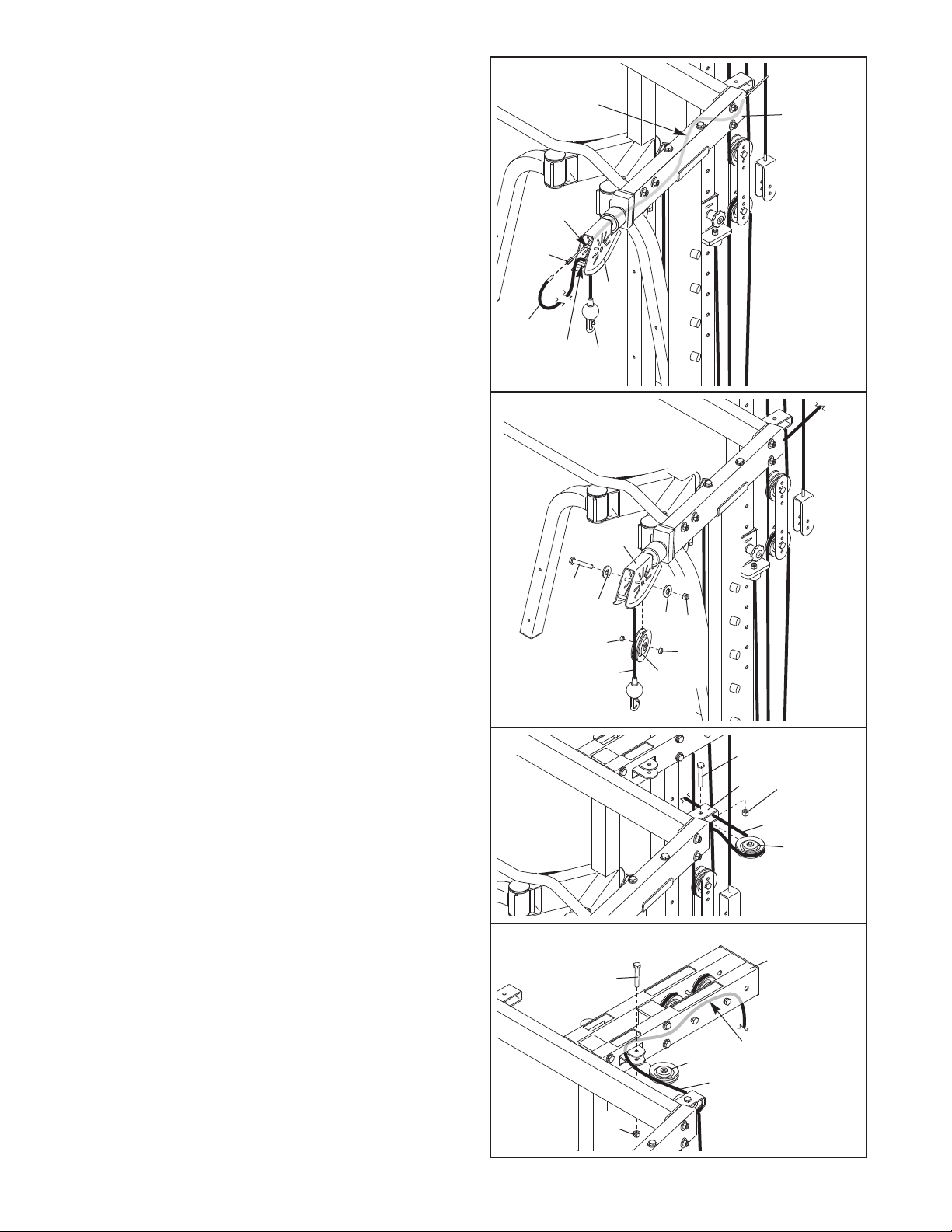

36. Attach a 3 1/2” Pulley (45) to the Center Top
Frame (2) with an M10 x 48mm Button Bolt (74)
and an M10 Nylon Locknut (62). Make sure the
High Cable (54) rests in the groove of the
.
Pulley
Route the High Cable (54) through the bracket on
the Center Top Frame (2).
14
36
Bracket
62
54
45
74
2
37. Thread the end of the High Cable (54) into the
Cable Tool (27). Route the Cable Tool and Cable
through the Side
the Cable Tool is routed through the bolts in
op Frame as indicated; if the High Cable
the T
rubs against a bolt, damage may occur.
Remove the Cable Tool from the Cable.
Hold a 3 1/2” Pulley (45) inside the High Cable
(54) as shown. Attach the Pulley inside the bracket on the Center Top Frame (2) with an M10 x
48mm Button Bolt (74) and an M10 Nylon
Locknut (62).
Top Frame (7). Make sure that
37
27
54
Between
Bolts
7
74
45
62
38. Make sure the High Cable (54) is routed under
the indicated rods on the Swivel Arm (14).
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62).
Cable (54) rests in the groove of the Pulley.
39. Slide a Clip Cover (43) onto the High Cable (54).
Hold an M6 Nylon Locknut (63) inside a Clip (42),
and insert the High Cable (54) into the Clip and
the Locknut. Insert a screwdriver between the
Locknut and the Clip. Rotate the screwdriver, the
Clip, and the Locknut together until two threads of
the Cable show past the Locknut.
Slide the Clip Cover (43) over the Clip (42).
Make sure the High
38
39
Rods
48
54
62
43
42
65
14
65
73
89
48
54
63
Route the Cable Tool (27) through the Left
40.
Stabilizer (92). Make sure that the Cable T
routed around the bolts in the Stabilizer as
indicated; if the Low Cable (55) rubs against a
bolt, damage may occur
Locate the Low Cable (55).
the Cable without the Clip (42) into the Cable
(27).
Make sure the Cable is inside the indicat
ed rod on the Swivel Arm (14). Pull the Cable
through the Left Stabilizer (92). Remove the
Cable from the Cable
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62).
Cable rests in the groove of the Pulley.
.
Thread the end of
ool.
T
Make sure the Low
ool is
ool
T
40
27
42
-
48
73
65
Rod
14
89
48
65
92
62
55
15
41. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Attach the Pulley inside the bracket with an M10
x 48mm Button Bolt (74) and an M10 Nylon
Locknut (62).
41
74
1
55
45
62
42. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Make sure the Cable is routed under the bolts
in the Base. Attach the Pulley inside the bracket
with an M10 x 48mm Button Bolt (74) and an M10
Nylon Locknut (62).
43. Wrap the Low Cable (55) under a 3 1/2” Pulley
(45). Attach the Pulley inside the Base (1) with
the M10 x 178mm Button Bolt (78) and the M10
Washer (65) used in step 26, and a 12mm
Spacer (49).
attached in step 26 is reattached to the Base
as shown in step 26.
44. Wrap the Low Cable (55) over a 3 1/2” Pulley
(45). Attach the Pulley and a Short Cable Trap
(47) at the bottom hole in the indicated “U”-bracket (19) with an M10 x 54mm Button Bolt (73) and
an M10 Nylon Locknut (62). Make sure the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
Make sure the 3 1/2” Pulley (45)
42
43
44
62
45
74
45
62
Cable Path
45
55
49
1
65
78
73
19
45
Route the Low Cable (55) through the Base (1) in
45.
the manner shown in step 42. Make sure the
Cable is routed under the bolts in the Base
(1).
Hold a 3 1/2” Pulley (45) over the Low Cable (55).
Attach the Pulley inside the Base (1) with the
M10 x 178mm Button Bolt (78) used in step 43, a
12mm Spacer (49), an M10 W
M10 Nylon Locknut (62).
asher (65), and an
16
45
55
47
62
49
55
45
65
78
1
46. Route the Low Cable (55) around a 3 1/2” Pulley
(45) and through the bracket on the Base (1).
Attach the Pulley inside the Base with an M10 x
48mm Button Bolt (74) and an M10 Nylon
Locknut (62).
groove of the Pulley.
Make sure the Cable is in the
46
55
62
45
1
62
47. Wrap the Low Cable (55) around a 3 1/2” Pulley
(45). Attach the Pulley inside the bracket on the
Stabilizer (1) with an M10 x 48mm Button Bolt
(74) and an M10 Nylon Locknut (62).
48. Thread the end of the Low Cable (55) into the
Cable Tool (not shown). Route the Cable Tool and
Cable through the Right Stabilizer (6). Make sure
that the Cable Tool is routed around the bolts
in the Stabilizer as indicated; if the Cable rubs
against a bolt, damage may occur. Remove the
Cable from the Cable Tool. Make sure the Low
Cable is routed over the rods on the Swivel
Arm (14).
Attach a 4” Pulley (89) inside the Swivel Arm (14)
with an M10 x 54mm Button Bolt (73), two M10
Washers (65), two 7mm Spacers (48), and an
M10 Nylon Locknut (62). Make sure the Low
Cable (55) rests in the groove of the Pulley.
49. Slide a Clip Cover (43) onto the Low Cable (55).
Hold an M6 Nylon Locknut (63) inside a Clip (42),
and insert the Low Cable (55) into the Clip and
the Locknut. Insert a screwdriver between the
Locknut and the Clip. Rotate the screwdriver, the
Clip, and the Locknut together until two threads of
the Cable show past the Locknut.
47
48
48
62
65
14
Rods
49
65
55
89
48
43
55
42
55
73
45
74
1
62
6
63
Slide the Clip Cover (43) over the Clip (42).
50. Press two Oval Caps (32) into the Base (1).
50
32
32
1
17
51. Attach the Backrest (60) to the Center Upright (3)
with two M6 x 70mm Screws (69) and two M6
ashers (66).
W
51
69
66
60
52. Identify the Right Butterfly Pad (58) (see the inset
drawing). Attach the Pad to the Right Butterfly
Arm (8) with two M6 x 63mm Button Bolts (68)
and two M6 Washers (66).
Attach the Left Butterfly Pad (59) to the Left
Butterfly Arm (9) in the same manner.
53. Locate the Weight Rest (15) with the Right
eight Rest Hook (17) attached to it. Set the
W
hooks on the Weight Rest over a set of knobs on
the Right Upright (5).
52
53
58
68
66
8
58
9
59
Repeat this step with the other Weight Rest
(not shown). Always set both Weight Rests
(15) at the same height.
15
17
54. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the weight rack, pull each cable a few times to make sure that the cables move smoothly over
the pulleys. If one of the cables does not move smoothly, find and correct the problem.
cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAMS on pages 21 and 22 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING AND
MAINTENANCE on page 23.
5
IMPORTANT: If the
18
ADJUSTMENTS
This section explains how to adjust the weight rack. Make sure all parts are properly tightened each time the
weight rack is used. Replace any worn parts immediately. The weight rack can be cleaned with a damp cloth and a
mild, non-abrasive detergent. Do not use solvents.
ATTACHING ACCESSORIES
The Curl Bar (22) can be attached to a Clip (42). For
some exercises, the 12” Extension Strap (31) should
be attached between the Clip and the Curl Bar with a
Cable Clip (26).
The Curl Bar and the other accessories can be
attached to the High Cable (54) or the Low Cable (not
shown) in the same manner.
ADJUSTING THE WEIGHT RESTS
26
31
22
54
42
Before performing an exercise that uses a barbell (not
included), adjust the Weight Rests (15) to a comfortable height for lifting and replacing the barbell. To
move the Weight Rests, lift the hooks on the Weight
Rests off the Right Uprights (5, 85 [not shown]). Set
the hooks over a new set of knobs on the Uprights.
WARNING: Always set both
Weight Rests (15) at the same height.
ADJUSTING THE SAFETY
Before performing an exercise that uses a barbell (not
included), adjust the Safety Spotter (11) to the height
that is best suited for that exercise. Moving the Safety
Spotter will change the distance that the barbell can
move.
First, attach the barbell to the high cable (see
ATTACHING A BARBELL TO THE CABLES, on page
20). Then, pull the Pop Pin (61) out as far as it will go
and move the Safety Spotter (1
will stop the barbell at the lowest point that you want
it to go during the exercise. Engage the Pop Pin into
an adjustment hole in the Rear Upright (4) and turn it
clockwise until it is tight.
SPOTTER
1) to the position that
15
5
61
11
4
19

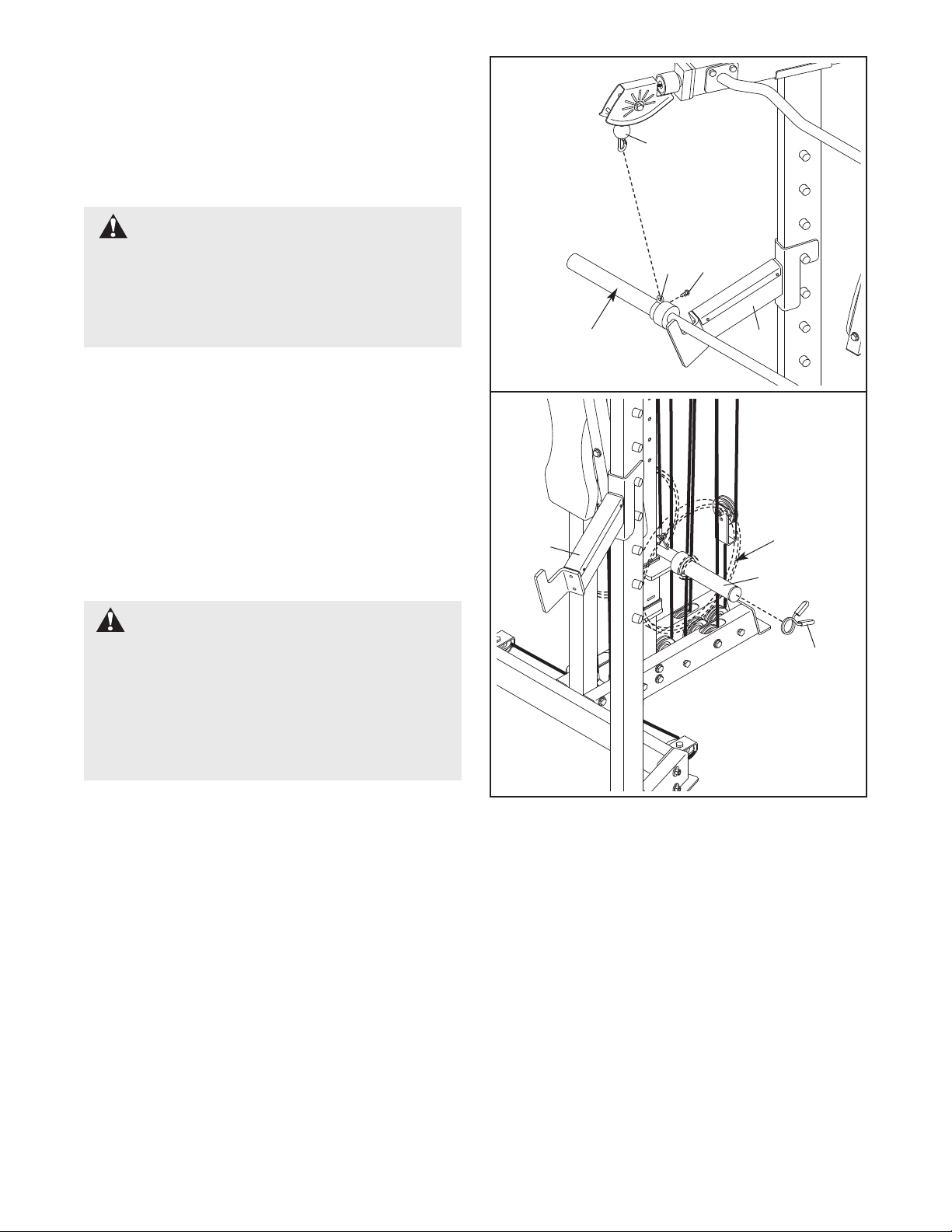

ATTACHING A BARBELL TO THE CABLES
o use a barbell (not included) with the Safety Spotter
T
(not shown), set the barbell on the Weight Rests (15).
Slide a Barbell Ring (29) onto each end of the barbell
and tighten the M6 x 13mm Button Screw (84). Attach
each end of the High Cable (54) to a Barbell Ring.
WARNING: Use only an Olympic
barbell (not included) with the Barbell Rings
(29). Always disconnect the barbell from the
High Cable (54) when performing an exercise
that does not require it; the barbell could be lifted off the weight rests and fall.
ADDING WEIGHTS TO THE WEIGHT CARRIAGE
OR BARBELL
Slide the desired amount of weight (not included)
onto the weight tube on the Weight Carriage (12) or
the barbell (not included). Secure the weight to the
Weight Carriage with Weight Clips (30).
Do not place weights on the Weight Carriage (12)
when performing exercises that use the barbell.
15
Barbell
54
29
84
15
Weight
12
WARNING: Do not place more
than 150 pounds on the Weight Carriage (12).
Do not place more than 310 pounds, including
the barbell, on the Weight Rests (15) Always
place the same amount of weight on each side
of the Weight Carriage or barbell. Always
secure the weights to the Weight Carriage with
Weight Clips (30).
30
20
CABLE DIAGRAMS
The cable diagrams on the following pages show the proper routing of the Butterfly Cable (53), the High Cable
(54), the Low Cable (55), the Carriage Cable (56), and the Base Cable (57). Use the diagrams to make sure that
the cables have been assembled correctly. If the cables have not been correctly routed, the weight rack will not
function properly and damage may occur. The numbers show the correct route for each cable.
6
7
8
4
9
High Cable (54)
Length: 24 feet 7 inches
2
5
4
1
3
2
2
3
1
4
5
Butterfly Cable (53)
Length: 8 feet 5 inches
1
21
3
Carriage Cable (56)
Length: 10 feet 1 inch
5
Base Cable (57)
Length: 15 feet 1 inch
5
5
2
7
9
8
1
1
4
3
6
6
4
3
2
Low Cable (55)
Length: 23 feet 11 inches
8
7
22
TROUBLESHOOTING AND MAINTENANCE
Make sure all parts are properly tightened each time the weight rack is used. Replace any worn parts immediately.
The weight rack can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight rack, can stretch slightly when it is first used. If there is slack
in the cables before resistance is felt, the cables should be tightened. Make sure that the cables are not too
tight, or the weight carriage will be lifted. Slack can be removed in the following ways.
See drawing A. Remove the M10 x 54mm Button Bolt
(73) and the M10 Nylon Locknut (62) attaching the
lower 3 1/2” Pulley (45) and the Short Cable Trap (47)
to the Pulley Plates (20). Use the Bolt and Locknut to
reattach the Pulley and Cable Trap to the next set of
holes closer to the center of the Pulley Plates. Repeat
until the cables are tight.
See drawing B. Remove the M10 x 54mm Button Bolt
(73) and the M10 Nylon Locknut (62) attaching the
3 1/2” Pulley (45) and the Cable Trap (47) to a “U”bracket (19). Use the Bolt and Locknut to reattach the
Pulley and Cable Trap to the other set of holes in the
“U”-bracket.
See drawing B. Tighten the M6 Nylon Locknut (63)
onto the Carriage Cable (56) or the Base Cable (57) a
couple of turns.
A
62
B
31
19
62
47
20
73
45
47
56 or 57
73
45
See drawing C. Additional slack can be removed
from the cables by tightening a cable into the M6
Nylon Locknut (63) inside a Clip (42). To do this, pull
the Clip Cover (43) back and use a pair of pliers or
screwdriver to tighten the Locknut. Replace the
Cover.
Note: If a cable tends to slip off the pulleys often, the cable may have become twisted. Remove the cable
and re-install it.
If the cables need to be replaced, see ORDERING REPLACEMENT
Replace all cables at least every two years.
C
63
Cable
42
TS on the back cover of this manual.
AR
P
43
23
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
MUSCLE BUILDING
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
TONING
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
WEIGHT LOSS
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
CROSS TRAINING
Cross training is an ef
well-balanced fitness program.
anced program is:
• Plan strength training workouts on Monday,
ednesday
W
Plan 20 to 30 minutes of aerobic exercise, such as
•
running on a treadmill or riding on an elliptical or
exercise bike, on
Rest from both strength training and aerobic exercise
•
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer
cise will reshape and strengthen your body, plus develop your heart and lungs.
, and Friday
ficient way to get a complete and
An example of a bal
.
Tuesday and Thursday.
-
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
fective exercise program.
ef
through the full range of motion for each exercise, and
moving only the appropriate parts of the body
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles af
page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing.
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
-
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
fected. See the muscle chart on the next
This requires moving
The exertion stage of
.
-
24
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on pages 26 and 27 of this manual can be photocopied and used to schedule and record your workouts. List the date, the exercises performed, the resistance used, and the numbers of sets and repetitions
completed. Record your weight and key body measurements at the end of every month. Remember, the
key to achieving the greatest results is to make exercise a regular and enjoyable part of your everyday life.
25
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
26
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
27
REMOVE THIS PART IDENTIFICATION CHART AND PART LIST/
EXPLODED DRAWING. SAVE THIS PART IDENTIFICATION CHART
AND PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE.
PART LIST—Model No. NTB49030 R0304A
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Center Top Frame
3 1 Center Upright
4 1 Rear Upright
5 1 Right Upright
6 1 Right Stabilizer
7 2 Side Top Frame
8 1 Right Butterfly Arm
9 1 Left Butterfly Arm
10 1 Chin-up Bar
11 1 Safety Spotter
12 1 Weight Carriage
13 1 Carriage Stop
14 4 Swivel Arm
15 2 Weight Rest
16 1 Left Weight Rest Hook
17 1 Right Weight Rest Hook
18 2 Rack Plate
19 2 “U”-bracket
20 2 Pulley Plate
21 1 Double “U”-bracket
22 1 Curl Bar
23 2 25mm Round Inner Cap
24 1 Ankle Strap
25 2 Ab Strap
26 1 Cable Clip
27 1 Cable Tool
28 2 Hand Strap
29 2 Barbell Ring
30 2 Weight Clip
31
32 2 Oval Cap
33 3 60mm Square Inner Cap
34
35 2 48mm Round Inner Cap
36
37 4 Square Bushing
38 2 Weight Bumper
39 2 Stabilizer Outer Cap
40
41 8 Swivel Bearing
42 4 Clip
43 4 Clip Cover
44 1 Left Spring
45
46
47 4 Short Cable Trap
48 8 7mm Spacer
49
1
2 Top Frame Outer Cap
2
2
24 3 1/2” Pulley
2
6
12" Extension Strap
Weight Stop
Short Swivel Rod
“V”-pulley
12mm Spacer
50 2 Angled Square Inner Cap
51 4 Round Bushing
52 4 Butterfly Bolt Cap
53 1 Butterfly Cable
54 1 High Cable
55 1 Low Cable
56 1 Carriage Cable
57 1 Base Cable
58 1 Right Butterfly Pad
59 1 Left Butterfly Pad
60 1 Backrest
61 1 Pop Pin
62 59 M10 Nylon Locknut
63 6 M6 Nylon Locknut
64 6 M10 x 192mm Button Bolt
65 46 M10 Washer
66 6 M6 Washer
67 8 M4 x 16mm Screw
68 4 M6 x 63mm Screw
69 2 M6 x 70mm Screw
70 2 M10 x 36mm Button Bolt
71 4 M10 x 120mm Button Bolt
72 4 M10 x 118mm Carriage Bolt
73 8 M10 x 54mm Button Bolt
74 10 M10 x 48mm Button Bolt
75 2 M10 x 58mm Button Bolt
76 2 M10 x 112mm Bolt
77 12 M10 x 70mm Button Bolt
78 9 M10 x 178mm Button Bolt
79 4 M10 x 25mm Button Bolt
80
81 2 M8 x 45mm Shoulder Bolt
82 3 M8 Nylon Locknut
83
84 2 M6 x 13mm Button Screw
85
86 2 M10 x 65mm Button Bolt
87 4 Snap Ring
88 2 Long Cable Trap
89
90 2 Long Swivel Rod
91 1 Right Spring
92 1 Left Stabilizer
93 2 Butterfly Arm Cap
94
#
# 1 Exercise Guide
# 1 Hex Key
1
2 M4 x 10mm Screw
1
4
2 M8 Washer
1
M8 x 19mm Shoulder Bolt
Left Upright
4” Pulley
s Manual
’
User
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
s manual for information about ordering replacement parts.
of the user
’
M10 Nylon Locknut (62)
M8 x 19mm Shoulder Bolt (80)
M8 Nylon Locknut (82)
M6 Nylon Locknut (63)
M6 Washer (66)
M10 x 120mm Button Bolt (71)
M10 x 192mm Button Bolt (64 )
M10 x 178mm Button Bolt (78)
M10 x 65mm Button Bolt (86)
M10 x 58mm Button Bolt (75)
M10 x 54mm Button Bolt (73)
M10 x 48mm Button Bolt (74)
M10 x 70mm Button Bolt (77)
M10 x 112mm Hex Bolt (76)
M10 x 118mm Carriage Bolt (72)
M6 x 70mm Screw (69)
M6 x 63mm Screw (68)
M8 x 45mm Shoulder Bolt (81)
M6 x 13mm Button Screw (84)
M8 Washer (94)
M10 Washer (65)
PART IDENTIFICATION CHART—Model No. NTB49030 R0304A
62
65
41
48
14
65
41
73
89
48
54
43
42
63
40
34
62
65
65
65
7
71
62
65
67
67
18
67
67
17
15
79
29
23
22
23
28
27
25
25
26
42
63
43
55
30
48
48
89
62
65
14
65
73
41
90
91
39
6
72
31
65
62
62
62
24
5
62
62
45
74
77
62
45
74
74
62
62
2
45
62
65
64
49
45
49
45
74
49
62
77
62
53
81
76
51
68
66
82
51
62
8
68
66
50
58
62
65
65
78
33
3
60
66
66
69
69
52
52
52
46
52
88
75
62
65
65
78
33
46
88
75
76
51
53
51
62
81
82
9
59
66
66
68
68
50
62
74
74
21
45
45
62
45
74
45
57
77
62
32
62
77
62
62
45
74
45
64
78
65
1
62
74
62
74
45
49
45
65
62
49
45
42
63
43
48
89
55
73
65
14
41
65
62
41
90
44
39
72
92
62
65
62
62
63
57
19
62
73
45
16
79
15
67
18
67
45
62
65
65
78
4
78
65
65
62
33
77
62
10
37
38
70
38
70
62
62
11
61
37
35
36
37
80
56
82
12
37
13
36
35
85
73
62
20
20
47
47
45
45
73
62
63
56
19
42
63
43
48
54
89
14
65
73
65
62
41
40
34
62
62
65
77
7
65
62
62
71
65
71
83
83
84
65
86
86
65
62
47
47
64
62
64
87
87
87
87
62
93
93
94
94
EXPLODED DRAWING—Model No. NTB49030 R0304A
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through
, 6 a.m. until 6 p.m. MST (excluding holidays). Please be prepared to give the following information:
Friday
• The MODEL NUMBER of the product (NTB49030)
• The NAME of the product (NordicTrack
®
STRENGTH PERFORMANCE SYSTEM weight rack)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®STRENGTH PERFORMANCE SYSTEM weight rack (“Product”) is warranted to be
free of all defects in material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the product frame for five years after the date of purchase. ICON warrants all other parts for one year after the date of purchase. Labor is covered for one year.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our
option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper
assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and
maintain as set out in your User’s Manual (“Manual”).
WHATYOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
ARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name
P
O GET
T
HOW
and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return
Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the service is covered by warranty
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property
ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the
exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness
for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how
long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty
you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
.
.
, loss of revenues or profits, loss of enjoy
This warranty gives you specific legal rights and
-
Part No. 206369 R0304A Printed in China © 2003 ICON IP, Inc.
Loading...
