NordicTrack E4.0 Elliptical, E 4.1 NTEVEL75012.0, NTEVEL75910.3 User Manual

Model No. NTEVEL75910.3 Serial No.
Write the serial number in the space above for reference.
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write:
ICON Health & Fitness, Ltd. c/o HI Group PLC Express Way CASTLEFORD WF10 5QJ UNITED KINGDOM
USER’S MANUAL
AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com Write:
ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
www.iconeurope.com
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................15
MAINTENANCE AND TROUBLESHOOTING ....................................................25
EXERCISE GUIDELINES ....................................................................27
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

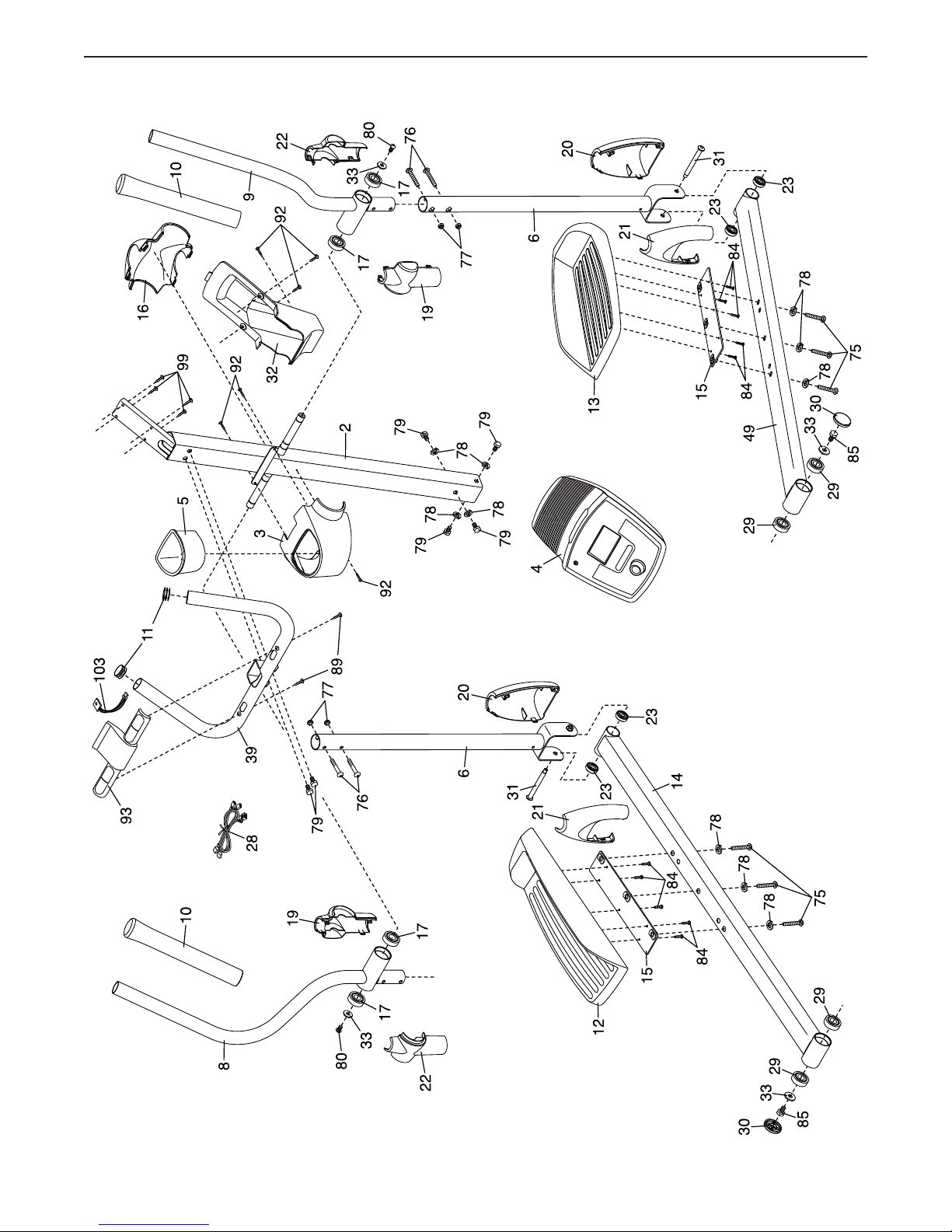

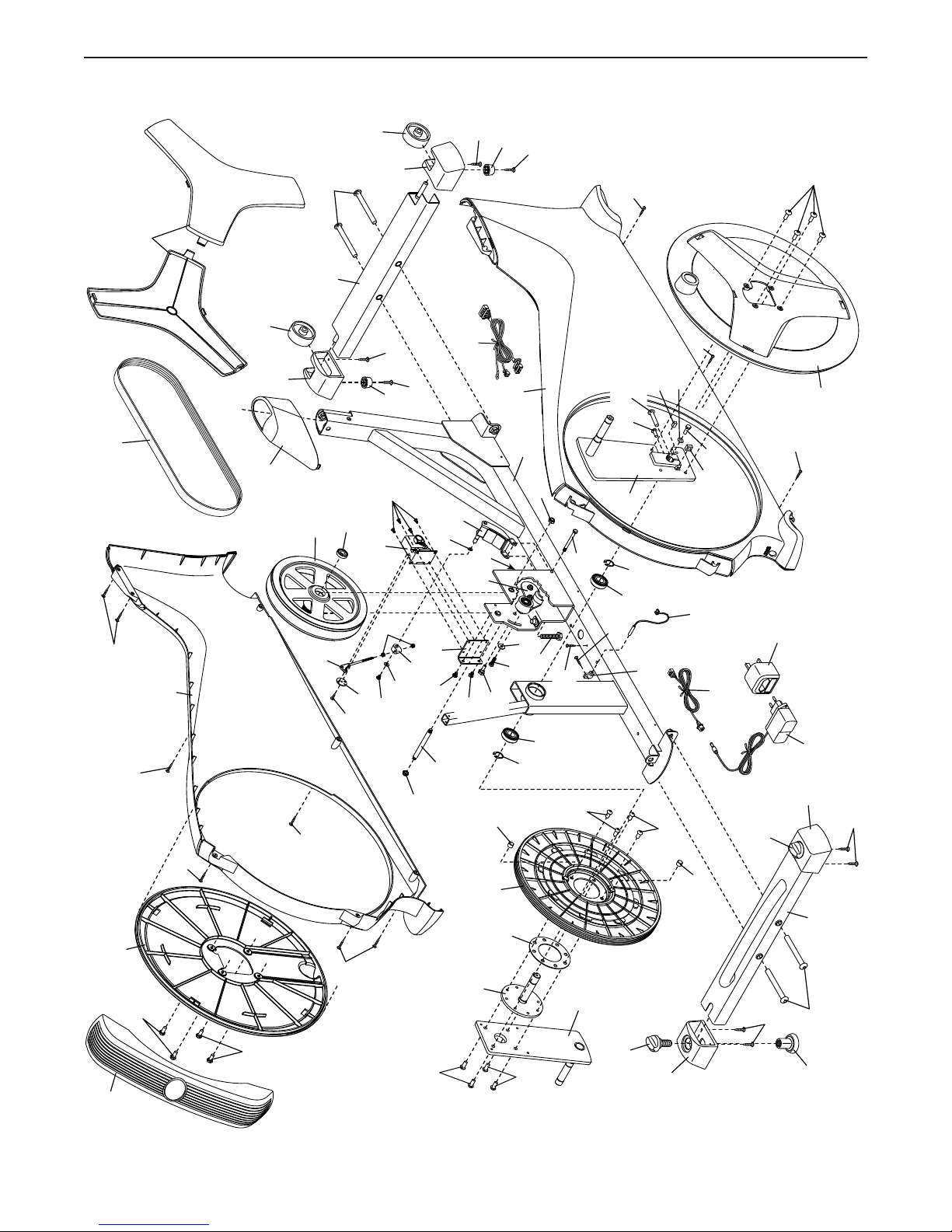

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be
shown at actual size.
NORDICTRACK is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure that all users of the elliptical are adequately informed of all precautions.
2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or per­sons with pre-existing health problems.
3. Use the elliptical only as described in this manual.
4. The elliptical is intended for home use only. Do not use the elliptical in a commercial, rental, or institutional setting.
5. Keep the elliptical indoors, away from mois­ture and dust. Do not put the elliptical in a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at least 3 ft. (0.9 m) of clearance in the front and rear of the elliptical and 2 ft. (0.6 m) on each side. To protect the floor or carpet from dam­age, place a mat under the elliptical.
9. The elliptical should not be used by persons weighing more than 330 lbs. (150 kg).
10. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the elliptical. Always wear athletic shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms when mounting, dismounting, or using the elliptical.
12. The heart rate monitor is not a medical device. Various factors may affect the accu­racy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the pedals will continue to move until the fly­wheel stops. Reduce your pedaling speed in a controlled way.
14. Keep your back straight while using the ellip­tical; do not arch your back.
7. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away from the elliptical at all times.
15. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.
3
BEFORE YOU BEGIN
Thank you for purchasing the NORDICTRACK® E 4.0 elliptical. The E 4.0 elliptical provides an array of fea­tures designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Upper Body Arm
Handlebar
Heart Rate Monitor
Water Bottle Holder*
manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

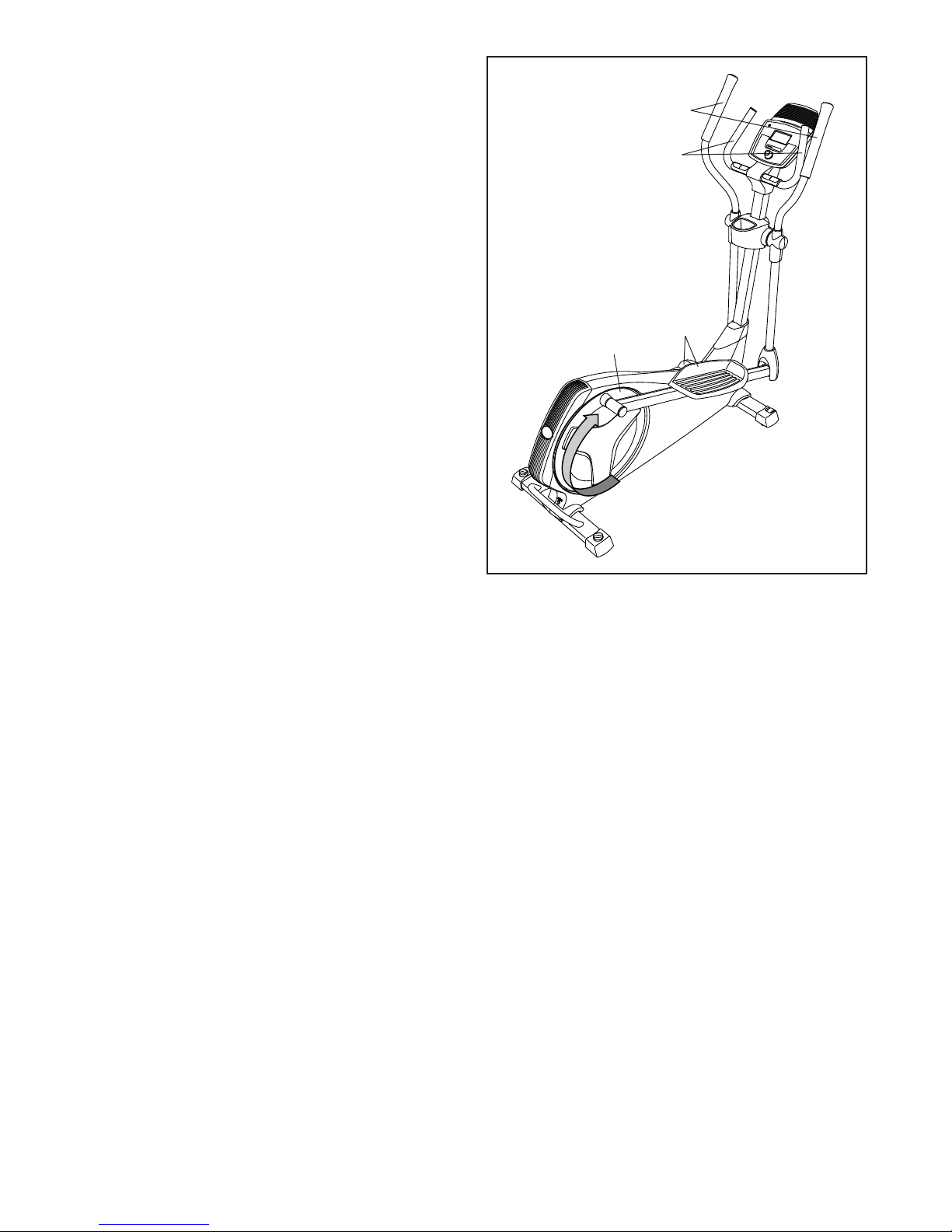

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Console
Pedal Disc
Handle
Leveling Foot
Pedal
Wheel
*Water bottle is not included
Length: 5 ft. 6 in. (168 cm) Width: 2 ft. 1 in. (64 cm) Weight: 134 lbs. (61 kg)
4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Jam Nut
(77)–4
M10 x 48mm
Screw (75)–6
M8 Washer
(33)–2
M8 x 20mm
Screw (80)–2
M10 Split Washer
(78)–10
M8 x 45mm
Bolt (76)–4
M10 x 95mm Screw (82)–4
Shoulder Bolt (31)–2
M4 x 16mm
Screw (92)–6
M10 x 20mm
Screw (79)–6
M4 x 28mm
Screw (99)–4
5
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
1. Go to www.iconsupport.eu on your computer
and register your product.
• activatesyourwarranty
• savesyoutimeifyoueverneedtocontact
Customer Service
• allowsustonotifyyouofupgradesandoffers
Note: If you do not have Internet access, call
CUSTOMER SERVICE (see the front cover of this manual) and register your product.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
Assembly may be easier if you have a set of wrenches. To avoid damaging parts, do not use power tools.
1
6
2. While a second person lifts the rear of the Frame (1), attach the Rear Stabilizer (70) to the Frame with two M10 x 95mm Screws (82).
2
70
1
82
3. While a second person lifts the front of the Frame (1), attach the Front Stabilizer (73) to the Frame with two M10 x 95mm Screws (82).
3
73
1
82
7
4. Orient the Upright (2) and the Top Shield Cover (37) as shown. Slide the Top Shield Cover upward onto the Upright.
4
Have a second person hold the Upright (2) near
the Frame (1).
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie to the Wire Harness (42). Next, pull the upper end of the wire tie upward out of the top of the Upright. Then, untie and discard the wire tie.
Tip: To prevent the Wire Harness (42) from
falling into the Upright (2), secure the Wire Harness with a rubber band or a piece of tape.
42
37
1
Wire
Tie
2
2
Wire Tie
42
5. Slide the Upright (2) onto the Frame (1).
Tip: Have a second person hold the Top Shield Cover (37) out of the way.
Tip: Avoid pinching the Wire Harness (42).
Attach the Upright (2) with four M10 x 20mm Screws (79) and four M10 Split Washers (78).
Slide the Top Shield Cover (37) downward and
press it into the Frame (1).
1
5
42
Avoid pinching the
Wire Harness (42)
2
37
79
78
1
78
79
8
6. Orient the Console Cover (32) as shown. Then, slide the Console Cover onto the Upright (2).
6
Orient the Handlebar (39) as shown. Make sure
to pull the Pulse Wire (28) and the Chest Pulse Wire (103) out of the Handlebar.
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with two M10 x 20mm Screws (79).
7. While a second person holds the Console (4) near the Upright (2), connect the console wires to the Wire Harness (42), the Pulse Wire (28), and the Chest Pulse Wire (103).
79
Avoid pinching
the wires
7
Avoid pinching
the wires
28
103
2
32
39
4
Insert the excess wires into the Upright (2) or
into the Console (4).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x 28mm Screws (99).
Console Wires
103
28
42
2
99
99
9
8. Slide the Console Cover (32) upward to the Console (4).
Attach the Console Cover (32) to the Upright (2)
with an M4 x 16mm Screw (92).
Then, attach the Console Cover (32) to the
Console (4) with two M4 x 16mm Screws (92).
8
4
92
2
92
32
9. Identify the Left and Right Upper Body Arms (8, 9).
Orient the Left Upper Body Arm (8) and an
Upper Body Leg (6) as shown. Make sure that
the hexagonal holes are in the indicated location.
Insert the Left Upper Body Arm (8) into the
Upper Body Leg (6).
Attach the Left Upper Body Arm (8) with two M8
x 45mm Bolts (76) and two M8 Jam Nuts (77).
Make sure that the Jam Nuts are in the hex­agonal holes. Do not tighten the Bolts yet.
Attach the Right Upper Body Arm (9) to the
other Upper Body Leg (6) in the same way.
9
8
9
76
76
77
Hexagonal
Holes
6
77
6
10
10. Apply a generous amount of the included grease to the axles on the Upright (2).

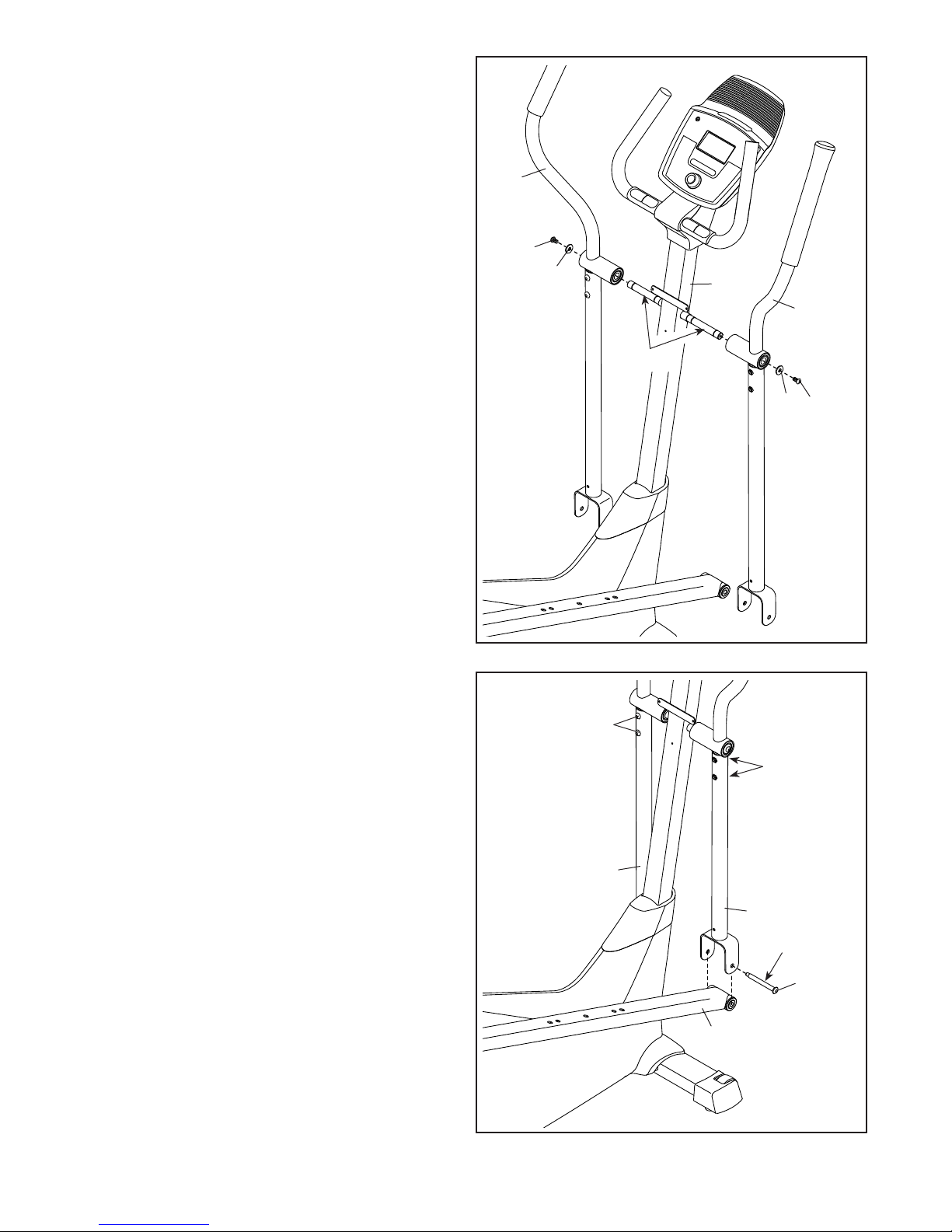

Orient the Left and Right Upper Body Arms (8, 9)
as shown, and slide them onto the left and right sides of the Upright (2).
Attach each Upper Body Arm (8, 9) with an M8 x
20mm Screw (80) and an M8 Washer (33).
10
8
80
33
Grease
2
9
33
80
11. Apply a small amount of grease to a Shoulder Bolt (31).
While a second person holds the front end of the
Right Pedal Arm (49) inside the bracket on the right Upper Body Leg (6), insert the Shoulder Bolt (31) through the right Upper Body Leg and the Right Pedal Arm.
Tighten the Shoulder Bolt (31) into the welded
nut on the right Upper Body Leg (6).
Repeat this step to attach the Left Pedal Arm
(not shown) to the left Upper Body Leg (6).
Tighten the M8 x 45mm Bolts (76).
11
76
76
6
6
Grease
31
49
11
12. See the inset drawing. Identify a Pivot Cover A (19), which has hooks, and a Pivot Cover B (22), which has tabs.
Press a Pivot Cover A (19) and a Pivot Cover
B (22) together around the Right Upper Body Arm (9).
Repeat this step for the other side of the
elliptical.
12
Tip: Make sure that the Pivot Covers (19, 22)
are positioned as shown.
13. Attach the Rear Upright Cover (3) to the Upright (2) with three M4 x 16mm Screws (92).
Orient the Front Upright Cover (16) so that the
indicated arrow is pointing upward.
Press the Front Upright Cover (16) into the Rear
Upright Cover (3).
Press the Water Bottle Holder (5) into the Rear
Upright Cover (3).
13
Tabs
5
22
Hooks
19
Hooks
22
8
19
19
9
22
16
92
Arrow
12
92
2
3

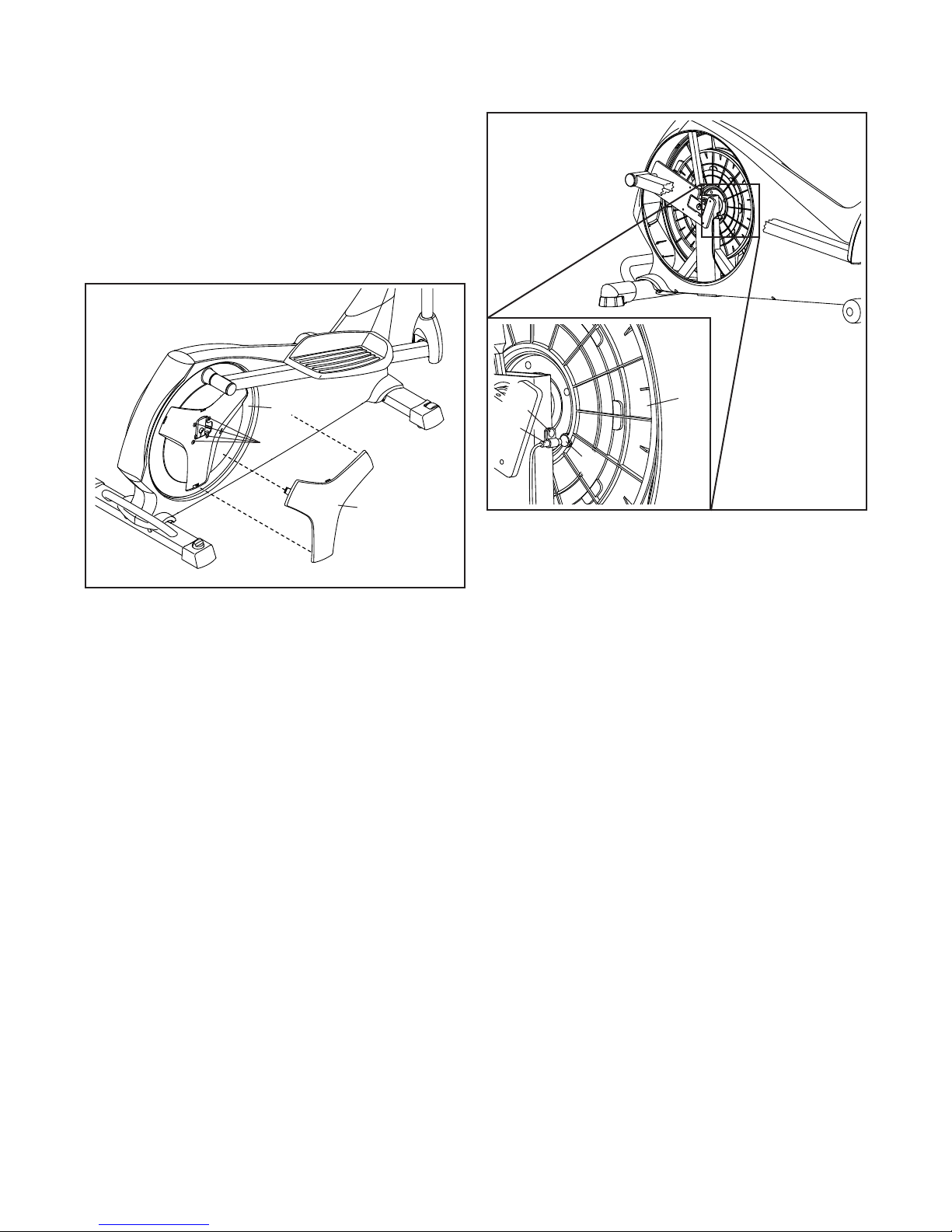

14. Press a Front Leg Cover (20) and a Rear Leg Cover (21) together around the right Upper Body Leg (6).
Repeat this step for the other side of the
elliptical.
14
6
20
21
15. Identify the Right Pedal (13).
Attach the Right Pedal (13) to the Right Pedal
Arm (49) with three M10 x 48mm Screws (75) and three M10 Split Washers (78). Make sure to
use the center hole and the two outer holes to attach the Right Pedal.
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
15
13
49
78
75
13

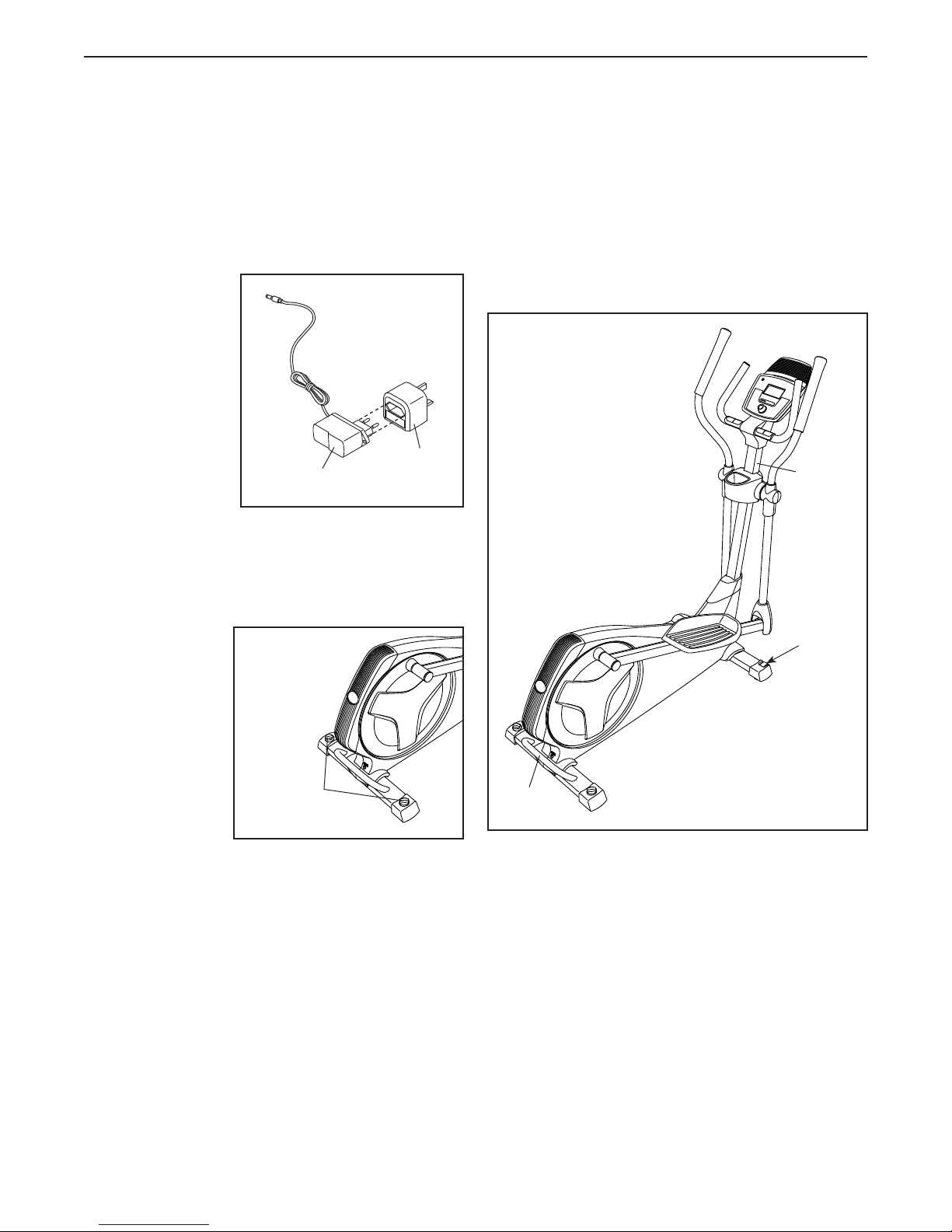

16. See the upper drawing. Press the Rear Shield Cover (59) onto the Left and Right Shields (44, 45).
Plug the Power Adapter (100) into the Power
Receptacle (104) on the Frame (1).
If necessary, plug the Power Adapter (100) into
the Plug Adapter (101).
To plug the Power Adapter (100) into an outlet,
see HOW TO PLUG IN THE POWER ADAPTER on page 15.
See the lower drawing. Note: The Console (4)
can also be operated with four D batteries (not included); alkaline batteries are recommended. Remove the screws, remove the battery cover, insert the batteries into the battery compart­ments, and reattach the battery cover. Make
sure to orient the batteries as shown by the diagrams inside the battery compartments.
16
101
59
100
44
45
104
1
Battery
Cover
Batteries
Batteries
4
Screws
17. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To protect the floor or carpet from damage, place a mat under the elliptical.
14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to cold temperatures, allow it to warm to room tem­perature before plugging in the power adapter. If you do not do this, you may damage the console displays or other electronic components.
Plug the power adapter into the jack on the frame of the elliptical. Next, plug the power adapter into the plug adapter. Then, plug the plug adapter into an appropriate outlet that is prop­erly installed in accordance with all local codes and ordinances.
Power Adapter
Plug
Adapter
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving it requires two persons. Stand in front of the ellipti-
cal, hold the upright, and place one foot against one of the front wheels. Pull on the upright and have a second person lift the handle until the elliptical will roll on the wheels. Carefully move the elliptical to the desired location, and then lower it to the floor.
Upright
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use, turn one or both of the leveling knobs on the rear stabi­lizer and adjust the leveling feet until the rock­ing motion is eliminated.
Leveling
Knobs
Place
your foot
here
Handle
15
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the upper body arms and step onto the pedal that is in the lowest position. Then, step onto the other pedal.
Push the pedals until they begin to move with a continuous motion. Note: The pedal discs can turn
in either direction. It is recommended that you move the pedal discs in the direction shown by the arrow; however, for variety, you can turn the pedal discs in the opposite direction.
To dismount the elliptical, wait until the pedals come to a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower pedal.
Upper Body Arms
Handlebars
Pedal
Disc
Pedals
16

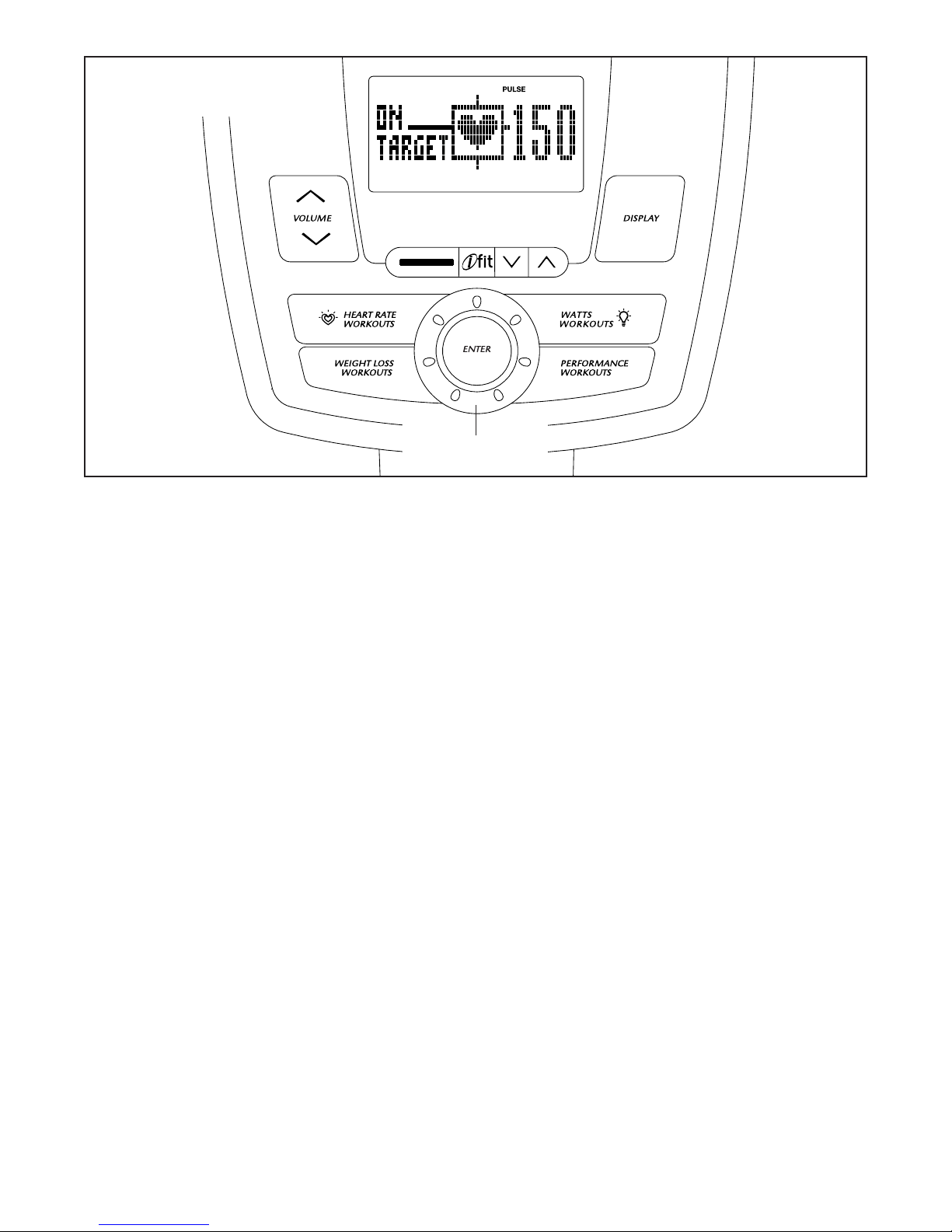

CONSOLE DIAGRAM
Resistance Dial
FEATURES OF THE CONSOLE
The advanced console offers an array of features designed to make your workouts more effective and enjoyable.
When you select the manual mode of the console, you can change the resistance of the pedals with a turn of the dial. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor or the optional chest heart rate monitor.
The console offers twelve preset workouts—six weight loss workouts and six performance workouts. Each workout automatically changes the resistance of the pedals and prompts you to vary your pedaling speed as it guides you through an effective workout.
In addition, the console offers two heart rate workouts that change the resistance of the pedals and prompt you to vary your pedaling speed to keep your heart rate near a target heart rate.
The console also offers three watts workouts that change the resistance of the pedals and prompt you to vary your pedaling speed to keep your power output near a target level.
The console features the iFit interactive workout sys­tem, which enables the console to accept iFit cards containing workouts designed to help you achieve spe­cific fitness goals. For example, lose unwanted pounds with the 8-week Weight Loss workout. iFit workouts control the resistance of the pedals while the voice of a personal trainer coaches you through your workouts. iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this manual. iFit cards are also available at select stores.
You can even connect your MP3 player or CD player to the console sound system and listen to your favorite music or audio books while you exercise.
To turn on the power, see page 18. To use the manual mode, see page 18. To use a preset workout, see page 20. To use a heart rate work­out, see page 21. To use a watts workout, see page 22. To use an iFit workout, see page 24. To use the sound system, see page 24.
Note: If there is a sheet of plastic on the display, remove the plastic.
17
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to cold temperatures, allow it to warm to room tem­perature before turning on the power. If you do not do this, you may damage the console displays or other electrical components.
Plug in the power adapter (see HOW TO PLUG IN THE POWER ADAPTER on page 15). When the power adapter is plugged in, the displays will turn on and the console will be ready for use.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the console to turn on the console.
See HOW TO TURN ON THE POWER above.
3. Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by turning the resistance dial.
To increase the resistance, turn the resistance dial
clockwise; to decrease the resistance, turn the resistance dial counterclockwise. Note: After you change the resistance, it will take a moment for the pedals to reach the selected resistance level.
4.
Follow your progress with the displays.
The console offers several display modes. The
display mode that you select will determine which workout information is shown. Press the Display button repeatedly to select the desired display mode.
2. Select the manual mode.
Each time you turn on the console, the manual
mode will be selected.
If you have
selected a workout, reselect the manual mode by pressing any of the Workouts buttons repeatedly until zeros appear in the display.
The displays can show the following workout
information:
Time—When

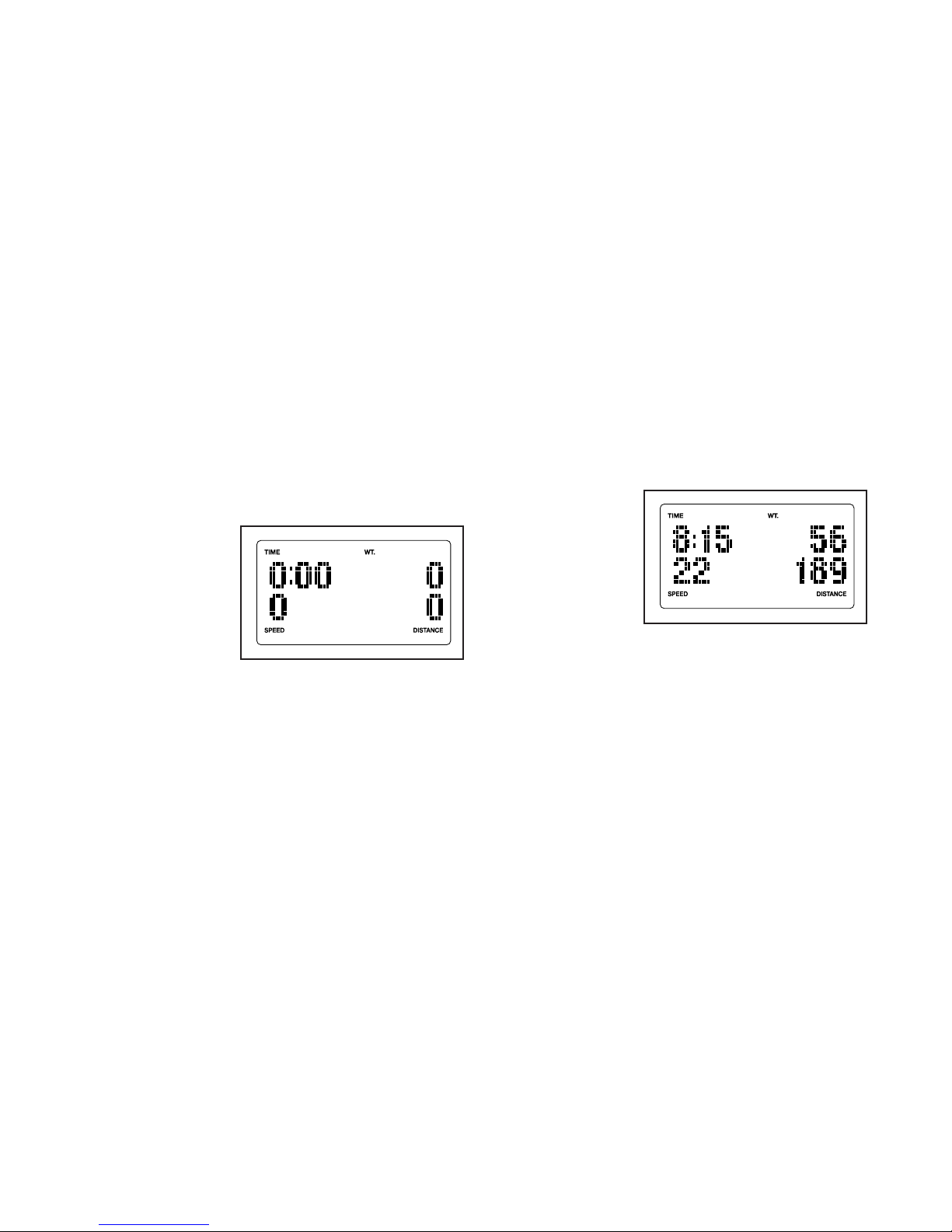

the manual mode is selected, this display will show the elapsed time. When a workout is selected, the display will show the time remaining in the workout instead of the elapsed time.
Speed—This display will show your pedaling
speed in revolutions per minute (rpm).
Distance—This display will show the distance
(total number of revolutions) you have pedaled.
Calories—This display will show the approximate
number of calories you have burned.
Watts—This display will show your approximate
power output in watts (Wt.).
18
Pulse—This display will show your heart rate
when you use the handgrip heart rate monitor or the optional chest heart rate monitor (see step 5 below).
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.
Resistance—This display will show the resistance
level of the pedals for a few seconds each time the resistance level changes.
Profile—When a workout is selected, this display
will show a profile of the resistance settings for the workout.
Change the volume level of the console by press-
ing the Volume increase and decrease buttons.
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip heart rate monitor or the optional chest heart rate monitor (see page 24 for information about the optional chest heart rate monitor).
Note: If you hold the handgrip heart rate monitor
and wear the chest heart rate monitor at the same time, the console will not display your heart rate accurately.
If there are sheets
of plastic on the metal contacts on the handgrip heart rate moni­tor, remove the plastic. In addi­tion, make sure that your hands are clean. To
measure your heart rate, hold the handgrip heart rate monitor with your palms resting against the contacts. Avoid moving your hands or gripping the contacts tightly.
Contacts
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not to move your hands excessively or to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
6. When you are finished exercising, the console will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn off and the display will be reset.
19
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2. Select a preset workout.
To select a preset workout, first press the Weight
Loss Workouts or the Performance Workouts button.
Next, turn the resistance dial until the number of
the desired workout appears in the display.
As you exercise, you
will be prompted to keep your pedaling speed near the target speed for the current seg­ment. When an upward arrow or the word FASTER appears in the display, increase your speed. When a downward arrow or the word SLOWER appears, decrease your speed. When no arrow appears or the words ON TARGET appear, maintain your current speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual speed may be slower than the target speed. Make sure to pedal at a speed that is comfortable for you.
Then, press
the Enter but­ton to select the workout. The workout time and a profile of the resistance levels for the workout will then appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are programmed for each segment. Note: The same resistance level and/or target speed may be pro­grammed for consecutive segments.
The workout profile will show your progress (see
the drawing above). The flashing segment of the profile represents the current segment of the work­out. The height of the flashing segment indicates the resistance level for the current segment.
When the first segment of the workout ends,
the resistance level and the target speed for the second segment will appear in the display for a few seconds to alert you. The next segment of the profile will begin to flash, and the pedals will auto­matically adjust to the resistance level for the next segment.
If the resistance level for the current segment is
too high or too low, you can manually override the setting by turning the resistance dial. IMPORTANT:
When the current segment of the workout ends, the pedals will automatically adjust to the resis­tance level for the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time, stop pedaling. A tone will sound and the time will begin to flash in the display. To restart the workout, simply resume pedaling.
4. Follow your progress with the displays.
See step 4 on page 18.
5.
Measure your heart rate if desired.
See step 5 on page 19.
6. When you are finished exercising, the console will turn off automatically.
See step 6 on page 19.
20
HOW TO USE A HEART RATE WORKOUT
1. Begin pedaling or press any button on the console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2. Select a heart rate workout.
During the workout, the console will regularly
compare your heart rate to the target heart rate for the current segment of the workout. If your heart rate is too far below or above the target heart rate, the resistance of the pedals will automatically increase or decrease to bring your heart rate closer to the target heart rate. Each time the resistance changes, the resistance level will appear in the display for a few seconds to alert you.
To select a heart rate workout, first press the Heart
Rate Workouts button.
Next, turn the resistance dial until the number of
the desired workout appears in the display. Then, press the Enter button to select the workout.
3. Enter a target heart rate setting.
A few seconds

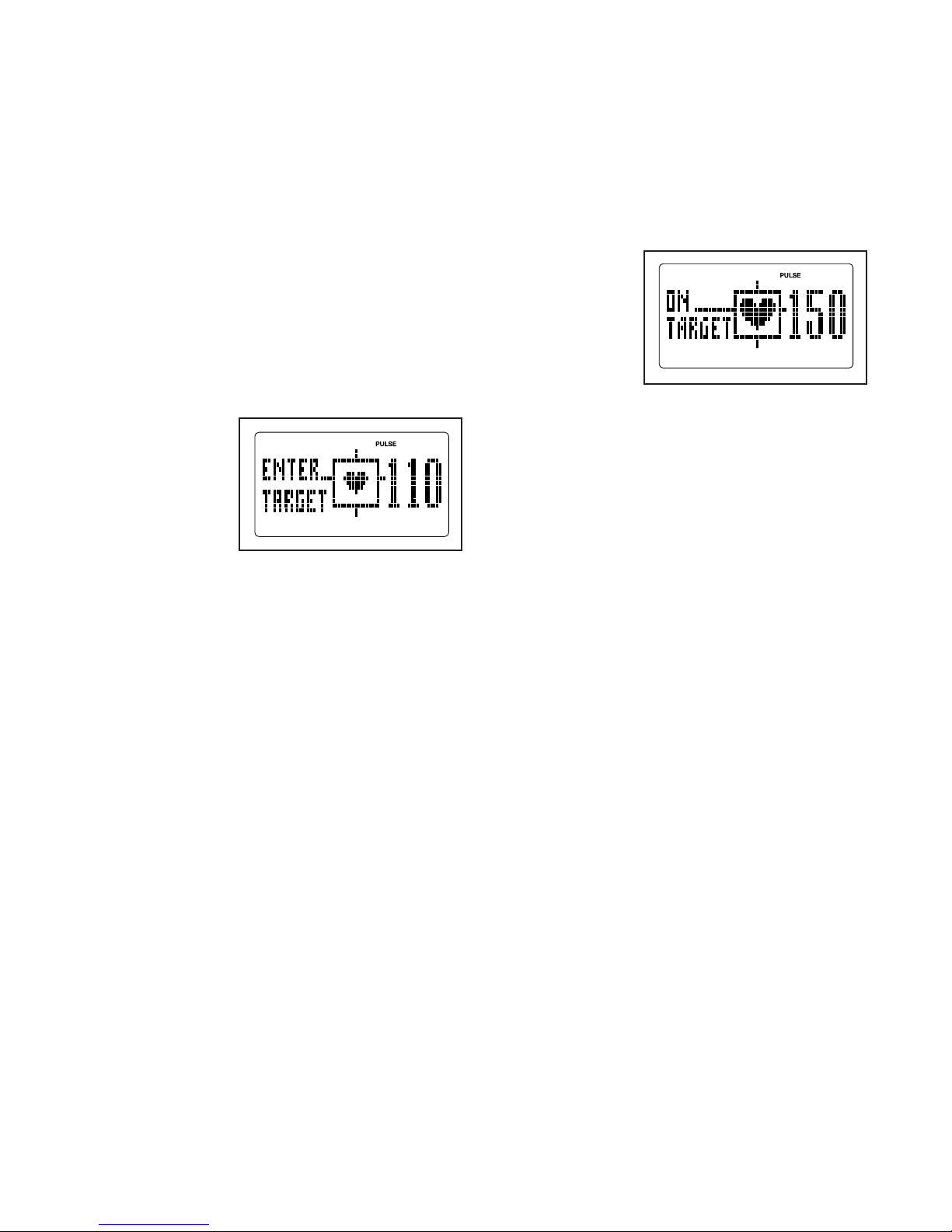

after you select a heart rate workout, the workout time and the words ENTER TARGET will appear in the display.
A different target heart rate setting will be pro-
grammed for each segment of the heart rate workout. Turn the resistance dial to enter the desired maximum target heart rate for the workout (see EXERCISE INTENSITY on page 27). Then, press the Enter button.
As you exer-
cise, you will be prompted to pedal at a target speed. When an upward arrow or the word FASTER appears in the display, increase your speed. When a downward arrow or the word SLOWER appears, decrease your speed. When no arrow appears or the words ON TARGET appear, maintain your cur­rent speed.
IMPORTANT: Make sure to pedal at a speed that
is comfortable for you. If the resistance level for the current segment is too high or too low, you can manually override the setting by turning the resis­tance dial; however, if you change the resistance level, you might not maintain the target heart rate.
Also, when the console compares your heart rate
to the target heart rate, the resistance of the pedals may automatically increase or decrease to bring your heart rate closer to the target heart rate.
4. Hold the handgrip heart rate monitor.
It is not necessary to hold the handgrip heart rate
monitor continuously during a heart rate workout; however, you should hold the handgrip heart rate monitor frequently for the workout to operate prop­erly. Each time you hold the handgrip heart rate
monitor, keep your hands on the metal contacts for at least 15 seconds.
5. Begin pedaling to start the workout.
Each heart rate workout is divided into one-minute
segments. One target heart rate is programmed for each segment. Note: The same target heart rate may be programmed for consecutive segments.
The workout will continue in this way until the last
segment ends. To stop the workout at any time, stop pedaling. A tone will sound and the time will begin to flash in the display. To restart the workout, simply resume pedaling.
6. Follow your progress with the displays.
See step 4 on page 18.
7. When you are finished exercising, the console will turn off automatically.
See step 6 on page 19.
21
HOW TO USE A WATTS WORKOUT
4. Begin pedaling to start the workout.
1. Begin pedaling or press any button on the console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2.
Select a watts workout.
To select a watts workout, first press the Watts
Workouts button. Next, turn the resistance dial until the number of the desired workout appears in the display. Then, press the Enter button to select the workout.
If you select
watts work­out 1, the
words ENTER WATTS TARGET will appear in the display.
If you select
watts work­out 2 or 3, the
workout time and a profile of the resis­tance levels for the work­out will appear in the display.
3. If you selected watts workout 1, enter a target watts setting.
During watts workout 1, the same target watts
setting will be programmed for all segments of the workout. Turn the resistance dial to enter the desired target watts setting.
Watts workout 1 is divided into 40 one-minute
segments. During the workout, the console will regularly compare your watts output to the target watts setting you entered for the workout.
If your watts output is too far below or above the
target watts setting, the resistance of the pedals will automatically increase or decrease to bring your watts output closer to the target watts setting. Each time the resistance changes, the resistance level will appear in the display for a few seconds to alert you.
If the target watts setting is too high or too low, you
can manually override the setting by turning the resistance dial.
Watts workout 2 or 3 is divided into 40 one-min-
ute segments. One resistance level and one target watts level are programmed for each segment. Note: The same resistance level and/or target watts level may be programmed for consecutive segments.
The workout profile will show your progress (see
the drawing at the left). The flashing segment of the profile represents the current segment of the work­out. The height of the flashing segment indicates the resistance level for the current segment.
As you exercise, you
will be prompted to pedal at a target speed. When an upward arrow or the word FASTER appears in the display, increase your speed. When a downward arrow or the word SLOWER appears, decrease your speed. When no arrow appears or the words ON TARGET appear, maintain your current speed.
22
IMPORTANT: The target speed is intended only
to provide motivation. Your actual speed may be slower than the target speed. Make sure to pedal at a speed that is comfortable for you.
To stop a workout at any time, stop pedaling. A
tone will sound and the time will begin to flash in the display. To restart the workout, simply resume pedaling.
When the first segment of the workout ends,
the resistance level and the target speed for the second segment will appear in the display for a few seconds to alert you. The next segment of the profile will begin to flash, and the pedals will auto­matically adjust to the resistance level for the next segment.
If the resistance level for the current segment is
too high or too low, you can manually override the setting by turning the resistance dial. IMPORTANT:
When the current segment of the workout ends, the pedals will automatically adjust to the resis­tance level for the next segment.
5. Follow your progress with the displays.
See step 4 on page 18.
6.
Measure your heart rate if desired.
See step 5 on page 19.
7. When you are finished exercising, the console will turn off automatically.
See step 6 on page 19.
23
HOW TO USE AN IFIT WORKOUT
HOW TO USE THE SOUND SYSTEM
iFit cards are available separately. To purchase iFit cards, go to www.iFit.com or see the front cover of this manual. iFit cards are also available at select stores.
1. Begin pedaling or press any button on the console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2.
Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so that the metal contacts are face down and are fac­ing the slot. When the iFit card is properly inserted, the indicator next to the slot will turn on and text will appear in the display.
iFit Slot
iFit Card
To play music or audio books through the console sound system while you exercise, plug your audio cable into the jack on the console and into a jack on your MP3 player or CD player; make sure that your audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD player. Adjust the volume level using the volume control on your MP3 player or CD player or press the Volume increase and decrease buttons on the console.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the best results is to maintain the proper heart rate during your workouts. The optional chest heart rate monitor will enable you to continuously monitor your heart rate while you exercise, helping you to reach your personal fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Next, select the desired workout on the iFit card by
pressing the increase and decrease buttons next to the iFit slot.
A moment after you select a workout, the voice of a
personal trainer will begin guiding you through your workout.
iFit workouts function in the same way as preset
workouts. To use the workout, see steps 3 to 6 on page 20.
3.
When you are finished exercising, remove the iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
24
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly. Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
14
92
44
92
If the handgrip heart rate monitor does not function properly, see step 5 on page 19.
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling, even when the resistance is adjusted to the highest level, the drive belt may need to be adjusted.
To adjust the drive belt, you must remove the left pedal, the top shield cover, the rear shield cover, and the left shield (see the instructions below).
First, unplug the power adapter. Then, see step 15 on page 13 and remove the left pedal.
Next, see step 16 on page 14 and remove the rear shield cover.
Then, see step 5 on page 8 and release the top shield cover from the shields. Slide the top shield cover upward.
Remove the M4 x 16mm Screws (92) from the Left Shield (44) and then gently move the Left Shield out­ward over the Left Pedal Arm (14).
92
92
Next, loosen the Pivot Screw (88). Then, tighten the Drive Belt Adjustment Screw (72) until the Drive Belt (46) is tight.
46
88
72
When the Drive Belt (46) is tight, tighten the Pivot Screw (88).
Then, reattach the left shield, the rear shield cover, the top shield cover, and the left pedal. Plug in the power adapter.
25
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the reed switch should be adjusted.
To adjust the reed switch, you must remove the right disc cover and the right pedal disc (see the instructions below).
First, unplug the power adapter. Then, using a flat screwdriver, remove the right Disc Cover (18).
Locate the Reed Switch (58). Loosen, but do not remove, the M4 x 16mm Screw (92).
27
81
18
Then, remove the M8 x 12mm Screws (81) from the right Pedal Disc (27), and gently rotate the right Pedal Disc out of the way.
92
58
41
Next, rotate the Pulley (24) until a Magnet (41) is aligned with the Reed Switch (58). Slide the Reed Switch slightly toward or away from the Magnet. Then, retighten the M4 x 16mm Screw (92).
Plug in the power adapter and rotate the Pulley (24) for a moment. Repeat these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach the right pedal disc and the right disc cover.
24
26
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for persons over age 35 or persons with pre-existing health problems.
The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determin­ing heart rate trends in general.
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise ; never hold your breath.

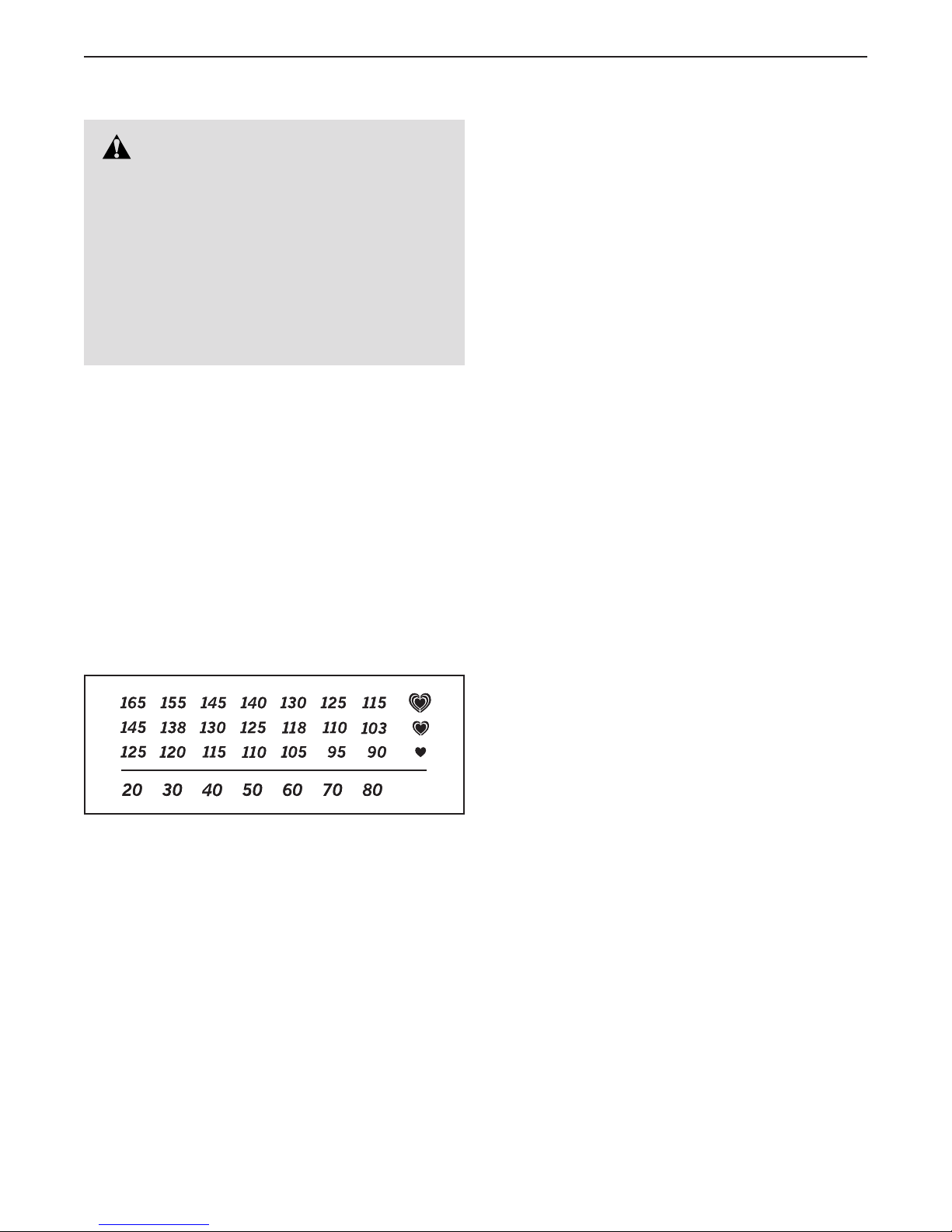

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretch­ing. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
27
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. NTEVEL75910.3 R0113A
1 1 Frame 2 1 Upright 3 1 Rear Upright Cover 4 1 Console 5 1 Water Bottle Holder 6 2 Upper Body Leg 7 1 Resistance Wheel 8 1 Left Upper Body Arm 9 1 Right Upper Body Arm 10 2 Foam Grip 11 2 Upper Cap 12 1 Left Pedal 13 1 Right Pedal 14 1 Left Pedal Arm 15 2 Pedal Bracket 16 1 Front Upright Cover 17 4 Pivot Bearing 18 2 Disc Cover 19 2 Pivot Cover A 20 2 Front Leg Cover 21 2 Rear Leg Cover 22 2 Pivot Cover B 23 4 Swing Bearing 24 1 Pulley 25 1 Right Crank Arm 26 1 Left Crank Arm 27 2 Pedal Disc 28 1 Pulse Wire 29 4 Bearing 30 2 Pedal Arm Cap 31 2 Shoulder Bolt 32 1 Console Cover 33 4 M8 Washer 34 2 Adjustment Nut 35 1 M5 Washer 36 1 Small Snap Ring 37 1 Top Shield Cover 38 2 Crank Bearing 39 1 Handlebar 40 2 Large Snap Ring 41 2 Magnet 42 1 Wire Harness 43 2 M6 Washer 44 1 Left Shield 45 1 Right Shield 46 1 Drive Belt
47 2 Leveling Foot 48 2 Rear Stabilizer Cap 49 1 Right Pedal Arm 50 2 Wheel 51 1 Flywheel 52 1 Idler 53 1 C-magnet 54 1 Resistance Motor 55 1 Motor Bracket 56 1 Resistance Arm 57 1 Clamp 58 1 Reed Switch/Wire 59 1 Rear Shield Cover 60 1 Key 61 1 M8 Locknut 62 1 M6 x 16mm Screw 63 2 Foot 64 1 Flywheel Axle 65 1 C-magnet Screw 66 1 Idler Screw 67 1 Key Screw 68 1 Crank Arm Screw 69 4 Resistance Motor Bolt 70 1 Rear Stabilizer 71 2 Motor Bracket Screw 72 1 Drive Belt Adjustment Screw 73 1 Front Stabilizer 74 1 M6 Locknut 75 6 M10 x 48mm Screw 76 4 M8 x 45mm Bolt 77 6 M8 Jam Nut 78 10 M10 Split Washer 79 6 M10 x 20mm Screw 80 2 M8 x 20mm Screw 81 8 M8 x 12mm Screw 82 4 M10 x 95mm Screw 83 1 M5 x 7mm Screw 84 10 #10 x 16mm Screw 85 2 M8 x 18mm Hex Screw 86 1 Crank Arm Spacer 87 1 M3.5 x 12mm Screw 88 1 Pivot Screw 89 2 M4 x 16mm Flat Head Screw 90 1 M4 x 16mm Ground Screw 91 1 Crank 92 23 M4 x 16mm Screw
28
Key No. Qty. Description Key No. Qty. Description
93 1 Pulse Sensor 94 1 Flywheel Bearing 95 2 Leveling Knob 96 2 M4 x 19mm Screw 97 1 Right Stabilizer Cap 98 1 Left Stabilizer Cap 99 4 M4 x 28mm Screw 100 1 Power Adapter 101 1 Plug Adapter
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.
102 1 Resistance Bracket 103 1 Receiver/Wire 104 1 Power Receptacle/Wire 105 4 M8 x 10mm Screw 106 4 M8 x 15mm Screw * User’s Manual * Assembly Tool * Grease Packet * Wire Tie
29
EXPLODED DRAWING A
Model No. NTEVEL75910.3 R0113A
30
EXPLODED DRAWING B
Model No. NTEVEL75910.3 R0113A
46
92
92
18
44
92
50
37
98
92
51
56
82
73
94
87
55
36
64
53
42
71
92
74
52
66
41
24
63
45
88
1
43
40
96
77
72
38
90
65
105
92
92
68
67
25
38
40
57
60
43
105
81
92
27
92
62
61
58
101
104
100
48
92
95
41
50
97
92
96
63
69
54
34
102
71
35
7
83
77
27
81
81
59
92
106
31
91
86
106
26
95
48
92
70
82
47
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)
•thenameoftheproduct(seethefrontcoverofthismanual)
•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED
DRAWING near the end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To pre­serve the environment, this product must be recycled after its useful life as required by law.
Please use recycling facilities that are authorized to collect this type of waste in your area. In doing so, you will help to conserve natural resources and improve European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product.
Part No. 342651 R0113A Printed in China © 2013 ICON IP, Inc.
Loading...
