NordicTrack E3000 User Manual

Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Patent Pending
T80627857
Find the serial number in the location shown below. Write the serial number in the space above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
USER'S MANUAL
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc tions in this manual before using this equipment. Save this manual for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

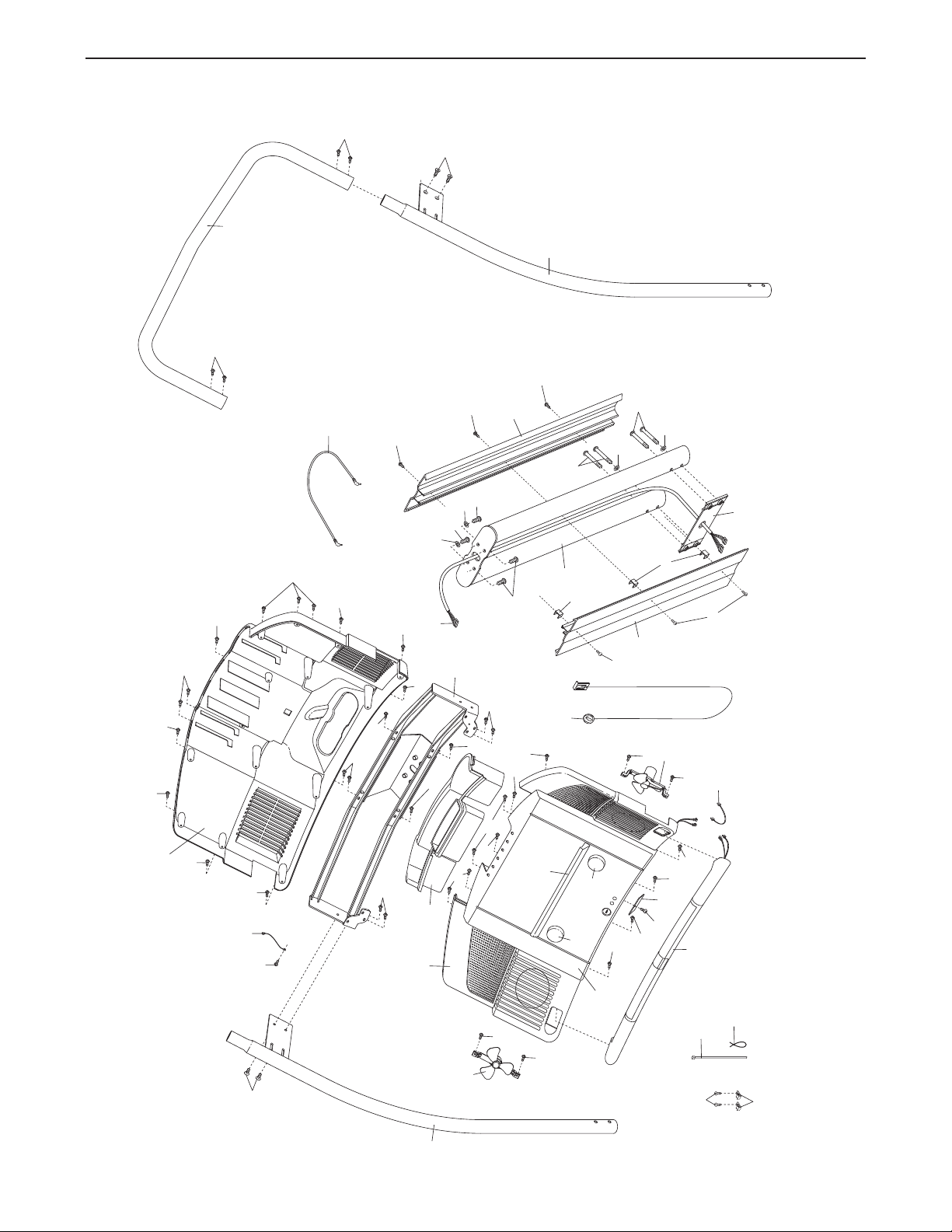

Note: An EXPLODED DRAWING is attached in the center of this manual.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 350 pounds.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 10), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
Use only a single-outlet surge suppressor that
11. meets all of the specifications described on page 10. To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888­825-2588 see your local electronics store.
and order part number 146148, or
Always wear athletic
12. Failure to use a properly functioning surge suppressor could result in damage to the con trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 27 if the tread­mill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
18. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and switch the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the reset/off circuit breaker.)
Do not attempt to move the treadmill until it is
19. properly assembled. (See ASSEMBLY on page 6, and HOW TO MOVE THE TREADMILL on page 9.) You must be able to safely lift 55 pounds (25 kg) to move the treadmill.
Do not change the incline of the treadmill by
20. placing objects under the treadmill.
-
3
When using iFIT.com programs, an electronic
21. “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer de­scribes the change.
22. When using iFIT.com programs, you can man­ually override the speed and incline settings by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
23. Always remove iFIT.com CDs and videos from your CD player or VCR and disconnect your MP3 player when you are not using them.
Inspect and properly tighten all parts of the
24. treadmill regularly.
25. Never insert or drop any object into any opening.
DANGER: Always unplug the power
26. cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
27. The treadmill is intended for in-home use only. Do not use the treadmill in any commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decal shown has been placed on your treadmill. If the decal is missing or illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACE­MENT PARTS on page 31). Apply the decal in the location shown.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack E3000 treadmill. The E3000 treadmill offers a selection of features designed to make your workouts at home more enjoyable and effective.
For your benefit, using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-
Console
Fan
read this manual carefully before
®
cluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is NTL17950. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Water Bottle Holder*
Pulse Sensor
Handrail
Walking Belt
Foot Rail
Rear Roller Adjustment Bolts
Key/Clip
Reset/Off
Circuit Breaker
Power Cord
*No water bottle is included.
5
ASSEMBLY
Washer (116)–4
Console Bolt (110)–4
3/4” Tek Screw
(91)–4
Upright Bolt (113)–4
Panel Screw
(101)–3
Frame Bolt (31)–4
Handrail Bolt (90)–4
Star Washer
(114)–4
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own Phillips screwdriver . For help identifying the assembly hardware, see the hardware drawings below.
1. Raise the end of the Frame (not shown) until the tread­mill can be moved on the Front Wheels (66), and care­fully roll the treadmill off the wood pallet.
Insert the Wire Harness (108) through the Upright Plate (115).
With the help of a second person, hold the Upright (111) and the Upright Plate (115) against the Frame Cover (52). See the inset drawing and make sure that the
Upright and the Upright Plate are oriented as shown. Attach the Upright and the Upright Plate with
four Upright Bolts (113) with two Star Washers (114).
Do not tighten the Upright Bolts yet.
1
115
111
111
66
108
114
52
115
114
113
6
2. Have a second person hold the console assembly near
the Upright (111). Insert the wire harness extending from the console assembly through the hole in the top of the Upright. Attach the console assembly to the Upright with four Console Bolts (110) and two Star Washers (114).
Firmly tighten the four Console Bolts.
2
Next, connect the wire harness extending from the con­sole assembly to the Wire Harness (108). The connec-
tors should slide together easily and snap into place. If they do not, turn one connector and try again.
3. Note: For clarity, the console assembly is not shown
in this step.
Orient the Short Panel (106) so that the indicated notches are at the top. Have a second person hold the Short Panel against the Upright (111), with the top of the Short Panel flush with the top of the Upright. Route the Wire Harness (108) down the indicated side of the Short Panel.
Wire Harness
114
110
111
3
Notches
109
108
Console
Assembly
114
110
108
112
101
108
Next, hold the Long Panel (112) against the opposite side of the Upright (111); make sure that the top of the Long
Panel is flush with the top of the Upright and that the Wire Harness (108) is not pinched. Press the Long
Panel and the Short Panel (106) together, and align the three holes in the Long Panel with the holes in the Panel Brackets (109). Attach the Long Panel and the Short Panel with three Panel Screws (101).
Firmly tighten the four Upright Bolts (113).
106
111
109
101
101
109
113
7
4. Identify the right Handrail (86) and the Left Handrail (89); the Handrails have indented holes in the outer sides for the heads of the Handrail Bolts (90).
4
93
Hold the Right Handrail (86) on the right side of the tread mill. Loosely thread two Handrail Bolts (90) into the bracket on the Right Handrail and into the console assem­bly. Do not tighten the Handrail Bolts yet. Attach the Left Handrail to the left side of the treadmill in the same way. Then, slide the Upper Handrail (93) onto the Right and Left Handrails.
Next, slide a Handrail Bracket (32) onto the lower end of the Right Handrail (86). Insert two Frame Bolts (31) with two Washers (116) into the Right Handrail and the Handrail Bracket, and finger tighten the Frame Bolts into the Frame (28). Do not tighten the Frame Bolts yet. Attach the lower end of the Left Handrail (89) in the same way.
­89
Console
Assembly
86
116
32
28
90
31
5. Attach the Upper Handrail (93) to the Left and Right Handrails (86, 89) with four 3/4” Tek Screws (91) (only two are shown); start all four Tek Screws before tightening
them.
See step 4. Firmly tighten the four Handrail Bolts (90) and the four Frame Bolts (31).
5
93
89
91
86
8
If you purchase the optional chest pulse sensor (see page 26), follow the steps below to install the re­ceiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
2. Remove the indicated 3/4” Screw (95) and the Access Door (121) from the bottom of the Console Base (98).
3. Connect the wire on the receiver (A) to the indicated wire extending from the Console Base (98).
ceiver so the small cylinder is oriented as shown and is facing the Console Base.
plastic posts on the Access Door (121) with the two in­cluded small screws.
Attach the receiver to the
Hold the re-
98
Small
Cylinder
Small
Screws
Wire
4. Make sure that no wires are pinched. Reattach the Access Door (121) with the 3/4” Screw (95). Discard the other wires included with the receiver.
HOW TO MOVE THE TREADMILL
1. Unplug the power cord.
2. Hold the treadmill with your hands in the location shown
by the arrow at the right, and raise the end of the tread­mill. CAUTION: To decrease the possibility of injury,
bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
3. Push the treadmill to the desired location. To reduce the
risk of injury, use extreme caution while moving the treadmill.
121
A
95
Carefully lower the treadmill until it is resting on the floor.
4.
Wheels
9
OPERATION AND ADJUSTMENT
PRE-LUBRICATED WALKING BELT
THE
Your treadmill features a walking belt coated with high­performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call 1-888-825­2588 and order part number 146148.
an equipment-grounding conductor and a grounding plug.
Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni­toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec tric shock. This product is equipped with a cord having
If it should malfunc-
-
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
-
Some 2-pole receptacle outlet box
10
Note: If there is a thin sheet of plastic on the face of the console, remove it.
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to make your workouts more effec­tive and enjoyable. When the manual mode of the con­sole is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you ex­ercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor or the optional chest pulse sensor (see page 26).
In addition, the console features fifteen preset pro­grams that automatically control the speed and incline of the treadmill as they guide you through effective workouts. You can even create your own custom work­out programs and save them in memory for future use. The console also offers four heart rate programs that control the speed and incline of the treadmill to keep your heart rate near a target heart rate during your workouts. Note: You must wear the optional chest pulse sensor to use the heart rate programs.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per-

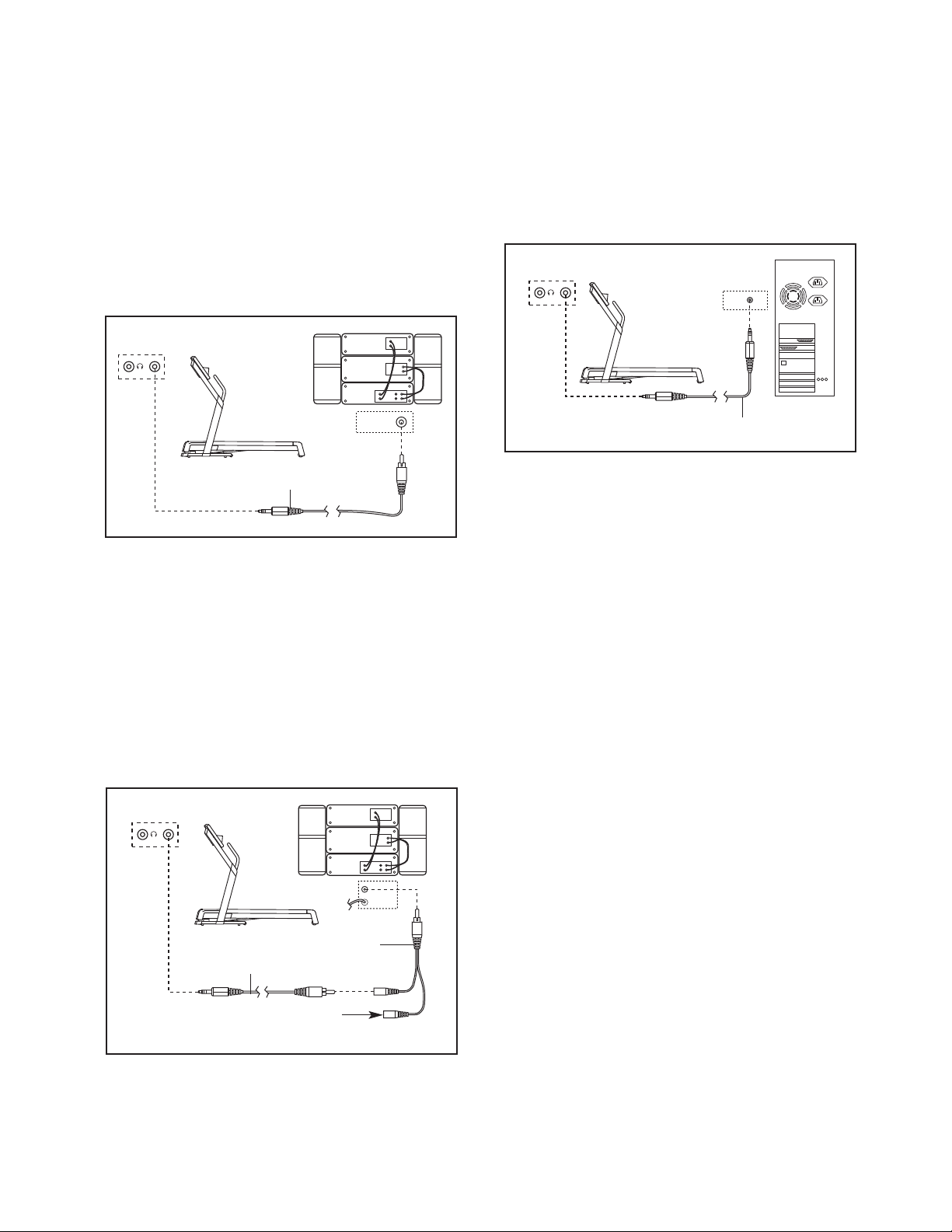

sonal trainer in your home. Using a stereo audio cable, you can connect the treadmill to your portable stereo, home stereo, computer, or VCR and play special iFIT.com MP3, CD, and video programs (iFIT.com MP3 programs, CDs, and videocassettes are available sepa­rately). iFIT.com programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout; high­energy music provides added motivation. To purchase
and download iFIT.com MP3 programs, go to www.iFIT.com. cassettes, call toll-free 1-888-825-2588.
With the treadmill connected to your computer, you can also go to www.iFIT.com and access iFIT.com programs directly from our Web site.
www.iFIT.com for more information.
To use the manual mode of the console, follow the steps beginning on page 12. To use a preset program program, see pages 17 and 18. To use a heart rate program, see page 19. To use an iFIT.com MP3, CD, or video program, see page 23. To use an iFIT.com program directly from our Web site
, see page 15. To create and use a custom
To purchase iFIT.com CDs or video-
See
, see page 25.
1
1
HOW TO TURN ON THE POWER
Plug in the power cord (see page 10). Next, locate the breaker on the frame near the power cord, and switch the circuit breaker to the reset position.
Stand on the foot rails of the treadmill. Find the clip at­tached to the key (see the drawing on page 11) and at­tach the clip securely to the waistband of your clothes. Next, insert the key into the console. After a moment, the display will light. Note: When the power is turned on, the program that was selected the last time the Save button was pressed will automatically be rese­lected. If the Save button has not yet been pressed, the manual mode will be selected.
Test the clip by carefully taking a few steps back­ward until the key is pulled from the console. If the key is not pulled from the console, adjust the posi­tion of the clip as needed.
reset/off circuit
Reset
Position
Start the walking belt.
4
To start the walking belt, press the Start button, the Speed increase button, or one of the twelve 1-Step Speed buttons.
If the Start button or the Speed increase button is pressed, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed in­crease and decrease buttons. Each time a button is pressed, the speed setting will change in incre­ments of 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. Note: After the buttons are pressed, it may take a moment for the walking belt to reach the se­lected speed setting.
If one of the 1-Step Speed buttons is pressed, the walking belt will gradually increase in speed until it reaches the selected speed setting.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
1
See HOW TO TURN ON THE POWER above.
Designate yourself as user A, B, C, or D.
2
The console can save program settings for up to four different users. To designate yourself as user A, B, C, or D, press the Personal Settings button labeled A, B, C, or D.
Select the manual mode.
3
To select the manual mode, press the Programs button re peatedly until a track appears in the center of the display. Make sure that the word “Programs” does not ap pear below the track.
-
Track
To stop the walking belt, press the Stop button. The time will begin to flash in the display. To restart the walking belt, press the Start button, the Speed increase button, or one of the 1-Step Speed buttons.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 28).
Change the incline of the treadmill as desired.
5
To change the incline of the treadmill, press the Incline increase and decrease buttons or one of the twelve 1-Step Incline buttons.
Each time the Incline in­crease or decrease but­ton is pressed, the incline will change by 0.5%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected in­cline setting.
f one of the 1-Step Incline buttons is pressed, the
I
-
incline will gradually increase until it reaches the selected incline setting.
12
Adjust the cushioning system as desired.
6
The treadmill features a cushioning system that reduces the impact as you walk or run on the treadmill. There are fif teen firmness levels. To increase the firmness of the walking platform, turn the Active Response Cushioning knob coun­terclockwise. To decrease the firmness, turn the knob clockwise. The display will show the se­lected firmness level. If you wish to save the se­lected firmness level, press the Save button. Note: A clicking sound may be heard when the cushion­ing system is being adjusted.
Follow your progress with the display.
-
7

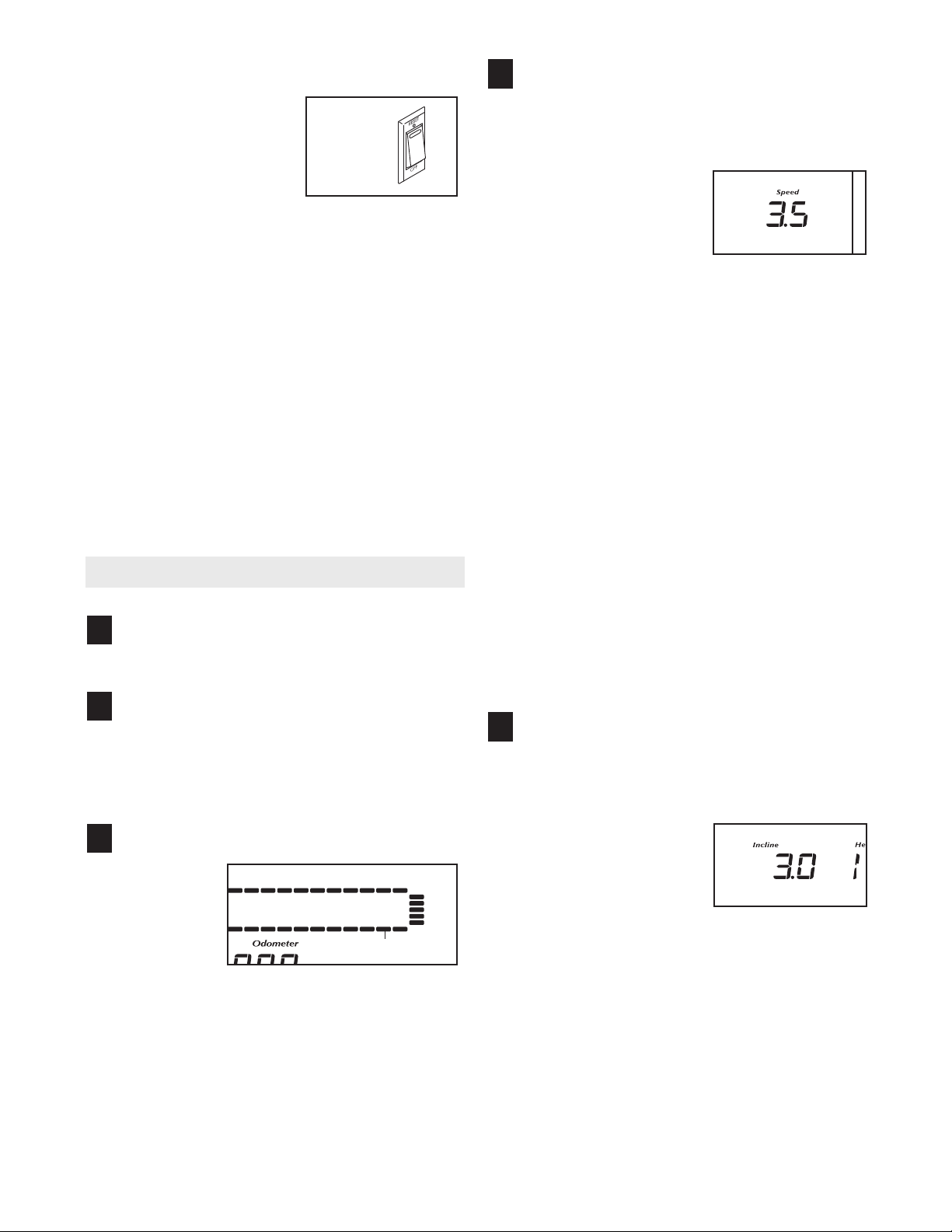

When the manual mode or the iFIT.com mode is se­lected, the center of the display will show a 1/4-mile track. As you walk or run, the indicators around the track will light in suc­cession until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.

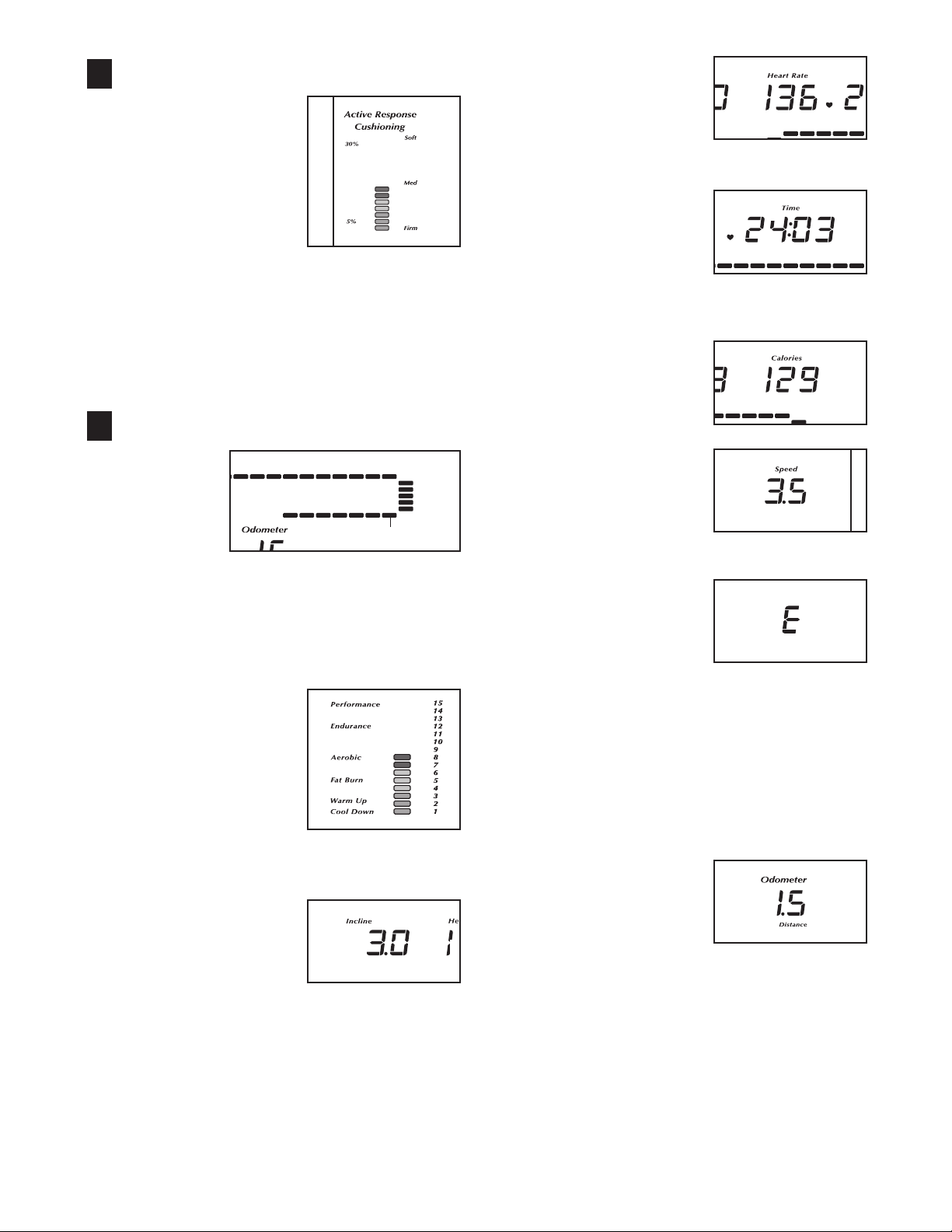

The lower right zone of the display will show a training zone bar that in­dicates the approximate intensity level of your ex­ercise. If eight indicators in the bar are lit, for ex­ample, the bar shows that your pace is ideal for aerobic exercise.
The Incline/Carbs zone of the display will show the incline level of the treadmill and the approxi mate number of grams of carbs you have burned.
ote: Each time the incline changes, the display
N will show the incline setting for a few seconds.
-
Track
The Heart Rate zone of the display will show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor.
The Time zone of the dis­play will show the elapsed time. Note: When a pro­gram is selected, the dis­play will show the time re­maining in the program instead of the elapsed time.
The Calories zone of the display will show the ap­proximate number of calories you have burned.
The Pace/Speed zone of the display will show the speed of the walking belt and your pace (pace is measured in minutes per mile).
Note: The console can display speed and dis­tance in either miles or kilometers. To find which unit of measurement is selected, hold down the Stop button while inserting the key into the con­sole. An “E” for English miles or an “M” for metric kilometers will appear in the Pace/Speed zone of the display. Press the Speed increase button to change the unit of measurement. When the de­sired unit of measurement is selected, remove the key and then reinsert it.
instructions in this section refer to miles.
The Odometer zone of the display will show the distance that you have walked or run during your workout.
To see the total number of miles that you have walked or run since the treadmill was purchased, press the Odometer button; the words “Total Miles” and the total number of miles will appear in the dis play.
Note: For simplicity, all
-
13
To see the total number of miles that you have walked or run during a recent period of time, such as the most recent month, press the Odometer button again; the words “My Miles” and the total number of miles will appear in the display. this number, hold down the Odometer button for a few seconds.
To again see the distance that you have walked or run during your workout, press the Odometer but­ton again.
To reset the display, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate if desired.
8

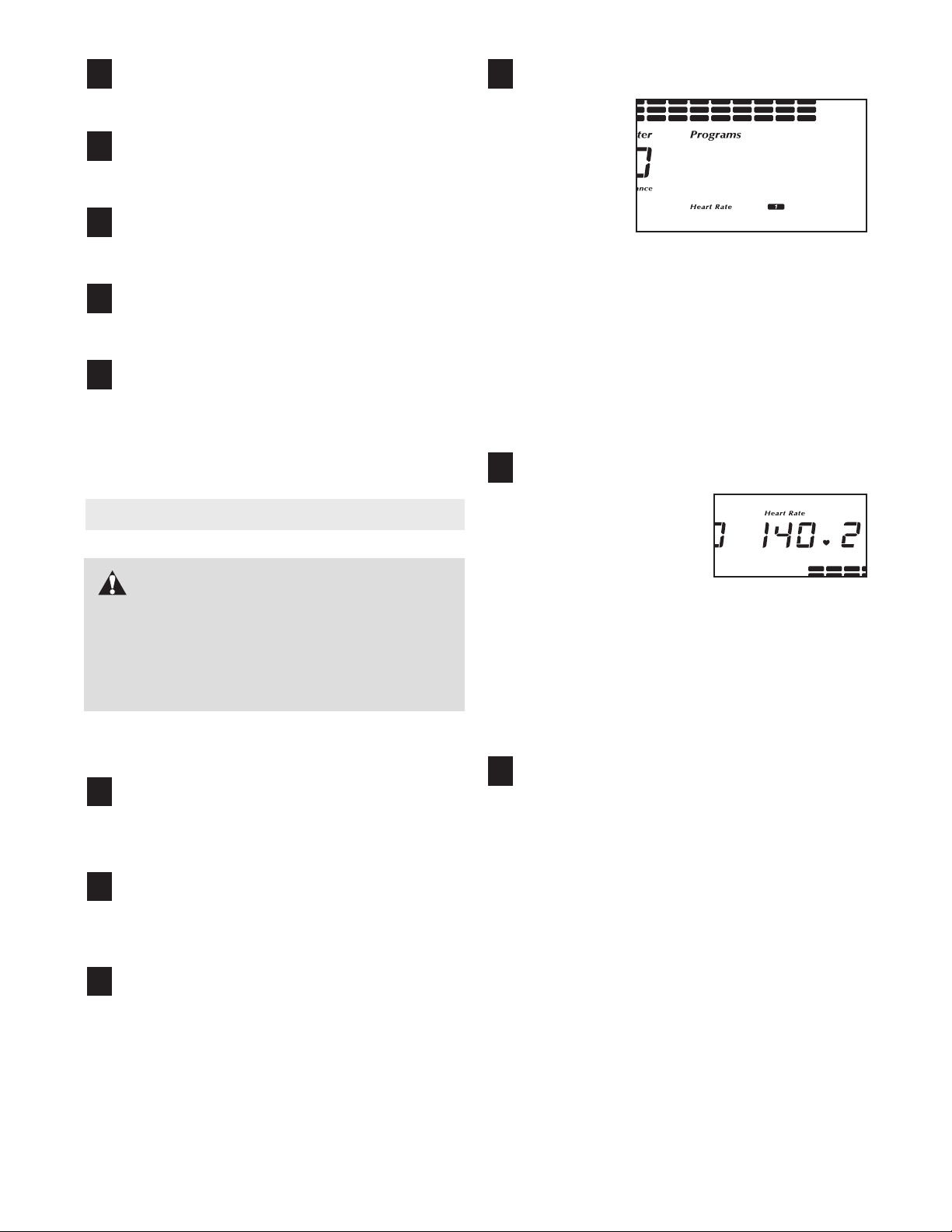

Note: If you use the handgrip pulse sen­sor and the optional chest pulse sensor at the same time, the console will not display your heart rate accurately. Before using the handgrip pulse sensor, remove the clear plastic film from the metal contacts. In addition, make sure that your hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts—avoid moving your hands. When your pulse is detected, the
heart symbol in the Heart Rate zone of the display will appear, one or two dashes will appear, and then your heart rate will be shown. For the most
accurate heart rate reading, continue to hold the contacts for about 15 seconds.
Contacts
To reset
Turn on the fans if desired.
9
To turn on the fans at low speed, press the AutoBreeze Fans button; the number 1 will appear below the word “Fan” in the display. To turn on the fans at medium speed, press the button a sec­ond time; the number 2 will appear. To turn on the fans at high speed, press the button a third time; the number 3 will appear. To select the Auto mode, press the button again; the word “Auto” will appear. When the auto mode is selected, the speed of the fans will automatically increase and decrease as the speed of the walking belt in­creases and decreases.
To turn off the fans, press the AutoBreeze Fans button again. Note: If the fans are left on when the walking belt is stopped, the fans will automatically turn off after a few minutes.
When you are finished exercising, remove the
10
key.
Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest set­ting. Next, remove the key from the console and put it in a secure place. Note: If the display remains lit
after the key is removed, the console is in the “demo” mode. See page 26 and turn off the demo mode.
When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord.
14
HOW TO USE
Insert the key into the console.
A PRESET PROGRAM
1
See HOW TO TURN ON THE POWER on page
12.
Identify yourself as user A, B, C, or D.
2
See step 2 on page 12.
new speed settings of the program. If you wish to save the new intensity level of the program for fu­ture workouts, press the Save button.
Press the Start button or the Speed increase
5
button to start
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.
the program.
Select one of the preset programs.
3
To select one of the fifteen pre­set pro­grams, press the Programs button re­peatedly until the words “Weight Loss,” “Aerobic,” or “Performance” and the number 1, 2, 3, 4, or 5 ap­pear in the lower center of the display.
As each preset program is selected, the maximum speed setting of the program and the maximum incline setting of the program will flash in the dis­play for a few seconds. The Time zone of the dis­play will show how long the program will last. A profile of the speed settings of the program will scroll across the matrix in the center of the dis­play.
Adjust the intensity level of the program if
4
desired.
Each program is divided into several one-minute segments. One speed setting and one incline set­ting are programmed for each segment. Note: The same speed setting and/or incline setting may be programmed for two or more consecutive seg­ments.
The speed setting for the first seg­ment will be shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed set­tings for the next twelve segments will be shown in the twelve columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the speed setting and/or incline setting will flash in the dis­play to alert you.
Current Segment
The lower right zone of the display will show the intensity level of the se lected program; there are fifteen intensity lev­els. If desired, turn the Program Intensity dial to increase or decrease the intensity level of the pro­gram. If you change the intensity level, the new maximum speed setting of the program and the new maximum incline setting of the program will flash in the display for a few seconds. In addition, the profile in the matrix will change to show the
-
15
When the first segment is completed,
settings will move one column to the left
speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings ment. Note: If all seven of the indicators in the Current Segment column are lit, may also move downward so that only the highest indicators appear in the matrix.
The program will continue in this way until the speed setting for the last Current Segment column and the last segment ends. The walking belt will then slow to a stop.
for the second seg
segment
all speed
. The
-
the speed settings
is shown in the
If the speed and/or incline settings of the program are too high or too low, you can change the inten­sity level of the program at any time by turning the Program Intensity dial. If you wish to save the new intensity level of the program for future workouts, press the Save button.
To stop the program at any time, press the Stop button. The time will begin to flash in the display. To restart the program, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automati­cally adjust to the speed and incline settings for the next segment.
Adjust the cushioning system as desired.
6
See step 6 on page 13.
Measure your heart rate if desired.
8
See step 8 on page 14.
Turn on the fans if desired.
9
See step 9 on page 14.
When you are finished exercising, remove the
10
key from the console.
When the program ends, make sure that the in­cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in a safe place. Note: If the display remains lit
after the key is removed, the console is in the “demo” mode. See page 26 and turn off the demo mode.
Follow your progress with the display.
7
See step 7 on page 13.
When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord.
16
HOW TO CREATE A CUSTOM PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
12.
Identify yourself as user A, B, C, or D.
2
See step 2 on page 12.
Select one of the custom programs.
3
To select a custom pro­gram, press the Programs button re­peatedly until the words “My Design” and the number “1” or “2” appear in the display.
Note: If the custom program has not yet been defined, only three columns of indicators will scroll across the matrix in the center of the display. If more than three columns of indica­tors appear, see HOW TO USE A CUSTOM PROGRAM on page 18.
Press the Start button or the Speed increase
4
button and program the desired speed and in­cline settings.
A moment after the button is pressed, the walking belt will begin to move. Hold the handrails and begin walking.
Refer to the matrix. Each custom pro gram is di­vided into one-minute segments. One speed setting and one incline setting can be programmed for each segment. The speed setting for the first segment will be shown in the flashing Current Segment column of the matrix. (The in­cline settings are not shown in the matrix.) To pro­gram a speed setting and an incline setting for the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the Speed and Incline buttons. Every few times a Speed but­ton is pressed, an additional indicator will appear or disappear in the Current Segment column.
When the first segment of the program ends, a se­ries of tones will sound and the current speed set­ting and the current incline setting will be saved in memory. move one column to the left, and the speed set­ting for the second segment will be shown in the flashing Current Segment column. Program a speed setting and an incline setting for the second segment as described above.
Continue programming speed and incline settings for as many segments as desired; custom pro­grams can have up to forty segments. When you are finished with your workout, press the Stop but­ton twice. The speed and incline settings that you have programmed and the number of segments that you have programmed will then be saved in memory.
When you are finished exercising, remove the
5
key from the console.
-
Current Segment
The three columns of indicators will then
17
See step 10 on page 16.
HOW TO USE A CUSTOM PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page
12.
Identify yourself as user A, B, C, or D.
2
See step 2 on page 12.
The speed setting for the first seg ment will be shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed set­tings for the next nine segments will be shown in the columns to the right.
-
Current Segment
Select one of the custom programs.
3
To select a custom pro­gram, press the Programs button repeatedly until the words “My Design” and the number “1” or “2” will appear in the display.
As each custom program is selected, the maxi­mum speed setting of the program and the maxi­mum incline setting of the program will flash in the display for a few seconds. The Time zone of the display will show how long the program will last. A profile of the speed settings of the program will scroll across the matrix in the center of the dis­play. Note: If only three columns of indicators
scroll across the matrix, see HOW TO CREATE A CUSTOM PROGRAM on page 17.
Press the Start button or the Speed increase
4
button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings that you programmed previously. Hold the handrails and begin walking.
Each custom program is divided into several one­minute segments. One speed setting and one in­cline setting are programmed for each segment. Note: The same speed setting and/or incline set­ting may be programmed for two or more consec utive segments.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the speed setting and/or incline setting will flash in the display to alert you.
When the first segment is completed, all speed settings will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If desired, you can redefine the program while using it. To change the speed or incline setting for the current segment, simply press the Speed or Incline buttons. When the current segment ends, the new setting will be saved in memory. To in- crease the length of the program, first wait until the program is completed. Then, press the Start but­ton and program speed and incline settings for as many additional segments as desired. have added as many segments as desired, press the Stop button twice. the program, press the Stop button twice at any time before the program is completed.
To stop the program at any time, press the Stop button. The time will begin to To restart the program, press the Start button or
-
the Speed increase button. begin to move at 1 mph. When the next segment of the program begins, the treadmill will automati cally adjust to the speed and incline settings for the next segment.
To decrease the length of
flash in the display.
The walking belt will
When you
-
18
Adjust the cushioning system as desired.
5
See step 6 on page 13.
Follow your progress with the display.
6
See step 7 on page 13.
Measure your heart rate if desired.
7
See step 8 on page 14.
Turn on the fans if desired.
8
See step 9 on page 14.
When you are finished exercising, remove the
9
key from the console.
See step 10 on page 16.
HOW TO USE A HEART RATE PROGRAM
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
Follow the steps below to use a heart rate program.
Put on the optional chest pulse sensor.
1
You must wear the optional chest pulse sensor (see page 26) to use a heart rate program.
Insert the key into the console.
2
See HOW TO TURN ON THE POWER on page 12.
Identify yourself as user A, B, C, or D.
3
See step 2 on page 12.
Select a heart rate program.
4
To select a heart rate program, press the Programs button re­peatedly until the words “Heart Rate” and the number 1, 2, 3, or 4 appear in the lower center of the display.
As each heart rate program is selected, a profile of the target heart rate settings of the selected program will scroll across the matrix in the center of the display. Note: If heart rate program 4 is se­lected, a heart beat symbol instead of a profile will scroll across the matrix.
Enter a maximum target heart rate setting.
5
When a heart rate pro­gram is selected, the words “Heart Rate” will appear in the Heart Rate zone of the display and the maximum target heart rate setting of the program will flash. If desired, press the Heart Rate increase and decrease but­tons to change the maximum target heart rate set-
(See the heart rate chart on page 29 for
ting. heart rate guidelines.) To save the new maxi­mum target heart rate setting for future workouts, press the Save button.
Press the Start button or the Speed increase
6
button to start
A moment after the button is pressed, the tread mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each heart rate program is divided into 20 one­minute segments. One target heart rate setting is programmed for each segment. Note: The same target heart rate setting may be programmed for two or more consecutive segments. If heart rate program 4 is selected, the maximum target heart rate setting is programmed for all segments.
the program.
-
19
The target heart rate setting for the first seg­ment will be shown in the flashing Current Segment column of the matrix. The target heart rate settings for the next twelve segments will be shown in the columns to the right.
If heart rate program 4 is selected, the target heart rate settings will not be shown in the matrix. Instead, a heart beat symbol will scroll across the matrix.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. In addition, the speed setting and/or incline setting will flash in the dis­play. When the first segment ends, rate settings will move one column to the left. The target heart rate setting for the second segment will then be shown in the flashing Current Segment column.
During each segment, the console will compare your heart rate to the target heart rate setting. If your heart rate is too far below or above the target heart rate setting, the speed of the walking belt will automatically increase or decrease to bring your heart rate closer to the target heart rate set­ting. If the speed reaches the maximum speed setting of the program (7.5 mph) and your heart rate is still too far below the target heart rate set ting, the incline of the treadmill will also increase
bring your heart rate closer to the target heart
to rate setting.
The program will continue in this way until the tar get heart rate setting for the last
Current Segment
all target heart
segment
-
is
shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If the speed and/or incline settings of the program are too high or too low, you can change the inten­sity level of the program at any time by pressing the Heart Rate increase and decrease buttons to change the maximum target heart rate setting. If you wish to save the new maximum target heart rate setting for future workouts, press the Save button.
If your pulse is not detected during the program, the letters “PLS” will flash in the Heart Rate zone of the display and the speed and incline of the treadmill may automatically decrease until your pulse is detected. If this occurs, see the instruc­tions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop button. The time will begin to flash in the display To restart the program, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the console com­pares your heart rate to the target heart rate, the speed and/or incline of the treadmill will automati­cally change to bring your heart rate closer to the target heart rate.
Adjust the cushioning system as desired.
.
7
See step 6 on page 13.
Follow your progress with the displays.
8
See step 7 on page 13.
Turn on the fans if desired.
9
See step 9 on page 14.
When you are finished exercising, remove the
10
key.
­See step 10 on page 16.
20
HOW TO CONNECT THE TREADMILL TO USE
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
IFIT.COM PROGRAMS
To use iFIT.com MP3 or CD programs
, the treadmill must be connected to your MP3 player, CD player, portable stereo, home stereo, or computer. See pages 21 and 22 for connecting instructions.
To use iFIT.com
programs directly from our Web site, the treadmill
must be connected to your computer. See page 22 for connecting instructions.
, the treadmill must be connected to your VCR.
grams
To use iFIT.com video pro-
See page 23 for connecting instructions.
HOW TO CONNECT YOUR MP3 PLAYER OR CD PLAYER
A. Plug one end of the included 1/8” to 1/8” stereo
audio cable into the input jack on the console. Plug the other end of the cable into a jack on your MP3 player or CD player. Plug your headphones into the headphone jack on the console.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 1/8” LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 1/8” to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the AUDIO OUT jack on your stereo.
A/B
Audio Cable
A
B. See the drawing above. Plug one end of a long 1/8”
to 1/8” stereo audio cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
Audio Cable
Headphones
C. Plug one end of a long 1/8” to 1/8” stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the PHONES jack on your stereo. Plug your headphones into the headphone jack on the console.
C
Audio Cable
Headphones
21
HOW TO CONNECT YOUR HOME STEREO
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of a long 1/8” to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
A
Audio Cable
HOW TO CONNECT YOUR COMPUTER
Plug one end of a long 1/8” to 1/8” stereo audio
A.
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the LINE OUT jack on your computer. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
A
Audio Cable
B. Plug one end of a long 1/8” to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo. Note: While the Y-adapter is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
B
Audio Cable
Wire removed from
LINE OUT jack
RCA
Y-adapter
22
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 22.
A. Plug one end of a long 1/8” to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the AUDIO OUT jack on your VCR.
A
Audio Cable
B. Plug one end of a long 1/8” to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO PROGRAM
To use an iFIT.com MP3, CD, or video program, the treadmill
must be connected to your MP3 player, CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO USE IFIT.COM PROGRAMS on pages 21 to 23. To purchase and download
iFIT.com MP3 programs, go to www.iFIT.com. To purchase iFIT.com CDs or videocassettes, call toll­free 1-888-825-2588.
Follow the steps below to use an iFIT.com MP3, CD, or video program.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 12.
Identify yourself as user A, B, C, or D.
2
See step 2 on page 12.
Select the iFIT.com mode.
3
To select the iFIT.com mode, press the Programs button re­peatedly until the letters “iFIT” ap­pear in the display.
B
Press the Play button on your MP3 player, CD
4
player, or VCR.
Note: If you are using an iFIT.com CD, insert the CD into your CD player; if you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Audio Cable
RCA
Y-adapter
A moment after the Play button is pressed, your
Wire removed from
AUDIO OUT jack
personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note:
If the time is flashing in the dis­play, press the Start button or the Speed increase button on the console. The treadmill will not re spond to an MP3, CD, or video program while the time is flashing in the display.
-
23
During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the
AUTION: Always
treadmill is about to change.
listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before your personal trainer describes the change.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
C
• Adjust the volume of your MP3 player, CD
player, or VCR. If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly
connected.
If you are using a portable CD player and the
CD skips, set the CD player on the floor or an­other flat surface instead of on the console.
Adjust the cushioning system as desired.
5
See step 6 on page 13.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the display. To restart the program, press the Start button or the Speed increase button. After a moment, the walking belt will begin to move at 1 mph.
the speed and/or incline will change to the next settings of the program.
When the program is completed, the walking belt will stop. Note: To use another MP3, CD, or video program, press the Stop button or remove the key and go to step 1 on page 23.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the letters “iFIT” appear in the display and that the time is not flashing. If the time is flashing, press the Start button or the Speed increase button on the console.
When the next “chirp” is heard,
Follow your progress with the display.
6
See step 7 on page 13.
Measure your heart rate if desired.
7
See step 8 on page 14.
Turn on the fans if desired.
8
See step 9 on page 14.
When you are finished exercising, remove the
9
key from the console.
See step 10 on page 16.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR and disconnect your MP3 player when you are not using them.
24
HOW TO USE AN IFIT.COM PROGRAM DIRECTLY FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to access programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 22. In addition, you must have an internet connection and an internet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 12.
Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound and/or incline of the treadmill is about to change.
AUTION: Always listen for the “chirp” and be
C prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings for the program.
To stop the walking belt at any time, press the Stop button on the console. The time will begin to flash in the display. To restart the program, press the Start button or the Speed increase button. After a moment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is
heard, next settings of the program
the speed and incline will change to the
will alert you when the speed
.
Identify yourself as user A, B, C, or D.
2
See step 2 on page 12.
Select the iFIT.com mode.
3
See step 3 on page 23.
Go to your computer and start an internet
4
connection.
Start your web browser, if necessary, and go to
5
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
6
lect a program.
ead and follow the on-line instructions for using a
R program.
Follow the on-line instructions to start the
7
program.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot
8
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the program is completed, the walking belt will stop. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard, make sure that the letters “iFIT” appear in the display and that the time is not flashing. In addition, make sure that the audio cable is properly con­nected.
Adjust the cushioning system as desired.
9
See step 6 on page 13.
Follow your progress with the display.
10
See step 7 on page 13.
Measure your heart rate if desired.
11
See step 8 on page 14.
Turn on the fans if desired.
12
See step 9 on page 14.
When you are finished exercising, remove the
13
key from the console.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
See step 10 on page 16.
25
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of the total number of hours that the treadmill has been used and the total number of miles that the walk ing belt has moved. The information mode also allows you to select miles or kilometers as the unit of mea­surement for the console, to turn on and turn off the demo mode, and to reset all programs to the original settings.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following informa­tion will be shown in the display:
The Time zone of the display will show the total number of hours that the treadmill has been used. The Odometer zone will show the total number of miles (or kilometers) that the walking belt has moved. An “E” for English miles or an “M” for metric kilometers will appear in the Pace/Speed zone. Press the Speed increase button to change the unit of measurement if desired.
Hours
Miles
To reset all programs to the original settings, first press the Start button. The word “SAVE” will flash in the Pace/Speed
-
zone of the display. To reset all programs, press the Save button. If you do not wish to reset all programs, press the Stop button.
To exit the information mode, remove the key from the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free oper­ation and allows you to use the console’s heart rate programs. To purchase the optional chest pulse
sensor, call toll-free 1-888-825-2588.
IMPORTANT: If a “d” appears in the Heart Rate zone
of the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the indicators in the display will automatically light in a preset sequence, al­though the buttons on the console will not operate.
“d” appears press the pears.
when the information mode is selected,
Speed decrease button so the “d” disap
If a
-
26
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres­sor that meets all of the specifications described on page 10. Important: The treadmill is not com­patible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch pro­trudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch to the reset position.
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
c
Tripped
Reset
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD.Remove the two indicated Screws
(4) from the front of the treadmill. Insert the tip of a slotted screwdriver between the Hood (58) and the Frame (28) and against the tab on the bottom of the Hood in the location shown. Carefully lift the Hood while pressing on the tab with the screwdriver. Repeat on the other side. Remove the Hood.
Locate the Reed Switch (38) and the Magnet (40) on the left side of the Pulley (131). Turn the Pulley until the Magnet is aligned with the Reed Switch.
sure that the gap between the Magnet and the Reed Switch is about 1/8”. If necessary, use a slot
ted screwdriver to move the Reed Switch slightly. Then, reattach the Hood (58). Run the treadmill for a few minutes to check for a correct speed reading.
Make
-
a
Top
View
28
38
1/8”
4
58
131
40
27

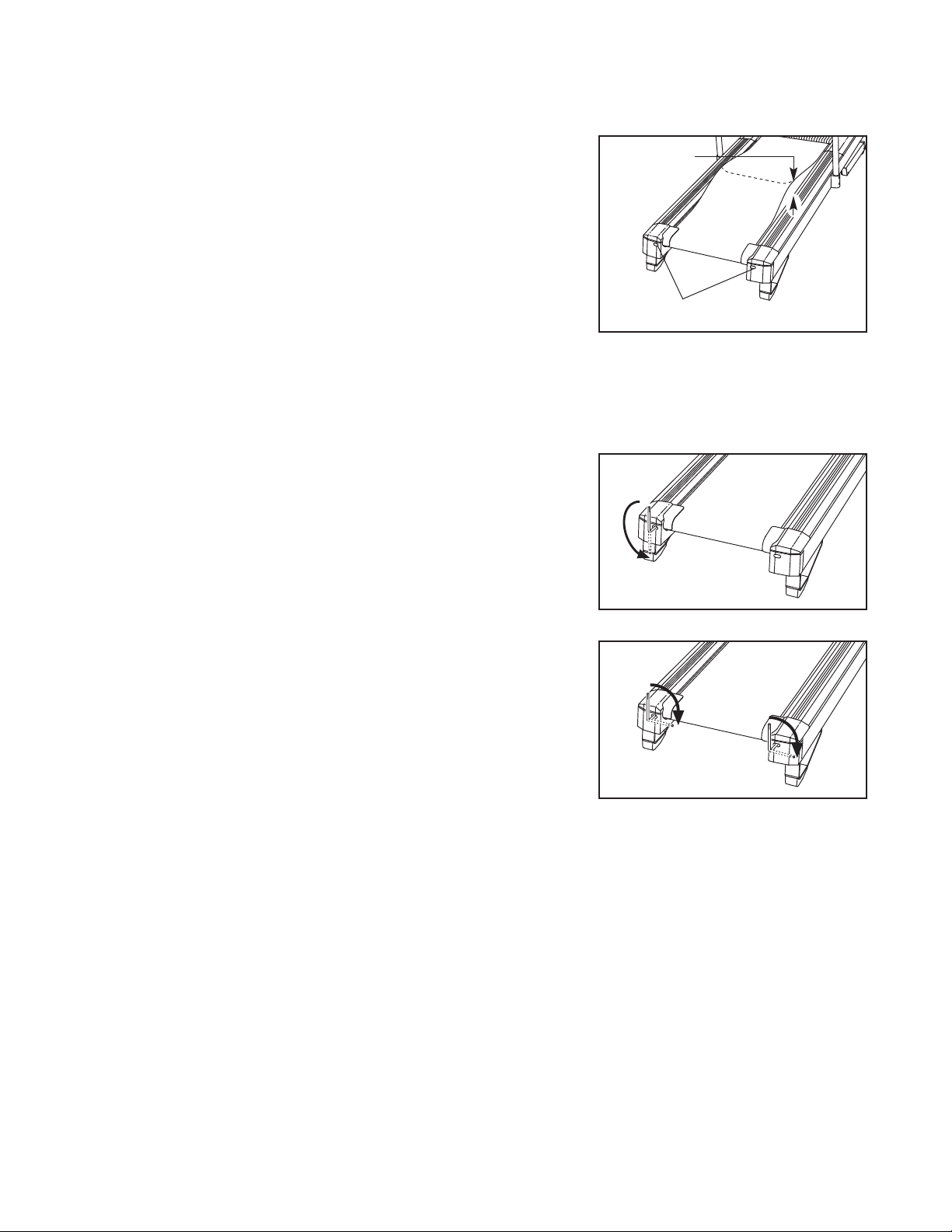

PROBLEM: The walking belt slows when walked on
Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
SOLUTION:
PROBLEM: The walking belt is off-center or slips when walked on
a.
If the walking belt is overtightened, treadmill perfor-
b.
mance may decrease and the walking belt may be­come damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in­sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
UNPLUG THE
b
3”–4”
Rear Roller Adjustment Bolts
SOLUTION:
a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left
rear roller bolt counterclockwise 1/2 of a turn. Be care­ful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
b
28
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
-
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor on the console.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible
carbohydrate calories for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
-
29
PART LIST—Model No. NTL17950 R1204A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Cover 2 1 Left Foot Rail 3 8 Foot Rail Screw 4 60 1/2” Screw 5 1 Left Foot Rail Endcap 6 2 Isolator Top Cap 7 4 Spring Nut 8 2 Isolator Spring
9 2 Isolator 10 2 Isolator Bottom Cap 11 2 Spring Pad Screw 12 2 Leaf Spring 13 2 Spring Pad 14 5 Lock Nut 15 2 Leaf Spring Plate 16 2 Leaf Spring Spacer 17 4 Leaf Spring Washer 18 4 Leaf Spring Bolt 19 2 Rear Endcap Screw 20 2 Rear Roller Adjustment Bolt 21 2 Rear Roller Washer 22 1 Left Rear Endcap 23 4 Rear Foot Screw 24 2 Rear Foot 25 1 Rear Roller 26 1 1 1/4” Grommet 27 2 Gear Rack 28 1 Frame 29 1 Walking Belt 30 1 Walking Platform 31 4 Frame Bolt 32 2 Handrail Bracket 33 2 Belt Guide 34 2 Isolator Bolt 35 2 Front Platform Bolt 36 37 1 Belly Pan 38 1 Reed Switch 39 40 1 Magnet 41 42 43 1 Idler Arm Pulley 44 45 46 1 Idler Arm Spacer 47 1 Idler Arm 48 49 50 1 Drive Motor
1 Right Foot Rail Endcap
1
2 4
3 1
1 1
Reed Switch Clip
Idler Arm Washer Idler Arm Nut/Incline Nut
Pulley Bolt/Rear Platform Bolt Idler Arm Pivot Bolt
Idler Arm Spring Motor Belt
51 2 Motor Bolt 52 1 Frame Cover 53 1 Ground Wire 54 1 Reset/Off Circuit Breaker 55 1 Power Cord Plate 56 1 Power Cord Grommet 57 1 Power Cord 58 1 Hood 59 2 Hood Clip 60 1 Transformer 61 1 Controller 62 2 Cotter Pin 63 1 Upper Clevis Pin 64 1 Lower Clevis Pin 65 1 Incline Motor 66 2 Front Wheel 67 2 Wheel Housing 68 2 Wheel Nut 69 1 Lift Frame 70 2 Wheel Bolt 71 1 Circuit Board 72 4 Plastic Stand-off 73 2 Lift Leg Spacer 74 2 Lift Leg Bolt 75 1 Cushion Sensor 76 1 Cushion Magnet 77 2 Lift Leg Endcap 78 1 Circuit Board Bracket 79 1 Cushion Motor Bolt 80 1 Cushion Motor 81 1 Cushion Adj. Rod 82 2 Cushion Adj. Gear 83 2 Cushion Adj. Wheel 84 2 Cushion Adj. Pin 85 2 Cushion Rod Clip 86 87 2 Platform Nut 88 1 Right Rear Endcap 89 90 4 Handrail Bolt 91 92 93 1 Upper Handrail 94 95 96 4 Small Screw 97 1 Ground Screw 98 99
100 2 Fan
1 Right Handrail
1
4 1
1
45
1 1
Left Handrail
3/4” Tek Screw Console Ground Wire
Console Back 3/4” Screw
Console Base Tray Insert
30
Key No. Qty. Description Key No. Qty. Description
T80627857
*** 08-18-14: To order parts on line go to www.iconservice.com
101 6 Panel Screw 102 2 Control Knob 103 1 Pulse Bar 104 1 15” Wire Harness 105 1 Key/Clip 106 107 1 Console Frame 108 1 Wire Harness 109 3 Panel Bracket 110 4 Console Bolt 111 1 Upright 112 1 Long Panel 113 4 Upright Bolt 114 4 Star Washer 115 1 Upright Plate 116 4 Washer 117 1 iFIT Cable 118 10 Plastic Tie 119 1 Releasable Tie 120 5 Tie Holder 121 1 Access Door 122 1 Hood Cover
1 Short Panel
123 1 Cushion Motor Wire 124 1 Right Foot Rail 125 1 Allen Wrench 126 1 Book Holder 127 1 Belly Pan Insert 128 129 1 Controller Wire 130 1 Console 131 1 Front Roller 132 1 Static Decal 133 2 Caution Decal 134 2 Front Isolator 135 1 5/32” Allen Wrench
# 1 12 Blue Wire, 2F # 1 4” Blue Wire, M/F # 1 8” Green Wire, F/Ring # 1 8” Black Wire, 2Ring # 1 User's Manual
*Includes all parts shown in box. #These parts are not illustrated. Specifications are subject to change without notice.
1 Filter Wire
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• the MODEL NUMBER OF THE PRODUCT (NTL17950)
®
• the NAME OF THE PRODUCT (NordicTrack
• the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the EXPLODED
DRAWING attached in the center of this manual)
E3000 treadmill)
31
22
20
21
19
23
20
21
19
88
4
23
24
4
4
11
13
27
12
18
17
16
14
15
11
13
18
17
16
15
4
4
14
12
27
44
1
2
3
5
4
10
7
9
8
7
6
31
32
30
35
38
39
40
33
4
49
43
45
44
48
47
41
41
42
46
50
4
29
28
4
25
1
3
3
3
3
52
51
53
57
56
54
4
4
55
37
4
60
6
7
8
9
7
10
62
63
4
4
4
4
71
72
73
42
33
75
4
4
74
4
42
73
77
4
76
31
32
35
36
4
83
84
81
82
85
84
82
83
80
14
79
77
74
69
62
64
66
67
70
68
65
66
67
68
70
61
58
4
4
59
59
3
3
3
34
34
24
44
87
87
134
4
134
122
4
4
4
4
4
78
125
135
128
127
129
133
133
124
131
123
132
116
116
26
EXPLODED DRAWING—Model No. NTL17950 R1204A
89
90
98
100
95
95
95
96
102
102
96
95
95
95
100
95
105
103
118
119
120
4
99
95
95
95
95
95
107
95
95
95
95
95
95
95
95
95
95
95
95
94
97
92
112
106
108
110
110
111
115
113
113
117
86
90
91
91
93
104
96
114
114
110
114
114
121
95
130
95
95
126
101
101
101
109
109
101
101
EXPLODED DRAWING—Model No. NTL17950 R1204A
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack®E3000 treadmill (“Product”) is warranted to be free of all defects in ma­terial and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the drive motor for life. Parts and labor are warranted for one year from the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our option, we will replace the Product.
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, im­proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain as set out in your User’s Manual (“Manual”). This warranty does not extend to products used for commercial or rental purposes.
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov­ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces­sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship­ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser­vice is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim­itation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 220918 R1204A
Printed in USA
2004 ICON IP, Inc.
©
Loading...
