Nokia Customer Care

Service Manual

RM-235 (Nokia N78; L3&4)

Mobile Terminal

Part No: (Issue 1)

COMPANY CONFIDENTIAL

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 03/2008 A. Salo

RM-235

Page ii COMPANY CONFIDENTIAL Issue 1

RM-235 Copyright

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 1 COMPANY CONFIDENTIAL Page iii

RM-235

Warnings and cautions

Warnings

• IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

• THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

• OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

• BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

• Servicing and alignment must be undertaken by qualified personnel only.

• Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

• Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

• Use only approved components as specified in the parts list.

• Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

• Ensure all cables and wires are repositioned correctly.

• Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

• During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 1

RM-235 ESD protection

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 1 COMPANY CONFIDENTIAL Page v

RM-235

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 1

RM-235 Company Policy

Company Policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

• Title of the Document + Issue Number/Date of publication

• Latest Amendment Number (if applicable)

• Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 1 COMPANY CONFIDENTIAL Page vii

RM-235

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Li-Ion batteries, discharge the battery from time to time by leaving the product

switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 1

RM-235 Nokia N78; L3&4 Service Manual Structure

Nokia N78; L3&4 Service Manual Structure

1 General Information 2 Service Tools and Service Concepts 3 BB troubleshooting 4 RF troubleshooting 5 Camera troubleshooting 6 FMTx 2.0 technical description 7 FMTx 2.0 troubleshooting 8 System module and user interface Glossary

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-235

Nokia N78; L3&4 Service Manual Structure

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

1 — General Information

Issue 1 COMPANY CONFIDENTIAL Page 1 –1

RM-235

General Information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 1

RM-235 General Information

Table of Contents

Product selection....................................................................................................................................................1–5

Product features and sales package.....................................................................................................................1–5

Mobile enhancements............................................................................................................................................1–8

Technical specifications...................................................................................................................................... 1–11

Transceiver general specifications ............................................................................................................... 1–11

Main RF characteristics for GSM850/900/1800/1900 and WCDMA VIII (900) and WCDMA I (2100)

phones................................................................................................................................................... 1–11

Battery endurance.......................................................................................................................................... 1–12

Environmental conditions ............................................................................................................................. 1–12

List of Tables

Table 1 Audio..........................................................................................................................................................1–8

Table 2 Car...............................................................................................................................................................1–9

Table 3 Data ......................................................................................................................................................... 1–10

Table 4 GPS........................................................................................................................................................... 1–10

Table 5 Messaging............................................................................................................................................... 1–10

Table 6 Power...................................................................................................................................................... 1–10

Table 7 Carrying................................................................................................................................................... 1–10

List of Figures

Figure 1 View of RM-235........................................................................................................................................1–5

Issue 1 COMPANY CONFIDENTIAL Page 1 –3

RM-235

General Information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 1

RM-235 General Information

Product selection

The device is a dual mode handportable multimedia computer, supporting GSM/ GPRS/ EGPRS 850/900/1800/1900, with WCDMA 900/2100 HSDPA and WLAN.

The device is a 3GPP Release 5 terminal supporting WCDMA/HSDPA, EGPRS and GPRS data bearers. For WCDMA HSDPA the maximum bit rate is up to 3.6 Mbps for downlink and 384 kbps for uplink with simultaneous CS speech or CS video (max. 64 kbps).

For 2G and 2.5G networks the device is a Class A EGPRS DTM MSC 11 which means a maximum download speed of up to 296kbit/s with EGPRS, and up to 107kbit/s with GPRS.

According to GSM standard 05.05 it responds to class 4 (max. 2W) in GSM 850 and EGSM 900 class 1 (1W) in DCS 1800 and class 1 in PCS 1900. The device supports EGPRS (EDGE) class B as well as Bluetooth 2.0 EDR standard.

The device supports two way video calls with two integrated cameras, one on the front and one on the back. The device is an MMS (Multimedia Messaging Service) enabled multimedia computer with a large 2.4’’ QVGA

(240 x 320 pixels) TFT colour display capable of displaying 16 million colours and an integrated 3.2 Megapixel auto focus camera. The MMS implementation follows the OMA MMS standard release 1.2. The Browser is a highly advanced internet browser also capable of viewing operator domain XHTML Mobile Profile (MP) content.

The device uses Symbian 9.3 operating system and supports MIDP Java 2.0 & CLDC1.1, providing a good platform for compelling 3rd party applications.

Figure 1 View of RM-235

Product features and sales package

Imaging

Main camera:

• Sensor: 3.2 megapixel

• Carl Zeiss Optics: Tessar™ lens

• F number/Aperture: F2.8

Issue 1 COMPANY CONFIDENTIAL Page 1 –5

• Focal length: 4.6 mm 35 mm (35 mm equivalent)

• Focus range: 10 cm ~ infinity

• Macro focus distance: 10-50 cm

• Shutter speed: Mechanical shutter 1/1000~1/4 s

Secondary camera:

• Sensor: CIF (352 x 288 pixels)

• F number/Aperture: F2.8

• Focal length: 43 mm (35mm equivalent)

• Focus range: 10 cm ~ infinity

Video:

• Video resolution: QCIF at 15 fps

• Audio recording: AAC (AMR for MMS)

• Video stabilization

• Video clip length: 60 min

• Video file format: .mp4 (default), .3gp (for MMS)

• White balance: automatic, sunny, cloudy, incandescent, fluorescent

• Scene: Auto, Night

• Colour tone: normal, sepia, B&W, vivid, negative

• Zoom (digital): up to 8x

Photo:

• Still image resolutions: up to 3.2 megapixel: 2048 x 1536

• Still image file format: JPEG/EXIF

• Auto focus

• Auto exposure: center weighted AE

• Image orientation: automatic

• Exposure compensation: +2 ~ -2EV at 0.5 step

• White balance: automatic, sunny, cloudy, incandescent, fluorescent

• Scene: auto, sports, portrait, close-up, landscape, night, user defined

• Colour tone: normal, sepia, B&W, vivid, negative

• Zoom (digital): up to 20x

Other camera features:

• LED flash and recording indicator

• Front camera, CIF (352 x 288) sensor

RM-235

General Information

Edit

• On device Photo editor and Video editor (manual & automatic)

View

• 2.4” QVGA (240 x 320 pixels) 16 million colour TFT display with wide viewing angle and ambient light detector - used to optimize display and keypad backlight brightness and power consumption

• Slideshow from Gallery

Page 1 –6 COMPANY CONFIDENTIAL Issue 1

RM-235 General Information

• Nokia XpressShare - share effortlessly from Gallery or after capture via Email, Bluetooth, MMS or IrDA

• Direct connection to TV via cable or WLAN (UPnP)

• Video call and video sharing support. (WCDMA services)

• Online Album : Image/Video uploading from Gallery

• Nokia XpressPrint – direct printing via USB (PictBridge), Bluetooth (BPP), and WLAN (UPnP), from memory card or via online printing

Store

• Nokia XpressTransfer – easy to transfer and organize photos and video between your device and a compatible PC

• Nokia Lifeblog (mobile & PC)

Music

• Digital music player: supports MP3/ AAC/ AAC+/ eAAC+/ WMA with playlists, equalizer and album art.

• Synchronise music with Microsoft Windows Media Player 10 & 11

• One click CD ripping, converting and transferring music to your device using Nokia Music Manager

• Stereo FM radio (87.5-108MHz /76-90MHz) with Visual Radio™ support

• Stereo speakers

• Integrated FM transmitter (88.1 – 107.9 MHz)

• Integrated handsfree speaker

• Nokia Stereo Headset (HS-45), in-box

Media

• Full-screen video playback to view downloaded, streamed or recorded video clips

• Supported video formats: MPEG-4 , H.264/AVC, H.263/3GPP, RealVideo 8/9/10

Productivity

Messaging:

• E-mail (SMTP, IMAP4, POP3), MMS, SMS

Office applications:

• Viewing of email attachments – .doc, .xls, .ppt, . pdf

PIM:

• Contacts, calendar, to-do, notes, recorder, calculator, clock, converter

Synchronization:

• Local/Remote (using SyncML)

• Data: Calendar, Contacts, To-do, Notes, E-mail

• PC Applications: Microsoft Outlook (98, 2000, 2002, 2003), Outlook Express, Lotus Organizer (5.0, 6.0),

Lotus Notes (5.0, 6.0)

Call management:

• Call logs, speed dial, voice dialling (with SIND) and voice commands

Issue 1 COMPANY CONFIDENTIAL Page 1 –7

RM-235

General Information

• Nokia Push to Talk (PoC)

Connectivity

• WLAN - IEEE802.11 g/b with UPnP support

• Mini USB type B interface with USB 2.0 high speed

• Bluetooth wireless technology 2.0 + EDR

• Nokia 3.5 mm AV connector

Add-on software framework

• Symbian 9.3 OS

• Nokia Series 60, 3rd edition, feature pack 2

• Java: MIDP2.0

• C++ and Java SDKs

Additional technical specifications

• Vibrating alert

• 3GPP Rel 5 compliant

• Speech codecs supported in WCDMA: AMR

• Speech codecs supported in GSM: FR AMR/HR AMR/EFR/FR/HR

• WCDMA HSDPA 2100 MHz with simultaneous voice and packet data (PS max speed DL/UL= 3.6Mbps/ 384kbps, CS max speed 64kbps)

• Dual Transfer Mode (DTM) support for simultaneous voice and packet data connection in GSM/EDGE networks. Simple class A, multi slot class 11, max speed DL/UL: 118.4/118.4kbits/s

• EGPRS class B, multi slot class 32, (5 Rx + 3 Tx / Max Sum 6), max speed DL/UL= 296 / 177.6 kbits/s

• GPRS class B, multi slot class 32 (5 Rx + 3 Tx / Max Sum 6), max speed DL/UL= 107 / 64.2 kbits/s

• GPS

Sales package

• Transceiver RM-235

• Charger (AC-5)

• Battery (BL-6F)

• Music headset (HS-45/AD-45; HS-45/AD-43; HS-45/AD-54)

• Connectivity cable (CA-101)

Mobile enhancements

Table 1 Audio

Enhancement Type

Music headset HS-45 with AD-45 3.5mm stereo plug

HS-45 with AD-43 3.5mm stereo plug

HS-45 with AD-54 stereo plug Basic headset HS-41 Stereo headset HS-48

Page 1 –8 COMPANY CONFIDENTIAL Issue 1

RM-235 General Information

Enhancement Type

Wireless headset HS-26W

HS-36W

Bluetooth headset BH-100

MONO BH-200 BH-201 BH-202 BH-203 BH-205 BH-206 BH-207 BH-300 BH-301 BH-302 BH-303 STEREO BH-501 BH-600 STEREO BH-601 BH-602 BH-700 BH-701 BH-800 BH-801 BH-802 BH-900 BH-902

STEREO BH-903 Wireless stereo gateway AD-42W Music headphone HS-61 Advanced headphone HS-62 Music speaker MD-3 Mini speaker MD-4

Table 2 Car

Enhancement Type

Nokia Universal Holder CR-99

Issue 1 COMPANY CONFIDENTIAL Page 1 –9

Enhancement Type

Mobile charger DC-4 Wireless plug-in car handsfree HF-6W

HF-33W HF-34W

HF-35W Car kit Nokia 616 Multimedia car kit CK-20W

Table 3 Data

Enhancement Type

Connectivity cable CA-101 Video connectivity cable CA-75U

RM-235

General Information

MicroSD card 128MB upwards

Table 4 GPS

Enhancement Type

Wireless GPS module LD-3W Navigation pack LD-2

Table 5 Messaging

Enhancement Type

Digital pen SU-27W Wireless keyboard SU-8W

Table 6 Power

Enhancement Type

Battery 1200mAh Li-ion BL-6F Travel charger AC-4

AC-5

Charger adapter CA-44

Table 7 Carrying

Enhancement Type

Universal carrying case

Page 1 –10 COMPANY CONFIDENTIAL Issue 1

RM-235 General Information

Technical specifications

Transceiver general specifications

Unit Dimensions (L x W x T)

Transceiver with BL-6F 1200mAh li-ion battery back

(mm)

113 x 49 x 15.1 ~100.8 76.5

Weight (g)

Volume (cm3)

Main RF characteristics for GSM850/900/1800/1900 and WCDMA VIII (900) and WCDMA I (2100) phones

Parameter Unit

Cellular system GSM850, EGSM900, GSM1800/1900, WCDMA VIII

(900) and WCDMA I (2100)

Rx frequency band GSM850: 869 - 894 MHz

EGSM900: 925 - 960 MHz GSM1800: 1805 - 1880 MHz GSM1900: 1930 - 1990 MHz WCDMA VIII (900): 925- 960 MHz WCDMA I (2100): 2110 - 2170 MHz

Tx frequency band GSM850: 824 - 849 MHz

EGSM900: 880 - 915 MHz GSM1800: 1710 - 1785 MHz GSM1900: 1850 - 1910 MHz WCDMA VIII (900): 880 - 915 MHz WCDMA I (2100): 1920 - 1980 MHz

Output power GSM850: +5 ...+33dBm/3.2mW ... 2W

GSM900: +5 … +33dBm/3.2mW … 2W GSM1800: +0 … +30dBm/1.0mW … 1W GSM1900: +0 … +30dBm/1.0mW … 1W WCDMA VIII (900): -50 ... +24 dBm/0.01μW ...

251.2mW WCDMA I (2100): -50 ... +24 dBm/0.01μW ...

251.2mW

EDGE output power EDGE850: +5 … +29dBm/3.2mW … 794mW

EDGE900: +5 … +29dBm/3.2mW … 794mW EDGE1800: +0 … +26dBm/1.0mW … 400mW EDGE1900:+0 … +26dBm/1.0mW … 400mW

Issue 1 COMPANY CONFIDENTIAL Page 1 –11

Parameter Unit

Number of RF channels GSM850: 124

GSM900: 174 GSM1800: 374 GSM1900: 299 WCDMA VIII (900): 152

WCDMA I (2100): 277 Channel spacing 200 kHz Number of Tx power levels GSM850: 15

GSM900: 15

GSM1800: 16

GSM1900: 16

WCDMA VIII (900): 75

RM-235

General Information

WCDMA I (2100): 75

Battery endurance

Battery Capacity (mAh) Talk time Stand-by

BL-6F 1200 up to 190 mins (WCDMA)

& 260 mins (GSM)

Charging times

AC-5

1h 30 min

Environmental conditions

Environmental

condition

Normal operation Reduced performance

-15 oC ... +55 oC 55 oC ... +70 oC

Ambient temperature Notes

Specifications fulfilled Operational only for short periods

up to 320 hrs (WCDMA) & 320 hrs (GSM)

Intermittent or no operation

No operation or storage

Charging allowed Long term storage

conditions

Page 1 –12 COMPANY CONFIDENTIAL Issue 1

-40 oC ... -15 oC and +70 oC ... +85oC

<-40 oC and >+85 oC

-15 oC ... +55 oC 0 oC ... +85 oC

Operation not guaranteed but an attempt to operate will not damage the phone

No storage. An attempt to operate may cause permanent damage

RM-235 General Information

Environmental

condition

Humidity and water resistance

Ambient temperature Notes

Relative humidity range is 5 to 95%. Condensed or dripping water may

cause intermittent malfunctions. Protection against dripping water

has to be implemented in (enclosure) mechanics.

Continuous dampness will cause permanent damage to the module.

Issue 1 COMPANY CONFIDENTIAL Page 1 –13

RM-235

General Information

(This page left intentionally blank.)

Page 1 –14 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

2 — Service Tools and Service

Concepts

Issue 1 COMPANY CONFIDENTIAL Page 2 –1

RM-235

Service Tools and Service Concepts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Table of Contents

Service tools............................................................................................................................................................2–5

Product specific tools........................................................................................................................................2–5

FS-58..............................................................................................................................................................2–5

MJ-144 ...........................................................................................................................................................2–5

RJ-178 ............................................................................................................................................................2–5

RJ-219 ............................................................................................................................................................2–5

SA-135 ...........................................................................................................................................................2–6

Spare locking part for FS-58........................................................................................................................2–6

SS-100............................................................................................................................................................2–6

SS-149............................................................................................................................................................2–6

SS-153............................................................................................................................................................2–6

SS-159............................................................................................................................................................2–6

SS-184............................................................................................................................................................2–7

ST-69..............................................................................................................................................................2–7

General tools......................................................................................................................................................2–7

RJ-196 ............................................................................................................................................................2–7

RJ-209 ...........................................................................................................................................................2–7

RJ-93 ..............................................................................................................................................................2–8

ST-37..............................................................................................................................................................2–8

ST-40..............................................................................................................................................................2–8

ST-64..............................................................................................................................................................2–8

Cables..................................................................................................................................................................2–8

CA-101 ...........................................................................................................................................................2–9

CA-31D ...........................................................................................................................................................2–9

CA-35S............................................................................................................................................................2–9

PCS-1........................................................................................................................................................... 2–10

XCS-1........................................................................................................................................................... 2–10

XCS-4........................................................................................................................................................... 2–10

XRS-6........................................................................................................................................................... 2–11

Service concepts .................................................................................................................................................. 2–11

POS (Point of Sale) flash concept .................................................................................................................. 2–11

Flash concept with FPS-10............................................................................................................................. 2–12

CU-4 flash concept with FPS-10..................................................................................................................... 2–13

Flash concept with FPS-10 and SB-6............................................................................................................. 2–14

Flash concept with SS-46 and CA-89DS ........................................................................................................ 2–15

Flash concept with SS-62 and CA-89DS ........................................................................................................ 2–16

Flash concept with FPS-10, SS-62 and SB-6 ................................................................................................. 2–17

Flash concept with FPS-10, SS-62 and SB-7 ................................................................................................. 2–18

Module jig service concept............................................................................................................................ 2–19

Module jig service concept with SB-6........................................................................................................... 2–20

RF testing concept with RF coupler .............................................................................................................. 2–21

Service concept for RF testing and RF/BB tuning........................................................................................ 2–23

List of Figures

Figure 2 POS flash concept ................................................................................................................................. 2–11

Figure 3 Basic flash concept with FPS-10.......................................................................................................... 2–12

Figure 4 CU-4 flash concept with FPS-10........................................................................................................... 2–13

Figure 5 Flash concept with FPS-10 and SB-6................................................................................................... 2–14

Figure 6 Flash concept with SS-46 and CA-89DS .............................................................................................. 2–15

Issue 1 COMPANY CONFIDENTIAL Page 2 –3

RM-235

Service Tools and Service Concepts

Figure 7 Flash concept with SS-62 and CA-89DS .............................................................................................. 2–16

Figure 8 Flash concept with FPS-10, SS-62 and SB-6 ....................................................................................... 2–17

Figure 9 Flash concept with FPS-10, SB-7 and JBT-9........................................................................................ 2–18

Figure 10 Module jig service concept................................................................................................................ 2–19

Figure 11 Module jig service concept with SB-6............................................................................................... 2–20

Figure 12 RF testing concept with RF coupler.................................................................................................. 2–21

Figure 13 Service concept for RF testing and RF/BB tuning............................................................................ 2–23

Page 2 –4 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Service tools

Product specific tools

The table below gives a short overview of service devices that can be used for testing, error analysis, and repair of product RM-235. For the correct use of the service devices, and the best effort of workbench setup, please refer to various concepts.

FS-58 Flash adapter

• FS-58 is equipped with a clip interlock system

• provides standardised interface towards Control Unit

• multiplexing between USB and FBUS media, controlled by VUSB

MJ-144 Module jig MJ-144 is meant for component level troubleshooting.

The jig includes RF interface for Bluetooth, WLAN and GPS. In addition, it has the following features:

• Provides mechanical interface with the engine module

• Provides galvanic connection to all needed test pads in module

• Multiplexing between USB and FBUS media, controlled by Vusb

• Duplicated SIM connector

• Connector for control unit

• Access for Audio-, MMC, and USB connectors RJ-178 Soldering jig

RJ-178 is a soldering jig used for soldering and as a rework jig for the engine module.

RJ-219 Rework jig RJ-219 is a jig used for soldering and as a rework jig for the FM

transmitter chip. It is used together with the ST-69 stencil.

Issue 1 COMPANY CONFIDENTIAL Page 2 –5

RM-235

Service Tools and Service Concepts

SA-135 RF coupler SA-135 is an RF coupler for WCDMA and GSM RF testing. It is used

together with the product-specific flash adapter.

Spare locking part for FS-58

Spare part for FS-58. SS-100 Camera removal tool

The camera removal tool SS-100 is used to remove/attach a camera module from/to the camera socket of the phone PWB.

SS-149 UI disassembly tool SS-149 is used for removing UI assy when disassembling the phone.

SS-153 Superkey pressing

tool

SS-153 is used to bond the superkey to the UI module when reassembling the device with the new UI module.

Note: To ensure proper bonding, pressure needs to be

applied at least 3 seconds and assembly should be always verified by using phoenix keypad test.

SS-159 Window disassembly

tool

SS-159 is used for removing window assy when disassembling the phone.

Page 2 –6 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

SS-184 Window release tool SS-184 is used for removing sub LCD window assy without

disassembling the phone.

ST-69 Rework stencil ST-69 is a rework stencil used with RJ-219.

General tools

RJ-196 Rework jig RJ-196 is a rework jig used when servicing the BTHFM (D6000) module.

It is used together with rework stencil ST-37.

RJ-209 Rework jig RJ-209 is used as a rework jig for the WLAN 4.0 module

This stencil takes the WLAN 4.0 module for spreading soldering paste onto the component. This must be used together with the ST-64 rework stencil.

Issue 1 COMPANY CONFIDENTIAL Page 2 –7

RM-235

Service Tools and Service Concepts

RJ-93 Rework jig RJ-93 is a rework jig used with ST-40.

ST-37 BTHFM rework stencil ST-37 stencil is used with the RJ-104 rework jig to service the BTHFM

(D6000) module.

ST-40 Rework stencil ST-40 is a rework stencil and used with RJ-93.

ST-64 Rework stencil ST-64 is the stencil used during rework of the WLAN 4.0 module. It

must be used together with the RJ-209 rework jig.

Cables

Page 2 –8 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

CA-101 Micro USB cable The CA-101 is a USB-to-microUSB data cable that allows connections

between the PC and the phone.

CA-31D USB cable The CA-31D USB cable is used to connect FPS-10 or FPS-11 to a PC. It is

included in the FPS-10 and FPS-11 sales packages.

CA-35S Power cable CA-35S is a power cable for connecting, for example, the FPS-10 flash

prommer to the Point-Of-Sales (POS) flash adapter.

Issue 1 COMPANY CONFIDENTIAL Page 2 –9

RM-235

Service Tools and Service Concepts

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

jig or a control unit to supply a controlled voltage.

XCS-1 Service cable The XCS-1 service cable is used to connect FLS-4S to the POS flash

adapter for supplying a controlled operating voltage and data connection.

XCS-4 Modular cable XCS-4 is a shielded (one specially shielded conductor) modular cable

for flashing and service purposes.

Page 2 –10 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Service concepts

POS (Point of Sale) flash concept

XRS-6 RF cable The RF cable is used to connect, for example, a module repair jig to

the RF measurement equipment. SMA to N-Connector approximately 610 mm. Attenuation for:

• GSM850/900: 0.3+-0.1 dB

• GSM1800/1900: 0.5+-0.1 dB

• WLAN: 0.6+-0.1dB

Figure 2 POS flash concept

Type Description

Product specific tools

Issue 1 COMPANY CONFIDENTIAL Page 2 –11

Type Description

BL-6F Battery

Other tools

FLS-5 POS flash dongle

PC with Phoenix service software

Cables

CA-101 USB connectivity cable

Flash concept with FPS-10

RM-235

Service Tools and Service Concepts

Figure 3 Basic flash concept with FPS-10

Type Description

Product specific devices

FS-58 Flash adapter

Other devices

FPS-10 Flash prommer box PKD-1/PK-1 SW security device SS-46 Interface adapter

PC with Phoenix service software

Cables

Page 2 –12 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Type Description

XCS-4 Modular cable CA-35S Power cable

USB cable

CU-4 flash concept with FPS-10

Figure 4 CU-4 flash concept with FPS-10

Type Description

Product specific devices

FS-58 Flash adapter

Other devices

CU-4 Control unit FPS-10 Flash prommer box PKD-1/PK-1 SW security device SS-62 Flash adapter base SX-4 Smart card

PC with Phoenix service software

Cables

PCS-1 Power cable

Issue 1 COMPANY CONFIDENTIAL Page 2 –13

Type Description

XCS-4 Modular cable

Standard USB cable USB cable

Flash concept with FPS-10 and SB-6

RM-235

Service Tools and Service Concepts

Figure 5 Flash concept with FPS-10 and SB-6

Type Description

Product specific tools

FS-58 Flash adapter

Other tools

FPS-10 Flash prommer box PKD-1/PK-1 SW security device SS-46 Interface adapter SB-6 Bluetooth test and interface box

Page 2 –14 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Type Description

PC with Phoenix service software

Cables

XCS-4 Modular cable CA-35S Power cable

USB cable

Flash concept with SS-46 and CA-89DS

Figure 6 Flash concept with SS-46 and CA-89DS

Type Description

Product specific tools

FS-58 Flash adapter

Other tools

FLS-5 Flash device SS-46 Interface adapter

Issue 1 COMPANY CONFIDENTIAL Page 2 –15

Type Description

PC with Phoenix service software

Cables

CA-89DS Cable

Flash concept with SS-62 and CA-89DS

RM-235

Service Tools and Service Concepts

Figure 7 Flash concept with SS-62 and CA-89DS

Type Description

Product specific tools

FS-58 Flash adapter

Other tools

CU-4 Control unit FLS-5 Flash device SS-62 Flash adapter base

PC with Phoenix service software

Page 2 –16 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Type Description

Cables

CA-89DS Cable PCS-1 Power cable

USB cable

Flash concept with FPS-10, SS-62 and SB-6

Figure 8 Flash concept with FPS-10, SS-62 and SB-6

Type Description

Product specific tools

FS-58 Flash adapter

Other tools

CU-4 Control unit FPS-10 Flash prommer box PKD-1/PK-1 SW security device SS-62 Flash adapter base SB-6 Bluetooth test and interface box

Issue 1 COMPANY CONFIDENTIAL Page 2 –17

Type Description

SX-4 Smart card

PC with Phoenix service software

Cables

XCS-4 Modular cable PCS-1 Power cable

USB cable

Flash concept with FPS-10, SS-62 and SB-7

RM-235

Service Tools and Service Concepts

Figure 9 Flash concept with FPS-10, SB-7 and JBT-9

Type Description

Product specific tools

FS-58 Flash adapter

Other tools

CU-4 Control unit FPS-10 Flash prommer box PKD-1/PK-1 SW security device SB-7 WLAN test box SS-62 Flash adapter base

Page 2 –18 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Type Description

SX-4 Smart card

PC with Phoenix service software

Cables

XCS-4 Modular cable PCS-1 Power cable

USB cable

Module jig service concept

Figure 10 Module jig service concept

Type Description

Phone specific devices

MJ-144 Module jig

Other devices

CU-4 Control unit FPS-10 Flash prommer box PK-1 SW security device SX-4 Smart card

Issue 1 COMPANY CONFIDENTIAL Page 2 –19

Type Description

PC with VPOS and Phoenix service software Measurement equipment

Cables

PCS-1 DC power cable XCS-4 Modular cable XRF-1 RF cable

USB cable GPIB control cable

Module jig service concept with SB-6

RM-235

Service Tools and Service Concepts

Figure 11 Module jig service concept with SB-6

Type Description

Product specific tools

Page 2 –20 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Type Description

MJ-144 Module jig

Other tools

CU-4 Control unit FPS-10 Flash prommer box SB-6 Bluetooth test and interface box PKD-1 SW security device SX-4 Smart card

Measurement equipment PC with Phoenix service software

Cables

PCS-1 DC power cable XCS-4 Modular cable XRS-6 RF cable

GPIB control cable USB cable

RF testing concept with RF coupler

Figure 12 RF testing concept with RF coupler

Issue 1 COMPANY CONFIDENTIAL Page 2 –21

Type Description

Product specific devices

FS-58 Flash adapter SA-135 RF coupler

Other devices

CU-4 Control unit SX-4 Smart card FPS-10 Flash prommer box PKD-1/PK-1 SW security device SS-62 Flash adapter base

Measurement equipment PC with Phoenix service software

Cables

RM-235

Service Tools and Service Concepts

PCS-1 Power cable XCS-4 Modular cable XRS-6 RF cable

GPIB control cable USB cable

Page 2 –22 COMPANY CONFIDENTIAL Issue 1

RM-235 Service Tools and Service Concepts

Service concept for RF testing and RF/BB tuning

Figure 13 Service concept for RF testing and RF/BB tuning

Type Description

Product specific devices

MJ-144 Module jig

Other devices

CU-4 Control unit PK-1 SW security device SX-4 Smart card

Measurement equipment Smart card reader PC with Phoenix service software

Cables

DAU-9S MBUS cable PCS-1 DC power cable XRS-6 RF cable

GPIB control cable

Issue 1 COMPANY CONFIDENTIAL Page 2 –23

Type Description

USB cable

RM-235

Service Tools and Service Concepts

Page 2 –24 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

3 — BB troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 3 –1

RM-235

BB troubleshooting

(This page left intentionally blank.)

Page 3 –2 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Table of Contents

Baseband main troubleshooting..........................................................................................................................3–5

General power checking ........................................................................................................................................3–6

Backup battery troubleshooting...........................................................................................................................3–7

Dead or jammed device troubleshooting............................................................................................................3–9

USB troubleshooting ........................................................................................................................................... 3–10

SIM card troubleshooting ................................................................................................................................... 3–11

MicroSD card troubleshooting............................................................................................................................ 3–13

Combo memory troubleshooting ...................................................................................................................... 3–15

Flash programming troubleshooting................................................................................................................ 3–16

Charging troubleshooting .................................................................................................................................. 3–19

Clocking troubleshooting ................................................................................................................................... 3–20

Power key troubleshooting................................................................................................................................ 3–21

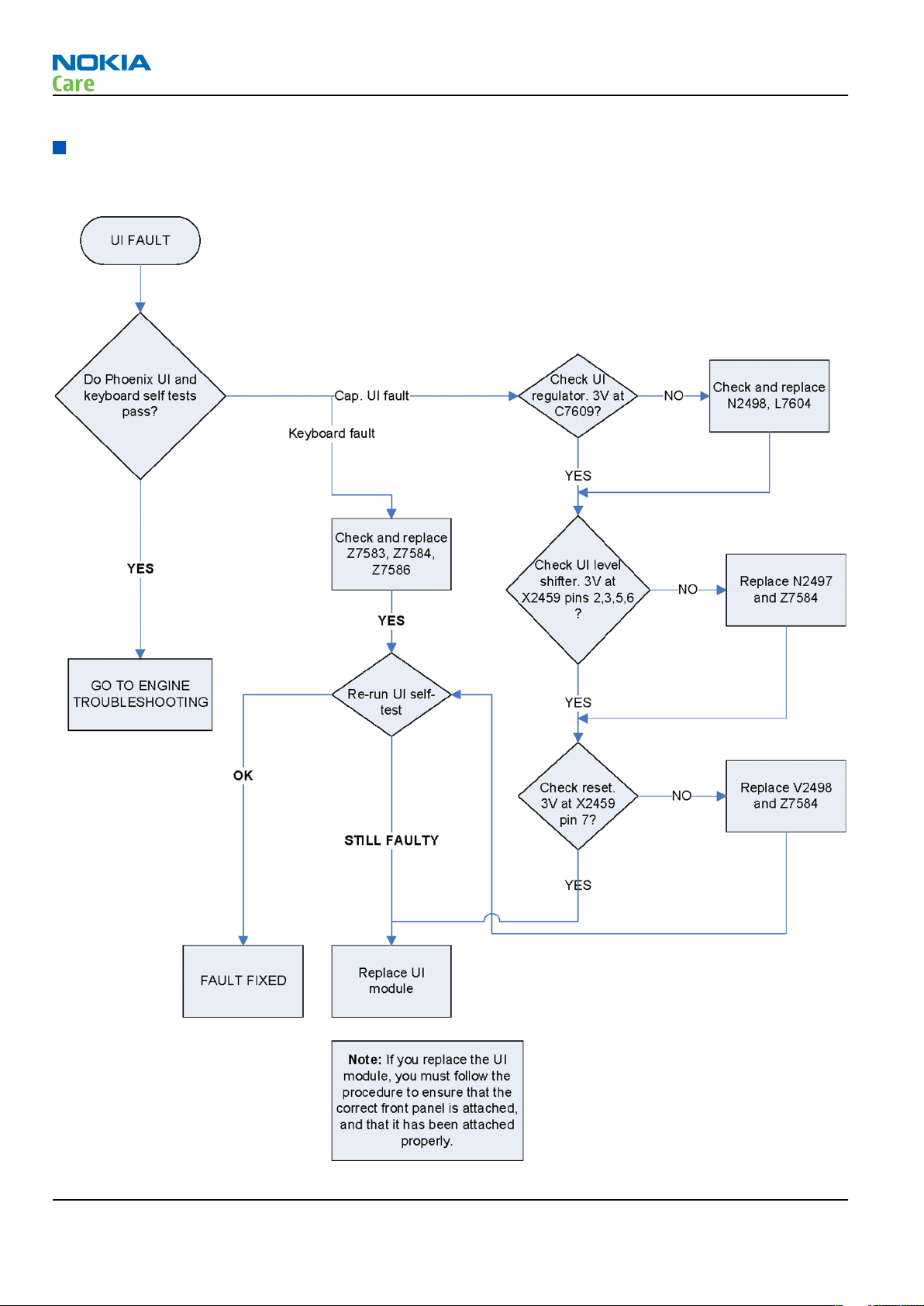

User interface troubleshooting.......................................................................................................................... 3–22

Display technical description and troubleshooting......................................................................................... 3–23

Display ............................................................................................................................................................ 3–23

Display troubleshooting ................................................................................................................................ 3–23

Display backlight and illumination troubleshooting.................................................................................. 3–26

LED driver troubleshooting ........................................................................................................................... 3–27

Audio Troubleshooting....................................................................................................................................... 3–28

External earpiece troubleshooting 1 and 2................................................................................................. 3–28

External microphone troubleshooting ........................................................................................................ 3–29

Internal earpiece troubleshooting .............................................................................................................. 3–31

Internal handsfree speaker troubleshooting ............................................................................................. 3–32

Internal microphone troubleshooting ........................................................................................................ 3–33

ALS technical description and troubleshooting ............................................................................................... 3–34

Ambient Light Sensor..................................................................................................................................... 3–34

ALS troubleshooting....................................................................................................................................... 3–34

Re-tuning ALS.................................................................................................................................................. 3–35

Bluetooth and FM radio troubleshooting ......................................................................................................... 3–37

Introduction to Bluetooth/FM radio troubleshooting................................................................................ 3–37

Bluetooth BER test.......................................................................................................................................... 3–40

Bluetooth and FM radio self tests in Phoenix.............................................................................................. 3–40

FM radio testing.............................................................................................................................................. 3–41

Bluetooth troubleshooting ........................................................................................................................... 3–43

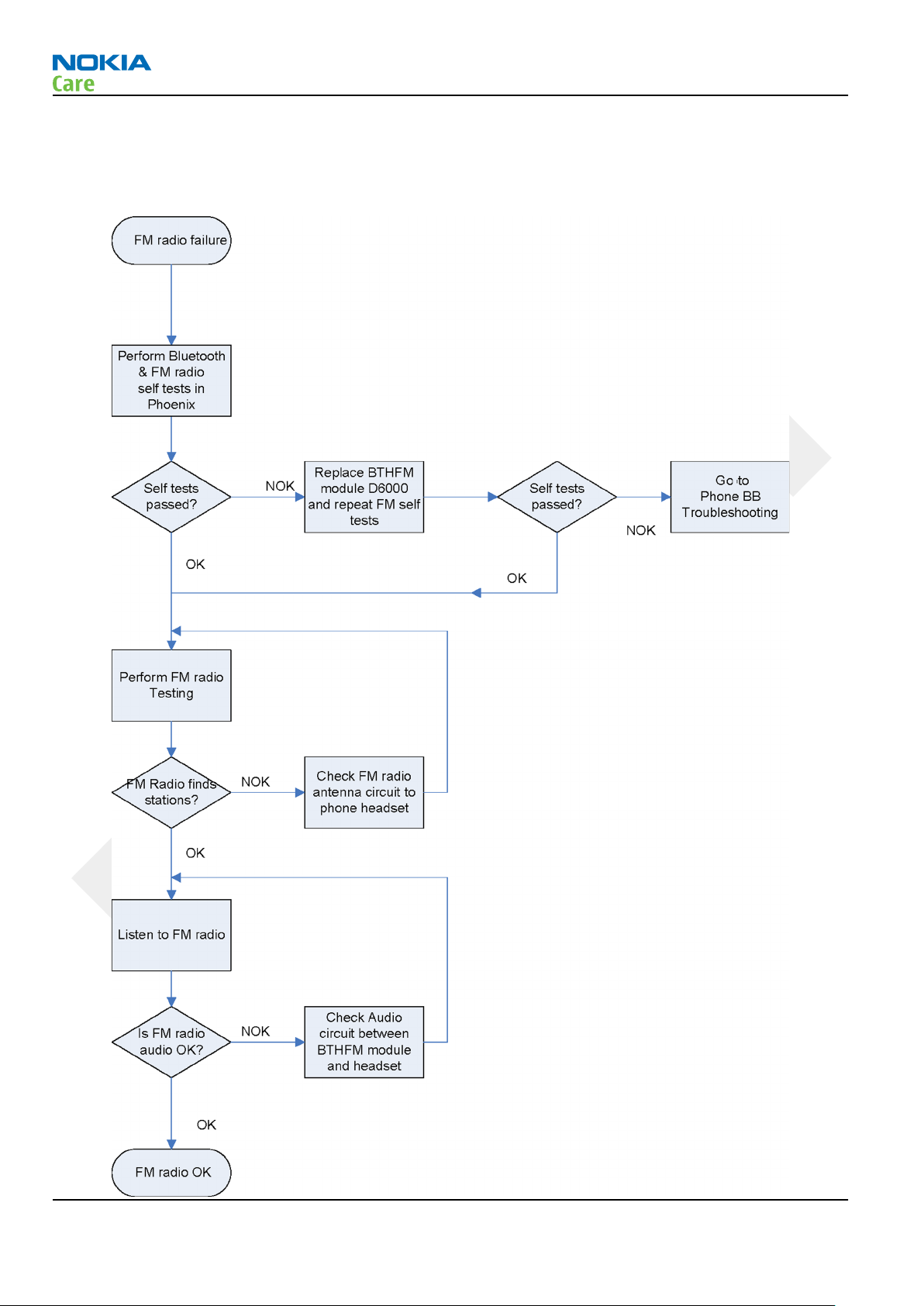

FM radio troubleshooting.............................................................................................................................. 3–44

GPS troubleshooting ........................................................................................................................................... 3–45

GPS layout and basic test points................................................................................................................... 3–45

GPS settings for Phoenix................................................................................................................................ 3–45

GPS control................................................................................................................................................. 3–45

Quick Test window.................................................................................................................................... 3–46

GPS failure troubleshooting.......................................................................................................................... 3–48

WLAN Troubleshooting....................................................................................................................................... 3–49

WLAN component layout and test points.................................................................................................... 3–49

WLAN selftest and coexistence test in Phoenix........................................................................................... 3–49

WLAN functional tests.................................................................................................................................... 3–51

WLAN failure troubleshooting ...................................................................................................................... 3–55

List of Figures

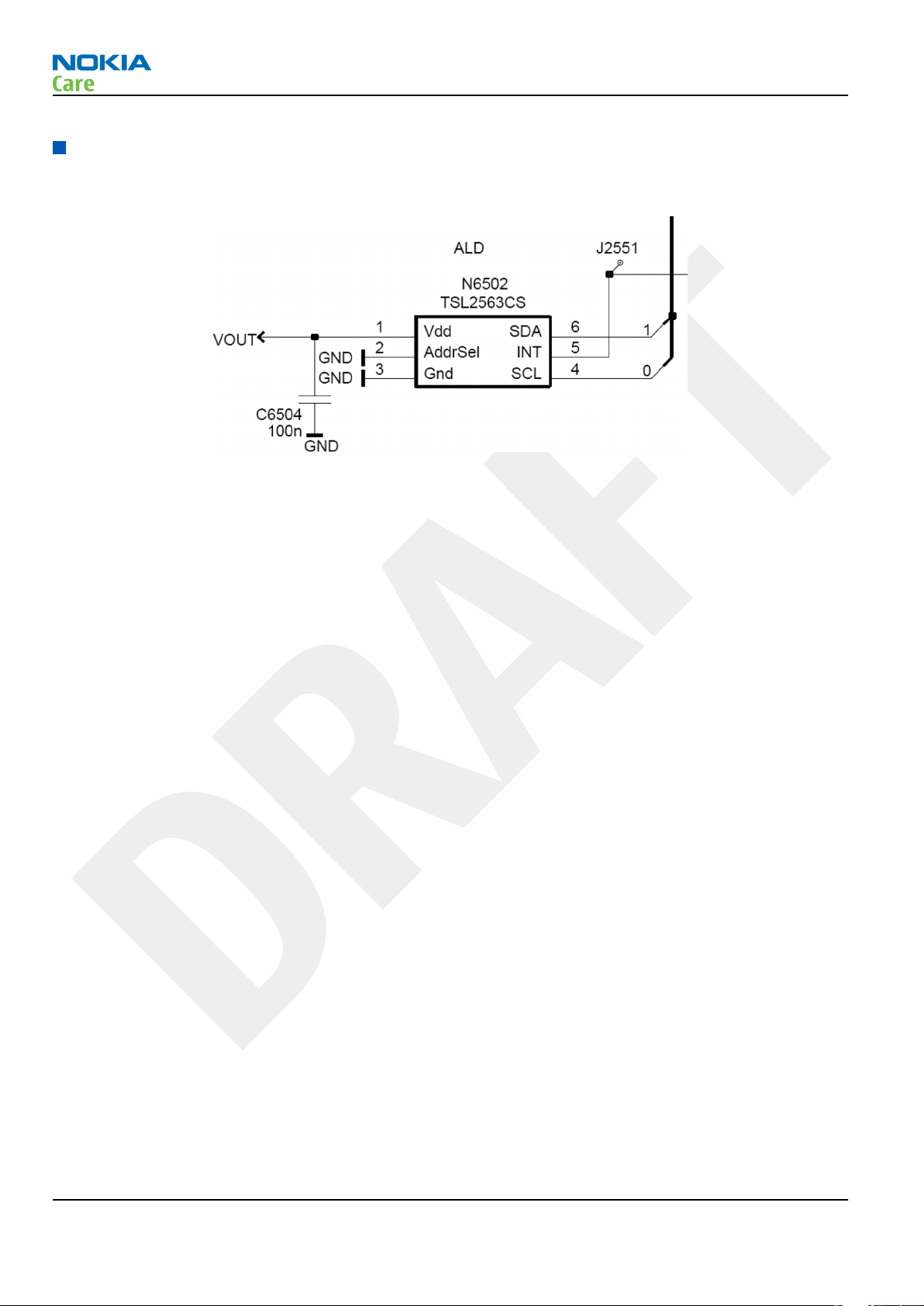

Figure 14 Ambient Light Sensor ........................................................................................................................ 3–34

Issue 1 COMPANY CONFIDENTIAL Page 3 –3

RM-235

BB troubleshooting

Figure 15 Bluetooth antenna............................................................................................................................. 3–37

Figure 16 WLAN/BT, GPS diplexer and antenna pads ...................................................................................... 3–40

Figure 17 Bluetooth and FM radio self tests in Phoenix.................................................................................. 3–41

Figure 18 GPS layout and basic test points....................................................................................................... 3–45

Figure 19 GPS Control dialogue box .................................................................................................................. 3–46

Figure 20 GPS Quick Test window ..................................................................................................................... 3–47

Figure 21 WLAN component layout and test points........................................................................................ 3–49

Page 3 –4 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Baseband main troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –5

RM-235

BB troubleshooting

General power checking

Signal

name

VIO_V AVILMA ON ON 1.82 Vilma I/O, NCW,

VBACK AVILMA ON ON 2.5 RTC circuitry VSIM1 AVILMA ON ON 1.8/3,0 SIM card VBAT3 VAUX AVILMA ON ON 2.78 Displays VBAT5 VANA AVILMA ON ON 2.5 Vilma internal VBAT4 VR1 AVILMA OFF ON 2.5 VCTCXO VBAT4

Page 3 –6 COMPANY CONFIDENTIAL Issue 1

Regulator Sleep Idle Nominal

voltage

Main user Notes Supply

VBAT1

FMTx

RM-235 BB troubleshooting

Signal

name

VRFC AVILMA OFF OFF 1.8 RAPIDO

VRCP1 AVILMA OFF OFF 4.75 RF module RF

VOUT BETTY ON ON 2,5 ALS VBAT6 VAUD LP3985 3,0 DAC33 On

VCAM_1V8 LM3677 OFF OFF 1,8 Camera HWA ,

VCORE_1V3 LP5952 OFF OFF 1,3 Camera HWA

VCAM_2V8 LP3985 OFF OFF 2,8 Cameras VBAT VCORE TPS62350 ON ON 1,2 Rapido core VBAT VIO LM3677 ON ON 1.8 VIO, VDRAM VBAT VDDB SD

Regulator Sleep Idle Nominal

voltage

OFF OFF 2,9 SD card ON

levelsifter

Main user Notes Supply

converter

VBATCP

active

VBAT when used

VBAT

LP5952

LM3677

core

VBAT when used

LEDOUT TPS61061 OFF Keyboard and

display backlights

TPS61052 OFF OFF 4,5/5,5 Camera flash,

backlights VBAT 3,6 VCAM_ACT LP3985 OFF OFF 3.0 Camera VBAT VOut TK63128 OFF OFF 2.8 NCW VBAT VUI3V3 TK64730 ON ON 3.3 UI VBAT

VBAT

Backup battery troubleshooting

Verify that the backup battery G2200 is empty (U<1V). Switch the phone on. Measure voltage of the battery when the main battery is connected to the phone and the phone is switched on. Wait a few minutes and monitor that the backup battery voltage rises. Switch off the phone, disconnect the main battery and monitor that the voltage of the backup battery decreases. Normal behaviour of the voltage is described in the figures below:

Issue 1 COMPANY CONFIDENTIAL Page 3 –7

RM-235

BB troubleshooting

If the voltage rises and falls quickly, check the back-up battery G2200 contacts for loose soldering or shortcircuit, and repair or change G2200 if necessary. If the voltage stays ~0V, check resistance VBACK against GND. If there is no shortcircuit, AVILMA N2200 is faulty. Replace N2200.

Page 3 –8 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Dead or jammed device troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –9

USB troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –10 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

SIM card troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –11

RM-235

BB troubleshooting

Page 3 –12 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

MicroSD card troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –13

RM-235

BB troubleshooting

Page 3 –14 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Combo memory troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –15

Flash programming troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –16 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 3 –17

RM-235

BB troubleshooting

Page 3 –18 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Charging troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –19

Clocking troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –20 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Power key troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –21

User interface troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –22 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Display technical description and troubleshooting

Display

Display features

• 2.4” Active TFT QVGA display supports up to 16,777,216 colors (320 x 240 pixels, 2.6 inches)

• Wide 160° viewing angle

• Ambient light detector to optimize display brightness and power consumption

Display troubleshooting

Context

• The display is in a normal mode when the phone is in active use.

• The operating modes of the display can be controlled with the help of Phoenix.

Display blank There is no image on the display. The display looks

the same when the phone is on as it does when the phone is off. The backlight can be on in some cases.

Image on the display not correct Image on the display can be corrupted or a part of

the image can be missing. If a part of the image is missing, change the display module. If the image is otherwise corrupted, follow the appropriate troubleshooting diagram.

Backlight dim or not working at all Backlight LED components are inside the display

module. Backlight failure can also be in the connector or in the backlight power source in the main engine of the phone.

Visual defects (pixel) Pixel defects can be checked by controlling the

display with Phoenix. Use both colours, black and white, on a full screen. The display may have some random pixel defects that are acceptable for this type of display.

The criteria when pixel defects are regarded as a display failure, resulting in a replacement of the display, are presented the following table.

Steps

1. Verify with a working display that the fault is not on the display module itself. The display module cannot be repaired.

Issue 1 COMPANY CONFIDENTIAL Page 3 –23

RM-235

BB troubleshooting

2. Check that the cellular engine is working normally. i To check the functionality, connect the phone to a docking station. ii StartPhoenix service software. iii Read the phone information to check that also the application engine is functioning normally (you

should be able to read the Phone ID).

3. Proceed to the display troubleshooting flowcharts. Use the Display Test tool in Phoenix to find the detailed fault mode.

Before going to display troubleshooting flow make sure that engine is working and starting up correctly otherwise go to BB troubleshooting.

Page 3 –24 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 3 –25

Display backlight and illumination troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –26 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

LED driver troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –27

Audio Troubleshooting

External earpiece troubleshooting 1 and 2

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –28 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Issue 1 COMPANY CONFIDENTIAL Page 3 –29

External microphone troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –30 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Internal earpiece troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –31

Internal handsfree speaker troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –32 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Internal microphone troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –33

RM-235

BB troubleshooting

ALS technical description and troubleshooting

Ambient Light Sensor

Figure 14 Ambient Light Sensor

Ambient Light Sensor consists of the following components:

• Light guide

• Ambient Light Sensor (ALS)

ALS is a digital I2C interface component, having two channels with different spectral sensitivities. When combined, the component responds to illuminance similar as human eye.

• Vdd Filtering capacitor C6504

Ambient Light Sensor information is used to control keypad and display brightness of the phone. Keyboard and Display brightness is dimmed, when environment lighting is dark.

Ambient Light Sensor is calibrated in production and can be re-tuned in service points though not recommended unless calibration coefficient are lost for some reason.

ALS troubleshooting

Context

Functionality check:

Steps

1. Connect phone to Phoenix and set the phone (e.g. on the table) so that the amount of ambient light seen by ALS is as stable as possible.

2. Start Phoenix

3. Choose File -> Scan product

4. Choose Testing -> Display Test

5. Open the Lights tab, check Ambient Light Sensor check box, click Read, cover the sensor and click Read again. When covered, Luminance reading should be less than after clicking Read without covering the sensor.

Page 3 –34 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

6. If component doesn’t give any reading or reading doesn’t change when sensor is/is not covered, replace

the part.

Note: After replacing the ALS. If calibration values of the new sensor are lost or for some other

reason, ALS re-tuning is required (see instructions later in this document). When doing the ALS calibration procedure, it is required to have a reference phone, which includes

calibrated ALS. ALS re-tuning instructions show why the reference phone is needed.

Re-tuning ALS

Steps

1. Connect reference phone to Phoenix and set the phone (e.g. on the table) so that the amount of ambient

light seen by ALS is as stable as possible.

2. Start Phoenix.

3. Choose File→Scan Product.

Issue 1 COMPANY CONFIDENTIAL Page 3 –35

BB troubleshooting

4. Choose Tuning -> Ambient Light Sensor Calibration. You should see the following window:

RM-235

5. Read AD-count values for Channel 0 and Channel 1 by click Read button and write them down.

6. Repeat 1-5 for the phone to be calibrated and make sure the phone to be calibrated is located in the

same place as reference phone was when luminance reading was taken.

7. Calculate co-efficient from reference phone and phone to be calibrated AD-count values by division: Co-

efficient = AD-count(reference phone) / AD-count(phone to be calibrated), write down the calculated coefficient values.

8. -> Iterate by changing Channel 0 and Channel 1 (reference level) values (remove cross from ‘Use default

values only’). After writing some value to Channel 0 and Channel 1 (reference value), calibrate button must be pressed. Stop iterating when Co-efficient is equal to Co-efficient calculated in step 7. Note that decimal numbers should be used in the iteration in order to achieve enough precision (e.g. 200.2455)

9. After having same Co-efficient value in “Co-efficient” textbox as the calculated value, make sure that

ambient light values (read using Testing → Display Test → “Luminance” textbox) are almost the same in reference phone and calibrated phone. Remember that illuminance readings for reference and calibrated phones must be done in the same ambient light conditions. If illuminance values differs a lot (difference max. +- 10%), repeat whole ALS re-tuning procedure.

10. To end the calibration, click Close.

Page 3 –36 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Bluetooth and FM radio troubleshooting

Introduction to Bluetooth/FM radio troubleshooting

Bluetooth/WLAN/GPS antenna

Figure 15 Bluetooth antenna

The BT RF signal is routed from BTFMRDS2.0 through the WLAN module, diplexer to the shared WLAN/BT/GPS antenna in the phone's C-cover. The WLAN RF signal is routed from the WLAN module through the diplexer to the shared WLAN/BT/GPS antenna in the phone's C-cover. The GPS signal is routed through the diplexer into the GPS chip.

Bluetooth/FM radio troubleshooting

The Bluetooth and FM radio are combined in the same ASIC, so both features are checked when troubleshooting.

The following problems can occur with the Bluetooth and FM radio hardware:

Issue 1 COMPANY CONFIDENTIAL Page 3 –37

BB troubleshooting

Symptom Problem Repair solution

RM-235

Unable to switch on Bluetooth on phone user interface

Able to send data file to another Bluetooth device, but unable to hear audio through functional Bluetooth headset

Able to switch on Bluetooth on phone user interface, but unable to detect other Bluetooth devices

Able to turn on FM radio and Bluetooth on phone user interface, but unable to detect local FM radio stations with Nokia headset inserted

Able to perform scans to detect local FM radio stations with functional Nokia headset inserted, but unable to hear FM audio through headset

Open circuit solder joints or component failure of BTH/FM ASIC/module BB ASICs or SMD components.

Open circuit solder joints or component failure of BTH/FM ASIC/module BB ASICs.

Open circuit solder joints or Pogo Pins not making contact with c-cover

Open circuit solder joints or detached component in FM antenna circuit

Open circuit solder joints or detached component in FM audio path between Bluetooth/ FM ASIC and headset

Replacement of Bluetooth/ FM ASIC/module

Repair or replace c-cover

Repair of FM antenna connection or FM circuit component

Repair of FM audio circuit

Users may experience the following problems resulting in functional phones being returned to the repair centre:

Symptom Problem Repair solution

Bluetooth feature does not operate as desired with another Bluetooth device

Poor FM radio reception (unable to detect many radio stations)

Bluetooth Profile implemented in Bluetooth accessory not supported in Nokia phone

Nokia headset not being used Use Nokia headset

Use Bluetooth accessory with Bluetooth profiles supported by phone

Test coverage

The tests listed in the table below should be performed to verify whether the Bluetooth and FM receiver and transmitter are functional. The use of Self Tests are described in section

Test Test Coverage Repair solution

Blueooth Self Test: ST_LPRF_IF_TEST Bluetooth-FM ASIC UART interface

(controls Bluetooth and FM receiver and transmitter)

Bluetooth Self Test: ST_BT_WAKEUP_TEST

Bluetooth ASIC interrupt control interface

BT and FM Self Tests in Phoenix

Replacement of Bluetooth/FM ASIC (or repair of phone BB)

Bluetooth Self Test: ST_LPRF_AUDIO_LINES_TEST

Page 3 –38 COMPANY CONFIDENTIAL Issue 1

Bluetooth ASIC PCM interface Replacement of Bluetooth/FM

ASIC (or repair of phone BB)

RM-235 BB troubleshooting

Test Test Coverage Repair solution

Bluetooth Functional Test: BER test with BT-Box or functional test with other Bluetooth device

FM Radio Self Test: ST_RADIO_TEST FM Radio I2C interface Replacement of Bluetooth/FM

FM Radio Functional Test: Perform scan for local radio stations and check station list displayed on phone

FM Radio Functional Test: Listen to local radio station

The self tests run from Phoenix software are used for fault diagnosis. If Phoenix software is not available the functional tests with phone accessories are sufficient to verify the

functionality Bluetooth and FM radio receiver and transmitter.

Bluetooth antenna circuit Repair of Bluetooth antenna

circuit (including RF filter or WLAN switch if fitted)

ASIC (or repair of phone BB)

FM receiver antenna circuit Repair of FM antenna circuit

(between BTHFM ASIC and headset connector)

FM receiver audio circuit Repair of FM receiver audio

circuit (between BTHFM ASIC and headset connector)

Bluetooth/FM radio component layout and test points

Issue 1 COMPANY CONFIDENTIAL Page 3 –39

RM-235

BB troubleshooting

Figure 16 WLAN/BT, GPS diplexer and antenna pads

The Bluetooth antenna is product specific (antenna integrated into phone C cover). On phones with WLAN, the Bluetooth RF signal is routed through a WLAN front-end module and a shared Bluetooth / WLAN antenna is used. The FM RF signal is routed through a product specific FM antenna matching circuit to the phone headset connector. The FM radio audio signal is routed to the headset connector through the BB ASIC shared by the phone audio functions.

Bluetooth BER test

Prerequisites

JBT-9, or SB-6 Bluetooth test box (BT-box) is required to perform a BER test. If a BT-box not available Bluetooth functionality can be checked by transferring a file to another Bluetooth phone. For the BER or file transfer test the C-cover should be fitted as the BT antenna is on the C-cover.

Steps

1. Connect data cable to phone.

2. Start

3. Choose File → Scan Product.

4. Choose Testing → Bluetooth LOCALS .

5. Locate the BT-box serial number (12 digits) found in the type label on the back of the JBT-9, or SB-6

6. In the Bluetooth

7. Place the BT-box near (within 10 cm) of the phone and click Start BER Test.

Phoenix

Bluetooth test box.

service software.

LOCALS

Address

line.

window, write the 12-digit serial number on the

Counterpart BT Device

Bluetooth and FM radio self tests in Phoenix

Prerequisites

A flash adapter (or phone data cable) connected to a PC with Phoenix service software is required.

Steps

1. Place the phone in the flash adapter or connect data cable to phone.

2. Start

Page 3 –40 COMPANY CONFIDENTIAL Issue 1

Phoenix

service software.

RM-235 BB troubleshooting

3. Choose File→Scan Product.

4. From the Mode drop-down menu, set mode to Local.

5. Choose Testing→Self Tests.

6. In the

• ST_LPRF_IF_TEST

• ST_LPRF_AUDIO_LINES_TEST

• ST_BT_WAKEUP_TEST

• ST_RADIO_TEST

7. To run the tests, click Start.

Self Tests

window check the following Bluetooth and FM radio related tests:

Figure 17 Bluetooth and FM radio self tests in

Phoenix

FM radio testing

Steps

1. Set signal generator parameters:

• FM modulation on

• Frequency 100MHz

• FM deviation 22kHz

• Modulation frequency 1kHz

• RF level should be varied during the test to obtain good audio signal quality

• Connect suitable antenna to signal generator

Note: You may alternately use a known good FM radio broadcast as a test signal.

2. Attach the Nokia headset to the phone’s AV connector.

3. Use Scroll button to autotune to the radio frequency.

Issue 1 COMPANY CONFIDENTIAL Page 3 –41

4. Set volume to suitable level.

5. Check audio quality with a headset.

RM-235

BB troubleshooting

Page 3 –42 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Bluetooth troubleshooting

Troubleshooting flow

Issue 1 COMPANY CONFIDENTIAL Page 3 –43

FM radio troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –44 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

GPS troubleshooting

GPS layout and basic test points

The GPS components are located under the shield can A7501. Satellite signals are picked up by the phones GPS antenna in the C-cover. The signal is then routed through a diplexer and filter before being processed by the GPS5300 receiver ASIC.

Figure 18 GPS layout and basic test points

GPS settings for Phoenix

GPS control

Prerequisites

A flash adapter with RF coupler connected to a PC with Phoenix service software is required. The GPS signal should be connected to the RF coupler. Calibrate the signal level with a known good phone. Signal level will be high (approx -45dBm) because it is a leakage connection.

Issue 1 COMPANY CONFIDENTIAL Page 3 –45

BB troubleshooting

Context

Use the following to test GPS using Phoenix.

Steps

1. Place phone to Flash Adaptor.

2. Start Phoenix service software.

3. From the File menu, select Scan Product and check that the correct product version is displayed.

4. From the Testing menu, select GPS Control. This opens up figure below, and enables the GPS.

GPS Control

dialogue box, as shown in the

RM-235

Figure 19 GPS Control dialogue box

Select Idle to confirm the GPS is enabled and is in idle mode; at this point all clocks should be present, GPS_En_Reset & SleepX should be high, and Vdd_Dig, Vcc_TCXO & Vcc_PLL/VCO will be present.

Receiver On turns on all RF sections of the ASIC and so all LDOs will be on.

Quick Test window

This test will perform 3 tests in one: Self test, Oscillator Test and CW Test and will provide a Pass/Fail Response for each. The HW Self Test confirms basic communication with the GPS ASIC. The oscillator test confirms the frequency accuracy of the GPS TCXO against the Ref_Clk. The CW Test confirms end-to-end connectivity between the GPS antenna pogo pins and the GPS ASIC. It also contains a receive button.

Before this test is performed a known good RM-235 unit should be tested in order to calibrate the setup. The signal level of the Signal Generator should be adjusted so a reading of SNR 40 dB is achieved with the reference unit. A good starting point is to set up the signal generator to -45dBm.

These checks are part of GPS failure troubleshooting (page 3–48).

Page 3 –46 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

Figure 20 GPS Quick Test window

Issue 1 COMPANY CONFIDENTIAL Page 3 –47

GPS failure troubleshooting

Troubleshooting flow

RM-235

BB troubleshooting

Page 3 –48 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

WLAN Troubleshooting

WLAN component layout and test points

Figure 21 WLAN component layout and test points

The WLAN RF signal is routed from the WLAN module through diplexer to the shared WLAN/BT/GPS antenna in the phone's C-cover.

WLAN selftest and coexistence test in Phoenix

Prerequisites

Connect complete phone assembly with C-cover to a PC with Phoenix service software using a USB data cable. Use the following to test WLAN using Phoenix: 1 Set phone into Local Mode . 2 From the File menu, select Scan Product and check that the correct product version is displayed 3 From the Testing menu, select Self Test. This opens up a Self Test dialogue box, as shown below.

Issue 1 COMPANY CONFIDENTIAL Page 3 –49

RM-235

BB troubleshooting

Select the ST_WLAN_TEST check box as shown and then select Start button. The test turns on the WLAN, sets up the SPI interface and then downloads the WLAN firmware into the WLAN module. During the download the WLAN acknowledges the data blocks and so the self test is a good way to confirm that the WLAN module is communicating with the Host. The result column will change to Passed after a few seconds if operating properly.

In addition, a test of the WLAN to BTH interface can be done by selecting the ST_BT_WLAN_COEXISTENCE_TEST check box and selecting Start button.

This test verifies that the WLAN to BTH co-existence interface signals are properly connected and there are no open circuit or shorts on the four interface signals.

The co-existence interface comprises BTH Txconfig, BTH RF Active, BTH Priority, and BTH Frequency.

Page 3 –50 COMPANY CONFIDENTIAL Issue 1

RM-235 BB troubleshooting

In summary these two Self tests provide a simple means of ensuring the Host engine is able to communicate with the WLAN module and check the interface to BTH. More detailed WLAN performance test is covered in WLAN functional test section.

WLAN functional tests

On/Off test

Prerequisites

A flash adapter connected to a PC with Phoenix service software is required. From the testing toolbar select WLAN Configuration option. This opens the WLAN configuration dialogue

box below. Selecting the Power state option button (as indicated), the WLAN can be turned ON and OFF: 1 With Power State set to OFF, measure the dc power supply current consumption of the flash adaptor. 2 Next return the Power state to ON and re-measure the dc power supply current of the flash adaptor. The difference between the currents in (1) and (2) should be between 190 to 220mA. When WLAN is ON, the

firmware has been downloaded and the WLAN module is in the receive state. When OFF WLAN is powered down.

Issue 1 COMPANY CONFIDENTIAL Page 3 –51

RM-235

BB troubleshooting

TX tests

Prerequisites

Connect complete phone assembly with C-cover to a PC with Phoenix service software using a USB data cable. From the testing toolbar select WLAN Tx Test option shown below. This test can be used to verify TX

configuration and functionality. The default settings are sufficient for testing the TX operation, although other channels and data rates are equally suitable. To start the test, select the Start option button:

1 Monitor the WLAN TX spectrum on a Spectrum analyser. (When making a radiated test ensure that other

WLAN devices are not transmitting as these may be detected as well, confusing the result). A typical 11MBPS TX spectrum is shown in figure below.

2 To finish the test select the Finish option button. The difference between the two readings should be approximately 150mA and measures the transmit current

in 11MBPS, 802.11b mode of operation.

Page 3 –52 COMPANY CONFIDENTIAL Issue 1

Nokia N78 Service Manual level 3-4

Specifications and Main Features

Frequently Asked Questions

User Manual

Amendment Record Sheet

Copyright

Warnings and cautions

ESD protection

Care and maintenance

Company Policy

Battery information

Nokia N78; L3&4 Service Manual Structure

Product selection

Product features and sales package

Mobile enhancements

Technical specifications

Transceiver general specifications

Main RF characteristics for GSM850/900/1800/1900 and WCDMA VIII (900) and WCDMA I (2100) phones

Battery endurance

Environmental conditions

Service tools

Product specific tools

FS-58 Flash adapter

MJ-144 Module jig MJ-144 is meant for component level troubleshooting.

RJ-219 Rework jig RJ-219 is a jig used for soldering and as a rework jig for the FM

SA-135 RF coupler SA-135 is an RF coupler for WCDMA and GSM RF testing. It is used

Spare locking part for FS-58

SS-149 UI disassembly tool SS-149 is used for removing UI assy when disassembling the phone.

SS-153 Superkey pressing

SS-159 Window disassembly

SS-184 Window release tool SS-184 is used for removing sub LCD window assy without

ST-69 Rework stencil ST-69 is a rework stencil used with RJ-219.

General tools

RJ-196 Rework jig RJ-196 is a rework jig used when servicing the BTHFM (D6000) module.

RJ-209 Rework jig RJ-209 is used as a rework jig for the WLAN 4.0 module

RJ-93 Rework jig RJ-93 is a rework jig used with ST-40.

ST-37 BTHFM rework stencil ST-37 stencil is used with the RJ-104 rework jig to service the BTHFM

ST-40 Rework stencil ST-40 is a rework stencil and used with RJ-93.

ST-64 Rework stencil ST-64 is the stencil used during rework of the WLAN 4.0 module. It

Cables

CA-101 Micro USB cable The CA-101 is a USB-to-microUSB data cable that allows connections

CA-31D USB cable The CA-31D USB cable is used to connect FPS-10 or FPS-11 to a PC. It is

CA-35S Power cable CA-35S is a power cable for connecting, for example, the FPS-10 flash

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

XCS-1 Service cable The XCS-1 service cable is used to connect FLS-4S to the POS flash

XCS-4 Modular cable XCS-4 is a shielded (one specially shielded conductor) modular cable

Service concepts

POS (Point of Sale) flash concept

XRS-6 RF cable The RF cable is used to connect, for example, a module repair jig to

Flash concept with FPS-10

CU-4 flash concept with FPS-10

Flash concept with FPS-10 and SB-6

Flash concept with SS-46 and CA-89DS

Flash concept with SS-62 and CA-89DS

Flash concept with FPS-10, SS-62 and SB-6

Flash concept with FPS-10, SS-62 and SB-7

Module jig service concept

Module jig service concept with SB-6

RF testing concept with RF coupler

Service concept for RF testing and RF/BB tuning

Baseband main troubleshooting

General power checking

Backup battery troubleshooting

Dead or jammed device troubleshooting

USB troubleshooting

SIM card troubleshooting

MicroSD card troubleshooting

Combo memory troubleshooting

Flash programming troubleshooting

Charging troubleshooting

Clocking troubleshooting

Power key troubleshooting

User interface troubleshooting

Display technical description and troubleshooting

Display

Display troubleshooting

Display backlight and illumination troubleshooting

LED driver troubleshooting

Audio Troubleshooting

External earpiece troubleshooting 1 and 2
