Nokia N72, RM-180 Schematic

Service Schematics

Introduction

IMPORTANT:

This document is intended for use by authorized NOKIA service centers only.

“Service Schematics” was created with focus on customer care.
The purpose of this document is to provide further technical repair information for
NOKIA mobile phones on Level 3/4 service activities.
It contains additional information such as e.g. “Component finder”.
The “Signal overview” page gives a good and fast overview about the most
important signals and voltages on board.
Saving process time and improving the repair quality is the aim of this document.
It is to be used additionally to the service manual and other training
or service information such as Service Bulletins.

All measurements were made using following equipment:

Exploded view and component disposal

RM-180

Nokia repair SW : Phoenix version 2006.12.5.136
Oscilloscope : Fluke PM 3380A/B
Spectrum Analyzer : Advantest R3162 with an analog probe
RF-Generator / GSM Tester : Rhode & Schwarz CMU 200
Multimeter : Fluke 73 Series II

While every endeavour has been made to ensure the accuracy of this document, some
errors may exist. If the reader finds any errors, NOKIA shall be notified in writing.

Please send E-Mail to: [e-mail]

Copyright © NOKIA
This material, including documentation and any related computer programs is protected
by copyright, controlled by NOKIA. All rights are reserved. Copying, including reproducing,
modifying, storing, adapting or translating any or all of this material requires the prior
written consent of NOKIA. This material also contains companyconfidential information,
which may not be disclosed to others without the prior written consent of NOKIA.

Table of Contents Page

Front page
System connector
Retu, Tahvo, Audio, SIM
RAP, Memories
OMAP, Combo memory, BTFM
RF part
Signal overview
Component finder

1
2
3

4
5
6
7

8

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

Fr

ont page

Page 1 (8)

Tahvo

XAUDIO(7:0)

Retu

Retu, Tahvo

CHARGER

USB_ACI(7:0)

Charger plug

L2000

KA

V2000

1u027p

C2011

270p

ESDA18-1F2

GND

EXC24CB102U

4

C2006
10n

GND

1

23

1

23

R2009

100R

GND

C2012

C2000

2.1V if ext. microphone is active

R2000

220R

C2002

2u2

C2003

C2004

GND

22n

22n

0

HOOKDET

1

MICB2

2

MIC2P

3

MIC2N

4

XEARL

5

XEARLC

6

XEARR

7

XEARRC

R2004

R2002

10R

GND

C2007

10n

SLAVEPU
DPRXD
DMTXD
MASTPD2
MASTPD1
ACI

R2005

10R

10n410n

GND

10R

1
0
6
5
7

R2003

10R

C2010

C2009C2008

10n

GND

GND

to UEME

R2001

BGF100

1n0

2k2

1n0 1n0

1n0 1n0

2k2

1n0

Vcc

1k0

Meas

50R

to Mic

50R

GND

1k0

GND
GND
GND
GND

A1

A3

C1

C3

R2010

220k

GND

R2006

ESDA14V2-4BF2

GND

J2000

GND

L2002

EXC24CB102U

4

L2003

EXC24CB102U

4

B2

VANA

R2011
120k

C2005
10n

GND

220R/100MHz

L2001

1

23

J7525

J7526

J7527

GND

J2001

J2002

J2003

2A

F2000

GND

R2007

IP4065CX11_LF

17k

1k3

33R

33R

15k

GND

2.5V

(accessory connected)

VOUT

5V

(connected to host)

VBUS

600R/100MHz

Z2001

Z2000

600R/100MHz

Z2003

600R/100MHz

1
2

X2000

System connector

charge
charge gnd
ACI
VOUT
Vbus
D+
D­data gnd
Xmicn
Xmicp
Xear_l_n
Xear_l_p
Xear_r_n
Xear_r_p

C7606

C7607C7608

10p

10p

C7609

10p

10p

L7518

68nH

R7559
14/90V

GND

X2001

1
2
3
4
5
6
7
8

9
10
11
12
13
14

GND

AGND

GND

FM_ANT

BTFM

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

System connector

Page 2 (8)

BTFM

S4401

(page 5)

RF part

RAP

AUDIO(8:0)

PWRONX

SLOWAD(6:0)

DIG_AUDIO(5:0)

INT_SIM(5:0)

TXC(2:0)

ACI(1:0)

{

CBUS(3:0)

Battery connector

X2070

VBAT

GND

GND

System connector

GND

J2060

C2107

27p

GND

VIO

R2700

1

4

1 2 3

VOUT

AGND

PGND

C2215

1u0

6 7 8

VDD

R2105
14V/50V

R1
R2
R3

GND

B2101

R2106
14V/50V

GND

C2240

12p

GND

SIM Reader

M2100

4CR-1002W-07

M

X5209

1

VPP

VBUS

L2304

22uH

C1

B1

A1

C2314

C3

GND

V2300

DTC143ZM-T2L

R1

IN

4k7

R2

C2241

12p

GND

Side

3.7V

VBAT

4u7

GND

Earpiece

L2102

56nH

L2103

56nH

R2107

14V/50V

1.8V

VDRAM

C2244

C2219

12p

1u0

GND

GND

C2700

GND

GND GND

Vibra

3
7

4
5
6
3
2
1
0

C2315

4u7

GND

R2305

33R

OUT

47k

GND

B2102

IHF speaker

XAUDIO(7:0)

2.5V

2.8V

VAUX

VANA

C2217

C2216

1u0

1u0

GND

GND

SIM connector

X2700

470191501

1
2
3

100n

USB_ACI(7:0)

PUSL(7:0)

13.5V (lights on)

VLEDOUT1

{

VLEDOUT2

X4400, X4401

SETCURR1

SETCURR2

System connector

1.35V

}

VREF_INT

VREF

TXC_CONV(2:0)

5
6
7

System connector

RAP, OMAP, BTFM

INTUSB(8:0)

RF part

EMINT(1:0)

RAP, OMAP

RAP

R2100

EMIF01-SMIC01F2

C2 GND3

1n0

OUT
GND

R2071

47k

0
2
1

0
1

220R/100MHz

L2205

GND

VOUT

VBUS

A3

GND1

B3

1n0

C3

to Mic

B2

GND2

GND

2.1V if mic. is active

VREF_INT

R2200

100k

C2203

C2202

-t
1n0

1n0

GND

GND

GND

0

1
2
3
4
5

0
2
1

600R/100MHz

600R/100MHz

L2206

C2232

C2228

1u0

1u0

GND

GND

C2307

2u2

GND

VCORE

1.4V

VIO

1.8V

50R

Microphone

B2100

2.5V

VANA

R4400

ALS

C

V4400

E

PT202MR0MP

J2070

BSI

BGND

CHARGER

J2072

J2071

R2070

14V/50V

470k

R4401

100k

R4403

47k

GND

GNDGND

3.7V

VBAT

C2070

GND

15p

GND

1

R4402

470k

0

BTEMP NTC

GND

C2231

C2072

10U

15p

GND

2.5V (accessory connected)
5V (phone connected to host)

GND

L2203

C2304

2k2 2k2

2k2

15

10n

to Asic

1n0

GND3

50R

Vbias

150p1n0

C2205

1n0 1n0

GND

GND

J2200

C2230

1u0

1
2
0

C2309

22u

GND

C2313

1u0

GND

C2206

C2208

27p

600R/100MHz

GND

B1

C1

A2

2.5V1.35V

R2201

120k

C2234

27p

GND

B2200

32.768kHz

J2204
J2205

28

0
1
2

L2204

C2225

L2301

220R/100MHz

R7556

100R

MA21D34001JN

V7501

C2312

1u0

GND

GND

VANA

GND

16

J2213
J2214
J2215

27

220R/100MHz

1u0

GND

15n

15n

R2202

100R

C2102

GND

L2202

C2226

GND

2u2

C2207

1u0

C2302

22u

C2209

22p

J2210

1n0

29

GND

C2100

C2101

GND

GND

J2202

GND

BGND

J2211

C2237

GND

1u0

GND

C2227

C2300

10n

R2300

R2101

220R

C2204

J2201

C2243

12p

1u0

2.5V

VANA

1n0

GND

R2205
2M2

J2212

8

GND

GND

4

CURRENT_SEN

C2223

10n

G2200

2.6/3.3V

J2221
J2220

J2206

C2301

22u

L2302

10uH

J2306

J2300

Retu

C2210
1u0

GND

12

J2305

2

3

C2200
1u0

C2201
1u0

GND
GND
GND
GND
GND
GND
GND

J2208

1.8V

C2103

1n0

GND

6

4

1

5

7

GND
GND
GND
GND
GND

VRCP2

C2211

4u7

GND

GND

1.8/3V

220R/100MHz

220R/100MHz

3.7V

J7548

J2218
J2219

13

J2308

C2316
1n0

GND

GND

J2302

5
4
3
2
1
0
6
7

N2200

RETU_3.02

K1

Mic1P

J3

Mic1N

H1

MicB1

5

E1

7

GND

GND

J2209

Mic3P

E2

Mic3N

E3

Mic3PR

D2

Mic3NR

C3

VDARx

K2

VDATx

E12

PwrOnX

M12

BSI

L3

BTemp

M2

LS

L2

LST

M1

RFTemp

F10

VChar

M3

WTxDet

L9

CrI

K9

CrO

L8

VBack

B6

SIMClk2

A6

SIMDa2

B7

SIMIOC2

J11

WDDis

M4

AudClk

A4

EarDaL

B4

EarDaR

B5

MicData

A3

PMARP

C4

PMARN

C5

SIMClk1

C6

SIMDa1

A5

SIMIOC1

M6

TxCClk

L7

TxCCtrl

L6

TxCDa

M10

HV

L4

MBusTx

K4

MBusRx

M5

SerClk

L5

SerData

K5

SerSelX

G10

VBat6

C12

VBat1

K11

VBat2

A8

VBat3

H12

VBat4

F12

VBat5

B12

VBatCP

B3

VBatH

K10

ChSwS

J2301

6
7
8

C2224

10n

GND

1

+

-

GND

J2207

9

Tahvo

N2300

TAHVO_V5.2_LF

J1

ChSwS

C1

CbusData

B1

CbusSelX

B2

CbusClk

D9

VCharADC

A7

VBAT1

A6

VBAT1

B5

GND

J2307

23

1

GND

GND1

A4

GND1

F10

VCharOut1

G10

VCharOut2

F9

VCharOutK

G9

VBAT3

D10

VCharIn1

E10

VCharIn2

E9

VCharInK

A5

VCoreCoil

B6

VCoreCoil

B4

VCore

H10

Vout

K10

VCC

A3

VIO

A10

NC

B10

NC

A8

NC

C10

NC

B8

NC

H2

SENSE-

G2

SENSE+

H3
H4
H5
H6
H7
H8
G3
G8
F3
F8

GND

SLAVESWSET
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC

HFSpP

HFSpN

HookDet

XEarLC

XEarRC

MicBCap

VSARx

MicSub

VDRAM

VRCP1
VRCP2

FlyHigh

SIMDaC1
SIMClkC1
SIMRstC1

SIMDetX

SIMClkC2

SIMDaC2
SIMRstC2

RetuInt

HeadDet

Slave_PU
Master_PD1
Master_PD2

D+_RXD

D-_TXD

VPP_VIO

RSTX

PURX

SLEEPX

Clk600

SleepClk

SMPSClk

VCCint

TahvoInt

GND3
GND4
GND5

PWM300

GenOut1

GenOut2

GenOut3

VcoreDef

FlashM

TestMode

TestOut

FSE0

RCV_FRX2

VP_FRX
VM_CLK

D3

EarP

D1

EarN

B1

C2

L12

J2

Mic2N

J1

Mic2P

F3

XEarL

F1

G1

XEarR

G3
H2

MicB2

G2
C1
H3

VSATx

F2

H10

VBG

F11

VRef

J12

VAna

E11

VAux

M11

D12

VIO

G11

VR1

G12

VRFC

C9

VSIM2

A10
C10

B10

VCP

B11
A12

FlyLow

M8

AFC

K7

TxC1

M7

TxC2

A7

VSIM1

C8
C7

C11

L1

B9
A9

D10

A2

VibraP

A1

VibraN

L10

TM

D11

Gnd1

K12

Gnd2

B8

Gnd3

K6

Gnd4

A11

GndCP

B2

GndH

K8

H11

MBus

L11

K3

PURX

M9

SlClk

E10

RstX

J10

SleepX

C2235

1.8V: active
0V: sleep mode

J10

H9

J9
J6

CLK

K7

RXD2

J7
K8
A1

B3
D2
D1
E1
E2
F1

K9

C2

J8
F2
A9

G1
J2
K1

H1

C9
A2
B7
B9

J4

OEX

K4

J5

VO

K2

J3
K3
K5

FTX

K6

E3

NC

E8

NC

D3

NC

D8

NC

C3

NC

C4

NC

C5

NC

C6

NC

C7

NC

C8

NC

GND

1n0

C2303

0

1u0

GND
GND
GND

GND

GND

GND

L2105

L2106

0
1
2
3

2
0
3

5
1
7

0
1
2

C2221

1u0

C2104

1n0

14

VRCP1

GND

0

2 3

1

}

C2222
1u0

C2212

1u0

GND

1

EXC24CB102U

L2100

L2101

220R/100MHz

L2104

220R/100MHz

1.8V4.7V

VSIM2

C2220

1u0

GND

C2109

Traceability pad

R2303

X2060

1

GND

J2309

PWMTAHVO

0R

GND

C2110

4

27p27p

R2104
14V/50V

GND

C2106

27p

GND

}

VRFC

VR1

C2213

C2214

1u0

1u0

GND

GND

X5211

1

C2108

1n0

Flash interface

RXD2

RXD
CLK
TXD

LED driver

4W_LED_DRIVER

A2

EN

C2

IND

B3

FB

A3

NC

GND

R2304
33R

GND

C2105
1n0

1.8V2.5V

EMIF03-SIM02F2

X5210

1

X5208

N2301

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

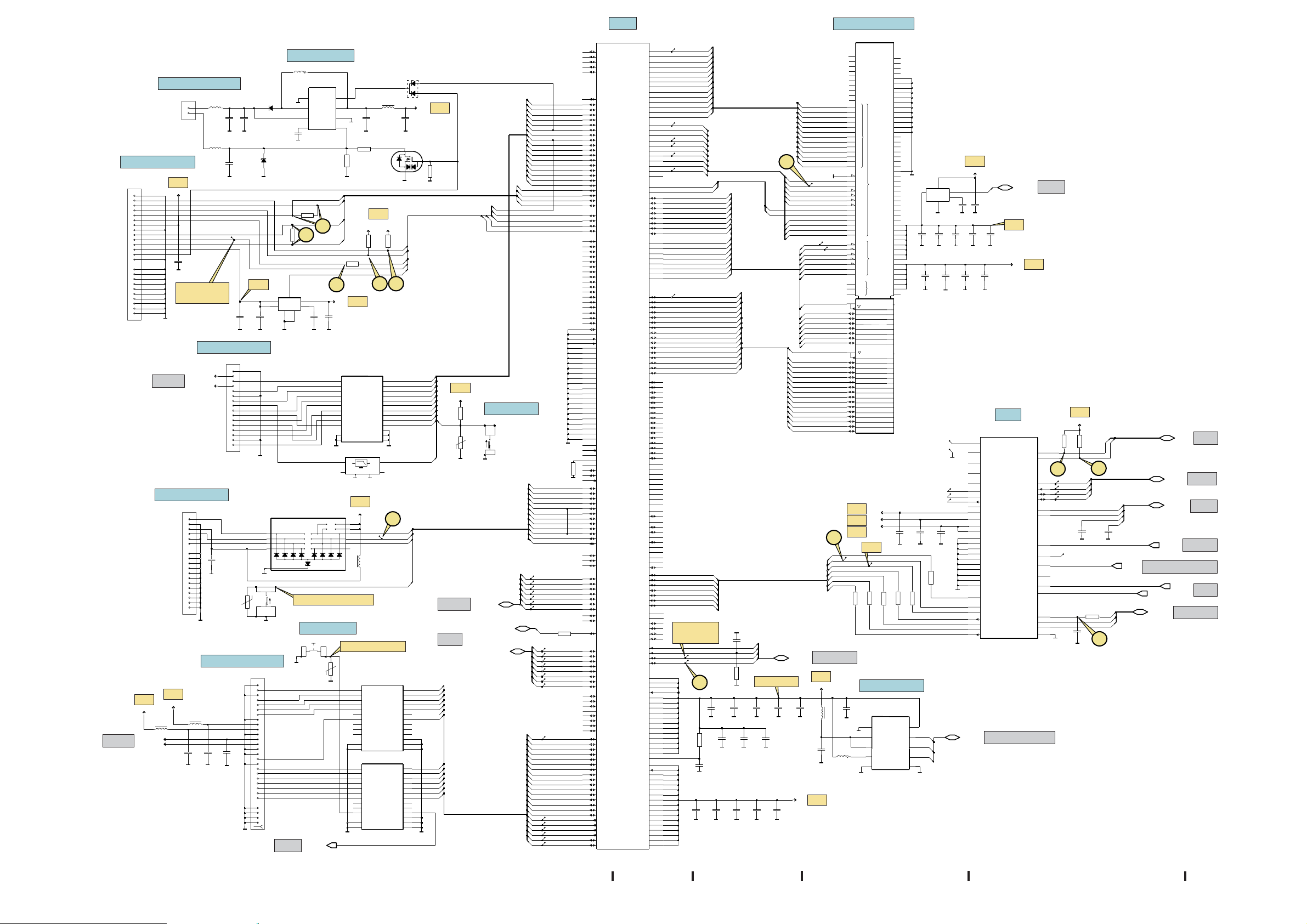

Retu, Tahvo, Audio, SIM

Page 3 (8)

Retu, Tahvo,
OMAP, BTFM

RF part

{

GEN_CTRL_CMT(20:0)

OMAP

Retu, Tahvo

TXC(2:0)

Retu

BTFM

Tahvo

Retu

ACI(1:0)

{

DIG_AUDIO(5:0)

PCM(3:0)

INTUSB(8:0)

INT_SIM(5:0)

PUSL(7:0)

RFCLK(1:0)

RFCTRL(8:0)

RFCONV(11:0)

{

1.4V

EMINT(1:0)

CBUS(3:0)

VCORE

C2802

RAP

D2800

RAP_V2.21E-PA

J8

GND
3
1
0
5
6
4

0
1

0
4
5
1
2
6
7
8
3

BATTERYDET

0

0
1
2
3

1
0
2

6

0
1
2

SIMCLK2

3

SIMIOCTRL2

4

SIMIODA2

5

C2804

100n

GND GND

VIO

C2810

100n

GND

C2805

C2811

C2806

100n

100n

GND

C2812

100n

100n

GND

C2803

100n

100n

GND

1.8V

1.8V

RXRESET

0
1
2
3
4
5
6
7
9

8

0
1

1
2
3
0
4
5

J2803

C2807

1u0

GND

GND

C2813

100n

VRFC

C2808

GND

0
1

0
1
2

1
2
0

GND

C2800

100n

GND

GND

C2814

C2801

100n

100n

GND

GNDGNDGND

C2809

100n

100n

GND

GND

TMAct

C2

SleepX

C1

SleepClk

D3

PURX

R11

SMPSClk

R8

SysClk

B2

APESleepX

F3

RFClkP

F2

RFClkN

M3

TXReset

N1

TXP

N8

TXA

N3

RX1

N7

RX2

N4

RFBusClk

N2

RFBusDa

M8

RFBusEn1X

P3

GENIO52

K4

TxIP

K3

TxIN

L3

TXQP

L4

TXQN

H2

RxIP

H3

RxIN

J3

RxQP

J4

RxQN

J2

VrefP

K7

VrefN

L7

Iref1

R13

GENIO47

H13

RetuInt

W10

TahvoInt

31P

CBusClk

V12

CBusDa

W12

CBusEn1X

A19

TxCDa

A20

TxCDaCtrl

D17

TxCClk

D16

ACIRx

B18

ACITx

W8

EarDataL

Y8

EarDataR

Y9

MicDa

R10

AudioClk

W9

PMARP

V9

PMARN

Y13

I2SSCLK

V13

I2SWS

W13

I2SSD1

Y12

I2SSD2

Y2

USBVP_FRX

W3

USBVM_Clk

V4

USBRCV_FRX2

W2

USBVO

U4

USBFSE0_FTX

V3

USBOEX

V2

USBDSyncClk

D18

SIMClk1

C20

SIMIOCtrl1

E18

SIMIODa1

B20

GENIO54

C19

GENIO55

D2

JTClk

E4

JTrst

F4

JTDI

E3

JTMS

E2

JTDO

J7

EMU0

A7

ETMClk

B7

ETMPkt0

C7

ETMPkt1

D7

ETMPkt2

C6

ETMPkt3

H8

ETMPkt4

B5

ETMPkt5

C5

ETMPkt6

D6

ETMPkt7

B4

ETMSync

C4

ETMPipe0

D5

ETMPipe1

A3

ETMPipe2

B3

ETMSyncB

D4

ETMPipeB0

A2

ETMPipeB1

C3

ETMPipeB2

Y14

VSSDSP1

Y18

VSSDSP2

P20

VSSDSP3

D20

VSSMCU1

B16

VSSMCU2

H20

VDD1

E21

VDDMCU1

A17

VDDMCU2

AA9

VDD2

B1

VDDCORE1

G2

VDDCORE2

M4

VDDCORE3

W1

VDDCORE4

AA5

VDDCORE5

Y21

VDDCORE6

L21

VDDCORE7

H15

VDDCORE8

A13

VDDCORE9

A9

VDDCORE10

A5

VDDCORE11

G3

VDDCORE12

AA13

VDDDSP1

AA17

VDDDSP2

R21

VDDDSP3

H7

VSSCORE1

K8

VSSCORE2

H4

VSSCORE3

M7

VSSCORE4

Y1

VSSCORE5

Y6

VSSCORE6

Y10

VSSCORE7

P15

VSSCORE8

M20

VSSCORE9

J21

VSSCORE10

B21

VSSCORE11

B14

VSSCORE12

B10

VSSCORE13

B6

VSSCORE14

M2

VDDSIO1

AA1

VDDSIO2

AA11

VDDSIO3

AA21

VDDSIO4

M14

VDDSIO5

N21

VDDSIO6

G21

VDDSIO7

A21

VDDSIO8

A11

VDDSIO9

A1

VDDSIO10

E1

VDDA

J1

VDDARX

L8

VDDATX

G4

VSSA

GND

G1

VSSARX

GND

L1

VSSATX

GND

K2

VSSASUB

GND

GENIO0

GENIO1
GENIO2
GENIO3
GENIO4
GENIO5
GENIO6
GENIO7
GENIO8

GENIO9
GENIO10
GENIO11
GENIO12
GENIO13
GENIO14
GENIO15

GENIO16
GENIO17
GENIO18
GENIO19
GENIO20
GENIO21
GENIO22
GENIO23
GENIO24
GENIO25
GENIO26
GENIO27
GENIO28
GENIO29

GENIO30
GENIO31

GENIO32
GENIO33
GENIO34
GENIO35
GENIO36
GENIO37
GENIO38
GENIO39
GENIO40
GENIO41
GENIO42
GENIO43
GENIO44
GENIO45

GENIO46
GENIO48
GENIO49
GENIO50
GENIO51
GENIO53

GENIO56
GENIO57
GENIO58
GENIO59
GENIO60
GENIO61
GENIO62
GENIO63
GENIO72
GENIO73
GENIO64
GENIO67
GENIO68
GENIO69
GENIO70
GENIO71

SpeciallO0
SpeciallO1
SpeciallO2
SpeciallO3

SDRAd0

SDRAd1

SDRAd2

SDRAd3

SDRAd4

SDRAd5

SDRAd6

SDRAd7

SDRAd8

SDRAd9
SDRAd10
SDRAd11
SDRAd12
SDRAd13
SDRAd14

SDRCLK

SDRCKE
SDRRASX
SDRCASX

SDRWEX

SDRDQML

SDRDQMU

SDRCLKX
SDRLDQS

SDRUDQS

SDRDa0
SDRDa1
SDRDa2
SDRDa3
SDRDa4
SDRDa5
SDRDa6
SDRDa7
SDRDa8

SDRDa9
SDRDa10
SDRDa11
SDRDa12
SDRDa13
SDRDa14
SDRDa15

FlsClk

FlsADVX

FlsRSTX

FlsWEX

FlsOEX

FlsCSX
FlsCS2X
FlsWaitX

GENIO66

GENIO65

ExtAdDa0
ExtAdDa1
ExtAdDa2
ExtAdDa3
ExtAdDa4
ExtAdDa5
ExtAdDa6
ExtAdDa7
ExtAdDa8

ExtAdDa9
ExtAdDa10
ExtAdDa11
ExtAdDa12
ExtAdDa13
ExtAdDa14
ExtAdDa15
ExtAdDa16
ExtAdDa17
ExtAdDa18
ExtAdDa19
ExtAdDa20
ExtAdDa21
ExtAdDa22
ExtAdDa23
ExtAdDa24

AA20

AA19

AA15

W21

W20

W19

W11

W18

W17

W16

W15

W14

N15
U20
U19

V20
U18

V19

N14
Y20

V18
Y19

AA3

AA2

V11

V17

V16

Y17

Y16
V15

Y15

R14
V14

AA7

P10

G14

V10
P11

B19
C18
C17
B17

E20

N20
C21
K15

M15

R20
L14
K14

G20
K19
U21
H14
K20

K18
D19
R19

G19
G18
H18

H19
E19

R18
M18
P19
N18
P18
M19
N19

C15
D15
D14
C14
B12
D13
G13
G12
P12

C11
C10

H10

C12
D12
D11
D10

G11
A15
C13
B15
C16
G10
B13
H11
H12

T18

W7

V7

W6

R9
Y5

W5

V6
Y4
V5

W4

Y3

P9

V8

Y7

P2
P4
P7
R1
R2
R3
R4
T2
U3
T4
T3

P8
U1
U2

F20

T20

L15
J15
T19

J20

J14
J19
L18

F19

F18

J18
L19

R12

B9
B8

D9
D8

G9

C9
C8
H9
G8

41P

SPI DATA IN
SPI DATA OUT
SPI CLK
SPI CS

5

WPX
VPPLOCK

J2813

J2814
J2815
J2816
J2817

J2818

J2805

0
1
2
3
4
5
6

7
17
21
16
18
19

J2807
J2808
J2809
J2810

J2804

J2812

0
1
2
3
4
5
6
7
8

9
10
11
12

0

1

0
1
2
3
4
5
6
7
9
8

1
0

J3115

J3116
J3117
J3118

J2806

MEMCONT(15:0)

16
17
18
19
20
21
22
23

24

MESSI_CMT(25:0)

BT_CLOCK_REQUEST

SDRAM_AD(15:0)

6

SDRAM_BA(1:0)

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

MEMADDA(24:0)

OMAP

I2C(1:0)

FM_INTX

SDRAM_CTRL(10:0)

SDRAM_DA(15:0)

VPP

BTFM

{

BTFM

0
1
2
3
4
5
6
7
8

9
10
11

R3000

10k

CMT SDRAM

D3001

K4M64163PK-KG75

SDRAM 4Mx16

J9

0

J10

K8
K9
K2
K3

0

J1

A

4194303

J2
J3
H1
J8
H2

0
1

2
3

GND

4
0
1
6
5

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

8

11

H9

BA0

H10

BA1

G10

_RAS

G9

_CAS

H8

_CS

G8

_WE

G2

CLK

G1

CKE

F2

UDQM

F9

LDQM

A9

B8
B9
C8
C9
D8
D9
E8
E3
D2
D3
C2
C3
B2
B3
A2

A3,B10,C1,D10= GND

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

VDRAM
VDRAM
VDRAM

DATA I/O

A1,F1,K1= GND

0
1
5
2
4
3
9
7

E10

NC

E9

NC

F8

NC

F3

NC

G3

NC

GND

H3

NC

E2

NC

E1

NC

K10
F10
A10
D1

VIO

C10

VIO

B1

VIO

A8

VIO

1.8V

VDRAM

C3004

100n

GND

GND

C3005

100n

1.8V

VIO

C3008

C3007

C3006

C7616

100n

10n

GND

GND

100n

10n

GND

GND

CMT Flash

D3000

S29NS064J0LBFW003

FLASH 64MBIT

A4

CLK

B4

_AVD

B9

_CE

B6

_RESET

C10

_OE

A6

_WE

B7

_WP

A1

RDY

B5

B2
A9
B8
A8
B3
A2

A10

D10

D9
C7
C6
D5
D4
C3
C2
C9
C8
D7
D6
C5
C4
D2
D1

PS

16

A

22

ADDRESS/DATA I/O

16
17
18
19
20
21
22

E3001

1

NC

E3002

2

NC

E3003

3

NC

E3004

4

NC

A7

VPP

A5

VIO

B1

VIO

D8

VIO

GND

GNDA3,C1,B10,D3=

C3000

100n

1.8V

VPP

VIO

C3002

C3001

100n

GND

C3003

10n

100n

GND

GND

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

RAP, Memories

Page 4 (8)

Camera connector

X1470

1

GND

2

SDA

3

CCPDAP

4

SCL

5

CCPDAN

6

CAMCLK

7

VIO

8

GND

9

CCPCLKP

10

CAMVCTRL

11

CCPCLKN

12

VCAM3

13

STROBE

14

GND

SOCKET

GND

2.8V

VAUX

Tahvo

VLEDOUT1

{

SETCURR1

Flashlight connector

X5212

1
2

1.8V

VIO

C1471

1u0

GND

1.8V: Cam. off
0V: Cam. on

GND

Display connector

Tahvo

VLEDOUT2

{

SETCURR2

RS-MMC connector

X5200

C2
C3
C4
C5
C6
C7

GND

8

9
10
11
12
13
14

15

16

17

18

19

GND

Keyboard connector

1.8V

VIO

L4400

600R/100MHz

L4401

600R/100MHz

C4401

1u0

GND

GND

OMAP

D4800

HELEN3PS1.1E

U19

R5100

R4809

1k0

CAWAKE

U18

W21

N14
N15

T19
F18
D20
D19
E18
C21
G19
P15
V19
H15
G18
F19
H14
E20
E19
N19
N21
M20
W14
Y14
Y12
W13

Y15
P19
V7
M7

L19
K14
K15
K19
K18
J14
J19
J18
J15
H19
M15
M19
L15
L18

P18
M14
N20

J20

AA13

Y2
V18
K2
G1
B1
AA1

U2
N1
Y13
AA7
K20

R21

W20

AA21
B16
A21

F20

B5
B7
A13

Y3

Y19

GND

AA19
V17
Y18
W18
V16

10k

W17
Y17

GND

W8
V8
W15
R10
Y10
Y8
V9
V5
W19
R18

AA20

P10

M18
L14
R19

P9
AA9
W9
R9
Y5
W5
V6

T18
V20

P3

W11
V11
V10
W10
R11
P11
V15
W6

H20

H18

G21

L1
AA17
P14
W16
N18

D18
B21
C19
G14
H13
A20
B19
C18
D17
D16
C17
B17
G13
A17
C16
D15
C20
C15
B18
B15
M8
G20

Flashlight driver

L1473

3u3H

N1471

TK11891F-G

U//U

8

1

PGND

L1479

27nH

C1487
10p

GND

L1480

27nH

C1488

GND

J1472

X4400

MMCCMD
MMCCLK
MMCDA
MMCV

C5200

1u0

GND

14V/50V

C4402

C4400

27p

1u0

GND

GND

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

R5204

V1471

PMEG3002AEL

C1485
2u2

GND

V7502

10p

GND

2.8V

C1470

1u0

GND

GND
LED+
Col2
LED­Col1
GND
Row3
Row2
Row1
Row6
Row0
Col0
Row5
Row4
GND
Col3

GND

GND

X4401

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

GND

GND

C1486
100n

GND

BZX884-B5V6.315

100R

R1471

VEN

VOUT

LP3981YDX

VOUT_

-2.8_NOPB

SENSE

C7601

2u2

GND

EMIF04-MMC02F2

GND

2 3

S5200

1.8V: MMC accessable

4

1

GND

GND

GND
WRX
GND
D0
D1
D2
D3
GND
VDDL

VDD
GND

LEDIN
LEDOUT
GND
CSX
D/CX
GND
D7
D6
D5
D4
TE
RDX
RESX
GND

Retu

EN

7

2

SW

VIN

6

3

OVP

GND

5

4

EAOUT

VFB

R1489

3k3

3

R5200

R1
R2
R3
R4

2

0

22

1

18

VBAT

C7599

C7600

33n

2u2

GND

GND

GND

R10
R20

21

N7505

R1470
100R

VIN
BYP

Power on key

S4401

3

4

R4406

14V/50V

GND

PWRONX

C1484

GND

4u7

GND

R1487

6R8

SI1012R-T1-E3

GND

1.8V

VIO

R1473

R1474

33R

3.7V

Z4400

EMIF10-COM01F2

OUT1

IN1
IN2

OUT2

IN3

OUT3

IN4

OUT4

IN5

OUT5
OUT6

IN6
IN7

OUT7
OUT8

IN8

OUT9

IN9

OUT10

IN10

GND

GND

GND

GND

GND

Z4401

EMIF02-MIC02F2

OUT1

IN1

GND

OUT2

IN2

GND

GND

1.8V

VSIM2

J5200

L5200

600R/100MHz

3.7V (unpressed)

EMIF10-COM01F2

IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
IN9
IN10

GND
GND

EMIF10-COM01F2

IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
IN9
IN10

GND
GND

GND

L1474

42R/100MHz

V1472

3k3

19

Z4402

Z4403

VIO

R1472

GND

}

17

20

CMD
CLK
DATA

OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9

OUT10

OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9

OUT10

GND
GND
GND

GND
GND
GND

3k3

1PS89SB15

GND

2

GND

3
4

0
1
2

1
0
2

15

V1470

C1483
100n

3

VBAT

GND

1

GND

10

11

9

3
1

0

5

4
8

6

3.7V

2

R1491
10k

17

0
1
2

3
16
19

7

6

5

4
21
18
20

1.8V

16

Tahvo

RAP

VIO

R4408
10k

R4407

14V/50V

GND

{

2
0
1

4

3

Slider switch

S5202

1 2

GND

INTUSB(8:0)

GEN_CTRL_CMT(20:0)

MESSI_CMT(25:0)

CAMDET

I2C_SCL

I2C_SDA

8

9
10
11
12
13
14
15
16

0

1

2

3

4

5

6

7

2
3
0
1

2
3
4
5
0
1
6
7
8

10

MMC_ENA

14

MMC_SW

15

7

J4811

1

J4812

5

J4813

0

J4814

2

J4815

4

J4816

3

J4817

0

J4820

4

J4821

5

J4822

6

J4823

0

J4824

1

J4825

2

J4826

7

J4827

3

J7540

0

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16

J7541

17

J7542

18

J7543
J7544

19

J7545

20

J7546

21

spiclk
spidin

spidout
spi_ncs0
spi_ncs1

armio_4
kbc_0
kbc_1
kbc_2
kbc_3
kbc_4
kbc_5
kbc_6
kbc_7
mcbsp1_sync
kbr_0
kbr_1
kbr_2
kbr_3
kbr_4
kbr_5
kbr_6
kbr_7
ccpdap
ccpdan
ccpclkp
ccpclkn

cam_clk
gpio_6
gpio_11
gpio_62

ETMPkt0
ETMPkt1
ETMPkt2
ETMPkt3
ETMPkt4
ETMPkt5
ETMPkt6
ETMPkt7
ETMClk
ETMTS1
ETMTS2
ETMPSTAT0
ETMPSTAT1
ETMPSTAT2

ETMPSTAT3
ETMPSTAT4
ETMPSTAT5

arm_boot

osc32k_out
osc1_in

conf

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

TDI
TDO
TMS
NRST
TCK
EMU0
EMU1
rtck

mmc2_dat0
mmc2_dat1
mmc2_dat2
mmc2_dat3
mmc2_clk
mmc2_cmd
mmc2_cmddir
mmc2_datdir
mmc2_datdir1
mmc2_clkin

gpio_41
mcbsp2_din

tx3
rx3
rts3

usb_puen
usb0_vp
usb0_txen
usb0_vm
usb0_rcv
usb0_se0
usb0_txd

scl
sda

nfcs_2b

acflag
caready
acdata
caflag
acready
cadata
acwake
gpio_12

mcbsp1_din
mcbsp1_dout
mbsp1_bclk
VPP
mcbsp3_din
mcbsp3_dout
mcbsp3_clk
mcbsp3_fsync

lcdda0
lcdda1
lcdda2
lcdda3
lcdda4
lcdda5
lcdda6
lcdda7
lcdda8
lcdda9
lcdda10
lcdda11
lcdda12
lcdda13
lcdda14
lcdda15
lcdcsx
lcdwrx
lcdrdx
lcdcmd
gpio_60
te

SDRMAd0
SDRMAd1
SDRMAd2
SDRMAd3
SDRMAd4
SDRMAd5
SDRMAd6
SDRMAd7
SDRMAd8

SDRMAd9
SDRMAd10
SDRMAd11
SDRMAd12
SDRMAd13

SDRMWEX

SDRMCLK

SDRMCKE
SDRMRASX
SDRMCASX

SDRMDQMU
SDRMDQML

SDRMCLKX

SDRMLDQSH
SDRMUDQSL

cs_sdram

SDRMBSA1
SDRMBSA2

NFlsFD0
NFlsFD1
NFlsFD2
NFlsFD3
NFlsFD4
NFlsFD5
NFlsFD6
NFlsFD7

NFlsCE1
NFlsCE2
NFlsCLE
NFlsALE

NFlsWP
NFlsWE
NFlsRE

NFlsRDY

SDRMDa0
SDRMDa1
SDRMDa2
SDRMDa3
SDRMDa4
SDRMDa5
SDRMDa6
SDRMDa7
SDRMDa8

SDRMDa9
SDRMDa10
SDRMDa11
SDRMDa12
SDRMDa13
SDRMDa14
SDRMDa15

ExtAdDa0

ExtAdDa1

ExtAdDa2

ExtAdDa3

ExtAdDa4

ExtAdDa5

ExtAdDa6

ExtAdDa7

ExtAdDa8

ExtAdDa9
ExtAdDa10
ExtAdDa11
ExtAdDa12
ExtAdDa13
ExtAdDa14
ExtAdDa15

ExtAd17
ExtAd18
ExtAd19
ExtAd20
ExtAd21
ExtAd22
ExtAd23
ExtAd24
ExtAd25

nfcs_1

nfcs_1b

FlsCS2X
FlsCS3X

FlsCLK

FlsWrX
FlsWaitX
FlsADVX

FlsWrPr
FlsOEX

gpio_59

gpio_4

armio_5

armio_14

cts1

reserved
osc1_out

mcbsp2_dout

mcbsp2_xsync

mcbsp2_clkx

gpio_9

SleepClk

PURX

APESleepX

SysClk

VDD4

VDD_RTC

VDDA

osc32k_in

VDD
VDD
VDD

VDD
VDD2
VDD1
VDD2
VDD2
VDD3
VDD3
VDD3
VDD3

VDD_DLL

VDDSHV_RTC

reset_mode

VDDSHV1
VDDSHV1
VDDSHV2
VDDSHV3
VDDSHV4
VDDSHV4
VDDSHV4
VDDSHV4
VDDSHV5
VDDSHV5
VDDSHV5
VDDSHV6
VDDSHV7
VDDSHV8
VDDSHV9

nfrp

tx1
rx1

rts1

AA11

P20
T20
U20
R13
V14
R14
AA15

A2
B2
B6
A1

G10

B9
G12
G11

G9
B12

B8
H10

H9
H11

H8

C9
H12

H7

B4
D10

C8

D9
C14

D4

G8

B3

C3

F3
D3
C1
E4
D2

F4
E3
G2

G3
G4
H4
H3

J7

K8

J8

K7

D6
C6
C5
D7
D5
C7
C4
D8

C10
D14
D11
C13
C11
D13
D12
C12

N4
N2
N7
P2
P4
P7
R2
R3
R4
T2
T3
P8
U1
U3
T4
V3

J2

J4

J3
F2

L8
K4
K3

L7
E1

M3
Y1

M4
N8
N3

W2

V2

L4
V4
U4

W1

L3

E5
W3

AA5

W7

Y6
R8

P13
R12

W4

Y4

J1

W12

Y21
V13
A15

M2
Y9

Y20

A3

AA3

E2
A9

J21
R20
B20
B13

A11

V12
P12
A19
E21
AA2

Y7
A5

A7
B10
B14

R1

H2

C2

Y16

L21

U21

J4802

J4803

4
0
1

J4805

2

J4806

3
6

J4807

5
7
9

J4808

8

J4800

BT_WAKE_IN

1.8V: active
0V: sleep

J4818
J4819

10

R4800

10R

C4800

100n

GND

C4808

100n

GND

0
1
2
3
4
5
6
7
8
9

10

SDRAM_AD_APE(15:0)

11
12
13

SDRAM_CTRL_APE(10:0)

SDRAM_BA_APE(1:0)

0
1

0
1
2
3
4
5
6
7

10
15

8

9
13
12
11
14

0
5
6
2
1
3
4

C4813

R7554

100k

C4801

1u0

GND

C4805

100n

GND

C4809

100n

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

GND

1n0

GND

C4803

100n

GND

C4810

100n

NAND_APE(15:0)

SDRAM_DA_APE(15:0)

1
0
4
6

1.05/1.35V

C4804

100n

GND

C4806

100n

GND

GND

C4811

100n

GNDGND

C4807

100n

11

1
0
7
2
3

4
0
1

6
5
9

8

4

6
0
2
1
3
5
7

8
12
10
14
15
13
11

9

PUSL(7:0)

C4802

12p

100n

GND

GND

VIO

C4812

100n

GNDGND

APE combo memory

0
1
2
3
4
5
6
7
8

9
10
11
12

GND

J7547

J5001

10

J5002

11
13
12
9
8
14

0

1
2
3
4
5
6
7

24

6
5
0
3
4
2
1

Retu, RAP

3.7V

VBAT

C2242

L4201

220R/100MHz

C4201

22u

GND

1.8V

D5000

K5E1212ACM-S075

COMBO 512M DDR

512M NAND

P4

NC

M1

NC

M2

NC

31M

NC

M14

NC

N2

NC

N3

NC

N12

NC

N13

NC

P3

NC

C3

0
C4
D2
D3
E1
E2
E3

A

H2

J1
J2

J3
K1
K2

12

C5

_CS

F3

CKE

G13

DDR

CK

G14

_CK

F1

_RAS

F2

_CAS

H3

_WEd

H1

BA0

G2

BA1

F12

UDM

K13

LDM

D13

UDQS
LDQS

C8

_CE

A8

_RE

B9

_WP

C7

_WEn

C9

NAND

ALE

B7

CLE

A5

R/_B

K3

A13

L2

A14

Addr Res

L3

A15

N4

Data I/O

NAND
M5
P6
N5
M6
P7
N6
M7

N10

Data I/O

DDR

M9

M10

N11

M11

L13
L12
K14
F14
E14
E13
E12
D12
C12
C11
C10

B5,B10,G3,G12,H12,M3,N9=

A10,F13,K12,P9= GND

2.5V

VANA

VBAT

3.7V

1.8V

1.8V

J7534

0R

0R

R7543

R7544

APE Vcore SMPS

C4200

22u

LM3661TLX-1.40_NOPB

GND

A2

GND

A3

B3

L4200

C3

10uH

D3

GND

P5

NC

P10

NC

P11

NC

P12

NC

A1

DNU

A2

DNU

A13

DNU

A14

DNU

B1

DNU

B14

DNU

N1

DNU

N14

DNU

P1

DNU

P2

DNU

P13

DNU

P14

DNU

A3

NC

A4

NC

A11

NC

A12

NC

B2

NC

B3

NC

B4

NC

B6

NC

B12

NC

B13

NC

C1

NC

C2

NC

C13

NC

C14

NC

D1

NC

D14

NC

L1

NC

L14

NC

G1

VDDR_APE

C6

VDDR_APE

A921M

VDDR_APE

H14

VDDR_APE

J12

VDDR_APE

J14

VDDR_APE

M4

VDDR_APE

N8

VDDR_APE

B11

VIO

M8

VIO

H13

VIO

J13

VIO

A6

VIO

N7

VIO

D4

A1 Index

GND

A7,B8,P8= GND

VIO

GND

J7529

0R

R7541

R7542

N4200

U//U

SGND

VDD VSEL

PVIN

SYNC/MODE

SW

PGND

3.7V

GND

VIN

VOUT

LP3999ITLX

-1.8_NOPB

GND

N4201

VEN
CBYP

C4204

100p

VBAT

PUSL(7:0)

2

C4203

1u0

GND

GND

Retu

1.8V

C7602

C5000

C5001

C4205

100n

100n

GND

GND

C5003

C5002

100n

100n

GND

GND

J7523

J7524

C7618
100n

0R

R7551

FB

EN

ISEL

C7612

C7613

100n

100n

GND

GND

0R

R7552

0R

A1

4

B1

7

D1

2

D2

C1

GND

C4206

1u0

12p

1u0

GND

C5004

GND

J7549
J7550
J7551

GND

GND

GND

VIO

1.8V

C5005

100n

100n

GND

GND

1.8V

VIO

R7549

10
11

30
28
29
27

19
20

22

36

13

39

21

9

18
37
40

17

25

GND

R7550

3k3

3k3

0

1

26

J7536

3

J7537

2

J7538

1

J7539

C7605

J7553

C7617

0

100n

GND

100p

GND

R7558

220R

C7604

5
7
6
8

100n

GND

FM_ANT

1
0
3

2

I2C(1:0)

RAP

PCM(3:0)

BTFM

AUDIO(8:0)

Retu

LPRFCLK

RF part

System connector

FM_INTX

BT_CLOCK_REQUEST

PUSL(7:0)

RAP

Retu, RAP

BTHFM1.0_2.5V_FM

2

ANTENNA

5

STATUS

6

RF_ACTIVE

7

FREQ

8

TX_CONFX

42

SPI_CSB

44

SPI_MOSI

45

SPI_MISO

43

SPI_CLK

16

VFMRAD

15

VBAT

32

VIO(1.8V)

12

CBUSENX_IN

1

GND

3

GND

14

GND

31

GND

35

GND

38

GND

41

GND

46

NC

47

NC

48

NC

34

UART_WAKEUP

4

BT_WAKEUP

33

BT_RESETX

26

BT_UART_RTS

25

BT_UART_CTS

24

BT_UART_RX

23

BT_UART_TX

PUSL(7:0)

Retu, Tahvo, RAP

BTFM

D5001

BT_PCM_SYNC

CBUSCLK/SCL

CBUSDA/SDA

BT_PCM_OUT

BT_PCM_IN

BT_PCM_CLK

VAFL
VAFR

REF_CLK

PIO1

FMANTENNA

MPX_OUT

INTX

CLK_REQ

SLEEPCLK

VREG_EN

SLEEPX

BUSMODE

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

OMAP, Combo memory, BTFM

Page 5 (8)

PCS_RX_1
PCS_RX_2
DCS_RX_1

DCS_RX_2
EGSM_RX_1
EGSM_RX_2

VC1

VC3

VC2

ESHS-L090SQ-C2

GND

3.7V

37

ANT

C7512

39p

L7504
47nH

C7514
39p

37

37

GSM antenna pads

X502

1

RF

2

J513

G

3

G

J7554

GND

Z7503

EGSM_TX

DCS/PCS_TX

J7520

J7519

35

VBAT

Z7500

28R/100MHz

C7597

100u_14V

GND

L7506
12nH

C7581

39p

C7584

39p

Hinku

N7500

HINKU310A

A3

INP_2000

C6

GNDFE1

B9

GNDFE2

GND

A2

INM_2000

A1

OUTP_2000

B1

OUTM_2000

D1

INP_MIX

C1

INM_MIX

C10

INP_850

B10

INM_850

GND

C4

GNDFE3

GND

A9

INP_900

A8

INM_900

A7

INP_1800

A6

GND

Z7504

897.5MHz

GND

34

A5

A4

B8
B4
A10
C9

F10
B7
C5

B5
B6
D2
E1
B2

F9
K10
K5

F3
H3
K4
E10
F1

IN

RESNET_2DB

INM_1800

INP_1900

INM_1900

VC1
VC2
VC3
VC4

VC5
NC3
NC4

REF_DIV
REF_FILT
GNDLO
GNDPRE
GNDMIX
GNDFILT
GNDBB
GNDDIG
GNDOSCIN
GNDVCO
GNDGD
GND1
GNDCP

R7512

11R6

436R

GND GND

436R

C7523

5p6

C7525

5p6

GSM PA

N7502

RF9292E9.2

24 GSM_

GSM_RF_in

Vcc_22

23

Icont_21

Icont_22

GND

NC

GSM_RF_out

GND

GSM_17
Vcc_23

Vdet

GND

DCS/PCS13
_RF_Out

GSM_Vcc_21

DCS/PC_Vcc_31

DCS/PCS_RF_In

DCS/PCS

_Vcc_32

Icont_31

Icont_32

Vmode

R7518

470k

GND

Vpd

GND

GND

GND

GND

GND

L7516

600R/100MHz

22

21

20

19

18

16

15 DCS_Vcc_33

14

C7545

4p7

GND

C7559

GND

R7516

1k0

1p0

GND

C7569

C7564

4u7

1n0

GND

C7593

34

1

2

3

4

5

6

GND

7

8

9

10

11

GND

12

4u7

GND

SAFEK897MFL0F04R13

J7521

GND

OUT IN

C7556

10p

C7561

4p7

GND

GND

VBAT1

VBAT3

VPRE
VDDLNA1
VDDLNA2

VFILT

VREFBUF

MUX_OUT

VB_EXT

VOUT

INM_LO

INP_LO

VCNT

CP_OUT

RB_EXT

OSCIN

OSCIN_REF

REF_OUTP
REF_OUTM
REF_OUTG

C1QP

C1QM

C2QP

C2QM

RXOUTP_I

RXOUTM_I

RXOUTP_Q
RXOUTM_Q

VREFP

VREFCM

VREFM

SDATA

XENA

XRESET

CALIN

E8

J1

E9

VR1

E2

VCP

C2

VLO

D3

B3
C8
C3

VMIX

F8
H5

VBB

J4

VDIG

H1

C7

J2

NC

D8

J3

K1

K2

K3

E3

D9

F2

G1

G2
G3
H2

H10

C1IP

H9

C1IM

J10

C2IP

J9

C2IM

G10

H8

G8
G9

J8

K8

K6

J6

H7

K9
H6

J5
H4

SCLK

K7

J7

D10

T7502

LDB211G8010C-001

R7506

33R

C7563

J7503

4p7

C7504

GND

C7505

C7509

C7596

GND

R7504

10k

C7527

100p

C7530

8n2

C7532

8n2

C7534

8n2

C7536

8n2

1

2

GND

GND

36

VBAT_ASIC

C7503

1u0

GND

1u0

100n

GND

C7508
18p

2p7

GND

2p7

GND

C7513

4n7

GND

GND

GND

38

J7509

J7511

J7516

J7518

3

5

4

L7503

C7501

600R/100MHz

18p

GND

C7507

18p

GND

GND

J7508

J7510

32 31

C7528

C7531

VDIG

VB_EXT

GND

22p

22p

R7555

220R

C7520

J7504

C7575

15p

C7577

15p

2.8V

18p

C7615

J7505

4p7

30

VBAT

3.7V

VRCP1

4.7V

VPRE

TXI_0

RX VCO

C7598

0p5

GNDGND

G7500

2

T7501

1

VCC

OUT

GND

WB003

R7501

1k0

R7505

C7516

8k2

150p

GND

GND

C7522

150p

C7524

GND

2n2

GND

C7529

100p

OUT

38.4MHz

G7501

2.5V

VDIG

NKG3176D

GND

VCTCXO

VCC

VCONT

R7509

10k

C7533

22n

GND

AFC

Retu

0

(TXCCONV 2:0)

3

3.7V

VBAT_ASIC

G8
G7

F7

VR1

H8

VR2

B3

G6

F1

VDIG

H7

H1

VCP

D3

G3

G4

VLO

B6

E5

H3
H4

H2

H5

C8

G1

E6
F8

E8
E7
D7
D8

E4
F5

D4

E3

C7

TXC

R7521

2.8V

C7541

1u0

VREG1

GND

C7560

4n7

GND

L7502

100nH

C7552

2p7

GND

GND

GND

10k

C7582

100p

J7517

2.8V

C7543

1u0

VREG2

GND

C7547

C7548

1p8

GND

1u0

GND

VDIG

2.5V

VRCP2

R7514

4.7V

VB_EXT

1.35V

L7517

C7568

R7523
9k1

150p

C7573
2n2

GND

10k

C7550

C7553

8n2

GND

C7549

100p

2p7

GND

C7570
18p

GND

GND

GND

33

TX VCO

1n5H

R7519

1k0

EHF2BE3800

3

5

4

GND

1

T7503

2

C7571

330p

G7502

R7513

5R6

C7555

C7554

0p5

4p7

GND

GND

GND

VCC

OUT

WB002

GND

DAC_REF1

8

TXIP

0

1

3

2

0

1

1

TXIN

TXQN

TXQP

TXRESETX

RFTEMP

TXC

}

RAP

(RFCONV 11:0)

RAP

(RFCTRL 8:0)

Retu

(SLOWAD 6:0)

Retu

(TXCCONV 2:0)

VR1

2.5V

R7503

VREF

RFCLKP

RFCLKN

LPRFCLK

RXIP

RXIN

RXQP

RXQN

VREFCM

RFBUSDAT

RFBUSCLK

RFBUSENA

RXRESETX

1.35V

}

}

}

RAP

(RFCLK 1:0)

BTFM

RAP

(RFCONV 11:0)

RAP

(RFCTRL 8:0)

4k7

C7518

100n

GND

4

0

1

23

GND

4

5

6

7

9

7

6

J7506

8

J7515

3

C7515

10p

4

5

3

Vinku

N7501

VINKU314A

D2

XENA
SCLK

IO_SDATA

CAL_OUT

DET

DAC202

DAC102

G_OUTP

G_OUTN

DET_SW_G

P_OUTP
P_OUTN

DET_SW_W

DAC103

DAC203

GEN_CTRL

W_OUTP
W_OUTN

TXMUX_IN2

DAC101

DAC201

SMPS_CTRL

GNDVCO
GNDVCO_SH
GNDLO
GNDPRE
GNDVGA

GNDRF_TX
GNDBB
GNDBUF
GNDDIG
GNDBAT
GNDCP

VBAT1
VBAT2

VRF_TX

VVCO_CAP

VVCO

VDAC

VVGA

VB_EXT

LOI_INP
LO_INN

CP_OUT

VCO_IN

RB_EXT

OSCIN

DAC_REF1
DAC_REF2

TXI_180

TXQ_0

TXQ_180

EMPTY1
EMPTY2

XRESET

TXMUX_OUT

VREG2

R7528

E1

D1

D6

C5

B2

C2

A2

A3

B7

A4
A5

B5

C1

B1

C6

A7

C7558

1n0

GND

470k

A8

C7567

15p

GND

D5

470k

R7534

GND

C3

A1

C4

H6
G5
F4
F3
A6

B4
B8
F2
E2
F6
G2

GND

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

0

N72/ RM-180

6

Board version: 1YA_02

RF part

Page 6 (8)

1) 32.768kHz at R2205

2) Sleepclock at C7617

3) G7501 out

4) RFCLK at C7528/7531

VCAM3 2.8V

5) FLSCLK at J2813

9) CBUSDa at J2207

SMPSCLK at J2308)

31

MMCCLK at J5200)

71

CCPDAP/N at R1470)1

2

6) SDRCLK at J2806

10) SYSCLK at J4819 12) CLK600 at J2305

VSIM at C2212)41

without SIM

with 3V SIM

CAMCLK at R1474

)81

CCPCLKP/N at R1471

)22

FM SDA at R7550)62FM SCL at R7549)52

7) CBUSEna at J2209

11) SDRAMCLK at J7547

27) TXCCTRL at J2211

8) CBUSClk at J2206

16) EARDATA at J2201/220215) AUDIOCLK at J2200

20) CAMSDA at R147219) CAMSCL at R1473

24) BTWakeup at J753423) LPRFCLK at C7615

BT on

BT off

28) TXCCLK at J2210

16

VRCP2 4.7V
VRCP1 4.7V
VSIM2 1.8V

14

30

31

VSIM 1.8/3V

32

VR1 2.5VVIO 1.8V

38

15

28

VRFC 1.8V

8

VREF 1.35V

11

VCOREA 1.05/1.35V

VANA 2.5V

VAUX 2.8V

1

VDRAM 1.8V

17

20

18
22

19

21

VLEDOUT 13.5V

10

6

27

35

37

36

34

4

33

23

VBUS 5V

VOUT 2.5V

13

12

7

9

24

5

26

VCORE 1.4V

25

2

29

RFBUSENA at J7506)03TXCDA at J2212)92

31) RFBUSCLK at J7505

32) RFBUSDAT at J7504

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

TXC at C7549)

33

Version: 1.0 08.05.20

VDDR_APE 1.8V

TX spect. at J7521/R7512

)43

0

N72/ RM-180

6

35) VDET at C7559

Board version: 1YA_02

36) VMODE at R7506

37) RX at L7504/06 & C7581/84

Signal overview

38) RXIQ at J7508-J7511

Page 7 (8)

Display connector

C2802 I3 C7568 E8 J2817 I4 J7553 E4 R4407 A8

B2200 D6 C2803 I5 C7569 G17 J2818 H4 J7554 H20 R4408 A8

C2804 G4 C7570 E9 J3100 I5 J7555 A16 R4800 D5

C1470 D15 C2805 G3 C7571 B6 J3101 I6 R4809 E3

C1471 F18 C2806 G5 C7573 A6 J3102 I5 L1473 E11 R4810 E6

C1472 F6 C2807 H5 C7575 E10 J3103 I5 L1474 E7 R5100 G5

C1473 G7 C2808 G4 C7577 E10 J3104 I5 L1479 C15 R5200 I7

C1479 E14 C2809 H5 C7581 G19 J3105 I5 L1480 C15 R5204 I15

C1480 D14 C2810 G5 C7582 D9 J3106 I5 L2000 C2 R7501 C9

C1481 D20 C2811 I5 C7584 G18 J3107 G3 L2001 F2 R7503 C11

C1482 D20 C2812 H3 C7593 G16 J3108 H3 L2002 G2 R7504 C11

C1483 E6 C2813 I3 C7596 C11 J3109 H3 L2003 G2 R7505 C9

C1484 E12 C2814 I3 C7597 F14 J3110 I5 L2100 E19 R7506 G17

C1485 E13 C3000 G7 C7598 B8 J3111 H3 L2101 B6 R7509 C8

C1486 E13 C3001 I5 C7599 D20 J3112 H3 L2102 F18 R7512 H16

C1487 C15 C3002 G6 C7600 B20 J3113 G3 L2103 F18 R7513 B7

C1488 C15 C3003 I5 C7601 B20 J3114 H3 L2104 B6 R7514 D9

C1489 E19 C3004 H1 C7602 B2 J3115 G5 L2105 B6 R7516 I18

C1490 E20 C3005 I1 C7604 F3 J3116 H6 L2106 A6 R7518 I17

C1491 D19 C3006 I2 C7605 F3 J3117 G6 L2202 E7 R7519 B6

C2000 C3 C3007 H1 C7606 H2 J3118 G5 L2203 C7 R7521 D9

C2002 F3 C3008 I2 C7607 H2 J4800 C3 L2204 D7 R7523 A6

C2003 F3 C4200 D2 C7608 H2 J4802 C3 L2205 B5 R7528 C8

C2004 G3 C4201 D1 C7609 G2 J4803 D4 L2206 B7 R7534 C8

C2005 F2 C4203 B2 C7612 C4 J4805 D3 L2301 E6 R7541 F4

C2006 G2 C4204 C2 C7613 F3 J4806 C3 L2302 D5 R7542 F4

C2007 G2 C4205 B5 C7615 C9 J4807 D4 L2304 G7 R7543 F4

C2008 G2 C4206 B1 C7616 F3 J4808 C3 L4200 C2 R7544 F5

C2009 G2 C4400 D19 C7617 F3 J4811 D7 L4201 E2 R7549 F4

C2010 G3 C4401 D19 C7618 F3 J4812 G5 L4400 D19 R7550 F4

C2011 F1 C4402 D19 J4813 F3 L4401 D19 R7551 C4

C2012 C3 C4800 D4 D2800 H4 J4814 G6 L5200 H7 R7552 F5

C2070 G14 C4801 E2 D3000 H7 J4815 H6 L7502 D8 R7554 G3

C2072 I15 C4802 G5 D3001 H2 J4816 G3 L7503 E10 R7555 B9

C2100 F2 C4803 G5 D4800 E4 J4817 G3 L7504 H19 R7556 E6

C2101 F2 C4804 E5 D5000 B4 J4818 G3 L7506 H18 R7558 F3

C2102 F2 C4805 G3 D5001 D4 J4819 G3 L7516 G16 R7559 G2

C2103 E6 C4806 E3 J4820 G5 L7517 E8 R7560 A17

C2104 E6 C4807 D4 F2000 C2 J4821 G5 L7518 G3

C2105 A6 C4808 G3 J4822 G5 S4401 E21

C2106 A6 C4809 G4 G2200 F6 J4823 G4 N1470 G7 S5200 I14

C2107 A6 C4810 F3 G7500 B9 J4824 G5 N1471 E13 S5202 A9

C2108 B6 C4811 E3 G7501 C9 J4825 G5 N1472 E14

C2109 B7 C4812 E5 G7502 B7 J4826 G5 N1474 D20 T7501 B10

C2110 A7 C4813 G4 J4827 G4 N2200 C6 T7502 H16

C2200 C5 C4814 E6 J513 H20 J5001 D4 N2300 D7 T7503 B7

C2201 C7 C5000 B2 J1471 G7 J5002 C5 N2301 G6

C2202 D6 C5001 D3 J1472 F5 J5100 G5 N4200 D1 V1470 F14

C2203 D6 C5002 D4 J1473 E14 J5101 G4 N4201 B2 V1471 E13

C2204 E6 C5003 B2 J1502 D19 J5102 G4 N7500 C11 V1472 E12

C2205 D5 C5004 D3 J2000 F3 J5103 F5 N7501 E9 V2000 C3

C2206 D6 C5005 D5 J2001 G1 J5104 H3 N7502 H17 V2300 C7

C2207 E6 C5200 H7 J2002 G1 J5105 G4 N7505 C20 V4400 B20

C2208 D7 C7501 C11 J2003 G1 J5106 H3 V7501 E6

C2209 D7 C7503 C11 J2060 C4 J5107 H3 R1470 G4 V7502 C15

C2210 B7 C7504 C11 J2070 C17 J5108 F4 R1471 G4

C2211 B6 C7505 B11 J2071 C16 J5109 F4 R1472 F3 X1470 E16

C2212 B6 C7507 C10 J2072 C15 J5110 F4 R1473 F3 X2001 F1

C2213 C7 C7508 B10 J2200 D5 J5200 E5 R1474 G5 X2060 A9

C2214 C7 C7509 C11 J2201 B7 J7503 A10 R1475 F7 X2070 H14

C2215 C7 C7512 G19 J2202 B7 J7504 B8 R1486 E20 X2700 H6

C2216 D7 C7513 B11 J2204 B6 J7505 B8 R1487 E12 X4400 F2

C2217 D7 C7514 G19 J2205 B7 J7506 B8 R1488 D19 X4401 B19

C2219 D6 C7515 C9 J2206 D5 J7506 B19 R1489 E13 X5200 H11

C2220 B6 C7516 C9 J2207 C7 J7508 B11 R1490 E20 X5207 H4

C2221 B7 C7518 E9 J2208 D8 J7509 B11 R1491 E12 X5208 B5

C2222 B6 C7520 C11 J2209 D6 J7510 B11 R2000 F3 X5209 B4

C2223 C5 C7522 C9 J2210 D5 J7511 B10 R2001 F3 X5210 A4

C2224 D5 C7523 G18 J2211 I3 J7515 B11 R2002 G3 X5211 A5

C2225 D7 C7524 B9 J2212 I2 J7516 B12 R2003 G3 X5212 C16

C2226 D7 C7525 G18 J2213 I3 J7517 E9 R2004 G3

C2227 B7 C7527 B10 J2214 I3 J7518 D9 R2005 H3 Z2000 E1

C2228 C7 C7528 B10 J2215 I3 J7519 I18 R2006 G2 Z2001 E1

C2230 D7 C7529 D9 J2218 D6 J7520 I18 R2007 F1 Z2003 E1

C2231 A5 C7530 B11 J2219 B7 J7521 I16 R2009 G1 Z4400 D2

C2232 C7 C7531 C10 J2220 I3 J7522 G4 R2010 F1 Z4401 G3

C2234 D6 C7532 B11 J2221 I4 J7523 H1 R2011 G1 Z4402 E7

C2235 D6 C7533 C8 J2300 C6 J7524 I2 R2070 G14 Z4403 F7

C2237 E7 C7534 B11 J2301 D7 J7525 H2 R2071 E6 Z7500 F14

C2240 B2 C7536 B11 J2302 H6 J7526 H2 R2100 F2 Z7503 H18

C2241 G3 C7541 D9 J2305 C7 J7527 I2 R2101 E2 Z7504 I16

C2242 E5 C7543 E10 J2306 G13 J7529 C4 R2104 E19

C2243 I3 C7545 I17 J2307 H13 J7534 F5 R2105 E19

C2244 G1 C7547 D9 J2308 D7 J7536 C4 R2106 F18

C2300 D5 C7548 D8 J2309 G6 J7537 C3 R2107 F18

C2301 D6 C7549 D9 J2802 H3 J7538 C3 R2200 E6

C2302 D5 C7550 E8 J2803 H6 J7539 D3 R2201 E6

C2303 D7 C7552 D8 J2804 I2 J7540 D5 R2202 E6

C2304 C6 C7553 D8 J2805 G2 J7541 D5 R2205 E7

C2307 E7 C7554 B6 J2806 H3 J7542 D4 R2303 F6

C2309 E5 C7555 B6 J2807 H1 J7543 D5 R2304 F6

C2312 E7 C7556 G16 J2808 H3 J7544 D5 R2305 C7

C2313 E7 C7558 E10 J2809 H1 J7545 E7 R2700 I6

C2314 G7 C7559 I18 J2810 H1 J7546 E6 R3000 G6

C2315 G6 C7560 E9 J2812 I4 J7547 D4 R4400 E6

C2316 C6 C7561 G17 J2813 I4 J7548 F4 R4401 E6

C2700 H7 C7563 G17 J2814 I4 J7549 C4 R4402 E6

C2800 H3 C7564 H18 J2815 I4 J7550 E3 R4403 B20

C2801 H5 C7567 E10 J2816 I4 J7551 D3 R4406 E20

B

C

D

F

G

J

L

N

X

Z

R

S

T

V

Top

Bottom

Diplexer

GSM PA

Camera connector

Battery connector

APE memories

Retu

OMAP

Keyboard connector

CMT FLASH

RAP

CMT SDRAM

RS-MMC connector

SIM connector

Vinku

Tahvo

BTFM module

Hinku

VCTCXO

RX VCO

TX VCO

Customer Care / Training & Vendor Development / Content Creation Team
Confidential - Copyright © 2006 NOKIA Only for training and service purposes

Version: 1.0 08.05.20

System connector

0

N72/ RM-180

6

Board version: 1YA_02

Component finder

Page 8 (8)
