Nokia HDW-3 User Manual
User’s Guide for the Wireless
Headset (HDW-3)
9234572
Issue 1
DECLARATION OF CONFORMITY
We, NOKIA CORPORATION declare under our sole responsibility that the product HDW-3
is in conformity with the provisions of the following Council Directive: 1999/5/EC.
A copy of the Declaration of Conformity can be found from
http://www.nokia.com/phones/declaration_of_conformity/.
Copyright © 2005 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this
document in any form without the prior written permission of Nokia is prohibited.
Nokia is a registered trademark of Nokia Corporation. Other product and company names
mentioned herein may be trademarks or tradenames of their respective owners.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Nokia operates a policy of continuous development. Nokia reserves the right to make
changes and improvements to any of the products described in this document without
prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any
special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided "as is". Except as required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the
implied warranties of merchantability and fitness for a particular purpose, are made in
relation to the accuracy, reliability or contents of this document. Nokia reserves the right
to revise this document or withdraw it at any time without prior notice.
The availability of particular products may vary by region. Please check with the Nokia
dealer nearest to you.
9234572
Issue 1
Contents
Contents
1. Introduction ......................... 4
Bluetooth wireless technology .......... 4
Chargers and batteries......................... 5
The card in the sales package ............ 5
2. Getting started..................... 6
Overview................................................... 6
Charging the battery ............................ 7
When the battery charge falls low 8
Switching the headset on or off ....... 8
Taking the headset into use for the
first time................................................... 8
Adjusting the headset to your ear .. 10
Placing the headset on the ear........ 11
Troubleshooting.................................... 11
3. Using the headset .............. 12
Connecting the paired headset to
your phone............................................. 12
Making a call ........................................ 13
Voice dialling ........................................ 13
Redialling the last dialled number. 13
Answering a call.................................. 14
Ending a call......................................... 14
Rejecting a call.................................... 14
Automatic answer............................... 14
Adjusting the earphone volume ..... 14
Switching the call between
phone and headset............................. 15
Disconnecting the headset from
the phone.............................................. 15
Reconnecting the paired
headset to your phone................... 16
Using the headset with several
phones.................................................... 16
Using the headset with several
paired phones ................................... 16
Resetting the headset........................ 17
4. Battery information ........... 18
Care and maintenance........... 20
English
3
Introduction
1. Introduction
The Wireless Headset HDW-3 can be connected without wires to a
compatible phone that supports Bluetooth wireless technology. This gives
you complete freedom for making and receiving calls while on the move
or at the office.
Read this user’s guide carefully before using the headset. More detailed
information is provided by your phone's own user's guide. Do not use this
Wireless Headset (HDW-3) user’s guide in place of the user’s guide for
your phone, which provides important safety and maintenance
information.
■ Bluetooth wireless technology
Since Bluetooth devices communicate using radio waves, your Bluetooth
phone and headset do not need to be in a line of sight. The two devices
only need to be within a maximum of 10 meters of each other, although
the connection can be subject to interference from obstructions, such as
walls, or from other electronic devices.
The headset is specially designed for Nokia phones that support Bluetooth
wireless technology. The headset can, however, be used with any
compatible Bluetooth devices that support the Handsfree or Headset
profile. (Here, "Profile" means a set of Bluetooth commands that your
phone uses for controlling the headset.)
4
Introduction
The headset provides the best performance when it is used with a
compatible Nokia phone. If you use the headset with a phone produced by
another manufacturer, all the functions described in this user’s guide may
not be available.
In some countries, there may be restrictions on using Bluetooth devices.
Check with your local authorities.
■ Chargers and batteries
Check the model number of any charger before use with this device. The
Wireless Headset HDW-3 is intended for use with the following chargers:
ACP-7, ACP-8, ACP-9, ACP-12 and LCH-12.
Warning! Use only batteries and chargers approved by Nokia for
use with this particular accessory. The use of any other types will
invalidate any approval or warranty, and may be dangerous.
For availability of approved batteries and chargers, please check with your
dealer.
When you disconnect the power cord of any enhancement, grasp and pull
the plug, not the cord.
■ The card in the sales package
The card contains the Bluetooth passcode 0000 you need for pairing your
phone with the headset. Keep this card in a secure place.
For instructions on using the passcode, see Taking the headset into use for
the first time on page 8.
English
5
Getting started
2. Getting started
■ Overview

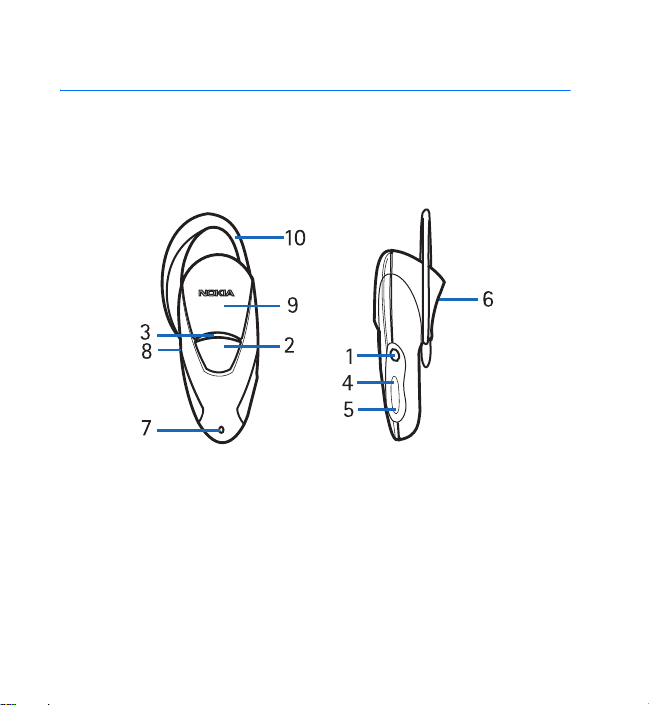

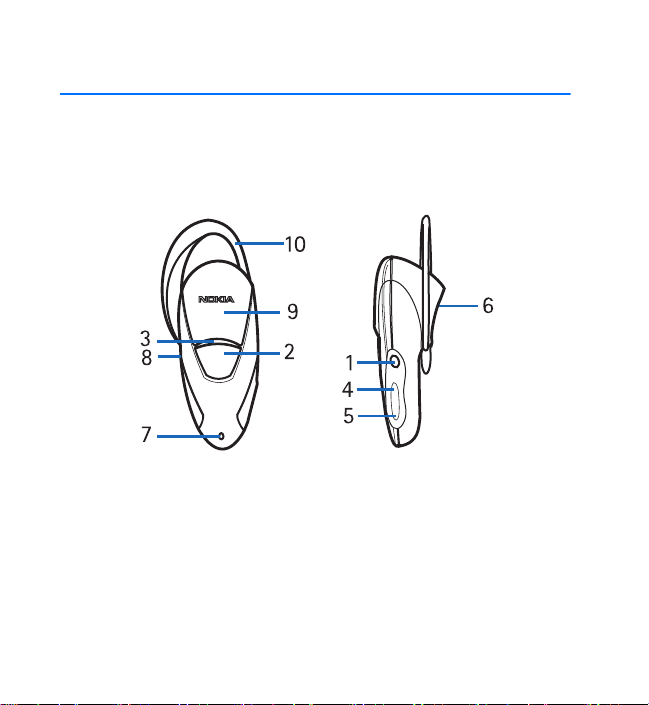

The headset contains the following parts:
1 - Power key: Switches the headset on and off.
2 - Answer/end key: Answers or ends the call. This key can also be used
for voice dialling, redialling and switching an active call between the
headset and the phone.
3 - Indicator light: Displays the current status of the headset.
4 - Volume up: Increases the earphone volume during a call.
5 - Volume down: Decreases the earphone volume during a call.
6
Getting started
6 - Earphone: Relays the caller’s voice.
7 - Microphone: Picks up your voice.
8 - Charger connector
9 - Battery door
10 - Earloop
■ Charging the battery
The headset has a rechargeable NiMH battery.
To charge the battery:
1. Connect the charger cable to the headset. For a list of compatible
chargers, see Chargers and batteries on page 5.
2. Connect the charger to an AC wall outlet. The red indicator light is
displayed during charging. Charging the battery fully takes between 1
and 2 hours, depending on the charger.
English
7
Getting started
3. When the battery is fully charged, the green indicator light is shown.
Disconnect the charger from the AC wall outlet and the headset.
When the battery charge falls low
The fully charged battery has power for up to 5 hours of talk time and up
to 120 hours of standby time. (In standby mode, the headset is switched
on but no call is in progress.)
When the battery is running out of power, the headset beeps and the red
indicator light starts to blink. Charge the battery as described above.
■ Switching the headset on or off
To switch on: Press and hold the power key for 2 seconds. The headset
beeps and the green indicator light starts blinking fast. The blinking
continues slower after the headset is connected to your phone.
To switch off: Press and hold the power key for 2 seconds. The headset
beeps and the red indicator light is displayed briefly.
■ Taking the headset into use for the first time
1. Make sure that your phone is switched on.
2. Switch on the headset.
3. Enter the Bluetooth menu of your phone and make sure that the
Bluetooth feature is activated.
8
Getting started
4. Enter the submenu where you can set the phone to search for
Bluetooth devices, and start the search.
The phone searches for all Bluetooth devices within about 10 meters
and displays them as a list.
5. Select the headset from the list.
6. Enter the passcode 0000 to associate ("pair") and connect the headset
to your phone. If you do not pair the headset with the phone within 5
minutes, it will power off, when pairing the headset for the first time.
Once you have entered the passcode, your phone becomes the default
phone for the headset, if the headset has not been previously paired
with another phone. See also Using the headset with several phones
on page 16.
The headset beeps and appears in the phone menu where you can view
the Bluetooth devices that are currently paired with your phone.
7. Start using the headset (see page 12).
English
9
Getting started
■ Adjusting the headset to your ear
The headset can be worn on either ear.
For optimal fit, choose between the different-sized earloops provided in
the sales package.

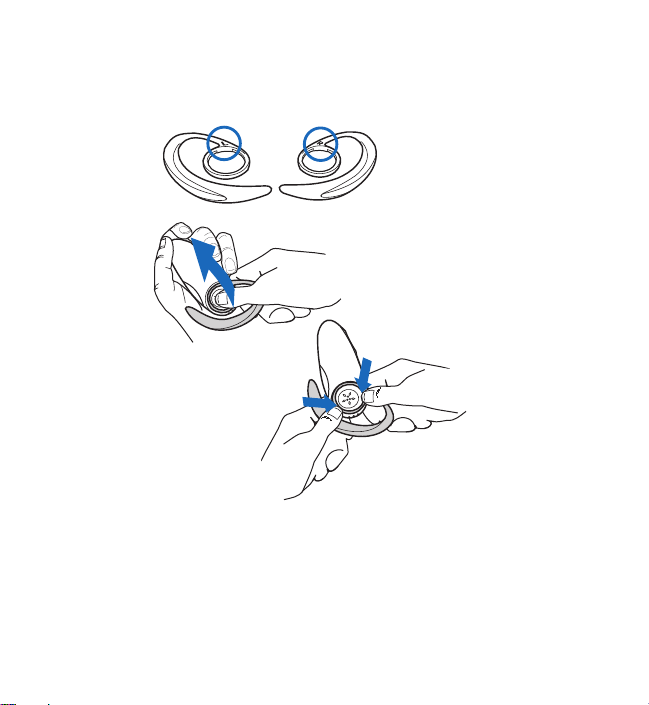

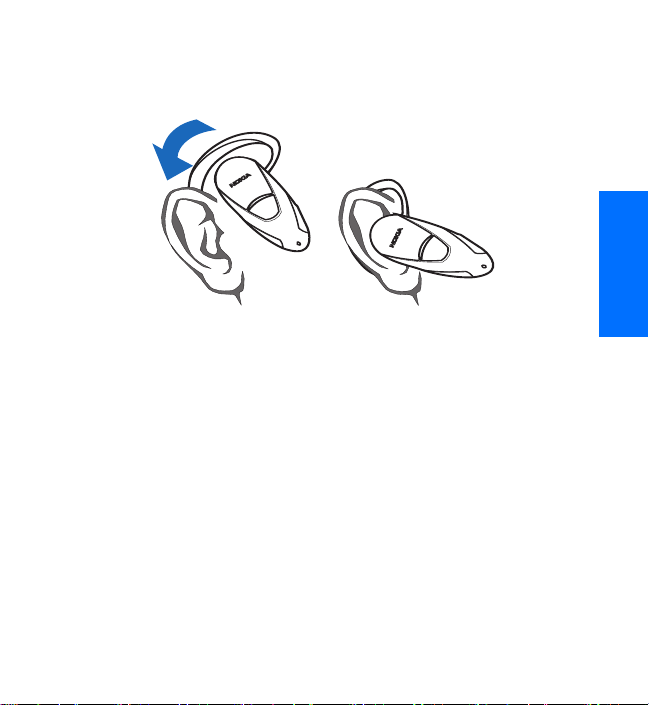

To change the orientation of the earpiece, detach the earloop from the
body part as shown in the figure below, and place it back according to the
L/R markings on the earloop. L stands for the left ear, and R stands for the
right ear. When, for example, the R marking is visible, you can wear the
headset on your right ear.
10
Getting started
■ Placing the headset on the ear
Slide the earloop gently behind your ear as shown in the figure below:
■ Troubleshooting
If you cannot connect the headset to your phone, proceed as follows:
• Make sure that the headset is switched on and paired with your phone.
• Make sure that the Bluetooth feature is activated on your phone.
• Check that the headset is within a maximum of 10 meters of your
phone and that there are no obstructions, such as walls, or other
electronic devices between the headset and the phone.
• The pairing information list of the headset may be full. The headset
can store the information of up to 8 phones at a time. If the list
becomes full, reset the headset to the original settings (see page 17).
• If the headset does not respond to your actions, remove the battery for
a short while.
English
11
Using the headset
3. Using the headset
Before using the headset, make sure that:
• The headset is paired and connected to your phone. For instructions on
pairing the headset, see Taking the headset into use for the first time
on page 8. For instructions on connecting the headset, see Connecting
the paired headset to your phone below.
• The Bluetooth feature is activated in your phone. See the user’s guide
of your phone.
• The headset is switched on. See Switching the headset on or off on
page 8.
• The headset is within a maximum of 10 meters of your phone.
• There are no obstructions, such as walls, or other electronic devices
between the headset and the phone.
For using the headset with several phones, see page 16.
■ Connecting the paired headset to your phone
The headset is disconnected from the phone when, for example, the
headset is switched off.
To connect the headset to your phone, switch on the headset or make the
connection in the Bluetooth menu of your phone.
12
Using the headset
Note that switching on the headset creates the connection automatically
only if you have set the phone to accept Bluetooth connection requests
without your permission. In Nokia phones this can be done by changing
your paired devices settings in the Bluetooth menu.
For more information on disconnecting the headset from your phone, see
page 15.
■ Making a call
When the headset is connected to your phone, make the call by using your
phone in the normal way.
■ Voice dialling
When no call is in progress, press and hold the answer/end key until you
hear a tone that indicates that you can say the desired name ("voice tag").
Say the voice tag. The phone plays the voice tag and dials the related
phone number.
You can also activate voice dialling with your phone. For details on voice
dialling, see the user’s guide of your phone. Note that this functionality is
only available if your phone supports voice dialling.
■ Redialling the last dialled number
Press the answer/end key twice briefly while no call is in progress.
English
13
Using the headset
■ Answering a call
Press the answer/end key to answer the call.
You can also answer the call by using your phone in the normal way.
When you receive a call, you hear a ringing tone selected on your phone
also through the headset.
■ Ending a call
Press the answer/end key to end the currently active call.
You can also end the call by using your phone in the normal way.
■ Rejecting a call
If you do not want to answer a call, briefly press the answer/end key
twice.
■ Automatic answer
If the Automatic answer function is set on in your phone, the phone
automatically answers the incoming call after one ring.
■ Adjusting the earphone volume
Press the volume up key to increase or the volume down key to decrease
the volume. To adjust the volume quickly, press and hold either of these
keys.
14
Using the headset
■ Switching the call between phone and headset
You can switch the active call between the headset and the phone. This
functionality is supported in all compatible Nokia phones.
To switch the call from headset to phone:
• Press and hold the answer/end key. OR:
• Use the respective function in your phone.
To switch the call from phone to headset:
• Press and hold the answer/end key. OR:
• Use the respective function in your phone.
■ Disconnecting the headset from the phone
You can disconnect the headset from your phone when, for example, you
want to use another Bluetooth device with your phone.
The headset can be disconnected in the following ways:
• Switch off the headset. OR:
• Disconnect the headset in the Bluetooth menu of your phone. OR:
• Move the headset more than 10 meters away from the phone.
The headset is also disconnected if its battery becomes flat.
Note that you do not need to delete the pairing with the headset to
disconnect it. When you reconnect a paired headset, you will not be asked
for its passcode.
English
15
Using the headset
Reconnecting the paired headset to your phone
See Connecting the paired headset to your phone on page 12.
■ Using the headset with several phones
Before the headset can be used with your phone, the phone has to be
paired with the headset. The headset can be paired with up to 8 phones
but connected to only one phone at a time.
Using the headset with several paired phones
The phone that was first paired with the headset is called the "default
phone". The phone that was last used with the headset is called the "last
used phone".
If the headset is switched on within 10 metres of several paired phones,
the headset will try to connect to the "default phone" within a few
seconds.
If the headset cannot connect to the "default phone" (because, for
example, it is switched off or its user rejects the connection), the headset
tries to connect to the "last used phone" within a few seconds.
If the headset cannot connect to either of the phones, it remains
discoverable for other phones.
If you want to use the headset with a paired phone that is not a "default
phone" or "last used phone", make the connection in the Bluetooth menu
of your phone.
16
Using the headset
■ Resetting the headset
You can reset the headset to the original settings to, for example, change
the default user of the headset.
When you reset the headset, all of its settings, including pairing
information, are cleared.
To reset the headset: Press and hold the power key together with the
volume up key for 10 seconds. After the headset has been reset, the
headset beeps twice and the red and green indicator lights alternate for
several seconds.
English
17
Battery information
4. Battery information
Your headset is powered by a rechargeable battery. Take good care of the
battery and follow the guidelines below.
Charging and discharging
• The full performance of a new battery is achieved only after two or
three complete charge and discharge cycles.
• The battery can be charged and discharged hundreds of times but it
will eventually wear out.
• Use only Nokia approved batteries, and recharge your battery only
with Nokia approved chargers designated for this device. Unplug the
charger from the electrical plug and the device when not in use. Do
not leave the battery connected to a charger. Overcharging may
shorten its lifetime. If left unused, a fully charged battery will lose its
charge over time.
• Temperature extremes can affect the ability of your battery to charge.
• To prolong battery life of NiMh batteries, discharge the battery from
time to time by leaving your headset switched on until it turns itself
off. Do not attempt to discharge the battery by any other means.
• Use the battery only for its intended purpose. Never use any charger or
battery that is damaged.
• Leaving the headset in hot or cold places, such as in a closed car in
summer or winter conditions, will reduce the capacity and lifetime of
18
Battery information
the battery. Always try to keep the battery between 15°C and 25°C
(59°F and 77°F). A headset with a hot or cold battery may not work
temporarily, even when the battery is fully charged. Battery
performance is particularly limited in temperatures well below
freezing.
Warning: Use only approved batteries. Non-approved batteries
may explode. Do not dispose of batteries in a fire! Dispose of
batteries according to local regulations. Please recycle when
possible. Do not dispose as household waste.
English
19
Care and maintenance
Care and maintenance
Your headset is a product of superior design and craftsmanship and should be
treated with care. The suggestions below will help you protect your warranty
coverage.
• Keep all accessories and enhancements out of the reach of small children.
• Keep the headset dry. Precipitation, humidity and all types of liquids or
moisture can contain minerals that will corrode electronic circuits. If your
device does get wet, remove the battery and allow the device to dry completely
before replacing it.
• Do not use or store the headset in dusty, dirty areas. Its moving parts and
electronic components can be damaged.
• Do not store the headset in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
• Do not store the headset in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic
circuit boards.
• Do not attempt to open the headset other than as instructed in this guide.
• Do not drop, knock, or shake the headset. Rough handling can break internal
circuit boards and fine mechanics.
• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
headset.
• Do not paint the headset. Paint can clog the moving parts and prevent proper
operation.
If the headset is not working properly, take it to the nearest authorized service
facility for service.
20
用户手册
第 1 版
声明
我们诺基亚公司郑重声明产品 HDW-3 符合以下指令：1999/5/EC。
此声明的全文可经由
http://www.nokia.com/phones/declaration_of_conformity/ 找到。
版权所有 © 2004 诺基亚。保留所有权利。
在未经诺基亚事先书面许可的情况下，严禁以任何形式复制、传递、分
发和存储本文档中的任何内容。
诺基亚和 Nokia 是诺基亚公司的注册商标。在本文档中提及的其他产品或
公司的名称可能是其各自所有者的商标或商名。
Bluetooth 是 Bluetooth SIG, Inc. 的注册商标。
诺基亚遵循持续发展的策略。因此，诺基亚保留在不预先通知的情况
下，对本文档中描述的任何产品进行修改和改进的权利。
在任何情况下，诺基亚均不对任何数据或收入方面的损失，或任何特
殊、偶然、附带或间接损失承担责任，无论该损失由何种原因引起。
本文档的内容按“现状”提供。除非适用的法律另有规定，否则不对本
文档的准确性、可靠性和内容做出任何类型的、明确或默许的保证，其
中包括但不限于对适销性和对具体用途的适用性的保证。诺基亚保留在
不预先通知的情况下随时修订或收回本文档的权利。
产品的供货情况可能因地区而异。请向邻近的诺基亚指定经销商查询。
第 1 版
目录
目录
1. 简介 ................................. 4
蓝牙无线技术................................ 4
充电器和电池................................ 5
销售包装附带的蓝牙密码卡........ 5
2. 使用入门.......................... 6
概述................................................ 6
为电池充电.................................... 7
电池电量不足时......................... 8
启动或关闭无线耳机.................... 8
初次使用无线耳机........................ 8
调整耳机以使佩带更为舒适........ 9
佩带无线耳机.............................. 11
疑难解答...................................... 11
3. 使用无线耳机................. 12
将配对耳机连接至手机.............. 12
拨打电话...................................... 13
声控拨号...................................... 13
重拨最近拨打过的电话号码...... 13
接听来电...................................... 14
挂断电话...................................... 14
拒绝接听来电.............................. 14
自动接听...................................... 14
调节听筒音量.............................. 14
在手机和无线耳机间切换通话.. 15
断开无线耳机与手机的连接...... 15
将配对耳机重新连接至手机... 16
将无线耳机与多部手机一起
使用.............................................. 16
将无线耳机与多部配对手机
一起使用................................... 16
恢复无线耳机的原始设置.......... 17
4. 电池信息 ........................ 18
维护和保养........................ 20
简体中文
3
简介
1. 简介
无线耳机 HDW-3 可与支持蓝牙无线技术的兼容手机建立蓝牙无
线连接。这样，无论是外出旅行，还是在办公室内，您都可以更
加自由地拨打和接听电话。
使用无线耳机 HDW-3 前，请仔细阅读本《用户手册》。手机的
《用户手册》提供了更加详细的信息，其中包括重要的安全信息
以及维护和保养的信息，因此请勿以此手册取代手机的《用户手
册》。
■ 蓝牙无线技术
因为蓝牙设备是通过无线电波进行通信的，所以您的蓝牙手机和
耳机不需要保持相互正对。您只需要保证建立蓝牙无线连接的两
台设备间的最大距离不超过十米。但是，蓝牙无线连接也可能因
为一些障碍物 (如墙壁) 或其他电子设备而受到干扰。
无线耳机 HDW-3 是专为支持蓝牙无线技术的诺基亚手机设计
的。但是，此款耳机也可以与其他支持蓝牙免提模式或耳机模式
的兼容蓝牙设备配合使用。(此处，“模式”特指手机用以控制耳
机的一组蓝牙命令)。
只有与兼容的诺基亚手机配合使用才能充分发挥耳机的各项性
能。如果您将此款耳机与其他制造商生产的手机配合使用，则可
能无法使用本手册中介绍的全部功能。
在某些国家或地区内，使用蓝牙设备可能会受到一些限制。请向
当地主管部门咨询。
4
Loading...
