Page 1
Alcatel-Lucent 7368
INTELLIGENT SERVICES ACCESS MANAGER ONT
G-240W-A PRODUCT GUIDE
Alcatel-Lucen t Pr opr ietary This document contains proprietary information of Alcatel-Lucent and is not to be disclosed or used except in accordance with applicable agreements. Copyright 2015 © Alcatel-Lucent. All rights reserved.
G-240W-A PRODUCT GUIDE
Page 2
Alcatel-Lucent assumes no responsibility for the accuracy of the information presented, which is
subject to change without notice.
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners.
Copyright 2015 Alcatel-Lucent. All rights reserved.
Disclaimers
Alcatel-Lucent products are intended for commercial uses. Without the appropriate network design engineering, they must not be sold, licensed or otherwise distributed for use in any hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life-support machines, or weapons systems, in which the failure of products could lead directly to death, personal injury, or severe physical or environmental damage. The customer hereby agrees that the use, sale, license or other distribution of the products for any such application without the prior written consent of Alcatel-Lucent, shall be at the customer's sole risk. The customer hereby agrees to defend and hold Alcatel-Lucent harmless from any claims for loss, cost, damage, expense or liability that may arise out of or in connection with the use, sale, license or other distribution of the products in such applications.
This document may contain information regarding the use and installation of non-Alcatel-Lucent products. Please note that this information is provided as a courtesy to assist you. While Alcatel-Lucent tries to ensure that this information accurately reflects information provided by the supplier, please refer to the materials provided with any non-Alcatel-Lucent product and contact the supplier for confirmation. Alcatel-Lucent assumes no responsibility or liability for incorrect or incomplete information provided about non-Alcatel-Lucent products.
However, this does not constitute a representation or warranty. The warranties provided for Alcatel-Lucent products, if any, are set forth in contractual documentation entered into by Alcatel-Lucent and its customers.
This document was originally written in English. If there is any conflict or inconsistency between the English version and any other version of a document, the English version shall prevail.
When printed by Alcatel-L ucent, this document is printed on recycled paper.
Page 3

Preface

Scope

Audience

Required knowledge

This preface provides general information about the documentation set for optical network terminals (ONTs).
This documentation set provides information about safety, features and functionality, ordering, hardware installation and maintenance, and software installation procedures for the current release.
This documentation set is intended for planners, administrators, operators, and maintenance personnel involved in installing, upgrading, or maintaining the ONTs.
The reader must be familiar with general telecommunications principles.

Acronyms and initialisms

The expansions and optional descriptions of most acronyms and initialisms appear in the glossary.
Alcatel-Lucent 7368 ISAM ONT iii Edition 02 G-240W-A Product Guide
Page 4
Preface

Assistance and ordering phone numbers

Alcatel-Lucent provides global technical support through regional call centers. Phone numbers for the regional call centers are available at the following URL: http://www.alcatel-lucent.com/myaccess
.
For ordering information, contact your Alcatel-Lucent sales representative.

Alcatel-Lucent quality processes

Alcatel-Lucent’s ONT manufacturing, testing, and inspecting practices are in compliance with GR-1252-CORE and TL 9000 requirements. These requirements are documented in the Operations Quality Plan 8BD-00023-4204-QRZZA, the Alcatel North American Quality Manual 8BD-00001-0000-QRZZA, and the Wireline Network Quality Manual 8AB-83179-0001-QRAAA.
The quality plans and practices adequately ensure that technical requirements and customer end-point requirements are met. The customer or its representatives may be allowed to perform on-site quality surveillance audits, as agreed upon during contract negotiations.

Safety information

For safety information, see the appropriate safety guidelines chapter.

Documents

Documents are available using ALED or OLCS.

Procedure 1 To download a ZIP file package of the customer documentation

1 Navigate to http://www.alcatel-lucent.com/myaccess and enter your user name
and password. If you are a new user and require access to this service, please contact your Alcatel-Lucent sa les representative.
2 From the Technical Content for drop-down me nu, choose the product. 3 Click on Downloads: Electronic Delivery. 4 Choose Documentation from the dr op-down menu and click Next. 5 Select the image from the drop-down menu and click Next. 6 Follow the on-screen directions to download the file.
iv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 5
Preface

Procedure 2 To access individual documents

Individual PDFs of customer documents are also accessible through the Alcatel-Lucent Customer Support website.
1 Navigate to http://www.alcatel-lucent.com/myaccess
and password. If you are a new user and require access to this service, please contact your Alcatel-Lucent sa les representative.
2 From the Technical Content for drop-down me nu, choose the product. 3 Click on Manuals and Guides to display a list of customer documents by title and
part number. You can filter this list using the Release drop-down menu.
4 Click on the PDF to open or save the file.
and enter your user name

Special information

The following are examples of how special information is presented in this document.
Danger — Danger indicates that the described activity or situation
may result in serious personal injury or death; for example, high voltage or electric shock hazards.
Warning — Warning indicates that the described activity or situation
may, or will, cause equipment damage or serious performance problems.
Caution — Caution indicates that the described activity or situation
may, or will, cause service interruption.
Note — A note provides information that is, or may be, of special
interest.

Procedures with options or substeps

When there are options in a procedure, they are identified by letters. When there are required substeps in a procedure, they are identified by roman numerals.
Alcatel-Lucent 7368 ISAM ONT v Edition 02 G-240W-A Product Guide
Page 6
Preface

Procedure 3 Example of options in a procedure

At step 1, you can choose option a or b. At step 2, you must do what the step indicates.
1 This step offers two optio n s . You must choose one of the following:
a This is one option. b This is another option.
2 You must perform this step.

Procedure 4 Example of required substeps in a procedure

At step 1, you must perform a series of substeps within a step. At step 2, you must do what the step indicates.
1 This step has a series of substeps that you must perform to complete the step. You
must perform the following substeps:
i This is the first substep. ii This is the second substep. iii This is the third substep.
2 You must perform this step.

Multiple PDF document search

You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a common term. Adobe Reader displays the results in a single display panel. The results are grouped by PDF file, and you can expand the entry for each file.
Note — The PDF files in which you search must be in the same
folder.

Procedure 5 To search multiple PDF files for a common term

1 Open Adobe Acrobat Reader. 2 Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel
appears.
3 Enter the searc h cr iteria.
vi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 7
4 Click on the All PDF Documents In radio button.
5 Select the folder in which to search using the drop-down menu. 6 Click on the Search button.
Acrobat Reader displays the search results. You can expand the entries for each document by clicking on the + symbol.
Preface
Alcatel-Lucent 7368 ISAM ONT vii Edition 02 G-240W-A Product Guide
Page 8
Preface
viii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 9

ETSI ONT safety guidelines

This chapter provides information about the mandatory regulations that govern the installation and operation of the optical network terminals (ONTs).

Safety instructions

This section describes the safety instructions that are provided in the ONT customer documentation and on the equipment.

Safety instruction boxes

The safety instruction boxes are provided in the ONT customer documentation. Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
Danger — Possibility of personal injury.
The Danger box indicates that the described activity or situation may pose a threat to personal safety. It calls attention to a situation or procedure which, if not correctly performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully understood and met.
The following is an example of the Warning box.
Warning 1 — Possibility of equipment damage. Warning 2 — Possibility of data loss.
Alcatel-Lucent 7368 ISAM ONT ix Edition 02 G-240W-A Product Guide
Page 10
ETSI ONT safety guidelines
The Warning box indicates that the described activity or situation may, or will, cause equipment damage, loss of data, or serious performance problems. It identifies a possible equipment-damaging situation or provides essential information to avoid the degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood and met.
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood and met.
The following is an example of the Note box.
Caution 1 — Possibility of service interruption. Caution 2 — Service interruption.
Note — Information of special interest.
The Note box provides information that assists the personnel working with ONTs. It does not provide safety-related instructions.

Safety-related labels

The ONT equipment is labeled with the specific safety instructions and compliance information that is related to a variant of the ONT. Observe the instructions on the safety labels.
Table 1 provides sample safety labels on the ONT equipment.
Table 1 Safety labels
Description Label text
ESD warning Caution: This assembly contains an electrostatic sensitive device. Laser classification Class 1 laser product PSE marking These power supplies are Japan PSE certified and compliant with
Figure 1 shows the PSE certification.
Japan VCCI emissions standards.
x Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 11
ETSI ONT safety guidelines
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.
Warning
19841
Figure 1 PSE certification

Safety standards compliance

This section describes the ONT compliance with the European safety standards.

EMC, EMI, and ESD compliance

The ONT equipment complies with the following EMC, EMI, and ESD requirements:
• EN 300-386 V1.5.1: Electromagnetic Compatibility and Radio Spectrum Matters
(ERM): Telecommunications Network Equipment; Electromagnetic Compatibility (EMC) requirements; Electrostatic Discharge (ESD) requirements
• EN 55022 (2006): Class B, Information Technology Equipment, Radio
Disturbance Characteristics, limits and methods of measurement
• EN 55024 (2010): Information Technology Equipment, Immunity
Characteristics, limits and methods of measurement
• European Council Directive 2004/108/EC
• EN 300-386 V1.4.1: 2008
• EN 55022:2006 Class B (ONTs)

Equipment safety standard complia nce

The ONT equipment complies with the requirements of EN 60950-1, Safety of Information Technology Equipment for use in a restricted location (per R-269).

Environmental standard compliance

The ONT equipment complies with the EN 300 019 European environmental standards.

Laser product standard compliance

For most ONTs, the ONT equipment complies with EN 60825-1 and IEC 60825-2
Alcatel-Lucent 7368 ISAM ONT xi Edition 02 G-240W-A Product Guide
for laser products. If there is an exception to this compliance regulation, you can find this information in the standards compliance section of the unit data sheet in this Product Guide.
Page 12
ETSI ONT safety guidelines

Resistibility requirements compliance

The ONT equipment complies with the requirements of ITU Recommendation K.21 for resistibility of telecommunication equipment installed in customer premises to over voltage and overcurrents.

Acoustic noise emission standard compliance

The ONT equipment complies with EN 300 753 acoustic noise emission limit and test methods.

Electrical safety guidelines

This section provides the electrical safety guidelines for the ONT equipment.
Note 1 — The ONTs comply with the U.S. National Electrical Code.
However, local electrical authorities have jurisdiction when there are differences between the local and U.S. standards.
Note 2 — The ONTs comply with BS EN 61140.

Power supplies

The use of any non-Alcatel-Lucent approved power supplies or power adapters is not supported or endorsed by Alcatel-Lucent. Such use will void any warranty or support contract with Alcatel-Lucent. Such use greatly increases the danger of damage to equipment or property.

Cabling

The following are the guidelines regarding cables used for the ONT equipment:
• All cables must be approved by the relevant national electrical code.
• The cables for outdoor installation of ONTs must be suitable for outdoor use.
• POTS wiring run outside the subscriber premises must comply with the
requirements of local electrical codes. In some markets, the maximum allowed length of the outside run is 140 feet (43 m). If the outside run is longer, NEC requires primary protection at both the exit and entry points for the wire.

Protective eart h

Earthing and bonding of the ONTs must comply with the requirements of local electrical codes.
xii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 13
ETSI ONT safety guidelines

ESD safety guidelines

The ONT equipment is sensitive to ESD. Operations personnel must observe the following ESD instructions when they handle the ONT equipment.
Caution — This equipment is ESD sensitive. Proper ESD protections
should be used when you enter the TELCO Access portion of the ONT.
During installation and maintenance, service personnel must wear wrist straps to prevent damage caused by ESD.

Laser safety guidelines

Observe the following instructions when you perform installation, operations, and maintenance tasks on the ONT equipment.
Only qualified service personnel who are extremely familiar with laser radiation hazards should install or remove the fiber optic cables and units in this system.
Danger — There may be invisible laser radiation at the fiber optic
cable when the cable is removed from the connector. Avoid direct exposure to the laser beam.
Observe the following danger for laser hazard. Eyes can be damaged when they are exposed to a laser beam. Take necessary precautions before you plug in the optical modules.
Danger — Possibility of equipment damage. Risk of eye damage by
laser radiation.

Laser classification

The ONT is classified as a Class 1 laser product based on its transmit optical output.
Laser warning labels
The following figures show the labels related to laser product, classification and warning.
Figure 2 shows a laser product label.
Alcatel-Lucent 7368 ISAM ONT xiii Edition 02 G-240W-A Product Guide
Page 14
ETSI ONT safety guidelines
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
Figure 3 shows a laser classification label. Laser classification labels may be provided in other languages.
Figure 2 Laser product label
18455
Figure 3 Laser classification label
With the fiber connector exposed, remove the dust plug, clean the fiber ends and terminate the SC quipped fiber. Danger!. Exposure to invisible LASER radiation may cause serious retinal damager or even blindness. Verify the optical source is disabled through the use if an optical power meter before handling optical fibers. Danger!. L'exposition à un rayonnement laser invisible peut causer tout dommage matérial rétinenne grave ou même la cécité. Vérifiez la source optique est désactivée par l'utilisation d'un compteur de puissance optique avant de manupuler des fibres optique.
Figure 4 Labels and warning may be provided in other languages. The explanatory label provides the following information:
a warning that calls attention to the invisible laser radiation
•
an instruction against staring into the beam or viewing directly with optical
•
instruments wavelength
•
normal output power
•
maximum output power
•
shows a laser warning label and an explanatory label for laser products.
xiv Alcatel-Lucent 7368 ISAM ONT
G-240W-A Product Guide
Edition 02
Page 15
Figure 4 Laser warning labels
INVISIBLE LASER RADIATION DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Wavelength(s): xxxx nm Normal output power: xx m W Max output power: yyy m W
Laser Warning Label
Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1 RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
ETSI ONT safety guidelines

Transmit optical outp ut

The maximum transmit optical output of an ONT is +5 dBm.

Normal laser operation

In normal operation, fiber cable laser radiation is always off until it receives signal from the line terminal card.
Eyes can be damaged when they exposed to a laser beam. Operating personnel must observe the instructions on the laser explanatory label before plugging in the optical module.
Danger — Risk of eye damage by laser radiation.

Location class

Alcatel-Lucent 7368 ISAM ONT xv Edition 02 G-240W-A Product Guide
Use cable supports and guides to protect the receptacles from strain.
Page 16
ETSI ONT safety guidelines

Environmental requirements

See the ONT technical specification documentation for more information about temperature ranges.
During operation in the supported temperature range, condensation inside the ONT caused by humidity is not an issue. To avoid condensation caused by rapid changes in temperature and humidity, Alcatel-Lucent recommends:
• The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
• If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of condensation.
• When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
xvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 17

ETSI environmental and CRoHS guidelines

This chapter provides information about the ETSI environmental China Restriction of Hazardous Substances (CRoHS) regulations that govern the installation and operation of the optical line termination (OLT) and optical network termination (ONT) systems. This chapter also includes environmental operation parameters of general interest.

Environmental labels

This section describes the environmental instructions that are provided with the customer documentation, equipment, and location where the equipment resides.

Overview

CRoHS is applicable to Electronic Information Products (EIP) manufactured or sold and imported in the territory of the mainland of the People’s Republic of China. EIP refers to products and their accessories manufactured by using electronic information technology, including electronic communications products and such subcomponents as batteries and cables.

Environmenta l related labels

Environmental labels are located on appropriate equipment. The following are sample labels.
Alcatel-Lucent 7368 ISAM ONT xvii Edition 02 G-240W-A Product Guide
Page 18
ETSI environmental and CRoHS guidelines
18986
Products below Maximum Concentration Value (MCV) label
Figure 1 shows the label that indicates a product is below the maximum concentration value, as defined by standard SJ/T11363-2006 (Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products). Products with this label are recyclable. The label may be found in this documentation or on the product.
Figure 1 Product s below MCV value label
Products containing hazardous substances above Maximum Concentration Value (MCV) label
Figure 2 shows the label that indicates a product is above the maximum concentration value, as defined by standard SJ/T11363-2006 (Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products). The number contained inside the label indicates the Environment-Friendly User Period (EFUP) value. The label may be found in this documentation or on the product.
xviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 19
ETSI environmental and CRoHS guidelines
18985
Figure 2 Products above MCV value label
Together with major international telecommunications equipment companies, Alcatel-Lucent has determined it is appropriate to use an EFUP of 50 years for network infrastructure equipment and an EFUP of 20 years for handsets and accessories. These values are based on manufacturers' extensive practical experience of the design, manufacturing, maintenance, usage conditions, operating environments, and physical condition of infrastructure and handsets after years of service. The values reflect minimum values and refer to products operated according to the intended use conditions. See “Hazardous Substances Table (HST)” for more information.

Hazardous Substances Table (HST)

This section describes the compliance of the OLT and ONT equipment to the CRoHS standard when the product and subassemblies contain hazardous substances beyond the MCV value. This information is found in this user documentation where part numbers for the product and subassemblies are listed. It may be referenced in other OLT and ONT documentation.
In accordance with the People’s Republic of China Electronic Industry Standard Marking for the Control of Pollution Caused by Electronic Information Products (SJ/T11364-2006), customers may access the Alcatel-Lucent Hazardous Substance Table, in Chinese, from the following location:
• http://www.alcatel-sbell.com.cn/wwwroot/images/upload/private/1/media/ChinaR
oHS.pdf

Other environmental requirements

Observe the following environmental requirements when handling the P-OLT or ONT equipment.
Alcatel-Lucent 7368 ISAM ONT xix Edition 02 G-240W-A Product Guide
Page 20
ETSI environmental and CRoHS guidelines

ONT environmental requirements

See the ONT technical specification documentation for more information about temperature ranges.

Storage

According to ETS 300-019-1-1 - Class 1.1, storage of OLT equipment must be in Class 1.1, weather-protected, temperature-controlled locations.

Transportation

According to EN 300-019-1-2 - Class 2.3, transportation of the OLT equipment must be in packed, public transportation with no rain on packing allowed.

Stationary use

According to EN 300-019-1-3 - Class 3.1/3.2/3.E, stationary use of OLT equipment must be in a temperature-controlled location, with no rain allowed, and with no condensation allowed.

Thermal limitations

When the OLT is installed in the CO or CEV, install air filters on the P-OLT. The thermal limitations for OLT operation in a CO or CEV are:
• operating temperature: 5°C to 40°C (41°F to 104°F)
• short-term temperature: –5°C to 50°C (23°F to 122°F)
• operating relative humidity: 5% to 85%
• short-term relative humidity: 5% to 95%, but not to exceed 0.024 kg of water/kg

Material content compliance

European Union (EU) Directive 2002/95/EC, “Restriction of the use of certain Hazardous Substances” (RoHS), restricts the use of lead, mercury, cadmium, hexavalent chromium, and certain flame retardants in electrical and electronic equipment. This Directive applies to electrical and electronic products placed on the EU market after 1 July 2006, with various exemptions, including an exemption for lead solder in network infrastructure equipment. Alcatel-Lucent products shipped to the EU after 1 July 2006 comply with the EU RoHS Directive.
Alcatel-Lucent has implemented a material/substance content management process. The process is described in: Alcatel-Lucent process for ensuring RoHS Compliance (1AA002660031ASZZA). This ensures compliance with the European Union Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS2). With the process equipment is assessed in accordance with the Harmonised Standard EN50581:2012 (CENELEC) on Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances.
xx Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 21
ETSI environmental and CRoHS guidelines

End-of-life collecti on and treatment

Electronic products bearing or referencing the symbol shown in Figure 3, when put on the market within the European Union (EU), shall be collected and treated at the end of their useful life, in compliance with applicable EU and local legislation. They shall not be disposed of as part of unsorted municipal waste. Due to materials that may be contained in the product, such as heavy metals or batteries, the environment and human health may be negatively impacted as a result of inappropriate disposal.
Note — In the European Union, a solid bar under the symbol for a
crossed-out wheeled bin indicates that the product was put on the market after 13 August 2005.
Figure 3 Recycling/take back/disposal of product symbol
At the end of their life, the OLT and ONT products are subject to the applicable local legislations that implement the European Directive 2012/19EU on waste electrical and electronic equipment (WEEE).
There can be different requirements for collection and treatment in different member states of the European Union.
In compliance with legal requirements and contractual agreements, where applicable, Alcatel-Lucent will offer to provide for the collection and treatment of Alcatel-Lucent products bearing the logo shown in Figure 3 at the end of their useful life, or products displaced by Alcatel-Lucent equipment offers. For information regarding take-back of equipment by Alcatel-Lucent, or for more information regarding the requirements for recycling/disposal of product, contact your Alcatel-Lucent account manager or Alcatel-Lucent take back support at takeback@alcatel-lucent.com.
Alcatel-Lucent 7368 ISAM ONT xxi Edition 02 G-240W-A Product Guide
Page 22
ETSI environmental and CRoHS guidelines
xxii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 23

ANSI ONT safety guidelines

This chapter provides information about the mandatory regulations that govern the installation and operation of the optical network terminals or units (ONTs or ONUs) in the North American or ANSI market.

Safety instructions

This section describes the safety instructions that are provided in the ONT customer documentation and on the equipment.

Safety instruction boxes in customer documentation

The safety instruction boxes are provided in the ONT customer documentation. Observe the instructions to meet safety requirements.
The following is an example of the Danger box.
Danger — Possibility of personal injury.
The Danger box indicates that the described activity or situation may pose a threat to personal safety. It calls attention to a situation or procedure which, if not correctly performed or adhered to, may result in death or serious physical harm.
Do not proceed beyond a Danger box until the indicated conditions are fully understood and met.
Alcatel-Lucent 7368 ISAM ONT xxiii Edition 02 G-240W-A Product Guide
Page 24
ANSI ONT safety guidelines
The following is an example of the Warning box.
The Warning box indicates that the described activity or situation may, or will, cause equipment damage, loss of data, or serious performance problems. It identifies a possible equipment-damaging situation or provides essential information to avoid the degradation of system operations or data.
Do not proceed beyond a warning until the indicated conditions are fully understood and met.
The following is an example of the Caution box.
The Caution box indicates that the described activity or situation may, or will, cause service interruption.
Warning 1 — Possibility of equipment damage. Warning 2 — Possibility of data loss.
Caution 1 — Possibility of service interruption. Caution 2 — Service interruption.
Do not proceed beyond a caution until the indicated conditions are fully understood and met.
The following is an example of the Note box.
Note — Information of special interest.
The Note box provides information that assists the personnel working with ONTs. It does not provide safety-related instructions.

Safety-related labels

The ONT equipment is labeled with specific safety compliance information and instructions that are related to a variant of the ONT. Observe the instructions on the safety labels.
Table 1 provides examples of the text in the various ONT safety labels.
Table 1 Safety labels
Description Label text
UL compliance Communication service equipment US listed. Type 3 R enclosure -
TUV compliance Type 3R enclosure - Rainproof. ESD warning Caution: This assembly contains electrostatic sensitive device.
Rainproof.
(1 of 2)
xxiv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 25
ANSI ONT safety guidelines
18533
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la class A est conforme a la norme NMB-003 du Canada
Tested to Comply with FCC Standards
FOR HOME OR OFFICE USE
COMMUNICATION SERVICE EQUIPMENT US LISTED 27FY Type 3R Enclosure - Rainproof
CAUTION
This Assembly Contains Electrostatic Sensitive Devices
c
®
Description Label text
Laser classification Class 1 laser product Laser product compliance This laser product conforms to all applicable standards of 21 CFR
FCC standards compliance Tested to comply with FCC standards for home or office use. CDRH compliance Complies with 21 CFR 1040.10 and 1040.11 except for deviations
Operation conditions This device complies with Part 15 of the FCC Rules. Operation is
Canadian standard compliance (modular ONT)
Canadian standard compliance (outdoor ONT)
CE marking There are various CE symbols for CE compliance.
(2 of 2)
1040.10 at date of manufacture.
pursuant to Laser Notice No. 50, dated June 24, 2007
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class A digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus complies with Canadian ICES-003.
Figure 1 shows a sample safety label on the ONT equipment.
Figure 1 Sample safety label on the ONT equipment

Safety standards compliance

Alcatel-Lucent 7368 ISAM ONT xxv Edition 02 G-240W-A Product Guide
This section describes the ONT compliance with North American safety standards.
Warning — Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 26
ANSI ONT safety guidelines

EMC, EMI, and ESD standards compliance

The ONT equipment complies with the following requirements:
• Federal Communications Commission (FCC) CFR 47, Part 15, Subpart B, Class
A requirements for OLT equipment
• GR-1089-CORE requirements, including:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Section 3 Electromagnetic Interference, Emissions Radiated and Conducted
• Section 3 Immunity, Radiated and Conducted
• Section 2 ESD Discharge Immunity: System Level Electrostatic Discharge and EFT
Immunity: Electrically Fast Transients
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.

Equipment safety standard complia nce

The ONT equipment complies with the requirements of UL60950-1, Outdoor ONTs to “Communication Service Equipment” (CSE) and Indoor ONTs to Information Technology Equipment (ITE).

Environmental standards compliance

The ONT equipment complies with the following standards:
• GR-63-CORE (NEBS): requirements related to operating, storage, humidity,
altitude, earthquake, office vibration, transportation and handling, fire resistance and spread, airborne contaminants, illumination, and acoustic noise
• GR-487-CORE: requirements related to rain, chemical, sand, and dust
• GR-487 R3-82: requirements related to condensation
• GR-3108: Requirements for Network Equipment in the Outside Plant (OSP)
• TP76200: Common Systems Equipment Interconnections Standards
xxvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 27
ANSI ONT safety guidelines
FiOS Enabled
To Order FiOS: 888 GET-FiOS
or visit Verizon.com For Service: 888 553-1555
2301 Sugar Bush Rd. Raleigh, NC 27612
No User Serviceable Parts Inside. Refer All Servicing To Qualified Personnel.
Complies with 21 CFR 1040.10 and
1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
4P92
I.T.E
12VDC 2.5A
22813

Laser product standards compliance

The ONT equipment complies with 21 CFR 1040.10 and CFR 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007” or to 21 CFR
1040.10 U.S. Center for Devices and Radiological Health (CDRH) of the Food and Drug Administration (FDA) Laser Notice 42 for ONTs containing Class 1 Laser modules certified by original manufactures.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such as ALU ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.”
Figure 2 shows a laser product label.
Figure 2 Sample laser product label showing CDRH 21 CFR compliance

Resistibility requirements compliance

The ONT equipment complies with the requirements of ITU Recommendation K.21 for resistibility of telecommunication equipment installed in customer premises to overvoltage and overcurrents.

Laser safety guidelines

Only qualified service personnel who are extremely familiar with laser radiation hazards should install or remove the fiber optic cables and units in this system.
Observe the following warnings when you perform installation, operations, and maintenance tasks on the ONT equipment.
Danger — There may be invisible laser radiation at the fiber optic
cable when the cable is removed from the connector. Avoid direct exposure to beam.
Alcatel-Lucent 7368 ISAM ONT xxvii Edition 02 G-240W-A Product Guide
Page 28
ANSI ONT safety guidelines
18455
LASER CLASSE 1CLASE 1 DEL LASER
CLASS 1 LASER PRODUCT PRODUCTO LASER CLASE 1
18992
'
'
Observe the following danger for a laser hazard. Eyes can be damaged when they are exposed to a laser beam. Take necessary precautions before you plug in the optical modules.
Per CDRH 21 CFR 10.40.10 (h) (1) (iv) distributors of Class 1 laser products, such as ALU ONTs shall leave the following Laser Safety cautions with the end user.
a) “Class 1 Laser Product”
b) “Caution – Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.”

Laser warning labels

The following figures show sample labels related to laser product, classification and warning.
Figure 3 shows a laser product label.
Danger — Possibility of equipment damage. Risk of eye damage by
laser radiation.
Figure 3 Laser product label
Figure 4 shows a laser classification label. Laser classification labels may be provided in other languages.
Figure 4 Laser classification label
xxviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 29
ANSI ONT safety guidelines
INVISIBLE LASER RADIATION DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Wavelength(s): xxxx nm Normal output power: xx m W Max output power: yyy m W
Laser Warning Label
Laser Warning Label
CLASS 1 LASER PRODUCT
INVISIBLE LASER RADIATION PRESENT AT FIBER OPTIC CABLE WHEN NOT CONNECTED. AVOID DIRECT EXPOSURE TO BEAM.
RAYONNEMENT LASER CLASSE 1 RAYONNEMENT LASER INVISIBLE
EVITER TOUTE EXPOSITION AU FAISCEAU
NE PAS DEMONTER. FAIRE APPEL A UN PERSONNELL QUALIFIE
CLASE 1 DEL LASER
RADIACION DE LASER INVISIBLE. EVITAR CUALOUIER EXPOSICION AL
RAYO LASER. NO DESMONTAR. LLAMAR A PERSONAL AUTORIZADO
Laser Warning Label
18993
'
Figure 5 shows a laser warning label and an explanatory label for laser products. Explanatory labels may be provided in other languages. The explanatory label provides the following information:
• a warning that calls attention to the invisible laser radiation
• an instruction against staring into the beam or viewing directly with optical
instruments
• wavelength
• normal output power
• maximum output power
Figure 5 Laser warning labels

Laser classification

The ONT is classified as a Class 1 laser product based on its transmit optical output.
For Class 1 laser products, lasers are safe under reasonably foreseeable conditions of operation, including the use of optical instruments for intrabeam viewing.
Alcatel-Lucent 7368 ISAM ONT xxix Edition 02 G-240W-A Product Guide
Figure 6 shows a sample laser product safety label on the ONT equipment.
Page 30
ANSI ONT safety guidelines
CLASS 1 LASER PRODUCT
THIS LASER PRODUCT CONFORMS TO ALL APPLICABLE
STANDARDS OF 21 CFR 1040.10 AT DATE OF MANUFACTURE.
MANUFACTURED:
MONTH YEAR
18532

Transmit optical outp ut

The maximum transmit optical output of an ONT is +5 dBm.

Normal laser operation

In normal operation, fiber cable laser radiation is always off until it receives signal from the line terminal card.
Figure 6 Sample laser product safety label on the ONT equipment
Operating personnel must observe the instructions on the laser explanatory label before plugging in the optical module.
Danger — Risk of eye damage by laser radiation.

Location class

Use cable supports and guides to protect the receptacles from strain.

Electrical safety guidelines

This section provides the electrical safety guidelines for the ONT equipment.
Note — The ONTs comply with the U.S. National Electrical Code.
However, local electrical authorities have jurisdiction when there are differences between the local and U.S. standards.

Power supplies

The use of any non-Alcatel-Lucent approved power supplies or power adapters is not supported or endorsed by Alcatel-Lucent. Such use will void any warranty or support contract with Alcatel-Lucent. Such use greatly increases the danger of damage to equipment or property.
xxx A lcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 31
ANSI ONT safety guidelines

Cabling

The following are the guidelines regarding cables used for the ONT equipment:
• Use only cables approved by the relevant national electrical code.
• Use cables suitable for outdoor use for outdoor installation of ONTs.
• The ONTs have been evaluated for use with external POTS wiring without
primary protection that may not exceed 140 ft (43 m) in reach. However, the power cable must not exceed 100 ft (31 m).

Protective eart h

Earthing and bonding of the ONTs must comply with the requirements of NEC article 250 or local electrical codes.

ESD safety guidelines

The ONT equipment is sensitive to ESD. Operations personnel must observe the following ESD instructions when they handle the ONT equipment.
Caution — This equipment is ESD sensitive. Proper ESD protections
should be used when entering the TELCO Access portion of the ONT.
During installation and maintenance, service personnel must wear wrist straps to prevent damage caused by ESD.
Alcatel-Lucent recommends that you prepare the site before you install the ONT equipment. In addition, you must control relative humidity, use static dissipating material for furniture or flooring, and restrict the use of air conditioning.

Environmental requirements

See the ONT technical specification documentation for temperature ranges for ONTs.
During operation in the supported temperature range, condensation inside the ONT caused by humidity is not an issue. To avoid condensation caused by rapid changes in temperature and humidity, Alcatel-Lucent recommends:
• The door of the ONT not be opened until temperature inside and outside the
enclosure has stabilized.
• If the door of the ONT must be opened after a rapid change in temperature or
humidity, use a dry cloth to wipe down the metal interior to prevent the risk of condensation.
• When high humidity is present, installation of a cover or tent over the ONT helps
prevent condensation when the door is opened.
Alcatel-Lucent 7368 ISAM ONT xxxi Edition 02 G-240W-A Product Guide
Page 32
ANSI ONT safety guidelines
xxxii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 33

Contents

Preface iii
Scope ...............................................................................................iii
Audience ...............................................................................................iii
Required knowledge...................................................................................iii
Acronyms and initialisms .............................................................................iii
Assistance and ordering phone numbers ...........................................................iv
Alcatel-Lucent quality processes....................................................................iv
Safety information.....................................................................................iv
Documents..............................................................................................iv
Procedure 1 To download a ZIP file package of the customer
documentation....................................................................iv
Procedure 2 To access individual documents......................................v
Special information.....................................................................................v
Procedures with options or substeps.................................................v
Procedure 3 Example of options in a procedure..................................vi
Procedure 4 Example of required substeps in a procedure.....................vi
Multiple PDF document search.......................................................................vi
Procedure 5 To search multiple PDF files for a common term.................vi
ETSI ONT safety guidelines ix
Safety instructions.....................................................................................ix
Safety instruction boxes ..............................................................ix
Safety-related labels ...................................................................x
Safety standards compliance.........................................................................xi
EMC, EMI, and ESD compliance.......................................................xi
Equipment safety standard compliance ............................................xi
Environmental standard compliance....................... .........................xi
Laser product standard compliance.................................................xi
Alcatel-Lucent 7368 ISAM ONT xxxiii Edition 02 G-240W-A Product Guide
Page 34
Contents
Resistibility re quirements compliance............................................. xii
Acoustic noise emission standard compliance.................................... xii
Electrical safety guidelines.......................................................................... xii
Power supplies.........................................................................xii
Cabling.................................................................................. xii
Protective earth.................................................................... ... xii
ESD safety guidelines................................................................................ xiii
Laser safety guidelines.............................................................................. xiii
Laser classification................................................................... xiii
Transmit optical output.............................................................. xv
Normal laser operation............................................................... xv
Location class.......................................................................... xv
Environmental requirements........................................................................xvi
ETSI environmental and CRoHS guidelines xvii
Environmental labels................................................................................xvii
Overview ..............................................................................xvii
Environmental related labels.......................................................xvii
Hazardous Substances Table (HST).................................................................xix
Other environmental requirements................................................................xix
ONT environmental requirements .................................................. xx
Storage.................................................................................. xx
Transportation......................................................................... xx
Stationary use ......................................................................... xx
Thermal limitations................................................................... xx
Material content compliance........................................................ xx
End-of-life collection and treatment ..............................................xxi
ANSI ONT safety guidelines xxiii
Safety instructions.................................................................................. xxiii
Safety instruction boxes in customer documentation.........................xxiii
Safety-related labels ............................................................... xxiv
Safety standards compliance....................................................................... xxv
EMC, EMI, and ESD standards compliance.............. ......................... xxvi
Equipment safety standard compliance ......................................... xxvi
Environmental standards compliance............................................ xxvi
Laser product standards compliance.............................................xxvii
Resistibility re quirements compliance...........................................xxvii
Laser safety guidelines.............................................................................xxvii
Laser warning labels...............................................................xxviii
Laser classification.................................................................. xxix
Transmit optical output.............................................................xxx
Normal laser operation..............................................................xxx
Location class.........................................................................xxx
xxxiv Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 35
Contents
Electrical safety guidelines.........................................................................xxx
Power supplies........................................................................xxx
Cabling................................................................................ xxxi
Protective earth..................................................................... xxxi
ESD safety guidelines............................................................................... xxxi
Environmental requirements...................................................................... xxxi
1 — G-240W-A unit data sheet 1-1
1.1 G-240W-A part numbers and identification......................................... 1-2
1.2 G-240W-A general description ........................................................ 1-3
TR-069 support for reading optical parameters................................. 1-5
TR-104 parameter extension support for voice service ........................ 1-5
Mobile offload support .............................................................. 1-5
1.3 G-240W-A software and installation feature support.............................. 1-5
1.4 G-240W-A interfaces and interface capacity ....................................... 1-6
G-240W-A connections and components.......................................... 1-6
1.5 G-240W-A LEDs ................................................................. ......... 1-8
1.6 G-240W-A detailed specifications ...................................................1-10
1.7 G-240W-A GEM ports and T-CONTs..................................................1-11
1.8 G-240W-A performance monitoring statistics......................................1-11
1.9 G-240W-A functional blocks..........................................................1-13
1.10 G-240W-A standards compliance ....................................................1-15
Energy-related products standby and off modes complia nce ................1-15
1.11 G-240W-A special considerations....................................................1-16
Wi-Fi service.........................................................................1-16
G-240W-A ONT considerations and limitations .................................1-16
2 — Install a G-240W-A indoor ONT 2-1
2.1 Purpose................................................................................... 2-2
2.2 General ................................................................................... 2-2
2.3 Prerequisites ............................................................................. 2-2
2.4 Recommended tools .................................................................... 2-2
2.5 Safety information...................................................................... 2-3
2.6 Procedure ................................................................................ 2-4
3 — Replace a G-240W-A indoor ONT 3-1
3.1 Purpose................................................................................... 3-2
3.2 General ................................................................................... 3-2
3.3 Prerequisites ............................................................................. 3-2
3.4 Recommended tools .................................................................... 3-2
3.5 Safety information...................................................................... 3-3
3.6 Procedure ................................................................................ 3-4
4 — Configure a G-240W-A indoor ONT 4-1
4.1 General ................................................................................... 4-2
4.2 HGU mode GUI configuration.......................................................... 4-2
Login ................................................................................... 4-2
Procedure 4-1 Login to web-based GUI.......................................... 4-2
Alcatel-Lucent 7368 ISAM ONT xxxv Edition 02 G-240W-A Product Guide
Page 36
Contents
Device and connection status...................................................... 4-3
Procedure 4-2 Device information retrieval..................................... 4-4
Procedure 4-3 LAN status retrieval............................................... 4-5
Procedure 4-4 WAN status retrieval.............................................. 4-6
Procedure 4-5 WAN status IPv6 retrieval........................................ 4-8
Procedure 4-6 Home networking information retrieval....................... 4-9
Procedure 4-7 Optics module status retrieval.................................4-10
Procedure 4-8 Voice information retrieval.....................................4-11
Network configuration..............................................................4-12
Procedure 4-9 LAN networking configuration..................................4-12
Procedure 4-10 LAN IPv6 networking configuration...........................4-14
Procedure 4-11 WAN networking configuration................................4-15
Procedure 4-12 WiFi networking configuration................................4-17
Procedure 4-13 Routing configuration ..........................................4-19
Procedure 4-14 DNS configuration...............................................4-20
Procedure 4-15 TR-069 configuration...........................................4-21
Security configuration..............................................................4-22
Procedure 4-16 Firewall configuration..........................................4-22
Procedure 4-17 MAC filter configuration .......................................4-23
Procedure 4-18 IP filter configuration ..........................................4-24
Procedure 4-19 URL filter configuration........................................4-25
Procedure 4-20 DMZ and ALG configuration....................................4-26
Application configuration..........................................................4-27
Procedure 4-21 Port forwarding configuration ................................4-27
Procedure 4-22 DDNS configuration.............................................4-28
Procedure 4-23 NTP configuration...............................................4-29
Procedure 4-24 USB storage configuration .....................................4-30
Procedure 4-25 UPnP and DLNA configuration.................................4-31
Maintenance .........................................................................4-31
Procedure 4-26 Password configuration ........................................4-32
Procedure 4-27 LOID configuration..............................................4-33
Procedure 4-28 SLID configuration ..............................................4-34
Procedure 4-29 Device management............................................4-35
Procedure 4-30 Backup and restore .............................................4-36
Procedure 4-31 Upgrade firmware...............................................4-36
Procedure 4-32 Reboot ONT......................................................4-37
Procedure 4-33 Restore factory defaults .......................................4-38
Procedure 4-34 Diagnose connections...........................................4-39
Procedure 4-35 View log files ....................................................4-40
RG troubleshooting counters......................................................4-41
Procedure 4-36 Retrieve Residential Gateway (RG)
troubleshooting counters ....................................................4-41
4.3 SFU mode GUI configuration .........................................................4-42
Login ..................................................................................4-42
Procedure 4-37 Login to web-based GUI........................................4-42
Device and connection status.....................................................4-43
Procedure 4-38 Device information retrieval..................................4-44
Maintenance .........................................................................4-45
Procedure 4-39 Password configuration ........................................4-45
Procedure 4-40 LOID configuration..............................................4-46
Procedure 4-41 SLID configuration ..............................................4-47
xxxvi Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 37
Contents
4.4 Operator ID..............................................................................4-47
Procedure 4-42 Modifying the operator ID .....................................4-48
5 — ONT configuration file over OMCI 5-1
5.1 Purpose................................................................................... 5-2
5.2 Supported configuration file types................................................... 5-2
Filename conventions ............................................................... 5-4
5.3 ONT configuration file over OMCI..................................................... 5-4
Procedure 5-1 Configuring an ONT using a configuration file via
OMCI.............................................................................. 5-5
Alcatel-Lucent 7368 ISAM ONT xxxvii Edition 02 G-240W-A Product Guide
Page 38
Contents

List of figures

Figure 1 PSE certification............................................................................xi
Figure 2 Laser product label .......................................................................xiv
Figure 3 Laser classification label.................................................................xiv
Figure 4 Laser warning labels ...................................................................... xv
Figure 1 Products below MCV value label......................................................xviii
Figure 2 Products above MCV value label........................................................xix
Figure 3 Recycling/take back/disposal of product symbol....................................xxi
Figure 1 Sample safety label on the ONT equipment..........................................xxv
Figure 2 Sample laser product label showing CDRH 21 CFR compliance ..................xxvii
Figure 3 Laser product label ....................................................................xxviii
Figure 4 Laser classification label..............................................................xxviii
Figure 5 Laser warning labels .................................................................... xxix
Figure 6 Sample laser product safety label on the ONT equipment.........................xxx
Figure 1-1 G-240W-A indoor ONT physical connections (b ack view)........................ 1-7
Figure 1-2 G-240W-A indoor ONT physical connections (side view)......................... 1-7
Figure 1-3 G-240W-A indoor ONT LEDs........................................................... 1-9
Figure 1-4 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and
Figure 1-5 G-240W-A ONT hardware block.....................................................1-14
Figure 2-1 Wall mounting keyholes on G-240W-A indoor ONTs .............................. 2-4
Figure 2-2 G-240W-A indoor ONT connections (back view)................................... 2-5
Figure 2-3 G-240W-A indoor ONT connections (side view) ................................... 2-5
Figure 3-1 G-240W-A indoor ONT connections (side view) ................................... 3-4
Figure 3-2 G-240W-A indoor ONT connections (back view)................................... 3-5
Figure 4-1 Web login window ..................................................................... 4-3
Figure 4-2 Device Information window .......................................................... 4-4
Figure 4-3 LAN status window..................................................................... 4-5
Figure 4-4 WAN status window.................................................................... 4-6
Figure 4-5 WAN status IPv6 window.............................................................. 4-8
Figure 4-6 Home networking information window............................................. 4-9

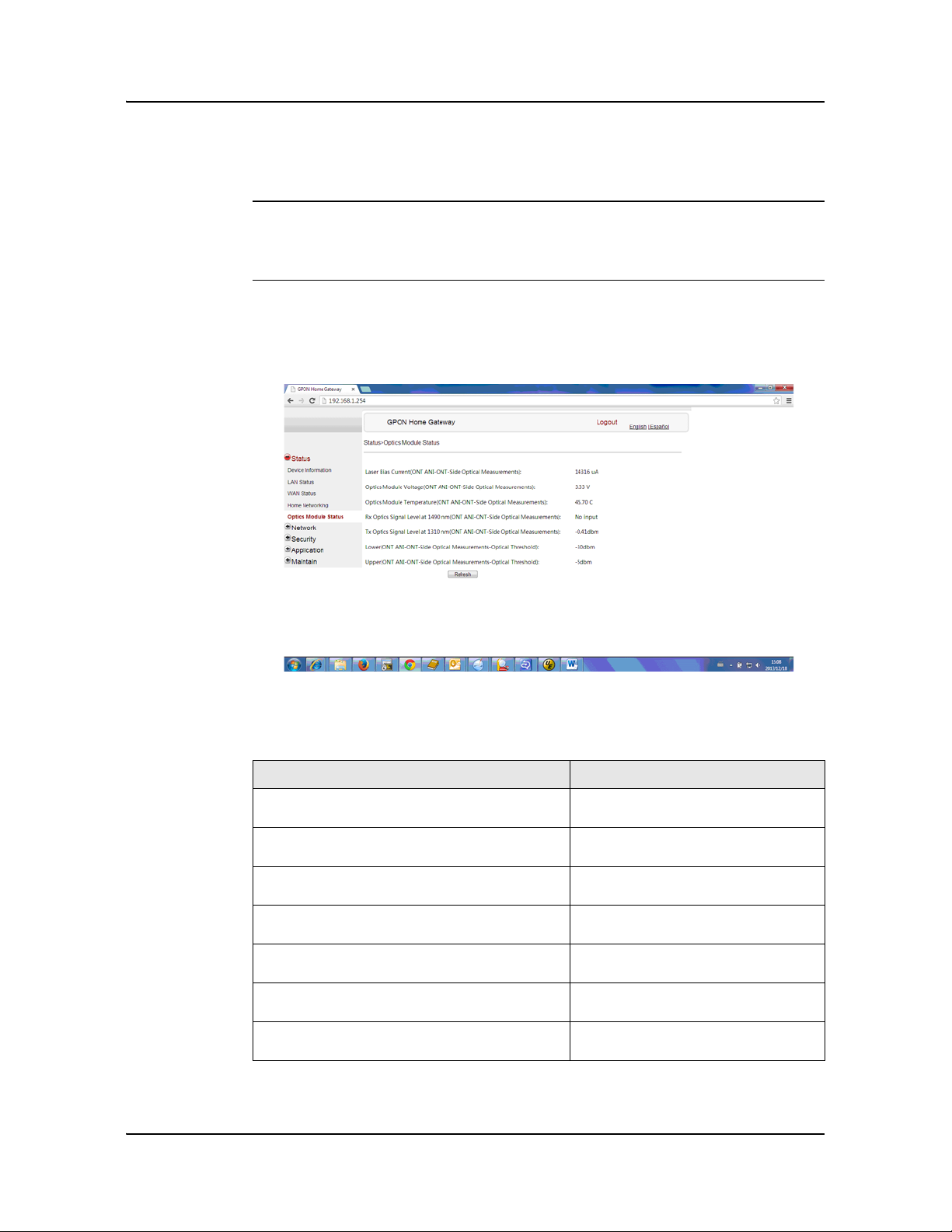

Figure 4-7 Optics module status window.......................................................4-10
Figure 4-8 Voice Information window...........................................................4-11
Figure 4-9 LAN network window.................................................................4-12
Figure 4-10 LAN IPv6 network window..........................................................4-14
Figure 4-11 WAN network window...............................................................4-15
Figure 4-12 WiFi network window...............................................................4-17
Figure 4-13 Routing network window...........................................................4-19
Figure 4-14 DNS network window................................................................4-20
Figure 4-15 TR-069 network window............................................................4-21
Figure 4-16 Firewall window .....................................................................4-22
Figure 4-17 MAC filter window...................................................................4-23

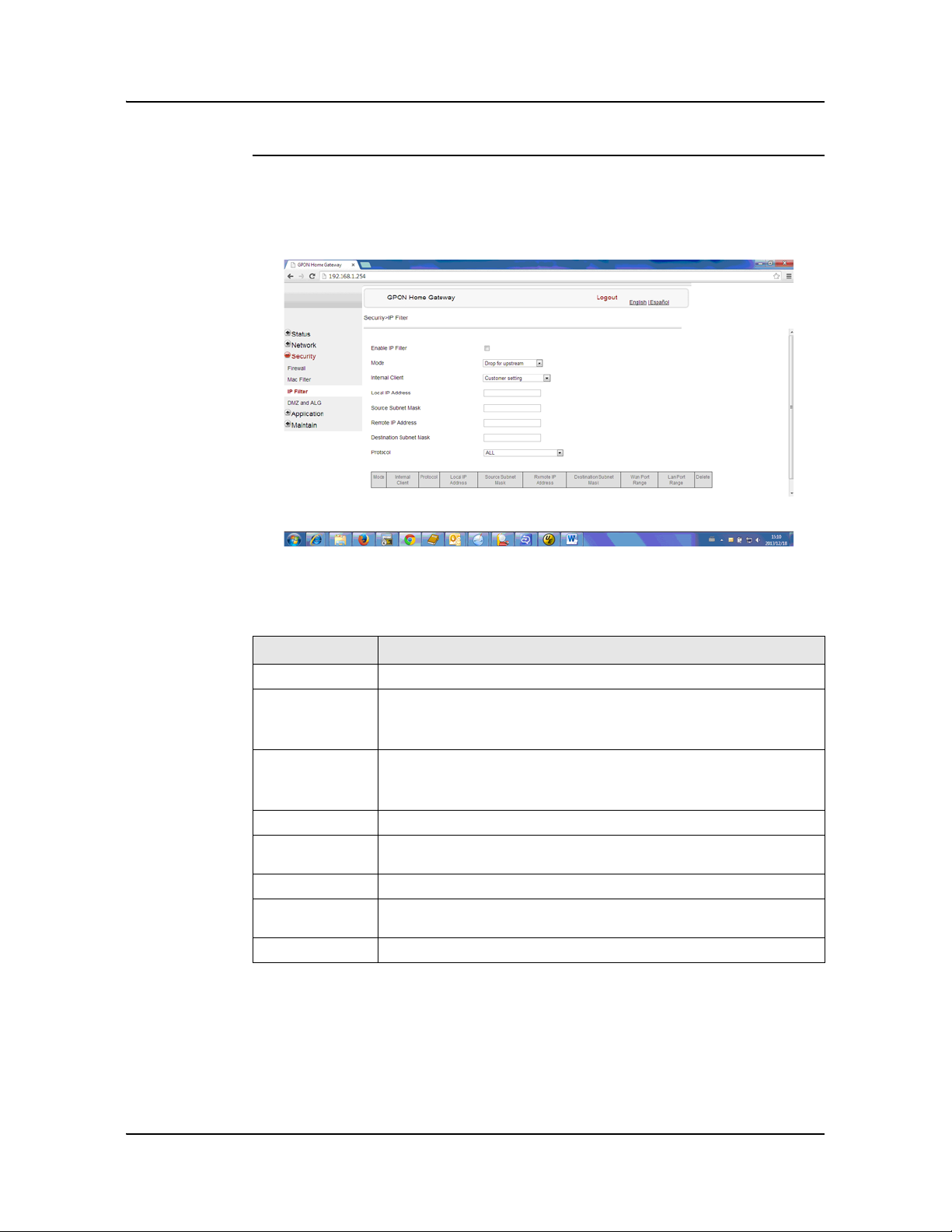

Figure 4-18 IP filter window......................................................................4-24
Figure 4-19 URL Filter window...................................................................4-25
Figure 4-20 DMZ and ALG window...............................................................4-26
Figure 4-21 Port forwarding window............................................................4-27
Figure 4-22 DDNS window.........................................................................4-28
Figure 4-23 NTP window ..........................................................................4-29
Figure 4-24 USB storage window.................................................................4-30
Figure 4-25 UPnP and DLNA window ............................................................4-31
without RF video ................................................................1-14
xxxviii Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 39
Figure 4-26 Password window....................................................................4-32
Figure 4-27 LOID Config window.................................................................4-33
Figure 4-28 SLID configuration window.........................................................4-34
Figure 4-29 Device management window ......................................................4-35
Figure 4-30 Backup and Restore window.......................................................4-36
Figure 4-31 Firmware upgrade window.........................................................4-36
Figure 4-32 Reboot window ......................................................................4-37
Figure 4-33 Factory default window ............................................................4-38
Figure 4-34 Diagnose window ....................................................................4-39
Figure 4-35 Log window...........................................................................4-40
Figure 4-36 RG Troubleshooting Counters window............................................4-41
Figure 4-37 Web login window...................................................................4-43
Figure 4-38 Device Information window........................................................4-44
Figure 4-39 Password window....................................................................4-45
Figure 4-40 LOID configuration window ........................................................4-46
Figure 4-41 SLID configuration window.........................................................4-47

List of tables

Contents
Table 1 Safety labels ..................................................................................x
Table 1 Safety labels .............................................................................. xxiv
Table 1-1 Identification of G-240W-A indoor ONTs............................................. 1-2
Table 1-2 G-240W-A indoor ONT interface connection capacity ............................. 1-6
Table 1-3 G-240W-A indoor ONT physical connections......................................... 1-7
Table 1-4 G-240W-A indoor ONT LEDs............................................................ 1-9
Table 1-5 G-240W-A indoor ONT physical specifications .....................................1-10
Table 1-6 G-240W-A indoor ONT power consumption specifications .......................1-11
Table 1-7 G-240W-A indoor ONT environmental specifications..............................1-11
Table 1-8 G-240W-A indoor ONT capacity for GEM ports and T-CONTs.....................1-11
Table 1-9 Package P ONTs ONTENET performance monitoring statistics ..................1-12
Table 1-10 Package P ONTs ONTL2UNI performance monitoring statistics ................1-12
Table 1-11 Package P ONTs PONONTTC, PONONTMCTC, PONONTTCHSI,
PONONTTCCES, PONONTTCFLOW, PONONTTCVOIP performance
monitoring statistics............................................................1-13
Table 1-12 Package P ONTs PONONTTC aggregate performance monitoring
statistics..........................................................................1-13
Table 1-13 G-240W-A ONT considerations and limitations ...................................1-17
Table 4-1 Device Information parameters ....................................................... 4-4
Table 4-2 LAN status parameters.................................................................. 4-5
Table 4-3 WAN status parameters................................................................. 4-7
Table 4-4 WAN status IPv6 parameters........................................................... 4-8
Table 4-5 Home networking parameters......................................................... 4-9
Table 4-6 Optics module status parameters....................................................4-10
Table 4-7 Voice Information parameters........................................................4-11
Table 4-8 LAN network parameters..............................................................4-13
Table 4-9 LAN IPv6 network parameters........................................................4-14
Table 4-10 WAN network parameters............................................................4-16
Table 4-11 WiFi network parameters............................................................4-17
Table 4-12 Routing network parameters........................................................4-19
Alcatel-Lucent 7368 ISAM ONT xxxix Edition 02 G-240W-A Product Guide
Page 40
Contents
Table 4-13 DNS network parameters.............................................................4-20
Table 4-14 TR-069 network parameters.........................................................4-21
Table 4-15 Firewall parameters ..................................................................4-22
Table 4-16 MAC filter parameters................................................................4-23
Table 4-17 IP filter parameters...................................................................4-24
Table 4-18 URL Filter parameters................................................................4-25
Table 4-19 DMZ and ALG parameters............................................................4-26
Table 4-20 Port forwarding parameters.........................................................4-27
Table 4-21 DDNS parameters......................................................................4-28
Table 4-22 NTP parameters .......................................................................4-29
Table 4-23 USB storage parameters.............. ................................................4-30
Table 4-24 Password parameters............. ....................................................4-32
Table 4-25 LOID configuration parameters .....................................................4-33
Table 4-26 SLID configuration parameters......................................................4-34
Table 4-27 Device management parameters ...................................................4-35
Table 4-28 RG Troubleshooting Counter s parameters.........................................4-41
Table 4-29 Device Information parameters.....................................................4-44
Table 4-30 Password parameters............. ....................................................4-45
Table 4-31 SLID configuration parameters.................................................. ....4-47
Table 5-1 Supported configuration files.......................................................... 5-3
xl Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 41

1 — G-240W-A unit data sheet

1.1 G-240W-A part numbers and identification 1-2
1.2 G-240W-A general description 1-3
1.3 G-240W-A software and installation feature support 1-5
1.4 G-240W-A interfaces and interface capacity 1-6
1.5 G-240W-A LEDs 1-8
1.6 G-240W-A de ta ile d specifications 1-10
1.7 G-240W-A GEM ports and T-CONTs 1-11
1.8 G-240W-A performance monitoring statistics 1-11
1.9 G-240W-A functional blocks 1-13
1.10 G-240W-A standards compliance 1-15
1.11 G-240W-A special considerations 1-16
Alcatel-Lucent 7368 ISAM ONT 1-1 Edition 02 G-240W-A Product Guide
Page 42
1 — G-240W-A unit data sheet

1.1 G-240W-A part numbers and identification

Table 1-1 provides part numbers and identification information for the G-240W-A indoor ONT.
Table 1-1 Identification of G-240W-A indoor ONTs
Mnemonic Ordering kit
part numb er
G-240W-A 3FE 55925 AA 3FE 56525
3FE 55925 AB Customer-
specific
3FE 55925 AC Package P 2 POTS ports, 4
3FE 55925 CA Package P 2 POTS ports, 4
3FE 55925 DA Package P 2 POTS ports, 4
Provisioning part numb er
AAAA
Description CLEI CPR ECI/
Package P 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted European (EU) AC/DC adapter.
Package P 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted European (EU) AC/DC adapter.
Also includes 5dBi indoor multi-direction WiFi antenna and
1.8m Ethernet cable.
10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted European (EU) AC/DC adapter.
Also includes 5dBi indoor multi-direction WiFi antenna and
1.8m Ethernet cable.
10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 3- pin wa ll-mount ed Brit ish (UK) AC/DC adapter.
10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 3-pin wall-mounted US AC/DC adapter.
(1)
(1)
———
———
———
———
———
Bar code
(1 of 2)
1-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 43
1 — G-240W-A unit data sheet
Mnemonic Ordering kit
part numb er
G-240W-A 3FE 45150 AA
customer­specific
3FE 45150 AC 3FE 56525
3FE 45150 BA Package P 2 POTS ports, 4
Provisioning part numb er
3FE 56525 BAAB
AAAB
Description CLEI CPR ECI/
Bar code
Package P 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted European (EU) AC/DC adapter.
Also includes 5dBi indoor multi-direction WiFi antenna and one 2m RJ-45 Ethernet cable.
Package P 2 POTS ports, 4 10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted European (EU) AC/DC adapter.
Also includes 5dBi indoor multi-direction detachable WiFi antenna and one 2m RJ-45 Ethernet
(1)
cable.
10/100/1000 Base-T Ethernet interfaces, and 1 100 mW Wi-Fi radio with on/off switch. This ONT also has 2 USB ports.
Includes 2-pin wall-mounted US AC/DC adapter.
Also includes 5dBi indoor multi-direction detachable WiFi antenna, one 2m RJ-45 Ethernet cable, and one 3m optical fiber cable.
(1)
———
———
———
(2 of 2)
Note
(1)
The transmit power is adjustable. See Procedure 4-11 in Network configuration for more information.
For the G-240W-A indoor ONT power supply information, contact your Alcatel-Lucent technical support representative.

1.2 G-240W-A general description

G-240W-A indoor ONTs provide the subscriber interface for the network by terminating the PON interface and converting it to user interfaces that directly connect to subscriber devices. The ONT is compatible with all existing subscriber equipment, including analog phones with both tone and rotary dial capabilities, cordless phones, modems, fax machines, and caller ID boxes (Type I, Type II, and Type III).
Alcatel-Lucent 7368 ISAM ONT 1-3 Edition 02 G-240W-A Product Guide
Page 44
1 — G-240W-A unit data sheet
G-240W-A indoor ONTs provide the following functions:
• Single fiber GPON interface with 1.244Gbit/s upstream and 2.488Gbit/s
downstream data rates
• Advanced data features such as VLAN tag manipulation, classification, and
filtering.
• Traffic classification and QoS capability
• Analog Telephone Adapter (ATA) function integrated based on SIP (RFC3261)
and H.248, with various CLASS services supported, including Caller ID, Call Waiting, Call Forwarding, and Call Transfer
• 5 REN per line
• Multiple voice Codec
• Amplitude modulated tone support
• MDI/MDIX auto-negotiation
• Line Rate L2 traffic
• Internal Switch
• UPnP IGD1.0 support
• Bridged mode or routed mode per LAN port
• Internal DHCP server, with configurable DHCP pool and gateway
• WPS on wireless authorization support
• ONT security has been enhanced; SSH-Telnet-FTP and http server are disabled
from the WAN side
• 2.4 GHz wireless interface
• 802.11n, compliant with 802.11b/g
• MIMO
• 64/128 WEP encryption
• WPA, WPA-PSK/TKIP
• WPA2, WPA2-PSK/AES
• 4 SSID
• WLAN on/off push button
• WPS/PBC button
• IP router and firewall
• Ethernet-based Point-to-Point (PPPoE)
• Network Address Translation (NAT)
• Network Address Port Translation (NAPT)
• ALG and UpnP port forwarding
• DMZ
• IP/MAC filter
• Multi-level firewall
• DNS server
• DHCP client/server
• PPPoE client
• support for up to 11 simultaneous wireless connections
• support for AIS with DOWN MEP
1-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 45
1 — G-240W-A unit data sheet

TR-069 support for reading optical parameters

The ONT supports the reading of optical parameters via TR-069:
• laser bias current
• voltage
• temperature
• received signal levels
• lower thresholds
These are the same optical parameters supported in the GUI. For more information, see Table 4-6 in the chapter “Configure a G-240W-A indoor ONT”.

TR-104 parameter extension support for voice service

A proprietary attribute has been added to the TR-104 Voice Service object structure to enable the ACS to configure the name of the embedded GSIP XML file to be selected.
The TR-104 Voice Service Object is: InternetGatewayDevice.Services.VoiceService.{i}.Capabilities.SIP.
The proprietary attribute is: X_ALU-COM_XML_File_Name_Path.

Mobile offload support

As part of the E2E solution supported by the ISAM 7750 service router, the G-240W-A ONT offers Mobile Offload support using a combination of EAP-SIM and ITU-T 802.11.
EAP-SIM is an authentication method that uses the user credentials on the SIM card and EAP to authenticate the user with the Wi-Fi network, removing the need for user input (username and password).
A dedicated public mobile offload SSID in the ONT enables mobile subscribers to connect to the Internet. Encryption is supported by 802.11, providing seamless Wi-Fi authentication for SIM-based user equipment.
The ONT acts as the RADIUS client and sends the encapsulated EAP messages to the AAA server via the WLAN Gateway, which acts as the RADIUS proxy server. The interaction between the ONT and the AAA server provides subscriber management for authenticated mobile users without adding authentication load to the 3G network.

1.3 G-240W-A software and installation feature support

For information on installing or replacing the G-240W-A see:
• Install a G-240W-A indoor ONT
• Replace a G-240W-A indoor ONT
Alcatel-Lucent 7368 ISAM ONT 1-5 Edition 02 G-240W-A Product Guide
Page 46
1 — G-240W-A unit data sheet
For information on the following topics, see the 7368 ISAM ONT Product Overview Guide:
• ONT and MDU general descriptions of features and functions
• Ethernet interface specifications
• POTS interface specifications
• RSSI specifications
• Wi-Fi specifications
• ONT optical budget
• SLID entry via Ethernet port
• ONT management using an ONT interface

1.4 G-240W-A interfaces and interface capacity

Table 1-2 describes the supported interfaces and interface capacity for G-240W-A indoor ONTs.
Table 1-2 G-240W-A indoor ONT interface connection capacity
ONT type and model
G-240W-A
Note
(1)
The G-240W-A ONTs provide Wi-Fi service that is enabled and disabled using a Wi-Fi on/off switch.
Maximum capacity POTS 10/
(1)
2—4— ———— 1
100
BASE-T
10/ 100/ 1000 BASE-T
RF video (CATV)
MoCA VD SL2 E1/T1 Local craft GPON

G-240W-A connections and components

Figure 1-1and 1-2 show the physical connections for G-240W-A indoor ONTs,
SC/ APC
1-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 47
1 — G-240W-A unit data sheet
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber Optic
port
24434
On/Off
button
Power
input
24435
LED
USB
LED
indicator
USB
port
Figure 1-1 G-240W-A indoor ONT physical connections (back view)
Figure 1-2 G-240W-A indoor ONT physical connections (side view)
Table 1-3 describes the physical connections for G-240W-A indoor ONTs.
Table 1-3 G-240W-A indoor ONT physical connections
(1)
Description
This connection is provided through an SC/APC fiber optic connector.
This connection is provided through RJ-11 ports. Up to two POTS connections are supported.The POTS ports support voice services.
Connection
PON (Fiber optic port)
TEL1, TEL2 (RJ-11 POTS ports)
(1 of 2)
Alcatel-Lucent 7368 ISAM ONT 1-7 Edition 02 G-240W-A Product Guide
Page 48
1 — G-240W-A unit data sheet
Connection
LAN1-LAN4 (RJ-45 Ethernet ports)
WPS (Wi-Fi security button)
WLAN (Wireless On/Off button)
Reset Pressing the Reset button for less than 10 seconds reboots the ONT;
USB (USB port)
Power (Power input)
ON/OFF This button turns the ONT on or off. USB
(USB port) LED
(LED indicator button)
(2 of 2)
(1)
Description
This connection is provided through Ethernet RJ-45 connectors. Up to four 10/100/1000 Base-T Ethernet interfaces are supported.The Ethernet ports can support both data and in-band video services on all four interfaces.
The Wi-Fi Protected Setup (WPS) button enables and disables WLAN data encryption.
Wi-Fi service is compliant with IEEE 802.11 standards and is enabled and disabled using a Wireless button.
pressing the Reset button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.
This connection is provided through one of two USB ports, one on the back of the ONT, and one on the side.
This connection is provided through the power connector. A power cable fitted with a barrel connector is used to make the connection.
This connection is provided through one of two USB ports, one on the back of the ONT, and one on the side.
This buttons turns all LEDs on or off.
Note
(1)
The primary path for the earth ground for these ONTs is provided by the 12V Return signal in the power connector.

1.5 G-240W-A LEDs

Figure 1-3 shows the G-240W-A indoor ONT LEDs.
1-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 49
1 — G-240W-A unit data sheet
POWER
LINK
AUTH
LAN1
LAN2
LAN3
LAN4
TEL1
TEL2
VoIP
WPS
WLAN
USB
INTERNET
POWER
LINK
AUTH
LAN1
LAN2
LAN3
LAN4
TEL1
TEL2
VoIP
WPS
WLAN
USB
INTERNET
24510
Figure 1-3 G-240W-A indoor ONT LEDs
Table 1-4 provides LED descriptions for G-240W-A indoor ONTs.
Indicator LED color and
behavior
Power Green solid
Link Green solid
Auth Green solid
LAN 1 to 4 Green solid
Red solid Off
Off
Green flashing Off
Green flashing
(1 of 2)
Off
Alcatel-Lucent 7368 ISAM ONT 1-9 Edition 02 G-240W-A Product Guide
Table 1-4 G-240W-A indoor ONT LEDs
LED behavior description
Power on Light failed on startup (for example corrupt flash), or self test failed on startup,
or self test failed during regular operation or when execu ted over OMCI Power off
GPON link between ONT and OLT is operating normally GPON link is down or no link connected
ONT is authorized In process of ranging or synchronizing on OMCI ONT is not authorized
Ethernet is linked LAN activity is present (in either direction) ONT power off or Ethernet not connected
Page 50
1 — G-240W-A unit data sheet
Indicator LED color and
behavior
TEL 1 to 2 Green solid
Green flashing Off
VOIP Green solid
Off
WPS Green solid
Green flashing Off
WLAN Green solid
Green flashing Off
USB Green solid
Green flashing Off
INTERNET Green solid
Green flashing
Off
LED behavior description
Off hook Call in or talking On hook
VOIP service is OK VOIP service is not OK
Wireless LAN link is up Wireless LAN link activity Wireless LAN link dow n or no link connected
Wireless enabled Traffic on wireless interface Wireless is down or no link connected
At least one USB device is connected Traffic activity on at least on USB device No USB device connected
HSI WAN is connected: a) the device has an IP address assigned from IPCP, DHCP, or static, and no traffic has been detected; b) the session is dropped due to idle timeout but the PON link is still present.
PPPoE or DHCP connection in progress HSI WAN is not connected: a) there is no physical interface connection; b) the
device is in bridged mode without an assigned IP address; c) the session has been dropped for reasons other than idle timeout.
(2 of 2)

1.6 G-240W-A detailed specifications

Table 1-5 lists the physical specifications for G-240W-A indoor ONTs.
Table 1-5 G-240W-A indoor ONT physical specifications
Description Specification
Length 8.2 in. (208 mm) Width 5.6 in. (142 mm) Height 1.3 in. (33 mm) Weight [within ± 0.5 lb (0.23 kg)] 0.72 lb (0.33 kg)
Table 1-6 lists the power consumption specifications for G-240W-A indoor ONT.
1-10 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 51
1 — G-240W-A unit data sheet
Table 1-6 G-240W-A indoor ONT power cons umption specifications
Mnemonic Maximum power
(Not to exceed)
G-240W-A (3FE 56525 AAAA)
18 W 2 POTS off-hook, 4
Condition Minimum power Condition
5.9 W 2 POTS on-hook, other 10/100/1000 Base-T Ethernet, Wi-Fi operational
Table 1-7 lists the environmental specifications for G-240W-A indoor ONT.
Table 1-7 G-240W-A indoor ONT environmental specifications
Mounting method Temp erature range and humidity Altitude
On desk or wall mounted
Operating: 32°F to 113°F (0°C to 45°C) ambient temperature
10% to 90% relative humidity, non-condensing Storage: Contact your Alcatel-Lucent support
representative for more information
Contact your Alcatel-Lucent technical support representative for more information

1.7 G-240W-A GEM ports and T-CONTs

Table 1-8 lists the maximum number of supported T-CONTs and GEM ports. See the appropriate release Customer Release Notes for the most accurate list of supported devices.
interfaces/services not provisioned
Table 1-8 G-240W-A indoor ONT capacity for GEM ports and T-CONTs
ONT or MDU Maximum Notes Package P ONTs
GEM ports per indoor or outdoor ONT
T-CONTs per indoor or outdoor ONT
124 124 are present; 122 are available, and 2 are
reserved for multicast and debugging
32 32 are present; 31 are available, and 1 is
reserved for OMCI

1.8 G-240W-A performance monitoring statistics

The following section identifies the supported performance monitoring statistics for G-240W-A ONTs. A check mark indicates the statistic is supported on that ONT. An empty cell indicates the statistic is not supported. The following tables are categorized by supported alarm types:
• Table 1-9 provides statistics for ONTENET type counters
• Table 1-10 provides statistics for ONTL2UNI type counters
Alcatel-Lucent 7368 ISAM ONT 1-11 Edition 02 G-240W-A Product Guide
Page 52
1 — G-240W-A unit data sheet
• Table 1-11 provides statistics for PONONTTC, PONONTMCTC,
PONONTTCHSI, PONONTTCCES, PONONTTCFLOW, and PONONTTCVOIP type counters
• Table 1-12 provides statistics for PONONTTC aggregate type counters
ONT ONTENET statistics
G-240W-A
Note
(1)
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window is 5 seconds
Note — If you have trouble accessing G-240W-A ONTs performance
monitoring statistics using TL1, please contact your Alcatel-Lucent support representative for more information about how to access and retrieve performance monitoring type counters.
Table 1-9 Package P ONTs ONTENET performance monitoring statistics
LC
EC
FCSE
(1)
✓✓✓✓✓✓✓✓✓✓✓✓✓✓
SCF
RBO
DT
MCF
IMTE
AE
CSE
IMRE
FTL
SQE
TBO
Table 1-10 Package P ONTs ONTL2UNI performance monitoring statistics
ONT ONTL2UNI statistics
BYTES
FRAMES
G-240W-A
1)
Note
(1)
(
✓✓✓✓✓✓✓✓✓✓✓
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window is 5 seconds
MCFRAMES
DSDRPDFRMS
USDRPDFRMS
USFRAMES
DSFRAMES
DSBYTES
USBYTES
USMCFRAMES
DSMCFRAMES
1-12 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 53
1 — G-240W-A unit data sheet
Table 1-11 Package P ONTs PONONTTC, PO NONTMCTC, PONON TTCHSI , PONONTTCCES ,
PONONTTCFLOW, PONONTTCVOIP performance monitoring statistics
ONT PONONTTC, PONONTMCTC, PONONTTCHSI, PONONTTCCES,
G-240W-A
Note
(1)
(1)
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window is 5 seconds
PONONTTCFLOW, PONONTTCVOIP statistics
TXBLOCKS
✓✓✓✓✓
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
Table 1-12 Package P ONTs PONONTTC aggregate performance monitoring statistics
ONT PONONTTC (aggregate) statistics
TXBLOCKS
G-240W-A
Note
(1)
(1)
A 5 second polling window limitation exists on the ONT, therefore the margin of error for each 15-min window is 5 seconds
✓✓✓✓✓

1.9 G-240W-A functional blocks

G-240W-A indoor ONTs are single-residence ONTs that support Wireless (Wi-Fi) service. Wi-Fi service on these ONTs are compliant with the IEEE 802.11 standard and enabled or disabled using a WLAN button. In addition to the Wi-Fi service, these ONTs transmit Ethernet packets to four RJ-45 Ethernet ports and voice traffic to two RJ-11 POTS ports. These ONTs also feature fiber optic, USB, and power connectors.
Figure 1-4 shows the functional blocks for G-240W-A indoor ONT.
TXFRAGS
RXBLOCKS
RXFRAGS
LOSTFRAGS
BADGEMHDRS
Alcatel-Lucent 7368 ISAM ONT 1-13 Edition 02 G-240W-A Product Guide
Page 54
1 — G-240W-A unit data sheet
24409
LED/RST
UART/JTAG
DDR3 FLASH
RJ-11
RJ-11
POTS (2)
UPLINK
RJ-45 RJ-45 RJ-45 RJ-45 Ethernet (4)
SERDES
A/D FMI
MISC
APM
12C
MDI[1x4]
Dual-SLICWi-Fi
GPON
BOSA
SoC
Transformer
A12V
BAT A3V3 D1V0 A1V5 A1V0
Power Supply
USB
Control
processor
Ethernet
MACs
Ethernet ports GPON
POTS ports
DSP
GPON
MAC
SoC
19421
SoC Bridge
Figure 1-4 Single-residence Wi-Fi ONT with Gigabit Ethernet and POTS and without RF video
ONT SoC technology serves as the main hardware block for these ONTs; see Figure 1-5.
Figure 1-5 G-240W-A ONT hardware block
ONT SoC technology consists of five key elements:
1-14 Alcatel-Lucent 7368 ISAM ONT
• GPON MAC
The Gigabit Passive Optical Network Media Access Control (GPON MAC) element on the SoC terminates the GPON interface using an optical diplexer. This interface supports GPON as described in G.984.3 (GPON TC Layer) ITU specification.
G-240W-A Product Guide
Edition 02
Page 55
1 — G-240W-A unit data sheet
• Ethernet MAC
The SoC provides up to four GE MACs.
• DSP interface
The Digital Signal Processor (DSP) provides voice processing for 2 POTS lines with 3-way calling. The DSP has a dedicated 64 kbyte instruction cache and shares a 32 kbyte data cache with the Control Processor. It provides up to 4 network processor cores, each at 800MHz.
• Control Processor
The Control Processor features an integral memory management unit that supports a dedicated 64 kbyte instruction cache and shares a single 32 kbyte data cache with the DSP. The Control Processor and DSP also include a single channel Data Management Application (DMA) controller with a 4 kbyte read ahead low-latency Dynamic Random Access Memory (DRAM) access port. The processors typically run at 600 MHz.
• Switch matrix
The Switch matrix provides an integrated data channel between the four GE MACs, the GPON MAC, the DSP, the control processor, and the other integrated elements such as flash memory, DRAM, and the local bus controller.
These ONTs can also interact with additional hardware components to support functionality not provided by the SoC technology.

1.10 G-240W-A standards compliance

G-240W-A indoor ONTs are compliant with the following standards:
• 802.1p marking and VLAN based pbit is supported
• G.711 support for FAX and modem connection
• G.984 support GPON interface (framing)
• G.984.2 support for Amd1, class B+
• G.984.3 support for activation and password functions
• G.984.3 support for AES with operator enable/disable on per port-ID level
• G.984.3 support for FEC in both upstream and downstream directions
• G.984.3 support for multicast using a single GEM Port-ID for all video traffic
• G984.4 and G.983.2 support for OMCI v1 and v2 interface for ONT management
and provisioning

Energy-related products standby and off modes compliance

Hereby, Alcatel-Lucent declares that the G-240W-A ONTs are in compliance with the essential requirements and other relevant provisions of Directive 2009/125/EC together with Commission Regulation (EC) No 1275/2008 and Commission Regulation (EC) No 801/2013.
The G-240W-A ONTS qualify as equipment with high network availability (HiNA) functionality. Since the main purpose of G-240W-A ONTs is to provide network functionality with HiNA 7 days /24 hours, the modes Off/Standby, Power Management, and Networked Standby are inappropriate.
Alcatel-Lucent 7368 ISAM ONT 1-15 Edition 02 G-240W-A Product Guide
Page 56
1 — G-240W-A unit data sheet
For information about the type and number of network ports, see “G-240W-A
interfaces and interface capacity” in this chapter.
For information about power consumption, see “G-240W-A detailed specifications” in this chapter.

1.11 G-240W-A special considerations

G-240W-A is a package P ONT.

Wi-Fi service

G-240W-A indoor ONTs feature Wi-Fi service as well as voice and data services. Wi-Fi is a wireless networking technology that uses radio waves to provide wireless HSI and network connections. This ONT complies with the IEEE 802.11 standards, which the Wi-Fi Alliance defines as the basis for Wi-Fi technology.
Wi-Fi physical features
G-240W-A indoor ONTs have the following physical features that assist in providing Wi-Fi service:
• WLAN button for enabling and disabling Wi-Fi service
• two external multi-directional antennae
• Wi-Fi Protected Setup (WPS) push button for adding WPS-enabled wireless
devices
Wi-Fi standards and certifications
The Wi-Fi service on G-240W-A indoor ONTs supports the following IEEE standards and Wi-Fi Alliance certifications:
• compliant with IEEE 802.11 standards
• certified for IEEE 802.11b/g/n standards
• WPA support including WPA-PSK
• certified for WPA2-Personal and WPA2-Enterprise
Wi-Fi GUI features
G-240W-A indoor ONTs have HTML-based Wi-Fi configuration GUIs.

G-240W-A ONT considerations and limitations

Table 1-13 lists the considerations and limitations for Package P G-240W-A ONTs.
1-16 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 57
1 — G-240W-A unit data sheet
Table 1-13 G-240W-A ONT considerations and limitations
Considerations and limitations
Call History Data collection (ONTCALLHST) is supported, except for the following parameters: RTP packets (discarded), far-end RTCP and RTCP-XR participation, RTCP average and peak round trip delay, MOS, average jitter, number of jitter-buffer over-runs and under runs.
Some voice features are configurable on a per ONT basis, including Call Waiting, Call Hold, 3-Way Calling, and Call Transfer.
The following voice features / GSIP parameters are configurable on a per-Client/ per-ONT basis (not per-Subscriber):
• Enable Caller ID and Enable Caller Name ID
• Digitmap and the associated Interdigit and Critical timers and Enter key parameters
• Warmline timer is enabled per subscriber, but the warmline timer value is configured per ONT
and must have a lower value than the Permanent time
• Miscellaneous timers: Permanent, Timed-release, Reanswer, Error-tone, and CW-alert timers
• Features / functions: Message waiting mode, WMWI refresh interval, DTMF volume level
• Service Codes for the following features: CCW, Call Hold and Warmline
Alcatel-Lucent 7368 ISAM ONT 1-17 Edition 02 G-240W-A Product Guide
Page 58
1 — G-240W-A unit data sheet
1-18 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 59

2 — Install a G-240W-A indoor ONT

2.1 Purpose 2-2
2.2 General 2-2
2.3 Prerequisites 2-2
2.4 Recommended tools 2-2
2.5 Safety information 2-3
2.6 Procedure 2-4
Alcatel-Lucent 7368 ISAM ONT 2-1 Edition 02 G-240W-A Product Guide
Page 60
2 — Install a G-240W-A indoor ONT

2.1 Purpose

This chapter provides the steps to install a G-240W-A indoor ONT.

2.2 General

The steps listed in this chapter describe mounting and cabling for G-240W-A indoor ONTs.

2.3 Prerequisites

You need the following items before beginning the installation:
• all required cables

2.4 Recommended tools

You need the following tools for the installation:
• #2 Phillips screwdriver
• 1/4 in. (6 mm) flat blade screwdriver
• wire strippers
• fiber optic splicing tools
• RJ-45 cable plug crimp tool
• voltmeter or multimeter
• optical power meter
• drill and drill bits
• paper clip
2-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 61

2.5 Safety information

Read the following safety information before installing the unit.
Danger 1 — Hazardous electrical voltages and currents can cause
serious physical harm or death. Always use insulated tools and follow proper safety precautions when connecting or disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and have
no live voltages present on feed lines or terminals. Use a voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
2 — Install a G-240W-A indoor ONT
Note 1 — Observe the local and national laws and regulations that
may be applicable to this installation.
Note 2 — Observe the following:
• The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local authorities and practices take precedent when there is conflict between the local standard and the NEC or CEC.
• The indoor ONT must be installed by qualified service personnel.
• Indoor ONTs must be installed with cables that are suitably rated
and listed for indoor use.
• See the detailed specifications in the G-240W-A unit data sheet for
the temperature ranges for these ONTs.
Alcatel-Lucent 7368 ISAM ONT 2-3 Edition 02 G-240W-A Product Guide
Page 62
2 — Install a G-240W-A indoor ONT
RESET
Keyholes for horizontal mounting
Keyholes for
vertical
mounting
24111

2.6 Procedure

Use this procedure to install a G-240W-A indoor ONT.
1 Place the indoor ONT unit:
a On the flat surface, such as a desk; go to step 3.
Note — The G-240W- A cannot be stacked with another ONT or with
other equipment. The ONT mounting requirements are:
• allow a minimum 100 mm clearance above the top cover
• allow a minimum 50 mm clearance from the side vents
• do not place any heat source directly above the top cover or below
b On a wall, go to step 2.
2 Mount the G-240W-A indoor ONT on a wall.
i The G-240W-A indoor ONT can be mounted in either a horizontal or vertical
position, as shown in Figure 2-1. If possible, mount the ONT on a wall stud.
the bottom cover
Figure 2-1 Wall mounting keyholes on G-240W-A indoor ONTs
ii Mark the wall with the location of the mounting holes. These holes should be
the same distance apart as the distance between the centers of the keyholes on the ONT.
iii Drill the two holes in the wall where the ONT will be mounted and then drive
the mounting screws into the hol e s. The recommended length of mounting screw is 1.15 in. (3.8 cm).
2-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 63
2 — Install a G-240W-A indoor ONT
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber Optic
port
24434
On/Off
button
Power
input
24435
LED
USB
LED
indicator
USB
port
Do not drive the screw into the wall completely. Leave approximately 1/8 in. (6 mm) between the screw head and the wall surface.
iv Slide the wall mount keyholes on the ONT enclosure or fiber storage tray
down over the mounting screws until the ONT is securely seated.
3 Review the connection locations as shown in Figures 2-2 and 2-3.
Figure 2-2 G-240W-A indoor ONT connections (back view)
Figure 2-3 G-240W-A indoor ONT connections (side view)
4 Connect the Ethernet cables to the RJ-45 ports; see Figure 2-2 for the location of
the RJ-45 ports.
5 Route the POTS cables directly to the RJ-11 ports as per local practices.
Alcatel-Lucent 7368 ISAM ONT 2-5 Edition 02 G-240W-A Product Guide
Page 64
2 — Install a G-240W-A indoor ONT
The POTS port to the left is labeled 1 for Line 1 while the port on the right is labeled 2 for Line 2, as shown in Figure 2-2.
6 Connect the fiber optic cable with SC/APC adapter into the SC/APC connector; see
Figure 2-2 for the location of the SC/APC connector.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber opti c cable. Too small of a bend radius in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber optic pigtail cable.
7 Install the power supply according to manufacturer specifications.
Note — Observe the following:
• Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of 12 V dc, 1.25 A.
8 Connect the power cable to the power connector . 9 Power up the ONT unit by using the power switch. 10 If used, enable the Wi-Fi service.
i Locate the WLAN button on the ONT; see Figure 2-3 for location of the WLAN
button.
ii Press the WLAN button to change the status of the Wi-Fi service.
11 Verify the ONT LEDs, voltage s tatus, and optical signal levels; see the 7368
Hardware and Cabling Installation Guide.
12 Activate and test the services; see the 7368 Hardware and Cabling Installation
Guide.
13 If used, configure the SLID; see th e 7368 ISAM ONT Configuration, Management,
and Troubleshooting Guide.
14 If necessary, reset the ONT.
i Locate the Reset button on a G-240W-A indoor ONT as shown in Figure 2-3. ii Insert the end of a straightened paper clip or other narrow object into the
hole in the Reset button to reset the ONT.
15 STOP. This procedure is complete.
2-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 65

3 — Replace a G-240W-A indoor ONT

3.1 Purpose 3-2
3.2 General 3-2
3.3 Prerequisites 3-2
3.4 Recommended tools 3-2
3.5 Safety information 3-3
3.6 Procedure 3-4
Alcatel-Lucent 7368 ISAM ONT 3-1 Edition 02 G-240W-A Product Guide
Page 66
3 — Replace a G-240W-A indoor ONT

3.1 Purpose

This chapter provides the steps to replace G-240W-A indoor ONTs.

3.2 General

The steps listed in this chapter describe mounting and cabling for G-240W-A indoor ONTs.

3.3 Prerequisites

You need the following items before beginning the installation:
• all required cables

3.4 Recommended tools

You need the following tools for replacing the ONT:
• #2 Phillips screwdriver
• 1/4 in. (6 mm) flat blade screwdriver
• wire strippers
• fiber optic splicing tools
• RJ-45 cable plug crimp tool
• voltmeter or multimeter
• optical power meter
• drill and drill bits
3-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 67

3.5 Safety information

Read the following safety information before replacing the unit.
Danger 1 — Hazardous electrical voltages and currents can cause
serious physical harm or death. Always use insulated tools and follow proper safety precautions when connecting or disconnecting power circuits.
Danger 2 — Make sure all sources of power are turned off and have
no live voltages present on feed lines or terminals. Use a voltmeter to measure for voltage before proceeding.
Danger 3 — Always contact the local utility company before
connecting the enclosure to the utilities.
Warning — This equipment is ESD sensitive. Proper ESD
protections should be used when removing the fiber access cover of the indoor ONT.
Caution — Keep indoor ONTs out of direct sunlight. Prolonged
exposure to direct sunlight can damage the unit.
3 — Replace a G-240W-A indoor ONT
Note 1 — Observe the local and national laws and regulations that
may be applicable to this installation.
Note 2 — Observe the following:
• The indoor ONT should be installed in accordance with the
applicable requirements of the NEC or CEC. Local authorities and practices take precedent when there is conflict between the local standard and the NEC or CEC.
• The indoor ONT must be installed by qualified service personnel.
• Indoor ONTs must be installed with cables that are suitably rated
and listed for indoor use.
• See the detailed specifications in the G-240W-A unit data sheet for
the ONT temperature ranges for these ONTs.
Alcatel-Lucent 7368 ISAM ONT 3-3 Edition 02 G-240W-A Product Guide
Page 68
3 — Replace a G-240W-A indoor ONT
24435
LED
USB
LED
indicator
USB
port

3.6 Procedure

Use this procedure to replace a G-240W-A indoor ONT. 1 Deactivate th e ONT ser v ic es at th e P-O L T.
If you are using the SLID feature, this step is not required. The ONT and the services can remain in service (IS).
i Use the RTRV-ONT command to verify the ONT status and th associated
services. Record the serial number or the SLID of the ONT displayed in the command output.
Example:
RTRV-ONT::ONT-1-1-1-1-1;
ii If the ONT is in service, place the ONT in OOS state.
Example:
ED-ONT::ONT-1-1-1-1-1;
2 If used, disable the Wi-Fi service by pressing the WLAN button; see Figure 3-1 for
the location of the WLAN button.
Figure 3-1 G-240W-A indoor ONT connections (side view)
3 Power down the unit by using the on/off power switch. 4 Disconnect the POTS, Ethernet, and power cables from the ONT; see Figures 3-1
and 3-2 for the connector locations on the G-240W-A indoor O NT .
3-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 69
Figure 3-2 G-240W-A indoor ONT connections (back view)
LAN4
PON
LAN3 LAN2 LAN1 WPS WLAN RESET USB POWER ON/OFF
TEL2 TEL1
Ethernet ports (4)
(RJ-45)
POTS
ports (2)
(RJ-11)
USB
port
Reset
button
Wireless
On/Off
button
Wi-Fi
security
button
Fiber Optic
port
24434
On/Off
button
Power
input
5 Disconnect the fiber optic cables.
3 — Replace a G-240W-A indoor ONT
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or adapters.
i Unplug the fiber optic cable with SC/APC connector from the ONT; see
Figure 3-2 for the location of the fiber optic port.
ii Attach a fiber dust cover to the end of the SC/APC connector.
6 Replace the ONT with a new unit:
a On a flat surface, such as a desk, substitute the new ONT for the old ONT on
a flat surface, horizontally res ting on its four feet.
b On a wall.
i Slide the old ONT off of the mounting screws until the ONT is free of the
wall.
ii Slide the wall mount holes on the ONT enclosure over the mounting
screws until it is securely seated.
7 Connect the Ethernet cables directly to the RJ-45 ports; see Figure 3-2 for the
location of the RJ-45 ports.
8 Connect the POTS cables directly to the RJ-11 ports as per local practices; see
Figure 3-2 for the location of the RJ-11 ports. The RJ-11 port to the left is labeled 1 for Line 1 while the port on the right is
labeled 2 for Line 2.
Alcatel-Lucent 7368 ISAM ONT 3-5 Edition 02 G-240W-A Product Guide
Page 70
3 — Replace a G-240W-A indoor ONT
9 If required, have approved service personnel who are trained to work with optic
fiber clean the fiber optic connection. See the 7368 ISAM ONT Configuration, Management, and Troubleshooting Guide for more information about fiber optic handling, inspection, and cleaning.
Danger — Fiber optic cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or adapters.
10 Connect the fiber optic cable with SC/APC adapter into the SC/APC connector.
Figure 3-2shows the location of the SC/APC connector.
Danger — Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or adapters.
Warning — Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber opti c cable. Too small of a bend radius in the cable can result in damage to the optic fiber.
Note — Fiber cable preparation varies depending on the type and size
of the inside or outside plant fiber cable being spliced to the SC/APC fiber optic pigtail cable.
11 Install the power supply according to manufacturer specific ation s.
Note — Observe the following:
• Units must be powered by a Listed or CE approved and marked
limited power source power supply with a minimum output rate of 12 V dc, 1.25 A.
12 Connect the power cable to the power connector. 13 Power up the unit by using the power switch. 14 If used, enable the Wi-Fi service by pressing the WLAN button; see Figure 3-1 for
the location of the WLAN button.
15 If used, configure the SLID; see th e 7368 ISAM ONT Configuration, Management,
and Troubleshooting Guide for more information.
Note — A new SLID or the old SLID may be used with the replacement
ONT. If a new SLID is used, the new SLID must also be programmed at the P-OLT using TL1 or a network manager. If the old SLID is used, no changes need to be made at the P-OLT; see the operations and maintenance documentation for the OLT for more detai ls.
16 Verify the ONT LEDs, voltage s tatus, and optical signal levels; see the 7368
Hardware and Cabling Installation Guide.
3-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 71
3 — Replace a G-240W-A indoor ONT
17 Activate and test the services; see the 7368 Hardware and Cabling Installation
Guide.
18 If necessary, reset the ONT.
i Locate the Reset button on a G-240W-A indoor ONT as shown in Figure 3-1. ii Insert the end of a straightened paper clip or other narrow object into the
hole in the Reset button to reset the ONT.
19 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 3-7 Edition 02 G-240W-A Product Guide
Page 72
3 — Replace a G-240W-A indoor ONT
3-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 73

4 — Configure a G-240W-A indoor ONT

4.1 General 4-2
4.2 HGU mode GUI configuration 4-2
4.3 SFU mode GUI conf ig ura tio n 4-42
4.4 Operator ID 4-47
Alcatel-Lucent 7368 ISAM ONT 4-1 Edition 02 G-240W-A Product Guide
Page 74
4 — Configure a G-240W-A indoor ONT

4.1 General

Please refer to the configuration information provided with your OLT for the software configuration procedure for a G-240W-A ONT.
For HTTP configuration procedures, please refer to the 7368 ISAM ONT Configuration, Management, and Troubleshooting Guide.

4.2 HGU mode GUI configuration

Use the procedures below to utilize the web-based GUI for the G-240W-A in HGU mode. This mode is preset at delivery.
A home gateway unit (HGU) is a home networking device, used as a gateway to connect devices in the home through fiber to the Internet. An HGU provides a variety of features for the home network including routing and firewall capability. By using the HGU, users can connect all smart equipment in their home, including personal computers, set-top boxes, mobile phones, and other consumer electronics devices, to the Internet.

Login

Use the procedure below to login to the web-based GUI for the G-240W-A.

Procedure 4-1 Login to web-based GUI

1 Open a web browser and enter the IP address of the ONT in the address bar.
The login window appears. The default gateway IP address is http://192.168.1.254. You can connect to this
IP address using your web browser after connecting your PC to one of Ethernet ports of the ONT. The static IP address of your PC must be in the same subnet as the ONT.
2 Enter your username and password in the Log in window, as shown in Figure 4-1.
The default username and password are printed on the ONT. The default user name is userAdmin. The default superuser name is adm inGPON. Contact Alcatel-Lucent for the superuser password.
4-2 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 75
4 — Configure a G-240W-A indoor ONT
Figure 4-1 We b l o gin window
Caution — Pressing the Reset button for less than 10 seconds reboots
the ONT; pressing the Reset button for 10 seconds resets the ONT to the factory defaults, except for the LOID and SLID.
Note — If you forget the current username and password, press the
reset button for 10 s and the default valu es for the username and password will be recovered at startup.
3 Click Login. 4 STOP. This procedure is complete.

Device and connection status

G-240W-A ONTs support the retrieval of a variety of device and connection information, including:
• device information
• LAN status
• WAN status
• WAN status IPv6
• Home networking information
• Optics module status
• Voice information
Alcatel-Lucent 7368 ISAM ONT 4-3 Edition 02 G-240W-A Product Guide
Page 76
4 — Configure a G-240W-A indoor ONT

Procedure 4-2 Device information retrieval

1 Select Status > Device Information from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-2.
Figure 4-2 Device Information window
Table 4-1 describes the fields in the Device Information window.
Table 4-1 Device Information parameters
Field Description
Device Name Name on the ONT Vendor Name of the vendor Serial Number Serial number of the ONT Hardware version Hardware version of the ONT Boot version Boot version of the ONT Software version Software version of the ONT Chipset Chipset of the ONT Device Running
Time
Amount of time the device has run since last reset in hours, minutes, and seconds
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.
4-4 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 77
4 — Configure a G-240W-A indoor ONT

Procedure 4-3 LAN status retrieval

1 Select Status > LAN Status from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-3.
Figure 4-3 LAN status window
Table 4-2 describes the fields in the LAN status window.
Table 4-2 LAN status parameters
Field Description Wireless Information
Wireless Status Indicates whether the wireless is on or off Wireless Channel Wireless channel number SSID Name Nam e of each SSI D Wireless
Encryption Status Wireless Rx
Packets Wireless Tx
Packets Wireless Rx Bytes Number of bytes received on the wireless connection Wireless Tx Bytes Number of bytes transmitted on the wireless connection Power
Transmission (mW)
Ethernet Inform ation
Ethernet Status Indicates whether the Ethernet connection is on or off Ethernet IP
Address
Encryption type used on the wireless connection
Number of packets received on the wireless connection
Number of packets transmitted on the wireless connection
Power of the wireless transmission, in mW
IP address of the Ethernet connection
(1 of 2)
Alcatel-Lucent 7368 ISAM ONT 4-5 Edition 02 G-240W-A Product Guide
Page 78
4 — Configure a G-240W-A indoor ONT
Field Description
Ethernet Subnet Mask
Ethernet MAC Address
Ethernet Rx Packets
Ethernet Tx Packets
Ethernet Rx Bytes Number of bytes received on the Ethernet connection Ethernet Tx Bytes Number of bytes transmitted on the Ethernet connection
(2 of 2)
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.

Procedure 4-4 WAN status retrieval

Subnet Mask of the Ethe rnet connection
MAC address of the Ethernet connection
Number of packets received on the Ethernet connection
Number of packets transmitted on the Ethernet connection
1 Select Status > WAN Status from the top-level menu i n the GPON Home Gateway
window, as shown in Figure 4-4.
Figure 4-4 WAN status window
Table 4-3 describes the fields in the WAN status window.
4-6 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 79
4 — Configure a G-240W-A indoor ONT
Table 4-3 WAN status parameters
Field Description
WAN connection list
Connection Mode Connection mode of the WAN connection Enable/Disable Select this checkbox to enable the WAN connection VLAN VLAN ID WAN Link Status Whether the WAN link is up or down PPPoE
Concentrator Pon Link Status Whether the PON link is up or down
Tx Packets Number of packets transmitted on the WAN connection Rx Packets Number of packets received on the WAN connection Tx Dropped Number of packets dropped on the transmit WAN connection Rx Dropped Number of packets dropped on the receive WAN connection Err Packets Number of errored packets on the WAN connection
Drop-down menu listing all WAN connections. The connection shown is the connection for which WAN status will be shown.
Displays the PPPoE Access Concentrator (AC) name This field applies only if the Connection Mode is set to PPPoE
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-7 Edition 02 G-240W-A Product Guide
Page 80
4 — Configure a G-240W-A indoor ONT

Procedure 4-5 WAN status IPv6 retrieval

1 Select Status > WAN Status IPv6 from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-5.
Figure 4-5 WAN status IPv6 window
Table 4-4 describes the fields in the WAN status IPv6 window.
Table 4-4 WAN status IPv6 parameters
Field Description
WAN connection list
Enable/Disable Select this checkbox to enable the WAN connection VLAN VLAN ID IPv6 Address IPv6 Address that identifies the de vice and its location IPv6 Prefix IPv 6 prefix IPv6 Gateway IPv6 gateway address Primary DNS Primary Domain Name Server Second DNS Secondary Domain Name Server Pon Link Status Whether the PON link is up or down Tx Packets Number of packets transmitted on the WAN connection Rx Packets Number of packets received on the WAN connection Tx Dropped Nu mber of packets dropped on the transmit WAN connection Rx Dropped Number of packets dropped on the receive WAN connection Err Packets Number of errored packets on the WAN connection
Drop-down menu listing all WAN connections. The connection shown is the connection for which WAN status will be shown.
4-8 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 81
4 — Configure a G-240W-A indoor ONT
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.

Procedure 4-6 Home networking information retrieval

1 Select Status > Home Networking from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-6.
Figure 4-6 Home networking information window
Table 4-5 describes the fields in the Home networking window.
Table 4-5 Home networking parameters
Field Description Local Interface
Ethernet Table displays the number of Ethernet connections and their settings Wireless (2.4G) Table displays the number of wireless connections and their settings
Wireless Settings (2.4G)
Network Name Name of the wireless network Access Point Hexadecimal address of the wireless access point
Local Devices
Table entry Each entry indicates the connection type, dev i ce name, IPv4 address,
hardware address, and IP address allocation of each connected local device.
2 Click Delete to delete a particular local device connection.
Alcatel-Lucent 7368 ISAM ONT 4-9 Edition 02 G-240W-A Product Guide
Page 82
4 — Configure a G-240W-A indoor ONT
3 Click Refresh to update the displayed information. 4 STOP. This procedure is complete.

Procedure 4-7 Optics module status retrieval

1 Select Status > Optics Module Status from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-7.
Figure 4-7 Optics module status window
Table 4-6 describes the fields in the Optics module status window.
Table 4-6 Optics module status parameters
Field Description
Laser Bias Current (ONT ANI-ONT-Side Optical Measurements)
Optics Module Voltage (ONT ANI-ONT-Side Optical Measurements)
Optics Module Temperature (ONT ANI-ONT-Side Optical Measurements)
Rx Optics Signal Level at 1490 nm (ONT ANI-ONT-Side Optical Measurements)
Tx Optics Signal Level at 1310 nm (ONT ANI-ONT-Side Optical Measurements)
Lower (ONT ANI-ONT-Side Optical Measurements-Optical Threshold)
Upper (ONT ANI-ONT-Side Optical Measurements-Optical Threshold)
Laser bias current, measured in uA
Optics module voltage, measured in V
Optics module temperature, measured in C
Received optics signal level at 1490 nm, measured in dBm
Transmitted optics signal level at 1310 nm, measured in dBm
Lower optical threshold, measured in dBm
Lower optical threshold, measured in dBm
4-10 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 83
4 — Configure a G-240W-A indoor ONT
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.

Procedure 4-8 Voice information retrieval

1 Select Status > Voice Information from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-8.
Figure 4-8 Voice Information window
Table 4-7 describes the fields in the Voice Information window.
Table 4-7 Voice Information parameters
Field Description
POTS 1 Registration Status Status of POTS port 1: registered or unregistered POTS 2 Registration Status Status of POTS port 2: registered or unregistered POTS 1 Line State State of POTS line 1: IDLE, Off Hook, or On Hook POTS 2 Line State State of POTS line 2: IDLE, Off Hook, or On Hook Softswitch Telephone line 1 phone number Telephone line 2 phone number
Note
(1)
(1)
(1)
(1)
This field is only visible at the adminGPON level; it is not visible at the userAdmin level.
Proxy IP address; blank if the line is not registered Phone number configured fo r telephone line 1 Phone number configured fo r telephone line 2
Alcatel-Lucent 7368 ISAM ONT 4-11 Edition 02 G-240W-A Product Guide
Page 84
4 — Configure a G-240W-A indoor ONT
2 Click Refresh to update the displayed information. 3 STOP. This procedure is complete.

Network configuration

G-240W-A ONTs also support network configuration, including:
• LAN
• LAN IPv6
• WAN
• WiFi
• Routing
• DNS
• TR-069

Procedure 4-9 LAN networking configuration

1 Select Network > LAN from the top-level menu in the GPON Home Gatewa y
window, as shown in Figure 4-9.
Figure 4-9 LAN network window
Table 4-8 describes the fields in the LAN network window.
4-12 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 85
4 — Configure a G-240W-A indoor ONT
Table 4-8 LAN network parameters
Field Description
Port Mode: All Port to L2 Mode
Port Mode Port 1 - 4
IPv4 Address IP Address of the ONT Subnet Mask Subnet mask of the ONT DHCP enable Select this checkbox to enable DHCP DHCP Start IP
Address DHCP End IP
Address DHCP Lease Time DHCP lease time (in min) Bind MAC Address MAC address to associate to the LAN Bind IP Address IP address to associate to the bound MAC address
Select this checkbox to set all ports to L2 mode
Drop-down port mode for each port: Route mode or bridge m ode
Starting DHCP IP address
Ending DHCP IP address
2 Select the mode for each port. 3 Click Save. 4 Enter the DHCP configuration information. 5 Click Save. 6 Bind a MAC address to the LAN by entering the MAC and IP addresses and then
clicking Add. Repeat for all MAC addresses to be bound.
7 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-13 Edition 02 G-240W-A Product Guide
Page 86
4 — Configure a G-240W-A indoor ONT

Procedure 4-10 LAN IPv6 networking configuration

1 Select Network > LAN_IPv6 from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-10.
Figure 4-10 LAN IPv6 network window
Table 4-9 describes the fields in the LAN IPv6 network window.
Table 4-9 LAN IPv6 network parameters
Field Description
DNS Server Choose a DNS server from the drop-down menu. prefix config Choose a prefix config option from the drop-down menu, either
prefix This field appears if you selected the “Static” option for the “prefix config”
Interface This field appears if you selected the Wan Connection option for the “prefix
DHCPv6 Server Enable
DHCP Start IP Address
DHCP End IP Address
Whether the address info through DCHP
(1 of 2)
WANConnection (prefix will be obtained from the WAN) or Static (enables you to enter the prefix).
field. Type a connection.
config” field. Choose a WAN connection interface from the drop-down menu. Select this checkbox to enable DHCP IPv6 server.
Enter the star ting DHCP IP address.
Enter the ending DHCP IP address.
Select this checkbox to enable address information ret r ieval through DHCP.
4-14 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 87
4 — Configure a G-240W-A indoor ONT
Field Description
Whether other info obtained through DHCP
Maximum interval for periodic RA messages
Minimum interval for periodic RA messages
(2 of 2)
Select this checkbox to enable retrieval of other information through DHCP.
Enter the maximum interval (in seconds) for periodic Router Advertisement messages. The interval range is from 4 to 1800.
Enter the minimum interval (in seconds) for periodic Router Advertisement messages. The interval range is from 4 to 1800.
2 Choose a DNS server, prefix conf ig, and interface. 3 Select or enter the DHCP configuration information. 4 Enter the maximum and minimum intervals for RA messages. 5 Click Save/Apply. 6 STOP. This procedure is complete.

Procedure 4-11 WAN networking configuration

1 Select Network > WAN from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-11.
Figure 4-11 WAN network window
Table 4-10 describes the fields in the WAN network window.
Alcatel-Lucent 7368 ISAM ONT 4-15 Edition 02 G-240W-A Product Guide
Page 88
4 — Configure a G-240W-A indoor ONT
Field Description
WAN Connection List
Connection Type Select a connection type: IPoE or PPPoE IP Mode Choose an IP mode from the drop-down menu: IPv4 or IPv6 Enable/Disable Select this checkbox to enable the WAN connection NAT Select this checkbox to enable NAT Service Select the checkboxes to enable service types for this connection Enable VLAN Select this check box to enable VLAN VLAN ID Enter the VLAN ID VLAN PRI Enter the VLAN PRI WAN IP Mode Choose an IP mode from the drop-down menu Connection Trigger Choose a connection type from the drop-down menu Username Enter the usern ame Password Enter the password Keep Alive Time Enter the Keep Alive Time (from 5 to 60 seconds)
Table 4-10 WAN network parameters
Choose a WAN connection from the drop-down menu to set the connection parameters
2 Configure a specific WAN connection. 3 Click Save. 4 STOP. This procedure is complete.
4-16 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 89
4 — Configure a G-240W-A indoor ONT

Procedure 4-12 WiFi networking configuration

1 Select Network > WiFi from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-12.
Figure 4-12 WiFi network window
Table 4-11 describes the fields in the WiFi network window.
Table 4-11 WiFi network parameters
Field Description
Enable Select this checkbox to enable WiFi Mode Choose a wi-fi mode from the drop-down menu:
• auto (b/g/n)
• b
• g
• n
• b/g
Bandwidth Choose a channel from the drop-down menu or choose Auto to have the
Channel Choose a bandwidth option from the drop-down menu Transmitting
Power SSID Select Choose the SSID from the drop-down menu SSID Name Enter the SSID name Enable SSID Enable or disable SSID from this drop-down menu SSID Broadcast Enable or disable SSID broadcast from this drop-down menu Port Mode Choose a port mode from the drop-down me nu:
channel automatically assigned
Choose the percentage transmitting power from the drop-down menu
• Route
• Bridge
(1 of 2)
Alcatel-Lucent 7368 ISAM ONT 4-17 Edition 02 G-240W-A Product Guide
Page 90
4 — Configure a G-240W-A indoor ONT
Field Description
Encrypt Mode Choose an encryption mode from the drop-down menu:
WPA Version Choose a WPA version from the drop-down menu:
WPA Encryption Mode
WPA Key Enter the WPA key Enable WPS Enable or disable WPS from this drop-down menu WPS Mode Choose a WPS mode from the drop-down menu:
PIN Code Number Enter the WPS PIN
• OPEN
• WEP
• WPA/WPA2 Personal
• WPA/WPA2 Enterprise
• WPA1
• WPA2
• WPA1/WPA2
Choose a WPA encryption mode from the drop-down menu:
• TKIP
• AES
• TKIP/AES
• PBC
• PIN
(2 of 2)
2 Configure the WiFi connection. 3 If you have enabled and configured WPS, click WPS connect. 4 Click Save. 5 STOP. This procedure is complete.
4-18 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 91
4 — Configure a G-240W-A indoor ONT

Procedure 4-13 Routing configuration

1 Select Network > Routing from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-13.
Figure 4-13 Routing network window
Table 4-12 describes the fields in the Routing network window.
Table 4-12 Routing network parameters
Field Description
Enable Routing Select this checkbox to enable routing Destination IP
Address Destination
Netmask Gateway Enter the gateway address IPv4 Interface Choose a WAN connection previo usly created in the WAN network window
Enter the destination IP address
Enter the destination network mask
from the drop-down menu
2 Enter the routing information. 3 Click Add. 4 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-19 Edition 02 G-240W-A Product Guide
Page 92
4 — Configure a G-240W-A indoor ONT

Procedure 4-14 DNS configuration

1 Select Network > DNS from the top-lev e l menu in the GPON Home Gateway
window, as shown in Figure 4-14.
Figure 4-14 DNS network window
Table 4-13 describes the fields in the DNS network window.
Table 4-13 DNS network parameters
Field Description
Domain Name Domain name IPv4 Address Domain IP address Origin Domain Origin domain name New Domain New domain name
2 Enter the domain name and IP address and click Add. 3 If required, associate an origin domain with a new domain, click Add. 4 STOP. This procedure is complete.
4-20 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 93
4 — Configure a G-240W-A indoor ONT

Procedure 4-15 TR-069 configuration

1 Select Network > TR-069 from the top-level menu in the GPON Ho me Gateway
window, as shown in Figure 4-15.
Figure 4-15 TR-069 network window
Table 4-14 describes the fields in the TR-069 network window.
Table 4-14 TR-069 network parameters
Field Description
Periodic Inform Enable
Periodic Inform Interval(s)
URL URL of the auto-configuration server Username Username used to log in to the ONT Password Password used to log in to the ONT Connect Request
Username Connect Request
Password
Select this checkbox to enable periodic inform updates
Time between periodic inform updates, in seco nds
Username used to l og in to the auto-c onfiguration server
Password used to log in to the auto-configuration server
2 Configure TR-069 by entering the required infor mation. 3 Click Save. 4 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-21 Edition 02 G-240W-A Product Guide
Page 94
4 — Configure a G-240W-A indoor ONT

Security configuration

G-240W-A ONT also supports security configuration, including:
• firewall
• MAC filter
• IP filter
• URL filter
• DMZ and ALG

Procedure 4-16 Firewall configuration

1 Select Security > Firewall from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-16.
Figure 4-16 Firewall window
Table 4-15 describes the fields in the firewall window.
Table 4-15 Firewall parameters
Field Description
Security level Choose the security level from the drop-down menu Attack Protect Enable or disable attack protect from the drop-down menu
2 Configure the firewall. 3 Click Save. 4 STOP. This procedure is complete.
4-22 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 95
4 — Configure a G-240W-A indoor ONT

Procedure 4-17 MAC filter configuration

1 Select Security > Mac Filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-17.
Figure 4-17 MAC filter window
Table 4-16 describes the fields in the MAC filter window.
Table 4-16 MAC filter parameters
Field Description
Enable MAC filter Select this checkbox to enable the MAC filter Mac Address MAC address Mac Filter Mode Choose th e MAC filter mode from this dr op-down menu
2 Configure a MAC filter. 3 Click Add. 4 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-23 Edition 02 G-240W-A Product Guide
Page 96
4 — Configure a G-240W-A indoor ONT

Procedure 4-18 IP filter configuration

1 Select Security > IP filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-18.
Figure 4-18 IP filter window
Table 4-17 describes the fields in the IP filter window.
Table 4-17 IP filter parameters
Field Description
Enable IP Filter Select this checkbox to enable an IP filter Mode Choose an IP filter mode from the drop-down menu:
• Drop for upstream
• Drop for downstream
Internal Client Choose an internal client from the drop-down menu:
• Customer setting - uses the IP address input below
• IP - uses the connecting devices' IP to the ONT
Local IP Address Local IP address Source Subnet
Mask Remote IP Address R emote IP address Destination Subnet
Mask Protocol Choose an application protocol or all from the drop-down menu
2 Configure the IP filter.
Source subnet mask
Destination subnet mask
4-24 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 97
4 — Configure a G-240W-A indoor ONT
3 Click Add. 4 STOP. This procedure is complete.

Procedure 4-19 URL filter configuration

1 Select Security > URL Filter from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-19.
Figure 4-19 URL Filter window
Table 4-18 describes the fields in the URL Filter window.
Table 4-18 URL Filter parameters
Field Description
Enable URL filter Select the checkbox to enable the URL filter URL filter type Select the checkbox for Exclude URL or Include URL URL Address Type the URL address Port Number Type the port number; the default is 80
2 Configure the URL Filter. 3 Click Add Filter. 4 STOP. This procedure is complete.
Alcatel-Lucent 7368 ISAM ONT 4-25 Edition 02 G-240W-A Product Guide
Page 98
4 — Configure a G-240W-A indoor ONT

Procedure 4-20 DMZ and ALG configuration

1 Select Security > DMZ and ALG from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-20.
Figure 4-20 DMZ and ALG window
Table 4-19 describes the fields in the DMZ and ALG window.
Table 4-19 DMZ and ALG parameters
Field Description
ALG Config Select the checkboxes to enable the protocols to be supported by the ALG
DMZ Config
WAN Connection List
Enable DMZ Select this checkbox to enable DMZ on the chosen WAN connection DMZ IP Address Choose Customer Setting and enter the DMZ IP address or choose the IP
Choose a WAN connection from the drop-down menu
address of a connected device from the drop-down menu
2 Configure ALG. 3 Click Save ALG. 4 Configure DMZ. 5 Click Save DMZ. 6 STOP. This procedure is complete.
4-26 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Page 99
4 — Configure a G-240W-A indoor ONT

Application configuration

G-240W-A ONT also supports application configuration, including:
• port forwarding
• DDNS
• NTP
• USB storage
• UPnP and DLNA

Procedure 4-21 Port forwarding configuration

1 Select Application > Port forwarding from the top-level menu in the GPON Home
Gateway window, as shown in Figure 4-21.
Figure 4-21 Port forwarding window
Table 4-20 describes the fields in the port forwarding window.
Table 4-20 Port forwarding parameters
Field Description
APPName Choose an application name from the drop-down menu WAN Port WAN port range LAN Port LAN port range Internal Client Choose a connected device from the drop-down menu and enter the
Protocol Choose the port forwarding protocol from the drop-down menu:
associated IP address
• TCP
• UDP
• TCP/UDP
Enable Mapping Select this checkbox to enable mapping
(1 of 2)
Alcatel-Lucent 7368 ISAM ONT 4-27 Edition 02 G-240W-A Product Guide
Page 100
4 — Configure a G-240W-A indoor ONT
Field Description
WAN Connection List
(2 of 2)
2 Configure port forwarding. 3 Click Add. 4 STOP. This procedure is complete.

Procedure 4-22 DDNS configuration

1 Select Application > DDNS from the top-level menu in the GPON Home Gateway
window, as shown in Figure 4-22.
Choose a WAN connection from the drop-down menu
Figure 4-22 DDNS window
Table 4-21 describes the fields in the DDNS window.
Table 4-21 DDNS parameters
Field Description
WAN Connection List
Enable DDNS Select this checkbox to enable DDNS on the chosen WAN connection ISP Choose an ISP from the drop-down menu. Domain Name Domain name Username Username
(1 of 2)
Choose a WAN connection from the drop-down menu
4-28 Alcatel-Lucent 7368 ISAM ONT
Edition 02
G-240W-A Product Guide
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
