Nokia 9802 S User Manual

Owner’s Manual

MEDIAMASTER

9802 S

Hereby, Nokia declares that this digital receiver, Nokia Mediamaster 9802 S, is in conformity with essential requirements and other relevant provisions of Directive 1999/5/EC. This Terminal Equipment is intended for connection to the analogue Public Switched Telephone Networks (PSTNs), in which network addressing, if provided, is by means of Dual Tone Multiple Frequency (DTMF) signalling.

MEDIAMASTER 9802 S

Contents

General information 4 For your safety 4 Remote control 5 Front and rear panel 6

Viaccess smartcard 7 CA module with its smartcard 7 Preparing the remote control 8 Connecting the Mediamaster to the dish 8 Connecting the Mediamaster 9 Connecting to the TV 9 Connecting a TV and VCR 9 Connecting an analogue satellite receiver and VCR 10 Nokia smart switch 10 Connecting a HiFi system 10 Switching on for the first time with SCART connections 11 Tuning procedure when RF connections are used 11

First time installation 12

General information 12 The Welcome menu 12 Language 12 RF modulator type 13 Antenna/Satellite selection menu 13 Antenna/Satellite selection 14-19

Antenna motor installation 20-23

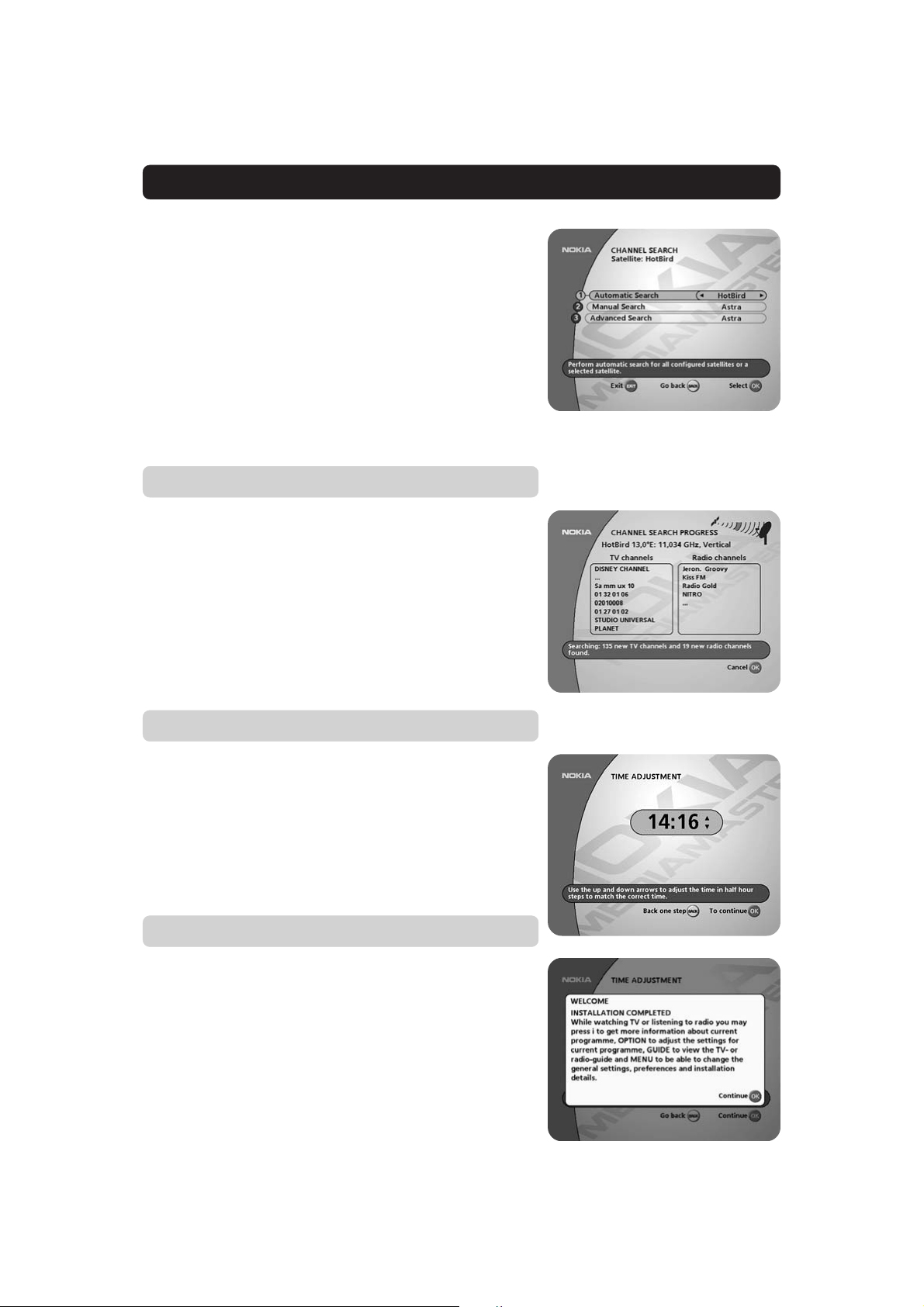

Channel search progress 23 Time adjustment 23

Viewing mode 24

General information 24 Programme information 24 The “i” (information) button 25

Guide 25 List of TV and radio channels 26 Options (green button) 26 TV release (0) 27 Video recording 27 The TEXT button (Teletext) 27 EXIT TV 27

Main menu 28

General information 28 TV and radio channels 28 Edit channels 28-31 Update channels 32 Guide 33 System configuration 33 Channel search 33-34 Edit satellites 35-36 Antenna/Satellite configuration 37 TV settings 37 Time adjustment 38 Modem configuration 38 Receiver upgrade 39 Reinstall 39 User preferences 39 Language preferences 39 Parental control 40 Appearance preferences 41 System information 42 Timer 43-44

Glossary 45 Problem solving 46 Front panel display 47 Technical specifications 48

Nokia and Nokia Connecting People are registered trademarks of Nokia

Corporation. Other product and company names mentioned herein are be

trademarks or trade names of their owners.

Nokia operates a policy of continuous development. Therefore we reserve the

right to make changes and improvements to any of the products described in

this manual without any prior notice.

GB 3

GENERAL INFORMATION ABOUT THE MEDIAMASTER

Throughout this manual you will notice that the everyday operation of your Mediamaster is based on a series of user friendly on-screen displays and menus. These menus will help you get the most from your Mediamaster, guiding you through installation, channel selection, viewing and many other functions.

All functions can be carried out using the buttons on the remote control, and some of the functions can also be carried out using the buttons on the front panel.

Please be aware that new software may change the functionality of the Mediamaster.

Should you experience any difficulties with the operation of your Mediamaster, please consult the relevant section of this manual, including the Problem Solving, or alternatively call your dealer or a customer service adviser.

FOR YOUR SAFETY

• Allow 10 cm space around the Mediamaster for sufficient ventilation.

• Do not cover the Mediamaster’s ventilation openings with items such as newspapers, tablecloths, curtains etc.

• Do not place the Mediamaster on top of a unit that emits heat.

• Do not place naked flame sources, such as lighted candles, on the Mediamaster.

• Use a soft cloth and a mild solution of washingup liquid to clean the casing.

• Do not expose the Mediamaster to dripping or splashing liquids.

• Do not place any objects filled with liquids, such as vases, on the Mediamaster.

GB 4

•To give your Mediamaster an extra protection, e.g. at a thunderstorm, we recommend that you connect it via an external surge protection device.

• Do not connect or modify cables when the Mediamaster is plugged in.

• Do not remove the cover.

• Do not allow the unit to be exposed to hot, cold or humid conditions.

• Service should be carried out only at a Nokia Authorised Service Centre.

• Please note that the only way to isolate the Mediamaster completely from the mains supply is to unplug the mains cable!

REMOTE CONTROL

This section describes how to operate the Mediamaster using the buttons on the remote control. Some of the functions can also be carried out using the buttons on the front panel.

Switch the Mediamaster in and out of standby mode.

EXIT TV Return to the viewing mode from a menu without storing

any settings (in menu mode). Switch between TV or Radio mode (in viewing mode).

Turn the sound off/on (mute).

- + Adjust the volume of digital programmes. The Mediamaster’s maximum level is controlled by the TV’s present volume setting.

0 - 9 Change channel and to select individual menu options.

0 TV Release. To switch between digital TV/Radio, analogue

BACK Go back one level at the time within menus without storing

TEXT Select teletext information.

MENU To show and to exit from the Main Menu.

GUIDE Obtain a list of present and following programmes for the

P+ P- Change channels up and down, one at the time.

Note: If 0 is entered as the first digit, the TV Release functionality is activated (see below).

TV and analogue satellite TV and VCR, when your systems are connected by SCART cables.

Info. To display short and extended information (if transmitted) about current and next programmes.

any settings.

Press to enter teletext (if available).

available channels. This information is only shown if your Service Provider transmits programme information (EPG information).

Return to TV mode from an “Open TV” application.

Change page in a menu/list/text if more than one page is

available. To browse through teletext history.

 Move up/down in the menus and to change channels.

  Change settings in menus.

OK Confirm choices and selection of a highlighted item.

Show the TV/Radio channel list.

(Red) Download an “Open TV” application.

OPTION (Green) Select service options in viewing mode.

OPTION + code will open locked channels.

FREEZE (Yellow) Press once to freeze the screen picture.

Press any other key to return to normal mode again.

(Blue) To toggle between present and previous TV/Radio channel.

GB 5

FRONT AND REAR PANEL

Front panel

Slot

for a Viaccess Smartcard

Rear panel

AUX SCART

for connection to a VCR, or an analogue satellite receiver

Button

Push the button to release an inserted CA module

Slot

for a CA module with a Smartcard

DIGITAL AUDIO phono connector

S/PDIF output for connection to a HiFi system

Display

shows channel number, error messages, remote control commands and time in standby mode

to put the Mediamaster in and out of standby mode

TELEPHONE

for connection of the cable to the phone jack

TV/VCR

for an RF-cable to the aerial input of the TV or VCR



to move up/down in the menus and to change channels.

ANTENNA *

Satellite dish input (F-connector)

95-250 V AC 50-60 Hz For connection of the enclosed mains cable

GB 6

TV SCART

for connection to the TV

AUDIO L R phono connectors

Stereo outputs for connection to a HiFi system

SERIAL PORT

to read and load data information

TV AERIAL

for a terrestrial (conventional) TV aerial

* LNB cable also feeds the LNB with a supply voltage of 13/18 V (V/H polari-

sation) and a 0/22 kHz signal (bandswitch). Max LNB current is 500 mA.

ABOUT THE SMARTCARD AND CA MODULE

To be able to receive scrambled digital satellite channels you will need a Smartcard and/or a Common Interface CA (Conditional Access) module* from a Service Provider of your choice.

There are a few different CA modules on the European market. Each one of the CA modules support a certain kind of encryption system. The Mediamaster supports CA modules which are made to work according to the DVB standard. Depending on which country you use the Mediamaster in, your local dealer will provide you with the right type of CA module.

Please note that a smart card may only be valid for a single Service Provider and due to this, a specific range of channels.

The smart card and the CA module may cause special menus, not described in this manual, to appear. Follow the instructions from the Service Provider.

Note: CA modules and smart cards are only distributed by Service Providers and special distributors, not by Nokia.

After inserting a card, leave it in the slot permanently. Do not remove it again, unless you will be asked to do so. This is important because, for example, if your Service Provider wants to download new information to the smart card, the card has to be in the slot.

* Only use a DVB Standard Common Interface CA Module

Viaccess smartcard

Only for services coded with the Viaccess CA system.

• Insert your smartcard fully into the left slot behind the lid of the front panel of the Mediamaster. The gold chip should face

downwards and inwards.

CA module with its smartcard

• Follow the instructions from your Service Provider how to insert the CA module and the belonging smartcard

• Insert the CA module fully into the slot behind the lid of the front panel of the Mediamaster.

•Press the grey button on the front panel if you need to remove the CA module.

PIN Code

The Smartcard is loaded with a 4-digit code, also called a PIN code (Personal Identification Number).

The code is essential in order to access future services offered by the Service Provider.

GB 7

INSTALLATION OF THE MEDIAMASTER

The box for your Mediamaster should contain the following items:

• the Mediamaster

• remote control with 2 AAA batteries

• SCART cable (fully connected 1,0 metre)

• aerial/RF cable (double screened 1,5 metres)

• owner’s manual and software license agreement

• mains cable

SCART cable

RF cable

About the SCART sockets

The rear panel of the Mediamaster is equipped with 2 SCART sockets (see diagram). When you connect other devices to any of these sockets, always use fully connected SCART cables (as the one supplied.) There are SCART cables available which do not have all the pins connected. The picture quality could be reduced if you use them.

Preparing the remote control

• Remove the cover on the battery compartment at the bottom of the remote control.

• Insert the 2 AAA (1,5 V) batteries, as shown in the diagram, taking care to observe the + and - markings indicated inside.

• Replace the cover.

Connecting the Mediamaster to the dish

If you need to fit the F-connectors onto the cable

• Prepare each end of the cable as shown in the diagram. You will need to fold back the outer braid (as shown).

• Slide the F-connector onto the cable, then turn it clockwise until it grips the braid.

• Ensure that 3 mm of the core is protruding from the end of the connector.

Remote control

Owner’s manual License agreement

SCART socket

15 mm

8 mm

F-connector

3 mm

mains cable

Installing the satellite dish

• See the ”Fitting instructions for satellite dish” on how to install the dish.

• Connect the coaxial cable, with F-connectors fitted, from the LNB on the satellite dish to the socket marked ”ANTENNA”on the rear panel of the Mediamaster.

GB 8

INSTALLATION OF THE MEDIAMASTER

General

There are many different types of TV/VCR and other equipment that you can connect to the Mediamaster. In this manual you will see some of the most common ways to connect your equipment.

If you use RF cables you will have to tune your TV and VCR to the Mediamaster output channel (see page 11).

If you have problems with your connections and need help, contact your dealer or Service Provider.

Connecting to the TV

• Connect the SCART cable between the main SCART socket on the TV and the TV SCART socket on the Mediamaster.

• Connect an RF cable from the TV/VCR output on the Mediamaster to the RF input socket on the TV.

• Connect the TV aerial to the TV AERIAL input socket on the Mediamaster.

SCART

Connecting a TV and VCR

Refer to your VCR’s manual for full instructions.

• Connect one SCART cable between the main SCART socket on the TV and the TV SCART socket on the Mediamaster.

• Connect another SCART cable between the VCR and the AUX SCART socket on the Mediamaster.

• Connect the RF cable from the RF output on the VCR to the TV aerial input on the TV.

• Connect the TV aerial to the RF input socket on the VCR.

If your TV has a SCART socket, but your VCR does not

• Connect a SCART cable between the main SCART socket on the TV and the TV SCART socket on the Mediamaster.

• Connect an RF cable from the RF output on the VCR to the TV aerial input on the TV.

• Connect an RF cable from the TV/VCR output on the Mediamaster to the RF input socket on the VCR.

• Connect the TV aerial to the TV AERIAL input socket on the Mediamaster.

SCART

VCR

SCART

Mediamaster

VCR

Mediamaster

GB 9

INSTALLATION OF THE MEDIAMASTER

Connecting a satellite receiver and a VCR

• Connect a SCART cable between the main SCART socket on the TV and the TV SCART socket on the Mediamaster.

• Connect a SCART cable between the VCR and the AUX SCART socket on the Mediamaster.

• Connect an RF cable from the RF output on the VCR to the TV aerial input on the TV.

• Connect an RF cable from the RF output on the satellite receiver to the RF input socket on the VCR.

• Connect the TV aerial to the RF input socket on the satellite receiver.

In order to switch the signal from the dish between the satellite and digital receivers, you need a Nokia smart switch (at A B in the diagram) or a Universal Twin LNB.

Nokia smart switch

• Connect a coaxial cable between output A on the smart switch (accessory) to the LNB socket on the satellite receiver.

• Connect a coaxial cable between output B on the smart switch to the ANTENNA socket on the Mediamaster.

The satellite receiver must be switched OFF (in standby mode) when you want to watch digital satellite channels from the Mediamaster.

With Nokia smart switch

SCART

Nokia smart switch

VCR

Mediamaster

Satellite receiver

Connecting a HiFi system

• Connect an RCA/Cinch stereo cable from the AUDIO L R sockets on the Mediamaster to the LINE, AUX, SPARE or EXTRA input sockets on your HiFi system.

• If available you can connect an RCA/Cinch single cable from the DIGITAL AUDIO socket on the Mediamaster to your HiFi or Dolby Pro Logic system.

Note: To avoid interference you must use a screened audio cable.

Connecting to the built in phone modem

The built in phone modem makes it possible for you to use interactive services. Refer to page 38.

• Connect the attached telephone cable between the socket marked TELEPHONE on the rear of the Mediamaster and the ordinary telephone socket in the wall.

GB 10

INSTALLATION OF THE MEDIAMASTER

Switching on for the first time with SCART connections

• Plug in your Mediamaster

• Now you will see the ”Welcome” menu on the screen.

• Press OK on the Mediamaster remote control to start the Installation procedure.

You may now proceed to “First time installation”, see next page.

Tuning procedure when RF connections are used

This procedure is necessary if your Mediamaster is connected to the TV with an RF cable, and not via SCART.

To tune your TV to the RF signal you might also need your TV manual in addition to this manual. The steps below explain what to do if you have been unable to use SCART cables in your connection.

• Plug in your Mediamaster.

Tuning your TV to the Mediamaster

• Select a channel number on the TV that is not currently used for other TV channels.

• Follow the instructions in your TV manual to tune the TV channel selector to UHF channel 43 (this is the Mediamaster’s factory preset UHF channel). If you are already using this channel, select another non occupied UHF channel between 21to 69 on the TV.

• For example, if you select UHF channel 45 on your TV, you must change your Mediamaster to the same channel. Use the  or  buttons on the front panel of the Mediamaster, or on the remote, to change to the corresponding channel. You will see the UHF channel number displayed on the front panel of the Mediamaster.

• When you have correctly changed the UHF channel number you will see the ”

If there is interference from other channels you will have to change the chosen UHF channel.

• Follow the instructions in your TV manual to store this UHF channel as the channel used by your Mediamaster. You will have to select it when you want to watch digital TV/Radio channels.

• Once the welcome message is visible, press the OK button on the Mediamasters remote control to start the “First time installation” procedure, see next page.

Welcome

” menu on the TV screen.

If for some reason you have to change the RF channel later, you can do this by using TV settings menu further on in this manual. If you have a VCR connected it must be tuned to a different UHF channel (between 21 to 69) than the Mediamaster.

GB 11

FIRST TIME INSTALLATION

General information

Once you have correctly connected the Mediamaster, you also have to perform a “First Time Installation.” During this procedure, helpful information is displayed at the bottom of the menus.

Please note!

The OK button always confirms a selection within these menus, and pressing it will take you to the next step in the installation process. However, and this is important, often more than one value has to be entered in a menu. First, perform all necessary settings on the different lines. Then, confirm them all simultaneously by pressing OK.

You can always go back to the previous menu by pressing the BACK button.

Use the   buttons to move upwards and downwards from one line to another. Use

You can also use the numeric buttons on the remote control to select a line in a menu and to enter numeric values.

 to change settings.

The “Welcome” menu

This picture indicates that you have started the installation procedure.

Press the OK button to proceed.

Language

Select the desired menu language. This will also be the main language for audio and subtitling.

To select the Norwegian, Finnish and Greek language alternative you first have to press the double arrow button .

GB 12

FIRST TIME INSTALLATION

RF modulator type

If the Mediamaster is connected to the TV with a RF cable, you must select the right RF modulator alternative, which is dependent on the country where the Mediamaster is being used.

Select “Normal (PAL B/G)” for all countries except the UK.

Select “UK (PAL I)” when the box is used in the UK.

If you get picture but no sound, the RF modulator selection might be wrong.

Antenna/satellite selection

Select one of the alternatives from line 1 to 4 if you have a single antenna equipped with one LNB for receiving signals from either ASTRA, HOTBIRD, THOR or SIRIUS.

Select one of the alternatives from line 5 or 6 if you have one antenna with two LNBs or two antennas with one LNB on each for receiving signals from the combination ASTRA/HOTBIRD or THOR/SIRIUS. In these cases you also need a 2-way DiSEqC switch.

Select alternative 7 for any other antenna/satellite combination, e.g. antenna motor.

Alternatives 1-6 requires the use of a Universal LNB(s.)

GB 13

FIRST TIME INSTALLATION

Line through on the antenna satel-

1 4

lite selection menu

Select one of the alternatives ASTRA, HOTBIRD, SIRIUS or THOR when you have a single LNB directed towards any of these satellites.

Pressing OK from the selected alternative will display the “Antenna adjustment” menu (shown to the right) on the screen.

For each satellite, (e.g. ASTRA, HOTBIRD, SIRIUS, THOR), up to 4 different channels are preprogrammed and shown in the menu. When you adjust the antenna, your Mediamaster will use the selected channel to find signals from a satellite. (You can select a channel with the  buttons.)

Antenna adjustment and signal check

• Adjust the antenna towards the desired satellite until you have a high value on the Signal strength (AGC) *) indicator (the red bar at the top of the menu) and on the Signal quality (SNR) *) indicator (the red, yellow and green bar at the top of the menu).

If you do not get a picture, you may have tuned in an analogue signal source. Another reason could also be that the antenna is positioned towards wrong satellite. The reason could also be that the marked channel is not transmitting at the moment. If so, try one of the other preprogrammed channels with the  buttons.

When you have picture from a TV channel, press OK. The Mediamaster automatically starts searching for and downloads channels from the satellite. Please refer to page 23.

(If you have a good indication in the signal quality menu, but no picture from any of the channel alternatives, try proceeding with the channel search anyway by pressing OK.)

*)About Signal strength (AGC)

and Signal quality (SNR)

The different signal indicators at the top of the menu provide information about two things:

AGC: The AGC, shown with a red bar, will indicate the aver-

SNR: The SNR, shown with a red, yellow and green bar, will

GB 14

age strength of any incoming signal, digital as well as analogue.

indicate the signal quality for the selected prepro-

grammed channel.

FIRST TIME INSTALLATION

Line and on the antenna satellite

5 6

selection menu

Select one of these alternatives when you have a single antenna equipped with 2 LNBs, or two antennas with one LNB on each, and want to watch channels from ASTRA/HOTBIRD or THOR/ SIRIUS.

In this case you must first connect the LNBs to an external switch since there is only one antenna input on the Mediamaster. Once installed the switch automatically selects the correct LNB for the selected channel.

This external switch is better known as a DiSEqC ™ switch. Since the switch can be located close to the LNBs, you only need one cable down to the Mediamaster.

Connection of a DiSEqC switch:

• Connect the cable from the LNB intended for channels from ASTRA (or THOR) to the connector marked LNB 1 or A on the switch.

• Connect the cable from HOTBIRD (or SIRIUS) to the connector marked LNB 2 or B.

• Then, connect the antenna cable to the connector marked OUT on the switch.

• Connect the other end of this cable to the ANTENNA input in the rear of the Mediamaster.

On the most common type of DiSEqC switches the connections are usually marked 1 and 2. On the mini DiSEqC switches the connections are usually marked A and B.

As a principle they perform the same work, but demands different electric commands from the receiver in order to start working.

• First check, as described in paragraph Antenna adjustment and signal check on page 14, that you get picture and sound from ASTRA (THOR).

• When you have picture and sound continue to the next row and check HOTBIRD (SIRIUS) for picture and sound.

• When the HOTBIRD(SIRIUS) check is ready, press OK to start the channel search procedure. The box now starts searching and downloading channels from both satellites. See “Channel search” on page 18.

DiSEqC switch with 2 inputs

GB 15

+ 35 hidden pages
