Nokia 9600S, 9200S User Manual

Owner’s Manual
MEDIAMASTER
9200 S 9600 S
GB 1
Important Information
Wiring the plug (UK and Eire only)
The mains lead on this product is already fitted with a non-rewireable (moulded) plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating, marked thus:
If the fuse cover is detachable always refit the cover after replacing the fuse. NEVER use the plug with the fuse cover omitted. If the fitted plug is not suitable for your socket outlets it should be cut off, after having first removed the fuse, and an appropriate plug fitted in its place. If this new plug contains a fuse its value should be the same as that removed from the non-rewireable plug. The severed plug must be destroyed immediately to avoid the possible shock hazard should be inserted into a 13A socket elsewhere. If you need to replace the mains plug then follow the instruction given below: The wires in the mains lead are coloured in accordance with the following code: BLUE - Neutral (N); BROWN - Live (L).
As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. On no account either of these wires to the terminal marked E or coloured GREEN or GREEN and YELLOW. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead; not simply over the two wires. If in doubt, consult a competent electrician.
GB 2
Mediamaster 9200 S and 9600 S
The sky is the limit with your Mediamaster. It‘s easy to use, al­ways at your command and adaptable for future advances.
To begin with, you will find it necessary to read these instructions but you will soon find yourself competent without them.
Contents
For your safety 3
Rear panel, Front panel 4
Installation of the Mediamaster 5
Connecting the Mediamaster to different units 5 Preparing the remote control 7 Switching on for the first time 8
Before you continue ..... 8
Remote control 9
About the Smart Card and CA Module 10
Basic Settings 11

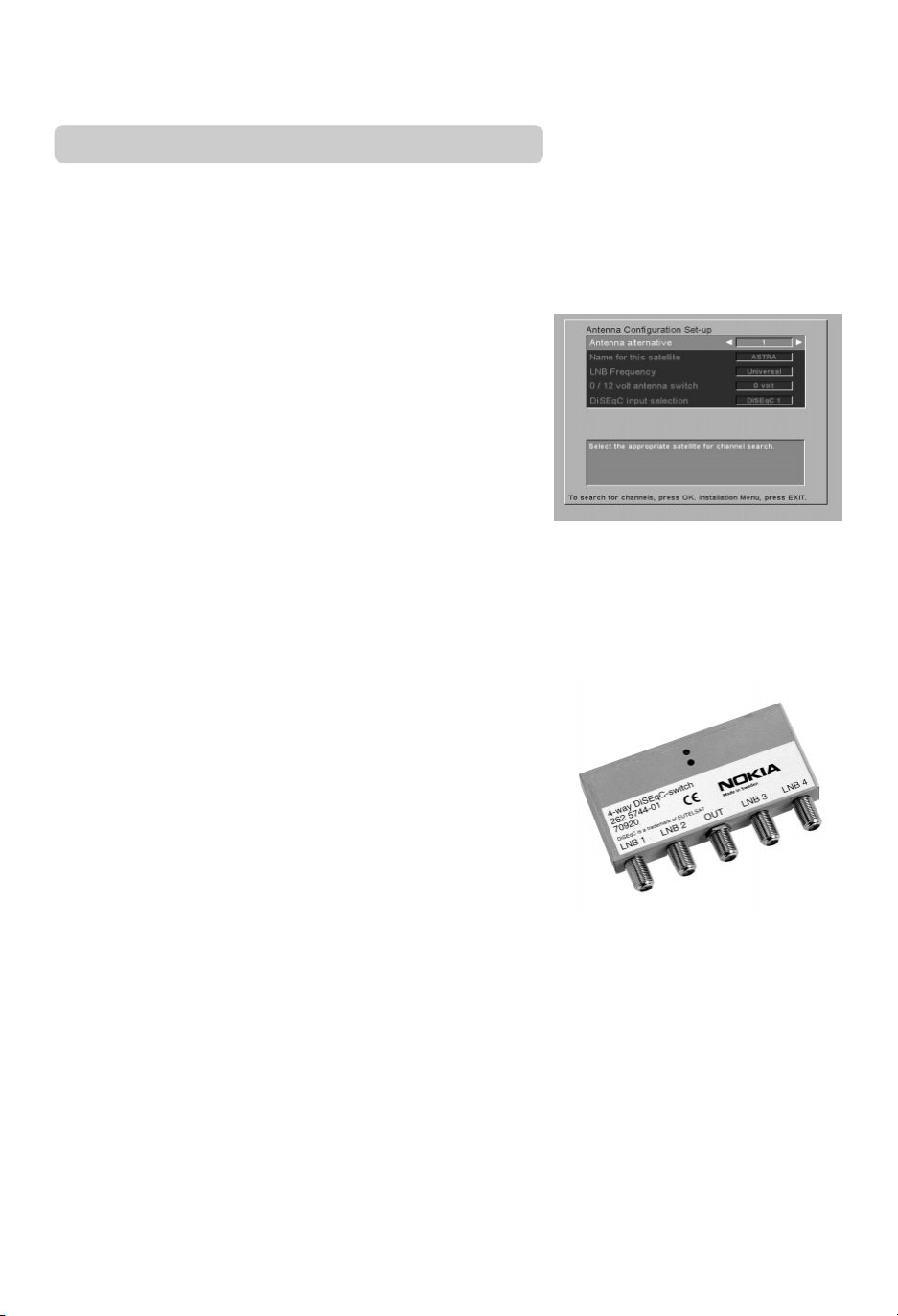

The Welcome Menu 11 Antenna configuration 11 Channel Search 12 SMATV or IF frequency channel search 15
Viewing TV 16
Important general information 16 Start/stop watching TV 16 Select Channel 16 Programme Information. The “i“ Button 16 TV Guide 17 The Radio button List of TV channels / Radio channels 18 Video recorder 19 Analogue Receiver 19 Subtitling and Teletext. The TEXT button 19
Settings from the Main Menu 20
The TV Guide and Radio Guide 20 Parental Control 21
Installation Submenus 22
Antenna Configuration and Channel Search 22 Advanced Channel Search 22 Edit TV and Radio Channels 23 Language Settings 23 System Settings 23 Receiver upgrade 24 Automatic Installation 24 Symbols on the Mediamaster display 24
Glossary of terms 25 Problem solvings 26 Technical Specifications 27
17
For your safety
Keep a clear space around the Mediamaster to allow for sufficient ventilation.
Do not cover the Media­master or place it on a unit that emits heat.
• Use a soft cloth and a mild so­lution of washing-up liquid to clean the casing.
• Nokia is proud to offer a high quality product. To keep this level of quality, service should be carried out only at a Nokia authorised service centre.
• Do not connect or modify ca­bles when the Media-master is plugged in.
• Do not remove the cover.
• Do not allow the unit to be ex­posed to hot, cold or humid conditions.
• Please note that the only way to isolate the Mediamaster completely from the 230 V mains supply is to unplug the mains lead!
We reserve the right to change specifications.
Please be aware that new software can change
the functionality of the Box.
DiSEqC™ is a trademark of EUTELSAT
The EMC Directive 89/336/EEC is applied to this product.
GB 3
Rear panel
Mains lead
230 V AC +/- 15%, 50 Hz
0/12 VOLT
for an external LNB switch
AUDIO L R
Stereo outputs for connection to a HiFi system
TV SCART
for the audio / video input of the TV set
VCR SCART
for a video recorder
SAT SCART
for an analogue receiver
LNB *
Satellite dish input (F­connector)
RS232
for a printer, PC or a high speed modem
* LNB cables also feed the LNB with a supply voltage of 13/18 V (V/H polarisa­tion) and a 0/22 kHz signal for LNB switch
SCSI
For a CD-ROM player or other high-speed data equipment
GB 4
Front panel
Display
shows programme information. At start up, it displays software and boot/loader number
Slot
for the CA module and the Smart Card (9600 S)
Welcome
Slot
for the Smart Card (9200 S)
to turn the receiver on/ off (standby)
Select channel number, up/down
Installation
The box for your Mediamaster should contain the following items:
• the Mediamaster
• a remote control handset with batteries.
• a fully featured SCART cable which can be used to connect your Mediamaster to the TV or video recorder.
• Owner’s Manual.
About the SCART sockets
• On the back side the Mediamaster is equipped with 3 SCART sockets (see figure). When you connect external sets to any
of theese sockets, always use fully featured SCART cables.
There are “slimmed” (=cheap) SCART cables on the market, but it is not sure that e. g. your videorecorder will work OK with some of these cables.
• SCART cables are also necessary to get stereo sound from a stereo TV and video recorder.
SCART cable
SCART socket
3
2
1
6
5
4
9
8
TV
7
0
GUIDE
MENU
EXIT
OK
TEXT
Connecting the Mediamaster to the satellite dish
Installing the satellite dish
• Your satellite dish should be installed with a cable for you to connect to the Mediamaster. If you do not have this cable you will need to buy one from a dealer (tell the dealer you need a coaxial cable and F-connectors).
• Connect the cable from the satellite dish to the socket marked ”LNB”on the back of the Mediamaster.
If you need to fit the F-connectors onto the cable
• Prepare each end of the cable as shown in the diagram. You will need to fold back the outer braid (as shown).
• Slide the F-connector onto the cable, then turn it clockwise until it grips the braid.
• Ensure that 3 mm of the core is protruding from the end of the connector.
15 mm
8 mm
F-connector
3 mm
GB 5
Connecting the Mediamaster to a TV set
• Do not remove the cable from the TV to the TV aerial.
• Connect one end of the SCART cable to the TV SCART socket on the back of the Mediamaster and the other end to the SCART input socket on your TV.
Connecting to a TV and a video recorder
Refer to your video recorder manual for full instructions.
• Connect one SCART cable between the TV and the TV SCART socket on the Mediamaster.
• Connect the other SCART cable between the video recorder and the VCR SCART socket on the Mediamaster.
• Connect the RF cable from the RF output on the video recorder to the TV aerial input on the TV.
• Connect the ordinary TV aerial directly to the RF input socket on the video recorder.
TV
SCART
Connecting to a Hi Fi system
• Connect an RCA/Cinch stereo cable from the AUDIO L R sock­ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA input sockets on your Hi Fi system.
GB 6
Connecting to an analogue satellite receiver and a video recorder
• Connect one SCART cable between the TV set and the TV SCART socket on the Mediamaster.
• Connect one SCART cable between the TV SCART socket on the analogue satellite receiver and the SAT SCART socket on the Mediamaster.
• Connect one SCART cable between the video recorder and the VCR SCART socket on the Mediamaster.
• Connect the RF cable from the RF output on the
video recorder to the TV aerial input on the TV.
• Connect the ordinary TV aerial directly to the RF input socket
on the video recorder (TV if no VCR).
In order to switch the signal from the dish between the ana­logue and digital receivers, you need a Nokia Smart priority switch (at A B in the diagram).
• Connect the coaxial cable between output A on the NOKIA
Smart priority switch (accessory) to the LNB socket on the
analogue receiver.
• Connect the coaxial cable between output B on the NOKIA
Smart priority switch (accessory) to the LNB socket on the
Mediamaster. The analogue receiver must switched OFF when you want
to watch channels from the Mediamaster.
With Video recorder
VCR
Analogue receiver
Nokia Smart Priority Switch
NOKIA Smart priority switch
B
A
Without a VCR, you should connect as shown in the diagram to the right.
Preparing the remote control
• Remove the cover on the battery compartment at the bottom
of the remote control handset.
• Insert the 2 x AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the + and - markings indicated inside.
• Replace the cover.
Analogue receiver
B
GB 7
A
CA module and Smart Card. Model 9600 S only
CA modules and Smart Cards are licenced to Service Provid­ers.
If you want to watch TV programmes from a Service Provider you must use a CA module (Conditional Access) with a Smart Card. Please note, that the CA module and the Smart Card may give special menus not described in this Manual. If no CA module is used you can only watch ”free to air” TV programmes.
Note: The mains plug must not be plugged in before insert- ing the CA module!
• Insert the CA module fully into the slot behind the lid in the front panel of the Mediamaster so that the arrow on the module faces upwards and inwards.
• Insert your card fully into the slot on the CA module, so that the microchip (the yellow spot) faces upwards and inwards.
Switching on for the first time
You can now plug in the mains plug of the Mediamaster to the wall socket.
• Switch on your TV set.
• When the Mediamaster is connected to the TV set, you will now see a welcome message on the screen. You may now proceed to page 11 “Basic Settings”.
However, we recomend that you read the other information
on the preceding pages first.
Before you continue...
please read this concerning menus
A menu is a field of text shown on the TV screen. These menus contain different kinds of information and give the possibility to select between alternatives. In the bottom part of the screen you will normally also have a short explanation of your options. A menu may contain several lines. Selectable lines are high­lighted. Non highlighted lines are not selectable.
GB 8
Remote control
This section describes how to operate the Mediamaster using the buttons on the remote control. You can also change programmes by pressing buttons on the Mediamaster‘s front panel.
To turn the Mediamaster on/off (standby).
Press once to switch to audio language/audio track (if available). Press twice to switch to Radio mode.
TV To leave a menu and go back to watch a TV pro-
gramme. To switch from Radio Mode to TV Mode. To toggle between terrestrial TV, VCR, analogue and the digital satellite signal.
0 - 9 To select channel number and other numerical
commands.
GUIDE To obtain a list of present and coming programs for
the available channels. This information is only shown if your Service Provider transmits pro­gramme information.
MENU To display the ”Main menu” screen.
EXIT To go back one level in the menus.
To return to the Main Menu from a Submenu.
To give short and extended information (if transmit­ted) about the current/next programme.
LEFT/RIGHT To move in left/right direction within the menus. BUTTONS
UP/DOWN To move in an up/down direction in the menus. BUTTONS To select TV and audio channels.
Double arrow
LEFT
Double arrow
UP
RIGHT
DOWN
DOUBLE To step pages or change channels up or down in the ARROWS menus. (In blocks of 10).
OK To confirm choices, etc.
Select TV/Radio channel list.
+ - To increase or decrease the volume level of the
Mediamaster. The Mediamaster’s maximum level is controlled by the TV:s present volume setting. The volume adjustment also alters the volume level to your video recorder.
To turn the sound on /off (mute).
TEXT To select teletext information.
Press once to change teletext subtitle. Press twice to enter teletext (if available).
GB 9
