Important Information

Wiring the plug (UK and Eire only)

The mains lead on this product is already fitted with a non-rewireable (moulded) plug
incorporating a fuse, the value of which is indicated on the pin face of the plug. Should
the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of
the same rating, marked thus:

If the fuse cover is detachable always refit the cover after replacing the fuse. NEVER
use the plug with the fuse cover omitted. If the fitted plug is not suitable for your socket
outlets it should be cut off, after having first removed the fuse, and an appropriate plug
fitted in its place. If this new plug contains a fuse its value should be the same as that
removed from the non-rewireable plug.

The severed plug must be destroyed immediately to avoid the possible shock hazard
should be inserted into a 13A socket elsewhere.

If you need to replace the mains plug then follow the instruction given below:
The wires in the mains lead are coloured in accordance with the following code:
BLUE - Neutral (N); BROWN - Live (L).

As these colours may not correspond with the coloured markings identifying the ter­minals in your plug, proceed as follows:

The wire coloured BLUE must be connected to the terminal marked with the letter N
or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the
terminal marked with the letter L or coloured BROWN or RED. On no account either
of these wires to the terminal marked E or coloured GREEN or GREEN and YELLOW.
Before replacing the plug cover, make certain that the cord grip is clamped over the
sheath of the lead; not simply over the two wires.

If in doubt, consult a competent electrician.

GB 2

We reserve the right to change specifications.

Please be aware that new software can change

the functionality of the Box.

The sky is the limit with your Mediamaster. It‘s easy to use, always at your command and adaptable
for future advances.

To begin with, you will find it necessary to read these instructions but you will soon find yourself com­petent without them.

Contents

For your safety 3
Rear panel/Front panel 4
Installation 5
Connecting the Mediamaster to the TV set 5
Preparing the remote control 7
Remote control 8
About the Smart Card and CA Module 9
Basic Settings 10
The Welcome Menu 10
Viewing TV 11
Important general information 11
Start/stop watching TV 11
TV Guide 12
Volume level 13
List of TV channels and Radio channels 14
How to show the Main Menu 16
The TV Guide and Radio Guide 16
TV Channels and Radio channels 16
Parental Control 17
Installation 17
Common Interface 17
Cable Network settings 18
Channel Search 18
Create a Favourite List 19
Language Settings 19
System Settings 19
First time Installation 20
Glossary of terms 21
Technical Specifications 22

For your safety

• Keep a clear space around
the Mediamaster to allow
for sufficient ventilation.

• Do not cover the Media­master or place it on a unit
that emits heat.

• Use a soft cloth and a mild so­lution of washing-up liquid to
clean the casing.

• Nokia is proud to offer a high
quality product. To keep this
level of quality, service should
be carried out only at a Nokia
authorised service centre.

• Do not connect or modify ca­bles when the Media-master
is plugged in.

• Do not remove the cover.

• Do not allow the unit to be ex­posed to hot, cold or humid
conditions.

• Please note that the only way
to isolate the Mediamaster
completely from the 230 V
mains supply is to unplug the
mains lead!

GB 3

Rear panel

Mains lead

230 V AC
+/- 15%,
50 Hz

ANTENNA

Connection to
the cable
network socket

TV / VCR

for an RF-cable
to the aerial
input of the TV
set or a Video
Recorder

AUDIO L R

Stereo outputs
for connection
to a HiFi system

0/12 VOLT

Not used

TV

SCART Connec­tion to the TV set

VCR

for the ordinary
Video recorder
(record and playback)

AUX

Input SCART connection
for e. g. an analogue
satellite receiver or a
second Video recorder
(playback only)

RS232

for a printer,
PC or a high
speed modem

SCSI

For a CD-ROM
player or other
high-speed data
equipment

Front panel

GB 4

Display

shows programme information.
At start up, it displays software and boot/loader number

Welcome

Slot

for the CA Module
and Smart Card

to turn the receiver
on/off (standby)

Select channel
number, up/down

Installation

The box for your Mediamaster should contain the
following items:

• the Mediamaster

• a remote control handset with batteries.

• a fully featured SCART cable for connection to the TV set.

• Owner’s Manual.

About the SCART sockets

• On the back side the Mediamaster is equipped with 3 SCART
sockets (see figure). When you connect external sets to any
of theese sockets, always use fully featured SCART cables.
There are “slimmed” (=cheap) SCART cables on the market,
but it is not sure that e. g. your videorecorder will work OK with
some of these cables.

• SCART cables are also necessary to get stereo sound from a
stereo TV and video recorder.

SCART cable

SCART socket

3

2

1

6

5

4

9

8

TV

7

0

GUIDE

MENU

EXIT

OK

TEXT

Connecting the Mediamaster to the TV set

As most local cable networks are distributing TV programmes
from both digital and analogue sources, the signals from the
wall outlet will be of two different kind:

1) Digital signal information to be handled by the Mediamaster.
These signals are sent to the TV through the SCART cable.

2) Analogue signals which are bypassed to the TV through a
RF cable.

Due to that you must connect the Mediamaster to the TV set
as described below.

• Connect the SCART cable between the TV SCART socket on
the back of the Mediamaster and the SCART input socket on
your TV.

• Connect the RF cable between the TV/VCR connection on the
Mediamaster and the ordinary areial socket on the TV set.

• You also must have another RF cable between the ANTENNA
input on the Mediamaster and the network socket.

GB 5

Connecting to a TV and a video recorder

Refer to your video recorder manual for full instructions.

• Connect one SCART cable between the TV and the
TV SCART socket on the Mediamaster.

• Connect another SCART cable between the video
recorder and the VCR SCART socket on the
Mediamaster.

• A RF cable has to be connected between the
TV/VCR output on the Mediamaster and its corresponding
input on the Video recorder.

• Finally, connect another RF cable from the RF output on the
video recorder to the TV aerial input on the TV.

Connecting to an analogue satellite receiver and a video recorder

• Connect one SCART cable between the TV and the TV SCART
socket on the Mediamaster.

• Connect one SCART cable between the TV SCART socket
on the analogue satellite receiver and the AUX
SCART socket on the Mediamaster.

• Connect one SCART cable between the video
recorder and the VCR SCART socket on the
Mediamaster.

• Connect a RF cable from the RF output on the video recorder
to the TV aerial input on the TV.

• Connect a RF cable from the TV/VCR socket on the Media­master to the RF input on the video recorder.

• Connect a RF cable from the aerial socket to the socket
marked ”ANTENNA” on the Mediamaster.

Without the VCR, you should connect as shown
in the diagram to the right.

With Video recorder

VCR

Analogue receiver

GB 6

Analogue receiver

Connecting to a Hi Fi system

• Connect an RCA/Cinch stereo cable from the AUDIO L R sock­ets on the Mediamaster to the LINE, AUX, SPARE or EXTRA
input sockets on your Hi Fi system.

Preparing the remote control

• Remove the cover on the battery compartment at the bottom
of the remote control handset.

• Insert the 2 x AAA (1,5 V) batteries, as shown in the diagram,
taking care to observe the + and - markings indicated inside.

• Replace the cover.

Switching on for the first time

You can now plug in the mains plug of the Mediamaster to the
wall socket.

• Switch on your TV set.

• When the Mediamaster is connected to the TV set, you will
now see a welcome message on the screen. You may now
proceed to page 10 “Basic Settings”.
However, we recomend that you read the other information
on the preceding pages first.

Before you continue...

please read this concerning menus

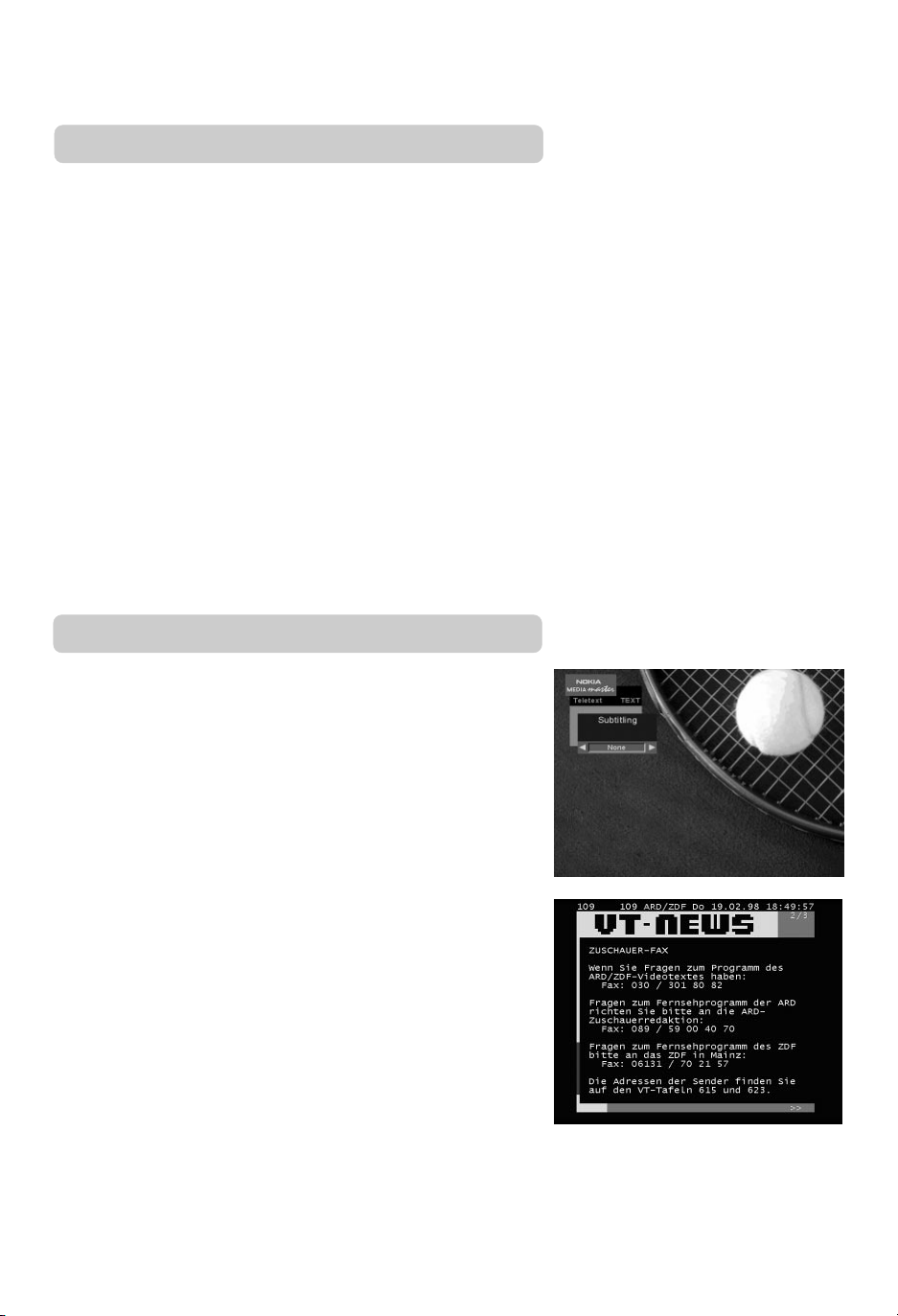

A menu is a field of text shown on the TV screen. These menus
contain different kinds of information and give the possibility to
select between alternatives.
In the bottom part of the screen you will normally also have a
short explanation of your options.
A menu may contain several lines. Selectable lines are high­lighted. Non highlighted lines are not selectable.

GB 7
