Nokia Customer Care
4 - Service Tools
Issue 1 09/04 COMPANY CONFIDENTIAL
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
[This page intentionally blank]
Issue 1 09/04 COMPANY CONFIDENTIAL 2
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Table of Contents
Page No
List of Recommended Service Tools ................................................................5
New service tools for RA-2/3 ............................................................................. 5
Re-used service tools ........................................................................................ 5
New Service Tools for RA-2/3 ............................................................................ 7
Re-used Service Tools...................................................................................... 10
Issue 1 09/04 COMPANY CONFIDENTIAL 3
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
[This page intentionally blank]
Issue 1 09/04 COMPANY CONFIDENTIAL 4
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
List of Recommended Service Tools
■ New service tools for RA-2/3
Type Short description Code
DA-14 Docking station adapter for JBV-1. 0780366
MJ-19 Module repair jig 0780372
MJS-76 LGA re-work jig
RJ-16 Soldering jig 0770417
RJ-71 Repair jig 0780486
RJ-72 Repair jig 0780488
RJ-73 Repair jig 0780490
SA-33 RF adapter 0770800
SA-49 RF coupler
SES-3 LGA rework stencil 0770558
ST-26 Repair stencil 0780487
ST-28 Repair stencil 0780489
ST-29 Repair stencil 0780491
0770417
0770866
■ Re-used service tools
Type Short Description Code
ACF-8 Universal power supply 0680032
ACP-8E Charger output: 5.3V DC, 500 mA; Europe. Version 0675195
ACP-8U Charger output: 5.3V DC, 500 mA; US. Version 0675196
AXP-8 Parallel bi-directional printer cable (part of FPS-8 sales package) 0730298
AXS-4 Serial cable 9 pol. Sub-D (part of FPS-8 sales package) 0730090
CA-28DS Service data cable, XCS-1 with USB lines connected 0730319
DAU-9S Serial data cable 9 pole Sub-D f <=> 8 pole modular connector 0730108
DKU-2 Connectivity cable 0730238
FLC-2 Power supply cable, Banana connectors to 3,5 mm DC plug, 1,2 meters 0730185
FLS-4S POS flash prommer for E&A incl. ACF-8 power supply 0080541
FLS-4S POS flash prommer for for APAC incl. ACF-8 power supply 0080542
5 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Type Short Description Code
FLS-4S POS flash prommer for for US incl. ACF-8 power supply 0080543
FPS-8 Flash prommer to be used with SF-14 or JBV-1 plus product specific
0080321
adapter. Sales pack includes: FPS-8 prommer, FPS-8 SW activation &
installation instr., FPS-8 activation sheet, power supply ACF-8, AXS-4
service cable (2x 9 pol. Sub-D), AXP-8 Bi-directional
FPS-10 Flash prommer to be used with SF-14 or JBV-1 plus product specific
0086189
adapter. Sales p ack in cludes: FPS-10 prommer, FPS-8 SW activation &
installation instr., FPS-10 activation sheet, power supply ACF-8, AXS-4
service cable (2x 9 pol. Sub-D), AXP-8 Bi-directional
FPS-11 Multiprommer 0770758
JBT-9 Bluetooth test & interface box 0081490
JBV-1 Flash/Test docking station with generic data&power interfaces 0770298
PCS-1 Power cable for FPS-8 with 2 x Banana connectors to 5,5 mm DC plug. 0730012
PKD-1 Software security dongle for service SW 0750018
CA-5S DC cable 0730283
SF-14 POS flash adapter to be used with FLS-4S / FPS-8 flash adapter 0780368
SS-34 Flex opening tool 0780396
XCS-4 Modular cable for e.g. connection between FPS-8 and SF-14. 0730178
XRF-1 RF cable 0730085
Issue 1 09/04 COMPANY CONFIDENTIAL 6
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
New Service Tools for RA-2/3
Type/
Code
DA-14
0780366
MJ-19
0780372
Description Picture
The DA-14 docking station adapter makes signal connections to the phone. JBV-1 and DA14 are used as one unit.
JBV-1 main electric functions are:
- adjustable VBATT calibration voltage,
current measurement limit voltage ”VCHAR”,
current measurement calibration current
”ICHAR”.
- adjustable ADC calibration voltage via
BTEMP and BSI signal.
- BTEMP and BSI calibration resistor.
- Signals from FBUS to the phone via parallel
jig
- Control via FBUS or USB.
- Flash OK/FAIL indication.
Module jig MJ-19 is designed for module level
testing. It can be used for testing at engine
level for the following:
- flashing
- RF
- battery
- system
- display,
- keyboard
- USB
- SIM/MMC reader
7 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Type/
Code

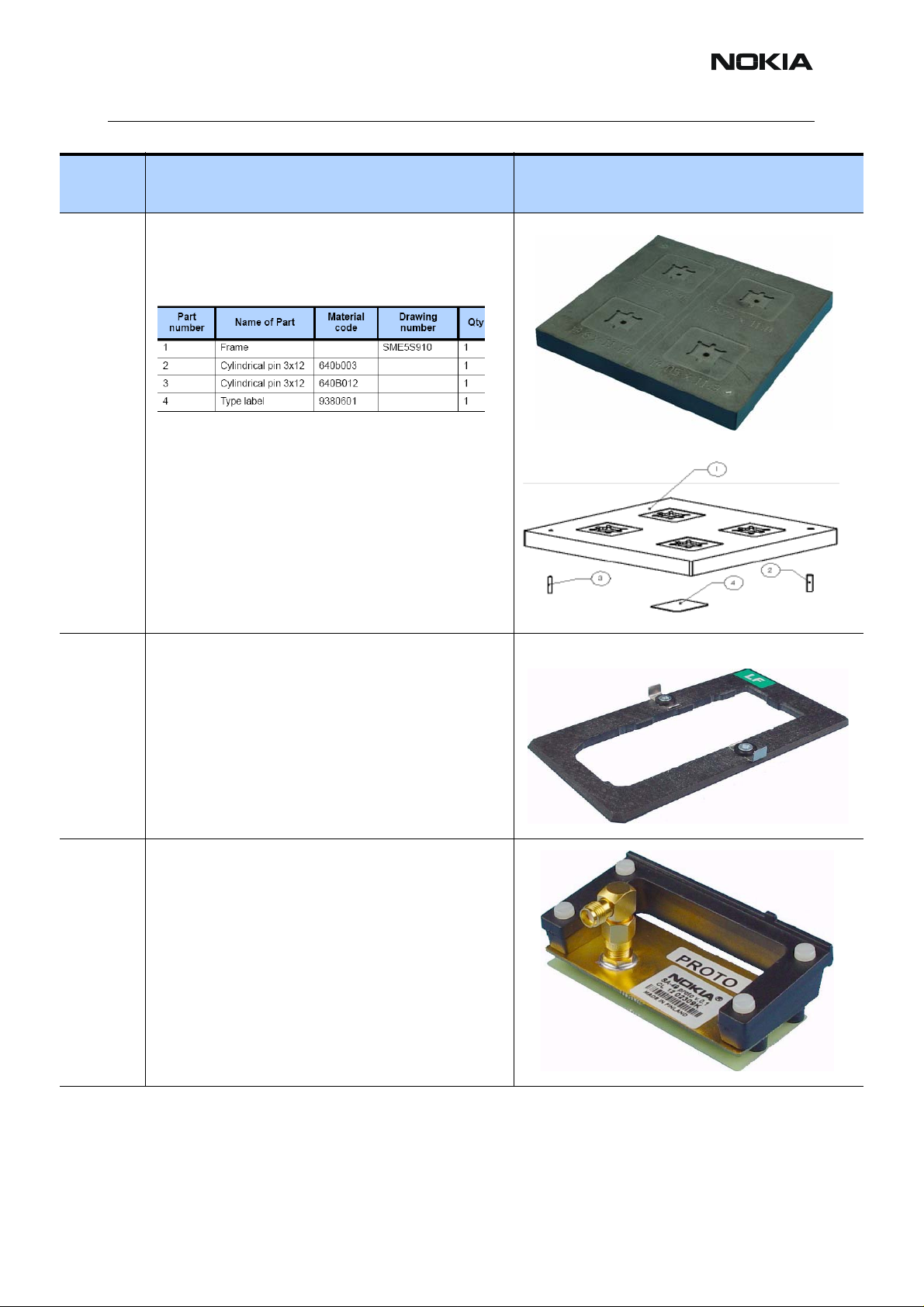

MJS-76
0770417
Description Picture
This tool is used in LGA type component
reworking purposes in central service centers.
Parts list
RJ-16
0770417
SA-49
0770866
RJ-16 soldering jig is used for soldering and
as a rework jig for 1BT engine module.
SA-49 is a coupler for RF testing. SA-49 is
used with DA-14.
Issue 1 09/04 COMPANY CONFIDENTIAL 8
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
Type/
Code
SES-3
0770558
ST-26
0780487
ST-28
0780489
ST-29
0780491
RJ-71
0780486
Description Picture
SES-3 is a LGA rework stencil.
Repair stencil Picture not available.
Repair stencil Picture not available.
Repair stencil Picture not available.
Repair jig Picture not available.
RJ-72
0780488
RJ-73
0780490
Repair jig Picture not available.
Repair jig Picture not available.
9 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Re-used Service Tools
Type/
Code
JBV-1
0770298
SF-14
0780368
Description Picture
The JBV-1 docking station has been
designed for calibration and software
update use.
In calibration mode, JBV -1 is powered by an
external power supply 11-16V DC. In flashing mode, power for the phone can be taken
from FPS-8 or external power supply 1116V DC.
SF-14 POS flash adapter is used in POS
(Point of Sales) environment for software
updates. It provides controlled supply voltage and necessary connections between
the phone and the flash prommer. It substitutes for the phone’s standard battery during
the software update.
Voltage limits 3.6 - 4.2V.
FPS-8
0080321
Issue 1 09/04 COMPANY CONFIDENTIAL 10
The flash prommer FPS-8 is used, for
example, with SF-14, DA-14 and JBV-1.
Power is supplied to FPS-8 from the universal power supply.
Sales pack includes:
- FPS-8 prommer (0750123)
- FPS-8 SW activation & installation instructions
- FPS-8 activation sheet (9359289)
- ACF-8 power supply (0680032)
- AXS-4 service cable (D9-D9) (0730090)
- Printer cable (0730029)
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
Type/
Code
FPS-10
0086189
FPS-11
0770758
Description Picture
The flash prommer FPS-10 is used, for
example, with SF-14, DA-14 and JBV-1.
Power is supplied to FPS-8 from the universal power supply.
Sales pack includes:
- FPS-10 prommer ()
- FPS-10 SW activation & installation
instructions
- FPS-8 activation sheet (9359289)
- ACF-8 power supply (0680032)
- AXS-4 service cable (D9-D9) (0730090)
- Printer cable (0730029)
8 x parallel flash prommer box
The parallel flash prommer FPS-8C is used
for example with SF-14, DA-14 and JBV-1.
Flash programming can be done to maximum of 8 phones parallel.
JBT-9
0081490
FLS-4S
0080541
FLS-4S
0080542
FLS-4S
0080543
Bluetooth test & interface box
The JBT-9 test box is a generic device to
perform Bluetooth Bit Error Rate testing and
doing cordless FBUS connection via Bluetooth. An ACP-8x charger is needed for
BER testing and AXS-4 cable in case of
cordless testing interface usage.
Sales package includes:
- JBT-9 test box (0770336)
- SMA stub antenna (066P056)
- Installation and warranty information
(9360613)
POS flash prommer for E&A incl. ACF-8
power supply
POS flash prommer for APAC incl. ACF-8
power supply
POS flash prommer for US incl. ACF-8
power supply
11 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Type/
Code
PKD-1
0750018
ACF-8
0680032
Description Picture
Software security dongle for service SW
ACF-8 universal power supply is used to
power FPS-8. ACF-8 has 6V DC and 2.1A
output.
ACP-8U
0675196
ACP-8E
0675195
Charger (for U.S.)
Output: 5.3V DC, 500 mA; US Version
Charger (for Europe)
Issue 1 09/04 COMPANY CONFIDENTIAL 12
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
Type/
Code
DAU-9S
0730108
XCS-4
0730178
Description Picture
Serial data cable with modular connector.
9 pole Sub-D f <=> 8 pole modular
The MBUS cable DAU-9S has a modular
connector and is used for example between
the PC’s serial port and module jig MJ-19.
Modular cable for e.g. connection between
FPS-8 and DA-14.
XCS-4 is a shielded (one specially shielded
conductor) for flashing and service purposes.
FLC-2
0730185
Power supply cable from FPS-8 to SF-14.
Banana connectors to 3,5 mm DC plug, 1,2
meters.
FLC-2 is used to supply a controlled operating voltage.
13 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
Type/
Code
PCS-1
0730012
XRF-1
0730085
Description Picture
Power cable to connect e.g. JBV-1 to FPS-
8.
2 x Banana connectors to 5,5 mm DC plug.
RF cable to connect e.g. module repair jig to
RF measurement equipment.
SMA to N-Connector ca. 610mm.
Attenuation for
- GSM850/900: 0.3+-0.1 dB
- GSM1800/1900: 0.5+-0.1 dB
- WLAN: 0.6+-0.1dB
AXS-4
0730090
The AXS-4 D9-D9 service cable is used to
connect two 9 pin D connectors e.g.
between PC and FPS-8. Cable length is 2
meters.
14 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
4 - Service Tools Nokia Customer Care
Type/
Code

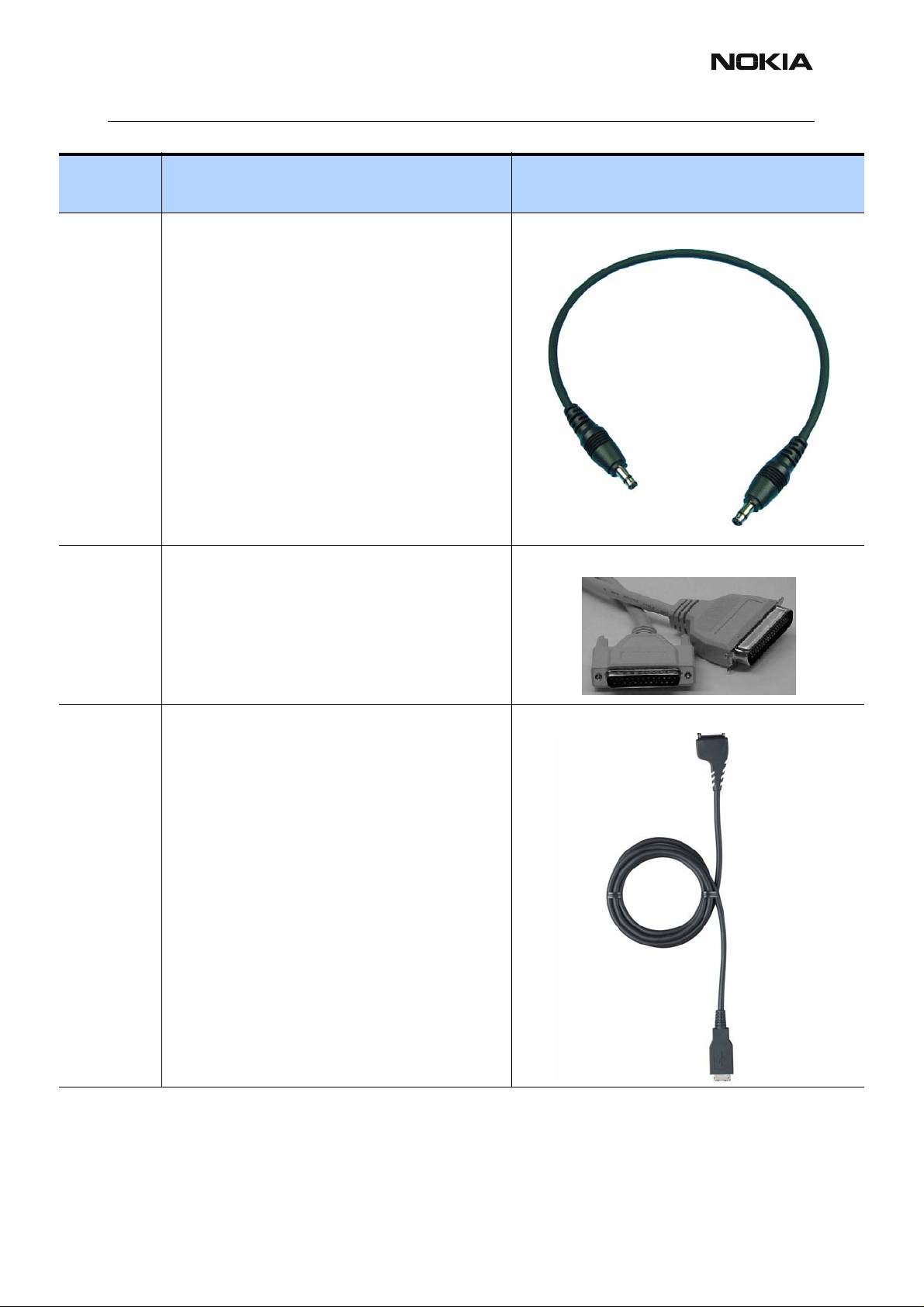

CA-5S
0730283
AXP-8
073F000
Description Picture
DC cable for a phone to JBV-1 connection,
used in EM calibration, for example.
The parallel printer cable connects the parallel connector of the PC and the parallel
input of the FPS-8.
DKU-2
0730238
Connectivity cable
Issue 1 09/04 COMPANY CONFIDENTIAL 15
Copyright © 2004 Nokia. All Rights Reserved.
RA-2/3
Nokia Customer Care 4 - Service Tools
Type/
Code

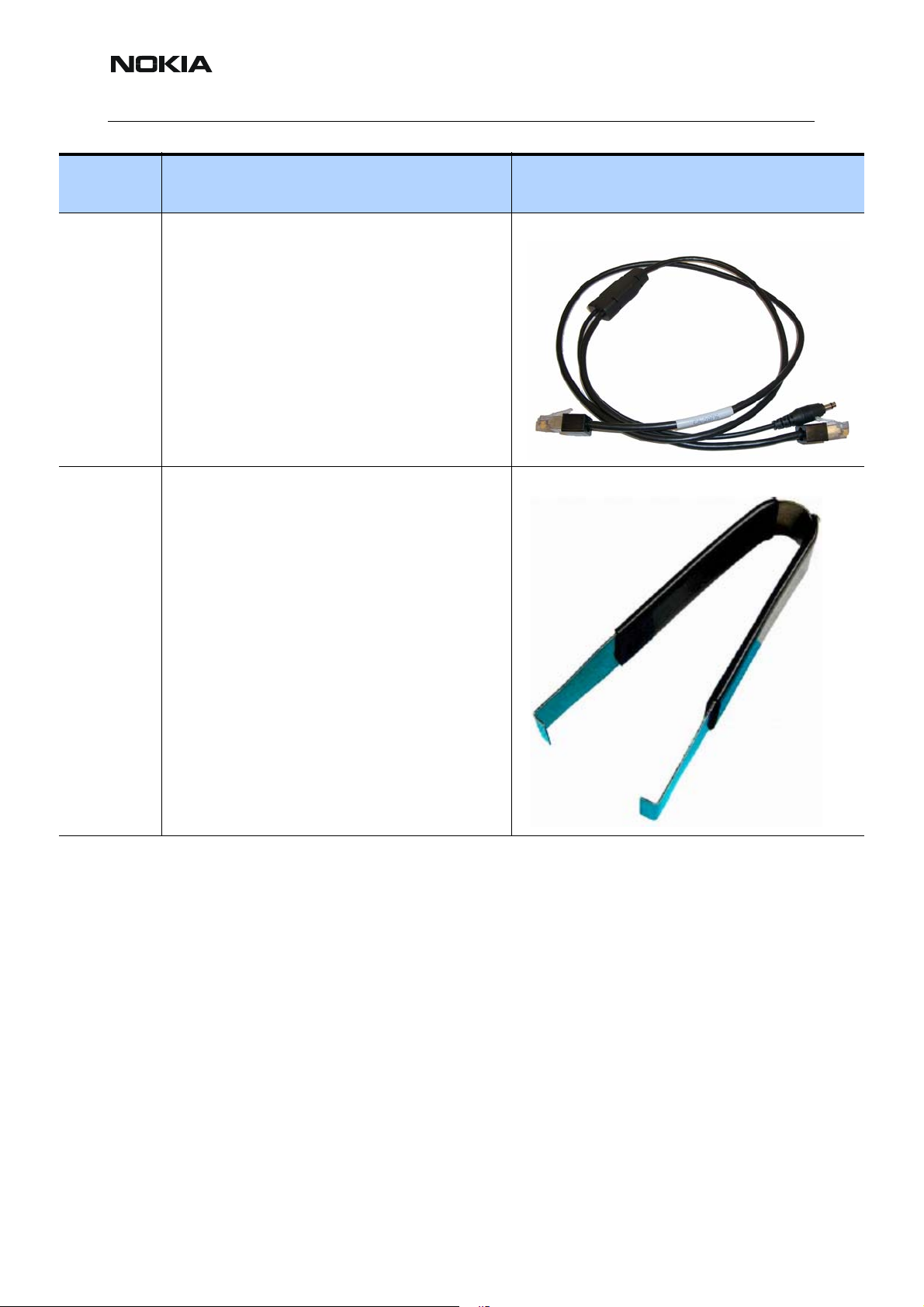

CA-28DS
0730319
SS-34
0780396
Description Picture
Service data cable
Flex opening tool
16 COMPANY CONFIDENTIAL Issue 1 09/04
Copyright © 2004 Nokia. All Rights Reserved.
