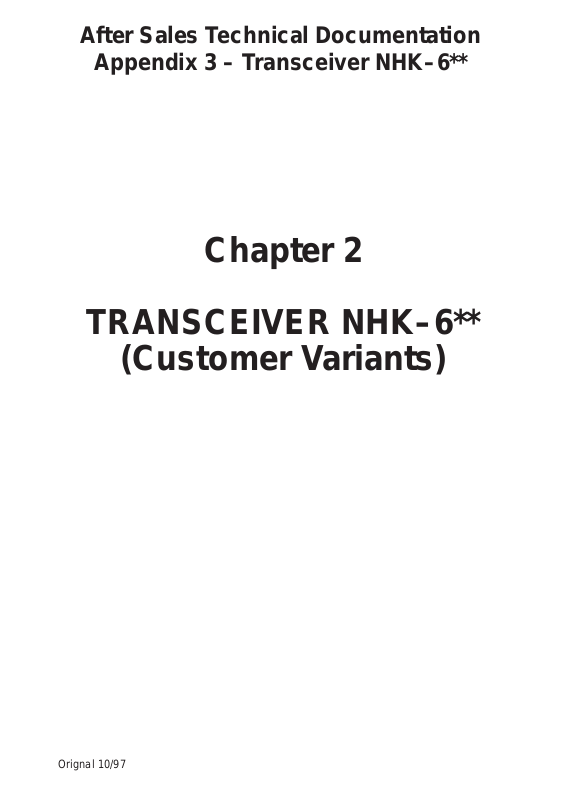

Page 1
After Sales Technical Documentation
Appendix 3 – Transceiver NHK–6**
Chapter 2
TRANSCEIVER NHK–6**
(Customer Variants)
Orignal 10/97
Page 2
NHK–6**
After Sales
Transceiver
CHAPTER 2 – TRANSCEIVER NHK–6**
Contents
Introduction Page 2–3
Product and Module List Page 2–3
Exploded View of Transceiver NHK–6** Page 2–4
Assembly Parts Page 2–5
Technical Documentation
Page 2–2
Orignal 10/97
Page 3
After Sales
NHK–6**
Technical Documentation
Introduction
The NHK–6** transceiver, together with battery pack ensures all the desirable
features e.g. alphanumeric display and keypad, menu–control, shortcode
memory, retractable antenna etc. are available in a very small and light cellular
handportable.
Product and Module List
Unit/type: Product code: Module code:
Transceiver NHK–6RY (Orange) 0501001
• System module GJ9 0200592
• UIF module GU8 0200558
• MCU SW Module – Orange 0240415
• Mechanics MNHK6NX – Orange 0261343
Transceiver NHK–6PT (Mercury) 0501002
Transceiver
• System module GJ9 0200592
• UIF module GU8 0200558
• MCU SW Module – Mercury 0240417
• Mechanics MNHK6NX 0260564
Transceiver NHK–6BT (Bouygues) 0501003
• System module GJ9 0200592
• UIF module GU8 0200558
• MCU SW Module – Bytel 0240416
• Mechanics MNHK6NX – Bouygues 0261344
Transceiver NHK–6AX (E–Plus) 0501004
• System module GJ9 0200592
• UIF module GU8 0200558
• MCU SW Module – E–Plus 0240266
• Mechanics MNHK6NX – E–Plus 0261342
Transceiver NHK–6AX (i–version)
(E–Plus)
0501454
• System module GJ9 0200592
• UIF module GU8 0200558
• MCU SW Module – E–Plus 0240527
• Mechanics MNHK6NX – E–Plus 0261689
Orignal 10/97
Page 2–3
Page 4
NHK–6**
After Sales
Transceiver
Exploded View of Transceiver NHK–6**
Technical Documentation
Page 2–4
Orignal 10/97
Page 5
After Sales
NHK–6**
Technical Documentation
Assembly Parts
ITEM Q’TY CODE DESCRIPTION VALUE, TYPE
1 9457311 Window DMC00010
9457937 Window (i–version) DMC01189
3 9457293 Front cover DMC00063
4 5140035 Speaker and spring
5 9790165 Keypad DMC00007
6 0200558 UIF module GU8
7 9460182 Shield DMC00098
M1 0200592 RF/System module GJ9
9 9510341 Metal gasket DMD01567
11 0660132 Antenna Helical 1710 – 1880 MHz
12 9430106 Logo plate DMD00356
13 9 6190003 Screw M1.6x6
15 9457314 Slide cover assembly DMC00049
9457775 Slide cover assembly – Orange DMC00879
9457790 Slide cover assembly Bouygues DMC00882
9457776 Slide cover assembly – E–Plus DMC00880
16 9457908 Back cover DMC01039
Transceiver
Orignal 10/97
Page 2–5
Page 6
NHK–6**
After Sales
Transceiver
Technical Documentation
This page intentionally left blank.
Page 2–6
Orignal 10/97
