PAMS Technical Documentation
NPM–9 Series Transceivers
Service Tools
Issue 1 02/2002 Nokia Corporation
NPM–9
Service Tools
CONTENTS
JBV-1 Docking Station and MJF-6 Adapter 4. . . . . . . . . . . . . . . . . . . . . . .
RF-Coubler CPL-4: measured losses 5. . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of JBV-1 and MJF-6 together 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MJS-46 Module Jig 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of MJS-46 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MJS-47 Soldering Jig 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of MJS-47 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LRK-1 Rework Kit 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sales package code 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of MJS-54 and SES-1 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAMS Technical Documentation
FPS-8 Flash Prommer (Sales Pack) 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sales package code 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FPS-8 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FPS-8C Parallel Flash Prommer (Sales Pack) - optional 10. . . . . . . . . . . .
Sales package code 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FPS-8C 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACF-8 Universal Power Supply 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of ACF-8 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FLA-18 POS (Point Of Sale) Flash Loading Adapter 12. . . . . . . . . . . . . . .
Product Code 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLA-18 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FLC-2 DC Cable 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLC-2 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AXS-4 Service Cable 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2
View of AXS-4 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
XCS-1 Service Cable 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XCS-1 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SW Security Device PKD-1 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SW Security Device 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FLS-4 POS (Point Of Sale) Flash Device (Sales Pack) 17. . . . . . . . . . . . .
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
Product Code 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLS-4 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCS-1 Power Cable 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of PCS-1 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
XRF-1 RF Cable 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XRF-1 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DAU-9S MBUS Cable 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of DAU-9S 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SCB-3 DC Cable 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SCB-3 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
XCS-4 Modular Cable 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Tools
Product code 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XCS-4 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Printer Cable 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Printer Cable 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Issue 1 02/2002
Nokia Corporation
Page 3
NPM–9
Service Tools
JBV-1 Docking Station and MJF-6 Adapter
The JBV-1 Docking Station has been designed for calibration and
software update use. The MJF-6 Docking Station Adapter makes signal
connections to the phone. JBV-1 and MJF-6 are used as one unit.
JBV-1 main electric functions are:
- adjustable VBATT calibration voltage, current measurement limit voltage
”VCHAR”, current measurement calibration current ”ICHAR”
- adjustable ADC calibration voltage via BTEMP and BSI signal
- BTEMP and BSI calibration resistor
- signals from FBUS to the phone via parallel jig
- control via FBUS or USB
- Flash OK/FAIL indication
In calibration mode JBV-1 is powered by external power supply 11-16V
DC. In flashing power for the phone can be taken from FPS-8 or external
power supply 11-16V DC.
PAMS Technical Documentation
MJF-6 main electric functions are:
- phone recognizing from BTEMP
- filters of FBUS signals
- SIM CARD reader
Page 4
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
RF-Coubler CPL-4: measured losses
Rohde & Schwarz CMU 200
Phoenix Service Software
Estimated Output levels: EGSM 32 dBm and GSM1800 29dBm
EGSM GSM1800
Ch Loss Ch Loss
TX RX TX RX
975 6.1 dB 5 dB 512 3.7 dB 3 dB
31 5.1 dB 6 dB 700 3.1 dB 4 dB
124 4.4 dB 6 dB 885 3.0 dB 6 dB
Product Code
JBV-1 Docking Station: 0770298
MJF-6 Docking Station Adapter: 0770317
Service Tools
View of JBV-1 and MJF-6 together
CPL-4 RF-Coupler: 0770343
CPL-4 is used with JBV-1 and
MJF-6 for making RF coupler
connection from the phone to
measurement equipment.
Issue 1 02/2002
Nokia Corporation
Page 5
NPM–9
Service Tools
MJS-46 Module Jig
The MJS-46 Module Jig is used for testing of UI/system/RF-module*.
Product Code
MJS-46 Module Jig: 0770316
NOTE: This jig comes with UI module 9490306 for NHM-7. To be able to
service NPM-9, you need UI module 0201817 for APAC and 0201868 for
Europe.
When installing the UI module, you need to bend the 2 UI module fixings
apart (on both sides of the LCD).
View of MJS-46
PAMS Technical Documentation
Page 6
*Note: The nominal supply voltage for MJS-46 is +8.0 V.
The supply voltage must not exceed +12.0 V (min 5V).
(MJS-46 has overvoltage protection).
For flashing with FPS-8, it is possible to bypass the regulator
(jumper).
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
MJS-47 Soldering Jig
The Soldering Jig MJS-47 is used for soldering and as a rework jig for
system module.
Product Code
MJS-47 Module Jig: 0770342
View of MJS-47
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 7
NPM–9
Service Tools
LRK-1 Rework Kit
The LRK-1 Rework Kit is used for PA Chip (LGA type component) rework
and includes Rework Jig MJS-54, SES-1 Stencil and SPS-1 Soldering
Paste Spreader.
The sales pack includes:
MJS-54 Rework Jig: 0770349
SES-1 Stencil: 0770348
SPS-1 Soldering Paste Spreader: 0770381
Note: Not included in sales package.
SPI- 1 Soldering Paste Injector 0770380
Sales package code
LRK-1 Rework Kit: 0080465
View of MJS-54 and SES-1
PAMS Technical Documentation
Page 8
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
FPS-8 Flash Prommer (Sales Pack)
The Flash Prommer FPS-8 is used with e.g. FLA-18 and JBV-1. Power is
supplied to FPS-8 from the Universal Power Supply.
The sales pack includes:
- FPS-8 Flash Prommer 0750123
- FPS-8 Activation Sheet 9359289
- Universal Power Supply 0680032
- AXS-4 Service Cable (D9-D9) 0730090
- Printer cable 0730029
Sales package code
FPS-8 Flash Prommer: 0080321
View of FPS-8
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 9
NPM–9
Service Tools
PAMS Technical Documentation
FPS-8C Parallel Flash Prommer (Sales Pack) - optional
The Parallel Flash Prommer FPS-8C is used with MJF-6 and JBV-1. Flash
programming can be done to maximum of 8 phones parallel. FPS-8C
consists of eight SF11C programming cards. SF11C card is functionally
identical to FPS-8.
Sales package code
FPS-8C Parallel Flash Prommer: 0080396
View of FPS-8C
Page 10
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
ACF-8 Universal Power Supply
ACF-8 Universal Power Supply is used to power FPS-8. ACF-8 has 6 V
DC and 2.1 A output.
Product Code
ACF-8 Universal Power Supply: 0680032
View of ACF-8
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 11
NPM–9
Service Tools
PAMS Technical Documentation
FLA-18 POS (Point Of Sale) Flash Loading Adapter
The POS Flash Loading Adapter FLA-18 is used in place of the phone’s
normal battery during service, to supply a controlled operating voltage.
Product Code
FLA-18 POS Flash Loading Adapter: 0770318
View of FLA-18
Page 12
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
FLC-2 DC Cable
The FLC-2 is used to supply a controlled operating voltage.
Product Code
FLC-2 DC Cable: 0730185
View of FLC-2
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 13
NPM–9
Service Tools
AXS-4 Service Cable
The AXS-4 D9-D9 Service Cable is used to connect two 9 pin D
connectors e.g. between PC and FPS-8. Cable length is 2 meters.
Product code
AXS-4 D9-D9 Service Cable: 0730090
View of AXS-4
PAMS Technical Documentation
Page 14
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
XCS-1 Service Cable
The XCS-1 Service Cable is used to connect FLS-4 to FLA-18.
Product code
XCS-1 Service Cable: 0730218
View of XCS-1
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 15
NPM–9
Service Tools
SW Security Device PKD-1
SW security device is a piece of hardware enabling the use of the service
software when connected to the parallel (LPT) port of the PC. Whithout
the dongle present it is not possible to use the service software. Printer or
any such device can be connected to the PC through the dongle if
needed.
Caution: Make sure that you have switched off the PC and the printer
before making connections!
Caution: Do not connected the PKD-1 to the serial port. You may
damage your PKD-1!
Product Code
SW Security Device PKD-1: 0750018
View of SW Security Device
PAMS Technical Documentation
Page 16
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
FLS-4 POS (Point Of Sale) Flash Device (Sales Pack)
FLS-4 is a dongle and flash device incorporated into one package,
developed specifically for POS use.
Product Code
Sales Pack - Europe/Africa 0081483
Sales Pack -APAC 0081481
Sales Pack -Americas 0081482
View of FLS-4
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 17
NPM–9
Service Tools
PCS-1 Power Cable
The PCS-1 Power Cable (DC) is used to connect e.g. JBV-1 to FPS-8.
Product Code
PCS-1 Power Cable: 0730012

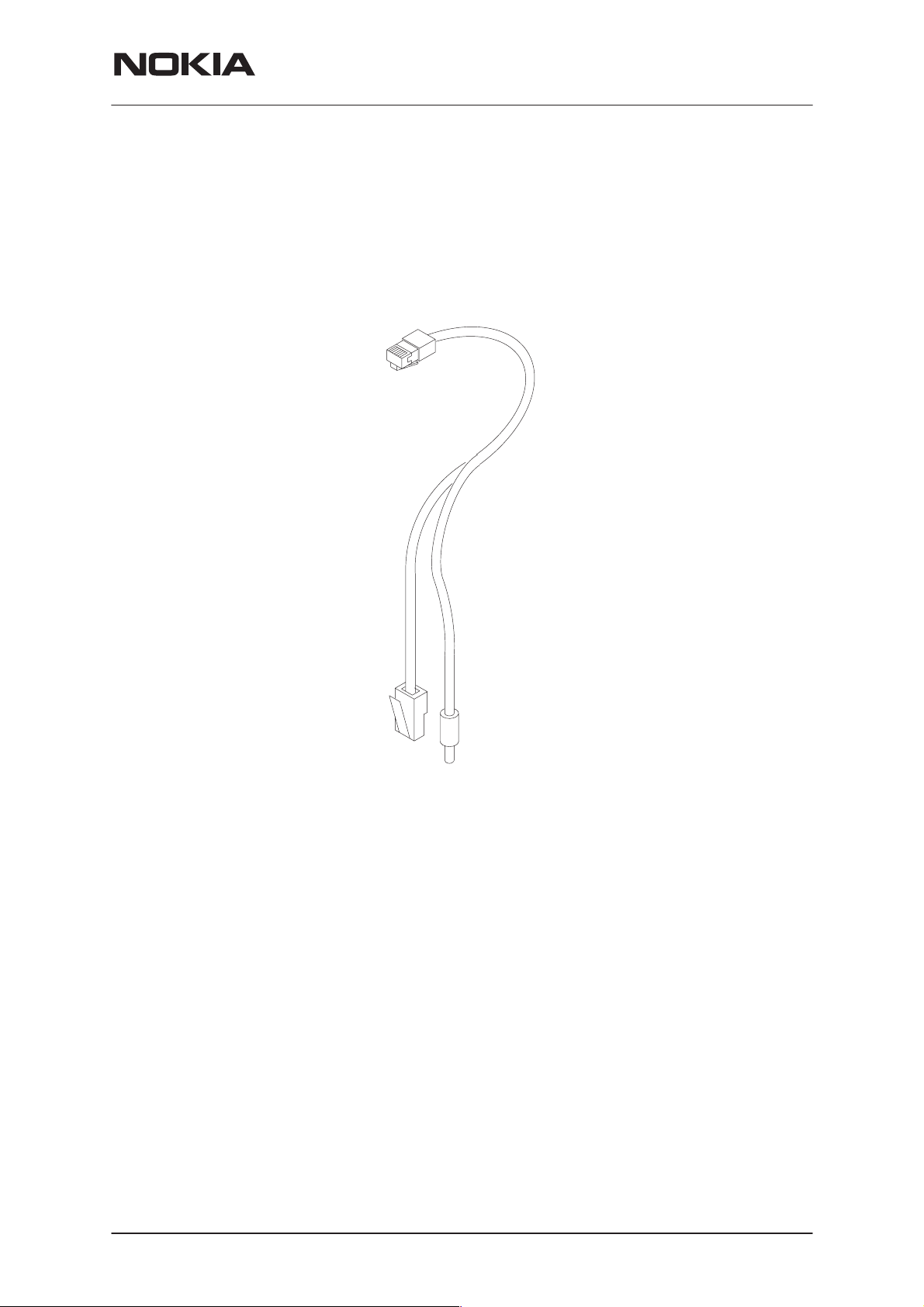

View of PCS-1
PAMS Technical Documentation
Page 18
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
XRF-1 RF Cable
RF cable XRF-1 is used to connect e.g. Module Jig MJS-46 to RF
measurement equipment..
Product code
XRF-1 RF Cable: 0730085

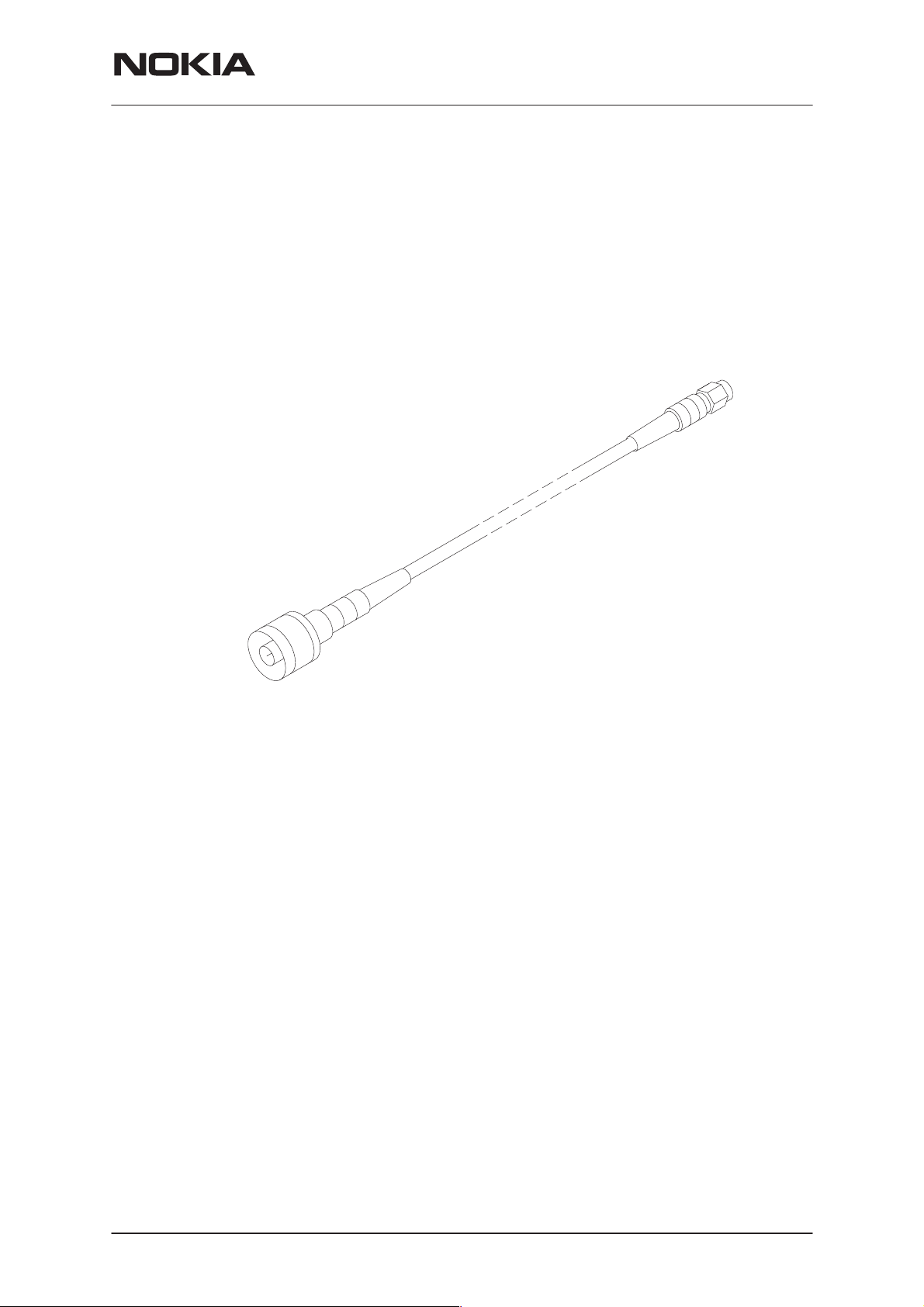

View of XRF-1
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 19
NPM–9
Service Tools
DAU-9S MBUS Cable
The MBUS Cable DAU-9S has a modular connector, and is used with
between PC’s serial port and e.g. Module Jig MJS-46.
Product Code
DAU-9S MBUS Cable: 0730108
View of DAU-9S
PAMS Technical Documentation
Page 20
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
SCB-3 DC Cable
The DC Cable SCB-3 is used to connect e.g. JBV-1 to the phone.
Product Code
SCB-3 DC Cable: 0730114
View of SCB-3
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 21
NPM–9
Service Tools
XCS-4 Modular Cable
XCS-4 is a shielded cable (one specially shielded conductor) modular
cable for flashing and service purposes.
Product code
XCS-4 Modular Cable: 0730178
View of XCS-4
PAMS Technical Documentation
Page 22
Nokia Corporation
Issue 1 02/2002
NPM–9
PAMS Technical Documentation
Printer Cable
This cable is used to connect the PC to FPS-8.
Product code
Printer Cable: 0730029
View of Printer Cable
Service Tools
Issue 1 02/2002
Nokia Corporation
Page 23
NPM–9
Service Tools
PAMS Technical Documentation
This page intentionally left blank.
Page 24
Nokia Corporation
Issue 1 02/2002
Loading...
