PAMS Technical Documentation
NPM–9 Series Transceivers
Non Serviceable
Accessories
Issue 1 02/2002 Nokia Corporation
NPM–9
Non Serviceable Accessories
PAMS Technical Documentation
CONTENTS
BLB-2 Standard Battery 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACP-7 Standard Charger 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Products 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACP-8 Travel Charger 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Products 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DCD-1 Desktop Stand 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DDC-1 Battery Charging Stand 7. . . . . . . . . . . . . . . . . . . . . . . . .
Specification 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LCH-9 Mobile Charger 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PPH-1 Plug-in HF Car Kit 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MBD-10 Mobile Holder 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MCC-5 Advanced Active Car Holder 11. . . . . . . . . . . . . . . . . . . .
Product Code 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFU-5 Advanced HF Unit 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFS-12 HF Speaker 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MKU-1 Mounting Plate 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HHS-9 Swivel Mount 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HFM-8 Hands Free Microphone 15. . . . . . . . . . . . . . . . . . . . . . . .
PCH-4J Power Cable 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDD-1 Headset 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDC-5 Headset 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDE-2 Headset 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDB-5 Boom Headset 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loopset LPS-3 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Batteries 21. . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDR-1 Music Player 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
BLB-2 Standard Battery
Features:
750 mAh Li-Ion semi-fixed battery
• internal battery that can be changed by the user
• laser printed type label with bar code for traceability
• Dimensions (H x W x D): 53 x 33.1 x 7.1 mm
Product code
Product code (Eur/Afr & APAC type label): 0670246
Product code (French type label): 0670262
Product code (Chinese type label): 0670254
Product code (Americas type label): 0670322
NPM–9
Non Serviceable Accessories
Issue 1 02/2002
Nokia Corporation
Page 3
NPM–9
Non Serviceable Accessories
ACP-7 Standard Charger
The standard charger is available for different voltage levels and comes
with different wall plugs. The standard charger can also be used as a
power supply for the desktop stand.
ACP-7E
ACP-7C
ACP-7U
PAMS Technical Documentation
ACP-7H
ACP-7X
ACP-7A
Products
Standard Charger (Euro plug) 207-253 Vac ACP-7E 0675171
Standard Charger (US plug) 108-132 Vac ACP-7U 0675143
Standard Charger (US plug) 198-242 Vac ACP-7C 0675244
Standard Charger (UK plug) 207-253 Vac ACP-7X 0675145
Standard Charger
Standard Charger
Specification
Output connectors:
Protection: PTC protection
Output Voltage /Current (typ) 7.6 V / 370 mA
S0001160
(UK plug) 180-220 Vac ACP-7H 0675146
(Australia) 216-264 Vac ACP-7A 0675148
3.5 mm DC plug, 2-pole
Page 4
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
ACP-8 Travel Charger
Operating within the voltage range 90 V...264 V AC (50 Hz...60 Hz), the
Travel Charger is practically current independent in normal office and household use. Like the standard charger, it is compatible with all battery options
and is available for different wall sockets.
The Travel Charger can also be used with desktop stand.
NPM–9
Non Serviceable Accessories
Products and codes
Travel Charger Euro plug 90-264 Vac ACP-8E 0675195
Travel Charger Korea plug 90-264 Vac ACP-8K 0675214
Travel Charger UK plug 90-264 Vac ACP-8X 0675198
Travel Charger
Travel Charger China plug 90-264 Vac ACP-8C 0675236
Travel Charger
ACP–8E
ACP–8K
US plug 90-264 Vac ACP-8U 0675196
Australia plug 90-264 V ac ACP-8A 0675211
ACP–8X
ACP–8U
ACP–8C
ACP–8A
Specification
Output connectors: 3.5 mm DC plug, 2-pole (+, -, control)
Protection: Output fault voltage 16 V max.
Output voltage/current (typ): 6.0 V
Issue 1 02/2002
(±0.3 V)/ 620 mA
Nokia Corporation
Page 5
NPM–9
Non Serviceable Accessories
DCD-1 Desktop Stand
The desktop stand provides a convenient way to charge or keep the
phone.
Connects easily to the Standard Charger (ACP-7), the Travel Charger
(ACP-8) or the Performance Travel Charger (ACP-9).
Product code
Desktop stand DCD-1 0675253
PAMS Technical Documentation
Specification
Connections:
3.5 mm DC jack (ACP-7 or ACP-8)
Page 6
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
DDC-1 Battery Charging Stand
The Battery Charging Stand provides the possibility to charge a spare
BLB-2 battery.
Compatible chargers: Standard Charger ACP-7, Travel Charger ACP-8,
Performance Travel Charger ACP-9.
Product code
Battery Charging Stand DDC-1 0675243
NPM–9
Non Serviceable Accessories
Specification
Connections:
Issue 1 02/2002
3.5 mm DC jack (ACP-7 or ACP-8)
Nokia Corporation
Page 7
NPM–9
Non Serviceable Accessories

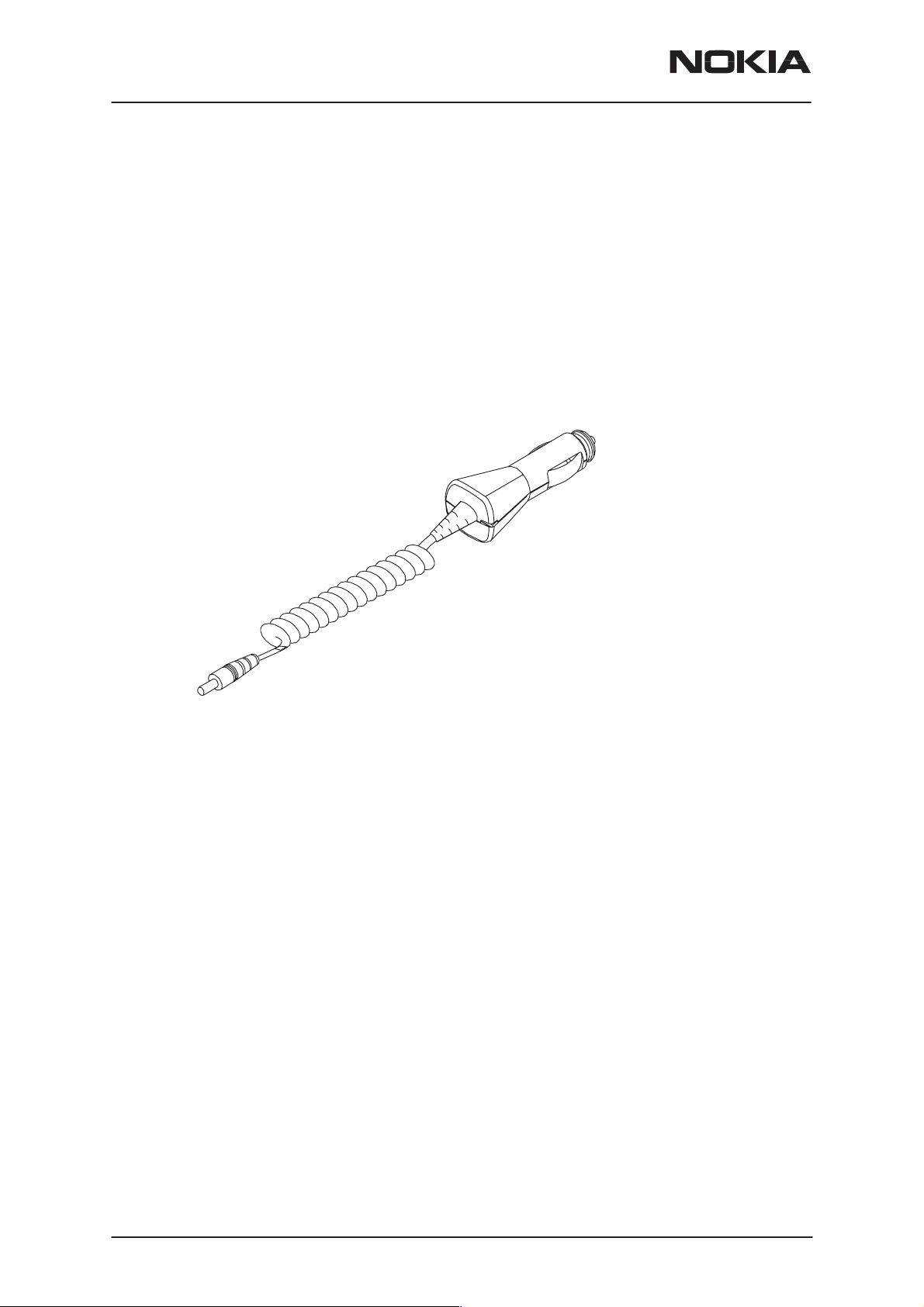

LCH-9 Mobile Charger
A green light indicates that the cigarette lighter charger is ready for charging. Check the charging status on the phone display. The input voltage
can be from 11 or 32 V DC, negative grounding.
Product code
Product code (English type label): 0675120
Product code (Chinese type label): 0675239
Product code (made by manufacturer): 0675170
PAMS Technical Documentation
Specification
Connectors
• input:
• output:
Protection:
Voltage
• input:
• output (nominal):
Nominal output current:
D 21/23 mm
3.5 mm DC plug
input fused, output current limit 850 mA
11...32 V
8.4 V
800 mA
Page 8
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
PPH-1 Plug-in HF Car Kit
The PPH-1 provides rapid charging for the phone and possibility for HF
(Hands Free) operation. The PPH-1 plug and play hands free unit is connected directly to the cigarette lighter in the car. PPH-1 is connected to
Mobile phone with the cable. The cable has combinated connector with
charger and headset connectors. HF microphone HFM-8 can be connected to PPH-1 connector as well.
Product code
Product code (English type label): 0675182
Product code (Portuguese type label): 0675246
NPM–9
Non Serviceable Accessories
Specification
Output connectors: 3.5 mm DC plug, 2-pole (+, -, control)
Input voltage: 8-16V DC
Protection: Output fault voltage 16 V max.
Output current: 750 mA max.
Issue 1 02/2002
Nokia Corporation
Page 9
NPM–9
Non Serviceable Accessories

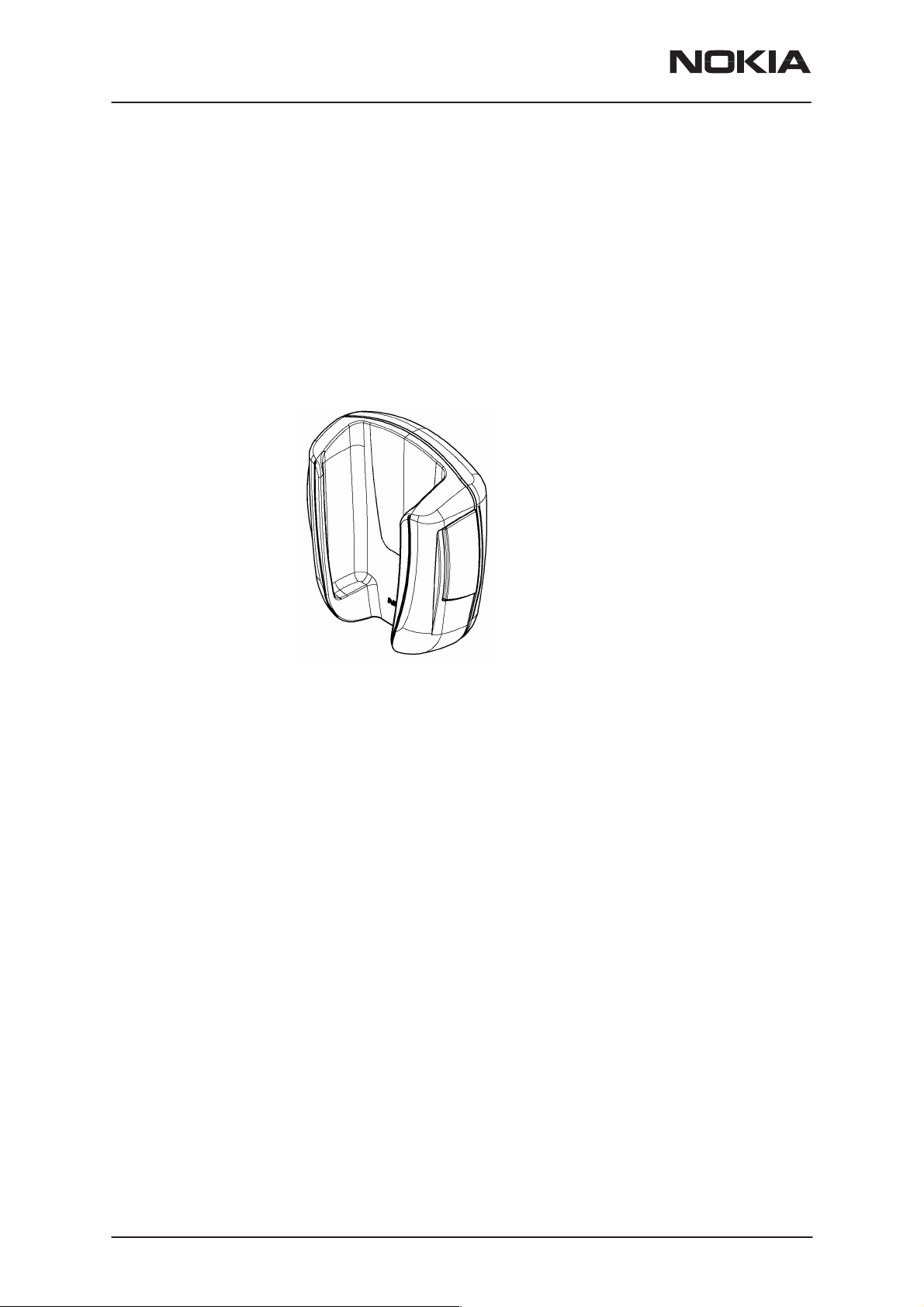

MBD-10 Mobile Holder
The MBD-10 Mobile Holder is used in vehicle to hold the phone. Attaching can be made using swivel or mounting plate
Passive holder supports use with mobile charger and Plug-in HF Car Kit
Product code
Product code (Eur/Afr and APAC type label): 0650035
Product code (Chinese type label): 0650036
.
PAMS Technical Documentation
Page 10
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
MCC-5 Advanced Active Car Holder
The Advanced Active Car Holder MCC-5 is used in vehicle to hold the
phone. Attaching can be made using swivel or mounting plate.
NPM–9
Non Serviceable Accessories
Product Code
MCC-5 Advanced Active Car Holder: 0650044
Issue 1 02/2002
Nokia Corporation
Page 11
NPM–9
Non Serviceable Accessories
HFU-5 Advanced HF Unit
The Advanced HF Unit HFU-5 is used in vehicle.
Product Code
PAMS Technical Documentation
HFU-5 Advanced HF Unit:
0694091
Page 12
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
HFS-12 HF Speaker
The HF Speaker HFS-12 is used in vehicle as a part of Cark132.
Product Code
NPM–9
Non Serviceable Accessories
Handsfree Speaker HFS-12:
0692008
Issue 1 02/2002
Nokia Corporation
Page 13
NPM–9
Non Serviceable Accessories
MKU-1 Mounting Plate
The MKU-1 mounting plate provides a method of fixing the MBD-10 Mobile Holder to the vehicle interior.
Product Code
PAMS Technical Documentation
MKU-1 Mounting plate:

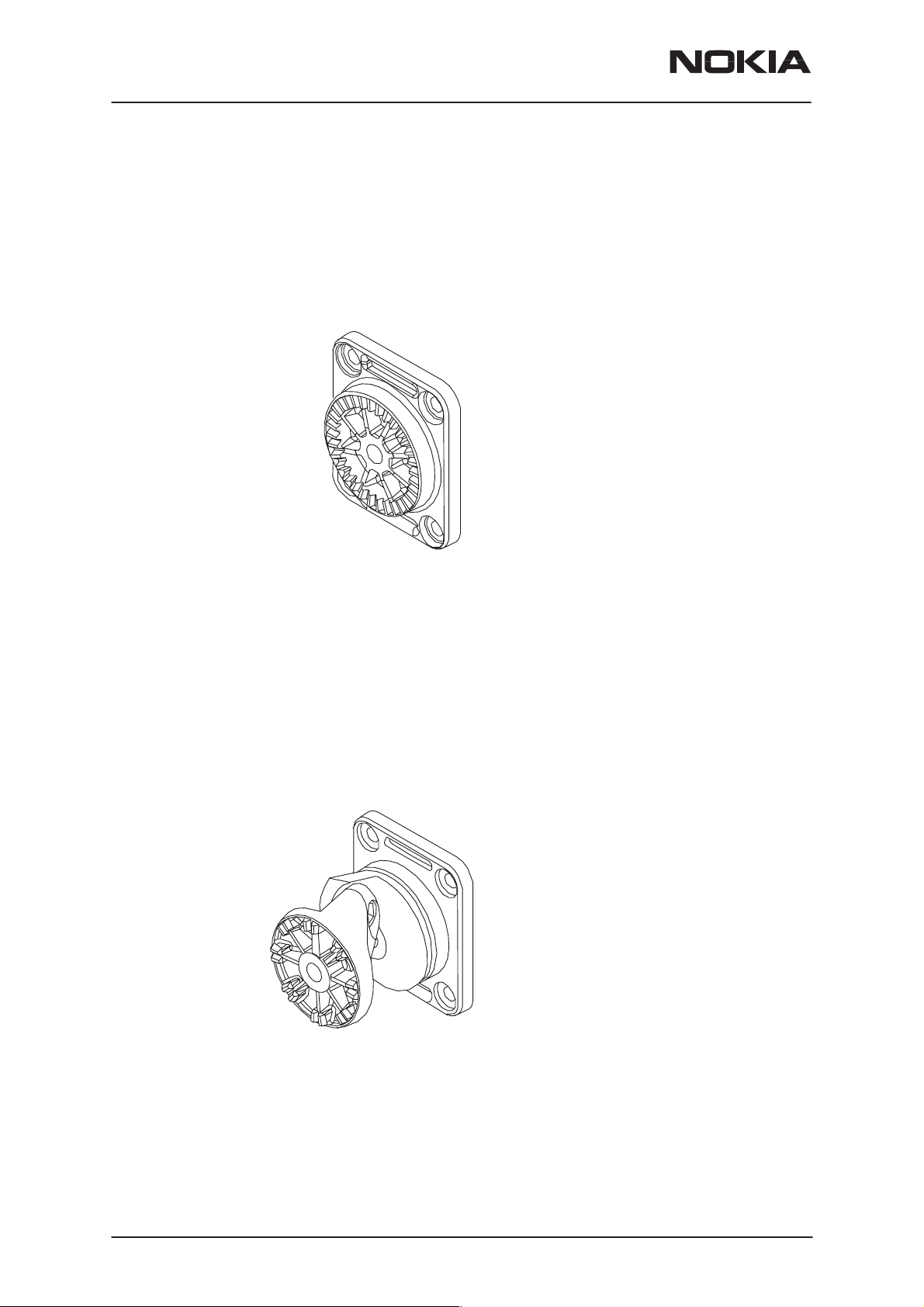

HHS-9 Swivel Mount
The HHS-9 swivel mounting plate provides an alternative (to MKU-1)
method of placing the MBD-10 Mobile Holder.
Product Code
0620036
HHS-9 Swivel Mount:
0620037
Page 14
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
HFM-8 Hands Free Microphone
The HFM-8 microphone can be used together with PPH-1 HF Car Kit.
Product Code
NPM–9
Non Serviceable Accessories
Handsfree microphone HFM-8:
0690016
Issue 1 02/2002
Nokia Corporation
Page 15
NPM–9
Non Serviceable Accessories
PCH-4J Power Cable
The Power Cable PCH-4J is used to power HFU-5 Advanced HF Unit.
Product Code
PAMS Technical Documentation
Power cable PCH-4J:
0730055
Page 16
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation

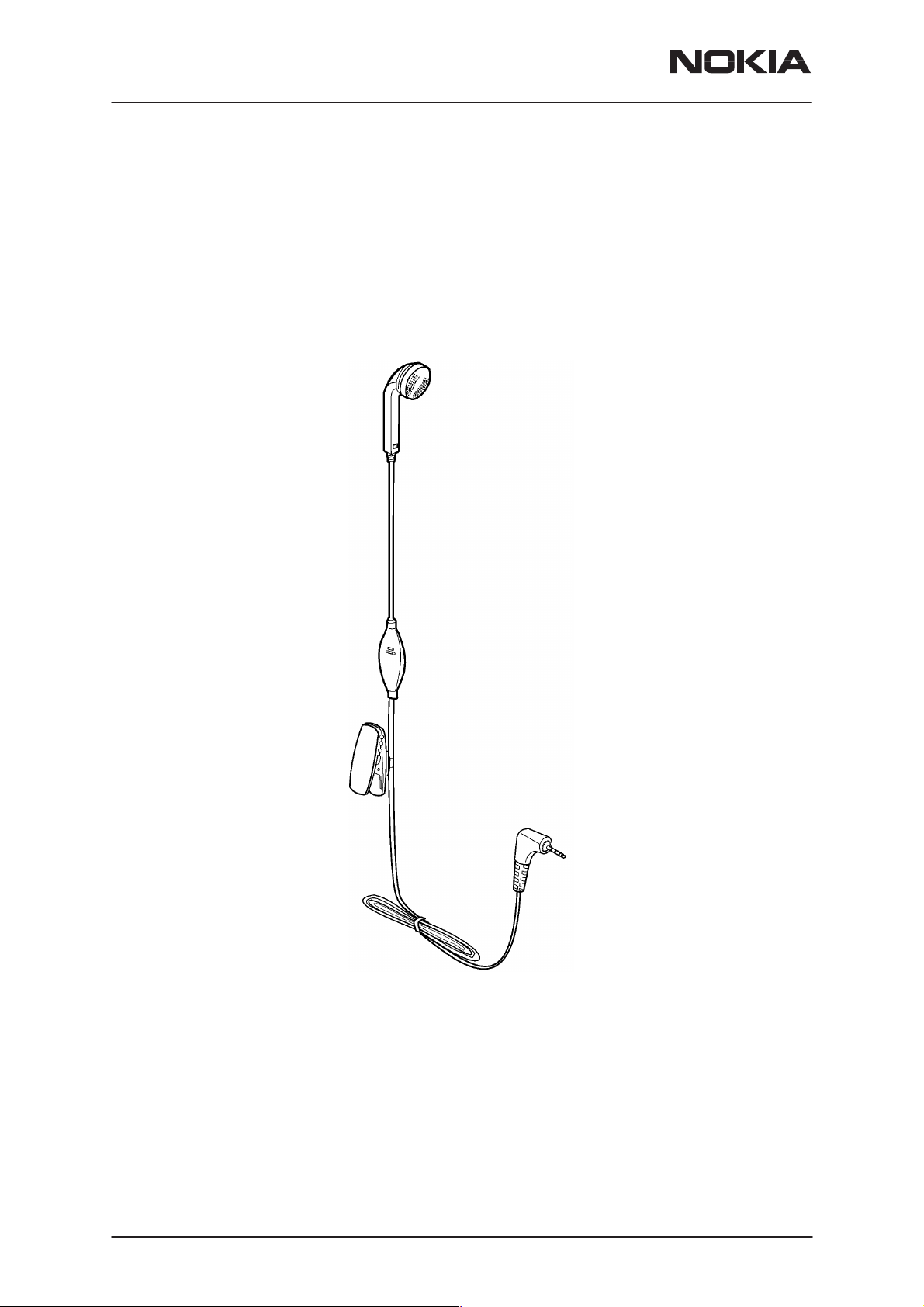

HDD-1 Headset
The HDD-1 headset provides a good audio quality and has also switch for
answer/end button.
Product Code
NPM–9
Non Serviceable Accessories
HDD-1 Headset:
0273302
Issue 1 02/2002
Nokia Corporation
Page 17
NPM–9
Non Serviceable Accessories
HDC-5 Headset
The HDC-5 headset has also switch for answer/end button.
Product Code
PAMS Technical Documentation
Headset HDC-5:
0694059
Page 18
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
HDE-2 Headset
The HDE-2 headset provides convenient hands free operation of the
phone.
Product Code
NPM–9
Non Serviceable Accessories
HDE-2 Headset:
0694075
Issue 1 02/2002
Nokia Corporation
Page 19
NPM–9
Non Serviceable Accessories
HDB-5 Boom Headset
The HDB-5 Boom headset provides convenient hands free operation of
the phone and excellent audio quality.
Product Code
PAMS Technical Documentation
HDB-5 Headset:
0694107
Page 20
Nokia Corporation
Issue 1 02/2002
PAMS Technical Documentation
Loopset LPS-3
Loopset LPS-3 has been developed for hearing aid users to allow them to
use mobile phones. It is based on induction technology.
All hearing aids have support for induction loop, i.e. they have a little telecoil inside. This coil can capture the signal supplied to the loop. Standard
hearing aids have two operation modes; M-mode for normal microphone
use and T-mode for telecoil use.
Product Code
NPM–9
Non Serviceable Accessories
Loopset LPS-3:
0630244
Recommended Batteries
Type Size / IEC-
type
Zinc Air Hearing Aid Battery 675 / PR44 540 mAh 180 hour. 840 hour or 35 day (1)
Silver Oxide Hearing Aid Battery 675 / SR44 150 mAh 50 hour. 7 500 hour or 310 day.
Alkaline Battery 675 / LR44 110 mAh 36 hour. 5 500 hour or 230 day.
Note (1): The capacity of the zinc air battery will fall 20% in a month. After
the activation the zinc air battery begins to self-discharge. The battery will
be empty within 5 weeks.
Issue 1 02/2002
Nokia Corporation
Rated ca-
pacity
Talk time
(3mA
load)
Standby
(20uA load)
Page 21
NPM–9
Non Serviceable Accessories
Music Player HDR-1
Music Palyer HDR-1 comprises the following functions:
Digital Player + FM Radio + Handsfree with voice dialling .
HDR-1 is self-powered, it can be used with or without mobile phone.
Product Code
Product code (English type label): 0694088
Product code (Chinese type label): 0694089
PAMS Technical Documentation
Page 22
Nokia Corporation
Issue 1 02/2002
Loading...
