Programmes After Market Services
NHP-2 Series Transceivers
4. Parts Lists
Issue 1 05/2002 Nokia Corporation
NHP-2
4. Parts Lists PAMS Technical Documentation
Page 2 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Contents
Page No
Exploded View............................................................................................................... 5
Assembly Parts ............................................................................................................6
Mechanics Module .......................................................................................................7
Parts Lists....................................................................................................................... 8
NHP-2AX (6385) — EDMS Issue 11.0 Code: 0201685 .............................................8
NHP-2FX (6370) — EDMS Issue 4.0 Code: 0202037 .............................................24
Issue 1 05/2002 Nokia Corporation Page 3
NHP-2
4. Parts Lists PAMS Technical Documentation
Page 4 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists

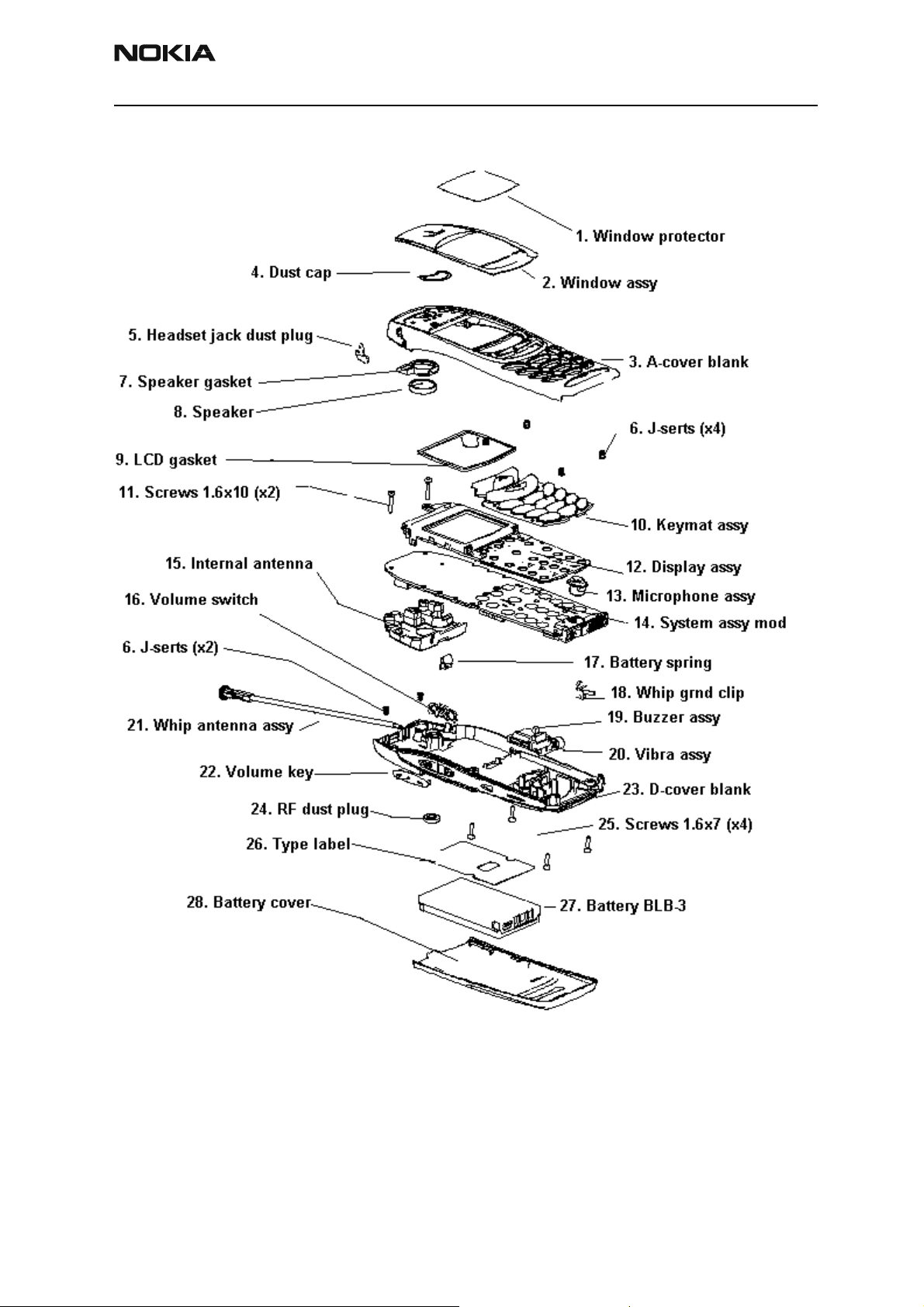

Exploded View
Issue 1 05/2002 Nokia Corporation Page 5
NHP-2
4. Parts Lists PAMS Technical Documentation
Assembly Parts
Item Qty Description Product code Value, Type
1 1 Window protector 9480830 DMD06677
2 1 Window assembly 9458105 DMC03594
31A-cover blank 9490418DMD07197
4 1 Dust cap 9451139 DMD02859
5 1 Headset jack dust plug 9460414 DMD07393
6 6 J-serts 6330003 DMD00780
7 1 Speaker gasket 9480888 DMD07670
8 1 Speaker 5140067 DNS01562-EN/DNT09156-EN
9 1 LCD gasket 9480711 DMD07302
10 1 Keymat assembly 9790478 DMC03591
11 2 Screws 1.6x10 6190045 DMD06162
12 1 Display assembly 9480658 DMC03664
13 1 Microphone assembly 9467062 DMC04086
14 1 System assy module 0201685 DHB00086/DHC00054
15 1 Internal antenna 0660244 DHS01201/DNS03278
16 1 Volume switch 5219021 DNS04540
17 1 Battery spring 9560167 DMD08257
18 1 Whip ground clip 9510749 DMD07711
19 1 Buzzer assembly 5140237 DHS01385
20 1 Vibrator assembly 6800049 DMC02418
21 1 Whip antenna assembly 0660263 DMC03679
22 1 Volume key 9790501 DMD07186
23 1 D-cover blank 9451951 DMD07049
24 1 RF dust plug 9451139 DMD02859
25 4 Screws 1.6x7 6290101 DMD06364
26 1 Type label 9370588 DMC03884
27 1 Battery BLB-3 0670331 DMD05239
28 1 Battery cover 9780278 DMD06669
Page 6 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Mechanics Module
Qty Description Product Code
1 Internal antenna 824-894/1850-1990MHz 0660244
1 Speaker + spriing 103+-3DB 32R D13.2 5140067
1 Sm conn 4POL 2.5mm 3V spr 5469801
2 Machine screw M1.6X11 DMD09438 6190063
4 Screw M1.6X7 DMD06365 T6 HD953 6290101
1 Dust cap DMD02859 NHE-3NX 9451139
1 Cond.mic -42+-3DB 1.5K D6.0 5140113
1 Microphone boot DMD07530 HDAA3 9460413
1 Display assy DMC03664 HDAA3 9480658
1 Ferrite plate 35.0X35.0X1.0 mm 3200003
1 LCD 96X65 full dot matrx+driver GD51 4850193
1 Conn elast P0.1 AU/SI L=12.9 mm 5407799
1 Light guide DMD07057 HDAA3 9467057
1 Reflector DMD06178 HDAH0 9480636
1 Display cushion DMD07056 HDAA3 9480657
1 Display frame DMD07055 HDAA3 9510672
1 Dome sheet DMD08065 HDA63_73 9795098
1 Dome sheet DMD07789 Adhesive Linus 9795096
1 Speaker_gasket_ID2 DMD07670 9480888
1 D-cover assy DMC03913 HDAA3 9497117
1 AHW-2 whip assembly CDMA DB NHP-3A 0660263
1 SW volume up/down 30V 50MA 5219021
2 J-sert DMD00780 HD843 6330003
1 Vib mot. assy 1.3V 115MA 9500rpm 6800049
1 D-cover blank DMD07049 HDAA3 9451951
1 Antenna ground clip DMD07711 9510749
1 Battery spring HDAA3 DMD06257 9560167
1 Volume key DMD07186_Linus 9790501
1 Keymat DMC03591 HDA63_73 Linus 9790478
Issue 1 05/2002 Nokia Corporation Page 7
NHP-2
4. Parts Lists PAMS Technical Documentation
Parts Lists
NHP-2AX (6385) — EDMS Issue 11.0 Code: 0201685
Item Code Side X Y Description Value Type
R100 1620027 Top U 6 res network 0W06 2X47R J 0404
R101 1620027 Top R 5 res network 0W06 2X47R J 0404
R102 1430812 Top R 5 chip resistor 0W06 220K J 0402
R104 1620027 Top X 3 res network 0W06 2X47R J 0404
R107 1430778 Top X 5 chip resistor 0W06 10K J 0402
R108 1430778 Top X 5 chip resistor 0W06 10K J 0402
R109 4120011 Top X 3 ZDIX4 IP4043CX5 CA 14V2 10W CSP5
R150 1620103 Top D 7 res network 0W06 2X22R J0404
R152 1430796 Top T 7 chip resistor 0W06 47K J 0402
R154 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R155 1430796 Top X 4 chip resistor 0W06 47K J 0402
R156 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R158 1430778 Top U 7 chip resistor 0W06 10K J 0402
R159 1430762 Top U 7 chip resistor 0W06 2K2 J 0402
R160 1430718 Top X 3 chip resistor 0W06 47R J 0402
R161 1430796 Top U 7 chip resistor 0W06 47K J 0402
R162 1430762 Top D 7 chip resistor 0W06 2K2 J 0402
R164 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R166 1430796 Top T 7 chip resistor 0W06 47K J 0402
R167 1620031 Top W 5 res network 0W06 2X1K0 J 0404
R169 1430718 Top D 7 chip resistor 0W06 47R J 0402
R170 1430804 Top W 4 chip resistor 0W06 100K J 0402
R171 1620031 Top D 8 res network 0W06 2X1K0 J 0404
R172 1430796 Top T 7 chip resistor 0W06 47K J 0402
R173 1620031 Top X 4 res network 0W06 2X1K0 J 0404
R174 1430778 Top X 4 chip resistor 0W06 10K J 0402
R176 1620031 Top W 5 res network 0W06 2X1K0 J 0404
R179 1430754 Top D 7 chip resistor 0W06 1K0 J 0402
Page 8 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
R200 1419003 Top U 6 chip resistor 0W5 0R22 J
200PPM
R202 1620043 Top R 5 res network 0W03 4X100K J0804
R206 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R207 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R300 1411669 Top U 4 chip resistor 0W1 22R J 0805
R301 1411669 Top U 4 chip resistor 0W1 22R J 0805
R304 1430770 Top B 7 chip resistor 0W06 4K7 J 0402
R350 1419009 Top C 6 chip resistor 0W5 4R7 J
200ppm
R427 1430754 Top R 4 chip resistor 0W06 1K0 J 0402
R428 1430770 Top S 2 chip resistor 0W06 4K7 J 0402
R430 1430754 Top P 3 chip resistor 0W06 1K0 J 0402
R431 1430770 Top P 3 chip resistor 0W06 4K7 J 0402
R433 1430754 Top R 5 chip resistor 0W06 1K0 J 0402
1210
1210
R434 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R435 1430770 Top P 3 chip resistor 0W06 4K7 J 0402
R450 1430770 Top O 5 chip resistor 0W06 4K7 J 0402
R501 1430700 Top K 7 chip resistor 0W06 10R J 0402
R503 1430778 Top K 8 chip resistor 0W06 10K J 0402
R505 1430700 Top J 5 chip resistor 0W06 10R J 0402
R506 1430718 Top K 5 chip resistor 0W06 47R J 0402
R508 1430766 Top L 8 chip resistor 0W06 3K9 J 0402
R509 1430740 Top K 5 chip resistor 0W06 330R J 0402
R510 1430804 Top L 8 chip resistor 0W06 100K J 0402
R511 1430794 Top L 8 chip resistor 0W06 39K J 0402
R512 1430700 Top L 8 chip resistor 0W06 10R J 0402
R513 1430700 Top K 7 chip resistor 0W06 10R J 0402
R515 1430700 Top J 7 chip resistor 0W06 10R J 0402
R517 1430772 Top N 8 chip resistor 0W06 5K6 0402
R518 1430740 Top N 8 chip resistor 0W06 330R J 0402
R519 1430706 Top K 5 chip resistor 0W06 15R J 0402
R520 1430754 Top N 8 chip resistor 0W06 1K0 J 0402
Issue 1 05/2002 Nokia Corporation Page 9
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
R521 1430764 Top N 8 chip resistor 0W06 3K3 J 0404
R522 1430728 Top N 7 chip resistor 0W06 120R J 0402
R523 1430740 Top K 5 chip resistor 0W06 330R J 0402
R524 1430790 Top N 6 chip resistor 0W06 27K J 0402
R550 1430778 Top L 7 chip resistor 0W06 10K J 0402
R601 1430758 Top N 3 chip resistor 0W06 1K5 J 0402
R602 1430790 Top M 2 chip resistor 0W06 27K J 0402
R604 1430772 Top L 3 chip resistor 0W06 5K6 0402
R605 1430770 Top N 4 chip resistor 0W06 4K7 J 0402
R606 1430770 Top N 4 chip resistor 0W06 4K7 J 0402
R607 1430762 Top M 5 chip resistor 0W06 2K2 J 0402
R609 1430758 Top N 3 chip resistor 0W06 1K5 J 0402
R611 1430804 Top N 2 chip resistor 0W06 100K J 0402
R621 1430774 Top M 2 chip resistor 0W06 6K8 J 0402
R702 1430754 Top M 6 chip resistor 0W06 1K0 J 0402
R703 1430744 Top N 6 chip resistor 0W06 470R J 0402
R704 1430770 Top M 5 chip resistor 0W06 4K7 J 0402
R705 1430790 Top M 6 chip resistor 0W06 27K J 0402
R706 1430776 Top N 7 chip resistor 0W06 8K2 J 0402
R721 1430796 Top H 5 chip resistor 0W06 47K J 0402
R722 1430796 Top H 5 chip resistor 0W06 47K J 0402
R723 1430796 Top H 5 chip resistor 0W06 47K J 0402
R749 1430681 Top G 8 chip resistor 0W06 4R3 J 0402
R750 1430724 Top H 8 chip resistor 0W06 82R J 0402
R801 1430744 Top I 1 chip resistor 0W06 470R J 0402
R802 1430748 Top G 4 chip resistor 0W06 680R J 0402
R803 1430758 Top I 4 chip resistor 0W06 1K5 J 0402
R804 1430740 Top H 3 chip resistor 0W06 330R J 0402
R805 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R806 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R807 1430758 Top I 3 chip resistor 0W06 1K5 J 0402
R808 1820035 Top J 4 NTC res 47K J
B=4050+-3%
0805
Page 10 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
R816 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R817 1430776 Top I 3 chip resistor 0W06 8K2 J 0402
R821 1430754 Top I 1 chip resistor 0W06 1K0 J 0402
C100 2320584 Top W 7 chip cap X7R 1N0 J 50V 0402
C101 2320544 Top X 3 chip cap NP0 22P J 50V 0402
C102 2320552 Top U 4 chip cap NP0 47P J 50V 0402
C103 2320544 Top W 3 chip cap NP0 22P J 50V 0402
C104 2320544 Top W 3 chip cap NP0 22P J 50V 0402
C107 2320778 Top X 5 chip cap X7R 10N K 16V 0402
C108 2320552 Top U 5 chip cap NP0 47P J 50V 0402
C109 2320552 Top U 4 chip cap NP0 47P J 50V 0402
C150 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C151 2320805 Top X 4 chip cap X5R 100N K
10V
C152 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C154 2320805 Top U 7 chip cap X5R 100N K
10V
C155 2320805 Top U 7 chip cap X5R 100N K
10V
C156 2320552 Top X 4 chip cap NP0 47P J 50V 0402
C158 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C164 2313213 Top T 8 chip cap X5R10U K 6V3 1206
C165 2320805 Top U 7 chip cap X5R 100N K
10V
C166 2320552 Top D 7 chip cap NP0 47P J 50V 0402
C168 2320805 Top U 7 chip cap X5R 100N K
10V
C169 2320805 Top D 7 chip cap X5R 100N K
10V
0402
0402
0402
0402
0402
0402
C170 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C172 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C174 2320805 Top U 7 chip cap X5R 100N K
10V
C175 2320805 Top U 7 chip cap X5R 100N K
10V
C176 2320552 Top X 5 chip cap NP0 47P J 50V 0402
0402
0402
Issue 1 05/2002 Nokia Corporation Page 11
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C180 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C181 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C184 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C186 2312243 Top C 7 chip cap X5R 4U7 K 6V3 0805
C193 2320560 Top U 7 chip cap NP0 100P J
50V
C194 2320805 Top U 7 chip cap X5R 100N K
10V
C195 2320560 Top U 7 chip cap NP0 100P J
50V
C202 2320778 Top U 5 chip cap X7R 10N K 16V 0402
C203 2320805 Top S 9 chip cap X5R 100N K
10V
C211 2320481 Top T 8 chip cap X5R 1U K 6V3 0603
C222 2320805 Top R 6 chip cap X5R 100N K
10V
C223 2320805 Top P 8 chip cap X5R 100N K
10V
C224 2320805 Top P 8 chip cap X5R 100N K
10V
C225 2320805 Top R 6 chip cap X5R 100N K
10V
0402
0402
0402
0402
0402
0402
0402
0402
C226 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C227 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C229 2320805 Top R 6 chip cap X5R 100N K
10V
C230 2320778 Top S 5 chip cap X7R 10N K 16V 0402
C232 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C233 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C234 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C235 2320481 Top S 9 chip cap X5R 1U K 6V3 0603
C237 2320481 Top U 5 chip cap X5R 1U K 6V3 0603
C238 2320805 Top S 6 chip cap X5R 100N K
10V
C239 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C240 2320481 Top Q 9 chip cap X5R 1U K 6V3 0603
0402
0402
Page 12 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C241 2320805 Top P 7 chip cap X5R 100N K
10V
C242 2320481 Top T 6 chip cap X5R 1U K 6V3 0603
C243 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C245 2320481 Top Q 9 chip cap X5R 1U K 6V3 0603
C246 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C247 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C248 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C249 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C250 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C251 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C252 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C253 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C254 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C255 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
0402
C256 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C257 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C258 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C259 2320481 Top P 8 chip cap X5R 1U K 6V3 0603
C260 2313213 Top P 9 chip cap X5R10U K 6V3 1206
C264 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C270 2313213 Top V 2 chip cap X5R10U K 6V3 1206
C271 2313213 Top U 2 chip cap X5R10U K 6V3 1206
C273 2320805 Top V 2 chip cap X5R 100N K
10V
C302 2318003 Top C 7 chip cap X5R 1U0 K 16V 0805
C303 2320805 Top C 6 chip cap X5R 100N K
10V
C304 2320805 Top D 6 chip cap X5R 100N K
10V
C305 2320544 Top B 7 chip cap NP0 22P J 50V 0402
0402
0402
0402
C351 2312243 Top C 6 chip cap X5R 4U7 K 6V3 0805
C400 2320805 Top O 3 chip cap X5R 100N K
10V
0402
Issue 1 05/2002 Nokia Corporation Page 13
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C401 2320805 Top R 4 chip cap X5R 100N K
10V
C402 2320805 Top O 6 chip cap X5R 100N K
10V
C403 2320805 Top O 4 chip cap X5R 100N K
10V
C404 2320805 Top O 5 chip cap X5R 100N K
10V
C405 2320805 Top R 4 chip cap X5R 100N K
10V
C422 2320778 Top R 4 chip cap X7R 10N K 16V 0402
C423 2320584 Top S 3 chip cap X7R 1N0 J 50V 0402
C424 2320778 Top P 3 chip cap X7R 10N K 16V 0402
C425 2320584 Top O 3 chip cap X7R 1N0 J 50V 0402
C426 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C427 2320584 Top S 5 chip cap X7R 1N0 J 50V 0402
C428 2320778 Top P 3 chip cap X7R 10N K 16V 0402
0402
0402
0402
0402
0402
C429 2320783 Top R 4 chip cap X7R 33N K 10V 0402
C430 2320783 Top S 3 chip cap X7R 33N K 10V 0402
C431 2320783 Top P 3 chip cap X7R 33N K 10V 0402
C435 2320778 Top L 6 chip cap X7R 10N K 16V 0402
C450 2320778 Top S 2 chip cap X7R 10N K 16V 0402
C451 2320805 Top P 2 chip cap X5R 100N K
10V
C454 2320778 Top S 2 chip cap X7R 10N K 16V 0402
C502 2320576 Top N 8 chip cap X7R 470P J
50V
C503 2320783 Top L 7 chip cap X7R 33N K 10V 0402
C504 2320778 Top K 7 chip cap X7R 10N K 16V 0402
C505 2320778 Top L 8 chip cap X7R 10N K 16V 0402
C507 2320778 Top K 7 chip cap X7R 10N K 16V 0402
C508 2420019 Top L 8 chip cap PPS 68N J 16V 1210
C509 2320584 Top L 7 chip cap X7R 1N0 J 50V 0402
0402
0402
C511 2320481 Top J 8 chip cap X5R 1U K 6V3 0603
C512 2320576 Top N 8 chip cap X7R 470P J
50V
0402
Page 14 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C513 2320576 Top N 8 chip cap X7R 470P J
50V
C514 2320550 Top M 2 chip cap NP0 39P J 50V 0402
C515 2320552 Top K 8 chip cap NP0 47P J 50V 0402
C516 2320508 Top K 5 chip cap 0402
C517 2320620 Top K 5 chip cap X7R 10N J 16V 0402
C518 2320618 Top K 8 chip cap X7R 4N7 J 25V 0402
C519 2320520 Top L 2 chip cap NP0 2P2 C 50V 0402
C520 2320481 Top L 5 chip cap X5R 1U K 6V3 0603
C521 2320805 Top K 7 chip cap X5R 100N K
10V
C522 2320778 Top J 7 chip cap X7R 10N K 16V 0402
C523 2320584 Top N 8 chip cap X7R 1N0 J 50V 0402
C524 2320576 Top O 5 chip cap X7R 470P J
50V
C525 2320584 Top N 7 chip cap X7R 1N0 J 50V 0402
0402
0402
0402
C526 2320508 Top L 2 chip cap NP0 1P0 C 50V 0402
C532 2320536 Top J 7 chip cap NP0 10P J 50V 0402
C550 2320584 Top L 7 chip cap X7R 1N0 J 50V 0402
C602 2320633 Top M 4 chip cap NP0 220P J
25V
C603 2320536 Top M 2 chip cap NP0 10P J 50V 0402
C604 2320596 Top K 5 chip cap X7R 3N3 J 50V 0402
C605 2320560 Top M 4 chip cap NP0 100P J
50V
C606 2320584 Top M 5 chip cap X7R 1N0 J 50V 0402
C607 2320778 Top N 2 chip cap X7R 10N K 16V 0402
C608 2320536 Top I 4 chip cap NP0 10P J 50V 0402
C610 2320596 Top K 4 chip cap X7R 3N3 J 50V 0402
C611 2320540 Top K 3 chip cap NP0 15P J 50V 0402
C612 2320120 Top M 4 chip cap X7R 22N K
25V
0402
0402
0603
C613 2360001 Top M 4 chip cap X5R 330N K
10V
C614 2320536 Top L 3 chip cap NP0 10P J 50V 0402
0603
Issue 1 05/2002 Nokia Corporation Page 15
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C615 2320584 Top L 3 chip cap X7R 1N0 J 50V 0402
C618 2320481 Top N 3 chip cap X5R 1U K 6V3 0603
C619 2320552 Top K 3 chip cap NP0 47P J 50V 0402
C620 2320552 Top K 3 chip cap NP0 47P J 50V 0402
C621 2320584 Top K 4 chip cap X7R 1N0 J 50V 0402
C627 2320536 Top J 4 chip cap NP0 10P J 50V 0402
C629 2320532 Top N 4 chip cap NP0 6P8 C 50V 0402
C630 2320540 Top N 4 chip cap NP0 15P J 50V 0402
C631 2320524 Top N 4 chip cap NP0 3P3 C 50V 0402
C632 2320584 Top N 4 chip cap X7R 1N0 J 50V 0402
C633 2320552 Top L 4 chip cap NP0 47P J 50V 0402
C637 2320560 Top N 4 chip cap NP0 100P J
50V
C638 2320778 Top N 4 chip cap X7R 10N K 16V 0402
C639 2320596 Top L 3 chip cap X7R 3N3 J 50V 0402
C640 2320524 Top L 4 chip cap NP0 3P3 C 50V 0402
C642 2320524 Top L 3 chip cap NP0 3P3 C 50V 0402
C645 2320536 Top J 4 chip cap NP0 10P J 50V 0402
C646 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C647 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C648 2320584 Top K 3 chip cap X7R 1N0 J 50V 0402
C649 2320552 Top K 3 chip cap NP0 47P J 50V 0402
C650 2320536 Top I 4 chip cap NP0 10P J 50V 0402
C651 2320540 Top K 4 chip cap NP0 15P J 50V 0402
C652 2320481 Top M 5 chip cap X5R 1U K 6V3 0603
C653 2320584 Top L 4 chip cap X7R 1N0 J 50V 0402
0402
C660 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C666 2320552 Top L 2 chip cap NP0 47P J 50V 0402
C701 2320783 Top M 5 chip cap X7R 33N K 10V 0402
C702 2320584 Top M 6 chip cap X7R 1N0 J 50V 0402
C704 2320778 Top N 7 chip cap X7R 10N K 16V 0402
C706 2320778 Top N 6 chip cap X7R 10N K 16V 0402
C707 2320778 Top N 7 chip cap X7R 10N K 16V 0402
Page 16 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C708 2320778 Top L 6 chip cap X7R 10N K 16V 0402
C710 2320778 Top L 7 chip cap X7R 10N K 16V 0402
C712 2320778 Top M 6 chip cap X7R 10N K 16V 0402
C714 2360001 Top N 5 chip cap X5R 330N K
10V
C715 2320620 Top M 5 chip cap X7R 10N J 16V 0402
C716 2320548 Top M 5 chip cap NP0 33P J 50V 0402
C718 2320778 Top N 6 chip cap X7R 10N K 16V 0402
C722 2320778 Top L 7 chip cap X7R 10N K 16V 0402
C723 2320778 Top N 7 chip cap X7R 10N K 16V 0402
C750 2320560 Top H 6 chip cap NP0 100P J
50V
C753 2320560 Top G 5 chip cap NP0 100P J
50V
C755 2320516 Top F 6 chip cap NP0 1P5 C 50V 0402
C756 2320560 Top H 6 chip cap NP0 100P J
50V
C757 2320554 Top G 6 chip cap NP0 56P J 50V 0402
C758 2320785 Top G 6 chip cap X7R 47N K 10V 0402
C759 2320602 Top H 6 chip cap NP0 4P7 C 50V 0402
0603
0402
0402
0402
C760 2320538 Top G 7 chip cap NP0 12P J 50V 0402
C761 2320596 Top H 7 chip cap X7R 3N3 J 50V 0402
C762 2320805 Top G 8 chip cap X5R 100N K
10V
C763 2320538 Top G 8 chip cap NP0 12P J 50V 0402
C766 2320560 Top G 6 chip cap NP0 100P J
50V
C767 2320554 Top H 7 chip cap NP0 56P J 50V 0402
C769 2320584 Top H 7 chip cap X7R 1N0 J 50V 0402
C770 2320518 Top J 8 chip cap NP0 1P8 C 50V 0402
C771 2320544 Top M 7 chip cap NP0 22P J 50V 0402
C772 2320544 Top M 7 chip cap NP0 22P J 50V 0402
C777 2320536 Top I 6 chip cap NP0 10P J 50V 0402
C778 2320532 Top I 5 chip cap NP0 6P8 C 50V 0402
C779 2320532 Top I 6 chip cap NP0 6P8 C 50V 0402
0402
0402
Issue 1 05/2002 Nokia Corporation Page 17
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C781 2320526 Top H 7 chip cap NP0 3P9 C 50V 0402
C782 2320526 Top H 7 chip cap NP0 3P9 C 50V 0402
C783 2320602 Top H 6 chip cap NP0 4P7 C 50V 0402
C784 2320584 Top H 6 chip cap X7R 1N0 J 50V 0402
C785 2320508 Top F 8 chip cap NP0 1P0 C 50V 0402
C786 2320805 Top H 7 chip cap X5R 100N K
10V
C801 2320538 Top F 2 chip cap NP0 12P J 50V 0402
C804 2320548 Top I 3 chip cap NP0 33P J 50V 0402
C805 2320548 Top H 3 chip cap NP0 33P J 50V 0402
C807 2320620 Top J 4 chip cap X7R 10N J 16V 0402
C809 2320536 Top I 5 chip cap NP0 10P J 50V 0402
C810 2320584 Top I 3 chip cap X7R 1N0 J 50V 0402
C811 2320552 Top K 3 chip cap NP0 47P J 50V 0402
C812 2320620 Top I 3 chip cap X7R 10N J 16V 0402
C817 2313213 Top J 3 chip cap X5R10U K 6V3 1206
C818 2320516 Top H 3 chip cap NP0 1P5 C 50V 0402
C840 2320481 Top G 5 chip cap X5R 1U K 6V3 0603
C841 2313213 Top J 3 chip cap X5R10U K 6V3 1206
C842 2320536 Top G 4 chip cap NP0 10P J 50V 0402
0402
L100 3203743 Top W 7 ferrite bead 0R03 42R/
100MHz 3A
L270 3203743 Top V 2 ferrite bead 0R03 42R/
100MHz 3A
L271 3640091 Top T 2 chip coil 15UH K
0.8A
L501 3646007 Top M 2 chip coil 27N J Q27/800MHz 0402
L503 3646117 Top L 2 chip coil 5N6 +-
0N1
L504 3646055 Top L 2 chip coil 8N2 J Q28/800MHz 0402
L505 3646055 Top L 2 chip coil 8N2 J Q28/800MHz 0402
L507 3646131 chip coil 3N9 +-
0N1
L603 3646091 Top L 3 chip coil 6N8 J Q27/800MHz 0402
L604 3646091 Top L 4 chip coil 6N8 J Q27/800MHz 0402
6.5X5.3X2.0
Q26/1GHz 0402
Q28/1GHz 0402
0805
0805
Page 18 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
L609 3646131 Top M 4 chip coil 3N9 +-
0N1
L610 3646131 Top L 4 chip coil 3N9 +-
0N1
L611 3645219 Top N 4 chip coil 10N J Q31/250MHz 0603
L612 3646127 Top L 5 chip coil 1N3 +-
0N1
L613 3646053 Top L 4 chip coil 4N7 +-
0N3
L666 3646129 Top L 5 chip coil 8N2 +-
0N1
L701 3645223 Top L 6 chip coil 33N J Q40/250MHz 0603
L750 3646415 Top F 7 chip coil 19N J Q24/250MHz 0402
L751 3646405 Top F 7 chip coil 6N2 J Q20/250MHz 0402
L752 3646061 Top G 6 chip coil 15N J Q30/800MHz 0402
L753 3645013 Top G 6 chip coil 220NH K Q15/25MHz 0603
L754 3645195 Top H 7 chip coil 82N J Q12/100MHz 0603
Q28/1GHz 0402
Q28/1GHz 0402
Q50/1GHz 0402
Q28/800M 0402
Q26/1GHz 0402
L755 3646061 Top G 7 chip coil 15N J Q30/800MHz 0402
L757 3646061 Top G 6 chip coil 15N J Q30/800MHz 0402
L759 3645243 Top J 7 chip coil 47N J Q38/200MHz 0603
L760 3645229 Top M 7 chip coil 120N J Q32/150MHz 0603
L761 3645229 Top L 7 chip coil 120N J Q32/150MHz 0603
L762 3645195 Top H 7 chip coil 82N J Q12/100MHz 0603
L764 3645301 Top H 6 chip coil 180N J Q13/100MHz 0603
L765 3645229 Top I 5 chip coil 120N J Q32/150MHz 0603
L766 3645229 Top I 6 chip coil 120N J Q32/150MHz 0603
L767 3645319 Top J 5 chip coil 220N J Q25/100MHz 0603
L768 3645319 Top J 6 chip coil 220N J Q25/100MHz 0603
L770 3645195 Top H 6 chip coil 82N J Q12/100MHz 0603
L771 3646099 Top H 7 chip coil 2N7 0N1 Q29/1GHz 0402
L773 3646099 Top G 7 chip coil 2N7 +-
0N3
Q29/800M 0402
L801 3645185 Top H 3 chip coil 10N J Q12/100MHz 0603
L812 3646063 Top F 2 chip coil 22N J Q28/800MHz 0402
Issue 1 05/2002 Nokia Corporation Page 19
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
L851 3646409 Top W 1 chip coil 1N0 +-
0N3
T603 4550211 Top L 5 balun transf 1850-
T604 4550209 Top K 4 balun transf 824-894MHz SMD
D100 4110028 Top W 6 TVS DI 16V 600W 23A DO214AA
D200 4370841 Top Q 7 UEM V6.0 W-DOG ENA TO09L TFBGA168
D400 4370843 Top Q 5 UPP8M V2.1A
F751986A
D450 4341207 Top Q 2 FLASH NMP DCT4 64MBIT 40MHz
V150 4211623 Top W 4 MFET N&P
FDG6332C
V151 4211631 Top W 4 MFETX2 UM6K1N N 30V 0A1 7R SOT363
V270 4110441 Top U 1 SCH DI STPS0520Z 20V 0.5A SOD123
V300 4860235 Top J 9 LED LGM470-
K2M1-1
V301 4860235 Top L 9 LED LGM470-
K2M1-1
Q34/800M 0402
SMD
1990MHz
C035 UBGA144
0R4@2V5 SOT363
GRN 570NM SMT2
GRN 570NM SMT2
V302 4860235 Top J 1 LED LGM470-
K2M1-1
V303 4860235 Top L 1 LED LGM470-
K2M1-1
V305 4860235 Top S 6 LED LGM470-
K2M1-1
V306 4860235 Top W 4 LED LGM470-
K2M1-1
V307 4860235 Top W 6 LED LGM470-
K2M1-1
V308 4860235 Top S 4 LED LGM470-
K2M1-1
V310 4860235 Top H 1 LED LGM470-
K2M1-1
V311 4860235 Top H 9 LED LGM470-
K2M1-1
V314 4860235 Top O 4 LED LGM470-
K2M1-1
V315 4860235 Top O 6 LED LGM470-
K2M1-1
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
GRN 570NM SMT2
Page 20 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
V351 4860171 Top B 4 IRDA
GP2W1002YP
V420 4219921 Top S 4 TR DTC143ZE N RBE4K7/47K
V421 4219921 Top R 3 TR DTC143ZE N RBE4K7/47K
V422 4219921 Top P 2 TR DTC143ZE N RBE4K7/47K
V500 4210100 Top N 7 TR BC848W N 30V 0.1A100MHz SOT323
V601 4110921 Top N 5 CAP DI BBY57-
02W
V602 4112491 Top N 3 PIN DI BA892 35V<0R7@.1
V701 4110921 Top L 5 CAP DI BBY57-
02W
V801 4110055 Top I 3 SCHDIX2 BAT17-
07 4V
Z300 4120031 Top W 2 EMI/ESD FILT EMIF10-
1.152MB IRDA 1.3
SC75
0A1
SC75
0A1
SC75
0A1
1/4 16/4P SOD523
SOD523
GHs
1/4 16/4P SOD523
CT<1PF SOT143
BGA24
1K010F1
Z601 4511331 Top J 4 DUAL SAW FILT
1850-1885/18751910
Z604 4511275 Top K 2 SAW FILT 836.5 +-12.5MHz/
3.5DB
Z750 4511295 Top G 8 SAW FILT
1960.0MHz/3.7DB
Z751 4511309 Top G 6 SAW FILT 881.5 +-12.5MHz/
3DB
Z752 4510359 Top I 6 XTAL FILT
128.1MHz
Z753 4511329 Top I 8 SAW FILT 128.1 +-0.61MHz 9X5X1.6
Z801 4510345 Top G 4 ISOLATOR 1.85-
1.91GHz/15DB
Z802 4510329 Top I 2 ISOLATOR 824-
849MHz
Z803 4512157 Top G 2 Fujitsu Cell
Duplexer
Z804 4512159 Top E 6 DUPL 1850-1910/
1930-1990MHz
+-15KHz 3X3X1
.65DB 5X5X2
3X3
3X3X1
2.5X2
4X4X2
Columbia
Issue 1 05/2002 Nokia Corporation Page 21
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
Z805 4550117 Top F 3 DIPL 824-894/
1850-1990MHz
N271 4341255 Top U 2 VREG PWM/LDO (NCP1500) MSOP8
N501 4341293 Top K 8 2XSYNTH 2.5/1.2G (LMX2370) MLF24
N502 4341295 Top L 2 RF AMP G5.5DB/
2.1GHz
N601 4370857 Top M 3 ROBIND SSBUP-
CONVERTER
N602 4370887 Top K 4 HORNET
RF2357E7
N603 4370885 Top K 3 TOMCAT
RF2356E4
N605 4341311 Top I 4 SWITCH SPDT
GAAS
N701 4370851 Top M 6 BATMAND RFIC
RCVR
N750 4370893 Top G 7 ALFRED LNA/
MIXER
(ULOBA) SC70-6
CDMA TFBGA
PCS DRIVER AMP
CDMA 2000 SOT23-8
(SW-437) SC70-6
CDMA UFBGA84
VQFN-24 R
3.2X1.6
N801 4350343 Top J 2 PW AMP
RF9209E6.3
N802 4350339 Top H 4 PW AMP 1850-
1910MHz
G501 4510347 Top M 8 VCTCXO 19.2MHz
+-1.5PPM
G502 4350329 Top K 6 VCO 986-1034/
2040-2140MHz
B200 4510303 Top T 8 CRYSTAL 32.768KHz+-
F100 5119019 Top X 7 SM FUSE F 1.5A 32V 0603
S300 5209001 Top B 6 SM SW TACT SPST 12V 50MA Side Key
X100 5469061 Top Y 5 SM SYSTEM
CONN+3DC+MIC
+JACK+6AF
X101 5400227 Top T 4 SM BATTERY
CONN SPR
X800 5429023 Top E 2 SM CONN
COAX+SW+GASK
824-849MHz CDMA
SNAPPER CDMA
2.7V
2.7V
12.5PF
20PPM
4POL 100V 2A
50R 2.5GHz
X810 9510434 Top D 4 SPRING CLIP M3E14601
NSJ-3
HD925
Page 22 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
X811 9510434 Top C 4 SPRING CLIP M3E14601
NSJ-3
A400 9517105 UBGA SHIELD
ASSY
A600 9517107 RF TX SHIELD
ASSY
A700 9517104 RF RX SHIELD
ASSY
A800 9510686 DUPLEXER SHIELD DMD07064 HDAA3
DMC03681 HDAA3
DMC03682 HDAA3
DMC03680 HDAA3
HD925
Issue 1 05/2002 Nokia Corporation Page 23
NHP-2
4. Parts Lists PAMS Technical Documentation
NHP-2FX (6370) — EDMS Issue 4.0 Code: 0202037
Item Code Side X Y Description Value Type
R100 1620027 Top X 3 res network 0W06 2X47R J 0404
R101 1620027 Top X 3 res network 0W06 2X47R J 0404
R102 1430812 Top W 3 chip resistor 0W06 220K J 0402
R104 1620027 Top X 3 res network 0W06 2X47R J 0404
R107 1430778 Top X 5 chip resistor 0W06 10K J 0402
R108 1430778 Top X 5 chip resistor 0W06 10K J 0402
R109 4120011 Top X 3 ZDIX4 IP4043CX5 CA 14V2 10W CSP5
R150 1620103 Top D 7 res network 0W06 2X22R J 0404
R152 1430796 Top T 7 chip resistor 0W06 47K J 0402
R154 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R155 1430796 Top X 4 chip resistor 0W06 47K J 0402
R156 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R158 1430778 Top U 7 chip resistor 0W06 10K J 0402
R159 1430762 Top U 7 chip resistor 0W06 2K2 J 0402
R160 1430718 Top X 3 chip resistor 0W06 47R J 0402
R161 1430796 Top U 7 chip resistor 0W06 47K J 0402
R162 1430762 Top D 7 chip resistor 0W06 2K2 J 0402
R164 1620031 Top T 7 res network 0W06 2X1K0 J 0404
R166 1430796 Top T 7 chip resistor 0W06 47K J 0402
R167 1620031 Top W 5 res network 0W06 2X1K0 J 0404
R169 1430718 Top D 7 chip resistor 0W06 47R J 0402
R170 1430804 Top W 4 chip resistor 0W06 100K J 0402
R171 1620031 Top D 8 res network 0W06 2X1K0 J 0404
R172 1430796 Top T 7 chip resistor 0W06 47K J 0402
R173 1620031 Top X 4 res network 0W06 2X1K0 J 0404
R174 1430778 Top X 4 chip resistor 0W06 10K J 0402
R176 1620031 Top W 5 res network 0W06 2X1K0 J 0404
R179 1430754 Top D 7 chip resistor 0W06 1K0 J 0402
R200 1419003 Top U 6 chip resistor 0W5 0R22 J
200 PPM
R202 1620043 Top R 5 res network 0W03 4X100K J0804
1210
Page 24 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
R206 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R207 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R300 1411669 Top U 4 chip resistor 0W1 22R J 0805
R301 1411669 Top U 4 chip resistor 0W1 22R J 0805
R304 1430770 Top B 7 chip resistor 0W06 4K7 J 0402
R350 1419009 Top C 6 chip resistor 0W5 4R7 J
200 PPM
R427 1430754 Top R 4 chip resistor 0W06 1K0 J 0402
R428 1430770 Top S 2 chip resistor 0W06 4K7 J 0402
R430 1430754 Top P 3 chip resistor 0W06 1K0 J 0402
R431 1430770 Top P 3 chip resistor 0W06 4K7 J 0402
R433 1430754 Top R 5 chip resistor 0W06 1K0 J 0402
R434 1430770 Top R 5 chip resistor 0W06 4K7 J 0402
R435 1430770 Top P 3 chip resistor 0W06 4K7 J 0402
R450 1430770 Top O 5 chip resistor 0W06 4K7 J 0402
R501 1430700 Top K 7 chip resistor 0W06 10R J 0402
R503 1430778 Top K 8 chip resistor 0W06 10K J 0402
R505 1430700 Top J 5 chip resistor 0W06 10R J 0402
R506 1430718 Top K 5 chip resistor 0W06 47R J 0402
R508 1430766 Top L 8 chip resistor 0W06 3K9 J 0402
1210
R509 1430740 Top K 5 chip resistor 0W06 330R J 0402
R510 1430804 Top L 8 chip resistor 0W06 100K J 0402
R511 1430794 Top L 8 chip resistor 0W06 39K J 0402
R512 1430700 Top L 8 chip resistor 0W06 10R J 0402
R513 1430700 Top K 7 chip resistor 0W06 10R J 0402
R515 1430700 Top J 7 chip resistor 0W06 10R J 0402
R517 1430772 Top N 8 chip resistor 0W06 5K6 J 0402
R518 1430740 Top N 8 chip resistor 0W06 330R J 0402
R519 1430706 Top K 5 chip resistor 0W06 15R J 0402
R520 1430754 Top N 8 chip resistor 0W06 1K0 J 0402
R521 1430764 Top N 8 chip resistor 0W06 3K3 J 0402
R522 1430728 Top N 7 chip resistor 0W06 120R J 0402
R523 1430740 Top K 5 chip resistor 0W06 330R J 0402
Issue 1 05/2002 Nokia Corporation Page 25
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
R524 1430790 Top N 6 chip resistor 0W06 27K J 0402
R550 1430778 Top L 7 chip resistor 0W06 10K J 0402
R601 1430758 Top N 3 chip resistor 0W06 1K5 J 0402
R602 1430790 Top M 2 chip resistor 0W06 27K J 0402
R604 1430772 Top L 3 chip resistor 0W06 5K6 J 0402
R605 1430770 Top N 4 chip resistor 0W06 4K7 J 0402
R606 1430770 Top N 4 chip resistor 0W06 4K7 J 0402
R607 1430762 Top M 5 chip resistor 0W06 2K2 J 0402
R609 1430758 Top N 3 chip resistor 0W06 1K5 J 0402
R611 1430804 Top N 2 chip resistor 0W06 100K J 0402
R621 1430774 Top M 2 chip resistor 0W06 6K8 J 0402
R702 1430754 Top M 6 chip resistor 0W06 1K0 J 0402
R703 1430744 Top N 6 chip resistor 0W06 470R J 0402
R704 1430770 Top M 5 chip resistor 0W06 4K7 J 0402
R705 1430790 Top M 6 chip resistor 0W06 27K J 0402
R706 1430776 Top N 7 chip resistor 0W06 8K2 J 0402
R721 1430796 Top H 5 chip resistor 0W06 47K J 0402
R723 1430796 Top H 5 chip resistor 0W06 47K J 0402
R724 1430690 Top H 6 chip res jumper 0R0 0402
R749 1430681 Top G 8 chip resistor 0W06 4R3 J 0402
R750 1430724 Top H 8 chip resistor 0W06 82R J 0402
R802 1430748 Top G 4 chip resistor 0W06 680R J 0402
R803 1430758 Top I 4 chip resistor 0W06 1K5 J 0402
R804 1430740 Top H 3 chip resistor 0W06 330R J 0402
R805 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R806 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R807 1430758 Top I 3 chip resistor 0W06 1K5 J 0402
R808 1820035 Top J 4 NTC res 47K J
B=4050+-3%
R816 1430776 Top H 3 chip resistor 0W06 8K2 J 0402
R817 1430776 Top I 3 chip resistor 0W06 8K2 J 0402
R851 1430690 Top F 3 chip res jumper 0R0 0402
C100 2320584 Top W 7 chip cap X7R 1N0 J 50V 0402
0805
Page 26 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C101 2320544 Top X 3 chip cap NP0 22P J 50V 0402
C102 2320552 Top U 4 chip cap NP0 47P J 50V 0402
C103 2320544 Top W 3 chip cap NP0 22P J 50V 0402
C104 2320544 Top W 3 chip cap NP0 22P J 50V 0402
C107 2320778 Top X 5 chip cap X7R 10N K 16V 0402
C108 2320552 Top U 5 chip cap NP0 47P J 50V 0402
C109 2320552 Top U 4 chip cap NP0 47P J 50V 0402
C150 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C151 2320805 Top X 4 chip cap X5R 100N K
10V
C152 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C154 2320805 Top U 7 chip cap X5R 100N K
10V
C155 2320805 Top U 7 chip cap X5R 100N K
10V
C156 2320552 Top X 4 chip cap NP0 47P J 50V 0402
C158 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C164 2313213 Top T 8 chip cap X5R 10U K 6V3 1206
C165 2320805 Top U 7 chip cap X5R 100N K
10V
C166 2320552 Top D 7 chip cap NP0 47P J 50V 0402
C168 2320805 Top U 7 chip cap X5R 100N K
10V
C169 2320805 Top D 7 chip cap X5R 100N K
10V
0402
0402
0402
0402
0402
0402
C170 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C172 2320552 Top S 7 chip cap NP0 47P J 50V 0402
C174 2320805 Top U 7 chip cap X5R 100N K
10V
C175 2320805 Top U 7 chip cap X5R 100N K
10V
C176 2320552 Top X 5 chip cap NP0 47P J 50V 0402
C180 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C181 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C184 2320552 Top S 8 chip cap NP0 47P J 50V 0402
C186 2312243 Top C 7 chip cap X5R 4U7 K 6V3 0805
0402
0402
Issue 1 05/2002 Nokia Corporation Page 27
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C193 2320560 Top U 7 chip cap NP0 100P J
50V
C194 2320805 Top U 7 chip cap X5R 100N K
10V
C195 2320560 Top U 7 chip cap NP0 100P J
50V
C202 2320778 Top U 5 chip cap X7R 10N K 16V 0402
C203 2320805 Top S 9 chip cap X5R 100N K
10V
C211 2320481 Top T 8 chip cap X5R 1U K 6V3 0603
C222 2320805 Top R 6 chip cap X5R 100N K
10V
C223 2320805 Top P 8 chip cap X5R 100N K
10V
C224 2320805 Top P 8 chip cap X5R 100N K
10V
C225 2320805 Top R 6 chip cap X5R 100N K
10V
0402
0402
0402
0402
0402
0402
0402
0402
C226 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C227 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C229 2320805 Top R 6 chip cap X5R 100N K
10V
C230 2320778 Top S 5 chip cap X7R 10N K 16V 0402
C232 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C233 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C234 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C235 2320481 Top S 9 chip cap X5R 1U K 6V3 0603
C237 2320481 Top U 5 chip cap X5R 1U K 6V3 0603
C238 2320805 Top S 6 chip cap X5R 100N K
10V
C239 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C240 2320481 Top Q 9 chip cap X5R 1U K 6V3 0603
C241 2320805 Top P 7 chip cap X5R 100N K
10V
0402
0402
0402
C242 2320481 Top T 6 chip cap X5R 1U K 6V3 0603
C243 2320481 Top T 7 chip cap X5R 1U K 6V3 0603
C245 2320481 Top Q 9 chip cap X5R 1U K 6V3 0603
Page 28 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C246 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C247 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C248 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C249 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C250 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C251 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C252 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C253 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C254 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C255 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C256 2320481 Top P 6 chip cap X5R 1U K 6V3 0603
C257 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C258 2320481 Top P 7 chip cap X5R 1U K 6V3 0603
C259 2320481 Top P 8 chip cap X5R 1U K 6V3 0603
C260 2313213 Top P 9 chip cap X5R 10U K 6V3 1206
C264 2320481 Top R 9 chip cap X5R 1U K 6V3 0603
C270 2313213 Top V 2 chip cap X5R 10U K 6V3 1206
C271 2313213 Top U 2 chip cap X5R 10U K 6V3 1206
C273 2320805 Top V 2 chip cap X5R 100N K
10V
C302 2318001 Top C 7 chip cap X5R 1U0 K 16V 0805
C303 2320805 Top C 6 chip cap X5R 100N K
10V
C304 2320805 Top D 6 chip cap X5R 100N K
10V
C305 2320544 Top B 7 chip cap NP0 22P J 50V 0402
C351 2312243 Top C 6 chip cap X5R 4U7 K 6V3 0805
0402
0402
0402
C400 2320805 Top O 3 chip cap X5R 100N K
10V
C401 2320805 Top R 4 chip cap X5R 100N K
10V
C402 2320805 Top O 6 chip cap X5R 100N K
10V
C403 2320805 Top O 4 chip cap X5R 100N K
10V
0402
0402
0402
0402
Issue 1 05/2002 Nokia Corporation Page 29
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C404 2320805 Top O 5 chip cap X5R 100N K
10V
C405 2320805 Top R 4 chip cap X5R 100N K
10V
C422 2320778 Top R 4 chip cap X7R 10N K 16V 0402
C423 2320584 Top S 3 chip cap X7R 1N0 J 50V 0402
C424 2320778 Top P 3 chip cap X7R 10N K 16V 0402
C425 2320584 Top O 3 chip cap X7R 1N0 J 50V 0402
C426 2320778 Top R 5 chip cap X7R 10N K 16V 0402
C427 2320584 Top S 5 chip cap X7R 1N0 J 50V 0402
C428 2320778 Top P 3 chip cap X7R 10N K 16V 0402
C435 2320778 Top L 6 chip cap X7R 10N K 16V 0402
C450 2320778 Top S 2 chip cap X7R 10N K 16V 0402
C451 2320805 Top P 2 chip cap X5R 100N K
10V
C454 2320778 Top S 2 chip cap X7R 10N K 16V 0402
0402
0402
0402
C502 2320576 Top N 8 chip cap X7R 470P J
50V
C503 2320783 Top L 7 chip cap X7R 33N K 10V 0402
C504 2320778 Top K 7 chip cap X7R 10N K 16V 0402
C505 2320778 Top L 8 chip cap X7R 10N K 16V 0402
C507 2320778 Top K 7 chip cap X7R 10N K 16V 0402
C508 2420019 Top L 8 chip cap PPS 68N J 16V 1210
C509 2320584 Top L 7 chip cap X7R 1N0 J 50V 0402
C511 2320481 Top J 8 chip cap X5R 1U K 6V3 0603
C512 2320576 Top N 8 chip cap X7R 470P J
50V
C513 2320576 Top N 8 chip cap X7R 470P J
50V
C514 2320550 Top M 2 chip cap NP0 39P J 50V 0402
C515 2320552 Top K 8 chip cap NP0 47P J 50V 0402
C516 2320508 Top K 5 chip cap 0402
0402
0402
0402
C517 2320620 Top K 5 chip cap X7R 10N J 16V 0402
C518 2320618 Top K 8 chip cap X7R 4N7 J 25V 0402
C519 2320520 Top L 2 chip cap NP0 2P2 C 50V 0402
Page 30 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C520 2320481 Top L 5 chip cap X5R 1U K 6V3 0603
C521 2320805 Top K 7 chip cap X5R 100N K
10V
C522 2320778 Top J 7 chip cap X7R 10N K 16V 0402
C523 2320584 Top N 8 chip cap X7R 1N0 J 50V 0402
C524 2320576 Top O 5 chip cap X7R 470P J
50V
C525 2320584 Top N 7 chip cap X7R 1N0 J 50V 0402
C526 2320508 Top L 2 chip cap NP0 1P0 C 50V 0402
C532 2320536 Top J 7 chip cap NP0 10P J 50V 0402
C550 2320584 Top L 7 chip cap X7R 1N0 J 50V 0402
C602 2320633 Top M 4 chip cap NP0 220P J
25V
C603 2320540 Top M 2 chip cap NP0 15P J 50V 0402
C604 2320596 Top K 5 chip cap X7R 3N3 J 50V 0402
C605 2320560 Top M 4 chip cap NP0 100P J
50V
C606 2320584 Top M 5 chip cap X7R 1N0 J 50V 0402
0402
0402
0402
0402
C607 2320778 Top N 2 chip cap X7R 10N K 16V 0402
C608 2320536 Top I 4 chip cap NP0 10P J 50V 0402
C610 2320596 Top K 4 chip cap X7R 3N3 J 50V 0402
C611 2320540 Top K 3 chip cap NP0 15P J 50V 0402
C612 2320120 Top M 4 chip cap X7R 22N K
25V
C613 2360001 Top M 4 chip cap X5R 330N K
10V
C614 2320536 Top L 3 chip cap NP0 10P J 50V 0402
C615 2320633 Top L 3 chip cap NP0 220P J
25V
C618 2320481 Top N 3 chip cap X5R 1U K 6V3 0603
C621 2320584 Top K 4 chip cap X7R 1N0 J 50V 0402
C627 2320536 Top J 4 chip cap NP0 10P J 50V 0402
C629 2320532 Top N 4 chip cap NP0 6P8 C 50V 0402
C630 2320540 Top N 4 chip cap NP0 15P J 50V 0402
0603
0603
0402
C631 2320524 Top N 4 chip cap NP0 3P3 C 50V 0402
Issue 1 05/2002 Nokia Corporation Page 31
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
C632 2320584 Top N 4 chip cap X7R 1N0 J 50V 0402
C637 2320560 Top N 4 chip cap NP0 100P J
50V
C638 2320778 Top N 4 chip cap X7R 10N K 16V 0402
C645 2320536 Top J 4 chip cap NP0 10P J 50V 0402
C646 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C647 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C650 2320536 Top I 4 chip cap NP0 10P J 50V 0402
C651 2320540 Top K 4 chip cap NP0 15P J 50V 0402
C652 2320481 Top M 5 chip cap X5R 1U K 6V3 0603
C653 2320805 Top L 4 chip cap X5R 100N K
10V
C660 2320536 Top L 4 chip cap NP0 10P J 50V 0402
C666 2320552 Top L 2 chip cap NP0 47P J 50V 0402
C701 2320783 Top M 5 chip cap X7R 33N K 10V 0402
C702 2320584 Top M 6 chip cap X7R 1N0 J 50V 0402
C704 2320778 Top N 7 chip cap X7R 10N K 16V 0402
0402
0402
C706 2320778 Top N 6 chip cap X7R 10N K 16V 0402
C707 2320778 Top N 7 chip cap X7R 10N K 16V 0402
C708 2320778 Top L 6 chip cap X7R 10N K 16V 0402
C710 2320778 Top L 7 chip cap X7R 10N K 16V 0402
C712 2320778 Top M 6 chip cap X7R 10N K 16V 0402
C714 2360001 Top N 5 chip cap X5R 330N K
10V
C715 2320620 Top M 5 chip cap X7R 10N J 16V 0402
C716 2320548 Top M 5 chip cap NP0 33P J 50V 0402
C718 2320778 Top N 6 chip cap X7R 10N K 16V 0402
C722 2320778 Top L 7 chip cap X7R 10N K 16V 0402
C723 2320778 Top N 7 chip cap X7R 10N K 16V 0402
C753 2320560 Top G 5 chip cap NP0 100P J
50V
C756 2320560 Top H 6 chip cap NP0 100P J
50V
0603
0402
0402
C758 2320785 Top G 6 chip cap X7R 47N K 10V 0402
Page 32 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
C759 2320602 Top H 6 chip cap NP0 4P7 C 50V 0402
C760 2320538 Top G 7 chip cap NP0 12P J 50V 0402
C761 2320596 Top H 7 chip cap X7R 3N3 J 50V 0402
C762 2320805 Top G 8 chip cap X5R 100N K
10V
C763 2320538 Top G 8 chip cap NP0 12P J 50V 0402
C766 2320560 Top G 6 chip cap NP0 100P J
50V
C767 2320554 Top H 7 chip cap NP0 56P J 50V 0402
C769 2320584 Top H 7 chip cap X7R 1N0 J 50V 0402
C770 2320518 Top J 8 chip cap NP0 1P8 C 50V 0402
C771 2320544 Top M 7 chip cap NP0 22P J 50V 0402
C772 2320544 Top M 7 chip cap NP0 22P J 50V 0402
C782 2320526 Top H 7 chip cap NP0 3P9 C 50V 0402
C785 2320508 Top F 8 chip cap NP0 1P0 C 50V 0402
C786 2320805 Top H 7 chip cap X5R 100N K
10V
C801 2320538 Top F 2 chip cap NP0 12P J 50V 0402
C804 2320548 Top I 3 chip cap NP0 33P J 50V 0402
0402
0402
0402
C805 2320548 Top H 3 chip cap NP0 33P J 50V 0402
C807 2320620 Top J 4 chip cap X7R 10N J 16V 0402
C809 2320536 Top I 5 chip cap NP0 10P J 50V 0402
C812 2320620 Top I 3 chip cap X7R 10N J 16V 0402
C817 2313213 Top J 3 chip cap X5R 104K 6V3 1206
C818 2320516 Top H 3 chip cap NP0 1P5 C 50V 0402
C840 2320481 Top G 5 chip cap X5R 1U K 6V3 0603
C841 2313213 Top J 3 chip cap X5R 10U K 6V3 1206
C842 2320536 Top G 4 chip cap NP0 10P J 50V 0402
L100 3203743 Top W 7 ferr bead 0R03 42R/
100MHz 3A
L270 3203743 Top V 2 ferr bead 0R03 42R/
100MHz 3A
L271 3640091 Top T 2 chip coil 15UH K 0.8A 6.5X5.3X2.0
L501 3646007 Top M 2 chip coil 27N J Q27/
800MHz
0805
0805
0402
Issue 1 05/2002 Nokia Corporation Page 33
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
L503 3646117 Top L 2 chip coil 5N6 +-0N1
Q26/1GHz
L504 3646055 Top L 2 chip coil 8N2 J Q28/
800MHz
L505 3646055 Top L 2 chip coil 8N2 J Q28/
800MHz
L507 3646131 Top J 5 chip coil 3N9 +-0N1
Q28/1GHz
L609 3646131 Top M 4 chip coil 3N9 +-0N1
Q28/1GHz
L610 3646131 Top L 4 chip coil 3N9 +-0N1
Q28/1GHz
L611 3645219 Top N 4 chip coil 10N J Q31/
250MHz
L612 3646127 Top L 5 chip coil 1N3 +- 0N1
Q50/1GHz
L666 3646129 Top L 5 chip coil 8N2 +-0N1
Q26/1GHz
L701 3645223 Top L 6 chip coil 33N J Q40/
250MHz
0402
0402
0402
0402
0402
0402
0603
0402
0402
0603
L751 3646405 Top F 7 chip coil 6N2 J Q20/
250MHz
L753 3645013 Top G 6 chip coil 220NH K Q15/
25MHz
L754 3645195 Top H 7 chip coil 82N J Q12/
100MHz
L759 3645243 Top J 7 chip coil 47N J Q38/
200MHz
L760 3645229 Top M 7 chip coil 120N J Q32/
150MHz
L761 3645229 Top L 7 chip coil 120N J Q32/
150MHz
L770 3645195 Top H 6 chip coil 82N J Q12/
100MHz
L771 3646099 Top H 7 chip coil 2N7 +-0N1
Q29/1GHz
L773 3646099 Top G 7 chip coil 2N7 +-0N3
Q29/800M
L801 3645185 Top H 3 chip coil 10N J Q12/
100MHz
0402
0603
0603
0603
0603
0603
0603
0402
0402
0603
Page 34 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
L812 3646063 Top F 2 chip coil 22N J Q28/
800MHz
L851 3646409 Top W 1 chip coil 1N0 +-0N3
Q34/800M
T603 4550211 Top L 5 balun transf 1850-
1990MHz
D100 4110028 Top W 6 TVS DI 16V 600W 23A DO214AA
D200 4370841 Top Q 7 UEM V6.0 W-DOG ENA TO09L TFBGA168
D400 4370843 Top Q 5 UPP8M V2.1A F751986A
C035
D450 4341207 Top Q 2 Flash NMP DCT4 64MBIT 40MHz
V150 4211623 Top W 4 MFET N&P
FDG6332C
V151 4211631 Top W 4 MFETX2 UM6K1N N30V 0A1 7R SOT363
V270 4110441 Top U 1 SCH DI STPS0520Z 20V 0.5A SOD123
V300 4860235 Top J 9 LED LGM470-
K2M1-1 GRN
0R4@2V5 SOT363
570NM SMT2
0402
0402
SMD
UBGA144
V301 4860235 Top L 9 LED LGM470-
K2M1-1 GRN
V302 4860235 Top J 1 LED LGM470-
K2M1-1 GRN
V303 4860235 Top L 1 LED LGM470-
K2M1-1 GRN
V305 4860235 Top S 6 LED LGM470-
K2M1-1 GRN
V306 4860235 Top W 4 LED LGM470-
K2M1-1 GRN
V307 4860235 Top W 6 LED LGM470-
K2M1-1 GRN
V308 4860235 Top S 4 LED LGM470-
K2M1-1 GRN
V310 4860235 Top H 1 LED LGM470-
K2M1-1 GRN
V311 4860235 Top H 9 LED LGM470-
K2M1-1 GRN
V314 4860235 Top O 4 LED LGM470-
K2M1-1 GRN
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
570NM SMT2
V315 4860235 Top O 6 LED LGM470-
K2M1-1 GRN
570NM SMT2
Issue 1 05/2002 Nokia Corporation Page 35
NHP-2
4. Parts Lists PAMS Technical Documentation
Item Code Side X Y Description Value Type
V351 4860171 Top B 4 IRDA
GP2W1002YP
V500 4210100 Top N 7 TR BC848W N 30V 0.1A
V601 4110921 Top N 5 CAP.DI BBY57-
02W
V602 4112491 Top N 3 PIN DI BA892 35V<0R7@0.1
V701 4110921 Top L 5 CAP.DI BBY57-
02W
V801 4110055 Top I 3 SCHDIX2 BAT17-074V CT<1PF SOT143
Z300 4120031 Top W 2 EMI/ESD filt EMIF10-
Z601 4511331 Top J 4 Dual Saw Filt 1850-1885/
Z750 4511295 Top G 8 Saw Filt 1960.0MHz/
Z753 4511329 Top I 8 Saw Flt 128.1+/-
1.152MB IRDA 1.3
SOT323
100MHz
1/4 16/4P SOD523
SOD523
GHz
1/4 16/4P SOD523
BGA24
1K010F1
1875-1910
3X3X1
3.7DB
9X5X1.6
0.61MHz
Z801 4510345 Top G 4 ISOLATOR 1.85-1.91GHz/
15DB
Z804 4512159 Top E 6 Dupl 1850-1910/
19301990MHz
N271 4341255 Top U 2 VREG PWM/LDO (NCP1500) MSOP8
N501 4341293 Top K 8 2XSYNTH 2.5/1.2G (LMX2370) MLF24
N502 4341295 Top L 2 RF AMP G5.5DB/
2.1GHz
N601 4370857 Top M 3 ROBIND SSBUP-
CONVERTER
N602 4370887 Top K 4 HORNET
RF2357E7
N605 4341311 Top I 4 Switch SPDT GAAS (SW-437) SC70-6
N701 4370851 Top M 6 BATMAND RFIC
RCVR
N750 4370893 Top G 7 LNA/MIXER/ DOWNCON-
(ULOBA) SC70-6
CDMA TFBGA
PCS DRIVER
AMP
CDMA UFBGA84
VERTER
4X4X2
VQFN-24 R
N802 4350339 Top H 4 PW AMP 1850-
1910MHz
SNAPPER
CDMA
Page 36 Nokia Corporation Issue 1 05/2002
NHP-2
PAMS Technical Documentation 4. Parts Lists
Item Code Side X Y Description Value Type
G501 4510347 Top M 8 VCTCXO 19.2MHz +/-
1.5PPM 2.7V
G502 4350329 Top K 6 VCO 986-1034/
2040-2140MHz
B200 4510303 Top T 8 CRYSTAL 32.768KHz +-
F100 5119019 Top X 7 SM FUSE F 1.5A 32V 0603
S300 5209001 Top B 6 SM SW TACT SPST 12V 50MA Side Key
X100 5469061 Top Y 5 SM SYSTEM
CONN+3DC+MIC
+JACK+6AF
X101 5400227 Top T 4 SM BATTERY
CONN SPR
X800 5429023 Top E 2 SM CONN
COAX+SW+GASK
X810 9510434 Top D 4 SPRING CLIP M3E14601
X811 9510434 Top C 4 SPRING CLIP M3E14601
A400 9517105 UBGA SHIELD
ASSY
2.7V
12.5PF
20PPM
4POL 100V 2A
50R 2.5GHz
HD925
NSJ-3
HD925
NSJ-3
DMC03681 HDAA3
A600 9517107 RF TX SHIELD
ASSY
A700 9517104 RF RX SHIELD
ASSY
A800 9510686 DUPLEXER SHIELD DMD07064 HDAA3
DMC03682 HDAA3
DMC03680 HDAA3
Issue 1 05/2002 Nokia Corporation Page 37
NHP-2
4. Parts Lists PAMS Technical Documentation
Page 38 Nokia Corporation Issue 1 05/2002
Loading...
