List of service tools
The table below shows the set of tools that can be used for testing, error-analysis and
repair of the RH-12/RH-28 product.
Type Designator Description Part Code
DA-8 Docking station adaptor 0770546
DA-8 Test pins 0770617
JBV-1 Docking station 0770298
SA-17 RF adaptor 0770584
PCS-1 DC power cable 0730012
SCB-3 DC cable 0730114
XCS-1 Service cable 0730218
XCS-4 Modular cable 0730178
MJ-12 Module repair jig 0770544
FLS-4S POS flash adaptor dongle for EMEA
POS flash adaptor dongle for APAC
POS flash adaptor dongle for AMERICAS
FPS-8 Parallel flash prommer
(Inc. AXS-4, AXS-8, ACF-8, printer cable)
Printer cable (incl. In FPS-8 sales pack) 0730029
FPS-8C Flash prommer box 0080396
XRF-1 RF cable 0730085
DAU-9S MBUS cable 0730108
RJ-9 Soldering jig 0770547
MJS-76 Rework jig 0770417
SES-3 Rework stencil 0770558
SPS-1 Soldering Paste Spreader 0770381
0080541
0080542
0080542
0080321
SF-7 POS flash adaptor 0770545
SF-7 Test pins 0770450
Issue 1 02/04 Nokia Corporation Page 5
RH-12/RH-28
Service Tools CCS Technical Documentation
JBV-1 Docking station
The JBV-1 docking station is a general tool that has been designed for calibration and
software update use. The DA-8 docking station adaptor is a product-specific tool that
provides signal connections to the phone. The JBV-1 and the DA-8 are used as one unit.
The JVB-1 main electrical functions include the following:
• Adjustable VBATT calibration voltage, current measurement limit voltage: VCHAR, current measurement: ICHAR
• Adjustable ADC calibration voltage via BTEM and the BSI signal
• BTEMP and BSI calibration resistor
• Signal from FBUS to the phone via the parallel jig
• Control via FBUS or USB
• Flash OK/FAIL indication
In the calibration mode the JBV-1 is powered by an external power supply: 11-16V DC.
When flashing, the power for the phone can be taken from the FPS-8 or an external
power supply: 11-16 V DC.
Page 6 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
DA-8 Docking station adaptor
The docking station adaptor is used for the RH-12/RH-28 in combination with the JBV-1.
The DA-8 supports flashing and energy management calibration. If used in conjunction
with the SA-17, a RF Go/NoGo test can be performed.
The MMC card is to be removed before mounting the phone on the docking station adaptor.
Features included:
• Compatible with the JBV-1
• Easy phone attachment and detachment
• Reliable phone locking (via DC-jack)
• Switch for detection of phone attachment
• Replaceable pogo pins
Product Code
DA-8 Docking station adaptor: 0770546
View of DA-8 when mounted on the JBV-1
Issue 1 02/04 Nokia Corporation Page 7
RH-12/RH-28
Service Tools CCS Technical Documentation
SA-17 RF adaptor
The SA-17 RF adaptor provides a galvanic connection to the RF output. The adaptor is
intended for a Go/NoGo test. By removing the A&B covers and the antenna, the RF adaptor can be attached on the top section of the phone.
The adaptor is designed to be used with the DA-8 docking station adaptor or the SF-7
POS flash adaptor.
Product code
SA-17 RF adaptor: 0770584
View of SA-17
Page 8 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
MJ-12 Module repair jig
The MJ-12 Module repair jig is designed for Regional service centers to allow component
level trouble shooting and testing.
Product code
MJ-12 Module Repair Jig: 0770544”
General features
• EDS proof design
• Component level access while inserted in the jig
• Access to system connector
• SIM cards reader
• UI board with key mat integrated in the jig
• Access to phone module POWER-On push button
• Access to phone module side keys (volume keys)
• Support for IrDa testing
• BT coupler for Go/NoGo test
Power supply features
• Jig and phone supply via 5mm DC jack
• 2A replaceable fuse
• Voltage regulator
• Direct power feeding (bypassing regulator with a jumper)
• Reverse voltage protection
• Over-voltage protection
• On-indicator (green LED)
Spare parts
• Pogo pins used for RF connector (0770446)
• Pogo pins used for flash I/F (needs soldering) (0770551)
Issue 1 02/04 Nokia Corporation Page 9
RH-12/RH-28
Service Tools CCS Technical Documentation
• Pogo pins used for SIM connection (needs soldering) (0770442)
View of MJ-12
Note: The supply voltage for the MJ-12 has to be kept within the range of 8-12 V when using the built
in regulator. When bypassing the regulator (IMEI rewrite), the voltage must be kept below 5,4V.
Page 10 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
RJ-9 Soldering Jig
The RJ-9 soldering jig is used for soldering and reworking for the ez4a Main board.
Product Code
RJ-9 soldering jig: 0770547
View of RJ-9
Issue 1 02/04 Nokia Corporation Page 11
RH-12/RH-28
Service Tools CCS Technical Documentation
SES-3 Rework Stencil
The SES-3 Rework Stencil is used for PA Chip N700 (LGA type component) rework.
It is used together with the Rework Jig soldering paste spreader.
Product code
SES-3 Rework Stencil: 077031
The tools needed for rework include:
• MJS-76 Rework Jig: 0770417
• SES-3 Stencil: 0770558
• SPS-1 Soldering Paste Spreader: 0770381
Page 12 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
FPS-8 Flash Prommer (Sales Pack)
The Flash Prommer FPS-8 is used with e.g. DA-8 and JVB-1. Power is supplied to FPS-8
from the Universal Power Supply.
The sales pack includes:
• FPS-8 Flash Prommer: 0750123
• FPS-8 Activation Sheet: 9359289
• Universal Power Supply: 0680032
• AXS-4 Service Cable (D9-D9): 0730090
• Printer cable: 0730029
Sales package code
FPS-8 Flash Prommer: 0080321
View of FPS-8
Issue 1 02/04 Nokia Corporation Page 13
RH-12/RH-28
Service Tools CCS Technical Documentation
FPS-8C Parallel Flash Prommer (Sales Pack)
The Parallel Flash Prommer FPS-8C is used with DA-8 and JVB-1. Flash programming can
be done to maximum of 8 phones parallel. FPS-8C consists of eight SF11C programming
cards. The SF11C card is functionally identical to FPS-8.
Sales package code
FPS-8C Parallel Flash Prommer: 0080396
View of FPS-8C
Page 14 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
ACF-8 Universal Power Supply
The ACF-8 Universal Power Supply is used to power FPS-8. ACF-8 has 6 V DC and 2.1 A
output.
Product Code
ACF-8 Universal Power Supply: 0680032
View of ACF-8
Issue 1 02/04 Nokia Corporation Page 15
RH-12/RH-28
Service Tools CCS Technical Documentation
SF-7 POS flash adaptor
The SF-7 is a POS flash adaptor provided for the RH-12/RH-28 phones.
Product Code
SF-7 POS flash adaptor: 0770545
View of SF-7
Page 16 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
XCS-1 Service Cable
The XCS-1 Service Cable is used to connect FLS-4 to FLA-27.
Product code
XCS-1 Service Cable: 0730218
View of XCS-1
Issue 1 02/04 Nokia Corporation Page 17
RH-12/RH-28
Service Tools CCS Technical Documentation
FLS-4S POS (Point Of Sale) Flash Device (Sales Pack)
FLS-4S is a dongle and flash device incorporated into one package, developed specifically
for POS use.
Product Code
Sales Pack (Europe/Africa): 0080541
Sales Pack (APAC): 0080542
Sales Pack: (US): 080543
View of FLS-4S
Page 18 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
PCS-1 Power Cable
The PCS-1 Power Cable (DC) is used to connect e.g. JVB-1 to FPS-8.
Product Code
PCS-1 Power Cable: 0730012
View of PCS-1
Issue 1 02/04 Nokia Corporation Page 19
RH-12/RH-28
Service Tools CCS Technical Documentation
XRF-1 RF Cable
RF cable XRF-1 is used to connect e.g. Module Jig MJS-38 to RF measurement equipment.
Product code
XRF-1 RF Cable: 0730085
View of XRF-1
Page 20 Nokia Corporation Issue 1 02/04
RH-12/RH-28
CCS Technical Documentation Service Tools
DAU-9S MBUS Cable
The MBUS Cable DAU-9S has a modular connector, and is used with between PC's serial
port and e.g. Module Jig MJS-38.
Product Code
DAU-9S MBUS Cable: 0730108
View of DAU-9S
Issue 1 02/04 Nokia Corporation Page 21
RH-12/RH-28
Service Tools CCS Technical Documentation
SCB-3 DC Cable
The DC Cable SCB-3 is used to connect e.g. JVB-1 to the phone.
Product Code
SCB-3 DC Cable: 0730114
View of SCB-3
Page 22 Nokia Corporation Issue 1 02/04
RH-12/RH-28

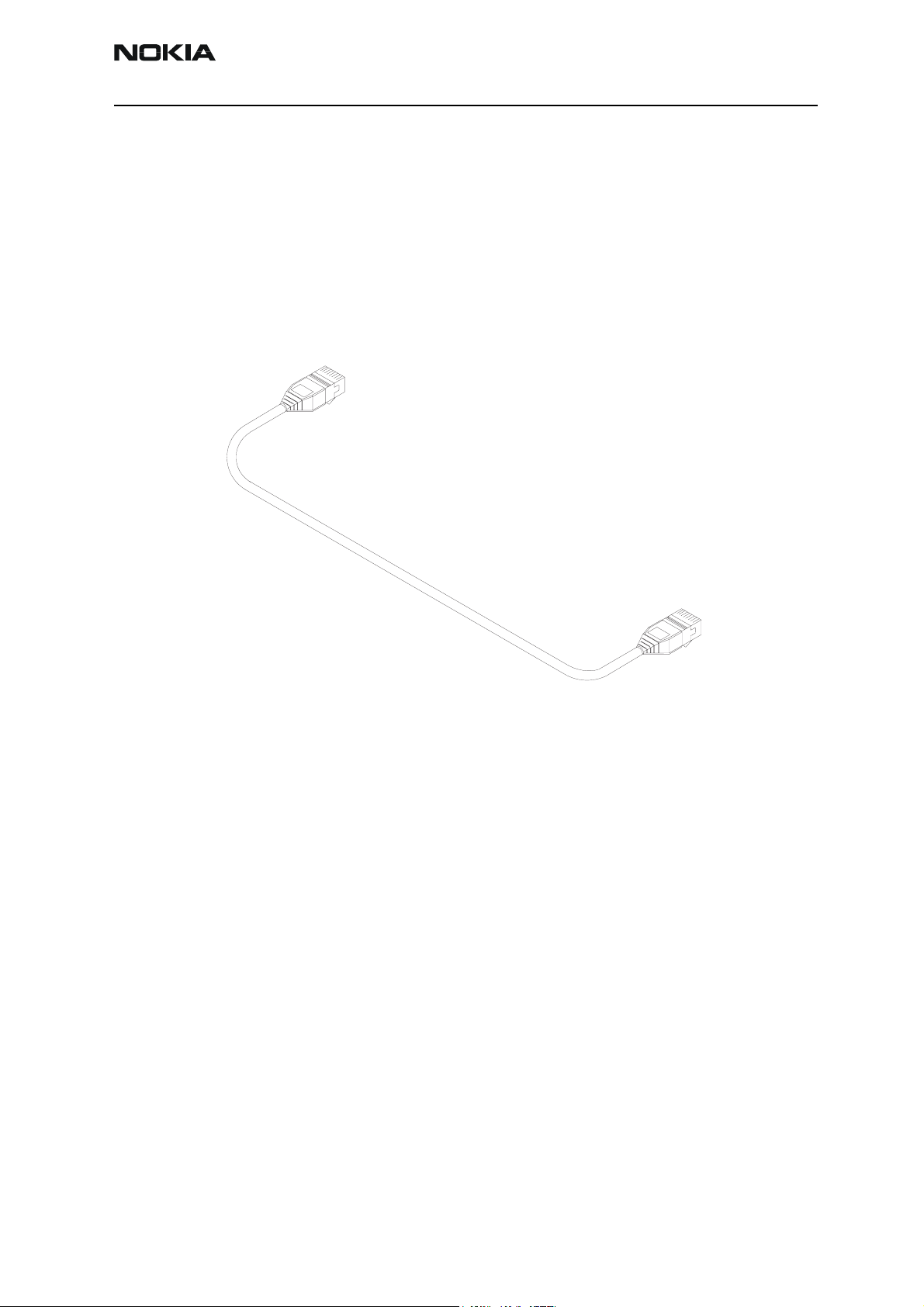

View of XCS-4
CCS Technical Documentation Service Tools
XCS-4 Modular Cable
XCS-4 is a shielded cable (one specially shielded conductor) modular cable for flashing
and service purposes.
Product code
XCS-4 Modular Cable: 0730178
View of XCS-4
Issue 1 02/04 Nokia Corporation Page 23
RH-12/RH-28
Service Tools CCS Technical Documentation
Printer Cable
This cable is used to connect the PC to FPS-8.
Product code
Printer Cable: 0730029
View of Printer Cable
