Nokia 120T User Manual
User Guide
Nokia, Nokia Connecting People and Navi Bars are registered trademarks of Nokia Corporation. Other product and company names mentioned herein may be trademarks or trade names of their owners.
Nokia operates a policy of continuous development. Therefore we reserve the right to make changes and
improvements to any of the products described in this manual without any prior notice.
Copyright © 2004 Nokia. All rights reserved.
Mediamaster 112 T & 120 T
Contents
Remote control 4
Connecting the Mediamaster 5
Front and Rear panel 5
Preparing the remote control 5
Common Connections 6
Connecting to the TV with SCART 6
Connecting to the TV without SCART 6
Connecting a Video recorder with SCART 7
Connecting a Video recorder without SCART 7
About Smart card 8
About digital transmission 8
Connecting to the TV aerial 8

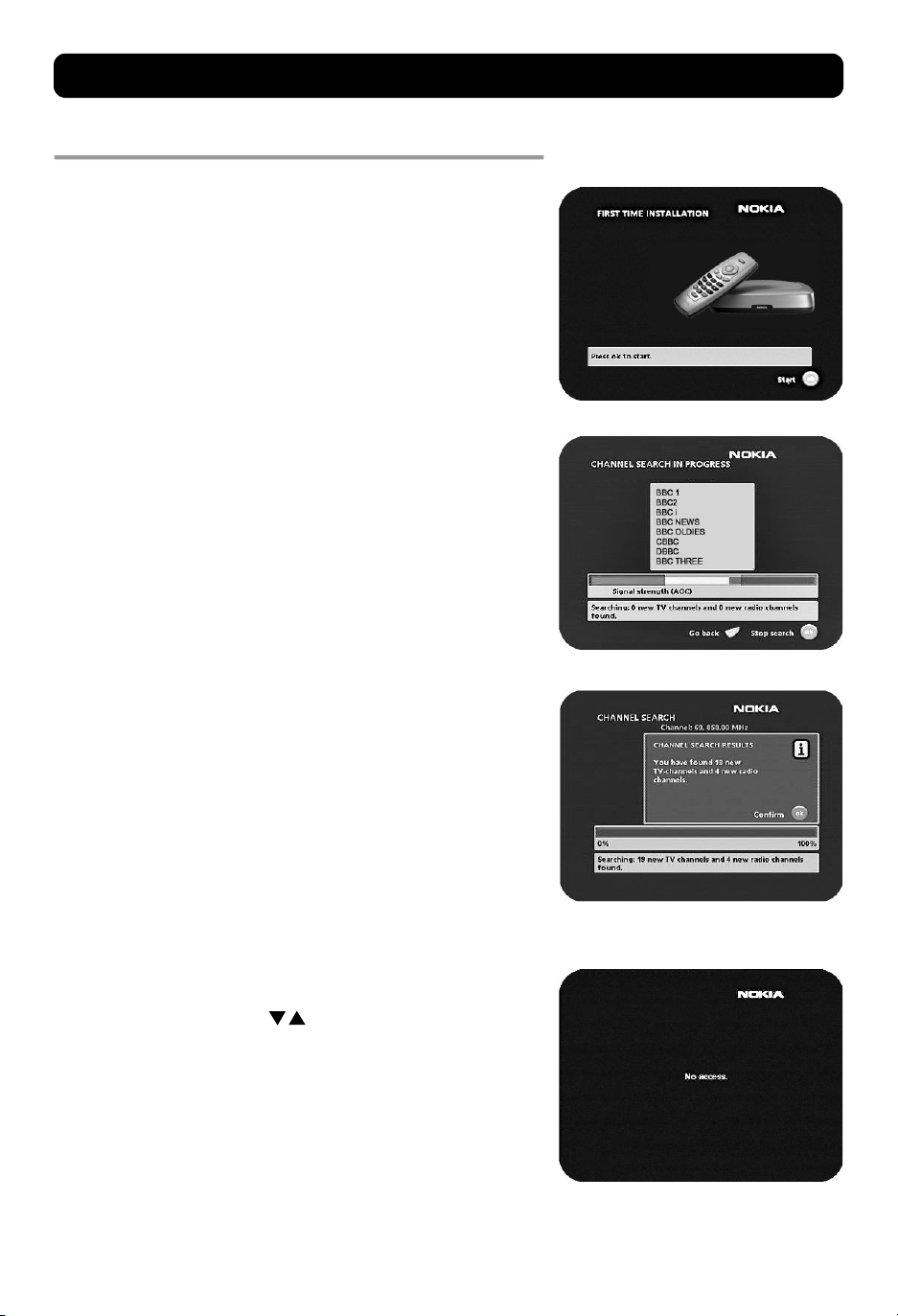

First-time installation 10
Switching on for the first time and start 10
Watching TV & listening to the radio 11
Programme information 11

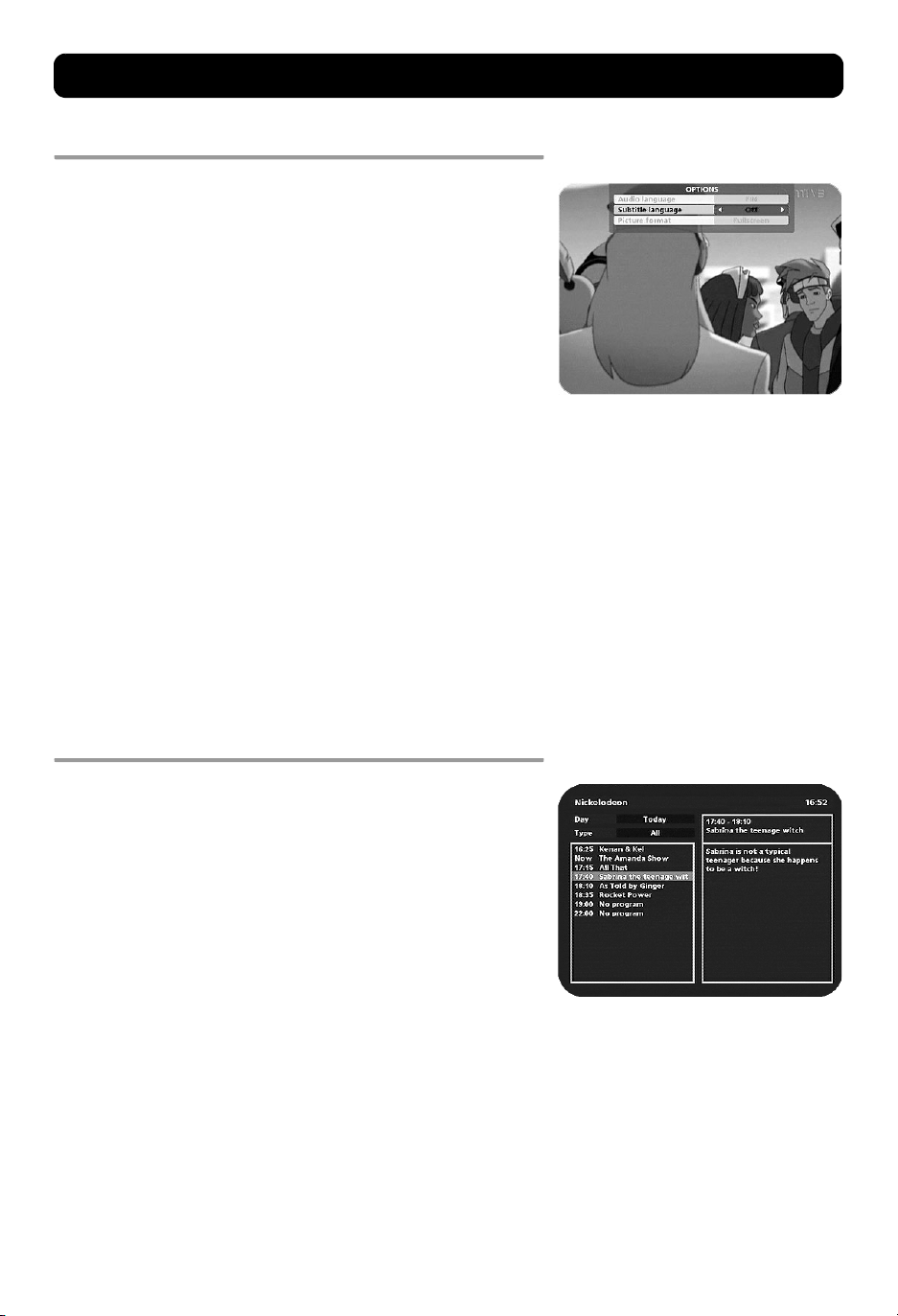

Temporary settings 12
Programme Guide: EPG 12
External equipment 13

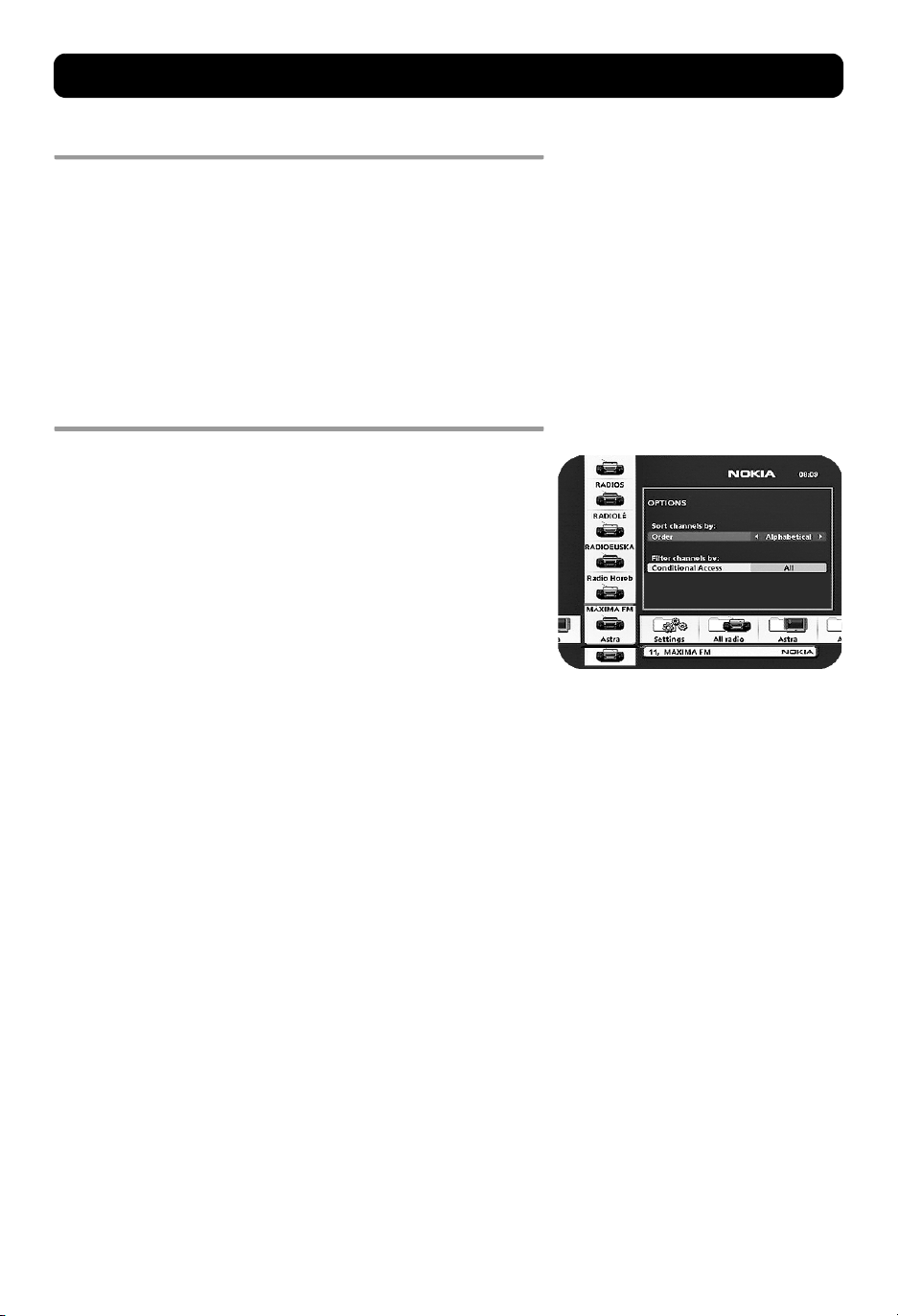

Sorting channels 13
Teletext 14
Navi Bars 15
Navigating with Navi Bars 15
The Settings folder 15
The User folder 16
The TV folder 16

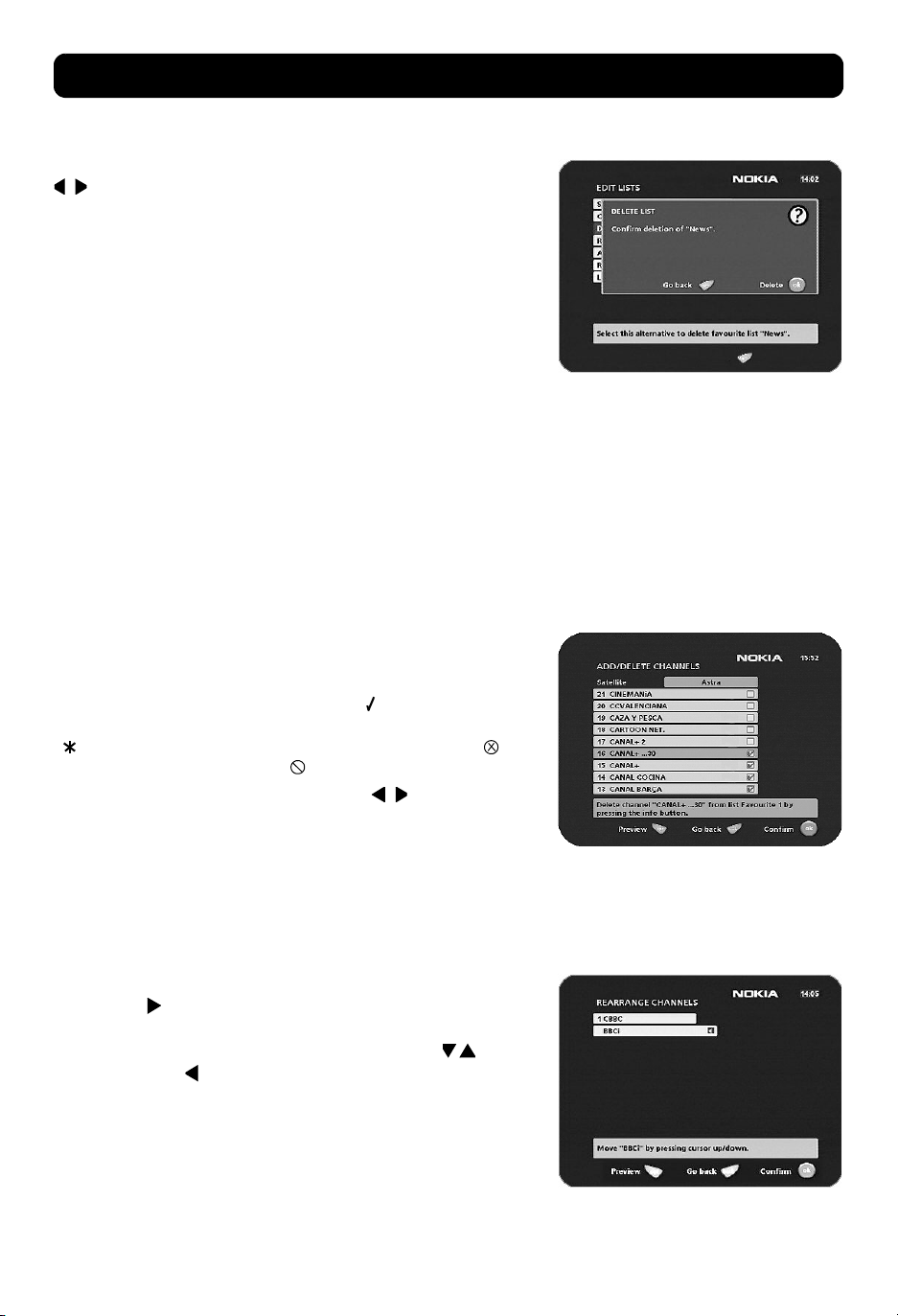

Edit lists folder 18

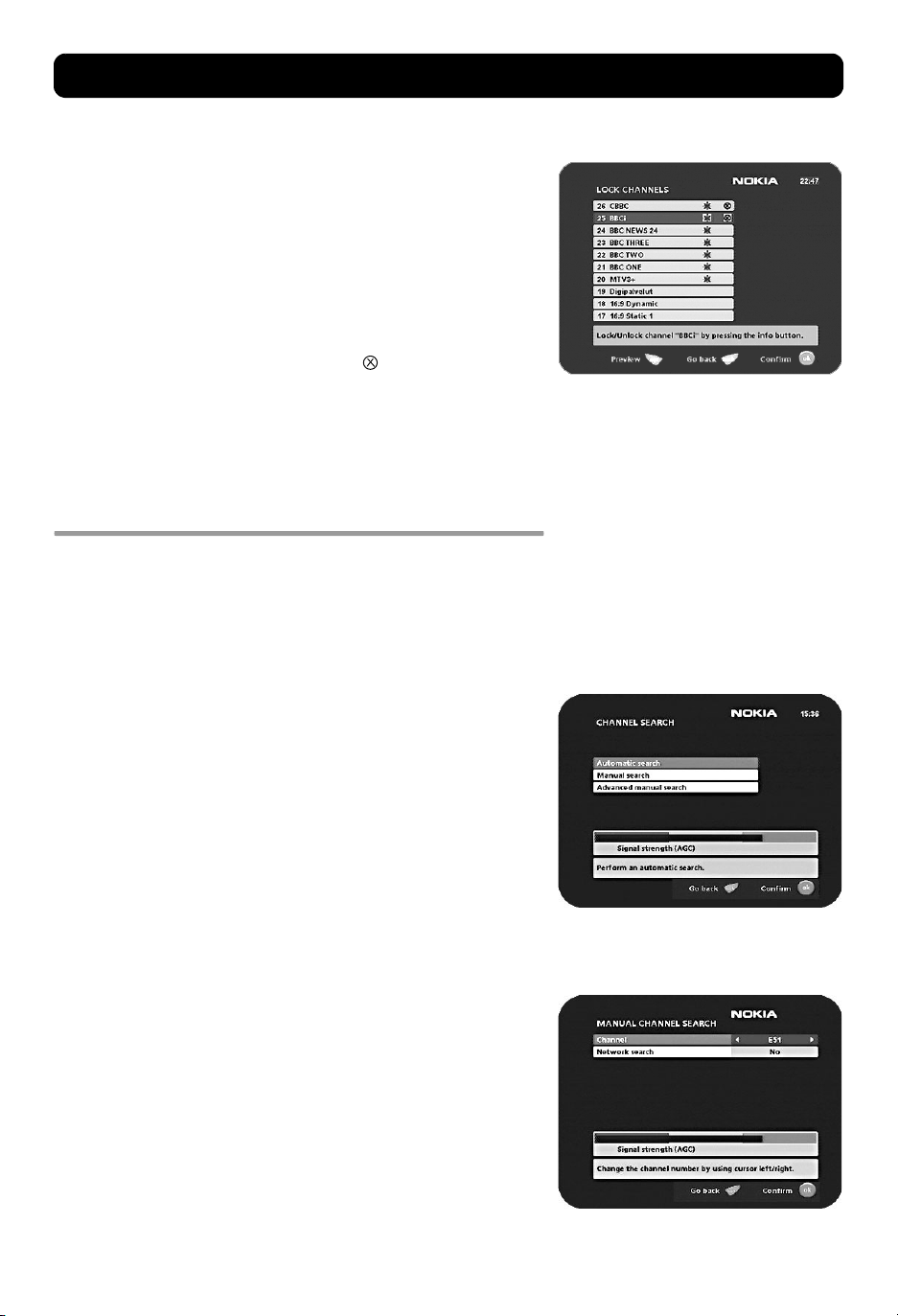

Search folder 20
Access folder 21
Maintenance folder 22

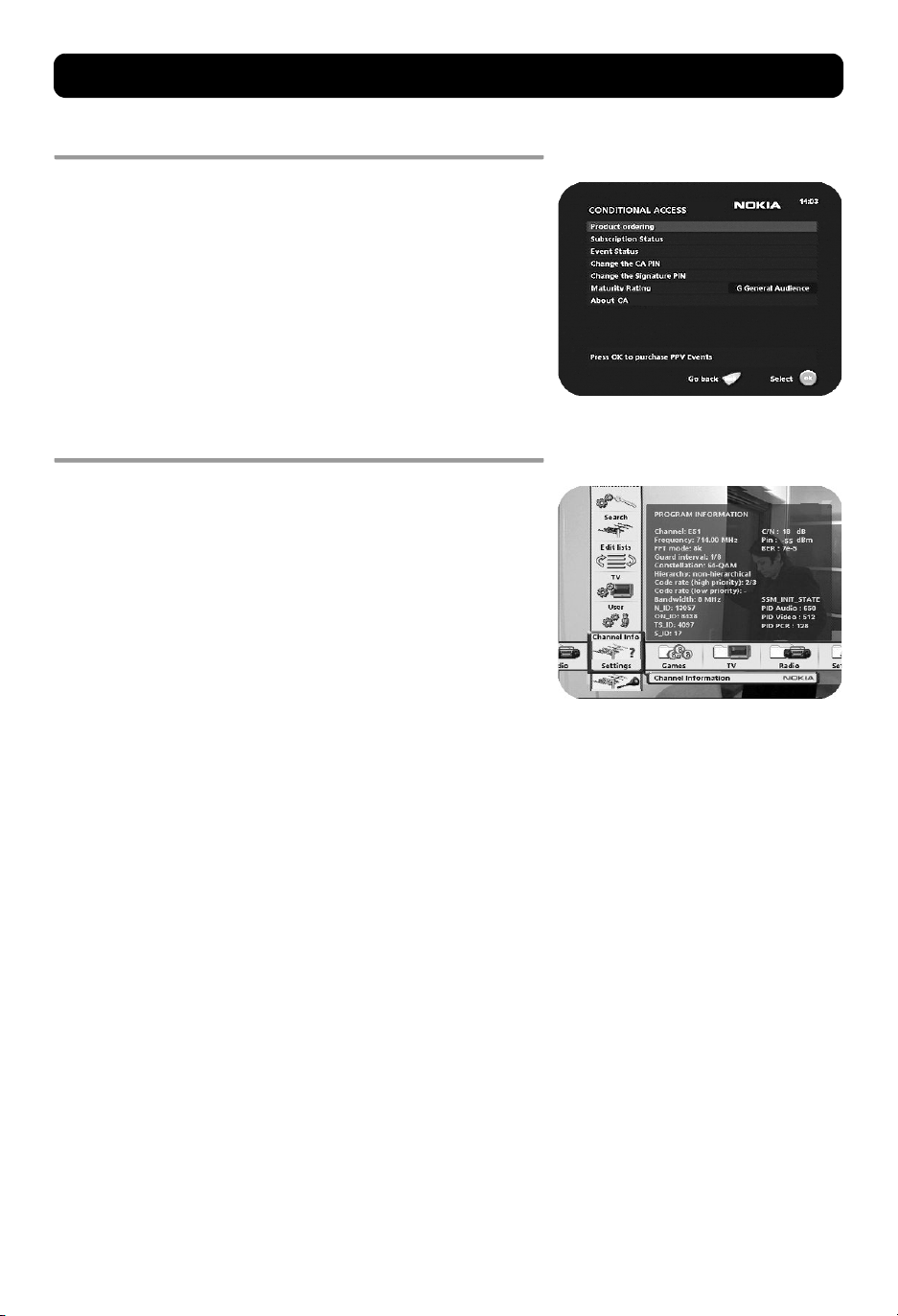

CA menu 23
Channel info 23
End-user license 24
Technical specifications 25
Read this before using the Mediamaster
• Do not use any power supply other than the original unit delivered with the
Mediamaster.
• Allow 10 cm of space around the Mediamaster for sufficient ventilation.
• Do not cover the Mediamaster's ventilation openings with items such as newspapers, tablecloths, curtains, etc.
• Do not place the Mediamaster on top of a heat-emitting unit.
• Do not place naked flame sources, such as lit candles, on the Mediamaster.
• Use a soft cloth and a mild solution of washing-up liquid to clean the casing.
• Do not expose the Mediamaster to dripping or splashing liquids.
• Do not place any objects filled with liquids, such as vases, on the Mediamaster.
• To give your Mediamaster extra protection, e.g. during a thunderstorm, we
recommend that you connect it via an external surge protection device.
• Do not connect or modify cables when the Mediamaster is plugged in.
• Do not remove the cover.
• Do not allow the unit to be exposed to hot, cold or humid conditions.
• Service should only be carried out at a Nokia Authorised Service Centre.
• Please note that the only way to isolate the Mediamaster completely from
the mains supply is to unplug the power supply!
GB 3
Remote control
This section describes how to operate the Mediamaster using the buttons on the remote control.
mute Press once to turn the sound off/on (mute/unmute).
ok To confirm a selection.
cursor up Move up in the menus and change to the next channel in
cursor down Move down in the menus and change to the previous
cursor left Move left/change settings in menus.
cursor right Move right/change settings in menus.
opt To display temporary settings (options) while watching TV.
info Three different functions:
back To go back one level at a time within menus.
Press and hold for a few seconds to switch the
Mediamaster into standby mode. In addition,
press this button to switch the Mediamaster on.
To open Navi Bars
viewing mode.
channel in viewing mode.
Decrease the volume level in viewing mode.
Increase the volume level in viewing mode.
Activate Channel Filtering & Sorting in Navi Bars mode.
Pressing once will show current programme name.
Pressing twice will show information about the current
and next programme.
Pressing three times will give the 7-day programme guide
(EPG).
To close the Navi Bars.
Toggle between the present and previous channel.
0 - 9 To change the channel and to select individual menu
0 To toggle between the Mediamaster reception or any
navi To open and close the Navi Bars.
txt Press to enter Teletext (if available).
tv/radio Toggle between TV and radio mode.
GB 4
options.
NOTE: If 0 is entered as the first digit, the TV Release
functionality is activated (see below).
other reception to your TV (depending of TV model.)
Connecting the Mediamaster
Front and Rear panel
TV aerial *
for connection of the antenna.
Also, a Nokia active indoor antenna is
powered from this
connection *
Reset button
Slot
112 T = for a Viaccess smart card
120 T = for a Conax smart card
TV SCART socket * *
for connection to the TV SCART
DC in
for connecting the cable
from the external power
supply
TV/VCR
For connecting to the
RF socket on the TV,
or to a Video
recorder
* IMPORTANT. PLEASE SEE INFORMATION
ON PAGE 9 HOW TO SWITCH OFF THE ANTENNA POWER.
Digital audio
Digital audio output
(TOS-link optical
connecttion)
A constant green light indicates that the Mediamaster is
switched ON.
A constant red light indicates standby mode.
The light flashes red when commands from the remote control
are received.
The light flashes green during software updates.
Connecting the Mediamaster
The box for your Mediamaster should contain the following items:
• the Mediamaster
• a remote control with 2 AAA batteries
• a SCART cable (fully connected; 1.0 m)
• an Introduction Guide
• a separate power supply
Preparing the remote control
Power supply
SCART
cable
• Remove the cover from the battery compartment at the bottom
of the remote control.
• Insert the 2 AAA (1.5 V) batteries as shown in the diagram,
taking care to observe the + and - markings indicated inside.
• Replace the cover.
* * The TV SCART Socket
When you connect other devices to this socket, always use a fully
connected SCART cable like the one supplied. There are SCART
cables available that do not have all the pins connected,
which could reduce picture quality if you were to use them.
GB 5
Connecting the Mediamaster
Common Connections
In this section, you will see some of the most common ways to
connect your equipment.
If you have problems with your connections and need help, contact
your retailer or Nokia Support.
Connecting to the TV with SCART
• Connect the antenna cable to the TV aerial input on the Mediamaster.
• Connect an RF cable from the TV/VCR output on the Mediamaster
to the antenna input socket on the TV.
• Connect a SCART cable between the main SCART socket on the TV
and the TV SCART socket on the Mediamaster.
• Switch on your TV, then plug in and switch on your Mediamaster.
You may need to select the AV (SCART) channel on your TV to
watch digital TV. In some cases, your TV will automatically select this channel when the Mediamaster is switched on.
NOTE: The RF lead will need to be connected in order to watch
analogue channels (the old 1, 2, 3, 4, 5)
It is always advisable to consult the user guide that came
with your TV.
Connecting to the TV without SCART
• Remove the aerial lead from your TV and connect this to the TV
aerial input socket on the Mediamaster.
• Connect an RF cable from the TV/VCR output on the Mediamaster
to the RF input socket on the TV.
• Switch on your TV, plug in and switch on your Mediamaster.
• Select a programme number on the TV that is not currently used
for other TV channels.
• Follow the instructions in your TV manual to tune the TV to the
channel where you see the First-time installation menu from the
Mediamaster.
• Follow the instructions in your TV manual to store this channel.
• When the First-time installation menu is visible, press the ok
button on the Mediamaster's remote control to start the installation procedure.
If the picture quality is bad, you can later change the pre-defined
UHF channel 43 to any other number between 21 and 69. You will
also have to tune your TV to the same (= the new) channel number.
GB 6
Connecting the Mediamaster
Connecting a Video recorder with SCART
• Remove the aerial lead from your TV and connect this to the TV
aerial input socket on the Mediamaster.
• Connect a SCART cable between the main SCART socket on the TV
and the TV SCART socket on the Video.
• Connect an RF cable from the TV/VCR output on the Mediamaster
to the RF input socket on the video.
• Connect an RF cable from the TV/VCR output on the video to the
RF input socket on the TV.
• Connect a SCART cable between the SCART socket on the video
and the SCART socket on the Mediamaster.
• Switch on your TV, then plug in and switch on your Mediamaster.
• On your VCR, there should be an AV select button. This mode
should be selected to record digital TV.
You may need to select the AV (SCART) channel on your TV.
In some cases, your TV will automatically select this channel
when the Mediamaster is switched on.
NOTE: In this set-up, your VCR has to be switched on or in
standby mode to watch digital TV. To record a digital channel,
you will need to select the AV (SCART) channel on your video.
It is always advisable to consult the user guides that came
with your video and TV.
Connecting a Video recorder without SCART
• Remove the aerial lead from your TV and connect it to the TV aerial input socket on the Mediamaster.
• Connect an RF cable from the TV/VCR output on the Mediamaster
to the RF input socket on the video.
• Connect an RF cable from the TV/VCR output on the video to the
RF input socket on the TV.
• Switch on your TV, then plug in and switch on your Mediamaster.
• Pick a spare channel on your VCR and tune this until you see a
programme channel from the Mediamaster. Store this channel.
Select this channel on your video when you want to record a digital
channel.
GB 7
Connecting the Mediamaster
About Smart card
The 112 T Mediamaster is equipped with a built-in decoder for the
Viaccess encryption system.
The 120 T Mediamaster is equipped with a built-in decoder for the
Conax encryption system.
Insert a valid smart card fully into the slot on the back of the
Mediamaster. The gold chip must face downwards and inwards.
Connecting a Hi-fi system
It is possible to connect a TOS link cable from the Digital audio output on the Mediamaster to a Hi-fi system that is equipped with the
corresponding audio input.
• Also use the TOS link Digital audio output for connection to an
external Dolby digital/DTS decoder.
About digital transmission
Digital Radio and TV signals can be blocked by buildings, mountains
and the terrain. Depending on if the receiver is located in a valley,
behind a mountain or in a concrete building, the quality of reception may vary considerably.
As with most other transmissions, bad weather affects reception
quality.
Connecting to the TV aerial
You can connect the Mediamaster to the following type of aerials:
1. Standard outdoor aerial
Where possible, use an outdoor roof aerial intended for receiving
UHF/VHF channels (21-69).
Please note the following:
• In some blocks of flats, the roof-mounted aerial system includes
a filter and channel selector. If so, the aerial may not work with
the Mediamaster. Please consult your landlord.
• Many older roof-mounted aerials may only receive a limited
number of channels, which results in it being difficult or even impossible to receive digital channels transmitted on higher frequencies. This problem can be solved by replacing the roof aerial.
GB 8
