8
www.noisecom.com
General Specifications:
Output White Gaussian noise
Attenuator 0 to 1 2 7 d B i n 1dB steps
0 to 79 dB above 2 GHz
(0.1 dB steps optional)
C o n t r ol Local and IEEE-488
Impedance 50 ohms
(others optional)
Typical VSWR 1 . 5 : 1
S t a n d a r d output SMA female
c o n n e c t o r (K female for UFX7240)
Dimensions 17 in. wide x 5.25 in.
high x 12.5 in. deep
Mounting F r ont panel handles
and fold-down feet
for bench mounting.
Brackets included for
19 in. rack mounting
Power 120 VAC, 60 Hz
(230 VAC, 50Hz
o p t i o n a l )
O p e r a t i n g -10º to +65ºC
t e m p e r a t u r e
Specifications subject to change without notice.

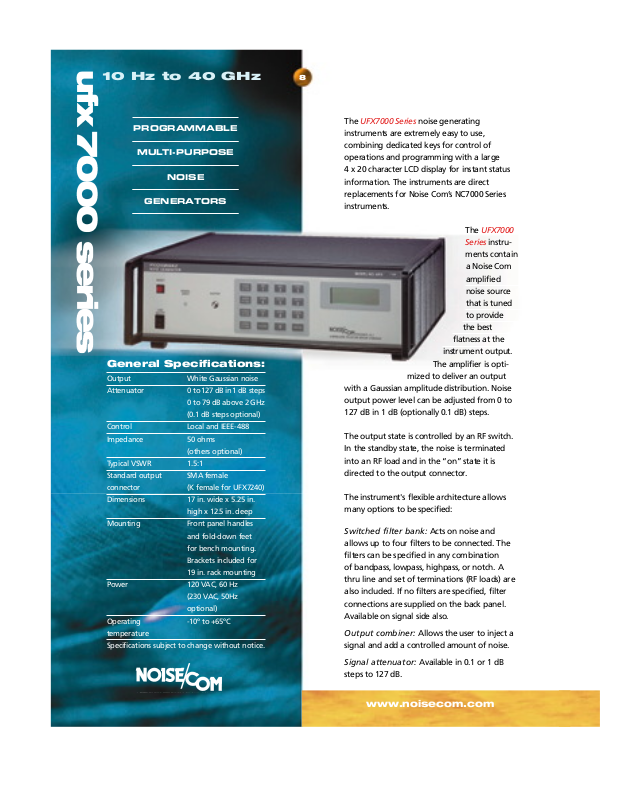

The UFX7000 Series noise generating
i n s t r uments are extremely easy to use,
combining dedicated keys for control of
operations and programming with a large
4 x 20 character LCD display for instant status
i n f o r mation. The instruments are direct
replacements for Noise Com’s NC7000 Series
i n s t r uments.
The U F X 7 0 0 0
S e r i e s i n s t r u-
ments contain
a Noise Com
amplified
noise sourc e
that is tuned
to provide
the best
flatness at the
i n s t r ument output.
The amplifier is opti-
mized to deliver an output
with a Gaussian amplitude distribution. Noise
output power level can be adjusted from 0 to
127 dB in 1 dB (optionally 0.1 dB) steps.
The output state is controlled by an RF switch.
In the standby state, the noise is terminated
into an RF load and in the “on” state it is
d i r ected to the output connector.
The instrument's flexible arc h i t e c t u r e allows
many options to be specified:
Switched filter bank: Acts on noise and
allows up to four filters to be connected. The
filters can be specified in any combination
of bandpass, lowpass, highpass, or notch. A
t h r u line and set of terminations (RF loads) are
also included. If no filters are specified, filter
connections are supplied on the back panel.
Available on signal side also.
Output combiner: Allows the user to inject a
signal and add a controlled amount of noise.
Signal attenuator: Available in 0.1 or 1 dB
steps to 127 dB.
PROGRAMMABLE
MULTI-PURPOSE
NOISE
GENERATORS
10 Hz to 40 GHz
9
To order call 201-261-8797
The instruments allow the noise attenuator, noise
f i l t e r, signal attenuator values, step size, and signal
filter setting to be selected in three ways: at the
f r ont panel keypad, remotely via IEEE-488 bus, or
automatically under program contro l .
E v e r y front panel operation except instru m e n t
o n / o f f is programmable. Programs are easily written
using the program key, and information on the
display guides the user through the next steps. Nine
u s e r - c r eated programs that contain subro u t i n e s ,
delay times, and loops can be stored in non-volatile
m e m o r y.
Applications:
• E l e c t romagnetic susceptibility
• Filter testing
• C ATV gain (tilt) alignment
• Image and spurious rejection tests
• GPS re c e i v e r s
• Disk drive testing
• S p e c t rum analyzer calibration
• Jamming systems
• Signal to noise measure m e n t
Lab Windows Drivers available
from National Instruments
OPTIONS
Option Number Description
U 7 o p t 0 1 N female output connector
U 7 o p t 0 2 BNC female output connector
U 7 o p t 0 3 0 to 127.9 dB noise attenuator in 0.1 dB steps
instead of 127 dB in 1 dB steps
†
U 7 o p t 0 4 Switch elements, 2 X SP6T for 4 subband filters,
1 thrupath, 1 termination (filters are optional)
U 7 o p t 0 5 N / A
U 7 o p t 0 6 75 ohm output impedance (6 dB loss in the noise
path and 12 dB loss in the signal path)
U 7 o p t 0 7 Combiner for input signal (6 dB loss in noise and
signal paths)
U 7 o p t 0 8 Double output terminals (switched)
U 7 o p t 0 9 Special configuration
U 7 o p t 1 0 Line power 230 VAC, 50 Hz
U 7 o p t 1 1 RS-232C, RS-422, RS-423, in addition to standard
IEEE-488 interf a c e
U 7 o p t 1 2 0 to 127 dB signal attenuator in 1 dB steps*
U 7 o p t 1 3 0 to 127.9 dB signal attenuator in 0.1 dB steps
†
U 7 o p t 1 4 Special frequency range (consult factory )
†
N/A for UFX7128, UFX7218 and UFX7240 (0 to 79.9 for UFX7124 and
U F X 7 1 2 6 )
* U7opt07 must also be included when ordering this option,
0 to 79 dB above 2 GHz
UFX7900 SERIES
( 1 WAT T O U T P U T )
MODEL FREQUENCY OUTPUT CHARACTERISTICS
RANGE POWER (dBm) dBm/Hz FL AT N E S S( d B )
UFX7903 500 Hz - 500 kHz +3 0 -27 ±2
UFX7905 500 Hz - 10 MHz +3 0 -40 ±2
UFX7907 250 kHz - 100 MHz +3 0 -50 ±2
UFX7908 1 MHz - 200 MHz +3 0 -53 ±2
UFX7909 1 MHz - 300 MHz +3 0 -55 ±2
UFX7910 2 MHz - 500 MHz +3 0 -57 ±2
UFX7911 5 MHz - 1 GHz +3 0 -60 ±3
UFX7100, UFX7200 SERIES
MODEL FREQUENCY OUTPUT CHARACTERISTICS
RANGE POWER (dBm) dBm/Hz FL AT N E S S (dB) µV/ Hz
UFX7101 10 Hz - 20 kHz +13 -30 ±0.5 7071
UFX7103 10 Hz - 500 kHz +13 -44 ±0.5 1414
UFX7105 10 Hz - 10 MHz + 13 -57 ±0.5 316
UFX7107 100 Hz - 100 MHz + 13 -67 ±0.75 1 0 0
UFX7108 100 Hz - 500 MHz + 10 -77 ±1.0 31.6
UFX7109 100 Hz - 1 GHz +10 -80 ± 1.5 22.4
UFX7110 100 Hz - 1.5 GHz +10 - 82 ± 1.5 18.2
UFX7111 1 GHz - 2GHz +10 -80 ± 1.5 22.4
UFX7112 1 MHz - 2 GHz 0 -93 ±2.0 5.01
UFX7124 2 GHz - 4 GHz -10 - 103 ±2.0 1.58
UFX7126 2 GHz - 6 GHz - 1 4 - 1 1 0 + 2 . 0 0 . 7 1
U F X 7 1 2 8 10 MHz - 10 GHz - 1 7 - 1 1 7 + 3 . 0 0 . 3 2
U F X 7 2 1 8 2 GHz - 18 GHz -20 - 1 2 2 ±2.0 0.18
U F X 7 2 4 0 2 GHz - 40 GHz -20 -126 ±4.0 0.11
