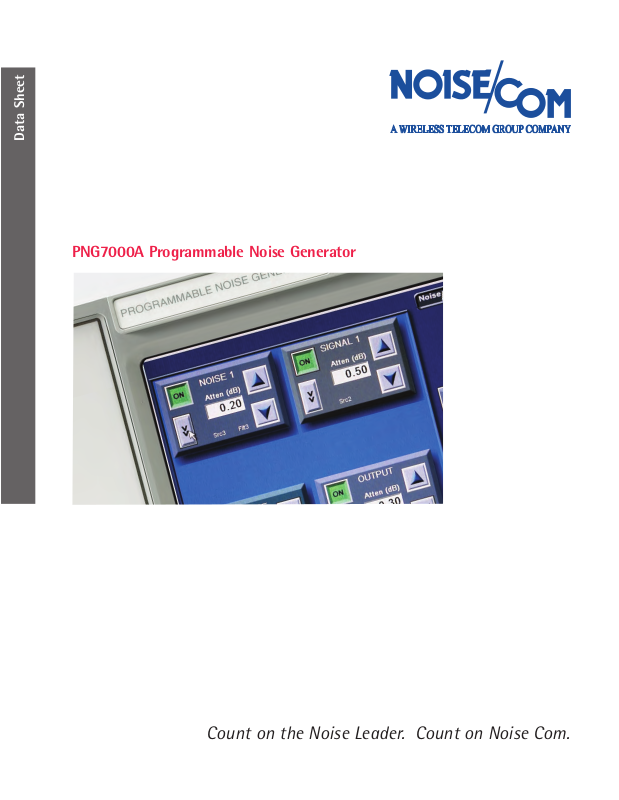

PNG7000A Programmable Noise Generator
Data Sheet
Count on the Noise Leader. Count on Noise Com.
Page 2
PNG7000A Programmable Noise Generator Series
The PNG7000A Series instruments generate white Gaussian
noise and provide a summing input to control signal-to-noise
(SNR) or carrier-to-noise (CNR) for bit-error-ratio (BER)
testing. The output can also be used as a random source for
time domain Jitter applications. A key feature of this
instrument is its low distortion signal path that sums the
user-supplied signal with the internal precision white
noise source.
The signal path has a nominal insertion gain of 0 dB, with
very low amplitude and phase ripple. The noise source
provides an exceptionally high crest factor for accurate bit
error rate testing, even with large carrier-to-noise (CNR) or
bit energy-to-noise density (Eb/No) ratios. With the addition
of option 7, DC coupling will allow adding noise directly
to a digital TTL, ECL, or similar signal.
The standard PNG7000A is a broadband device, but for
applications that require a greater range, the unit can be
configured with up to five band-limited noise sources, each
optimized for flatness over the specified frequency band.
Noise Com will modilfy base units for specific customer
needs. For pricing and availablity, consult the factory.
The PNG7000A Series is microprocessor-controlled and
provides information about operation of the instrument via
a 6.25” color TFT display. Control of the noise level, noise
on/off switching, signal on/off switching, and noise source
selection can be controlled either manually by the touch
screen, or remotely via IEEE-488 bus, Ethernet, or Serial type
RS232. The PNG7000A instruments can be integrated into
a test station under software control, and with the aid of a
precision power meter the C/N or Eb/No ratios can be set.
General Specifications
• Output White Gaussian noise
• Minimum 18 dB crest factor
• Output noise power +3 dBm
• Noise attenuator 0 to 63 dB, with 0.25 dB step size
• Noise attenuator ±0.2 dB or 0.5% accuracy
at 1 - 500 MHz
• ±0.2 dB or 1% at 0.5 - 1.0 GHz
• ±0.3 dB or 2% at 1 - 2 GHz
• Signal path gain 0 ±1 dB
• Group delay variation ±0.2 nsec/40 MHz
• Standard connectors SMA female
• 6.25” color VGA, TFT touch screen
• Dimensions: 17.22 in. wide x 6.30 in. including feet, high
x 19.5 in. deep
• Fold-down feet for bench-top use
• Power 115 VAC, 60 Hz
• Operating temperature: -10° to +65°C
Once a CNR calibration has been performed, the ratio can
be changed using the internal precision attenuator to vary
the noise power without degrading accuracy. The output
noise power level is factory calibrated at a 0 dB attenuator
setting and is displayed in dBm/Hz.
2
Intuitive standard control menu
Page 3
Specifications
Applications
PNG7000A Series Output Characteristics
Model Frequency Band Power Vrms dBm/Hz Flatness (dB)
PNG7105A 1 MHz - 10 MHz +3 0 0.316 -67 ±0.25 / 40 MHz
PNG7107A 10 MHz - 100 MHz +3 0 0.316 -77 ±0.25 / 40 MHz
PNG7108A 10 MHz - 500 MHz +3 0 0.316 -84 ±0.25 / 40 MHz
PNG7109A 10 MHz - 1 GHz +3 0 0.316 -87 ±0.25 / 40 MHz
PNG7110A 10 MHz - 1.5 GHz +3 0 0.316 -89 ±0.25 / 40 MHz
PNG7111A 1 GHz - 2 GHz +3 0 0.316 -87 ±0.25 / 40 MHz
PNG7112A 10 MHz - 2 GHz +3 0 0.316 -87 ±0.25 / 40 MHz
• BER, Jitter Testing
• Serial Data Testing
• C/N Ratio Testing
• Eb/No Testing
• Multiplexers
• Disk Drive Channel Testing
3
Page 4
Options
Option number Description
PNGopt01 BNC female input and output
PNGopt02 75 ohms input and
output impedance
PNGopt03 230 VAC, 50 Hz
PNGopt04 Switch including up to
5 noise sources
PNGopt05 RS232 remote control
PNGopt06 127 dB signal attenuator
in 1 dB steps
PNGopt07 DC coupled signal path
(6 dB RF Loss)
PNGopt09 Custom internal filters
PNGopt10 Custom frequency, power,
or flatness requirement**
PNG opt11 GPIB IEEE 488.2
PNGopt12 19” rack mount
** Consult factory for pricing and availability
25 Eastmans Road
Parsippany, NJ 07054 U.S.A.
Phone: +1-973-386-9696
Fax: +1-973-386-9191
Email: [email protected]
Web site: www.noisecom.com
© Copyright 2006
Noise Com
(A Wireless Telecom Group Company)
All rights reserved.
Note: Specifications, terms and
conditions are subject to change
without prior notice.
N/PNG7000/0606/EN
