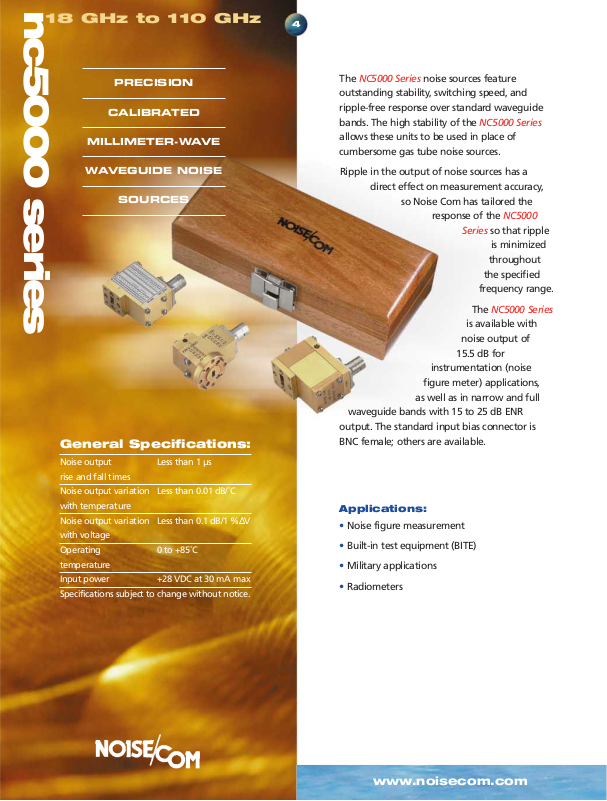

Page 1
nc5000 series
18 GHz to 110 GHz
PRECISION
CALIBRATED
MILLIMETER-WAVE
WAVEGUIDE NOISE
SOURCES
General Specifications:
Noise output Less than 1 µs
rise and fall times
Noise output variation Less than 0.01 dB/˚C
with temperature
Noise output variation Less than 0.1 dB/1 %∆V
with voltage
Operating 0 to +85˚C
temperature
Input power +28 VDC at 30 mA max
Specifications subject to change without notice.
The NC5000 Series noise sources feature
outstanding stability, switching speed, and
ripple-free response over standard waveguide
bands. The high stability of the NC5000 Series
allows these units to be used in place of
cumbersome gas tube noise sources.
Ripple in the output of noise sources has a
direct effect on measurement accuracy,
so Noise Com has tailored the
response of the NC5000
Series so that ripple
is minimized
throughout
the specified
frequency range.
The NC5000 Series
is available with
noise output of
15.5 dB for
instrumentation (noise
figure meter) applications,
as well as in narrow and full
waveguide bands with 15 to 25 dB ENR
output. The standard input bias connector is
BNC female; others are available.
Applications:
• Noise figure measurement
• Built-in test equipment (BITE)
• Military applications
• Radiometers
4
www.noisecom.com
Page 2
NC5000 SERIES
NOISE FIGURE MEASUREMENT DEVICES
HIGH NOISE OUTPUT—NARROW BAND
MODEL FREQUENCY NOISE OUTPUT MATING CALIBRATION WAVEGUIDE I (max)
RANGE (GHz) ENR (dB) Flatness(dB) FLANGE FREQUENCIES (mA)
NC5342 18 - 26.5* 25.0 ±0.5 UG595/U WR42 30
NC5328 26.4 - 40* 23.0 ±0.5 UG599/U WR28 30
NC5322 33 - 50* 21.0 ±0.5 UG383/U WR22 30
NC5319 40 - 60* 20.0 ±0.5 UG383/UM WR19 30
NC5315 50 - 75* 17.0 ±0.7 UG385/U WR15 30
NC5310 75 - 110* 11.0 ± 0.7 UG387/U WR10 30
* Bandwidths of 1 GHz may be specified anywhere in the band. Other bandwidths may be specified.
However, wider bandwidths may result in a different flatness specification.
5
To order call 201-261-8797
WAVEGUIDE DIM DIM DIM
A (in.) B (in.) C (in.)
WR22 1.51 0.75 1.31
WR19 1.51 0.75 1.31
OPTIONS
Option Number Description
NC5opt01 +15 VDC
NC5opt02 TNC bias connector
NC5opt03 Right-angle BNC bias connector
NC5opt04 +28 VDC with regulation. Stabilized noise
output for ±2V variation.
NC5opt05 Output isolator
NC5opt06 Other waveguide sizes are available on request
HIGH NOISE OUTPUT—FULL BAND
MODEL FREQUENCY NOISE OUTPUT MATING CALIBRATION WAVEGUIDE I (max)
RANGE (GHz) ENR (dB) FLATNESS (dB) FLANGE FREQUENCIES (mA)
NC5242 18 - 26.5 25.0 ± 1.0 UG595/U 1 GHz steps WR42 30
NC5228 26.5 - 40 23.0 ± 2.0 UG599/U 1 GHz steps WR28 30
NC5222 33 - 50 21.0 ± 2.0 UG383/U 1 GHz steps WR22 30
NC5219 40 - 60 20.0 ± 2.0 UG383/UM 1 GHz steps WR19 30
NC5215 50 - 75 17.0 ± 2.5 UG385/U 1 GHz steps WR15 30
NOISE FIGURE METER-COMPATIBLE—FULL BAND
MODEL FREQUENCY NOISE OUTPUT TYPICAL MATING CALIBRATION WAVEGUIDE I (max)
RANGE (GHz) ENR (dB) Flatness(dB) VSWR FLANGE FREQUENCIES (mA)
NC5142 18 - 26.5 15.5 ±0.75 1.3:1 UG595/U 1 GHz steps WR42 30
NC5128 26.5 - 40 15.5 ±0.75 1.3:1 UG599/U 1 GHz steps WR28 30
NC5122 33 - 50 15.5 ± 1.0 1.3:1 UG383/U 1 GHz steps WR22 30
NC5119 40 - 60 15.5 ± 1.5 1.3:1 UG383/UM 1 GHz steps WR19 30
NC5115 50 - 75 15.5 ± 2.5 1.6:1* UG385/U 1 GHz steps WR15 30
NC5110 75 - 110 15.0 ± 5.0 1.6:1* UG387/U 1 GHz steps WR10 30
* Maximum VSWR with isolator — option 5.

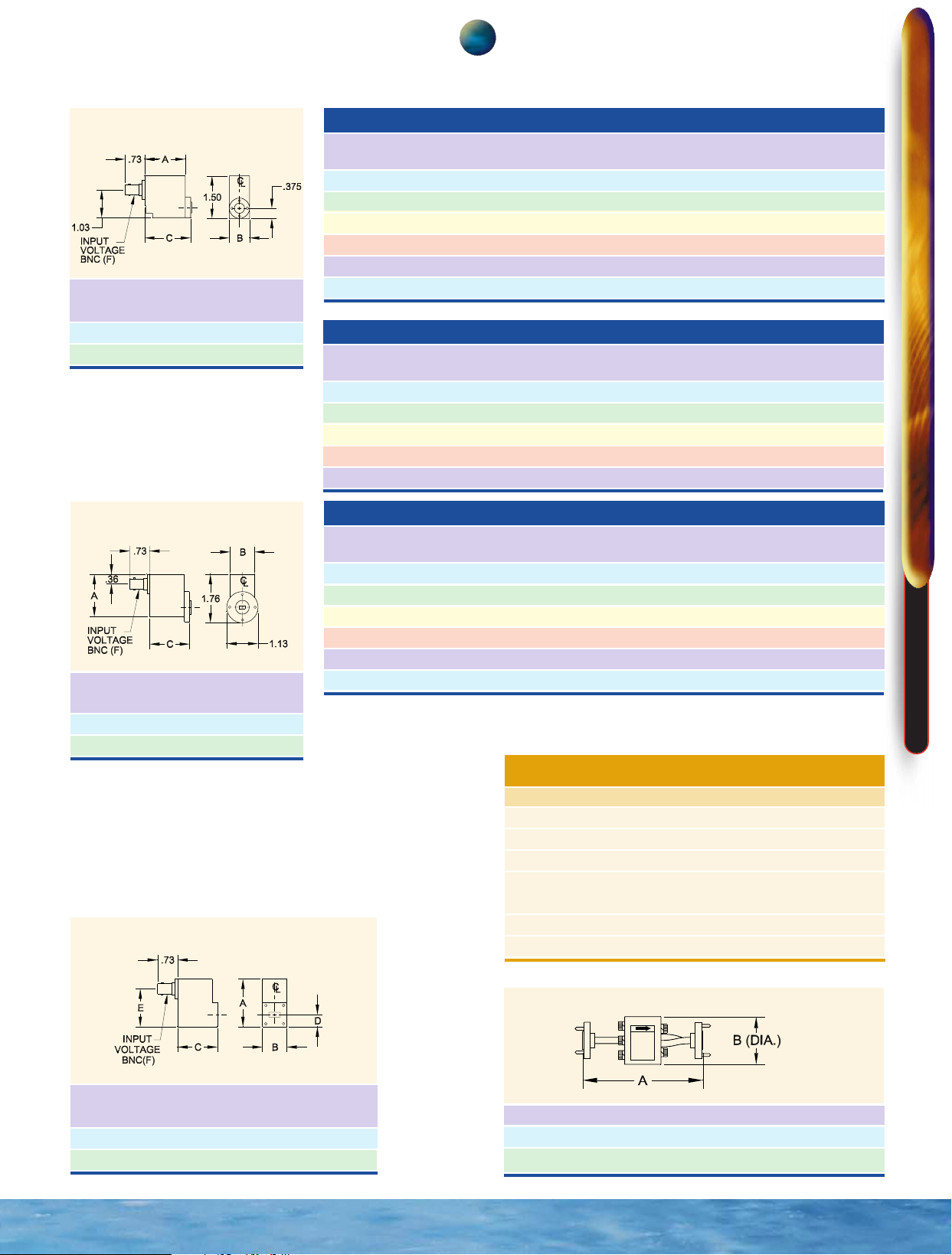

NC5000 Series Dimensions (inches)
WAVEGUIDE DIM DIM DIM DIM DIM
A (in.) B (in.) C (in.) D (in.) E (in.)
WR42 1.72 0.88 1.44 0.44 1.38
WR28 1.55 0.75 1.30 0.38 1.20
NC5000 Series Dimensions (inches)
Minimum
Center
and
Maximum
WAVEGUIDE DIM DIM DIM
A (in.) B (in.) C (in.)
WR15 1.78 0.76 1.96
WR10 1.50 0.76 1.70
NC5000 Series Dimensions (inches)
WR42 WR28 WR22 WR19 WR15 WR10
DIM A (in.) 4.34 3.28 2.69 2.63 2.56 2.46
DIM B (in.) 1.45 1.32 1.73 1.32 0.99 0.99
Output Isolator (NC5opt05) (inches)
