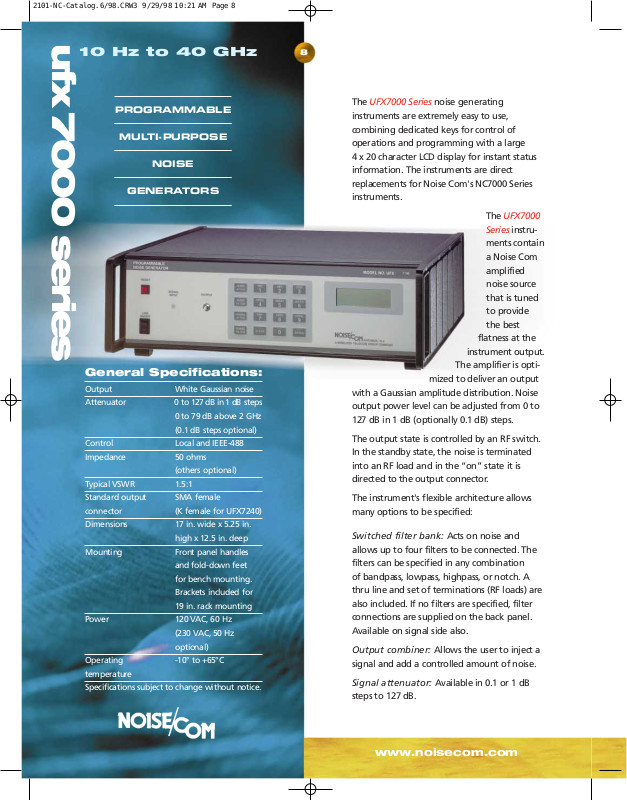

ufx 7000 series
10 Hz to 40 GHz
8
PROGRAMMABLE
MULTI-PURPOSE
NOISE
GENERATORS
General Specifications:
Output White Gaussian noise
Attenuator 0 to 127dB in 1 dB steps
0 to 79 dB above 2 GHz
(0.1 dB steps optional)
Control Local and IEEE-488
Impedance 50 ohms
(others optional)
Typical VSWR 1.5:1
Standard output SMA female
connector (K female for UFX7240)
Dimensions 17 in. wide x 5.25 in.
high x 12.5 in. deep
Mounting Front panel handles
and fold-down feet
for bench mounting.
Brackets included for
19 in. rack mounting
Power 120 VAC, 60 Hz
(230 VAC, 50 Hz
optional)
Operating -10° to +65°C
temperature
Specifications subject to change without notice.
The UFX7000 Series noise generating
instruments are extremely easy to use,
combining dedicated keys for control of
operations and programming with a large
4 x 20 character LCD display for instant status
information. The instruments are direct
replacements for Noise Com's NC7000 Series
instruments.
The UFX7000
Series instru-
ments contain
a Noise Com
amplified
noise source
that is tuned
to provide
the best
flatness at the
instrument output.
The amplifier is opti-
mized to deliver an output
with a Gaussian amplitude distribution. Noise
output power level can be adjusted from 0 to
127 dB in 1 dB (optionally 0.1 dB) steps.
The output state is controlled by an RF switch.
In the standby state, the noise is terminated
into an RF load and in the “on” state it is
directed to the output connector.
The instrument's flexible architecture allows
many options to be specified:
Switched filter bank: Acts on noise and
allows up to four filters to be connected. The
filters can be specified in any combination
of bandpass, lowpass, highpass, or notch. A
thru line and set of terminations (RF loads) are
also included. If no filters are specified, filter
connections are supplied on the back panel.
Available on signal side also.
Output combiner: Allows the user to inject a
signal and add a controlled amount of noise.
Signal attenuator: Available in 0.1 or 1 dB
steps to 127 dB.
www.noisecom.com
9
To order call 201-261-8797
The instruments allow the noise attenuator, noise
filter, signal attenuator values, step size, and signal
filter setting to be selected in three ways: at the
front panel keypad, remotely via IEEE-488 bus, or
automatically under program control.
Every front panel operation except instrument
on/off is programmable. Programs are easily written
using the program key, and information on the
display guides the user through the next steps. Nine
user-created programs that contain subroutines,
delay times, and loops can be stored in non-volatile
memory.
Applications:
• Electromagnetic susceptibility
• Filter testing
• CATV gain (tilt) alignment
• Image and spurious rejection tests
• GPS receivers
• Disk drive testing
• Spectrum analyzer calibration
• Jamming systems
• Signal to noise measurement
Lab Windows Drivers available
from National Instruments
OPTIONS
Option Number Description
U7opt01 N female output connector
U7opt02 BNC female output connector
U7opt03 0 to 127.9 dB noise attenuator in 0.1 dB steps
instead of 127 dB in 1 dB steps
†
U7opt04 Switch elements, 2 X SP6T for 4 subband filters,
1 thrupath, 1 termination (filters are optional)
U7opt05 N/A
U7opt06 75 ohm output impedance (6 dB loss in the noise
path and 12 dB loss in the signal path)
U7opt07 Combiner for input signal (6 dB loss in noise and
signal paths)
U7opt08 Double output terminals (switched)
U7opt09 Special configuration
U7opt10 Line power 230 VAC, 50 Hz
U7opt11 RS-232C, RS-422, RS-423, in addition to standard
IEEE-488 interface
U7opt12 0 to 127 dB signal attenuator in 1 dB steps*
U7opt13 0 to 127.9 dB signal attenuator in 0.1 dB steps
†
U7opt14 Special frequency range (consult factory)
†
N/A for UFX7218 and UFX7240 (0 to 79.9 for UFX7124)
* U7opt07 must also be included when ordering this option,
0 to 79 dB above 2 GHz
UFX7000 SERIES
NOISE GENERATORS
UFX7100, UFX7200 SERIES
MODEL FREQUENCY OUTPUT CHARACTERISTICS
RANGE POWER (dBm) dBm/Hz FLATNESS(dB) µV/√Hz
UFX7101 10 Hz - 20 kHz + 13 -30 ±0.5 7071
UFX7103 10 Hz - 500 kHz +13 -44 ±0.5 1414
UFX7105 10 Hz - 10 MHz +13 -57 ±0.5 316
UFX7107 100 Hz - 100 MHz +13 -67 ±0.75 100
UFX7108 100 Hz - 500 MHz +10 -77 ±1.0 31.6
UFX7109 100 Hz - 1 GHz + 10 -80 ±1.5 22.4
UFX7110 100 Hz - 1.5 GHz +10 -82 ±1.5 18.2
UFX7111 1 GHz - 2GHz +10 -80 ±1.5 22.4
UFX7112 1 MHz - 2 GHz 0 -93 ±2.0 5.01
UFX7124 2 GHz - 4 GHz - 10 -103 ± 2.0 1.58
UFX7218 2 GHz - 18 GHz -20 -122 ± 2.0 0.18
UFX7240 2 GHz - 40 GHz -20 -126 ± 4.0 0.11
UFX7900 SERIES (1WATT OUTPUT)
MODEL FREQUENCY OUTPUT CHARACTERISTICS
RANGE POWER (dBm) dBm/Hz FLATNESS(dB)
UFX7903 500 Hz - 500 kHz + 30 -27 ± 2
UFX7905 500 Hz - 10 MHz + 30 - 40 ±2
UFX7907 250 kHz - 100 MHz +30 -50 ±2
UFX7908 1 MHz - 200 MHz + 30 -53 ± 2
UFX7909 1 MHz - 300 MHz + 30 -55 ± 2
UFX7910 2 MHz - 500 MHz + 30 -57 ± 2
UFX7911 5 MHz - 1 GHz + 30 -60 ± 3
