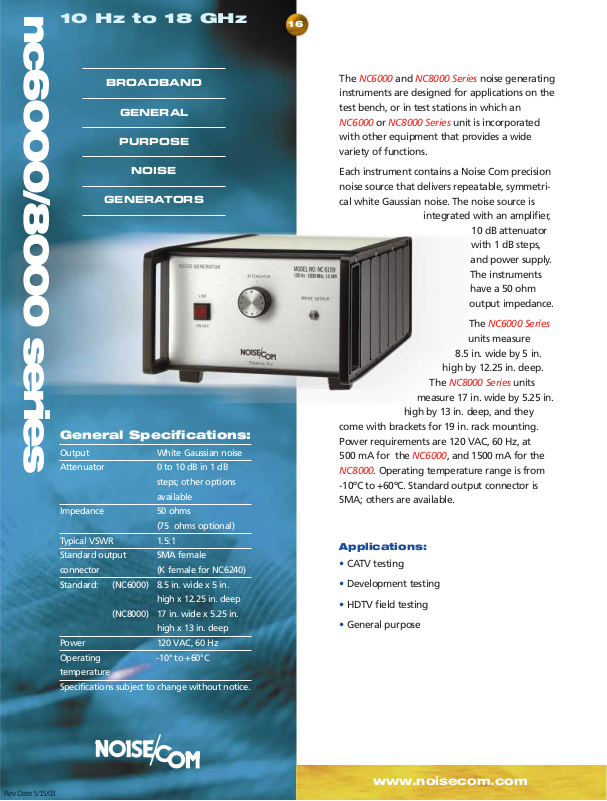

10 Hz to 18 GHz
BROADBAND
GENERAL
PURPOSE
NOISE
GENERATORS
General Specifications:
Output White Gaussian noise
Attenuator 0 to 10 dB in 1 dB
steps; other options
available
Impedance 50 ohms
(75 ohms optional)
Typical VSWR 1.5:1
Standard output SMA female
connector (K female for NC6240)
Standard: (NC6000) 8.5 in. wide x 5 in.
high x 12.25 in. deep
(NC8000) 17 in. wide x 5.25 in.
high x 13 in. deep
Power 120 VAC, 60 Hz
Operating -10° to +60°C
temperature
Specifications subject to change without notice.
The NC6000 and NC8000 Series noise generating
instruments are designed for applications on the
test bench, or in test stations in which an
NC6000 or NC8000 Series unit is incorporated
with other equipment that provides a wide
variety of functions.
Each instrument contains a Noise Com precision
noise source that delivers repeatable, symmetrical white Gaussian noise. The noise source is
integrated with an amplifier,
10 dB attenuator
with 1 dB steps,
and power supply.
The instruments
have a 50 ohm
output impedance.
The NC6000 Series
units measure
8.5 in. wide by 5 in.
high by 12.25 in. deep.
The NC8000 Series units
measure 17 in. wide by 5.25 in.
high by 13 in. deep, and they
come with brackets for 19 in. rack mounting.
Power requirements are 120 VAC, 60 Hz, at
500 mA for the NC6000, and 1500 mA for the
NC8000. Operating temperature range is from
-10ºC to +60ºC. Standard output connector is
SMA; others are available.
Applications:
• CATV testing
• Development testing
• HDTV field testing
• General purpose
16
www.noisecom.com
nc6000/8000 series
Rev Date 5/15/03
17
To order call 201-261-8797
NC6000/8000 SERIES
NOISE GENERATORS
NC8000 SERIES, +30 dBm (1 WATT) OUTPUT
MODEL FREQUENCY OUTPUT (dBm/Hz) FLATNESS(dB)
RANGE
NC8103 500 Hz - 500 kHz -27 ±2.0
NC8105 500 Hz - 10 MHz -40 ±2.0
NC8107 250 kHz - 100 MHz -50 ±2.0
NC8108 1 MHz - 200 MHz -53 ±2.0
NC8109 1 MHz - 300 MHz -55 ±2.0
NC8110 2 MHz - 500 MHz -57 ±2.0
NC8111 5 MHz - 1 GHz -60 ±2.5
NC6000 SERIES
MODEL FREQUENCY OUTPUT CHARACTERISTICS
RANGE POWER (dBm) dBm/Hz FLATNESS (dB) µV/?Hz
NC6101 10 Hz - 20 kHz +13 -30 ±0.5 7071
NC6103 10 Hz - 500 kHz +13 -44 ±0.5 1414
NC6105 10 Hz - 10 MHz +13 -57 ±0.75 316
NC6107 100 Hz - 100 MHz +13 -67 ±1.0 100
NC6108 100 Hz - 500 MHz +10 -77 ±1.5 31.6
NC6109 100 Hz - 1 GHz +10 -80 ±2.0 22.4
NC6110 100 Hz- 1.5 GHz +10 -82 ±2.0 18.2
NC6111 1 GHz - 2 GHz +10 -80 ±2.0 22.4
NC6112 1 MHz - 2 GHz 0 -93 ±2.0 5.01
NC6124 2 GHz - 4 GHz -10 -106 ±2.0 1.58
NC6126 2 GHz - 6 GHz -15 -113 ±2.0 0.50
NC6218 2 GHz - 18 GHz -20 -122 ±3.0 0.18
OPTIONS
Option Number Description
NC6opt01 NC8opt01 100 dB attenuator in 10 dB steps instead of
standard 10 dB attenuator in 1 dB steps*
NC6opt02 NC8opt02 110 dB attenuator in 1 dB steps (two attenuators)**
NC6opt03 NC8opt03 Line power 230 VAC, 50 Hz
NC6opt04 NC8opt04 Combiner for input signal
(Loss of 6 dB in noise and signal paths)
NC6opt05 NC8opt05 N/A
NC6opt06 N/A 19 in. rack mountable unit,
17 in. wide by 3.5 in. high by 13 in. deep
†
NC6opt07 NC8opt07 N female output connector
NC6opt08 NC8opt08 BNC female output connector
NC6opt09 NC8opt09 75 ohm output impedance (6 dB loss)
NC6opt10 NC8opt10 Additional 1 dB attenuator in 0.1 dB steps
(was option #4 for the NC8000 Series)
(N/A for NC6124, NC6218 and NC6240)
*60 dB for NC6214 and NC6218
**69 dB for NC6214 and NC6218
†
NC8000 Series is rack mountable only with 5.25 inch height
Rev Date 5/15/03
