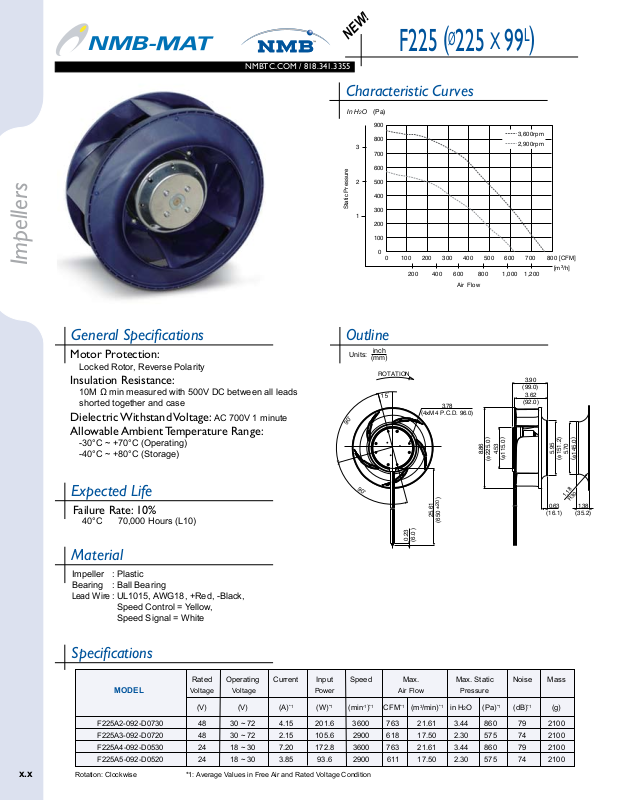

Impellers
(Pa)In H2O
Static Pressure
0
80 00
Air Flow
[m
3
/h]
[CFM]
800 1,000 1,200600400200
1
2
3
100
200
300
400
500
600
700
800
900
100 200 300 400 500 600 700
3,600rpm
2,900rpm
1.38
(35.2)
0.63
(16.1)
3.90
(99.0)
3.62
(92.0)
3.78
(4xM4 P.C.D. 96.0)
15˚
90˚
90˚
0.23
(
6.0
)
25.61
(
650
±
20
)
4.53
(
F115.0
)
8.86
(
F225.0
)
5.70
(
F145.0
)
5.95
(
F151.2
)
1.18
R30
ROTATION
NMBTC.COM / 818.341.3355
NEW!
F225
Ø
(
225
Characteristic Curves
X
99
L
)
1.7
x.x
General Specications
Motor Protection:
Outline
inch
Units:
(mm)
Locked Rotor, Reverse Polarity
Insulation Resistance:
10MΩminmeasuredwith500VDCbetweenallleads
shorted together and case
Dielectric Withstand Voltage: AC 700V 1 minute
Allowable Ambient Temperature Range:
-30°C ~ +70°C (Operating)
-40°C ~ +80°C (Storage)
Expected Life
Failure Rate: 10%
40°C 70,000 Hours (L10)
Material
Impeller : Plastic
Bearing : Ball Bearing
Lead Wire
Speed Control = Yellow,
Speed Signal = White
Specications
Rotation: Clockwise *1: Average Values in Free Air and Rated Voltage Condition
: UL1015, AWG18, +Red, -Black,
Rated Operating Current Input Speed Max. Max. Static Noise Mass
MODEL Voltage Voltage Power Air Flow Pressure
F225A2-092-D0730 48 30 ~ 72 4.15 201.6 3600 763 21.61 3.44 860 79 2100
F225A3-092-D0720 48 30 ~ 72 2.15 105.6 2900 618 17.50 2.30 575 74 2100
F225A4-092-D0530 24 18 ~ 30 7.20 172.8 3600 763 21.61 3.44 860 79 2100
F225A5-092-D0520 24 18 ~ 30 3.85 93.6 2900 611 17.50 2.30 575 74 2100
(V) (V) (A)
*1
(W)*1 (min-1)
*1
CFM
*1
(m3/min)
*1
in H2O (Pa)*1 (dB)*1 (g)
